HR шаровая мельница производитель мини шаровая мельница используется шаровая мельница для продажи
697 242,84 ₽ - 708 086,43 ₽

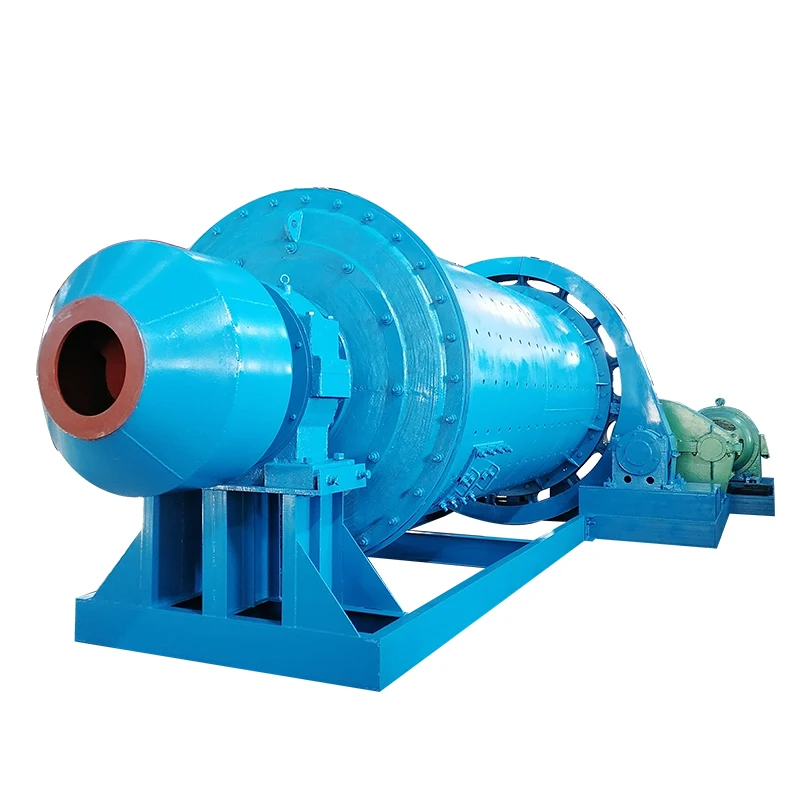

Фабрика Китая 900x1800 мини небольшая Лабораторная шаровая мельница шлифовальная машина для добычи золотой руды цена
- Категория: >>>
- Поставщик: Henan Ruida Machinery Equipment Co. Ltd.
Сохранить в закладки 1601157559287:
Описание и отзывы
Характеристики
China Factory 900x1800 Mini Small Laboratory Ball Mill Grinding Machine for Gold Ore Mining Price
My WhatsApp or Wechat:0086-1553 7188 625
1. Flexible DesignThe design of discharge is flexible and discharge port is reasonable, can choose iron remover according to needs.
2. Stable Gears
It adopts the unique small gear to drive the big gear, which makes the operation more stable.
3. Large Feeding
The feeding volume of the feeding part is large, and the reasonable design of the feeding port increases the feeding volume.
4. Closed Systems
The closed system is adopted to reduce the dust. The closed system is formed by the ultra-fine ball mill and the classifier.
Materials
Cement raw material,clinker,desulphurization limestone powder in power plant,slag powder,manganese ore,gypsum,coal,barite,
calcite,bauxite,etc.
Work Principle

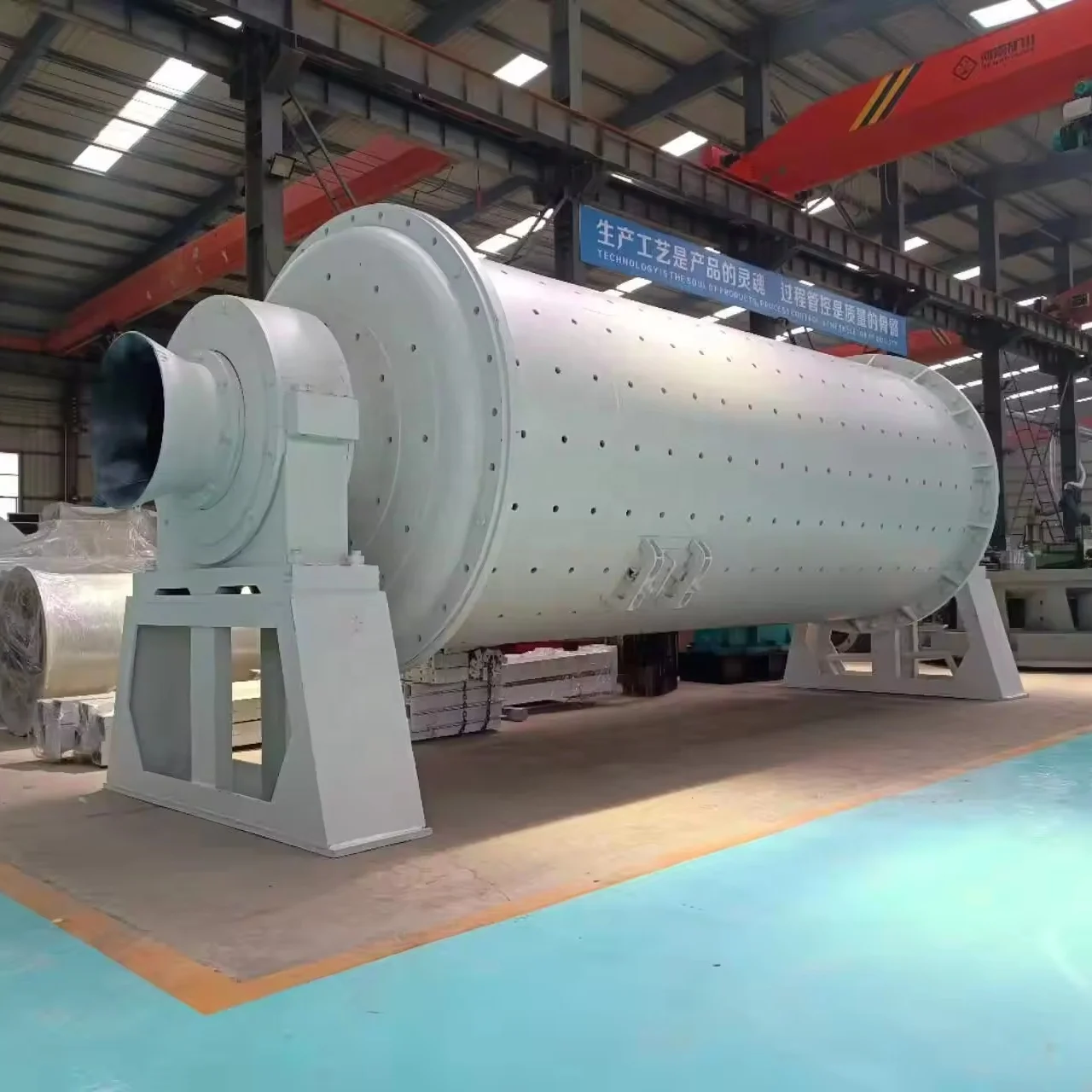

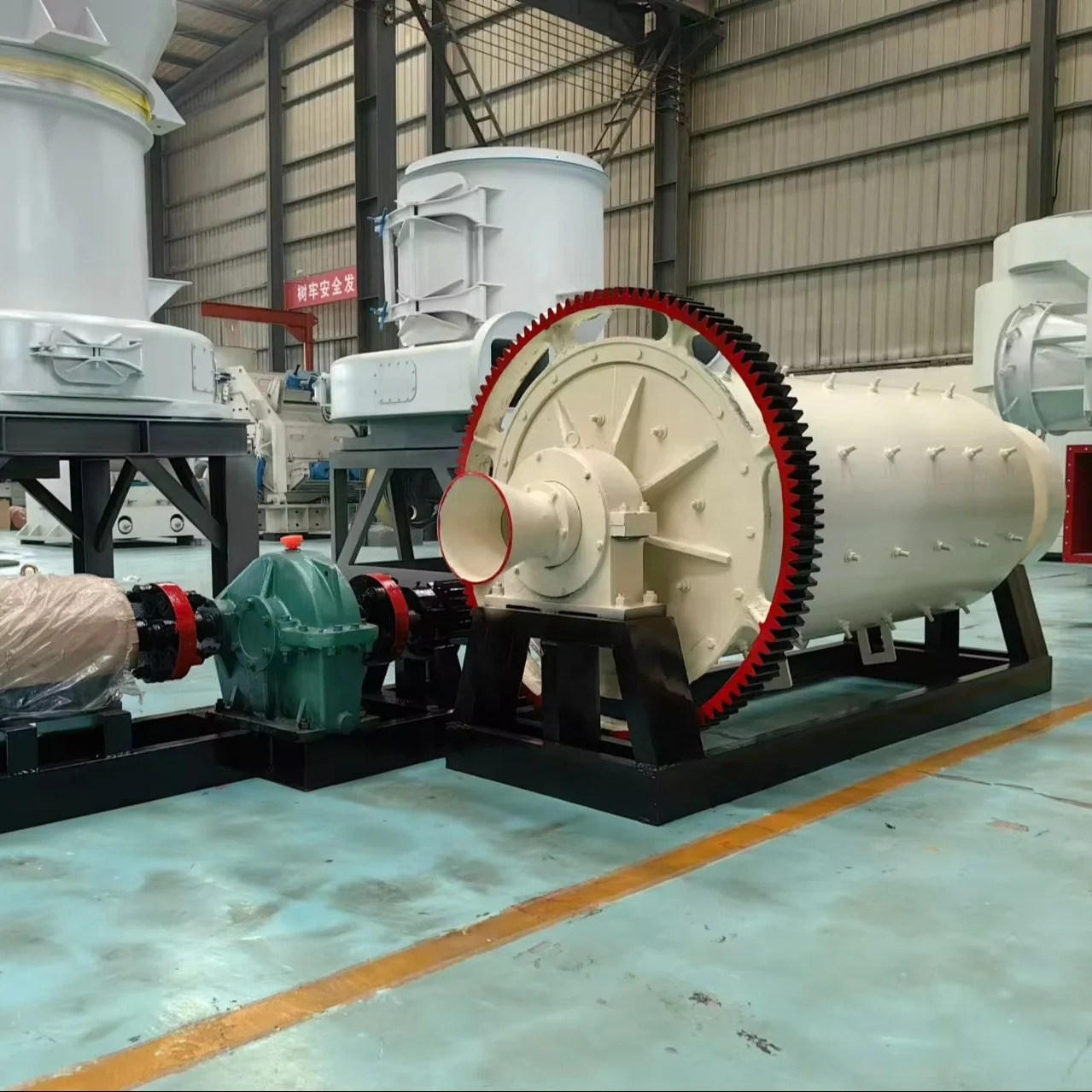

Ball mill grinding machine is a kind of horizontal drum-type grinding mill with external gear and double bins. Materials goes evenly through quill shaft in feeding device into the first bin, which has ladder lining or ripple lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical Parameters
Model | Rotary Speed(r/min) | Ball Weight(t) | Feeding Size(mm) | Output Size(mm) | Capacity(t/h) | Power(kw) | Weight(t) |
Φ900x3000 | 35.6 | 2.4 | ≤25 | 0.075-0.89 | 0.8-2.5 | 22 | 5.3 |
Φ1200x3000 | 32.4 | 4.5 | ≤25 | 0.074-0.4 | 1.6-3 | 37 | 12.1 |
Φ1200x4500 | 32.4 | 7 | ≤25 | 0.074-0.4 | 1.83-3.9 | 55 | 13.1 |
Φ1500x3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2.8-4 | 75 | 14.8 |
Φ1500x4500 | 29.7 | 11 | ≤25 | 0.074-0.4 | 4.8-7 | 110 | 19.9 |
Φ1500x5700 | 29.7 | 14 | ≤25 | 0.074-0.4 | 5-8 | 130 | 23.4 |
Φ1500x7000 | 29.7 | 17 | ≤25 | 0.074-0.4 | 6-8 | 155 | 27.5 |
Φ1830x3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4.5-10.5 | 130 | 26.6 |
Φ1830x4500 | 25.4 | 17 | ≤25 | 0.074-0.4 | 6.8-11.5 | 155 | 30.4 |
Φ1830x6400 | 25.4 | 24 | ≤25 | 0.074-0.4 | 7-12 | 210 | 32.3 |
Φ1830x7000 | 25.4 | 26 | ≤25 | 0.074-0.4 | 7.8-13.8 | 245 | 34.2 |
Φ2100x3000 | 24.9 | 15 | ≤25 | 0.074-0.4 | 5.8-14 | 210 | 32.3 |
Φ2100x4500 | 24.9 | 23 | ≤25 | 0.074-0.4 | 9.5-18 | 245 | 40 |
Φ2400x3000 | 20.8 | 20 | ≤25 | 0.074-0.4 | 7.8-18 | 245 | 51.3 |
Φ2400x4500 | 20.8 | 30 | ≤25 | 0.074-0.4 | 13.7-28 | 380 | 63.7 |
Φ2700x4000 | 19.5 | 34 | ≤25 | 0.074-0.4 | 15-28 | 475 | 89 |
Φ2700x4500 | 19.5 | 39 | ≤25 | 0.074-0.4 | 16.5-36 | 475 | 97 |
Spare Parts of Grinding Mill
big gear
reducer
liner
small gear
Henan Ruida Machinery Equipment Co., Ltd. was founded in 2006. it is a technology innovation enterprise that mainly produces crushing,grinding and drying equipment and integrates R&D,production and sales. The company is located in the hinterland of China, Zhengzhou City, which is the national transportation hub and the geographical position is superior. Our products are widely used in mining, metallurgy, chemical industry, building materials, refractory and other industries. What users need is exactly what we strive to create; Customer satisfaction is what we always pursue. The company has always believed that products are the core competitiveness of enterprises, quality is the eternal lifeline of enterprises, and service is the second vitality of enterprises.
Maybe you are interested in MORE+
Maybe you are interested in MORE+
1. Are you manufacture or trading company?
We are factory, established in 2006.
2.why should you buy from us not from other suppliers?
>>> factory sell directly
>>> 20+ years experience, professional
>>> Sales market all over the world
>>> good pre-sales and after sales serive
3. How long is the warranty? Does your company supply the spare parts?
12 months.Spare parts for you at lowest cost.
4.what can you buy from us?
Raymond Mill,High Pressure Grinding Mill,Ultrafine Mill,Ball Mill,Jaw Crusher,Hammer Crusher
5.If I need the complete grinding plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice.
We are factory, established in 2006.
2.why should you buy from us not from other suppliers?
>>> factory sell directly
>>> 20+ years experience, professional
>>> Sales market all over the world
>>> good pre-sales and after sales serive
3. How long is the warranty? Does your company supply the spare parts?
12 months.Spare parts for you at lowest cost.
4.what can you buy from us?
Raymond Mill,High Pressure Grinding Mill,Ultrafine Mill,Ball Mill,Jaw Crusher,Hammer Crusher
5.If I need the complete grinding plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice.
