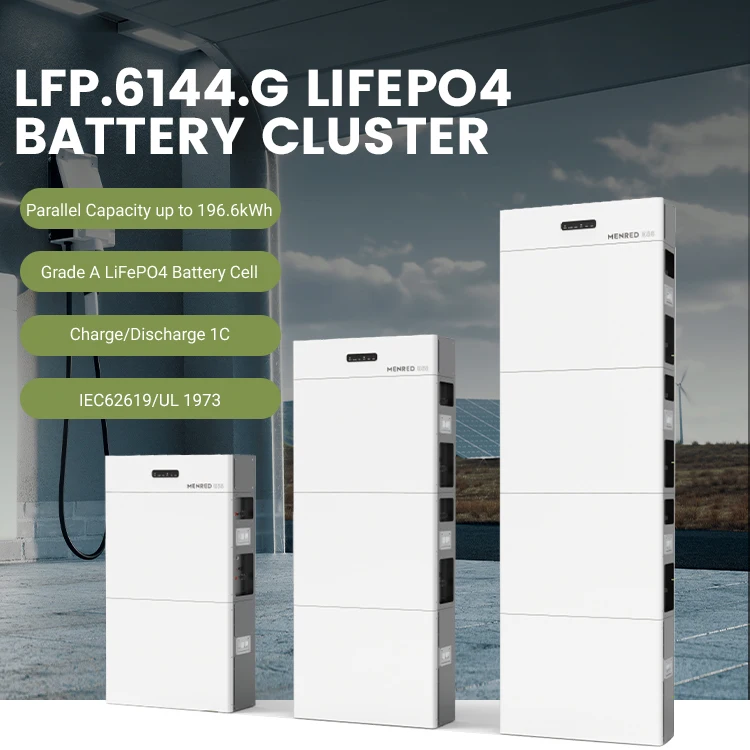

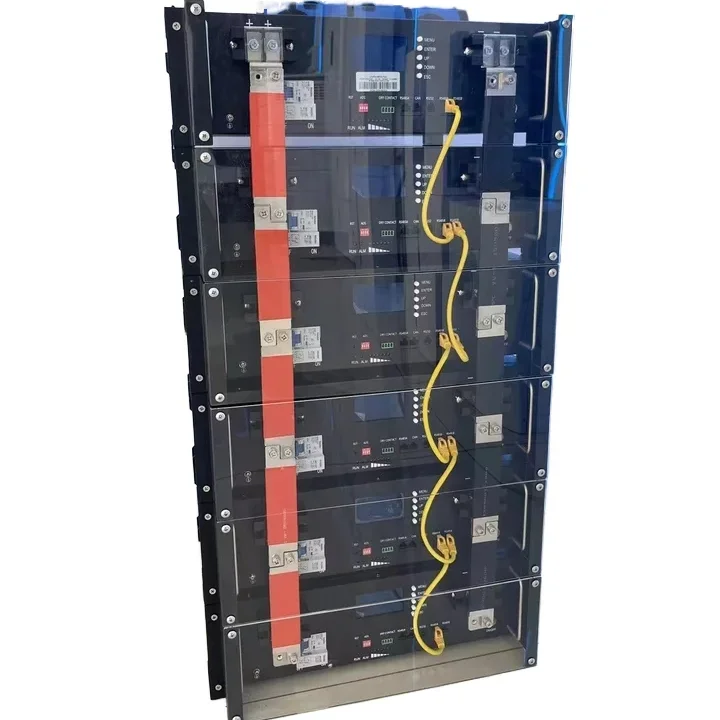

Аккумулятор высокого напряжения для солнечной энергии, 100 А · ч, 5, 12 кВтч
82 920,20 ₽ - 85 873,82 ₽
Литий ионный аккумулятор Lifepo4 10 кВт 12 кВтч 6000 срок службы модуль Us2000 лет войны
- Категория: >>>
- Поставщик: Menred Ess Co. Ltd.
Сохранить в закладки 1601157653635:
Описание и отзывы
Характеристики
MENRED ESS is committed to using freshly produced LiFePO4 cells, ensuring that the entire process from cell production to assembly into battery PACKs is strictly controlled within 90 days. This approach consistently maintains the cells at their best in terms of performance, reliability, and long-term stability.
Products Description
Model | LFP.6144 .G2 | LFP.6144 .G3 | LFP.6144.G4 | ||
Battery Cell | Lithium Iron Phosphate (cobalt-free)-LiFePO4 | ||||
Energy Capacity | 12.28kWh | 18.43kWh | 24.57kWh | ||
Usable Capacity | 11.66kWh（DoD 95%） | 17.50kWh（DoD 95%） | 23.34kWh（DoD 95%） | ||

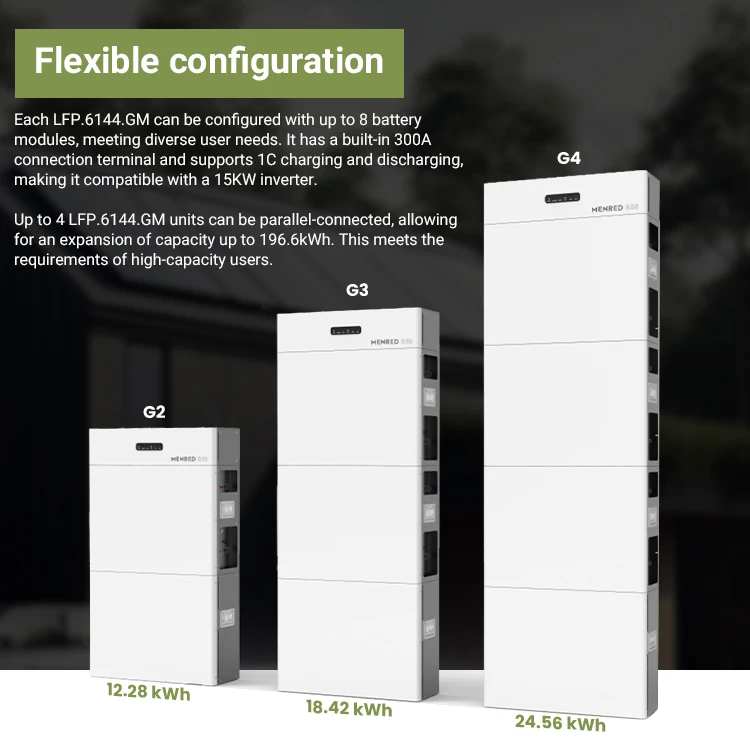

Assembly method | 1 Parallel Control Box and 2 Battery Packs | 1 Parallel Control Box and 3 Battery Packs | 1 Parallel Control Box and 4 Battery Packs | ||
Nominal Voltage | 51.2Vdc | ||||
Operate Voltage Range | 44.8Vdc-57.6Vdc | ||||
Max Charge Current | 300Amp Max@15kW inverter | ||||
Max Discharge Current | 300Amp Max@15kW Grid or PV Charge | ||||
Max Parallel | 4PCS to 49.12kWh | 4PCS to 73.72kWh | 4PCS to 98.28kWh | ||
Cycle Life | ≥6000times @ 1C 0.5C & 25±2°C | ||||
Operate Temperature | Battery discharge:-10°C to +50°C, Battery Charge: 0°C to +50°C | ||||
Warranty | 5Years/10Years(Option) | ||||
IP Grade | IP21（Indoor） | ||||
Installation | Floor Stand Installation | ||||
Communication Port | CAN/RS485 | ||||
BMS Monitoring | SOC, System Voltage, I/O Current, Cell Voltage, Cell Temp, Battery Status, Fault code | ||||
Support Inverter Brands | CAN: Victron V1.0/SMA V2.0/ Studer V1.03/CNBOU V1.0/ PYLON V1.3/Goodwe V1.5/SUNGROW V1.3/Solis V1.0/ SOFAR V1.0/Growatt V1.05/Growatt V1.01/Luxpower V1.0/ Sol-Ark V1.2/TBB V1.02/Deye V1.0/LIVOLTEK V1.0/ Sorotec V1.0/MEGAREVO V1.01/Afore V1.0/Sacolar V1.05 RS 485: PYLON V3.5/DEYE V1.0/SRNE V1.3/Growatt V2.01/ SMKSOLAR V2.01/EPEVER V1.4/Voltronic V1.0 | ||||
Products Size(W*D*H) | 600*1010*210 mm | 600*1440*220mm | 600*1870*220mm | ||
Weight | 140kg | 205kg | 270kg | ||
Warranty | 5Years/10Years(Option) | ||||
Optimized structural safety
The unique design of integrated plastic fixed modules ensures a gap of 7mm between battery cells. Ensure sufficient and uniform heat dissipation space during full load charging and discharging to avoid rapid aging and cell swelling caused by insufficient heat dissipation at the battery center. Reduce risks of battery short circuits and overheating.
Efficient laser welding
Using aluminum connection straps that are three times the rated current to reduce series losses and heat generation between battery cells. The laser seamless integrated automation production line welding ensures the reliable connection of battery cells, avoiding the risk of detachment and false welding caused by inaccurate welding point positioning.
Comprehensive protection BMS
The battery protection system with up to 115 sensing protections provides comprehensive protection for battery cells. It has a passive balancing function that automatically balances the cells when charging or discharging to their limits, ensuring a high level of cell consistency. This helps maintain the overall battery performance with minimal degradation.
Unique connection design
The unique connection design includes a hot-pluggable interface and a concealed top and bottom entry/exit terminal. It features compatibility for both wall mounting and stacking, offering a space-saving and easy
installation solution. It supports parallel connection of up to 16 battery modules, allowing the energy storage system to expand up to 98.3 kWh capacity.
installation solution. It supports parallel connection of up to 16 battery modules, allowing the energy storage system to expand up to 98.3 kWh capacity.
Support Inverter Brands
EVERY battery will undergo a cycle test, including full charge and discharge to test its protective performance. All data will be
saved in the system.
THE batteries from the same batch are compared through curve analysis to ensure a high level of consistency for each battery
PERFORMING operational simulation experiments to simulate real-life usage scenarios and validate battery performance.
Company Profile
MENRED Group was founded in 1995 and is an industrial cluster that manufactures a full range of products including heat pump air conditioning, radiant heating and cooling, energy recovery ventilation, water purification, smart home, and energy storage systems.
MENRED Group is a partner of the “Future Building” National Key Laboratory and its manufacturing facilities are certified by
Electrolux, a Fortune Global 500 company based in Sweden.
Electrolux, a Fortune Global 500 company based in Sweden.
Zero Energy Housing Research Institute
Lingkundao Green Building Industrial Park
Jiaxing Environmental Tech Industrial Park
Dongguan Heat Pump&AC Industrial Park
Product packaging
FAQ
Q: Quality Assurance and Technical Support Policy
A: We proudly offer the most reliable and high-quality products on the market. Each battery is meticulously designed and rigorously tested to ensure it meets the highest standards when delivered to our customers. This commitment to quality means that our products rarely encounter issues under normal operating conditions, thereby minimizing your maintenance needs and potential operational risks.
We encourage you to first contact the authorized dealer in your area. They will provide you with fast, professional support and any necessary replacement services. In regions where we have yet to establish dealerships, we offer advanced remote technical support. Through the Zoho Lens platform, our technical experts can remotely diagnose issues using AR (Augmented Reality) technology and guide you or your team through troubleshooting and necessary repairs.
Q: How is the compatibility of the batteries?
A: Our batteries are compatible with most of the popular inverters available in the market, through CAN or Modbus communication. If you don't find your inverter brand on our list, provide us with the communication protocol of your inverter, and we will upgrade our system to support your device. You can select the corresponding communication protocol on the LCD.
Q: Are the lithium batteries of MENRED ESS safe?
A: MENRED ESS exclusively uses LiFePO4 battery cells, which, compared to other types of lithium batteries, offer higher thermal stability. In cases of overcharging or short-circuit protection, these batteries do not catch fire or explode. Under 25-degree Celsius conditions and with 0.5C charge-discharge rates, their cycle life exceeds 6000 cycles. They are free from cobalt and cadmium, have a relatively low self-discharge rate, and provide stable voltage and current output performance.
Q: What special requirements are needed for the installation and maintenance of the product?
A: The LiFePO4 batteries of MENRED ESS are meticulously structured for ease of installation. With over a decade of experience in installing off-grid inverters, we have designed the installation process to be extremely convenient for users. No special tools are required, allowing for a straightforward and complete setup.
Q: Do you offer OEM and ODM customization services?
A: Yes, we have a comprehensive technical development team, including hardware engineers, software engineers, and structural
engineers. We design products based on your requirements, with our testing team performing the final validation. Generally, such
services require a minimum purchase of over 300 units, and customers are responsible for covering the costs of molds,
certifications, and other related expenses.
A: We proudly offer the most reliable and high-quality products on the market. Each battery is meticulously designed and rigorously tested to ensure it meets the highest standards when delivered to our customers. This commitment to quality means that our products rarely encounter issues under normal operating conditions, thereby minimizing your maintenance needs and potential operational risks.
We encourage you to first contact the authorized dealer in your area. They will provide you with fast, professional support and any necessary replacement services. In regions where we have yet to establish dealerships, we offer advanced remote technical support. Through the Zoho Lens platform, our technical experts can remotely diagnose issues using AR (Augmented Reality) technology and guide you or your team through troubleshooting and necessary repairs.
Q: How is the compatibility of the batteries?
A: Our batteries are compatible with most of the popular inverters available in the market, through CAN or Modbus communication. If you don't find your inverter brand on our list, provide us with the communication protocol of your inverter, and we will upgrade our system to support your device. You can select the corresponding communication protocol on the LCD.
Q: Are the lithium batteries of MENRED ESS safe?
A: MENRED ESS exclusively uses LiFePO4 battery cells, which, compared to other types of lithium batteries, offer higher thermal stability. In cases of overcharging or short-circuit protection, these batteries do not catch fire or explode. Under 25-degree Celsius conditions and with 0.5C charge-discharge rates, their cycle life exceeds 6000 cycles. They are free from cobalt and cadmium, have a relatively low self-discharge rate, and provide stable voltage and current output performance.
Q: What special requirements are needed for the installation and maintenance of the product?
A: The LiFePO4 batteries of MENRED ESS are meticulously structured for ease of installation. With over a decade of experience in installing off-grid inverters, we have designed the installation process to be extremely convenient for users. No special tools are required, allowing for a straightforward and complete setup.
Q: Do you offer OEM and ODM customization services?
A: Yes, we have a comprehensive technical development team, including hardware engineers, software engineers, and structural
engineers. We design products based on your requirements, with our testing team performing the final validation. Generally, such
services require a minimum purchase of over 300 units, and customers are responsible for covering the costs of molds,
certifications, and other related expenses.
Похожие товары
Литий-ионный аккумулятор 51,2 В Lifepo4
294 049,46 ₽ - 395 457,15 ₽

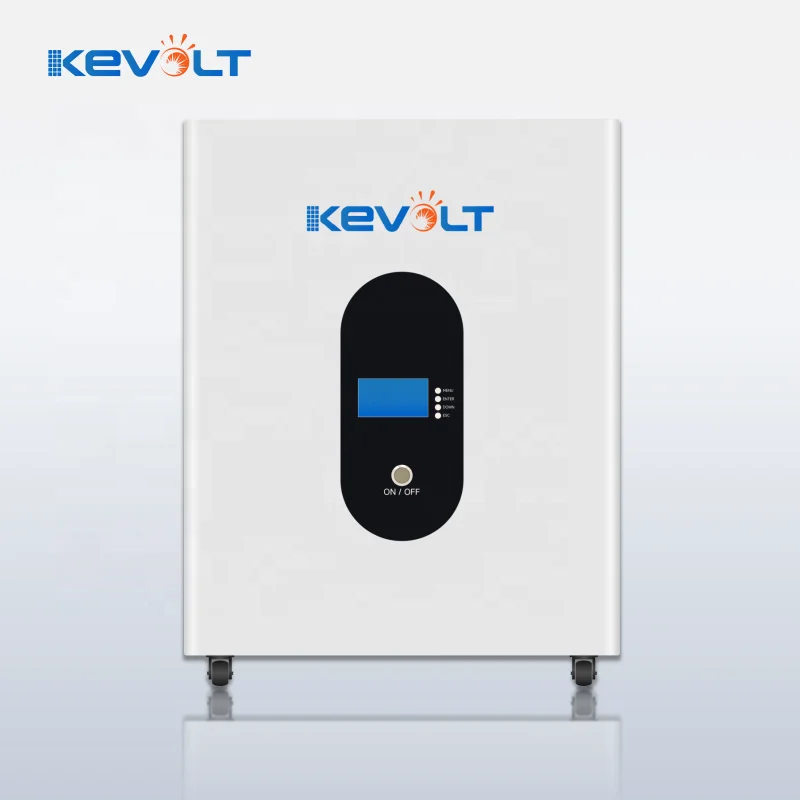

Заводская оптовая продажа, настенный срок службы lifepo4, 48 В, 100 А/ч, 5 кВтч, более 6000 раз
62 354,24 ₽ - 65 089,08 ₽
10 лет жизни дизайн 5 кВт 10 кВт 15 кВтч Солнечная аккумуляторная батарея Lifepo4 Солнечная 30 кВтч домашняя стойка с установкой энергии
39 272,24 ₽ - 60 056,98 ₽
300Ah литиевая солнечная батарея 15kWh напольная батарея Lifepo4 Мобильная 51,2 V домашняя система хранения энергии
105 892,82 ₽ - 160 589,52 ₽
48 В, 280 А · ч
31 724,09 ₽ - 45 945,23 ₽
Черный ABS 12V 280Ah 300Ah 320Ah Lifepo4 стеллажи для литиевых батарей
94 078,33 ₽ - 96 266,20 ₽

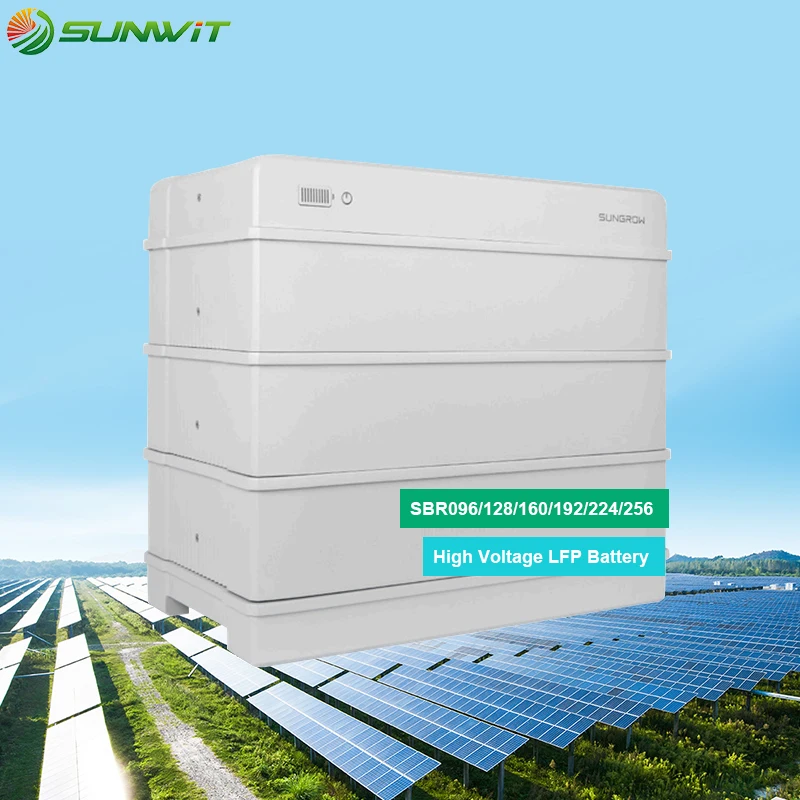

Солнечная батарея Sungrow Высокая вольт 20Kwh Sbr напряжение 380V 20 Kwh энергии SBR096/128/160/192/ 224/256
