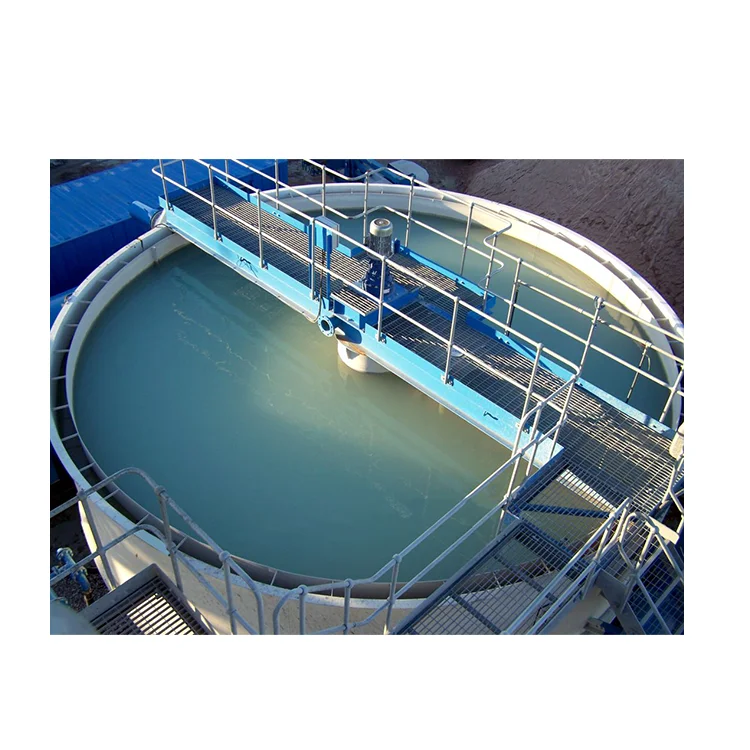

Энергосберегающий и высокоэффективный Горнодобывающий загуститель для переработки полезных ископаемых недорогой минеральных хвостохранилищ
53 618 067,60 ₽ - 54 824 200,00 ₽
Железные руды шлифовальные шаровые мельницы песок делая машину
- Категория: >>>
- Поставщик: Henan Yonghan Mechanical Equipment Co. Ltd.
Сохранить в закладки 1601158330709:
Описание и отзывы
Характеристики
Product Description

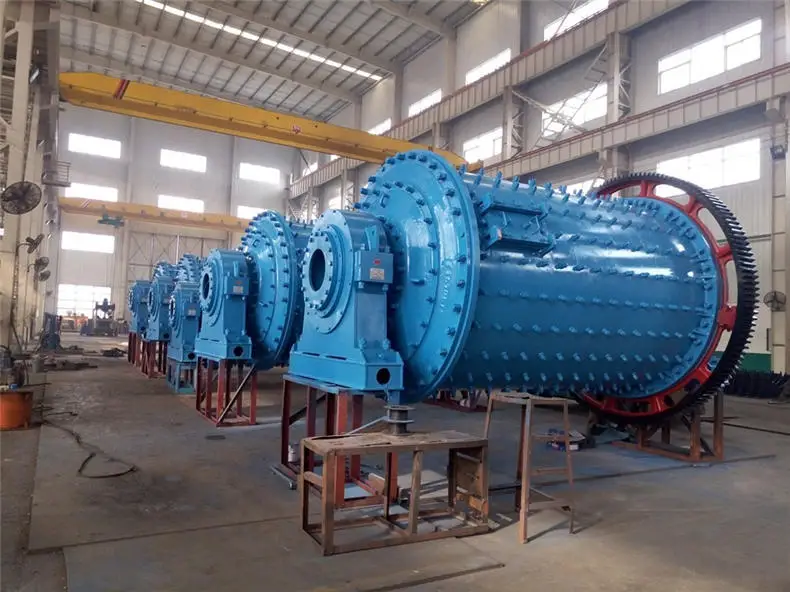

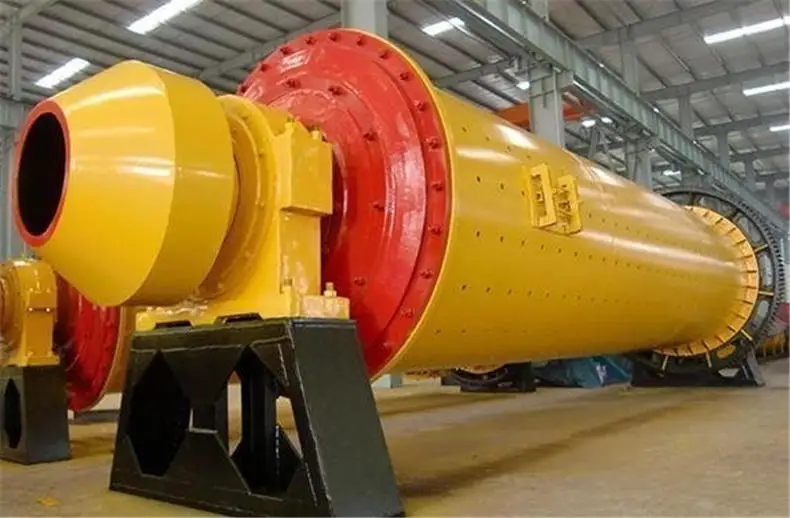

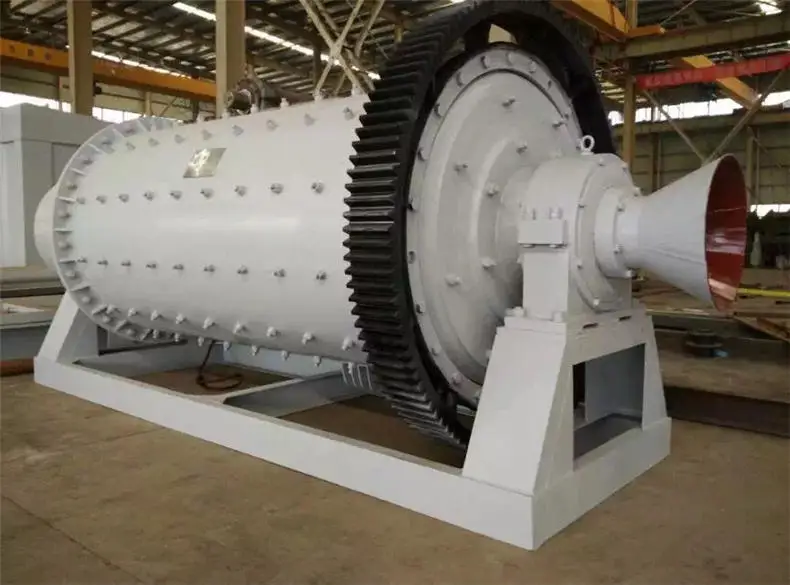

Ball Mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%.
2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.
3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.
4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.
1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%.
2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.
3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.
4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.
Specification
Model | Rotary Speed(r/min) | Weight of Inner Ball (t) | Feeding Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power(kw) | Weight (t) |
φ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
φ900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
φ1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
φ1200×3000 | 32 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
φ1200×4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
φ1500×3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
φ1500×4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
φ1500×5700 | 27 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
φ1830×3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
φ1830×6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
φ1830×7000 | 24 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
φ2200×5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
φ2200×6500 | 22 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
φ2200×7500 | 22 | 33 | ≤25 | 0.075-0.4 | 16-29 | 380 | 56 |
φ2200×9500 | 21 | 38 | ≤25 | 0.074-0.4 | 18-35 | 475 | 62 |
Packing & Delivery
Packaging:standard Container, Nude Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steelframe.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
Company Profile
Henan Yonghan mechanical Equipment Co., Ltd is a high-end equipment manufacturer.It is located in Zhengzhou High-tech Zone, is a high-end equipment manufacturing enterprise integrating scientific research, production management and sales. Main products are as follows :1.Crusher 2. Ball mill 3.Rotary dryer 4.Wet pan mill 5. Raymond mill 6. Shaking table 6. Centrifugal gold concentrator and so on, which are widely used in mine area and other engineering construction. We focus on technology innovation. In addition to introducing advanced technology at home and abroad, we also establish own research and development team which consists of senior engineers, five doctors and over 10 tech nical personnel. We have established research cooperation with Henan Polytechnic University, Central South University and other famous universities signed a strategic cooperation agreement.We have over 50 patents and 10 Mining Products Safety certificates,have been awarded national and municipal titles of honor for many times. We focus much on product quality. All products before delivery must pass strict inspection. We have set up a test and experimental base for products inspection and user training.We have established a complete sales and service system, including 24 hours online service, 48 hours technicians on-site service and regular maintenance for sold machines. Customer satisfaction is our eternal pursuit.We have established several subsidiaries and over 60 sales service centers in China now we have expanded business abroad. Yonghan people will carry forward the spirit of craftsmen, create high-quality products. Philosophy: People-oriented technology leading casting excellence Entrepreneurship:Innovation Dedicated to the pursuit of excellence Quality concept: high standard fine zero defect Service concept: attentive to our service concentrate on our profession Humanities philosophy: Germany as the first professional-based simple and pragmatic passion enterprising. After 15 years development, Yonghan has developed into a group company with over 20 kinds of products. In the coming days, people of Yonghan will make concerted effort to dedicate to building "Yonghan" into an international brand.Welcome you to visit us and Let us cooperate happily.
FAQ
1).MOQ require?
Our moq is 1 set.(If you need the spare parts,it is also ok).
2).Payment method?
Usually,we accept T/T,Western Union and others
3).How to guarantee the quality?
If any machine quality problems, we accept return cargos.
Our warrantity is 18 months, promise your 0 risks purchasing
4).Packing and Delivery
Standard export wooden case to protect the machine from demage.
If we have no stock, we will delivery within 7-20 working days.
5). How to place an order?
A:Inquiry ---------> Quotation -------->Price reasonable ------->Check with specification ----->Proforma Invoice sent
------------>Payment made -------> Producing the items ------->Product shipment -----------> Customer confirm
6).Is it possible to visit your factory?
A:Sure,welcome to visit our factory and we will pick you up at the airport or railway station and show you around our factory.
Our moq is 1 set.(If you need the spare parts,it is also ok).
2).Payment method?
Usually,we accept T/T,Western Union and others
3).How to guarantee the quality?
If any machine quality problems, we accept return cargos.
Our warrantity is 18 months, promise your 0 risks purchasing
4).Packing and Delivery
Standard export wooden case to protect the machine from demage.
If we have no stock, we will delivery within 7-20 working days.
5). How to place an order?
A:Inquiry ---------> Quotation -------->Price reasonable ------->Check with specification ----->Proforma Invoice sent
------------>Payment made -------> Producing the items ------->Product shipment -----------> Customer confirm
6).Is it possible to visit your factory?
A:Sure,welcome to visit our factory and we will pick you up at the airport or railway station and show you around our factory.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

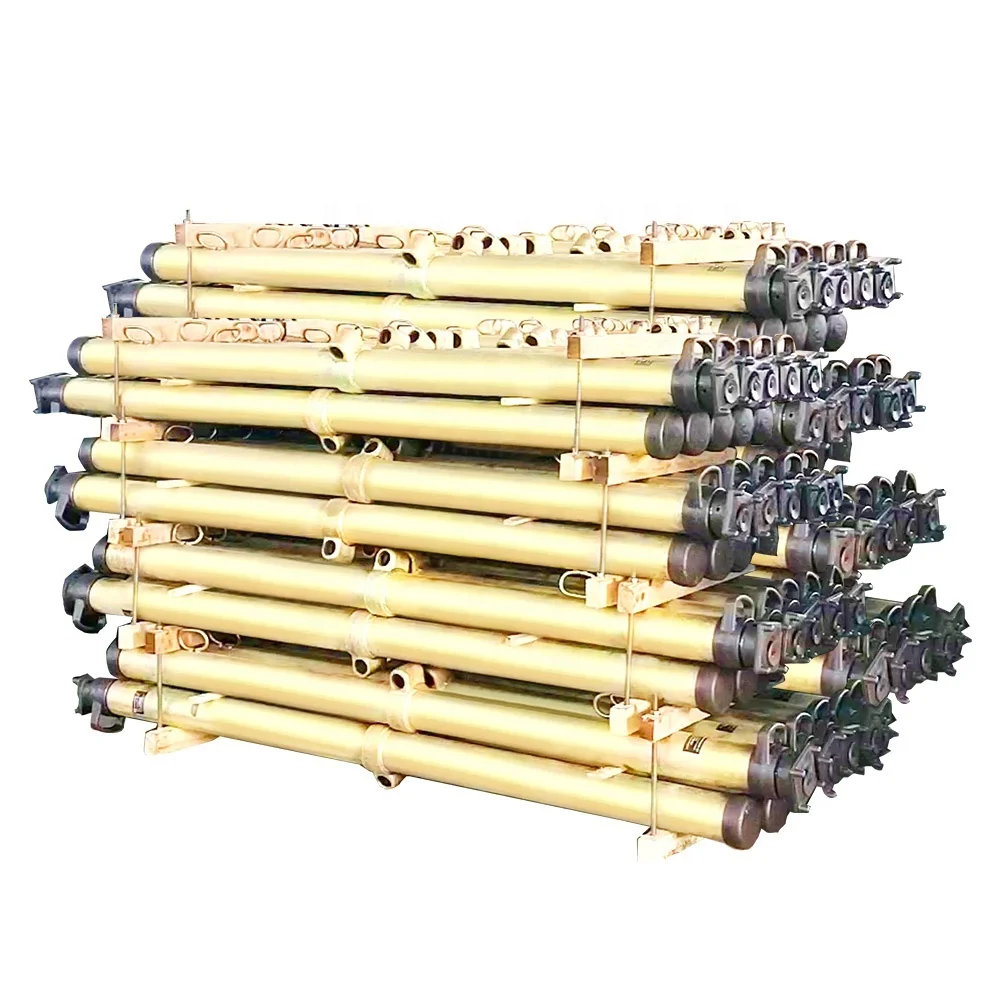

Гидравлический Пропеллер для добычи угля быстрая доставка в наличии прочный пропеллер Acrow
67 762,72 ₽ - 89 802,04 ₽

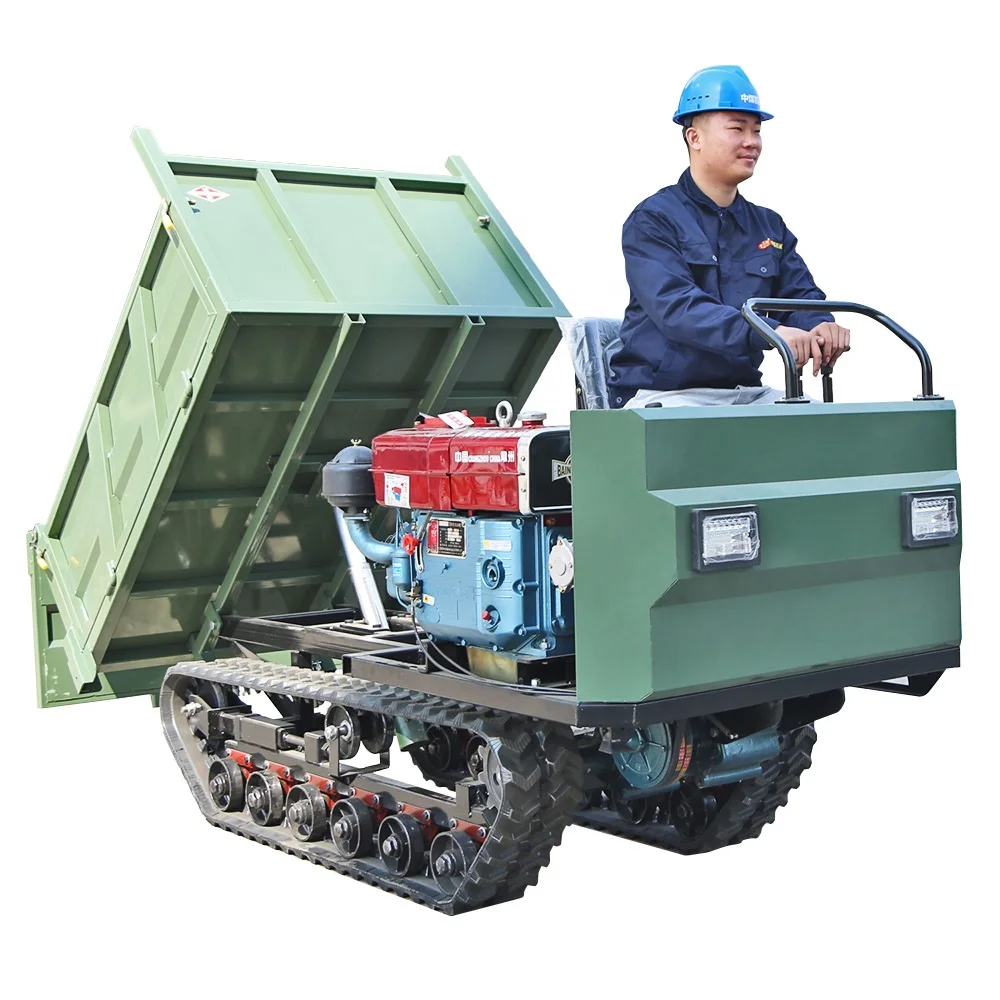

Несколько моделей самовыгрузка 1 8 T с подъемным мини-самосвалом гидравлические самосвалы бензиновым двигателем
175 437,44 ₽ - 241 226,48 ₽

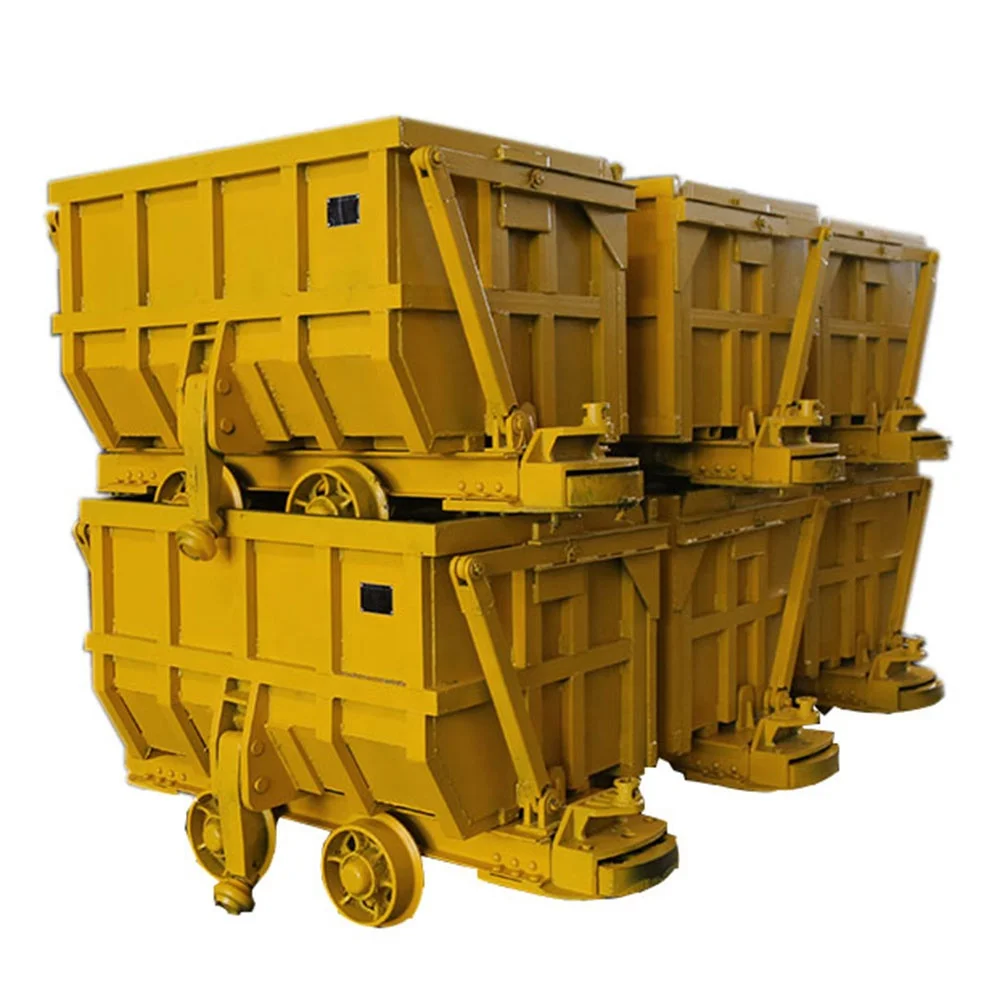

Боковая разгрузка шахтного автомобиля для прочной и малой потери прямые продажи с завода туннельная транспортировка руды
241 226,48 ₽ - 274 121,00 ₽

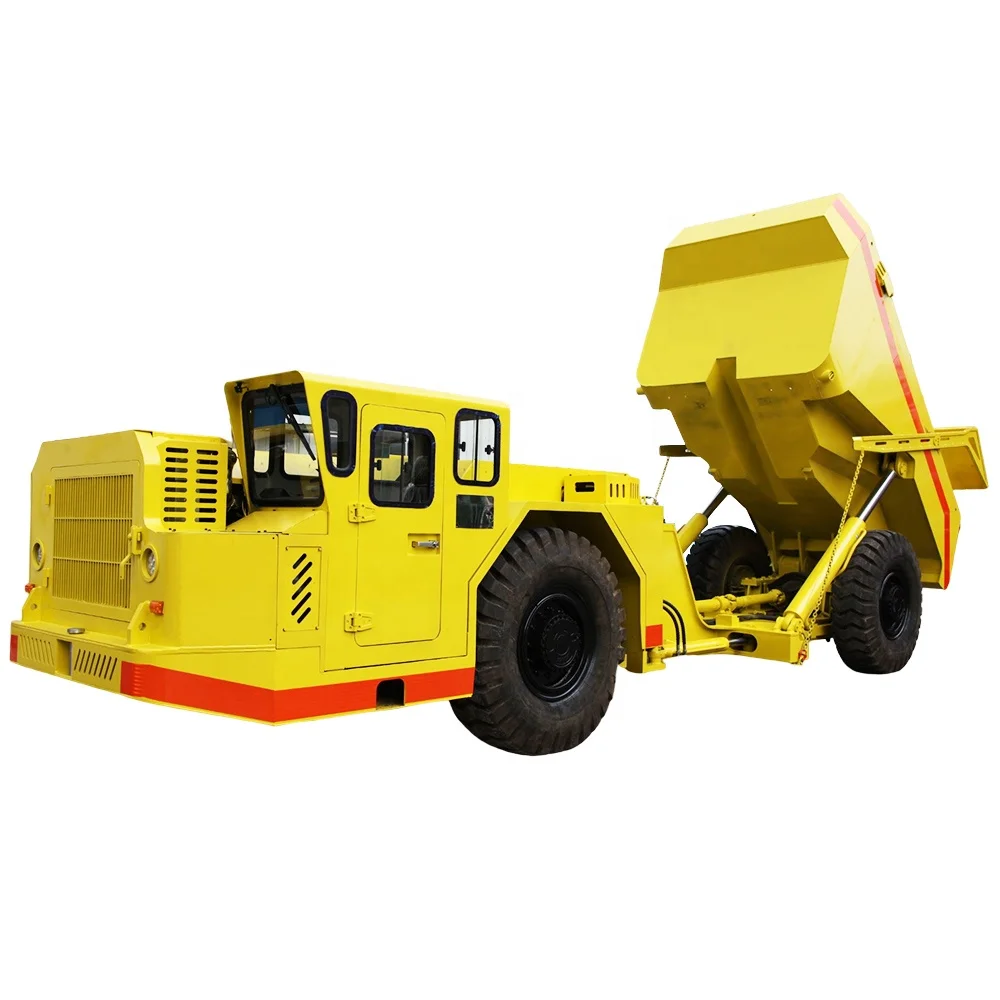

Грузовик для транспортировки угольной шахты транспортные средства горной промышленности 20 тонн подземный горный скребок
986 835,60 ₽ - 2 741 210,00 ₽

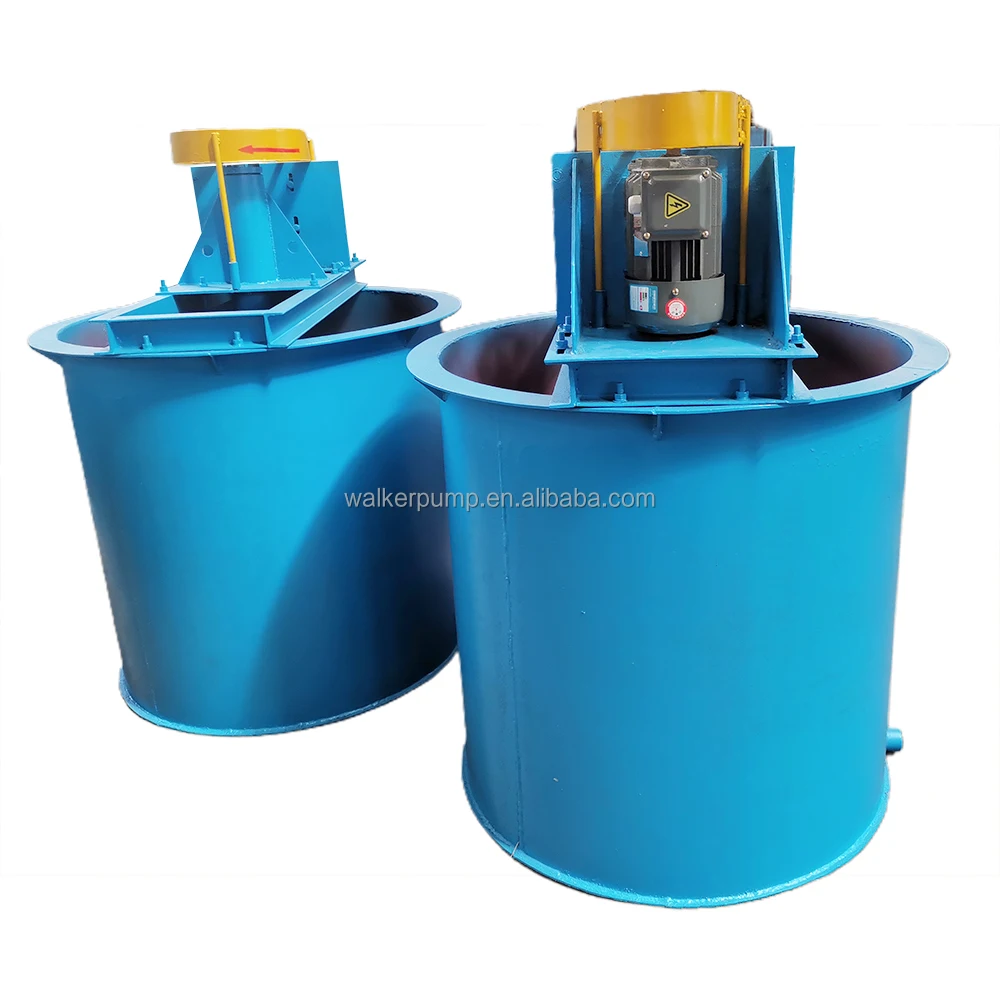

Горнодобывающий Высококонцентрированный смеситель для минерального выщелачивания золота
219 296,80 ₽ - 328 945,20 ₽
Набор вулканизаторов для ремонта ремней 1200 мм
471 488,12 ₽ - 1 074 554,32 ₽

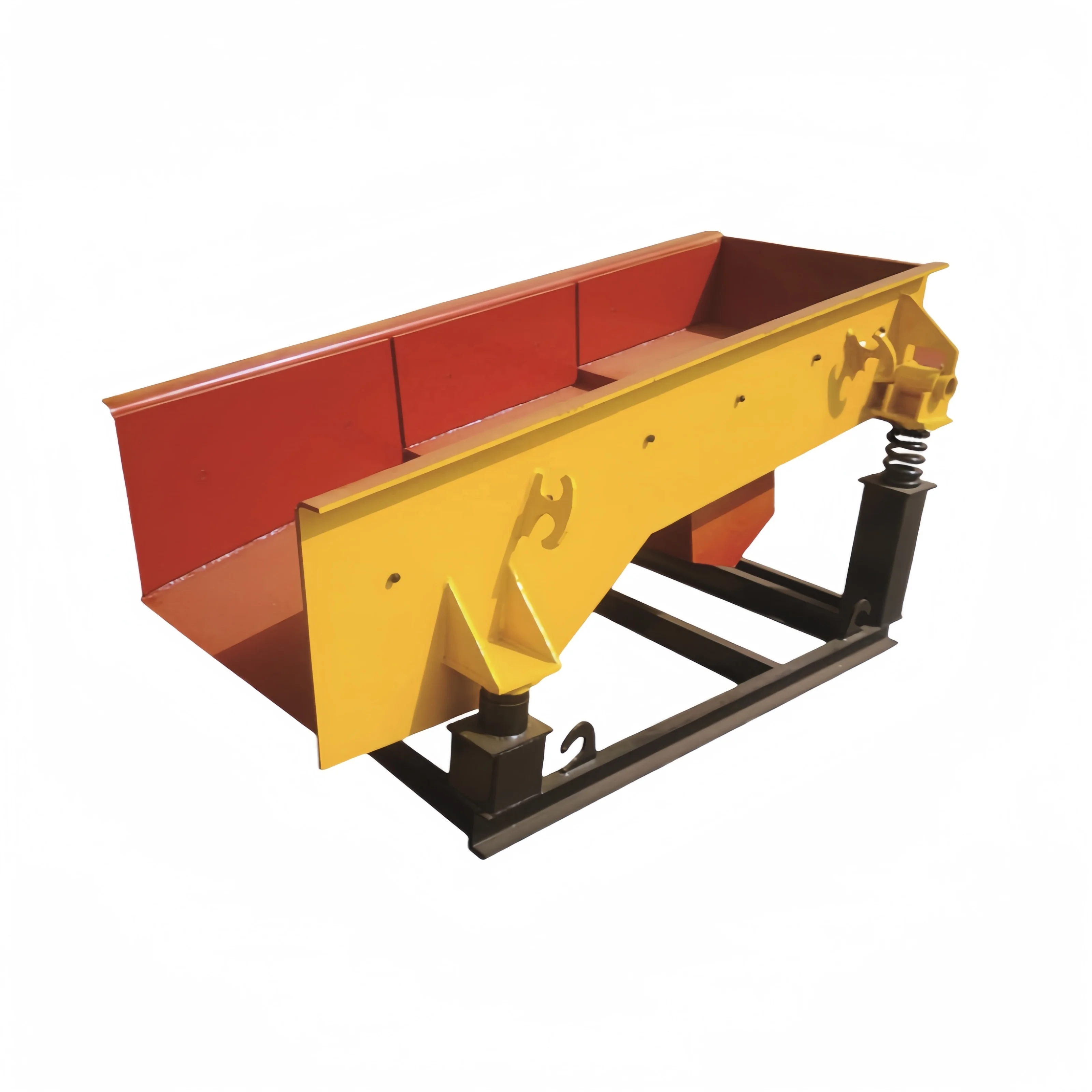

Заводские прямые продажи установка для дробления камня Вибрационный питатель цена горнодобывающей промышленности
