Инструментальные инструменты для чистки автомобиля высокого давления пистолет мойки пены снега
504,39 ₽ - 767,54 ₽
360 Машина для мойки автомобиля с сушилкой
- Категория: >>>
- Поставщик: Shandong Boyou Automation Equipment Co. Ltd.
Сохранить в закладки 1601158630283:
Описание и отзывы
Характеристики
Product parameters
We are a factory with 10 years of production and research and development experience. The latest Boyou brand automatic car wash has raised the standard of non-contact car wash equipment. The car wash system focuses on increasing revenue and increasing total cost of ownership, providing the industry with the best return on investment. BOYOU AE360 ™ Technology enables the car wash system to respond to the dynamic conditions of the car wash room, allowing for independent thinking, increasing normal operating time, and optimizing the car wash process.
Our Company
BOYOU360

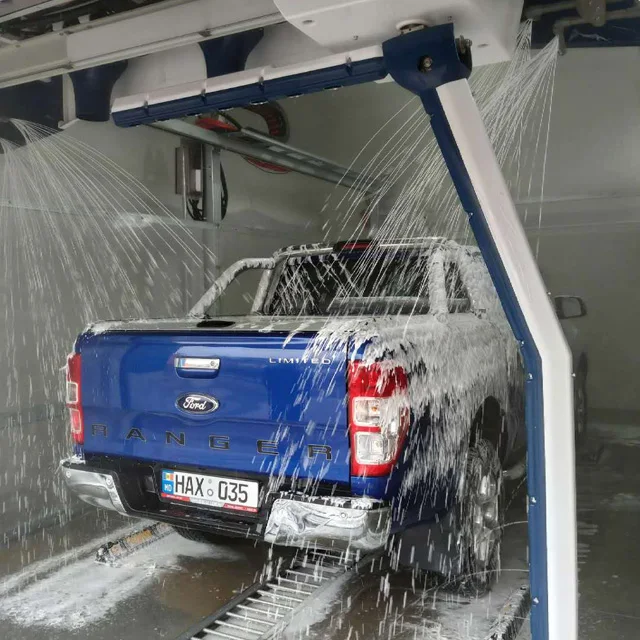

1. The S360 fully automatic car wash machine is unmanned 24 hours a day, saving time and effort.
2. More than 90% of components such as PLC, waterproof deceleration motor, and control system are imported. (Customizable for any brand)
3. The program can be customized in size according to the installation site, and the program can be customized
4. Intelligent anti-collision system, self-protection system, emergency parking system, more secure.
5. Intelligent frequency conversion system and intelligent liquid dispensing system are more energy-efficient.
6. Fault self inspection system, more reassuring
7. Adopting hot-dip galvanizing technology, the service life of anti-corrosion and rust prevention can reach 10-20 years.
2. More than 90% of components such as PLC, waterproof deceleration motor, and control system are imported. (Customizable for any brand)
3. The program can be customized in size according to the installation site, and the program can be customized
4. Intelligent anti-collision system, self-protection system, emergency parking system, more secure.
5. Intelligent frequency conversion system and intelligent liquid dispensing system are more energy-efficient.
6. Fault self inspection system, more reassuring
7. Adopting hot-dip galvanizing technology, the service life of anti-corrosion and rust prevention can reach 10-20 years.
Basic equipment parameters | ||||||||
Project Description | Unit | Basic parameters | Mode configuration | Standard √ Optional O | ||||
Car washing machine outer frame installation size requirements | Standard mode | √ | ||||||
Frame mounting length | mm | 6700mm~12000mm | Precision mode | √ | ||||
Frame mounting width | mm | 3200mm ~4000mm | Chassis flush | √ | ||||
Frame mounting height | mm | 2900mm-3300mm | Manual stepping smart distance detection | √ | ||||
High pressure pump and dosing pump integrated station power | Rotating smart flush | √ | ||||||
High pressure piston pump and motor power | KW | 15KW | Tire washing | √ | ||||
Car wash liquid pump | W | 40W | Car wash spray | √ | ||||
High foam shampoo pump | W | 40W | High foam shampoo spray | √ | ||||
Coated water wax plus liquid pump | W | 40W | Coated water wax spray | √ | ||||
Intelligent control system power | Automatic drying | √ | ||||||
Pic central processor | W | 80W | LED prompt guidance | √ | ||||
Man-machine control panel | W | 80W | Car wash count | √ | ||||
Operating system power | Fault self-test | √ | ||||||
Longitudinal stepless variable frequency motor, intelligent stepper drive | W | 500W | Antifreeze automatic emptying | √ | ||||
Lateral servo motor | W | 700W | Automatic standby | √ | ||||
Cantilever driven servo motor | W | 700W | Smart card payment | √ | ||||
Air drying system power | WeChat payment | 0 | ||||||
Multi-wing air dryer | KW | 5.5KW *4 | Outer frame | 0 | ||||
Average energy consumption breakdown | Remote mode | √ | ||||||
Chassis flushing water | L | 28L | An ciliary equipment | √ | ||||
Vehicle washing water | L | Standard fine mode 130L | Water tank | 0 | ||||
Quick and fine mode 100L | Air compressor | 0 | ||||||
Car wash solution | ML | 45mL | ||||||
High foaming shampoo | ML | 40mL | ||||||
Coated water wax | ML | 20mL | ||||||
Machine power consumption | Degrees | 0.7kw·h/each time | ||||||
Boyou Car Wash Machine
Coordinates: Zhucheng City, Weifang City, Shandong Province, China
The company has a large manufacturing workshop and a large number of highly professional and skilled production and manufacturing personnel, ensuring that equipment components are more precise in the manufacturing process. Before leaving the factory, specialized quality inspectors are responsible for sampling and testing equipment components to ensure that they meet the factory requirements and ensure that customers receive satisfactory products.
contact information
Shandong Boyou Automatic Equipment Co., Ltd
Address: 300m east of the intersection of east outer ring and South outer ring of Zhucheng, Weifang, Shandong
Email: 17667439747@163.com
Mobile Phone: +86-17667439747
whatsapp：+86-17667439747
WeChat: 17667439747
Address: 300m east of the intersection of east outer ring and South outer ring of Zhucheng, Weifang, Shandong
Email: 17667439747@163.com
Mobile Phone: +86-17667439747
whatsapp：+86-17667439747
WeChat: 17667439747
Our Service
Computer control system of car washing machine
The whole machine uses the world-famous brand (Taiwan delta) PLC, servo controller, servo motor, frequency converter and HMI human-computer interface to realize the digital control of the forward and backward, left and right movement and rotating arm of the car washing machine, which improves the stability and accuracy of the car washing machine.
Body detection and approach point detection
Boyou car washing machine adopts German beijiafu ultrasonic distance meter to detect the length and width of the car body, and German beijiafu switch to control the near point. Reliability and accuracy
High pressure pump station and computer proportioning dosing system
The pump station adopts German pinfu high-pressure plunger pump, and Siemens motor integrates domestic advanced technology, which is more efficient and energy-saving
Electric circuit components of car washing machine
The contactor, air switch, power-off protector and relay of Swedish Schneider brand are selected, which greatly improves the safety and stability of the circuit control system of the car washing machine.
FUNCTION

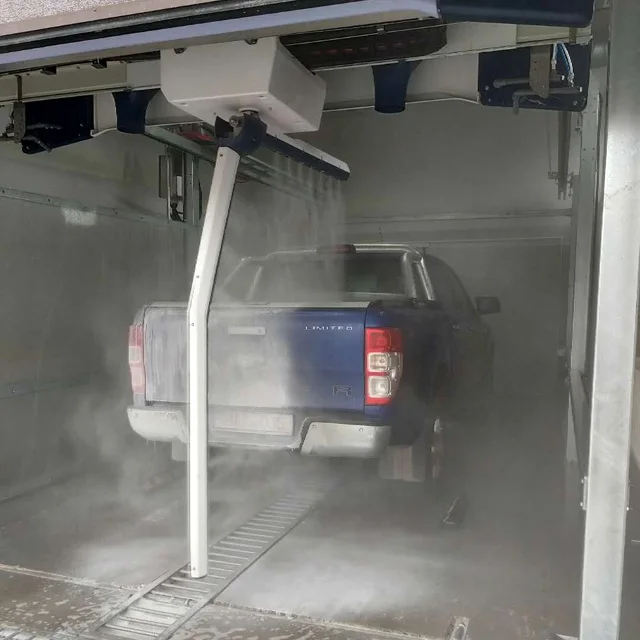

1. High pressure pre-wash for under chassis and wheels.
Equipped with a unique chassis and fan hub flush function, 90bar high pressure water can effectively remove
dirt on chassis, body sides and wheels
dirt on chassis, body sides and wheels
2. Smart 360 rotate arm, spray various washing chemicals with high-precision proportioning technology.
100% accurate measurement with adjustable ratio. only 20~50ml pre-soak comsumption for washing one car through high precision
chemical mixing system, save material and cost efficiently.
chemical mixing system, save material and cost efficiently.

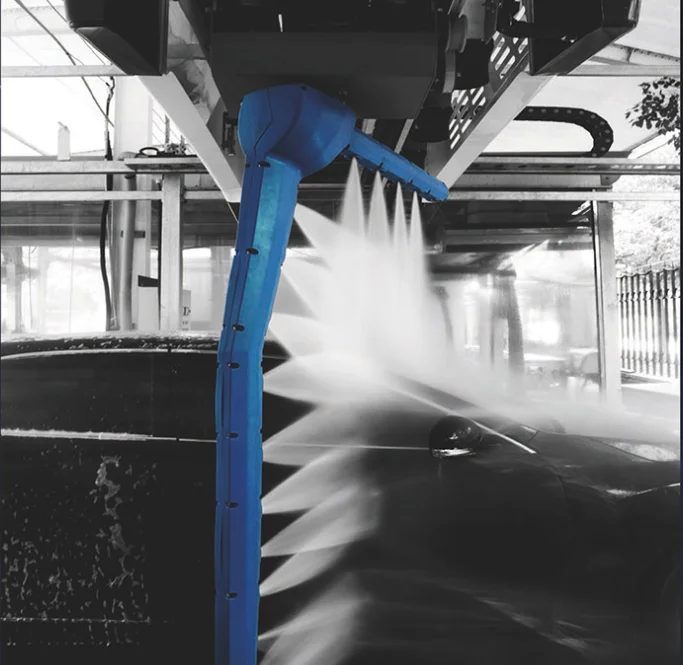

3. Smart 360 rotate arm, Flush car body 360° with high pressure water.
Complete 360° rotating within 28 seconds, water saving 50%, electricity saving 60%, automatic detect the length and width of the
vehicle, up to 80bar high pressure water can easily remove the dirt.
vehicle, up to 80bar high pressure water can easily remove the dirt.

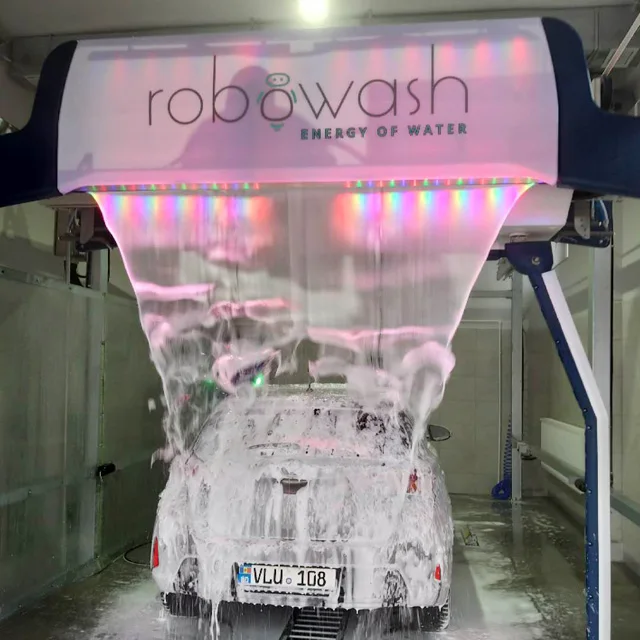

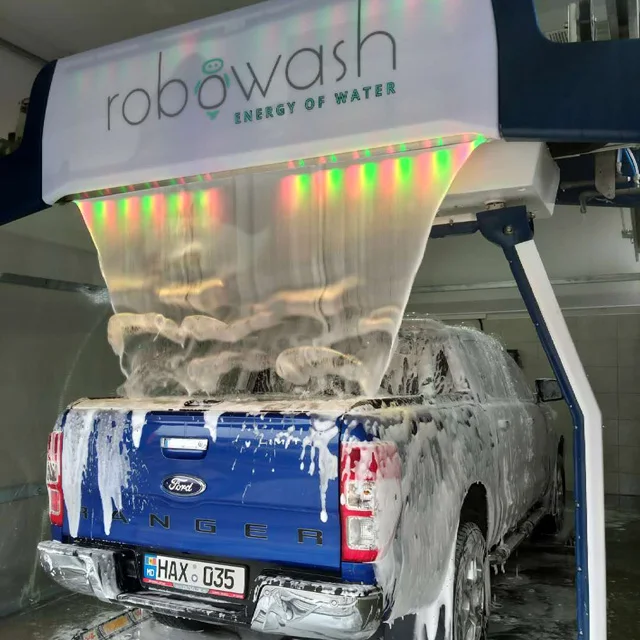

4. Magic color polish shampoo
Thick foam makes cleaning maintenance component fuller contact with dirt, thereby improving the efficiency of decontamination,
making the paint colors more moist, bright lights.
Unique soft-type broad-spectrum activity of ion cleansing agents, emulsifying effective daily cleaning dirt on the car body and
non-corrosive for the car paint, wheels, tires, window glass.
making the paint colors more moist, bright lights.
Unique soft-type broad-spectrum activity of ion cleansing agents, emulsifying effective daily cleaning dirt on the car body and
non-corrosive for the car paint, wheels, tires, window glass.
5. Soft water with crystal wax coat
Soft water can make magic crystal coating color shampoo and wax completely adsorbed body surface, forming a multi-layered
interaction strength protective film, car paint become more glorious and beautiful with durable paint protection.
Crystal coating of wax can be generated in the paint surface layer polymer, the water softener fused into a hard protective film,
with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.
interaction strength protective film, car paint become more glorious and beautiful with durable paint protection.
Crystal coating of wax can be generated in the paint surface layer polymer, the water softener fused into a hard protective film,
with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.
6. Unique embedded fast drying system.
BOYOU 360 Configuring three 5.5kw and one 4kw motors embedded in the washing machine, control the airflow by four cylindrical
outlet, the first task is to split a bunch of wind air, reducing wind drag subsequent to follow airflow to dry the surface of the
car body, Leisuwash 360 optimize the characteristics of wind speed, other traditional type of fan is to improve the speed, but
wind has been minimized when arrive the car body, and in fact the high-speed airflow is the best dried solution.
outlet, the first task is to split a bunch of wind air, reducing wind drag subsequent to follow airflow to dry the surface of the
car body, Leisuwash 360 optimize the characteristics of wind speed, other traditional type of fan is to improve the speed, but
wind has been minimized when arrive the car body, and in fact the high-speed airflow is the best dried solution.
Friendly HMI Design
*LED with voice guidance
*Automatic clean rearview mirror
*Faulty record with data report
* Automatic standby service
* Multi control mode ( could operate wash system through touch panel, magnetic card, payment station button, remote controller )
*Automatic clean rearview mirror
*Faulty record with data report
* Automatic standby service
* Multi control mode ( could operate wash system through touch panel, magnetic card, payment station button, remote controller )
Packing & Delivery
Installation Instructions
1. Boyou can provide customers with professional machine drawings
2. Customers can clearly understand the dimensions required for installing land through drawings
3. Boyou provides customers with professional land construction drawings and explanations
2. Customers can clearly understand the dimensions required for installing land through drawings
3. Boyou provides customers with professional land construction drawings and explanations
1. Boyou provides customers with professional machine installation instructions and installation videos
2. Customers can install the machine themselves through installation instructions and installation videos
3. Boyou provides customers with maintenance and operation manuals
4. Boyou provides customers with global on-site installation services
2. Customers can install the machine themselves through installation instructions and installation videos
3. Boyou provides customers with maintenance and operation manuals
4. Boyou provides customers with global on-site installation services
FAQ
Q1: How do you control your production qualityhot-dip galvanized steel?
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before each shipment.
Q2: Can I have a visit to your company before placing an order?
A: Sure, welcome to visit BoYou AE. Our factories locates in Shandong province , our showroom is in Zhucheng,Shandong province.
Q3: What kind of support can I get if I am BoYou AE’s agent?
A: Bottom price, free catalog and gift for marketing, on site training.
Q4: May I know the Lead time?
A:The lead time of our machine is 15 to 30 days.
Q5: What is your payment terms?
We accept Alibaba Trade Assurance, TT, LC, etc.
Q6: Can you provide the whole workshop automotive equipment?
A: Yes. we have 6 series contains nearly all automotive equipment.
Q7: How long is the warranty?
A: Our warranty is 48 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before each shipment.
Q2: Can I have a visit to your company before placing an order?
A: Sure, welcome to visit BoYou AE. Our factories locates in Shandong province , our showroom is in Zhucheng,Shandong province.
Q3: What kind of support can I get if I am BoYou AE’s agent?
A: Bottom price, free catalog and gift for marketing, on site training.
Q4: May I know the Lead time?
A:The lead time of our machine is 15 to 30 days.
Q5: What is your payment terms?
We accept Alibaba Trade Assurance, TT, LC, etc.
Q6: Can you provide the whole workshop automotive equipment?
A: Yes. we have 6 series contains nearly all automotive equipment.
Q7: How long is the warranty?
A: Our warranty is 48 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.
