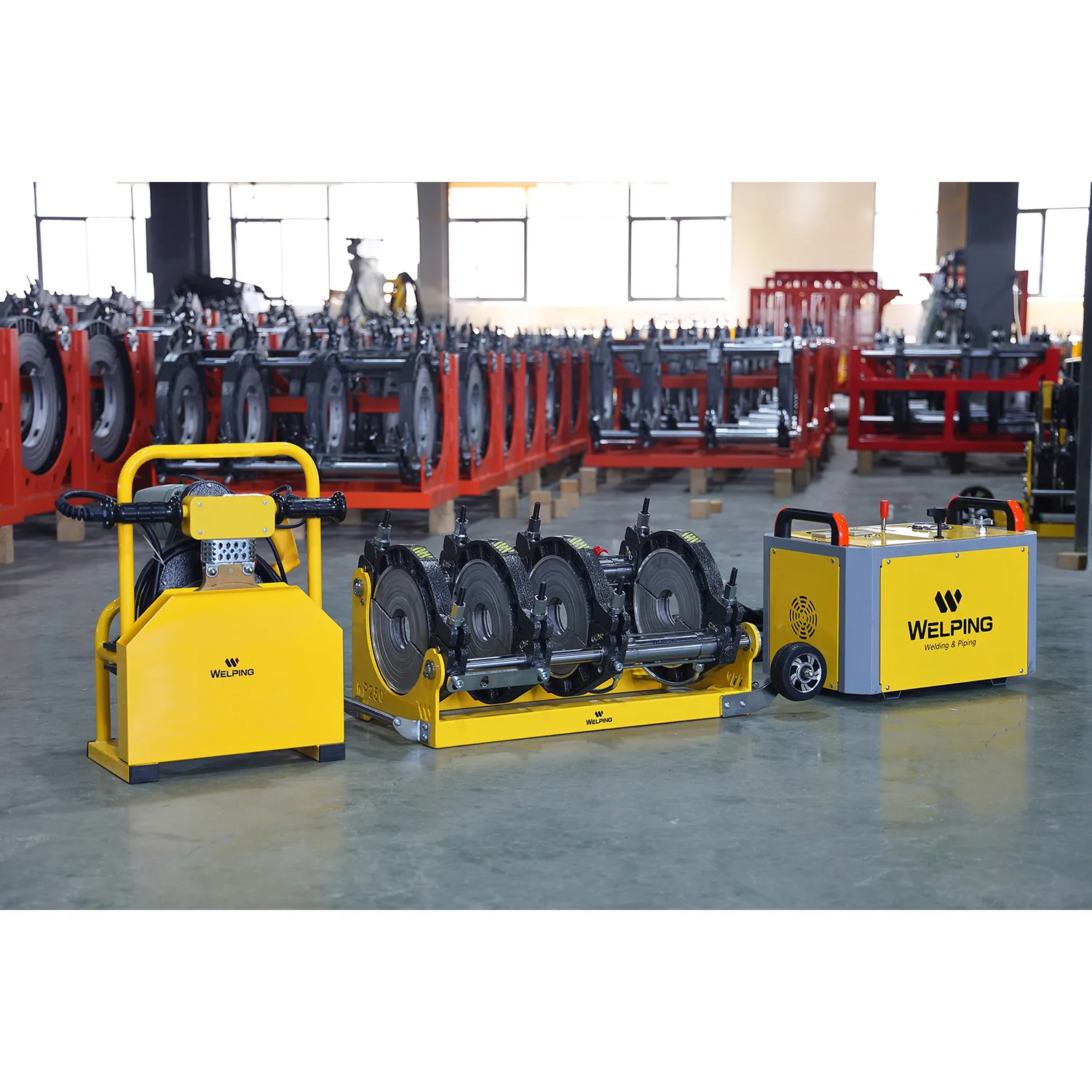

250 мм HDPE PE машина для стыковой сварки гидравлический pp сварочный аппарат WP250A WELPING
- Категория: >>>
- Поставщик: Hangzhou Welping Machinery Equipment Co. Ltd.
Сохранить в закладки 1601158671337:
Описание и отзывы
Характеристики
Model | WP250A |
Max temperature | 270℃ |
Temperature deviation | ±5°C |
Set temperature | 220~270°C |
Applicable | PE PPR PB PVDF |
Welding range | 90-250mm |
Input voltage | 220V, 50Hz |
Total power | 5.05kw |
Heating plate power | 2.3kw |
Planing tool power | 2.0kw |
Hydraulic station | 0.75KW |
Gross weight | 130kg |
Total Volume | 0.23cbm |

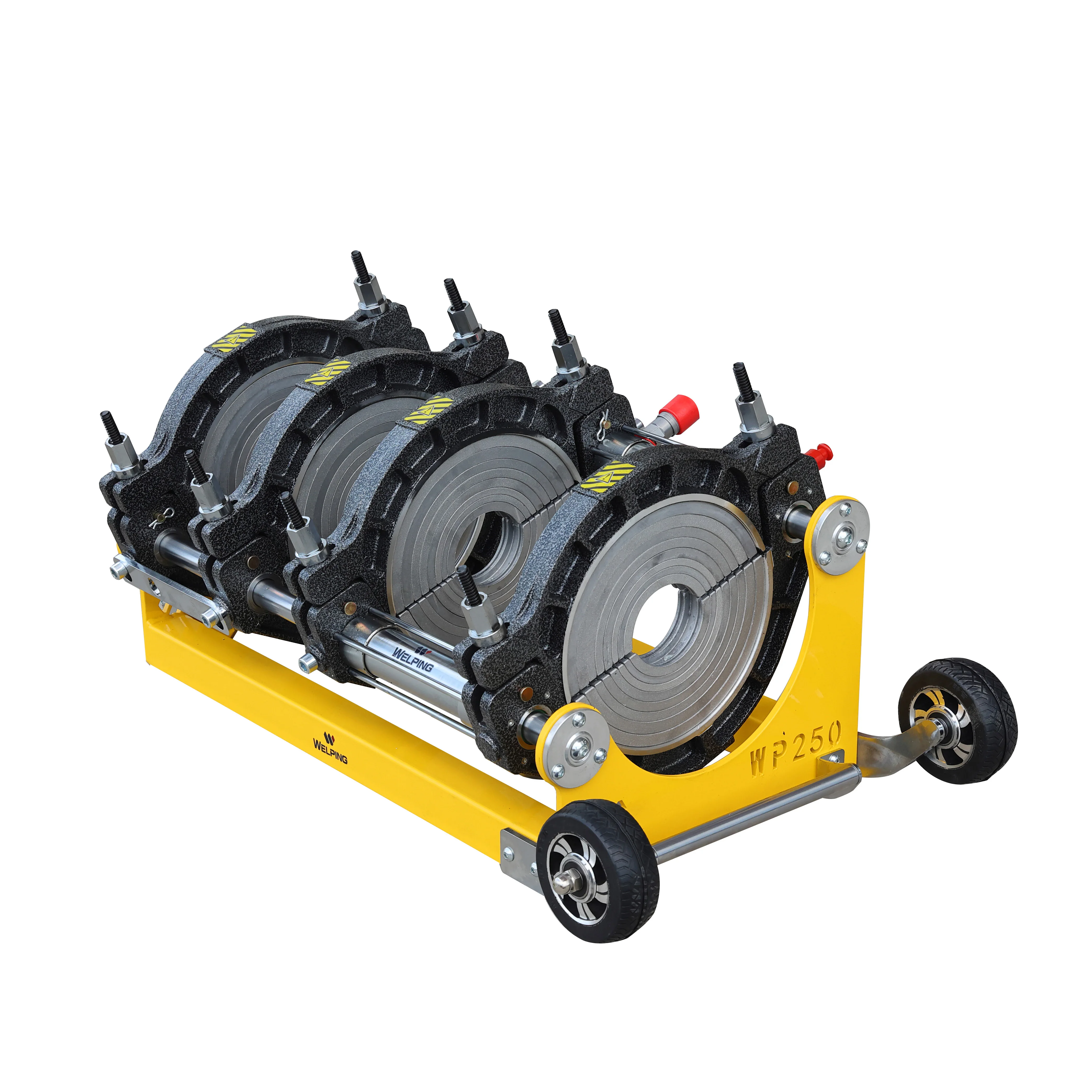

Basic Frame
Italy DNP quick coupler.
Chromated hydraulic cylinder made of
1045(ASTM)/S45)(JIS)/C45(DIN) steel.
Chromated integral shaft made of
Chromated hydraulic cylinder made of
1045(ASTM)/S45)(JIS)/C45(DIN) steel.
Chromated integral shaft made of
1045(ASTM)/S45C(JIS)/C45(DIN) steel.
Steel plate cutting clamp with sandblasting &spraying treatment.
Base made of Q235 steel with spraying treatment.
Steel plate cutting clamp with sandblasting &spraying treatment.
Base made of Q235 steel with spraying treatment.

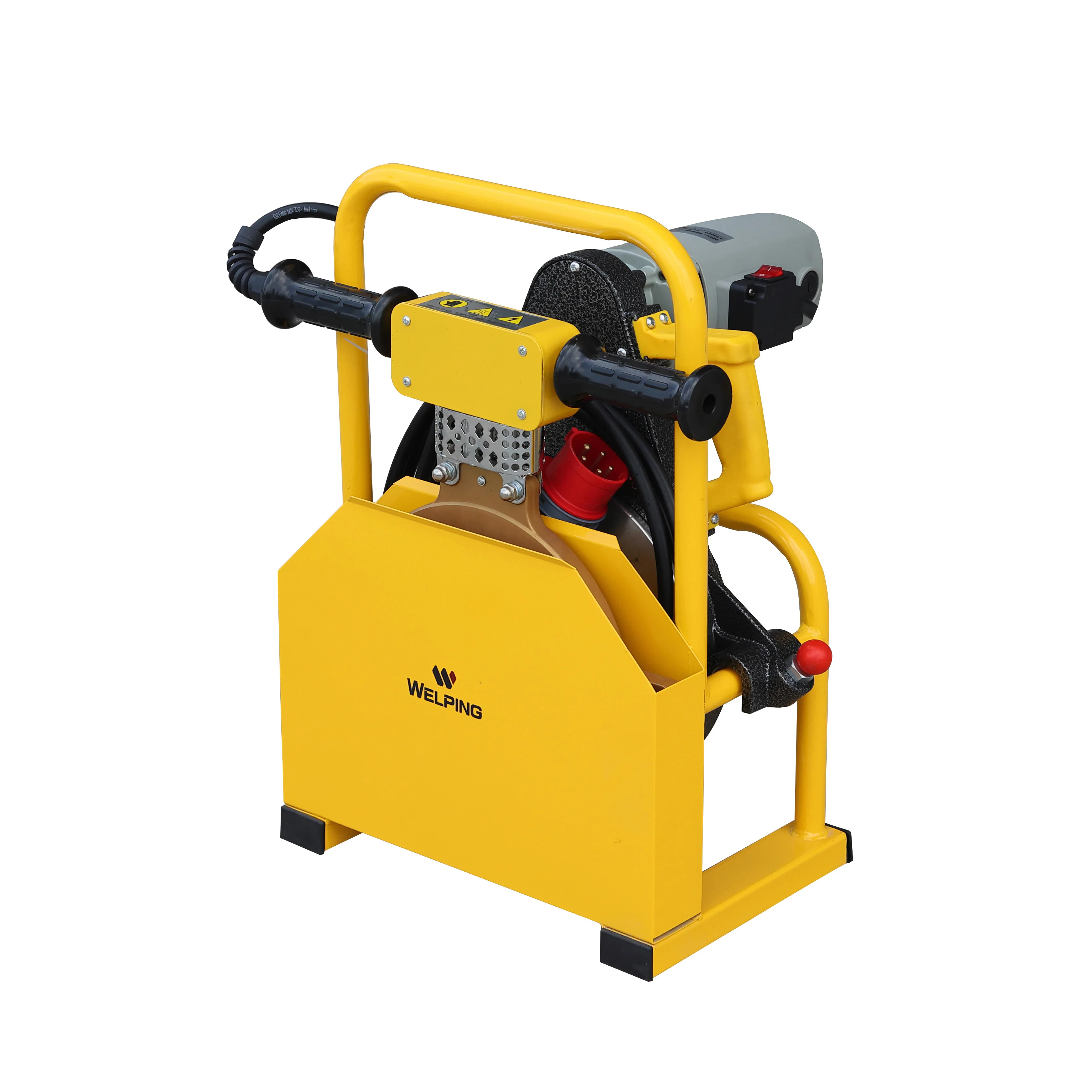

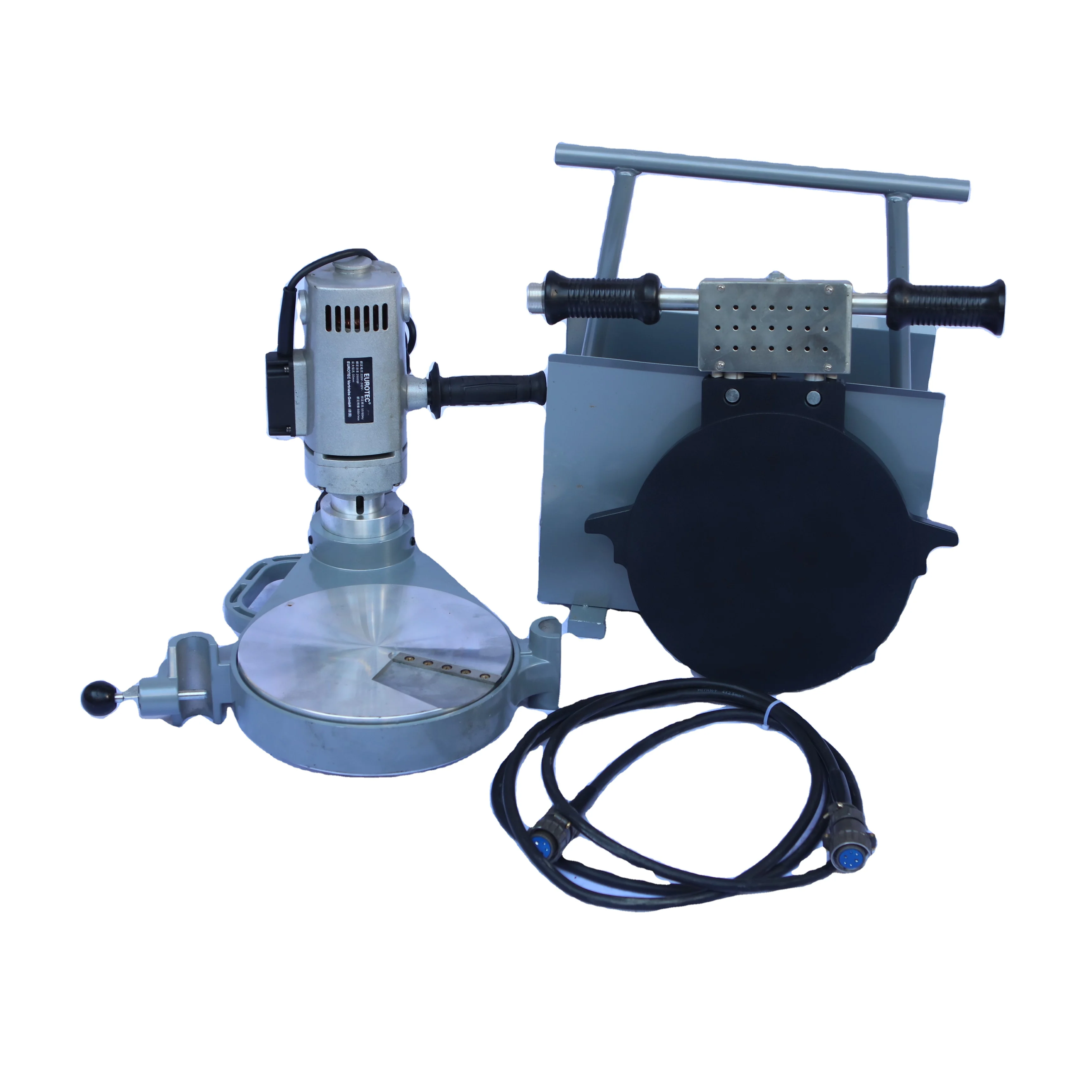

Heating Plate
*Bakelite handle with high insulating properties and
thermal insulation
*Thermocouple temperature sensor
*Heating element
*Aviation plug
thermal insulation
*Thermocouple temperature sensor
*Heating element
*Aviation plug

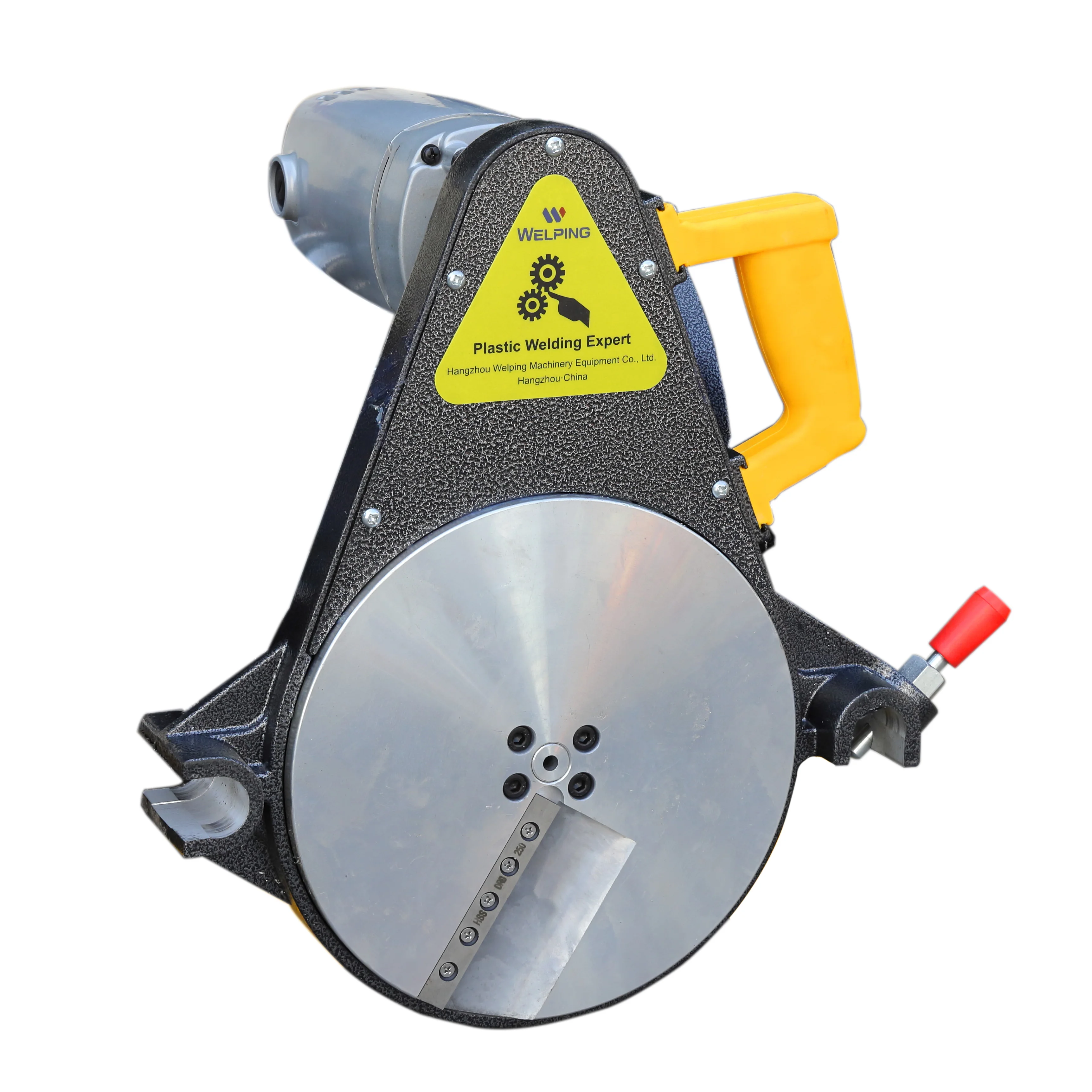

Planing Tool
*HSS blade with double edge
*Casting aluminum trimmer plate, durable and anti-corrosion
*Casting aluminum frame of motor with good heat dissipation performance
*Motor with pure copper wiring
*Casting aluminum trimmer plate, durable and anti-corrosion
*Casting aluminum frame of motor with good heat dissipation performance
*Motor with pure copper wiring

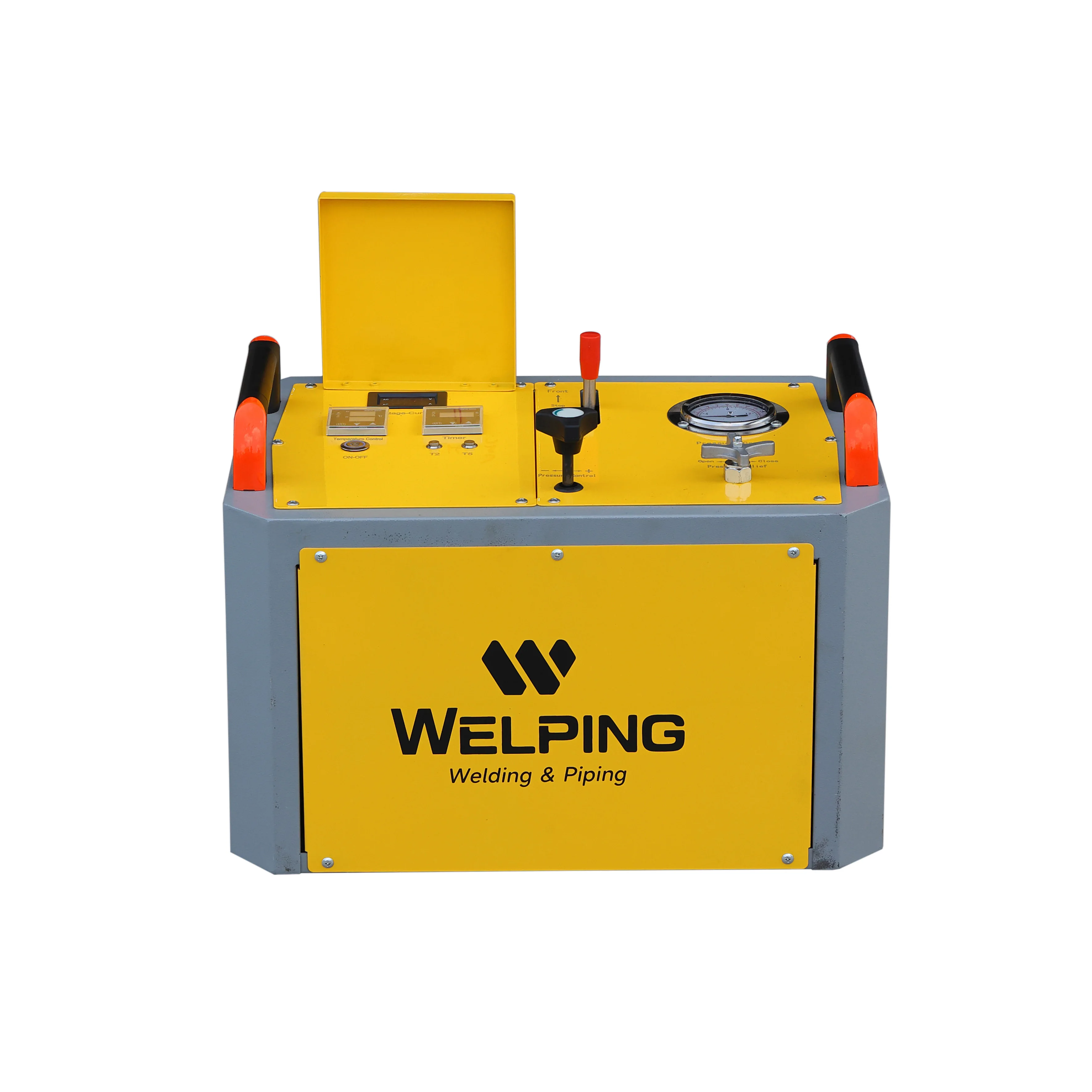

Fully enclosed housing with vents can prevent dust and dirt from entering.
380V asynchronous motor.
CHNT electricity leakage protection switch.
Data logger(optional)500V/100A electric meter.Ø100mm pressure meter.
Relief valve, regulating valve, maintaining valve.
380V asynchronous motor.
CHNT electricity leakage protection switch.
Data logger(optional)500V/100A electric meter.Ø100mm pressure meter.
Relief valve, regulating valve, maintaining valve.
Company&Factory Introduction
Thanks for choosing Welping.
quality and innovation have always been our goals. Now we have 78 employees that have a wealth of experience.
Due to the huge increase in business, a new 20000 m workshop is under construction, it will start producing in July annual
production capacity reaches20000pcs. More CNC machine centers and laser cutting equipment are invested for better products and
services.
Application
Exhibition
Customer visit
Certificate
Packaging Logistics
FAQ
1.Payment Term
Our Usual Payment Term Is Of T/T Remittance Before Shipment Or Against B/L Copy,and X-Transfer.
2.Production Lead Time
Owe To Self-Managing Production Procedures And Machinery, Standard And Light-Oem Items, Welping Can Finish In Around 10-15 Days.
3.Customized Design
Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor Structure Modifications. Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.
4.Product Warranty
We Provide Standard 2 Years Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.
5.About Agency
To Further Service Our Customers And Provide More Value To Clients, We Are Very Willing To Establish Agency With Influential Distributors. As Welping’S Agent, You Can Get More Favorable Cooperation Terms And Service.
Our Usual Payment Term Is Of T/T Remittance Before Shipment Or Against B/L Copy,and X-Transfer.
2.Production Lead Time
Owe To Self-Managing Production Procedures And Machinery, Standard And Light-Oem Items, Welping Can Finish In Around 10-15 Days.
3.Customized Design
Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor Structure Modifications. Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.
4.Product Warranty
We Provide Standard 2 Years Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.
5.About Agency
To Further Service Our Customers And Provide More Value To Clients, We Are Very Willing To Establish Agency With Influential Distributors. As Welping’S Agent, You Can Get More Favorable Cooperation Terms And Service.
Похожие товары

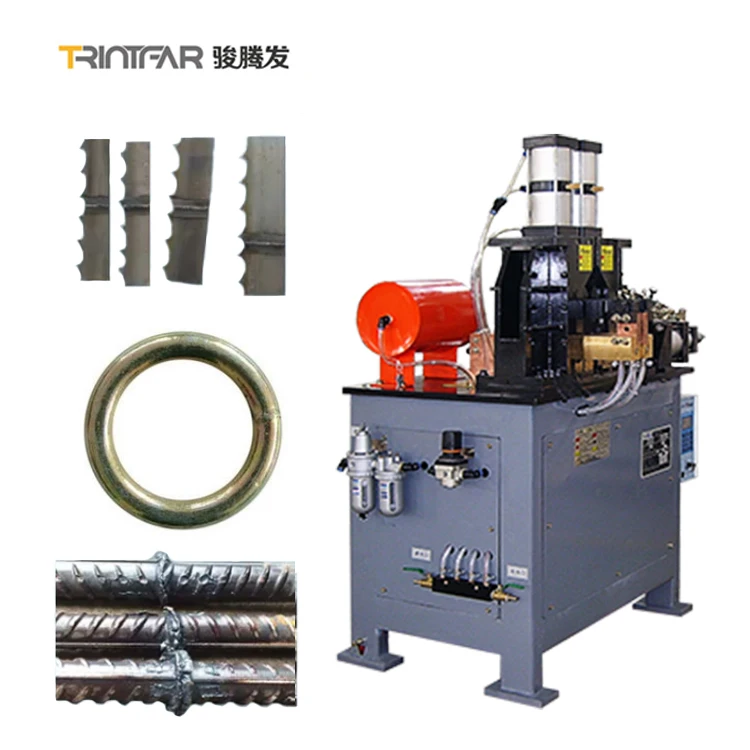

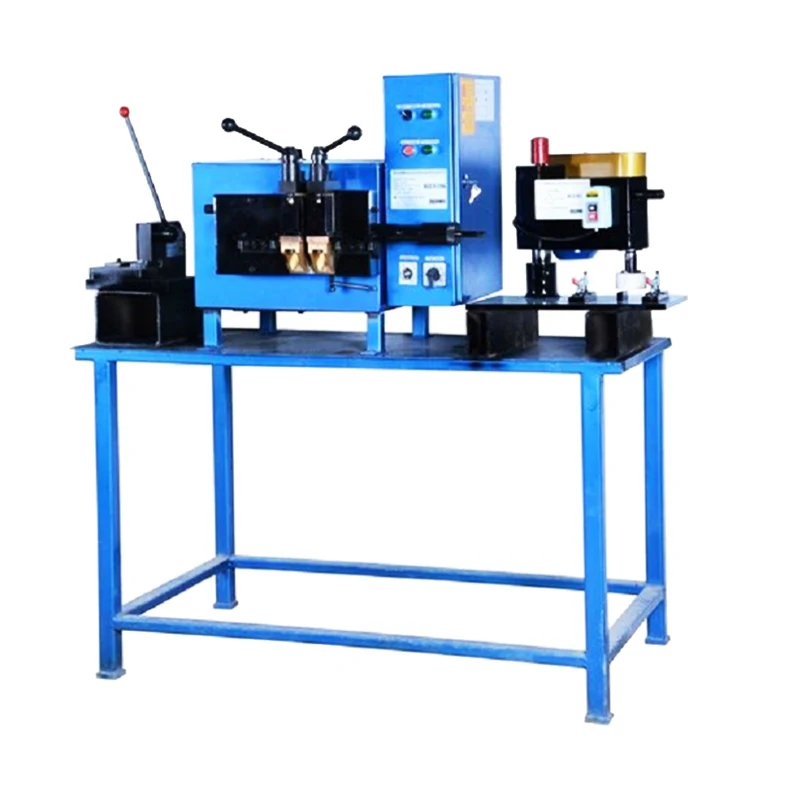

Станок для стыковой сварки ленточных пил
81 556,37 ₽ - 82 658,48 ₽
Автоматическая сварочная машина STR для древесной ленточной пилы идеально подходит сварки и стыковой

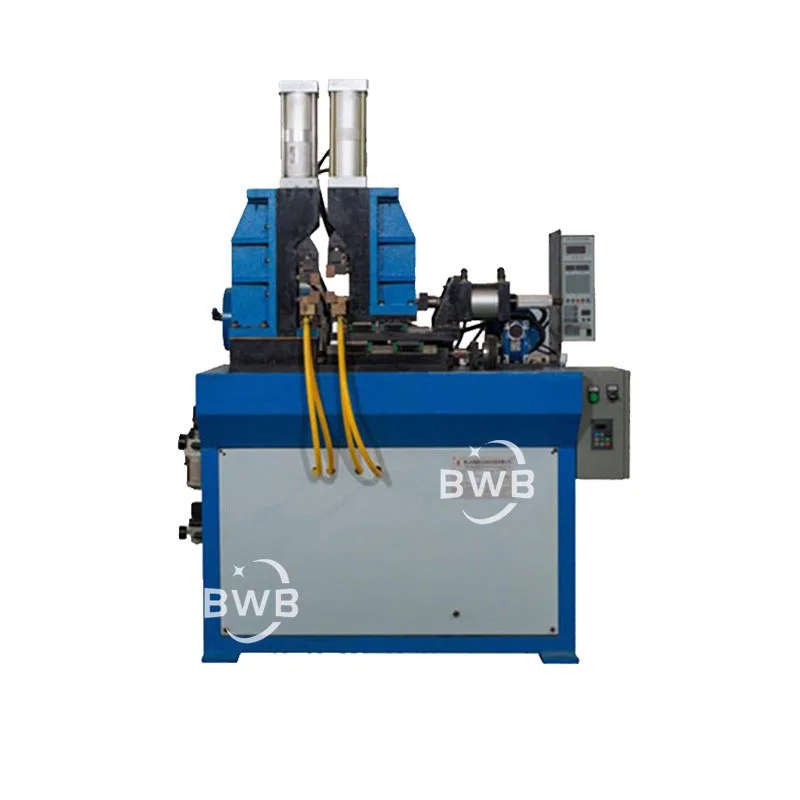

Быстрый автоматический станок для стыковой сварки арматурной
275 528,25 ₽ - 495 950,85 ₽

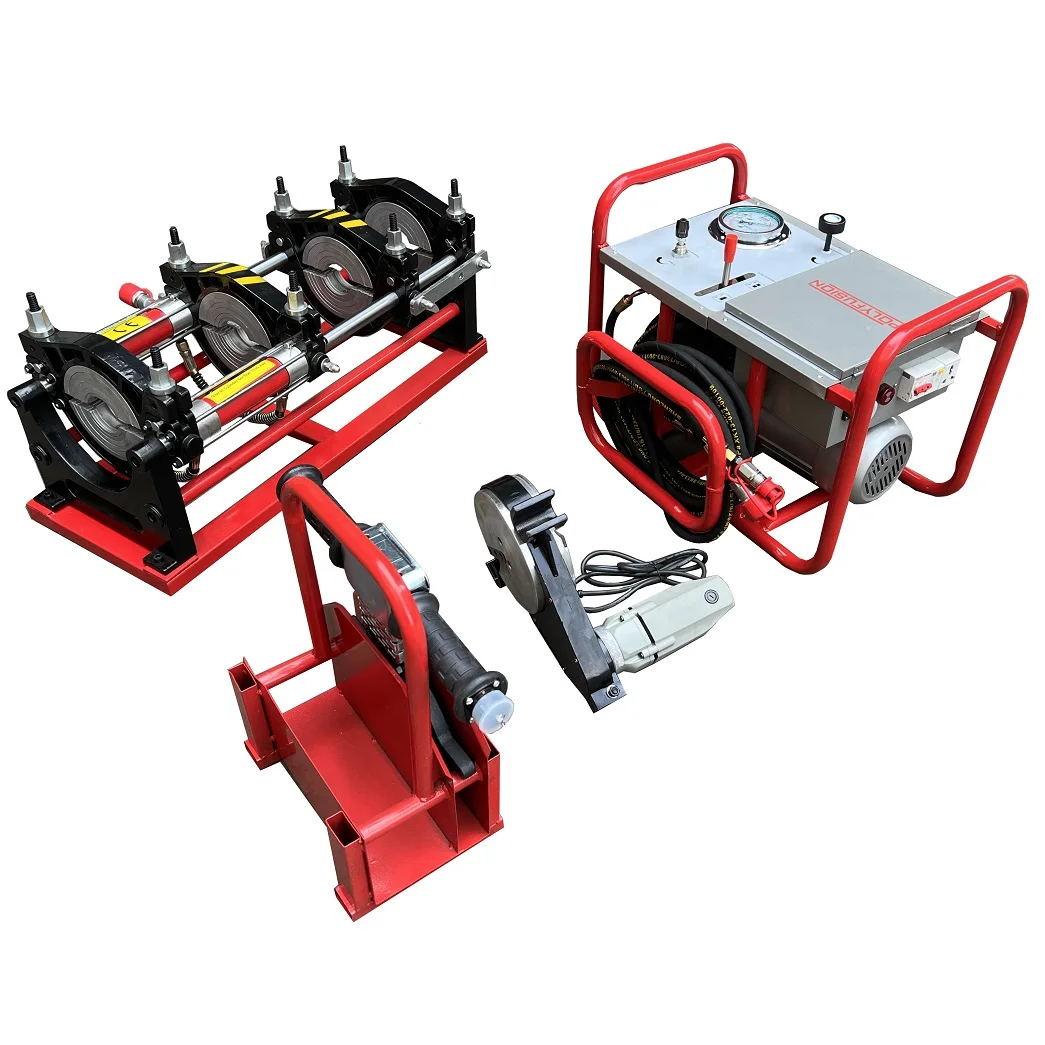

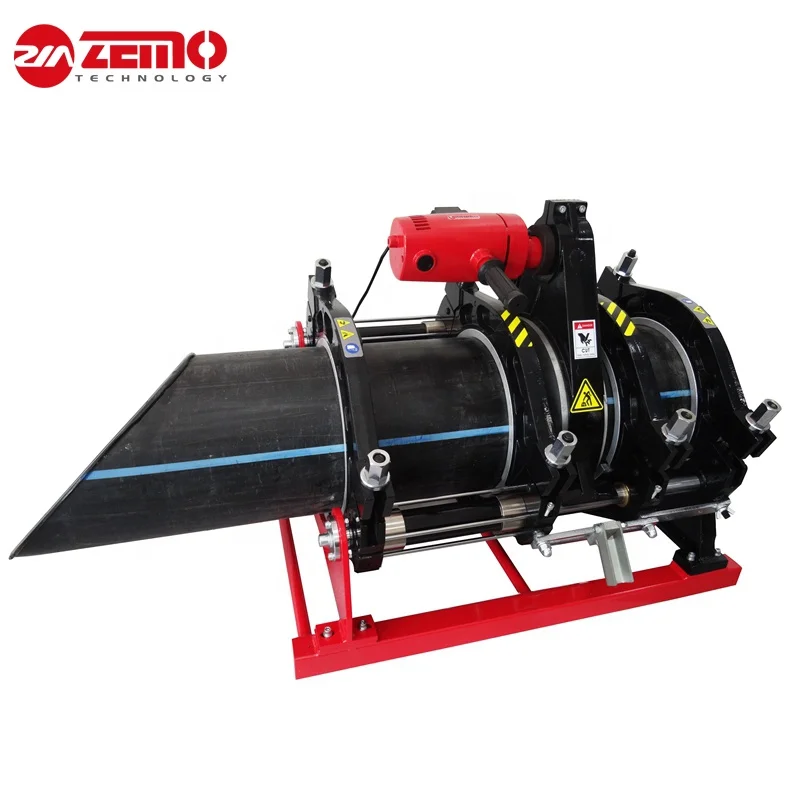

Машина для плавки пластиковых труб PF160 hdpe машина сварки стыковой
