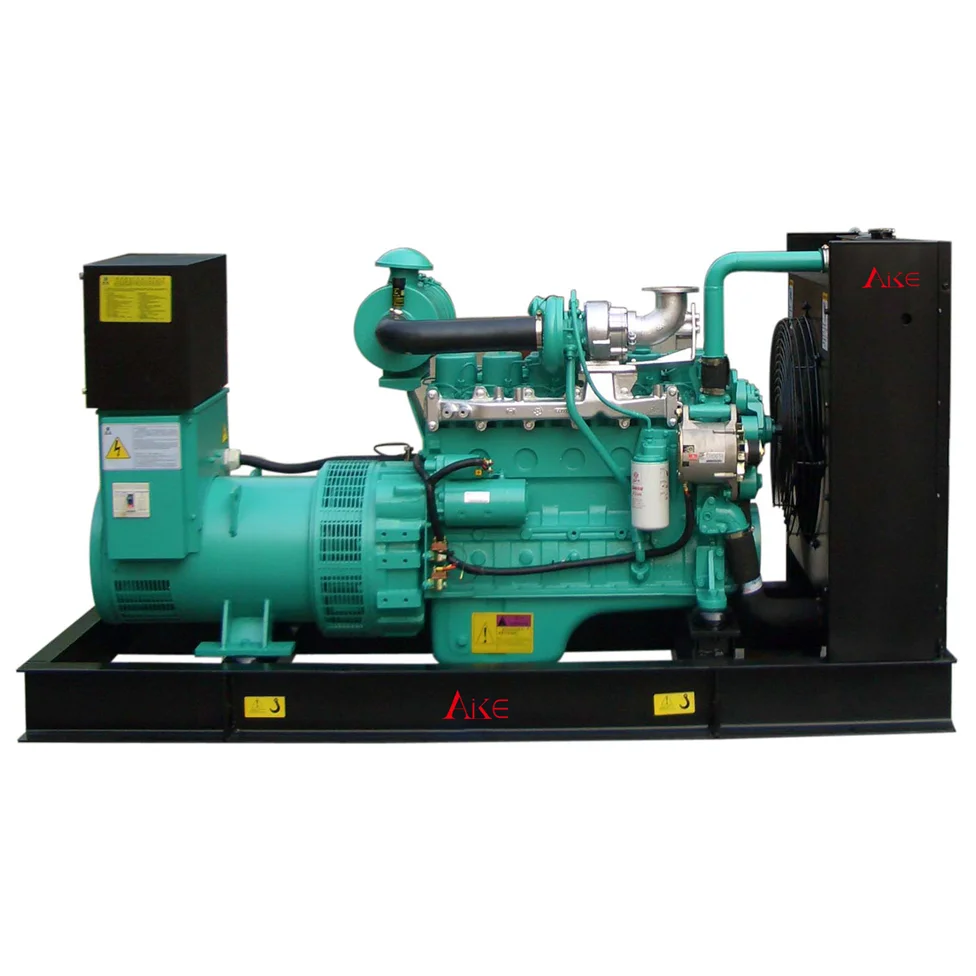

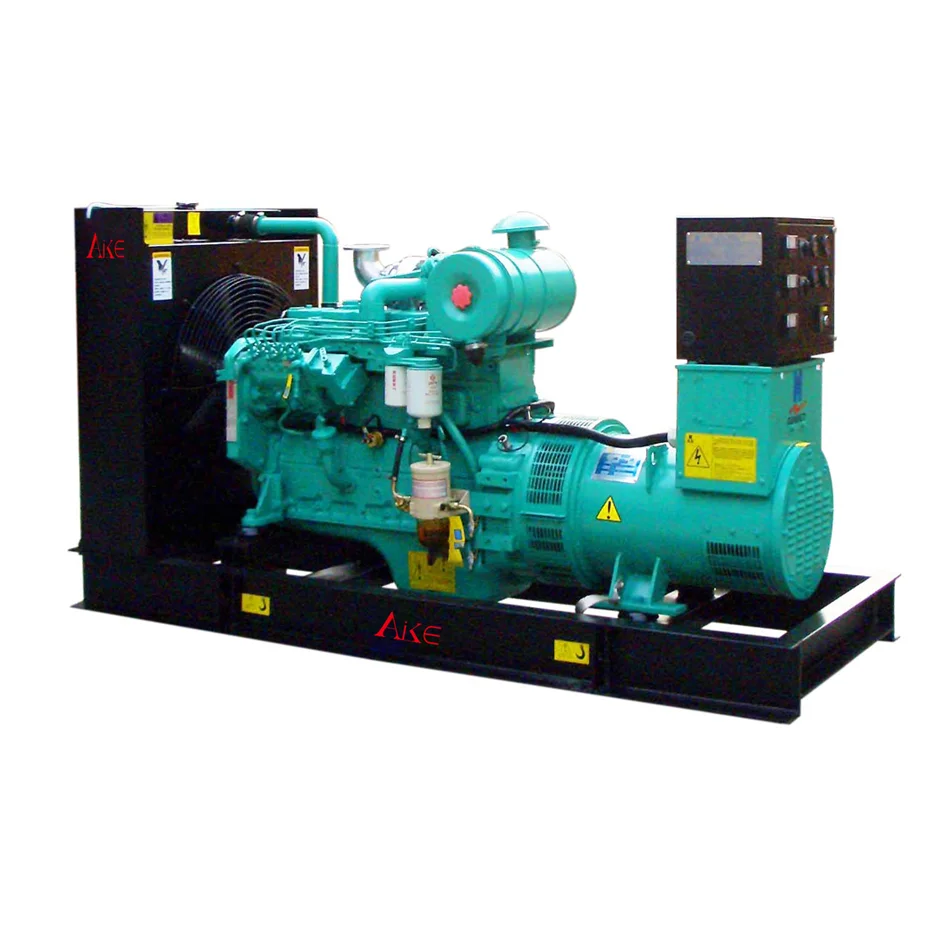

Дизельный генератор Cummins 80 кВт/100 кВА 50 Гц 1500 об/мин бесшумный дизельный

Сохранить в закладки 1601158680517:


Цена:870 180,97 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


100kVA Cummins Diesel Generator Imported,Engine Diesel Engines,Silent Diesel Generator Set,Gen Power Diesel Generator





Cummins Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.


Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option





ATS can be option





Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China





Generator Standard Compose:


· Dongfeng Cummins Engine, model 6BT5.9-G2.


· Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield


· 24 V charging generators


· Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree


· Shock absorber


· Dry air filter, Fuel filter, Oil filter


· Power output circuit breaker


· Standard control panel


· 12 V battery and battery connection cables


· Battery Charger


· Exhaust pipe, Bellows, Flange, Muffler set


· 8 hours’ base tank


· Documents and Manuals





















































































































































































Generator set



Genset Model



AC110



Rating Power (KW/KVA)



80100



Standby Power(KW/KVA)



88/110



Rating Ammeter(A)



144



Diesel engine



General data



Engine model



6BT5.9-G2



Prime Power(KW/HP)



92/125



Standby Power(KW/HP)



100/136



number of Cylinder & Configuration



6 cylinders in line



Bore X Stroke (mm)



102X120



Displacement(l)



5.9



Compression Ratio



16.5:1



Governor type



Electronic governor



Rated RPM



1500



Exhaust system



Exhaust gas flow(m³/min)



17



Max. Exhaust Gas Temperature()



576



Max. Exhaust back Pressure(KPA)



10



Air intake system



Aspiration Type



Turbocharged



Max. intake depression(mbar)



6



Combustion air Volume(m³/min)



5.8



Fuel system



Rating Fuel Consumption(l/h)



23



75% full Fuel Consumption(l/h)



23.5



Lubrication system



Total oil capacity(l)



16.4



Max permissible oil temp()



121



Oil pressure at rated rpm(KPA)



345



Cooling system



Total Coolant capacity(l)



23



Max. temperature of coolant()



96



Fan cooling air flow(m³/min)



148



Alternator



Alternator model



UC1274C



Rating Voltage(V)



380/220



Rating Capacity(KW/KVA)



80/100



Eff.%



91.1%



Power Factor



0.8



Exciting type



Brushless self-exciter AVR



Voltage regulation



±0.5%



No. of  Phase



3 phase 4 wire



Enclosure Class



IP23



Class of Insulation



H



Battery



Rating Capacity(AH)



2X120AH 12V



Dimension



Generator set dimension  (LXWXH)



2280x850x1100



Weight



Generator set Net Weight (kg)



1400


















FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 15-25 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year or 1200hours’ running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
