Автоматическая машина для резки кирпича с охлаждающим соплом
73 749,61 ₽
Новый дизайн усовершенствованный Многофункциональный 5 осевой мостовой станок для резки гранита каменный
- Категория: >>>
- Поставщик: Jinan Blue Elephant Cnc Machinery Co. Ltd.
Сохранить в закладки 1601158699322:
Описание и отзывы
Характеристики
Product Description

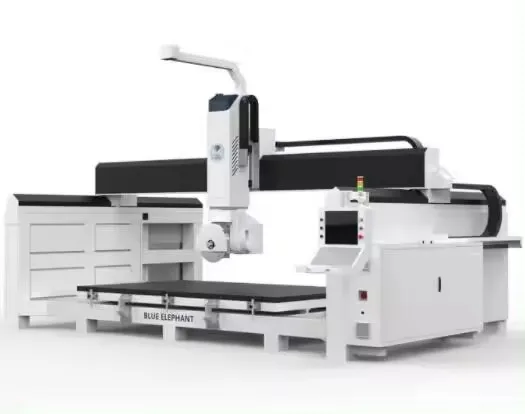

5axis stone bridge saw cutting engraving cnc machine marble quartz granite carving router with camera for stone polishing
5axis stone bridge saw cutting engraving cnc machine marble quartz granite carving router with camera for stone polishingThis is a 2023 newly designed 5 axis CNC bridge saw for stone cutting. It is added with a camera to automatically position plates. And the machine head can swing freely at 360°, which can cut and edge at any angle and shape for granite, marble, artificial stone, slate and other stone materials. So it is widely used in slate application industry, prefabricated building industry, home decoration industry, etc.
1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
2. It is additionally equipped with a camera, which can take pictures to position stone plates, and can automatically plan the cutting path directly from the generated map, which greatly improves the processing efficiency.
3. The overturned worktable is adopted, which has large overturning weight redundancy, up to 80°.
4. Adopts a 11kw motor with high precision, it can complete circular cutting, square cutting, sector cutting, oval cutting, 45 miter cutting, drilling, external edge polishing, etc.
Product Details
DSP A11 Control
This machine adopts a DSP A 11 control system, which is more convenient and easy to operate.
Electronic Components
Using the standard components with CE certification, such as Germany Schneider company.
FL118 Stepper Motor
Compared with ordinary motors, this type of motor has the features of simple structure, convenient control.
Fuling Inverter
This inverter has stable performance, rich combination of functions.
Guide Rail
Taiwan guide raill which ensure high weigh capacity, high precision, and stable performance.
Water Cooling Spindle
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Technical Parameters
Working travel | X, Y, and Z 3200*2000*400mm C axis ±360° A axis 0-90° |
Moving speed | Xaxis 30m/min Yaxis 30m/min Zaxis 15m/min |
Servo motor | Xand Y 1300W absolute servo motor Zaxis 1300W absolute servo motor with brake A and C 1000W absolute servo motor |
Guide rail | X, Y, and Z: # 30 |
Rack | X、Y 2MT-WIN |
Worktable | Structure Square timber Worktable size 3200×2000mm Turning angle 0-80° Max. weight for turning 800KG |
Saw | Dimension 450mm Max. cutting thickness 100mm |
Ball screw | Z 3210PREYP |
Reducer | X/Y: Japan SHIMPO |
Saw motor | 11KW motor, rated: 3000r/min |
Inverter | 15KW BRICH |
Control system | Blue Elephant customized system (built-in CAM software) |
Low-voltage electronics | French SCHNEIDER |
Working air pressure | 0.7-0.8Mpa |
Voltage | 380V/3P/50HZ |
Sample & Application
Recommend Products
Company Information
Exhibition
Packaging & Delivery
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
