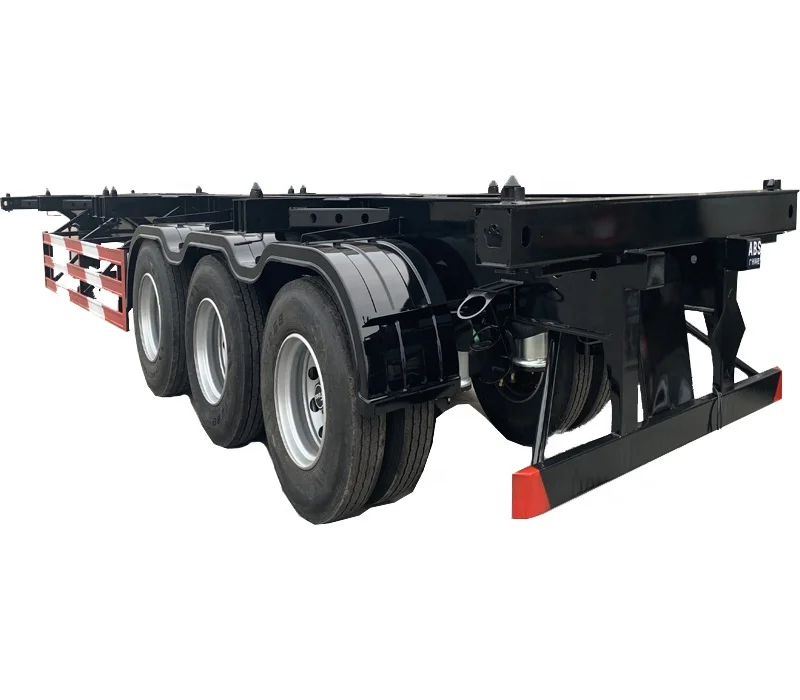

Бортовой грузовик прицепы 20 40 60 футов Выдвижной контейнер шасси бортовой полуприцеп 3-осевой 4-осевой
800 914,80-915 331,20 ₽

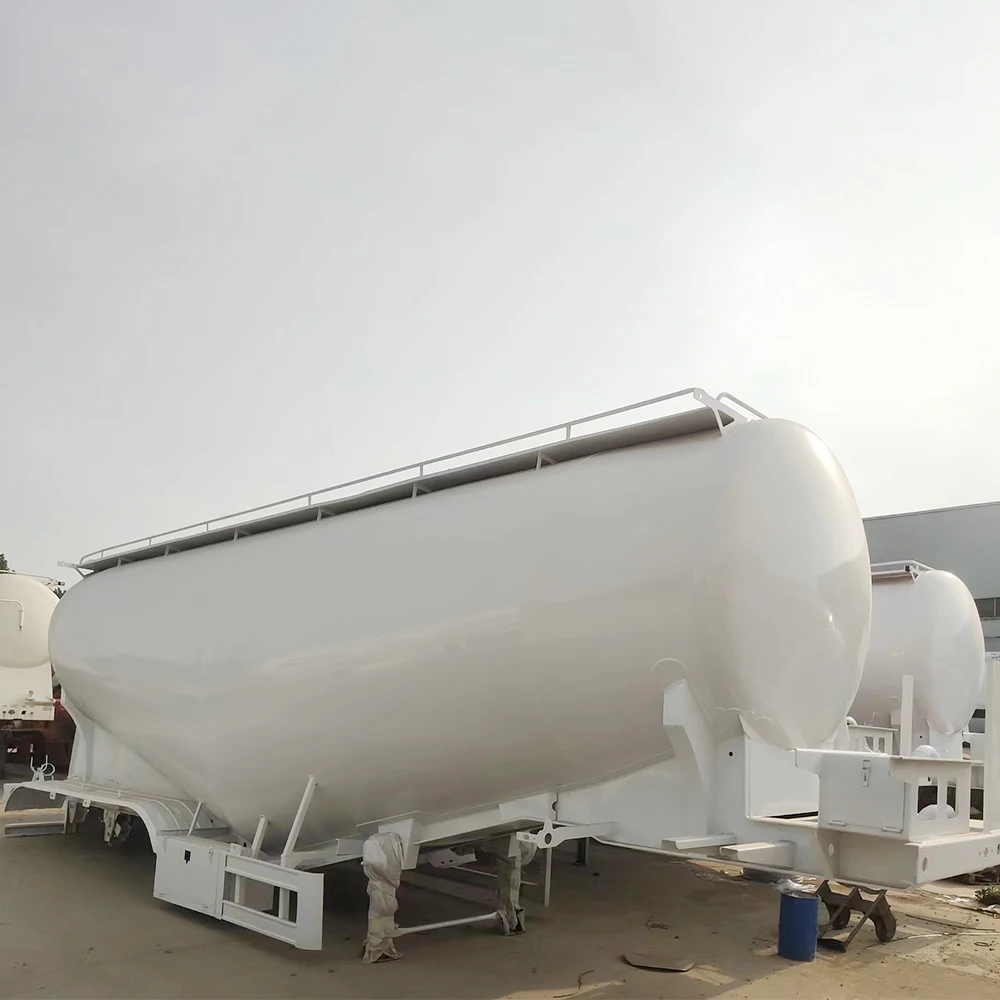

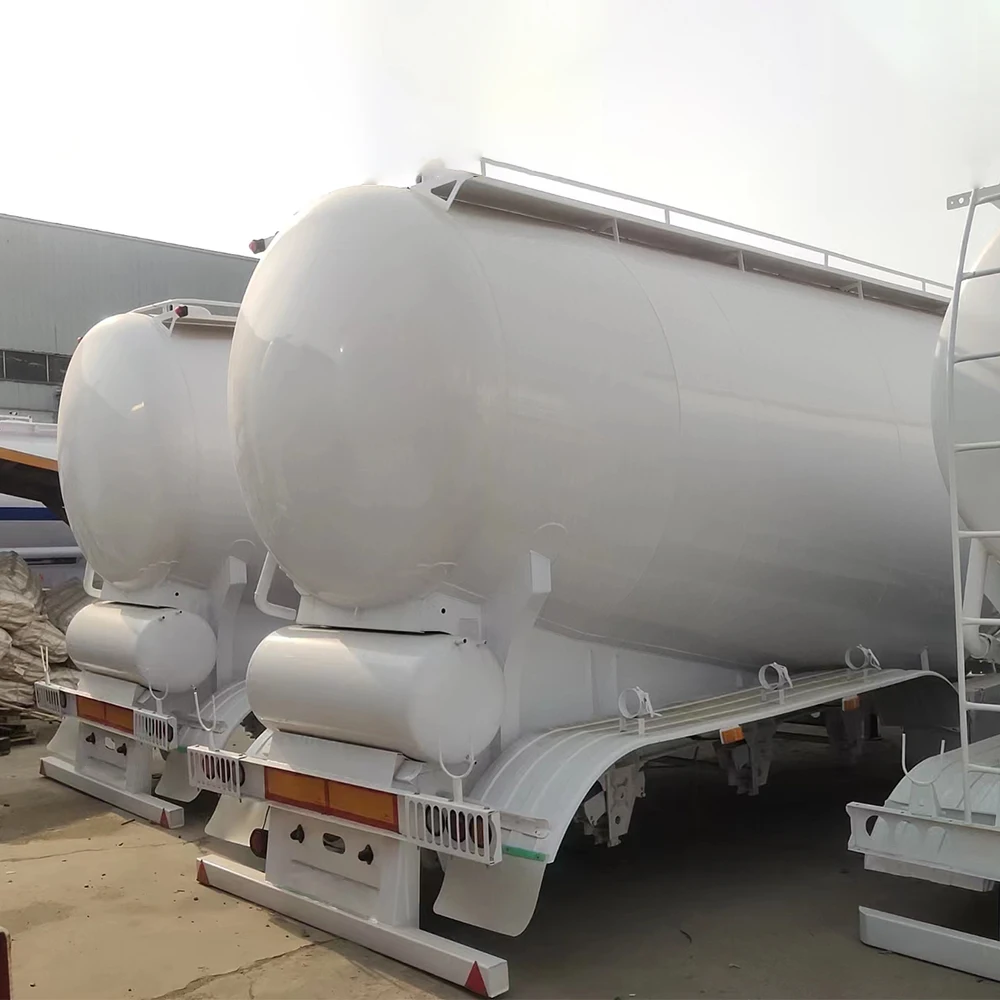

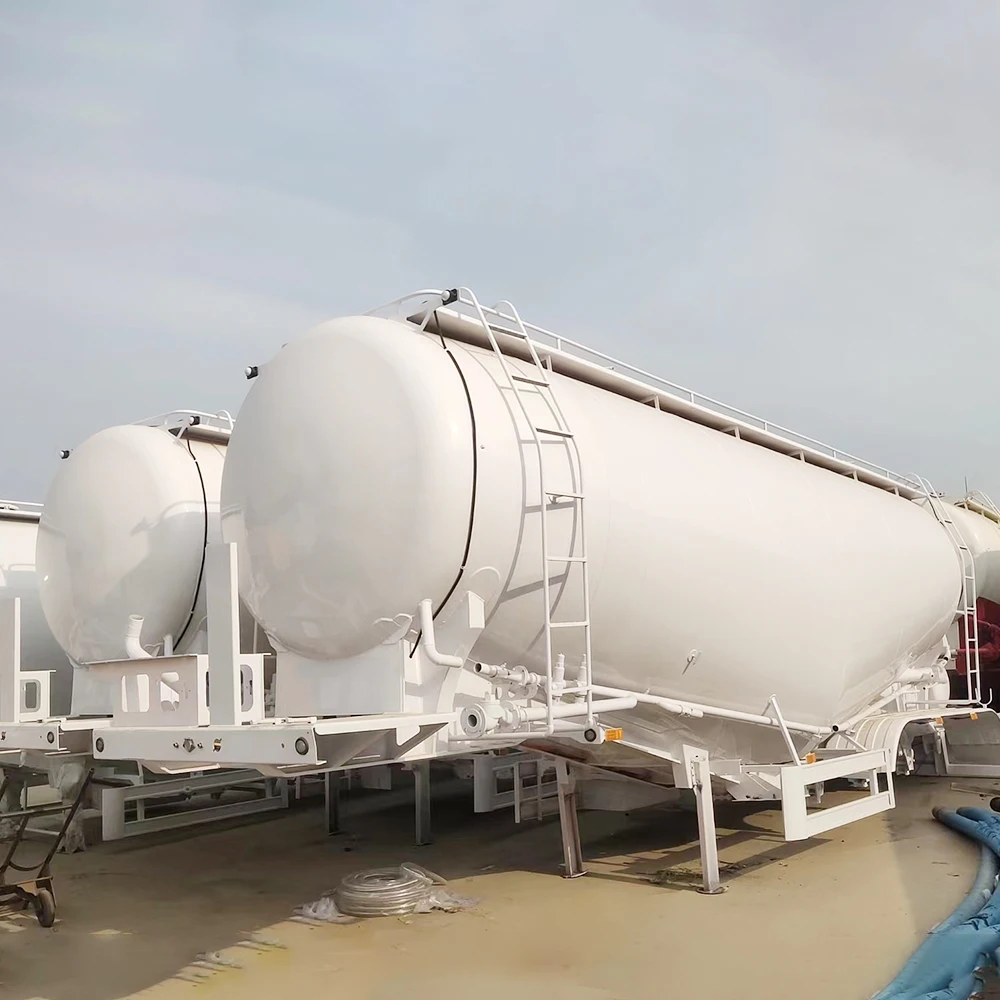

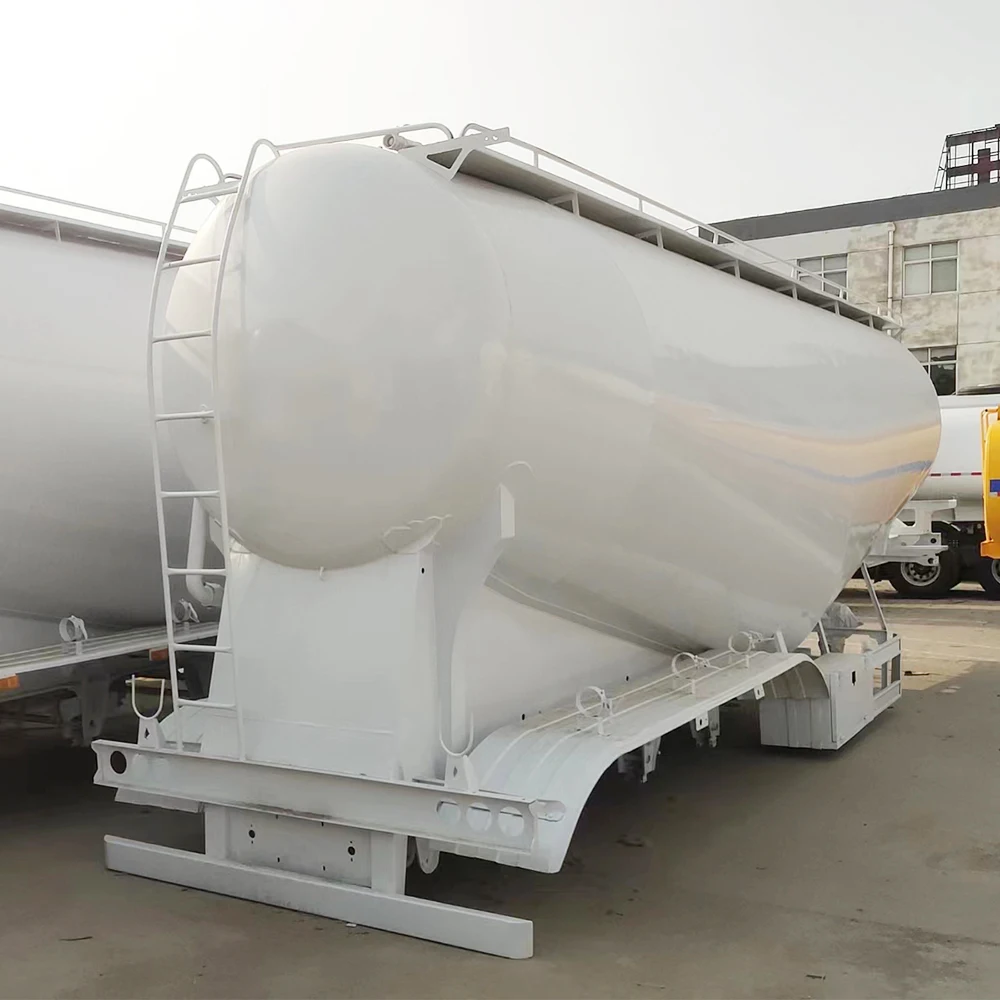

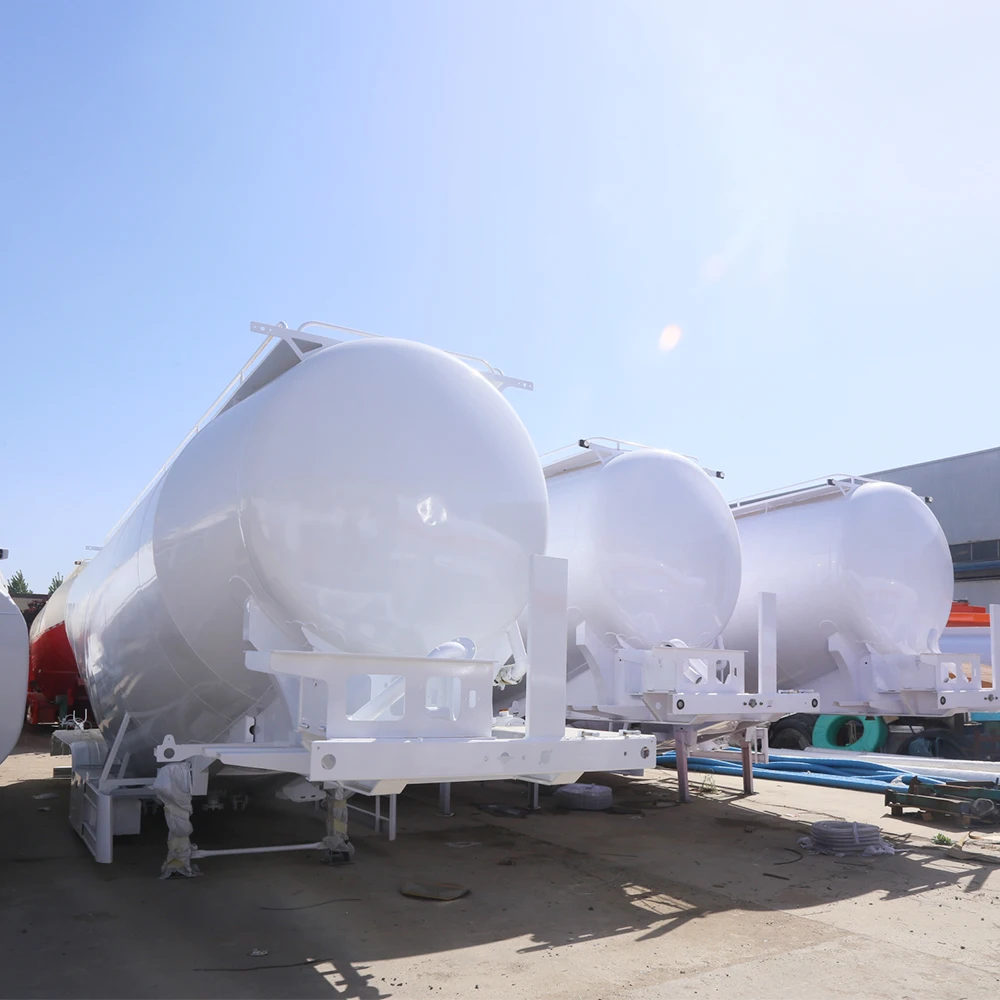

Новый 30 70cbm сухой бункер цементный Бункер большой грузоподъемностью 3 4 оси полуприцеп из нержавеющей стали алюминиевый материал превосходный
- Категория: >>>
- Поставщик: Liangshan Anfashun International Trade Co. Ltd.Liangshan Ltd.
Сохранить в закладки 1601159258045:
Описание и отзывы
Характеристики
Product Parameters
Cement bulker improves the loading and unloading efficiency, and reduce material loss. bulk cement trailer also know as bulk feed trailer, v shape cement tanker. cement bulk trailer is widely used in cement factories, cement warehouses,concrete batching plant and large construction sites for cement, fly coal ash and kinds of diameter ≤ 1mm Powder Material Storage and Transporting.
Specification for powder tank truck trailers | ||
Overall Dimension | 12,850mm*2,495mm*3,960mm(L*W*H) | |
King Pin Setting/Dead Weight | 1,300mm/14,350kg | |
Running gear | ||
Suspension | Under mount tri-axle suspension with equalizer, 11-leaf spring | |
Hub | Cast steel 10 studs, oil seals | |
Rim & Tire | Rim: steel disc, 8.0-20 or 8.5-20 Tire: 11.00-20 or 12.00-20 12units | |
Axles | FUWA axle, 13 tons load capacity | |
Brakes | Dual lines pneumatic brake system; 30/30+30chambers, air-actuated | |
King pin | Welded kingpin, size 50# (2'') or 90#(3.5’’) | |
Landing Gear | Both sides manual operation type with sand shoe | |
Tank | ||
Tank Volume | 42cbm | |
Tank Material | Steel material Q235, Thickness 6mm | |
Manhole Cover | 500mm manhole cover, 3 sets | |
Compartment | Single | |
Inner Fluidized Bed | Air bag | |
Key accessories | ||
Air compressor | 0.2Mpa, 10cbm/Min | |
Engine | Diesel engine 37KW, | |
Air-charging system | 2” main hole, 2”check valve, 1.5” safe valve, 0.4Mpa gauge | |
Discharge Pipe | 4” seamless steel tube | |
Outlet discharging pipe | 4” rubber hose, 6m | |
Electrical & paint | ||
Wiring | 24V, 6 lines | |
Air/Elec. Connector | ISO standard air connector | |
24V 7 pin plug socket | ||
Color | Upon request | |
Fuel Tanker Trailer is a tanker with a trailing head connected to the trailing section. Compared with the conventional single tanker, oil transport can effectively improve the transportation efficiency. In the same tonnage situation, reduce transportation costs, saving fuel consumption. Characteristics of our fuel tanker truck trailer.
Specification for Fuel Tanker Trailer | ||
Shape | Elliptical, circular type shape | |
Dimension | 9500-13000*2500*3900mm ( can be customized ) | |
Payload | 28T - 70tons | |
Volume | 28000liter - 70000liter | |
Compartments | 44570 | |
Tanker body | 5mm or 6mm/Carbon steel plate/ Aluminum alloy | |
Manhole | Diameter 500mm, 1-9 pieces with vent valve | |
Discharge vale | 4" API Adaptor Valve or 3" Spherical Valve | |
Bottom valve | 3", 4" Contral by Pneumatic Block | |
Handrail | Manual, Pneumatic | |
Bottom Loading (Optional) | Overfilling, Recovery system | |
Tank body | Aluminum | |
Discharging hose | Rubber tube, 2 pieces, 6 m each | |
Chassis | ||
Main Beam | Q345 Carbon steel material | |
Axles | 2 - 4 pcs 13 - 20tons BPW or Fuwa Axles | |
Suspenssion | Mechanical, Air, Bogie | |
Landing Leg | JOST E100 | |
Brake system | 6pcs T30/30 Brake Chambers, WABCO relay valve | |
Tire | 12R22.5, 315/80R22.5, 12.00R24 Triangle Brand | |
King Pin | JOST 2" or 3.5 " Bolting Type | |
We can also customize your screen for installation design, and
Product Display
Product Application
Packaging&Shipping
About Us
Liangshan Anfashun International Trade Co., Ltd. is a foreign trade sales subsidiary under Shandong Ward Group, mainly responsible for Ward Group's overseas markets. The headquarters is an enterprise that integrates automobile manufacturing, design, trade, component production, and sales. It has 20 years of experience in the production of semi trailers and trailer components such as axles, suspensions, and landing gear.
The company is located in the birthplace of the world-renowned story of "Water Margin" - Shuibo Liangshan, covering an area of over 600 acres with a construction area of 156000 square meters. The total assets are 350 million yuan. There are currently over 2000 employees, including 18 senior engineering and technical personnel and 180 professional and technical personnel. The products have passed IS09001-2000 certification and 3C certification.
The company's main products include container chassis trailers, low bed trailers, cargo transportation trailers, dump truck trailers, oil tank truck trailers, car transportation trailers, animal transportation fence trailers, and axle spare parts. They are sold well in more than 30 countries including Australia, Singapore, Japan, Sudan, the Middle East, Southeast Asia, and Africa.
The company has first-class CNC production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, vehicle mounted through shot blasting machines, automatic paint spraying rooms, and isolation production testing equipment. First class technology, strict management, and excellent team make due contributions to the global transportation industry!
Dayi Liangshan, integrity-based, Liangshan Anfashun warmly welcomes domestic and foreign customers to visit and guide us.
The company is located in the birthplace of the world-renowned story of "Water Margin" - Shuibo Liangshan, covering an area of over 600 acres with a construction area of 156000 square meters. The total assets are 350 million yuan. There are currently over 2000 employees, including 18 senior engineering and technical personnel and 180 professional and technical personnel. The products have passed IS09001-2000 certification and 3C certification.
The company's main products include container chassis trailers, low bed trailers, cargo transportation trailers, dump truck trailers, oil tank truck trailers, car transportation trailers, animal transportation fence trailers, and axle spare parts. They are sold well in more than 30 countries including Australia, Singapore, Japan, Sudan, the Middle East, Southeast Asia, and Africa.
The company has first-class CNC production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, vehicle mounted through shot blasting machines, automatic paint spraying rooms, and isolation production testing equipment. First class technology, strict management, and excellent team make due contributions to the global transportation industry!
Dayi Liangshan, integrity-based, Liangshan Anfashun warmly welcomes domestic and foreign customers to visit and guide us.
Certificate
FAQ
1. Who are we?
The company is located in the birthplace of the world-renowned story of "Water Margin" - Shuibo Liangshan, covering an area of over 600 acres with a construction area of 156000 square meters. The total assets are 350 million yuan. There are currently over 2000 employees, including 18 senior engineering and technical personnel and 180 professional and technical personnel. The products have passed IS09001-2000 certification and 3C certification.
The company is located in the birthplace of the world-renowned story of "Water Margin" - Shuibo Liangshan, covering an area of over 600 acres with a construction area of 156000 square meters. The total assets are 350 million yuan. There are currently over 2000 employees, including 18 senior engineering and technical personnel and 180 professional and technical personnel. The products have passed IS09001-2000 certification and 3C certification.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
The company's main products include container chassis trailers, low bed trailers, cargo transportation trailers, dump truck trailers, oil tank truck trailers, car transportation trailers, animal transportation fence trailers, and axle spare parts.
4. Why should you buy from us not from other suppliers?
Liangshan Anfashun International Trade Co., Ltd. is a foreign trade sales subsidiary under Shandong Ward Group, mainly handling Ward Group's overseas markets.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
The company's main products include container chassis trailers, low bed trailers, cargo transportation trailers, dump truck trailers, oil tank truck trailers, car transportation trailers, animal transportation fence trailers, and axle spare parts.
4. Why should you buy from us not from other suppliers?
Liangshan Anfashun International Trade Co., Ltd. is a foreign trade sales subsidiary under Shandong Ward Group, mainly handling Ward Group's overseas markets.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
