Арматурная стальная арматура соединительная муфта одно касание легко вставляемая изготовленная модель улучшающая долговечность номер D32
- Категория: >>>
- Поставщик: Chiping Dingli Steel Sleeve Co. Ltd.Chiping Ltd.
Сохранить в закладки 1601159881293:
Описание и отзывы
Характеристики
Products Description

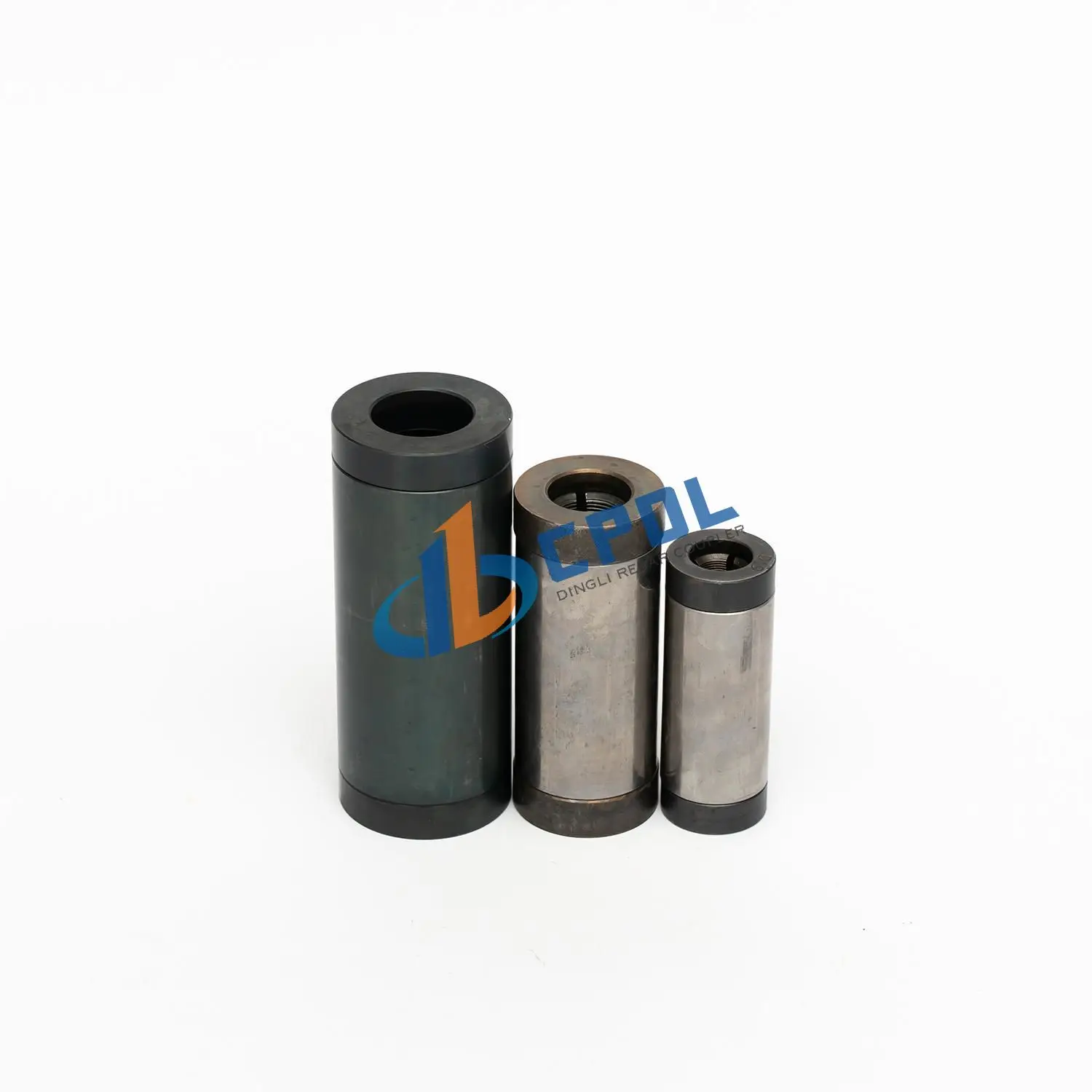

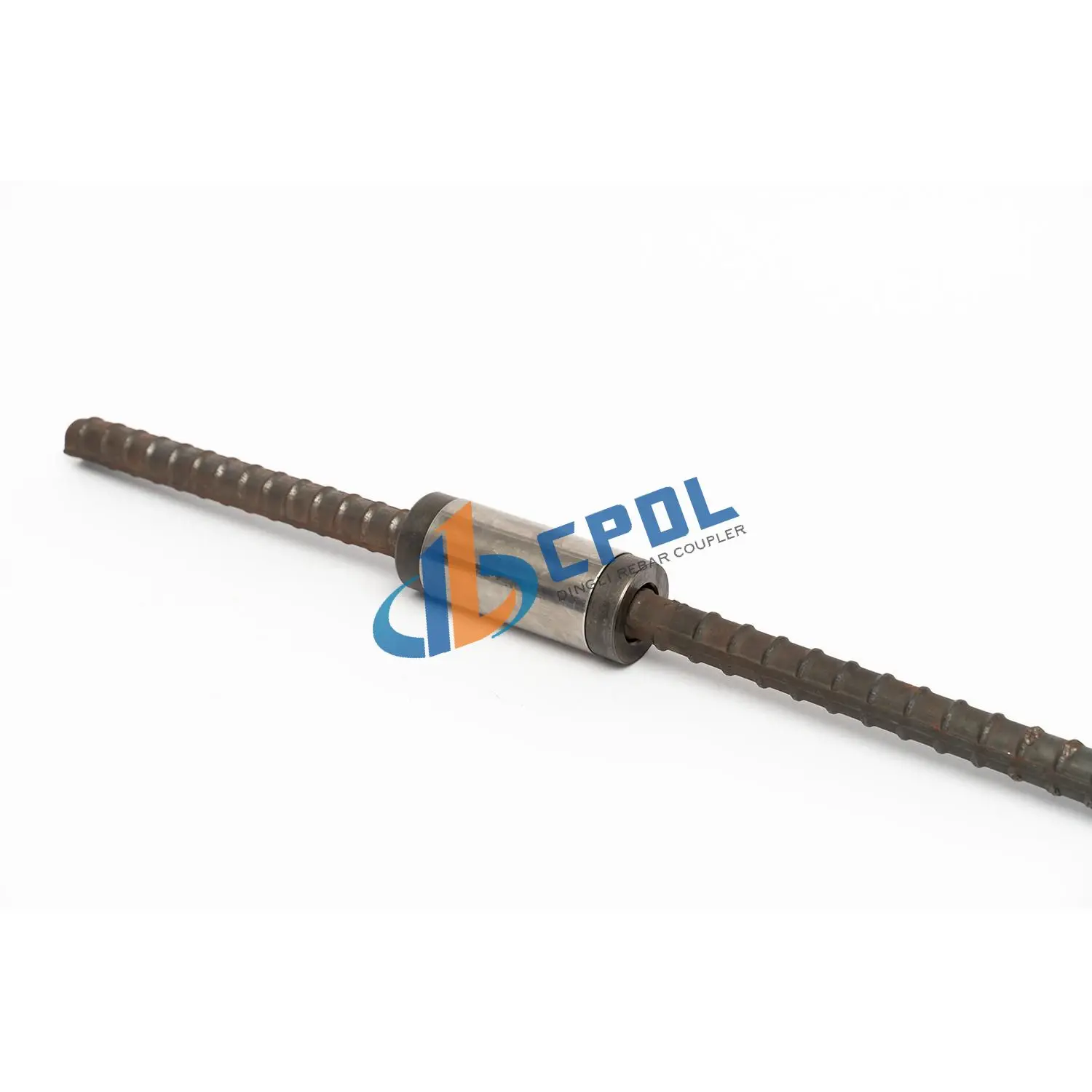

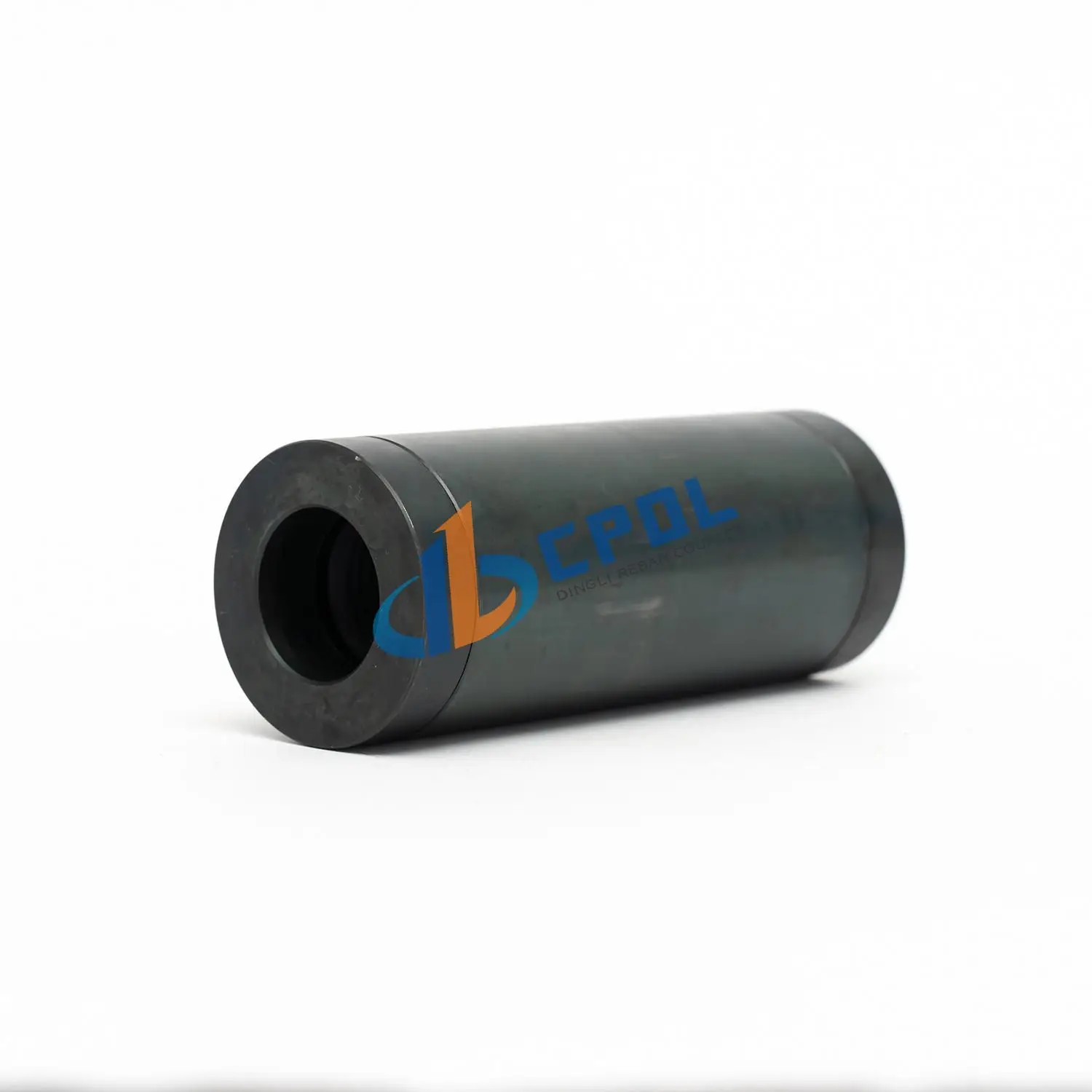

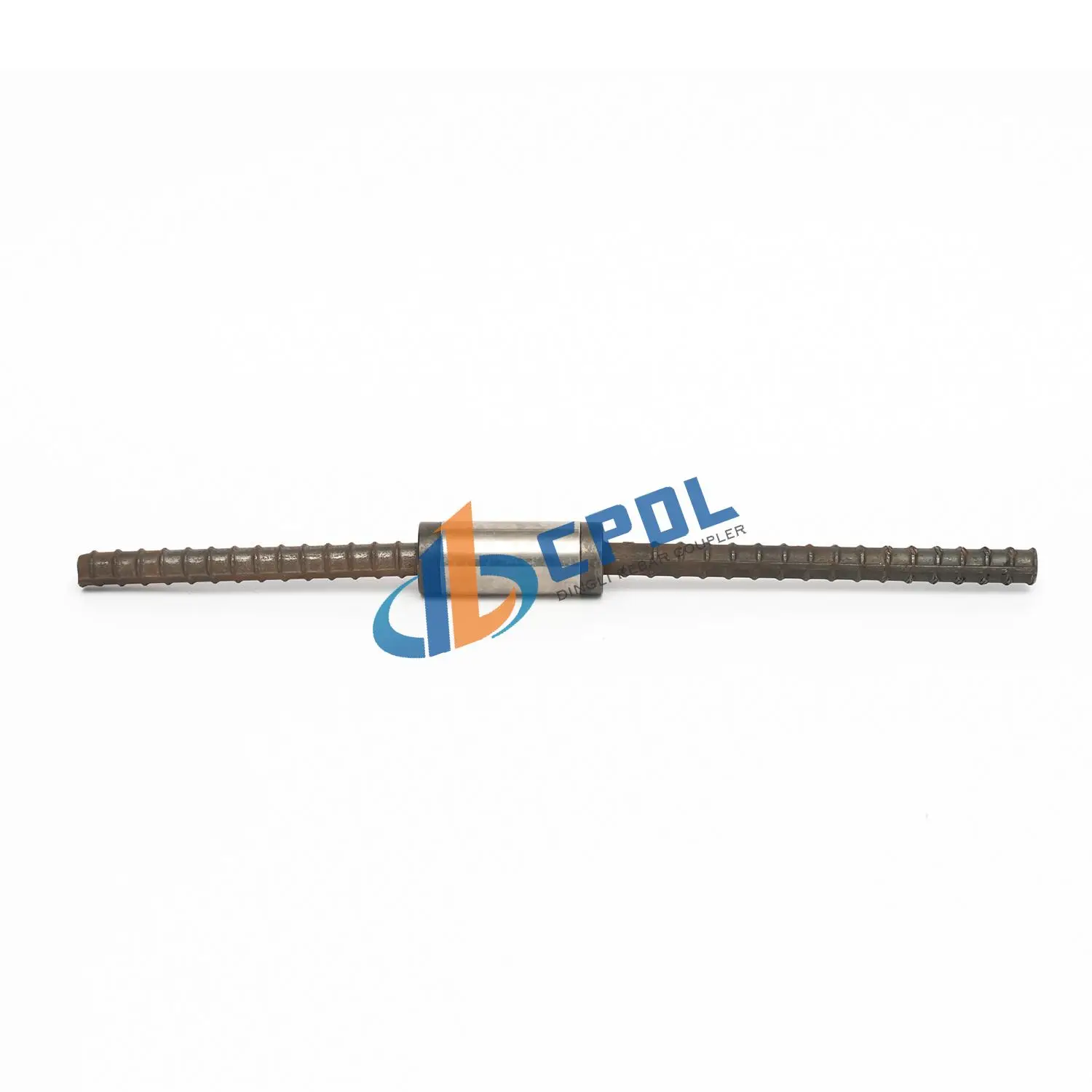

One touch coupler type -The one touch coupler developed by Chiping Dingli in 2022 is the first in China.it cancomplete the docking of two steel bars in 15 seconds,eliminating the previous process of threading steel bars,greatly saving project construction time and improving construction efficiency.
We are rebar coupler production factory that only produces steel bar connection products.We are not just aproduction factory,but also research and develop steel bar connection technology,manufacture steel barconnection machines,and continuously innovate couplers quality,Every detail is a reguirement,and we delvedeeply into steel bar connection product technology!
Description of goods | ||||||||
SIZE | T-ype | Outside diameter ±0.2 OD mm | Length ±0.2 L mm | Single weight k.w（KG) | ||||
D13 | one touch coupler | 31 | 90 | 0.39 | ||||
D16 | 36 | 100 | 0.52 | |||||
D19 | 41 | 110 | 0.67 | |||||
D22 | 46 | 120 | 0.9 | |||||
D25 | 52 | 128 | 1.25 | |||||
D29 | 59 | 140 | 1.6 | |||||
D32 | 65 | 160 | 2.3 | |||||
D35 | 73 | 185 | 3.5 | |||||
D38 | 81 | 198 | 5.1 | |||||
Chiping Dingli Steel Sleeve Co.,Ltd.was established in 2013,located in Chiping County Xinfa Industrial Park,covering an area of 6000 square meters.Registered capital of 6 million,is a professional development,production,sales of rebar couplers and other mechanical connection products of the company,the annual salesof more than 60 million RMB.
The company has strong technical force,strong science laboratory,has passed the ISO9001 internationalquality system certification,annual output of all kinds of machinery and equipment more than 60 sets,all kindsof sleeves more than 10 million,the company's all kinds of mechanical joints through type inspection,The fourindexes of tensile strength,secantal modulus,ultimate stress and residual deformation also meet therequirements of the first and second level joints in the Chinese Ministry of Construction standard (JGJ107-2016),and also meet the requirements of SA and A level joints in foreign standards such as the American standard(ACl-15835),the British standard (BS8110)and the German standard (DIN1045)It is suitable for a large numberof civil,industrial,tunnel,bridge,nuclear power,water conservancy,subway and various buildings in thereinforced concrete structure of the foundation,beam,column,plate,wall and other structures with 12-50mm HRB400,HRB500,HRB600 steel mechanical connection.The company's integrity,strength and product qualityhave been recognized by the industry.The products are sold to more than 10 countries and regions in China andaround the world,such as Saudi Arabia,Russia,Vietnam,India,Dubai,Brazil,South Korea and so on.
The company has strong technical force,strong science laboratory,has passed the ISO9001 internationalquality system certification,annual output of all kinds of machinery and equipment more than 60 sets,all kindsof sleeves more than 10 million,the company's all kinds of mechanical joints through type inspection,The fourindexes of tensile strength,secantal modulus,ultimate stress and residual deformation also meet therequirements of the first and second level joints in the Chinese Ministry of Construction standard (JGJ107-2016),and also meet the requirements of SA and A level joints in foreign standards such as the American standard(ACl-15835),the British standard (BS8110)and the German standard (DIN1045)It is suitable for a large numberof civil,industrial,tunnel,bridge,nuclear power,water conservancy,subway and various buildings in thereinforced concrete structure of the foundation,beam,column,plate,wall and other structures with 12-50mm HRB400,HRB500,HRB600 steel mechanical connection.The company's integrity,strength and product qualityhave been recognized by the industry.The products are sold to more than 10 countries and regions in China andaround the world,such as Saudi Arabia,Russia,Vietnam,India,Dubai,Brazil,South Korea and so on.
