Двухвалковая дробилка роликовая рулонная

Сохранить в закладки 1601160094538:


Цена:162 009,30 ₽ - 270 015,50 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Why Choose Us








Our Services

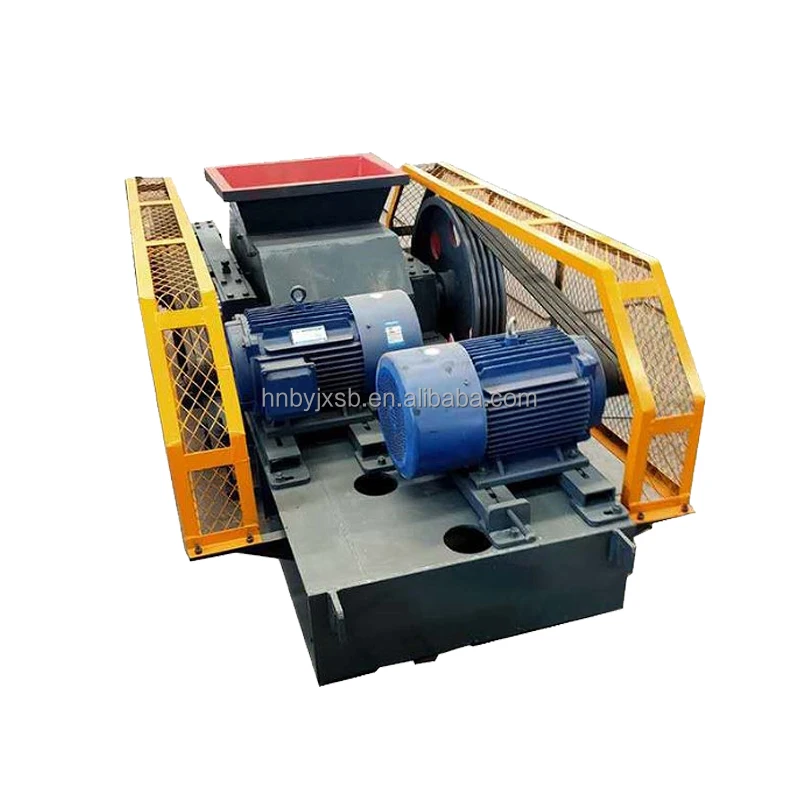

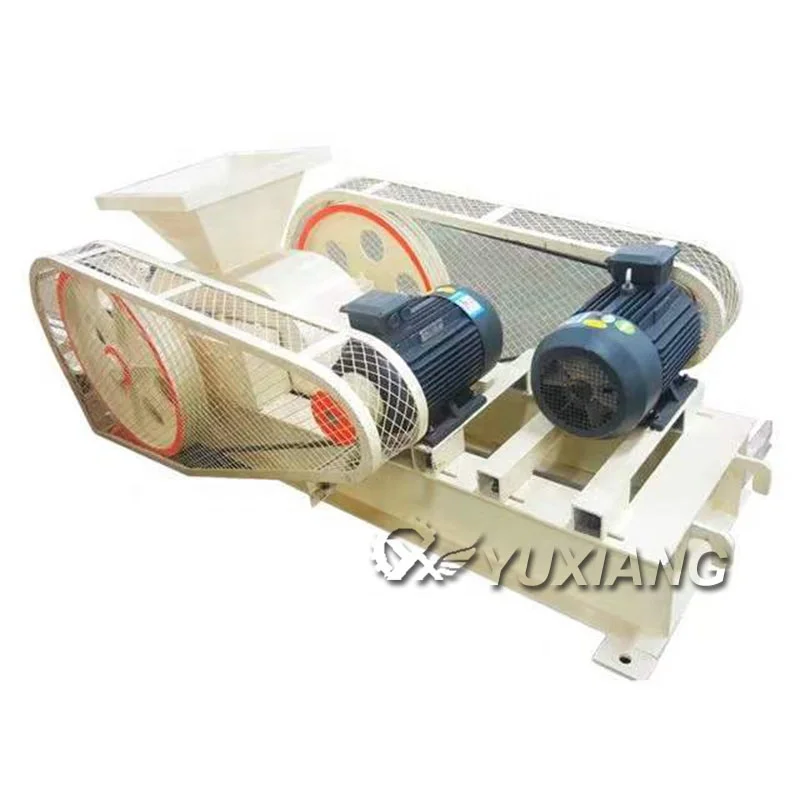

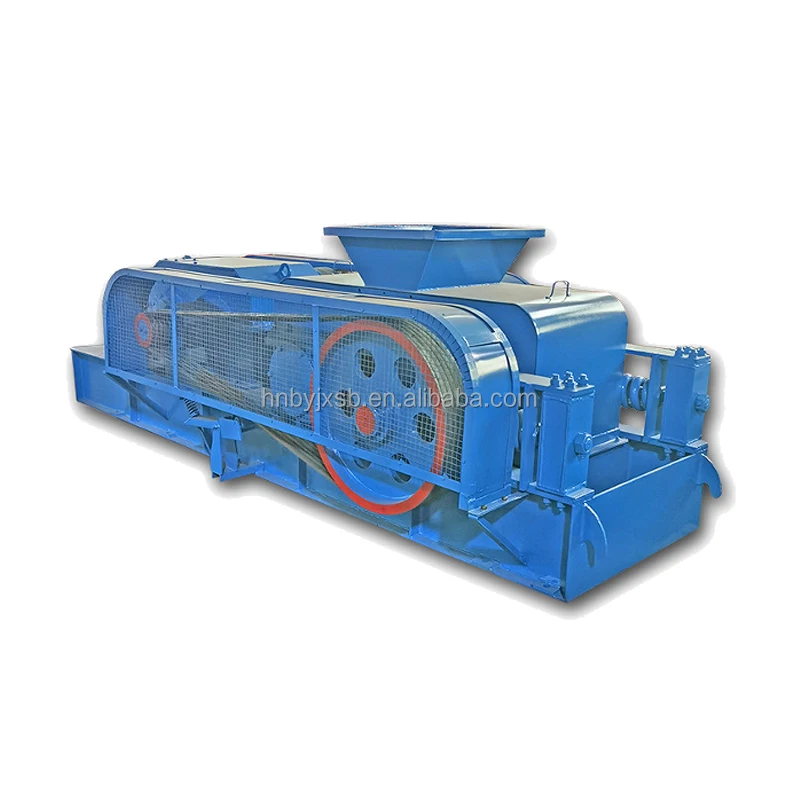

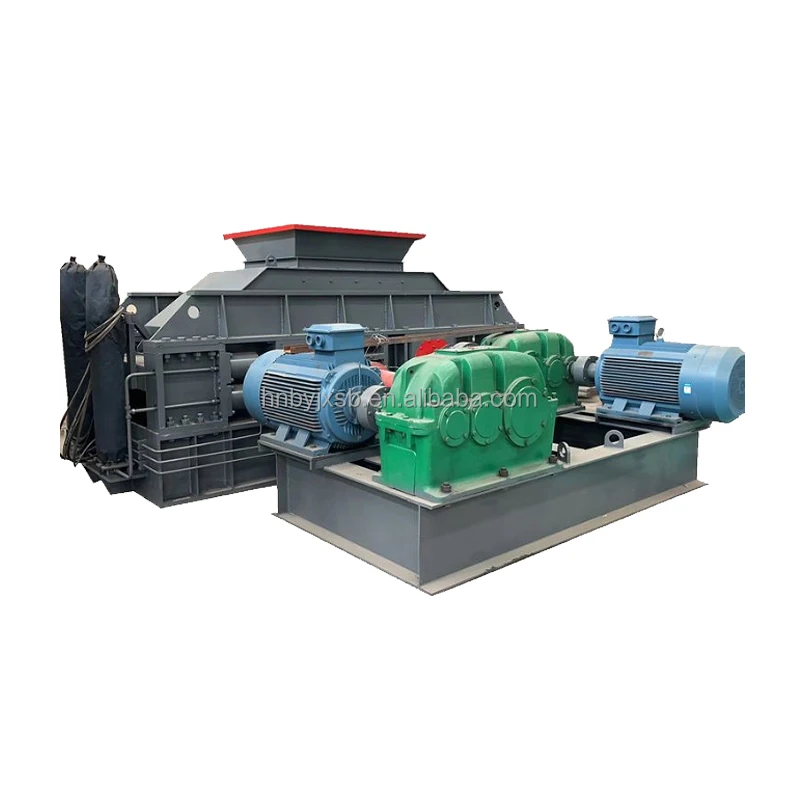

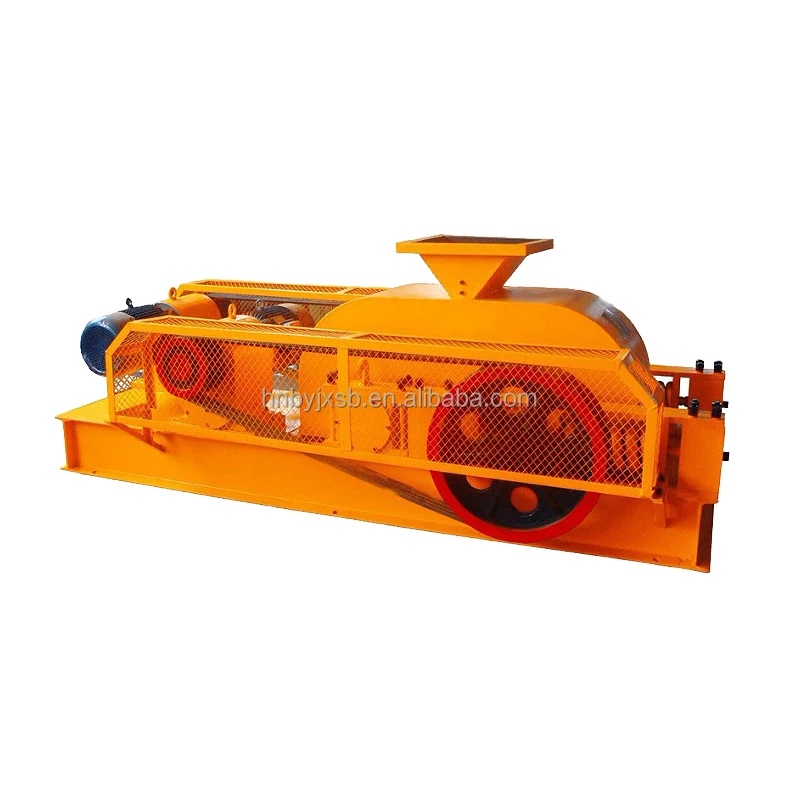

Roll crusher is also called double roll crusher, double teeth roll crusher etc. The surface of roller crusher are made of high manganese steel, which can stand up to heat treatment. Double roller crusher is suitable for applies to cement, chemical industry, electric industry, metallurgy, construction, refractory material etc. It is usually used in middle and fine crushing stage to crush medium hardness materials including limestone, coke, coal, gravel, gypsum, ores, mine refuse, furnace slag, steel slag etc






 15


Working principle:




The materials to be crushed fall from the feeding mouth to the space between the two rolls.After being squeezed and crushed, the final products will naturally fall. When there are too hard materials or materials that cannot be crushed, the rolls of the roller crusher will automatically withdraw under the effect of hydraulic cylinder or spring to increase the gap between the rolls, and the too hard materials or the materials that cannot be crushed will fall down.Thus protecting the machine from being damaged. There is a certain gap between the two rolls that rotate at the opposite direction, and the maximum discharging granularity of the final products can be controlled by changing this gap. Double roller crusher's the materials by relying on the two round rollers rotating at the opposite direction, and four-roll crusher crushes the materials by relying on the two pairs of round rollers rotating at the opposite direction.

23











Advantages


 1.The rollers is wear-resisting chromium molybdenum copper alloy with long service. 2.The gap between the rollers is adjustable, so that the output size and capacity will be changed accordingly. 3.This crusher is equipped with motorless scraper. When the raw material has high moisture content, it can avoid to affect the output size and avoid sticking the roller or blocking the machinehe. 4.According to requirement, it could be in flat roller or toothed roller.


9








Product Paramenters


































































Model






Feed size(mm)






Discharging Size(mm)






Capacity(t/h)






Motor Power(kw)






Weight(t)




2PG250*400




30




0-8




1-3




2*5.5




1.5




2PG610*400




35




2-9




3-9




2*11




2.5




2PG750*500




40




2-10




7-12




2*15




3.8




2PG800*600




40




2-10




15-30




2*30




7




2PG1000*800




40




2-10




40-80




2*55




12




2PG1200*1000




40




2-10




60-100




2*75




15









74





Packaging & Shipping



Packaging Details: We will make different packaging according to different machine sizes .standard international export


packing, container, wooden box.
Delivery Time: We will customize according to the actual needs of customers. Senior designers start to design the plan.


After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons








About Us


Since the establishment of the company, the existing technology research and development personnel 6 people, the annual
sales of more than 5,000 sets of machinery, is one of the earliest production of crushing enterprises. Henan Boying
Machinery Equipment Co., Ltd. is located in Zhengzhou, Henan Province, China. It is a large-scale private enterprise
specializing in the production of machinery and equipment integrating scientific research, manufacturing and sales.
The company has sand production line machine site, international trade department, machinery and equipment production
department, professional sales team. The business involves small crushers, medium and large crushing sand making
equipment, metal crushing, etc., equipment manufacturing and installation, technical services, new product development,
etc.



With excellence in manufacturing technology and innovative manufacturing concepts, we are committed to serving more small and medium-sized edible oil production enterprises around the world. At present, the production and sales volume of the company ranks in the forefront of the same industry in China.   Our products are sold to over 30 countries and regions worldwide, and are highly praised by customers.



Henan Bowin machinery equipment Co., LTD regards quality as life, adheres to integrity, mutual benefit and common prosperity, and carries things with virtue;  in accordance with the current high-standard production process, to ensure product quality and service quality.








FAQ





1. After sales service scope and service period of the product?
The main engine is guaranteed for 2 years, and other components are guaranteed for 1 year,
with lifelong maintenance.





2. If I need complete crushing equipment, can you help us build it?
Yes, we can help you set up a complete production line and provide you with relevant professional advice. We have established many mining projects in China and overseas.





3. What information should the customer give us so that we can provide you with the right offer and service?
What minerals are you separating?
What is the maximum size of your original mineral?
How much capacity does your project require per hour?





4. When will you deliver the machine?
Universal machines take 9-15 business days after receipt of balance payment. Custom machines take about 25 days.





5. Do you provide training and after-sales service?
Yes, we will provide installation and training on site or online. In addition, we have a professional service team that can solve problems as soon as possible.



6. What is your payment method?
T/T Pay 30% deposit and 70% balance before delivery.


7. Number of production and R&D personnel?
Currently, we have 5 production lines and 6 technical research and development personnel.





8. How many agents does the company currently have overseas?
Currently, there are some agents in Africa, South America, and Europe, and we are vigorously recruiting product agents and after-sales service providers.



If you have another question, pls feel free to Contact Us.
