Литий ионные аккумуляторы 51 2 В 200ah 100ah 20 кВтч 5 кВт 15 10

Сохранить в закладки 1601160105197:


Цена:60 306,62 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

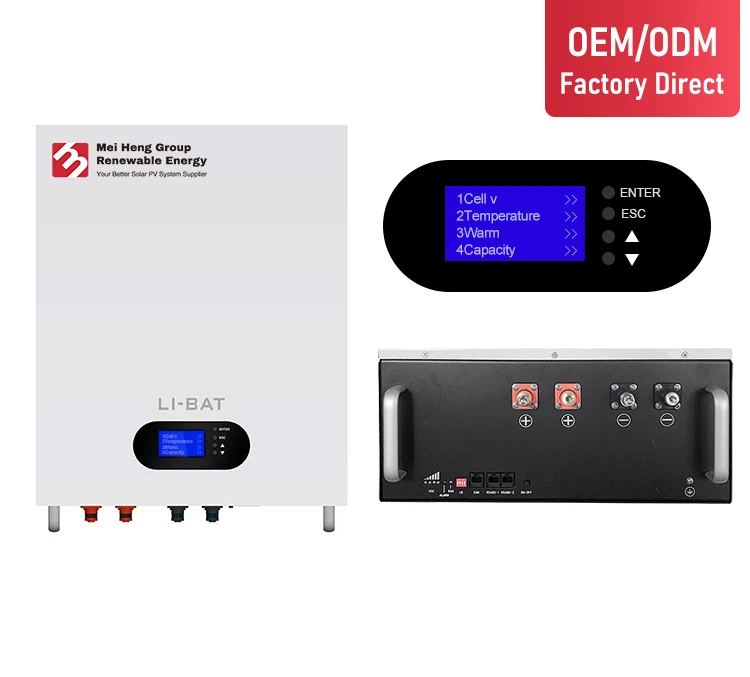

Built-in high quality A-grade battery cells
Each battery is equipped with a BMS management system to detect data in real time
Unique appearance design patent, Stable charging and discharging


Model
GBP24V-200AH
GBP48V-100AHR
(Voltage Optional 51.2V)
GBP48V-200AH-R
(Voltage Optional 51.2V)
Nominal Voltage(V)
25.6
48
Nominal capacity(AH)
210
105
210
Nominal energy capacity(kwh)
5.3
5
10
Operating voltage range
22.4-29.2
42-54.75
Recommended charging voltage(V)
28
52.5
Recommended dischargecut-off voltage(V)
24
45
Standard charging current(A)
100
50
100
Maximum continuous charging current(A)
200
100
200
Standard discharge current(A)
100
50
100
Maximum discharge current(A)
200
100
200
Applicable temperature(°C)
30~60(Recommended 10~35)
Allowable humidity range(%rh)
0~95% no condensation
Storage temperature( °C)
-20~65(Recommended 10~35)
Protection level
IP20
cooling method
natural air cooling
Life cycles
6000+ times at 80% DOD
Maximum size (DxWxH)mm
596x545x155
540x545x155
610x510x246
Weight(kg)
48
44.5
88.3






Our certificate

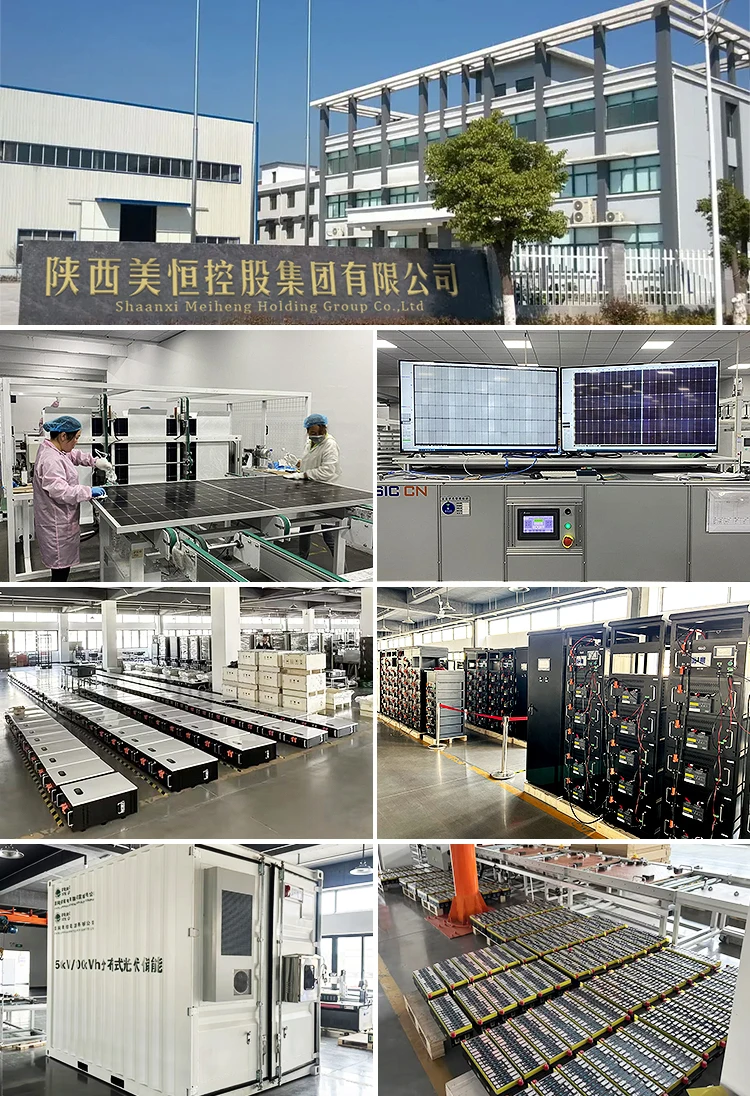

Company profile

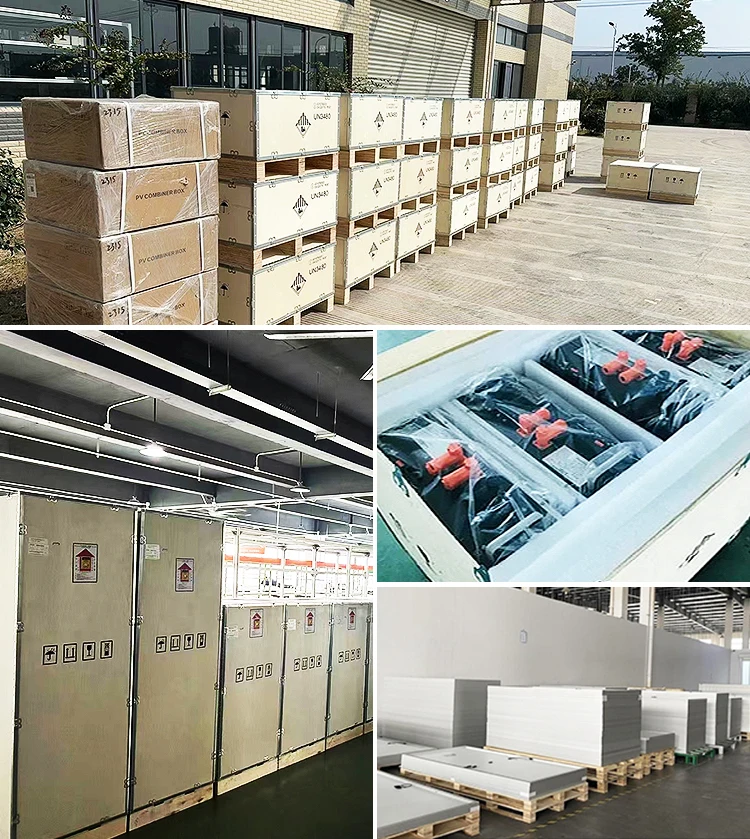

Shipping and packaging

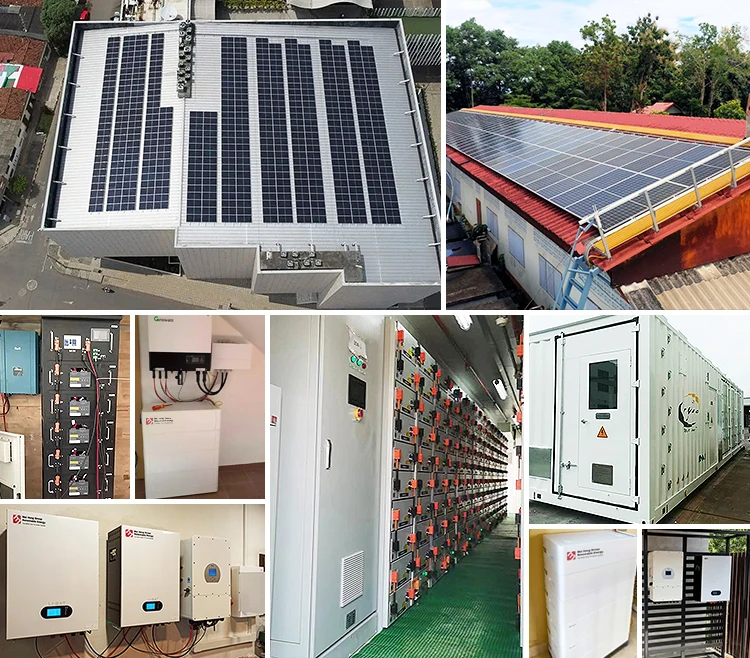

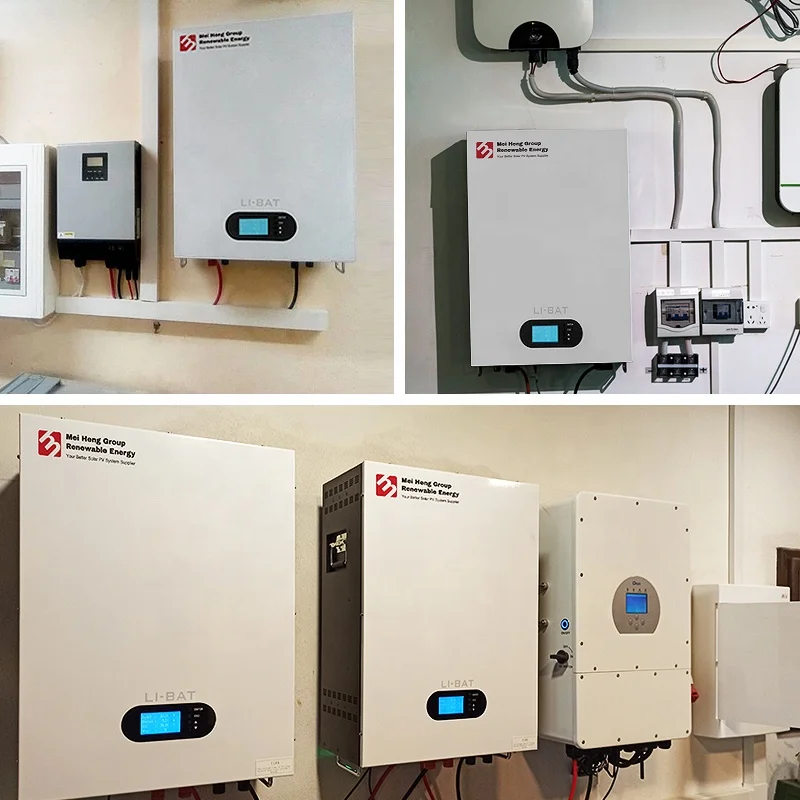

Project case
