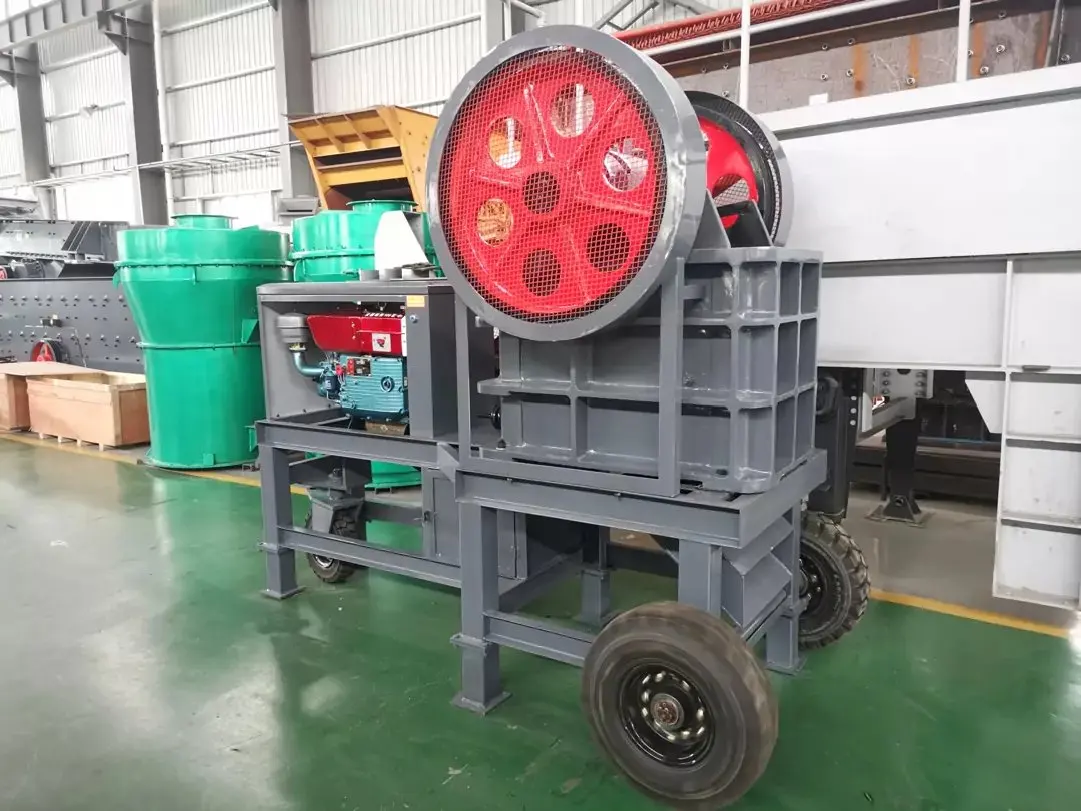

Горная щековая дробилка первичная Известняковая песчаниковая базальтовая высокопроизводительная каменная обслуживание двигателя Max.3t/h
- Категория: >>>
- Поставщик: Henan Yu Jiacheng Machinery Co. Ltd.
Сохранить в закладки 1601160123849:
Описание и отзывы
Характеристики
Products
With larger feed openings and bigger crushing strokes, the Jaw Crusher is suitable for crushing big sizelumps in large quantity.From the welded steel base to the rugged eccentric shaft, the jaw crusher is built withbrute strength with quality bearings. Stone jaw crusher is one of the main types of secondary crushers in amine or ore processing plant.
Features :
This series of jaw crusher ( jaw crusher) has the characteristics of large crushing ratio, uniform product size, simple
structure, reliable work, easy maintenance and economical operation.
structure, reliable work, easy maintenance and economical operation.
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water
conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa,
such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. Baichy manufactures coarse
jaw crusher and fine jaw crusher in stationary type or mobile type.
conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa,
such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. Baichy manufactures coarse
jaw crusher and fine jaw crusher in stationary type or mobile type.

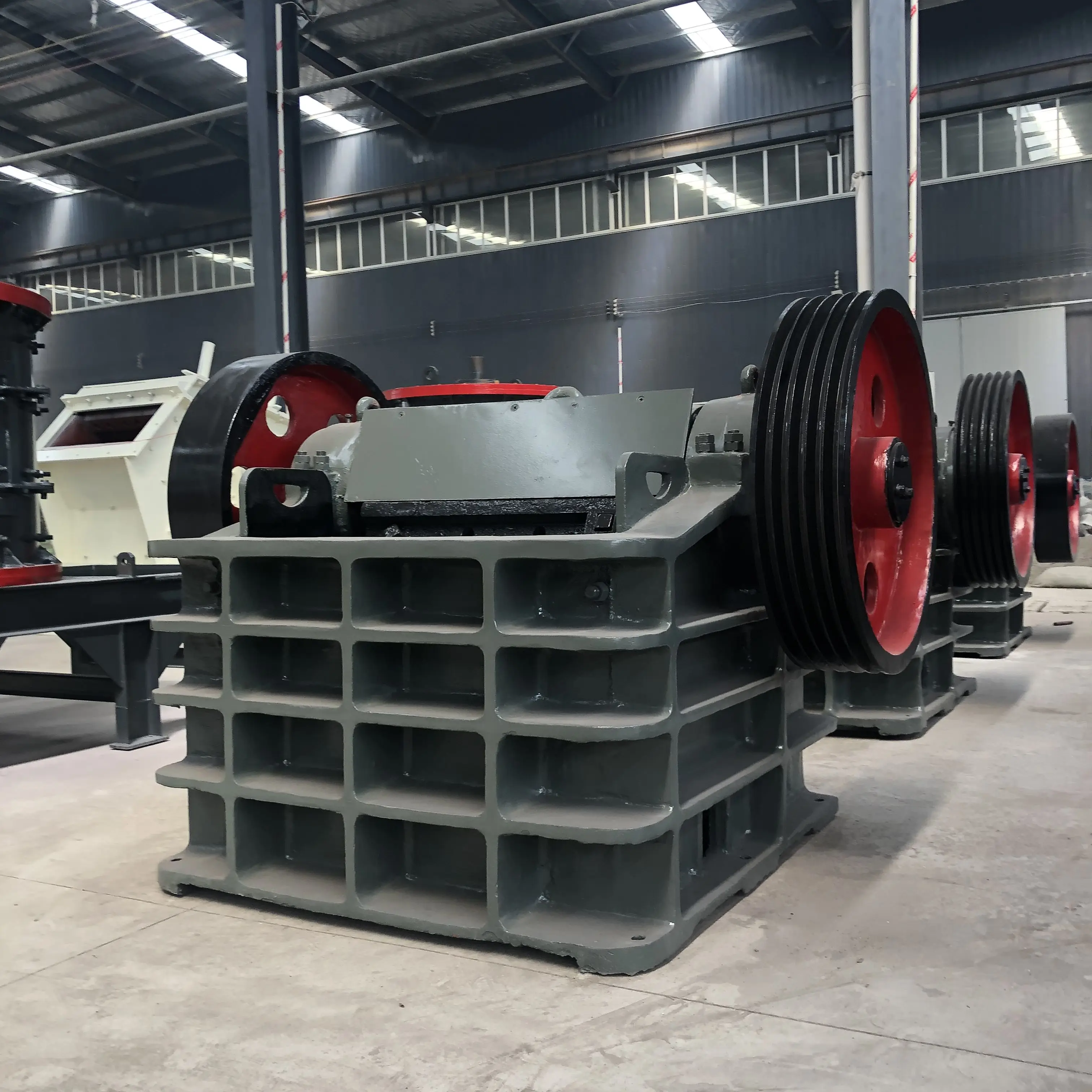

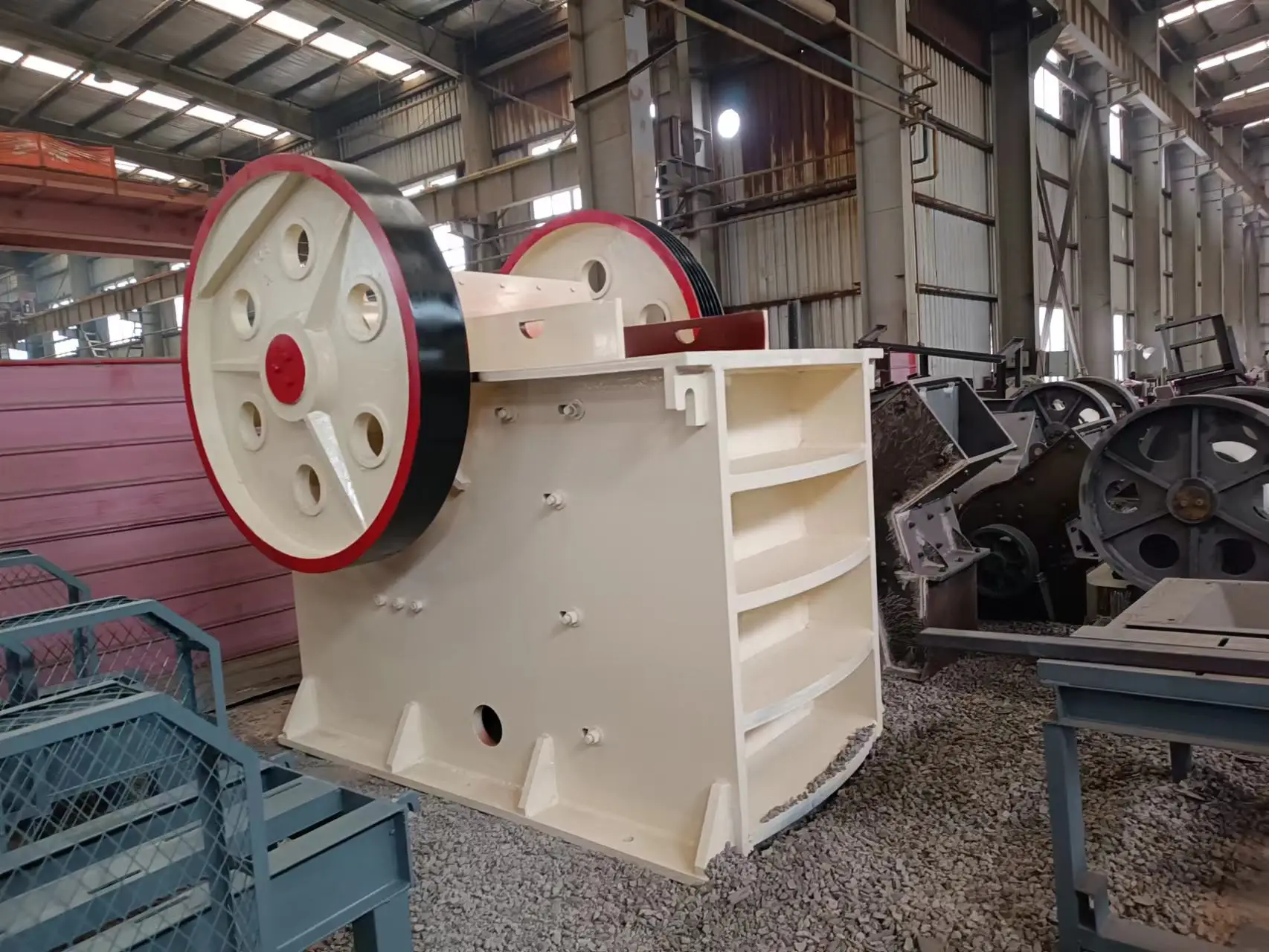

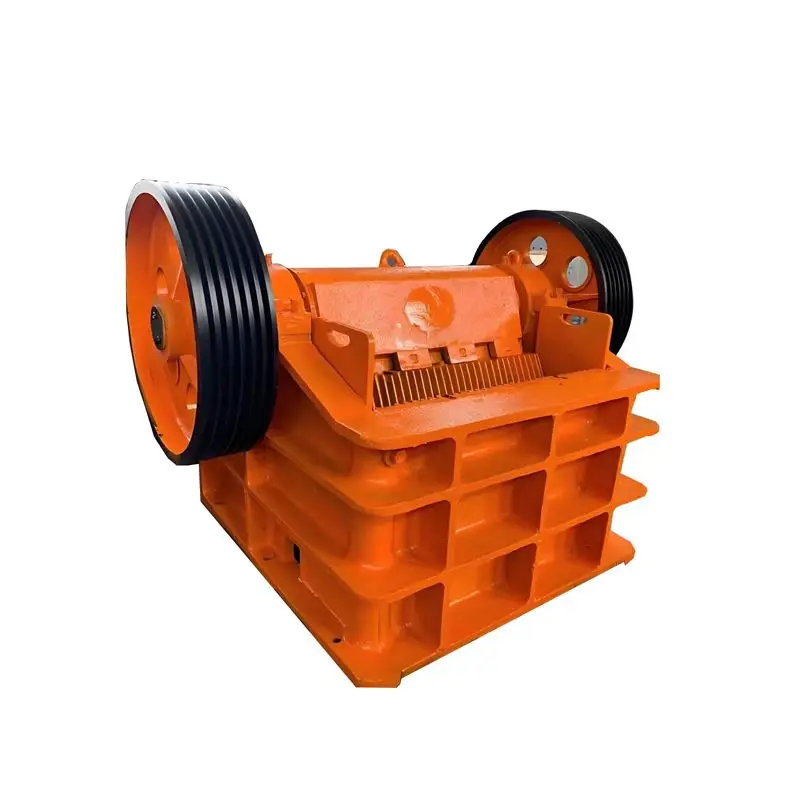

Details Images

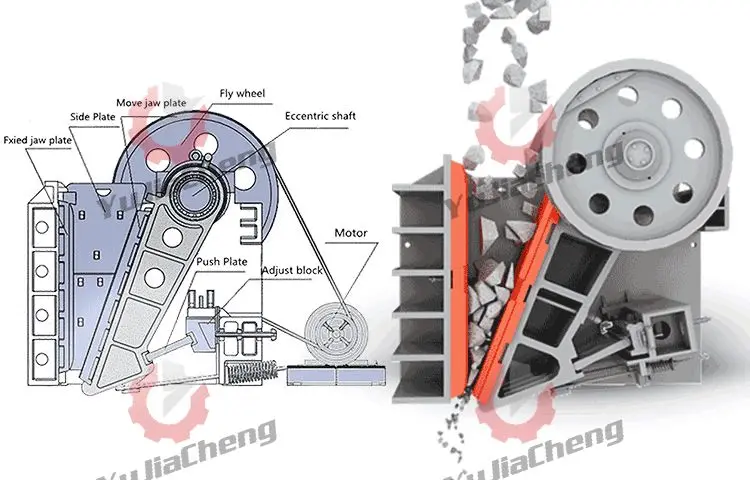

Working Principles:
1. The motor drives the belt and the pulley, and moves the movable jaw up and down through the eccentric shaft. When the moving jaw rises, the angle between the bracket and the moving jaw becomes larger, thereby pushing the movable jaw closer to the fixed jaw.
2. At the same time, the material is crushed or chopped to achieve the purpose of crushing;
3. When the moving jaw is down, the angle between the bracket and the moving jaw becomes smaller. The moving jaw is separated from the fixed jaw by the action of the tension rod and the spring. At this time, the broken material is discharged from the lower opening of the crushing chamber.
4. As the motor rotates continuously, the crushing and maneuvering cycle motion crushes and excretes the material to achieve mass production.
2. At the same time, the material is crushed or chopped to achieve the purpose of crushing;
3. When the moving jaw is down, the angle between the bracket and the moving jaw becomes smaller. The moving jaw is separated from the fixed jaw by the action of the tension rod and the spring. At this time, the broken material is discharged from the lower opening of the crushing chamber.
4. As the motor rotates continuously, the crushing and maneuvering cycle motion crushes and excretes the material to achieve mass production.
Support customization
If you want to know the specific information of the product, please contact us immediately!
Technical parameters of the product
Model | Inlet Size (mm) | Feed Size (mm) | Adjustable Range(mm) | Capacity(t/h) | Power(kw) | Weight(t) |
PE-150*250 | 150*250 | 125 | 10-40 | 0.6-3 | 5.5 | 0.81 |
PE-250*400 | 250*400 | 210 | 20-60 | 3-13 | 15 | 2.8 |
PE-400*600 | 400*600 | 340 | 40-100 | 10-34 | 30 | 6.5 |
PE-500*750 | 500*750 | 425 | 50-100 | 20-52 | 55 | 10.3 |
PF-600*750 | 600*750 | 500 | 150-200 | 50-100 | 55 | 12 |
PE-600*900 | 600*900 | 500 | 65-160 | 30-75 | 55-75 | 15.5 |
PE-750-1060 | 750-1060 | 630 | 80-140 | 72-130 | 110 | 30 |
PE-800*1060 | 800*1060 | 640 | 100-200 | 85-143 | 110 | 30 |
PE-900*1060 | 900*1060 | 685 | 230-290 | 100-250 | 110 | 31 |
PE-900*1200 | 900*1200 | 750 | 95-165 | 87-164 | 110 | 50 |
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 197-214 | 110 | 51 |
PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 250-500 | 160 | 100.9 |
PEX-150*750 | 150*750 | 120 | 18-48 | 5-16 | 15 | 3.5 |
PEX-250*750 | 250*750 | 210 | 25-60 | 8-22 | 22 | 4.9 |
PEX-250*1000 | 250-1000 | 210 | 25-60 | 10-32 | 30-37 | 6.5 |

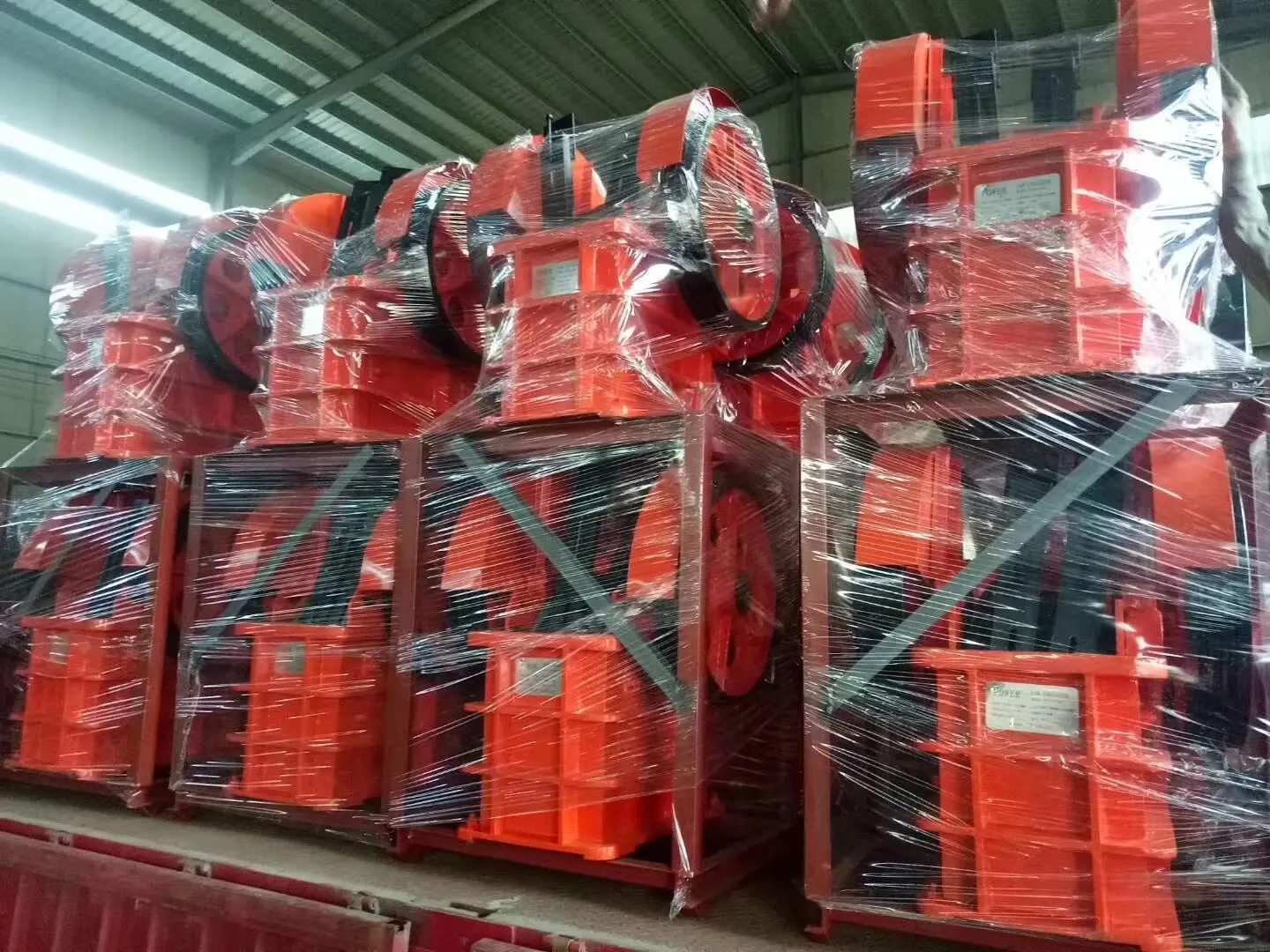

Packaging and transport
Company Profile
Henan Yu Jiacheng Machinery Co., Ltd. was established in 2013, is the most professional waste recycling machines manufacturer in
China Mainly manufactures double shaft shredder, wood crusher, plastic crusher and other waste recycling equipment. We offer
professional waste recycling and disposal solutions with 13 years of manufacturing and R&D experience.
China Mainly manufactures double shaft shredder, wood crusher, plastic crusher and other waste recycling equipment. We offer
professional waste recycling and disposal solutions with 13 years of manufacturing and R&D experience.
Company Profile
Test Certificate
FAQ
A: Why choose us?
1). Years of experience We have rich experience in equipment manufacturing. Our equipment enjoys a high reputation both at home and abroad (e.g. more than 10 countries and regions in the Middle East, Southeast Asia, Africa, etc.).
2).Manufacturer,not distributor
Factory direct sales make the price more competitive. Customers are always welcome to visit ourfactory for machine testing.
3). Fast delivery
We promise that the goods can be dispatched on the delivery date after the order is
confirmed.
confirmed.
Q: How can I know the quality of your machines?
A: You can send us the scrap samples and we will test the machine for you for free. We can also send you machine test video. We also warmly welcome you to visit our factory and test our machines yourself.
Похожие товары

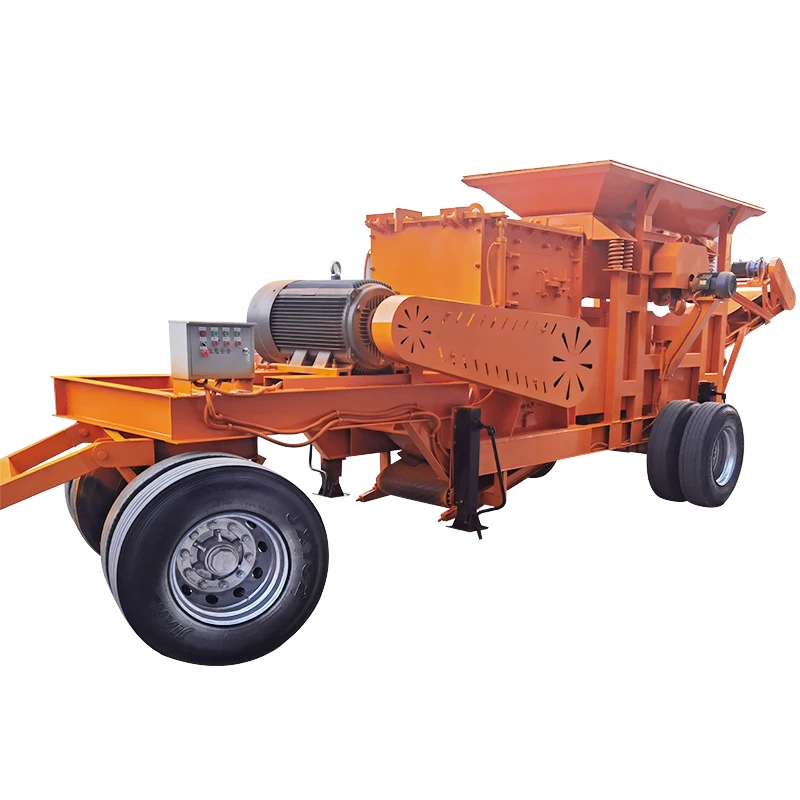

Скидка 14 ~ 36 т/ч машина для камнедробилки б/у установка продажи
1 377 641,25 ₽ - 1 653 169,50 ₽

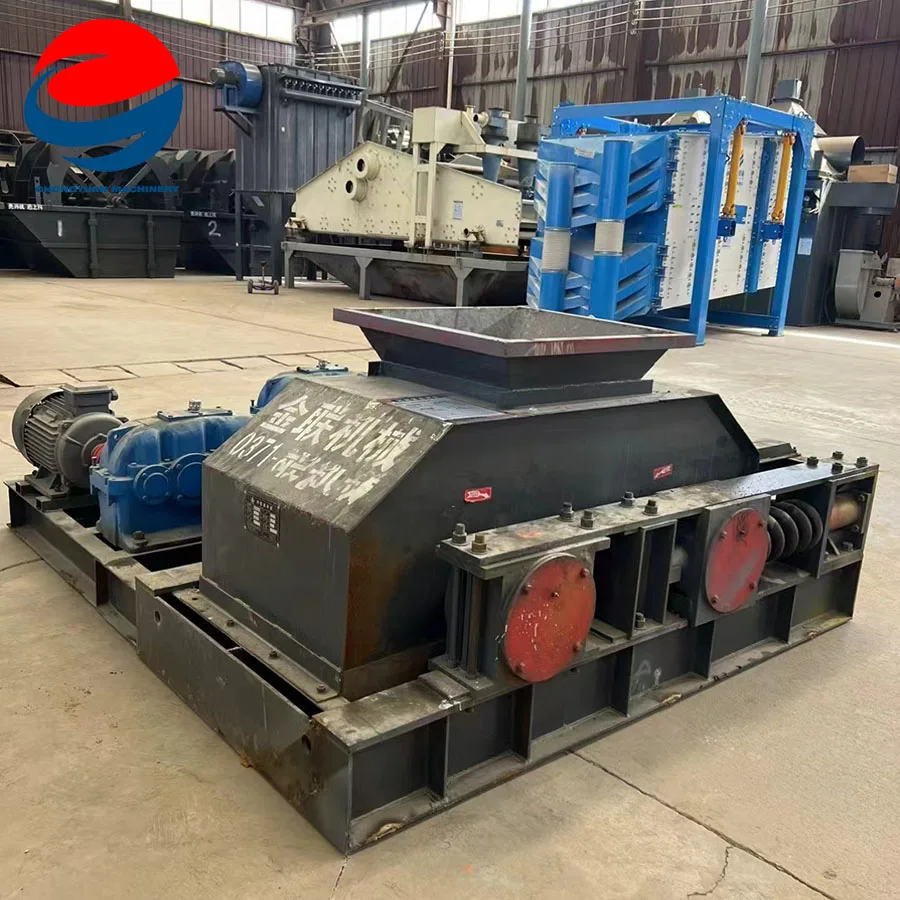

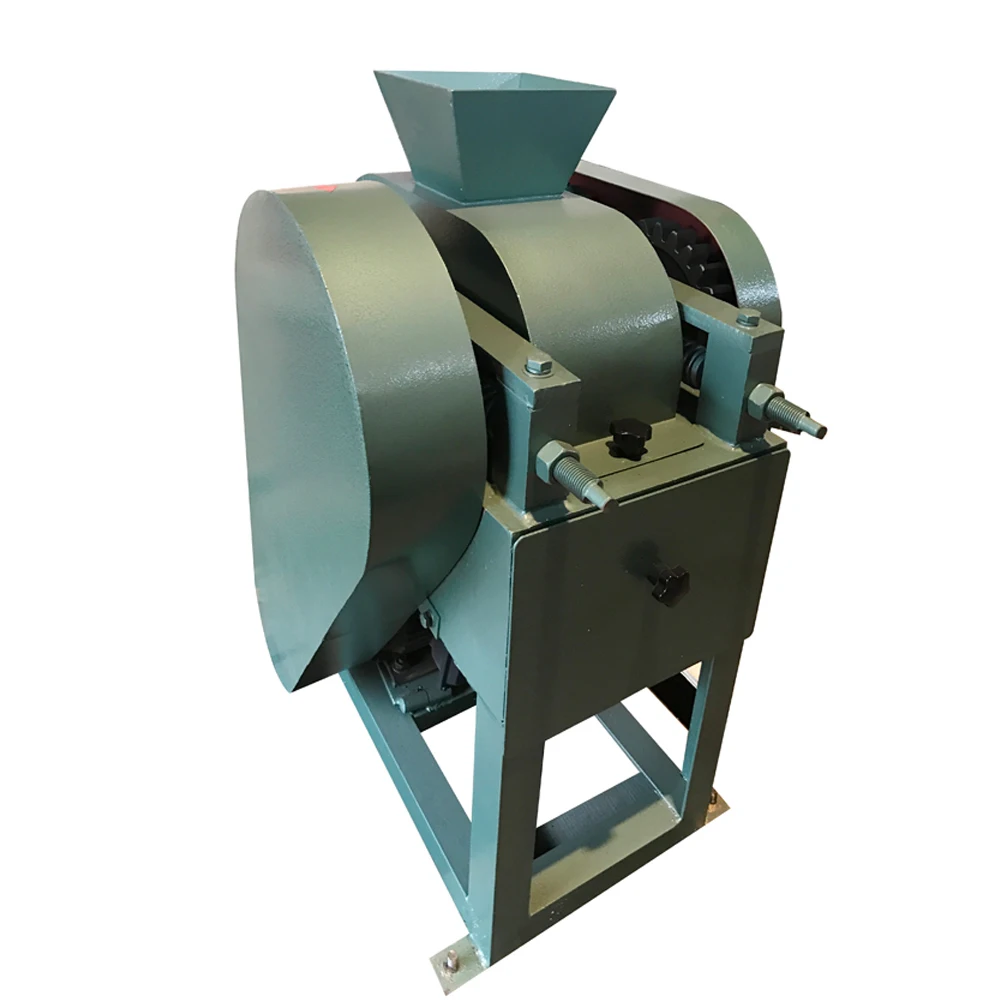

Небольшой Размер 200*75 лабораторная двойная дробилка для измельчения руды мини каменная мелкого дробления камня
88 169,04 ₽
Pe250 * 400 Подержанные каменные детали машины портативный дизельный двигатель роликовый небольшой щековая дробилка
378 024,76 ₽ - 385 739,55 ₽
Карьерная гранитная базальтовая Первичная щековая дробилка для майнинга

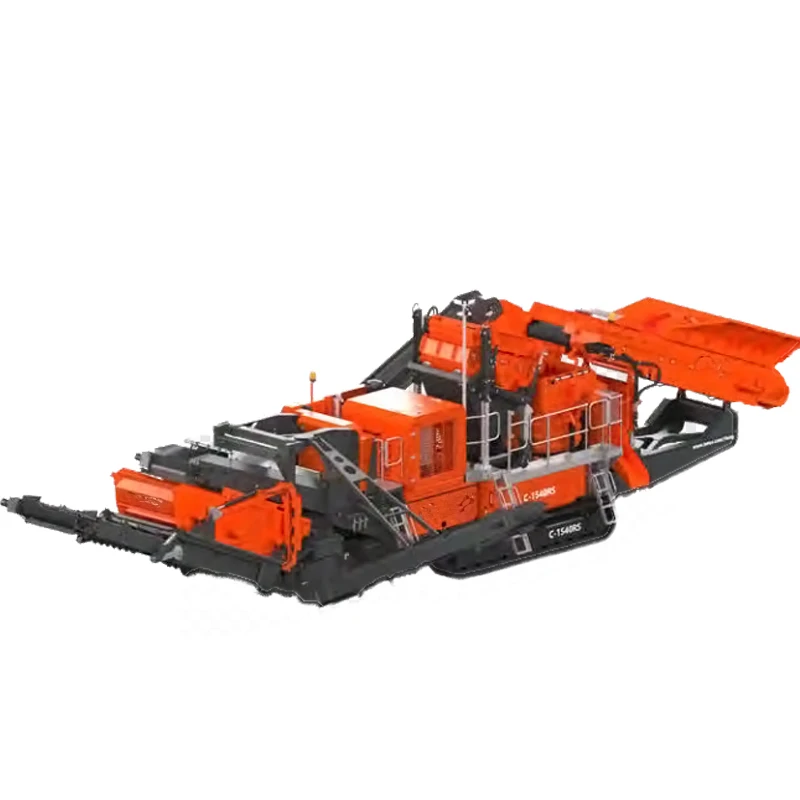

Многофункциональная гусеничная самоходная передвижная камнедробильная установка для дробления камней
3 857 395,50 ₽

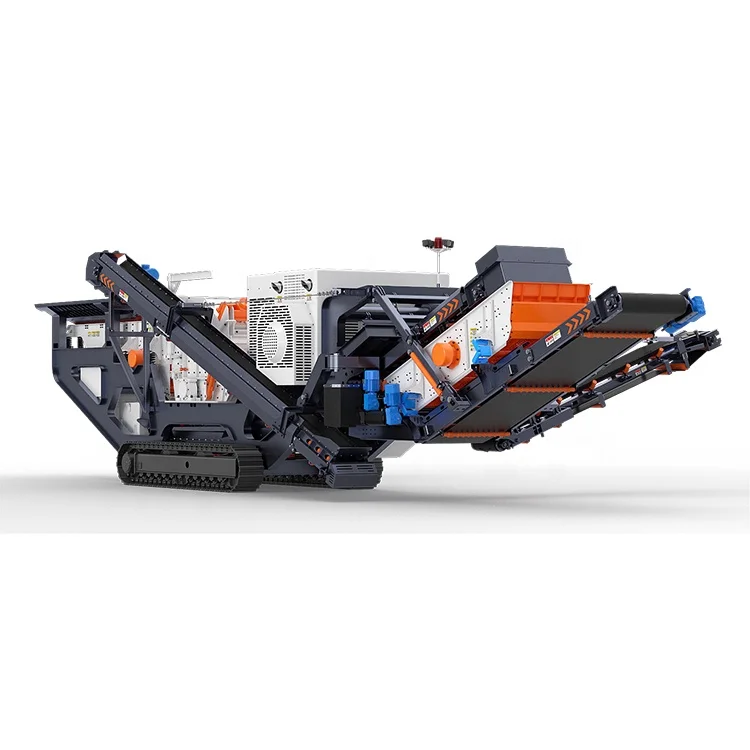

Гусеничная Мобильная коническая дробилка для камня цена на гусеничную дробильную установку с предварительным экраном и экранной коробкой
