Однофазная электростанция 6K 10K online ups с длительным временем резервного копирования для компьютера лучшего качества по оптовой цене
39 455,65 ₽ - 42 761,99 ₽
Высокочастотный блок питания 1 кВА 2 220 В 50 Гц 19 дюймов
- Категория: >>>
- Поставщик: Shenzhen Iteaq Power Co. Ltd.
Сохранить в закладки 1601160217885:
Описание и отзывы
Характеристики

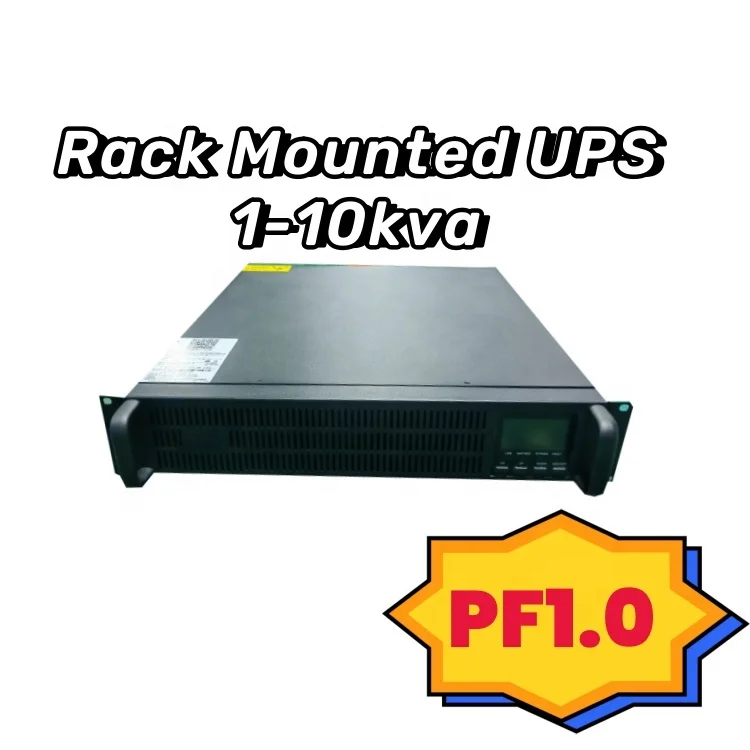

220V 50Hz Online Rack Mounted UPS 1-10KVA
Product Description
Introduction:
TM11/RM11 1-10kVA is based on online double conversion technology, which is an ideal power supply solution for small-capacity scenarios and can completely eliminate all kinds of grid problems. It covers the capacity range of 1-10KVA, tower or rack installation.
Scenarios:
Small and medium enterprises, branches of large enterprises, bank branch networks, large supermarkets, homes, offices and other AC power supply scenarios.
Features:
1.Wide input voltage range
2.Online double conversion technology
3.DSP digital control technology
4.Output power factor 1.0
5.Communications: RS232/USB/Dry contact card/SNMP option
2.Online double conversion technology
3.DSP digital control technology
4.Output power factor 1.0
5.Communications: RS232/USB/Dry contact card/SNMP option
Benefits:
1.Wide input voltage range adapt to harsh power grid
2.Friendly man-machine interface, easy to operate
3.Intelligent battery management extend battery life
2.Friendly man-machine interface, easy to operate
3.Intelligent battery management extend battery life
Specification
Model | RM1101 H/S | RM1102 H/S | RM1103 H/S | RM1106 H/S | RM1110 H/S | |||||
Phase | Single phase in and out L+N+PE | 1 year | ||||||||
Capacity | 1kVA/1kW | 2kVA/2kW | 3kVA/3kW | 6kVA/6kW | 10kVA/10kW | |||||
INPUT | ||||||||||
Nominal Voltage | 208/220/230/240Vac | |||||||||
Operating voltage range | 110~300Vac | TM1103 | ||||||||
Operating frequency range | 50/60Hz±6Hz | Single Phase | ||||||||
Power factor | ≥0.99 | Overcurrent | ||||||||
Harmonic distortion (THDi) | 1-3K :≤4% (100% linear load),≤5%(100% non-linear load) 6-10K:≤5% (100% linear load),≤8%(100% non-linear load) | 27.5kgS | ||||||||
OUTPUT | On-line | |||||||||
Phase | L+N+PE | |||||||||
Wave Form | Pure Sine Wave | |||||||||
Output voltage | 208/220/230/240Vac | iTeaQ Power | ||||||||
Power factor | 1.0 | 3kva /2.7kW | ||||||||
Voltage regulation | ≤±1% | 110~300Vac | ||||||||
Output frequency | Utility Mode: follow utility; Battery Mode:(50/60±0.1)Hz | ISO9001/ISO14001/CE/ROHS | ||||||||
Crest factor | 3:1 | 208v/220v/230v/240v | ||||||||
THD | 1-3K :≤4% (100% linear load),≤5%(100% non-linear load) 6-10K:≤5% (100% linear load),≤8%(100% non-linear load) | 8504402000 | ||||||||
Efficiency(AC) | ≥93% | 93% | Pure Sinewave | |||||||
Efficiency(Batt.) | ≥89% | 89% | 0.9 | |||||||
Overload | 2AC mode: Load≤110%, last 30min; ≤130%, last 10min; ≤150%, last 30s; >150%, 200ms to bypass. Battery mode: Load≤110%, last 1min; ≤130%, last 10s; >150%,200 ms to bypass | AC mode: Load≤110%, last 30min; ≤130%, last 10min; ≤150%, last 30s; >150%, 500ms to bypass. Battery mode: Load≤110%, last 10min; ≤130%, last 1min; ≤150%, last 10s; >150%, 200ms to bypass. | 72VDC(6PCS 12V 7ah Lead acid battery) | |||||||
BATTERY | ||||||||||
Standard unit QTY | 2*7ah | 4*7ah | 6*7ah | 16-20, default 16*7ah | ||||||
Long unit QTY | 3 | 6 | 8 | 16-20 | ||||||
Charge Current | 1A for standard unit, 1-12A for long unit | 1-12A adjustable, 1A default | ||||||||
Transfer Time | Utility to Battery : 0ms; Utility to bypass:0ms | |||||||||
ENVIRONMENT | ||||||||||
Operating temperature | 0℃～40℃ | |||||||||
Storage temperature | -25℃～55℃(no battery) | |||||||||
Humidity range | 20～95% (non condensing) | |||||||||
Altitude | < 1000m | |||||||||
Noise level | <45DdB | |||||||||
PROTECTION | ||||||||||
Alarm | overload, utility abnormal, UPS fault, battery low, etc | |||||||||
Protection | short circuit, overload, over temperature, battery low, fan fault alarm | |||||||||
Communication | short circuit, overload, over temperature, battery low, fan fault alarm | |||||||||
PHYSICAL | ||||||||||
Standard Unit | ||||||||||
Dimension( D*W*H)mm | 310*438*87 H/S | 510*438*87 H/S | 510*438*87 H/S | 491*438*87 | 491*438*87 | |||||
Net Weight(kg) | 5.1 | 8.1 | 8.3 | 8.9 | 10.9 | |||||
Package | ||||||||||
Package( D*W*H)mm | 526*525*154 (H/S) | 620*525*154 (H/S) | 620*525*154(H/S) | 580*525*154 | 580*525*154 | |||||
Gross Weight(kg) | 7.1 | 10.1 | 10.33 | 10.9 | 12.9 | |||||
Standards | EN62040-1, EN62040-2 | |||||||||
Details Images

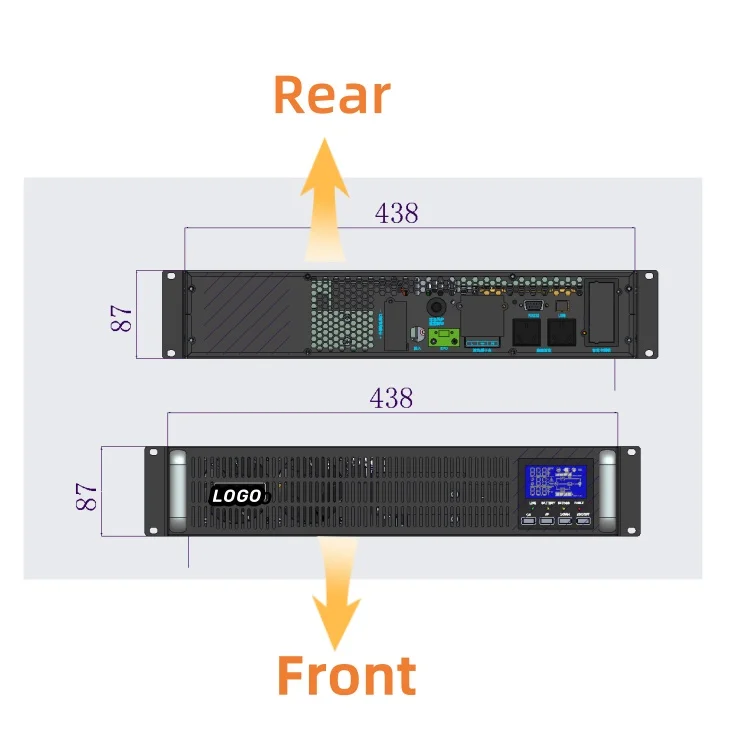

Online UPS 1KVA 2KVA 3KVA PF1.0-Front
1KVA Internal Battery 24VDC(12V*7AH*2PCS ) 2KVA Internal Battery 48VDC(12V*7AH*2PCS )
3KVA Internal Battery 72VDC(12V*7AH*16PCS )

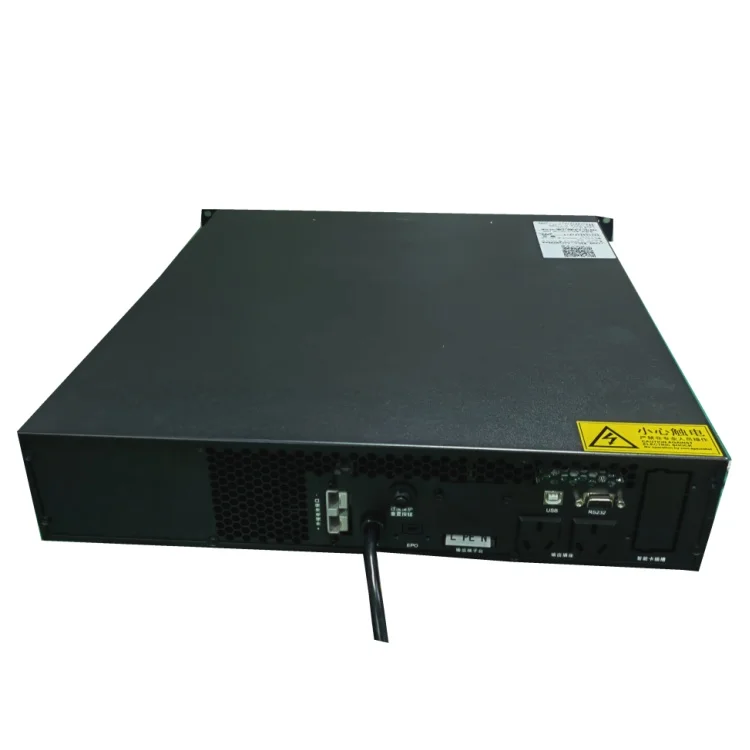

Online UPS 1KVA 2KVA 3KVA PF1.0-Rear
Standard RS232 port, EPO/USB/SNMP /IINTELLIGENT Port optional
Input plug optional Output socketgs optional
With cool fans /circuit breakers
Plug Choice
support to customized plug as you need
Sockets Choice
support to customized sockets as you need
Online UPS 6KVA 10KVA PF1.0-Front

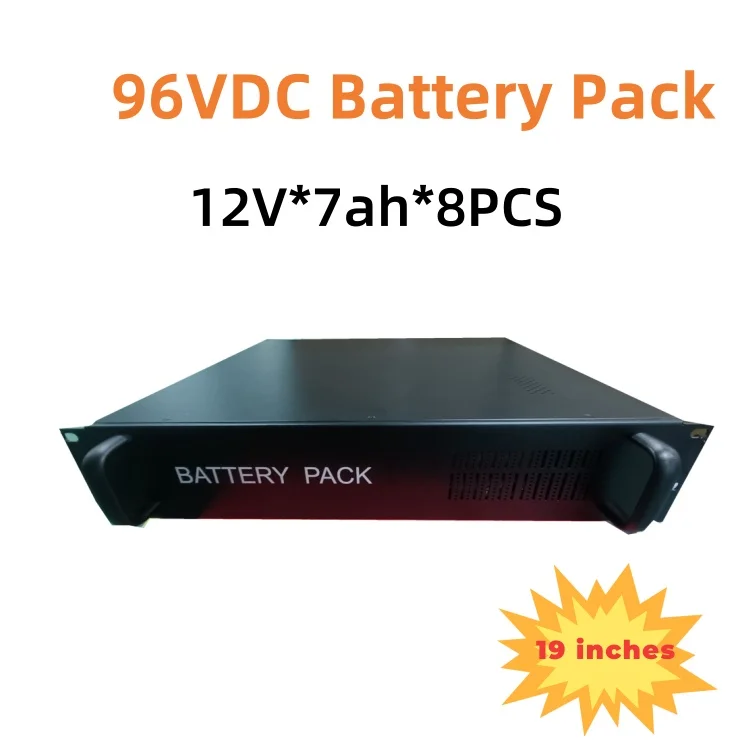

Long time unit 6KVA 10KVA 192VAC/240VDC optional Battery Quantities
Applications
Company Profile
Company Introduction
Shenzhen iTeaQ Power Co., Ltd.is the leading manufacturer of modular UPS and network power, located at Guangming High-techZone,Shenzhen, China. With 20 years’experience in power electronics field, we are constantly cooperating with global partners,enabling customers to protect their critical applications and ensuring business continuity. iTeaQ Power is a most growing UPS and network power provider.
R&D
The company dedicates 10% of turnover to R&D, such as cooperation with China top-ranking universities and institutes, advanced research, patent development, etc. It can achieve status of always technology ahead. Benefited from the electronic industry base of Shenzhen, China, all our design engineers have master or above degree in power electronic, and at least 10 years UPS and power practice.
Quality
The company implements total quality management, ranging from selecting right person for appropriate post, components selecting, incoming inspection, producing, testing, and packing to delivery. At present, it has passed ISO9001, ISO14001, OHSAS18001, and has obtained a number of certifications, such as CE (LVD/EMC), TLC certification, energy saving certification, etc.
Product Lines
Exhibition
Certifications
Physical Information
Model | RM1101 | RM1102 | RM1103 | RM1106 | RM1110 |
Unit Size(mm) | 310x438x87 (H/S) | 510x438x87(H/S) | 510x438x87(H/S) | 491x438x87 | 491x438x87 |
Package Size (mm) | 526*525*154 (H/S) | 620*525*154 (H/S) | 620*525*154 (H/S) | 580*525*154 （H） | 580*525*154 (H) |
Net Weight(KG) | H:5.1/S:9.05 | H:8.1/S:15.98 | H:8.3/S:20.12 | H:8.9 | H:10.9 |
Gross Weight(KG) | H:7.1/S:11.1 | H:10.1/S:17.98 | H:10.33/S:22.12 | H:10.9 | H:12.9 |
Customer's Feedback
FAQ
1. Professional R&D center: Employed designers with at least more than 20 years working experience in UPS power. Our products always keep the same pace with the markets. OEM and ODM are warmly welcomed.
2. High quality: Using high quality material and establishing a strict quality control system, such as we use branded breaker, assigning specific persons in charge of each part of production,from raw material purchase to assembly.
3.Original factory , you can get the best price and service
4. Fast dispatch: Can deliver the goods within 1 month.
5. Low MOQ
Похожие товары
Однофазный интерактивный автономный источник бесперебойного питания LED/LCD 600VA в режиме ожидания 220 В 50 Гц ROHS Сертифицированный компьютер
2 810,39 ₽ - 3 141,03 ₽
Китайский профессиональный производитель источник бесперебойного питания UPS 1000VA 800 Вт 1KVA
11 572,19 ₽
GCSOAR Mini UPS Para Router Y модемы 12V 5V 9V DC 18W 10400mAh Источник бесперебойного питания для WiFi маршрутизатора Power Bank
1 653,17 ₽ - 1 873,60 ₽

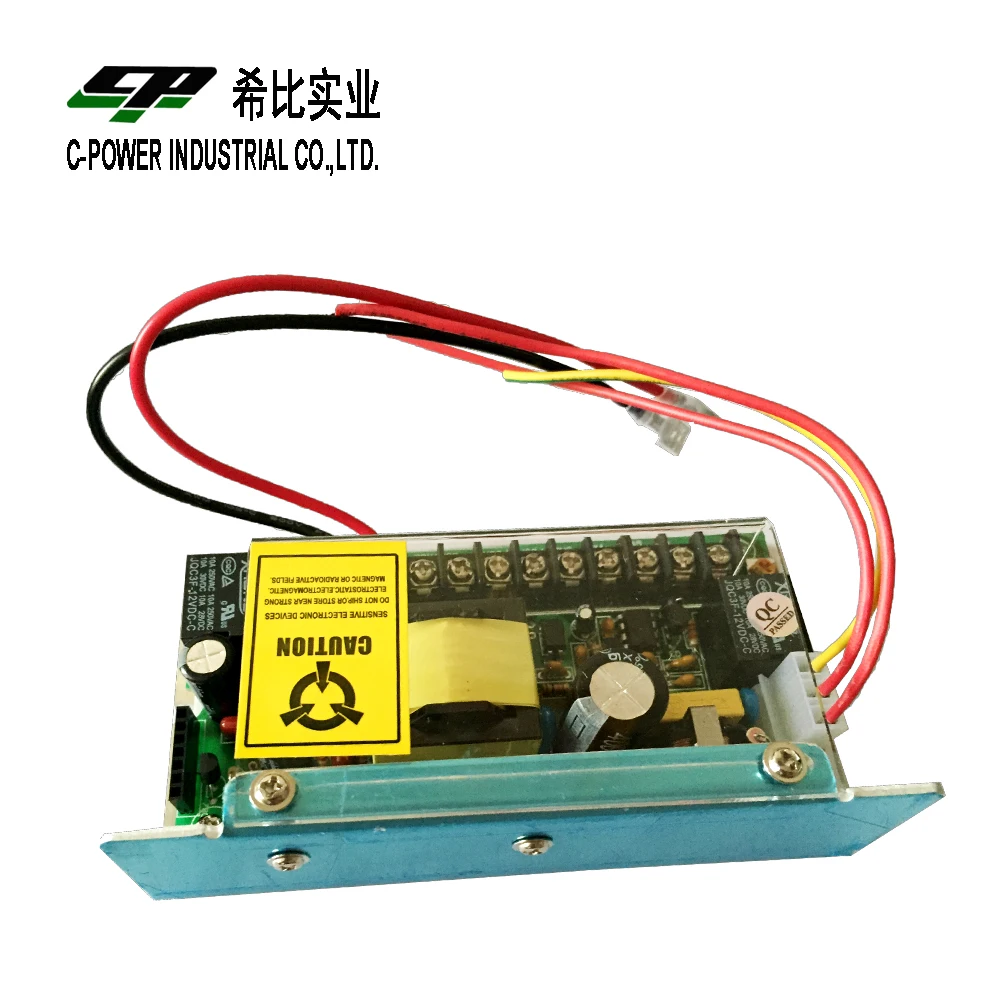

Источник питания постоянного тока 12 В 5 А источник бесперебойного для управления доступом к двери
1 212,33 ₽ - 1 267,43 ₽
Лидер продаж портативный мини-источник бесперебойного питания 60 Вт
3 956,59 ₽ - 5 058,70 ₽
Ups 10 кВА 220 В производство прямые цены онлайн резервное копирование источника питания
36 590,16 ₽ - 39 235,23 ₽

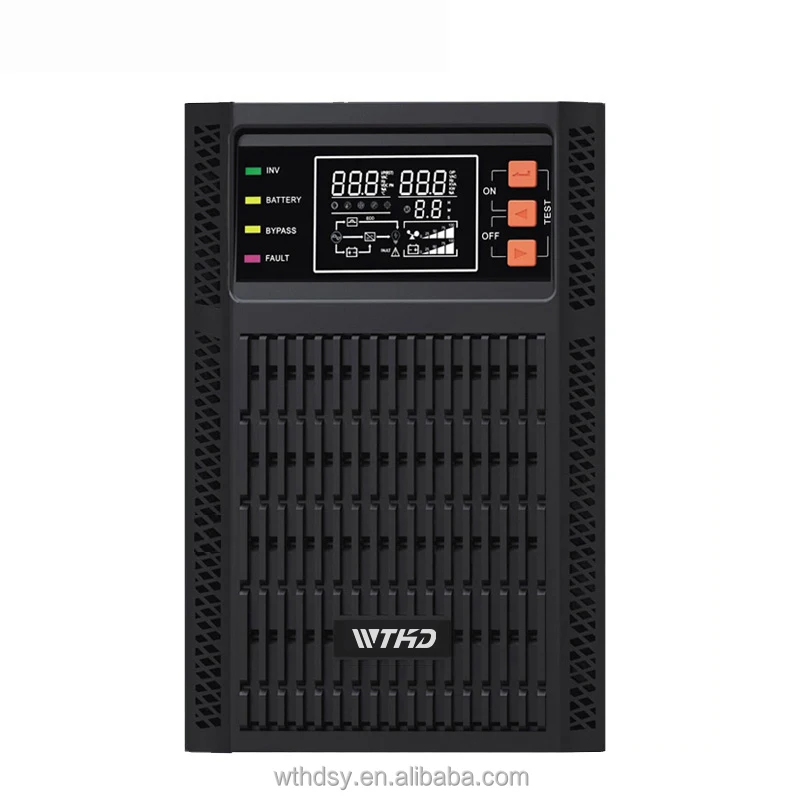

WTHD Ac 200 В 208 220 230 240 ИБП 12 9ah батарея бесперебойного питания (ИБП) онлайн
