Лидер продаж от производителя Ruiyate Рабочая платформа Dayun Высота 30 метров
3 179 803,60 ₽ - 3 289 452,00 ₽

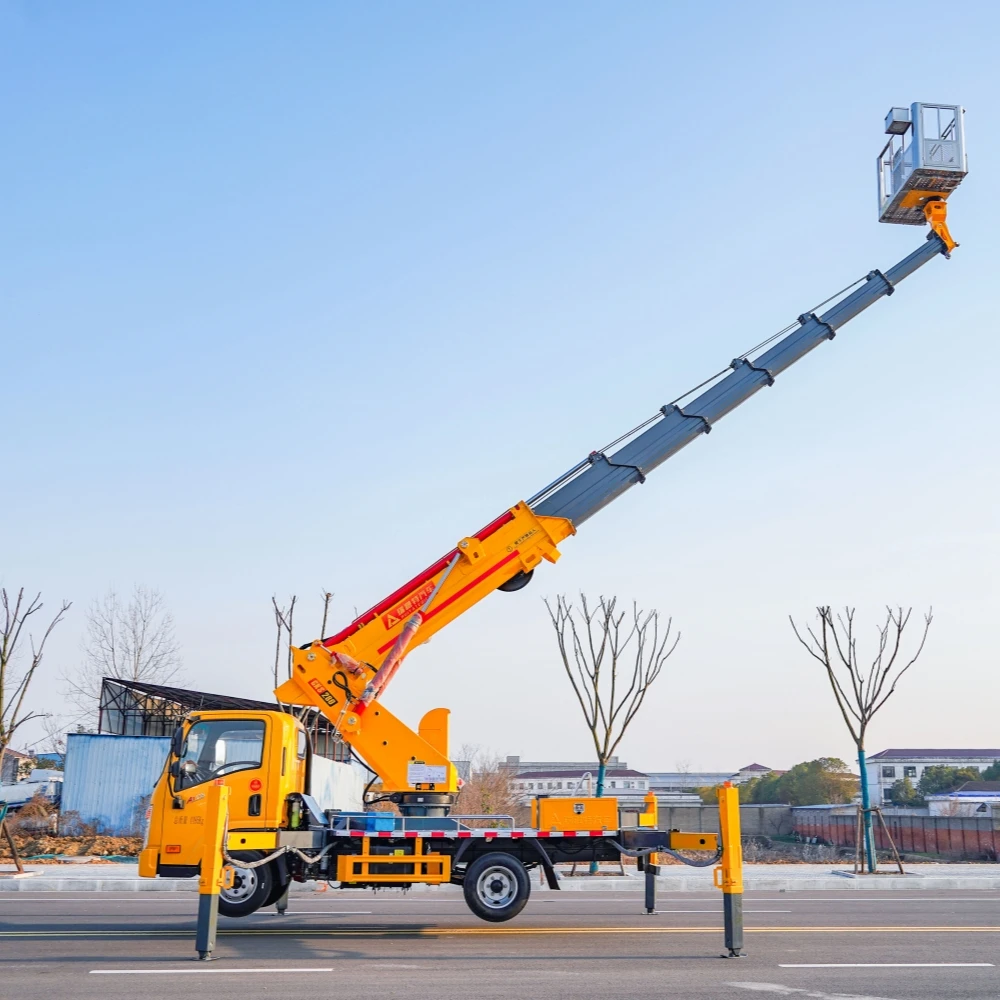

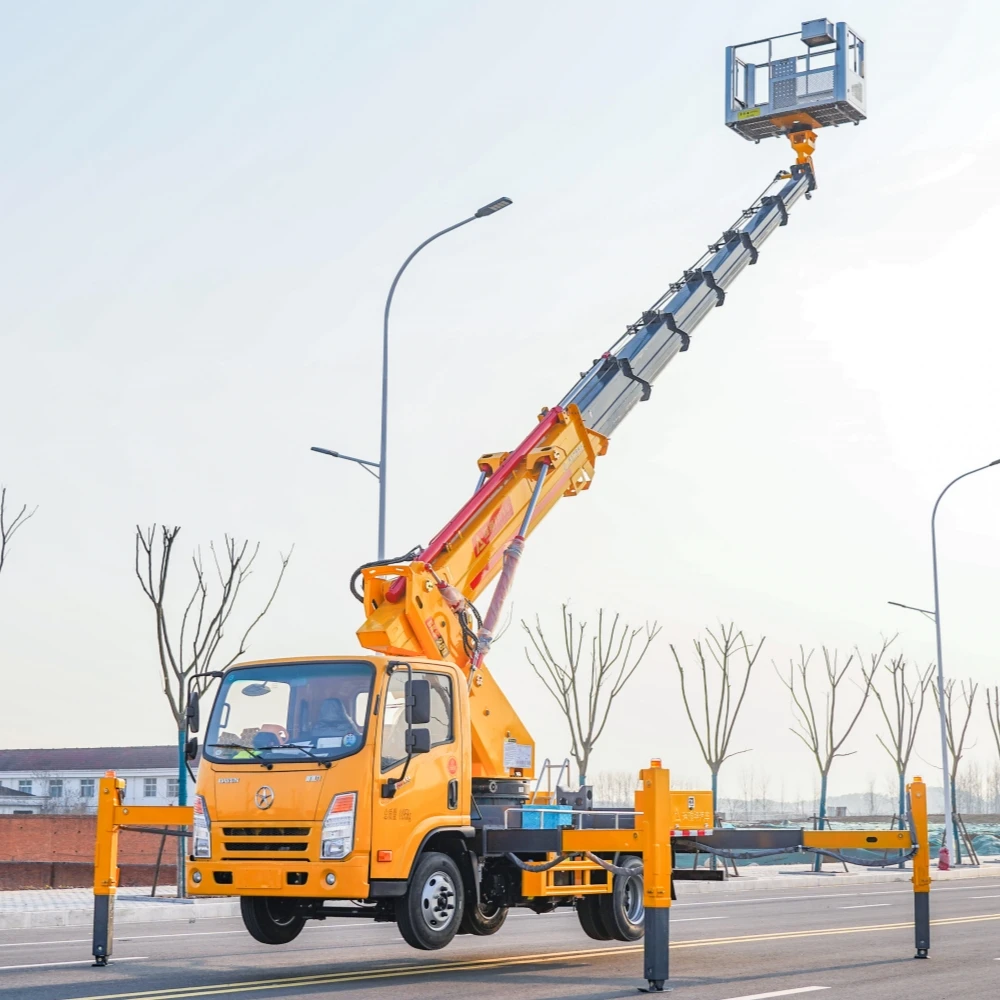

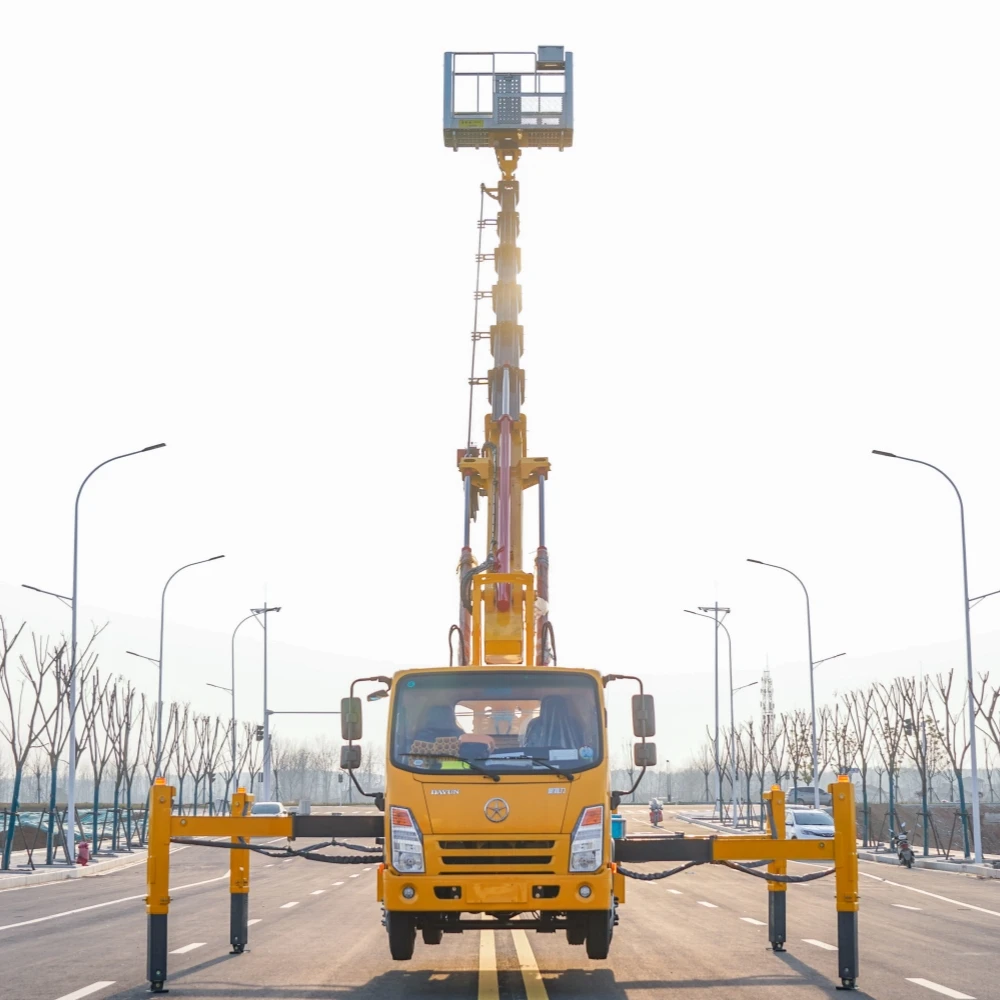

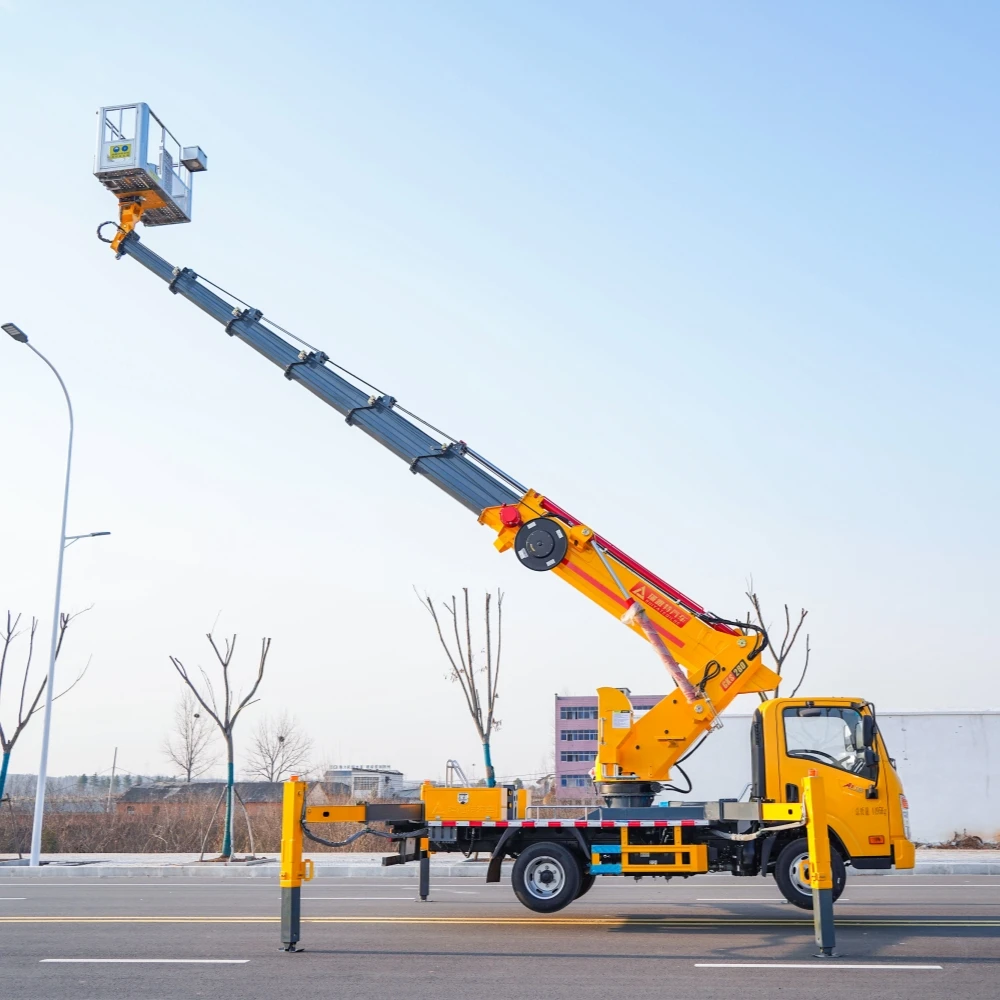

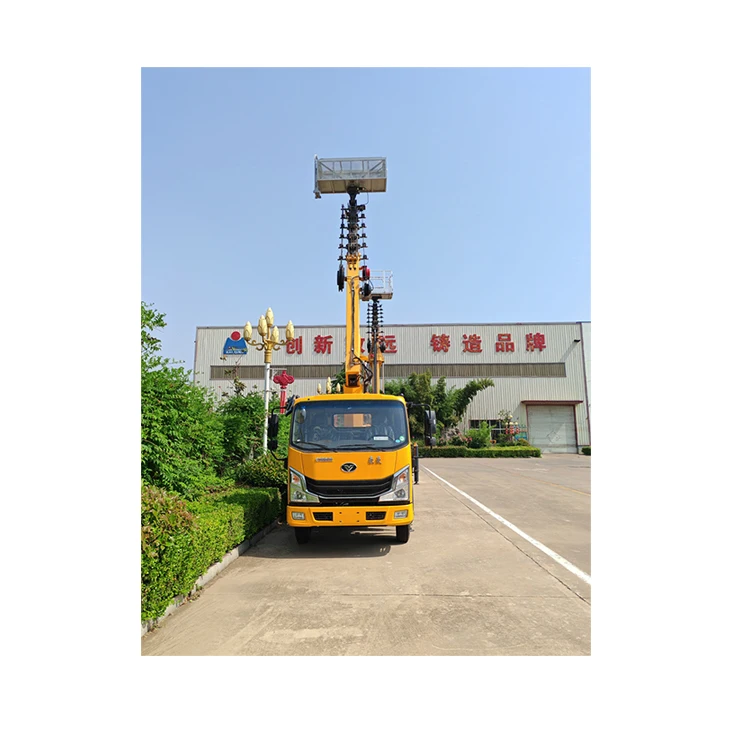

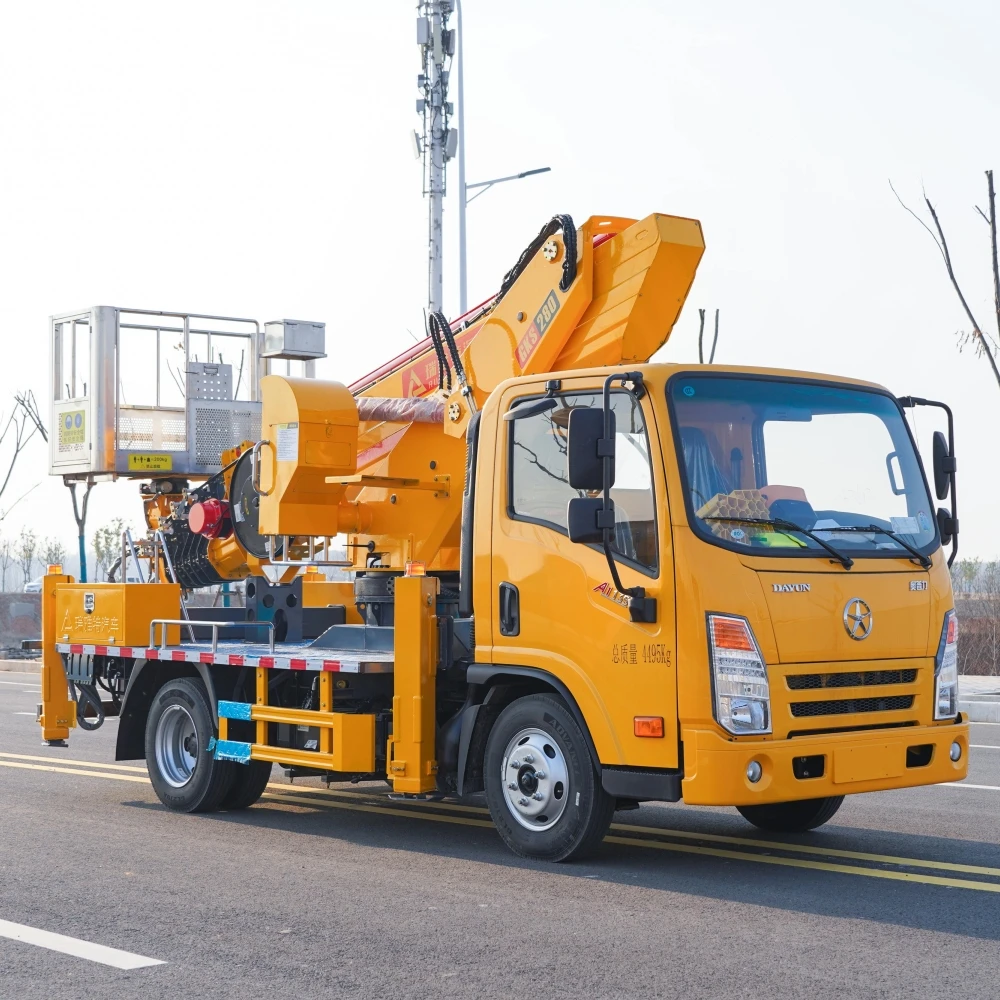

Телескопическая платформа DAYUN 28 м
- Категория: >>>
- Поставщик: Hubei Ruiyate Automobile Co. Ltd
Сохранить в закладки 1601160987900:
Описание и отзывы
Характеристики
Products Description
Details show
Product Paramenters
Items | Descriptions | Specifications and Types | |
parameters | Vehicle brand/Model | Ruiyate | |
Chassis brand/Model | HOWO,DONGFENG,ISUZU,JMC,FAW,SINOTRUK,JAC,FOTON...etc | ||
Cabin | VH-flat head,single row | ||
Persons in cab | 2-3 | ||
Drive Type | 4×2 | ||
Overall Dimensions (L*W*H) | 5995×2090×2900(mm) | ||
Gross weight | 4495(Kg) | ||
wheelbase | 2800(mm) | ||
Front/Rare suspension | 1130/1565(mm) | ||
Approaching/Departure Angle | 18/14(°) | ||
Max speed | 90 (km/h) | ||
Brand/Model | QuanChai Engine/Q23-132E60 | ||
Power | 97(Kw) | ||
Horsepower | 132(HP) | ||
Displacement | 2.30(L) | ||
Fuel type | Diesel | ||
Emission standard | Euro 5 | ||
Axles | Front axle loading | 2T | |
Rear axle loading | 3.5T | ||
Tire type/number | 6.50R /6+1 PCS | ||
Brake | Oil brake | ||
Color | Customer’s request | ||
Platform Working Height | 28 meters | ||
Boom type | Seven-section quadrilateral arms, synchronous telescopic | ||
Outrigger | 4 pcs, front V + rear V type hydraulic outriggers Span:5400mm horizontal, 5100mm vertical | ||
Bucket | 1600×700×1000mm(LWH), 200kg load | ||
Slewing device | Two-way 360° continuous slewing, 360°slewing basket | ||
Operating system | Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating system + manual emergency system | ||
Emergency device | Yes | ||
Name | Brief Description |
Interlocking of outriggers and booms | The upper and lower vehicle are interlocked by the switching valve, which is safer. |
Electric emergency pumps | When the chassis engine or hydraulic main pump fails, long press the emergency pump button + operate the corresponding action, you can send the staff back to the ground, realize the whole vehicle safety recovery. |
Emergency stop device | For emergency stopping of the engine to cut off the power source |
Engine ignition flameout | Computerized control box, remote control for engine ignition and flameout. |
Hd display | The intelligent big screen can know the status of the equipment anytime and anywhere, which is convenient for the personnel to quickly diagnose the faults and deal with the faults, and keep abreast of the status of the vehicle. |
complex action | It can combine any movement freely and realize extension/contraction, amplitude rise/fall, turntable rotation and working bucket rotation at the same time. |
Remote control (wireless) | The reception range of the remote control is 100 meters, and there is no obstacle to the operation of the work basket and the ground, so the communication is reliable. |
If you don't need a chassis, just need an aerial working platform, contact us as soon as possible
Company Profile
Hubei Ruiyate Automobile Co.,LTD was founded in 2021, is a comprehensive enterprise specializing in special-purpose vehicle manufacturing, with a registered capital of 20 million yuan, the park covers an area of more than 200 acres, with a staff of nearly 300 people.
Ruiyate does not forget the original intention, always adhere to the "refined and excellent service, benefit the public and for the" business philosophy, and constantly explore the research and development of a variety of working conditions under the new special-purpose vehicle products, the establishment of user demand-oriented personalized production business, to provide customers with diversified, personalized, intelligent product project solutions; So far, we have successively set up five branches of aerial work vehicle, wrecker, sanitation vehicle series, intelligent welding and mechanical processing, and two branches, Hubei Chenrui Hydraulic System Co., LTD and Hubei Huarui Automation Control System Co., LTD.
The company currently has welding robots, 10,000-watt laser cutting machine, electrostatic spraying, through the type of shot blasting machine, truss manipulator lathe and milling machine, CNC machining centers and other advanced production equipment, and gradually expand the type of modified vehicle products, expanding the scale of production; the company in the development of the company at the same time pay attention to the building of the organizational structure and the planning of the functional departments, the staff career development planning and management cadres to cultivate the culture of the construction; adhere to the safe, sound, Under the guideline of safe, steady, efficient and sustainable development, the company cultivates and precipitates the high-efficiency team of design, research and development, manufacturing and sales service by virtue of the scientific employment mechanism.
Ruiyate has an independent product research and development center, and has established a good strategic cooperative relationship with national famous universities and scientific research institutions. Ruiyate abandons the old model of traditional special-purpose vehicle industry, and strives to become a company more in line with the needs of the society and the market through innovative planning, innovative development, innovative expansion, innovative sales and service transformation.
Ruiyate does not forget the original intention, always adhere to the "refined and excellent service, benefit the public and for the" business philosophy, and constantly explore the research and development of a variety of working conditions under the new special-purpose vehicle products, the establishment of user demand-oriented personalized production business, to provide customers with diversified, personalized, intelligent product project solutions; So far, we have successively set up five branches of aerial work vehicle, wrecker, sanitation vehicle series, intelligent welding and mechanical processing, and two branches, Hubei Chenrui Hydraulic System Co., LTD and Hubei Huarui Automation Control System Co., LTD.
The company currently has welding robots, 10,000-watt laser cutting machine, electrostatic spraying, through the type of shot blasting machine, truss manipulator lathe and milling machine, CNC machining centers and other advanced production equipment, and gradually expand the type of modified vehicle products, expanding the scale of production; the company in the development of the company at the same time pay attention to the building of the organizational structure and the planning of the functional departments, the staff career development planning and management cadres to cultivate the culture of the construction; adhere to the safe, sound, Under the guideline of safe, steady, efficient and sustainable development, the company cultivates and precipitates the high-efficiency team of design, research and development, manufacturing and sales service by virtue of the scientific employment mechanism.
Ruiyate has an independent product research and development center, and has established a good strategic cooperative relationship with national famous universities and scientific research institutions. Ruiyate abandons the old model of traditional special-purpose vehicle industry, and strives to become a company more in line with the needs of the society and the market through innovative planning, innovative development, innovative expansion, innovative sales and service transformation.
Certifications
Packaging & Shipping
FAQ
Q1: Are you original manufacturer?
A: Yes, we are professional manufacturer of special trucks,located in Suizhou City, Hubei Province, the biggest production base of special purpose vehicles in China.
Q2: What is your terms of payment?
A: 30% by T/T as deposit, and 70% by T/T before delivery. Also we accept 100% confirmed irrevocable sight L/C. We will
show you the photos and videos of the products and packages before you pay the balance.
show you the photos and videos of the products and packages before you pay the balance.
Q3: Could your company totally customize products for me?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q4: Do you provide certification that we need?
A: Yes, we can provide various certifications, such as CCC, ADR, ASME, BV, DOT, SASO, SGS, and so on. We will provide directly or apply for new certificate according to your needs.
Q5: How about the delivery time?
A: It depends on the product type and quantity you need,usually the production cycle of one unit truck is 15-25 days.
Q6: What is your terms of packing?
A: Truck will be nude, waxed or packed in waterproof cloth according to the shipping way. Small truck can be shipped in container.Big trucks will be shipped by RORO ship, bulk ship or Flat rack container.
Q7: Do you test all your goods before delivery?
A: Yes,we will 100% test before delivery, and ensure zero defect products to all our customers.
Q8: How about the quality and warranty of your product?
A: Quality and integrity are the foundation of our enterprises to survive and success. We promise that all products we provide will be brand new and high quality products. We give one year free warranty for all our normal products, and three years warranty for some special products.
Q9: Why should we choose you?
A: We provide one-stop service to all of our customers, provide high quality products at low price, provide 24hours high efficiency before&after service, provide free training. We treat our customers honestly and friendly, produce our products strictly, operate trading processor flexibly, transport goods safely and efficiently, to ensure our customers enjoy a satisfied business cooperation ship with us. We treat all our customers as friends and family members, and we always do our best to help our customers explore their market and grow up to stronger distributor.
Q10: What is the fastest access to start business cooperation with your factory?
A: Contact Ms. Rachel Qiu
+86 13339899751(Call / WhatsApp / Wechat). I will give you most efficient service no matter you need an inquiring, visiting, buying truck, buying spares, or after service.
+86 13339899751(Call / WhatsApp / Wechat). I will give you most efficient service no matter you need an inquiring, visiting, buying truck, buying spares, or after service.
More contact information
Mobile : +86 13339899751
Mobile : +86 13339899751
Wechat/WhatsAPP : +86 13339899751
E-mail : racheltruckfactory@hotmail.com
E-mail : racheltruckfactory@hotmail.com
Похожие товары
Высокая ремонтная электрическая подъемная платформа до 18 м подъемник
1 732 444,72 ₽ - 1 918 847,00 ₽

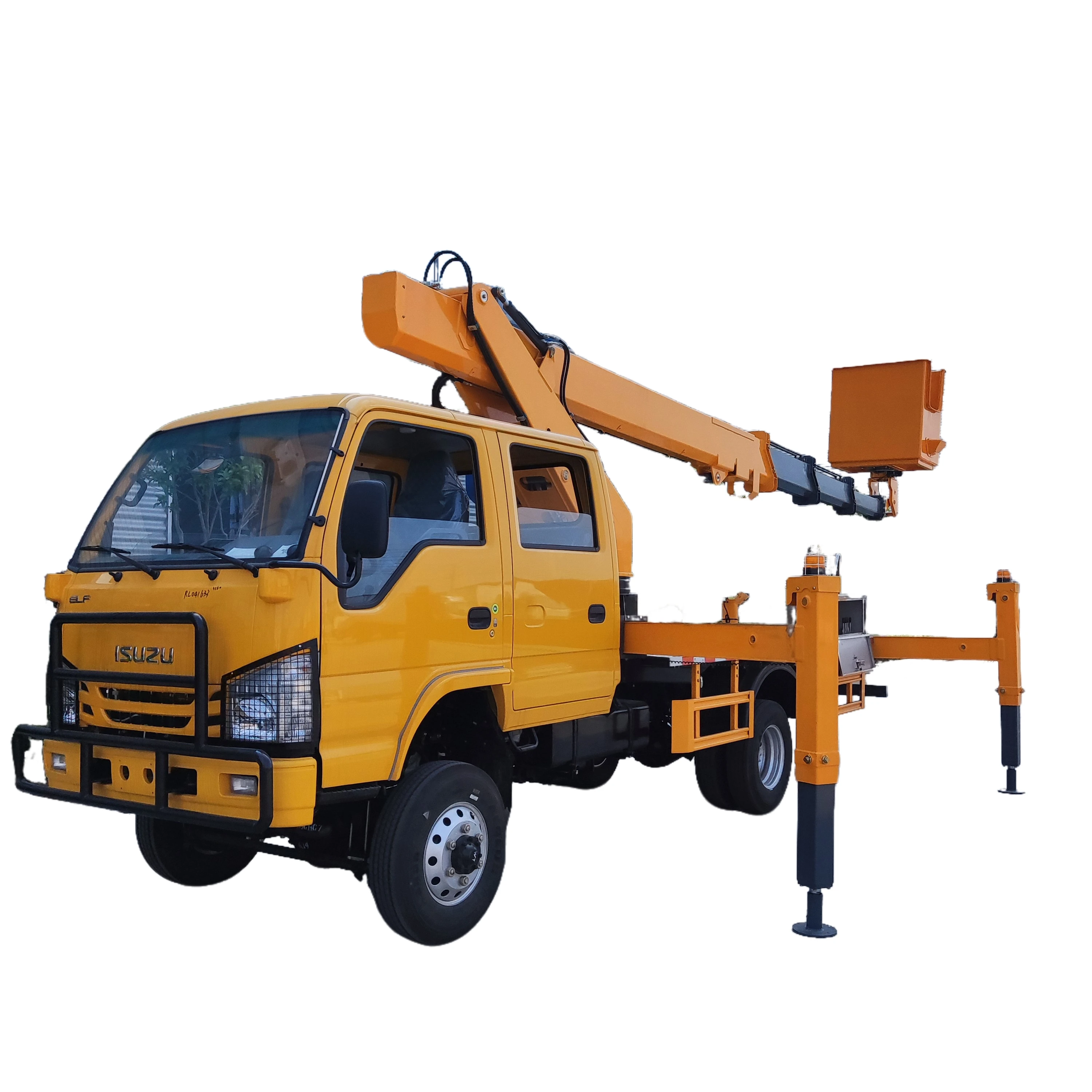

ISUZ 4*4 вездеход Воздушная эксплуатация 21 м изолированный ковш воздушная платформа грузовик с двухрядной кабиной Рабочая машина
3 442 959,76 ₽ - 3 453 924,60 ₽

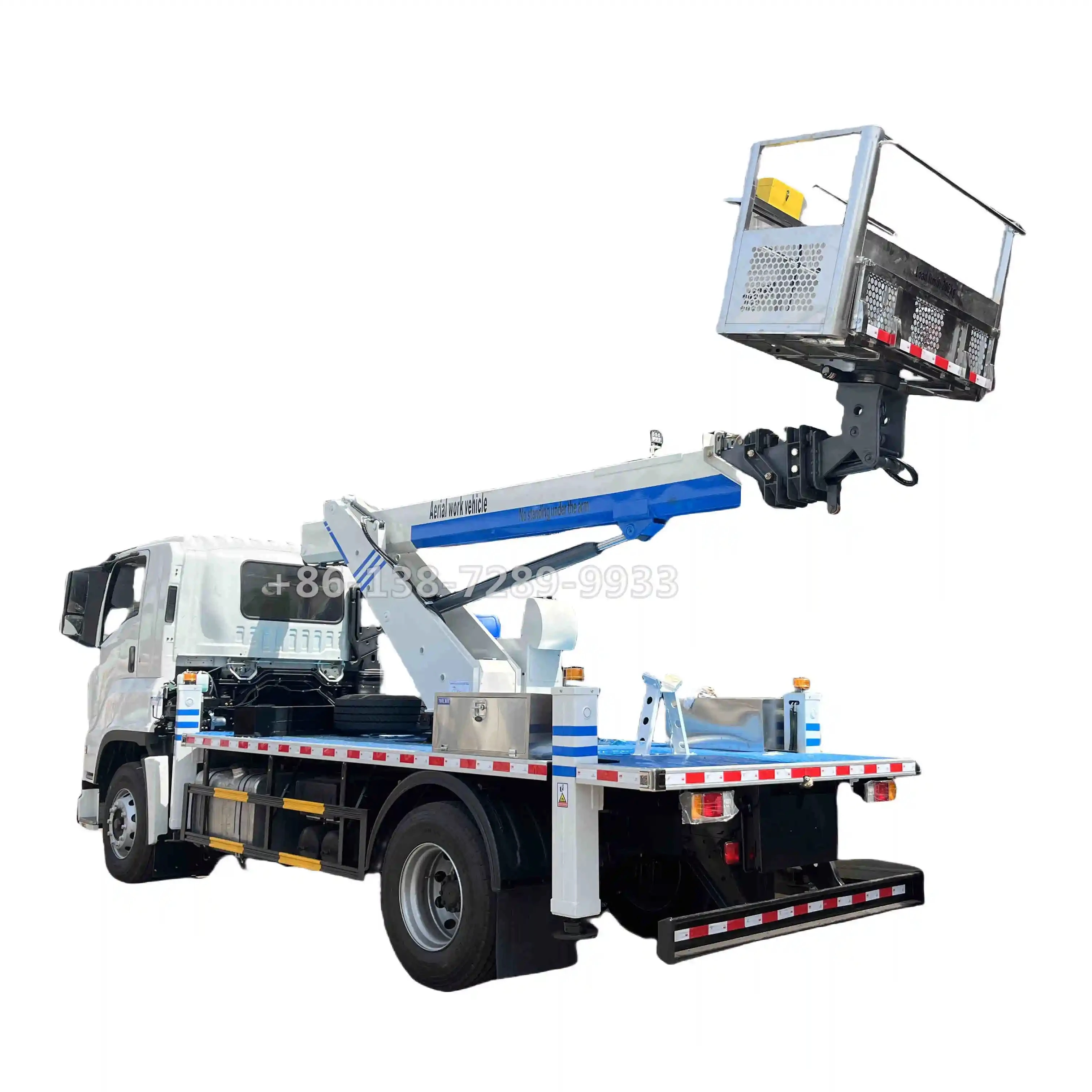

Грузовик ISUZU 12 м/21 м/24 м/27 м/33 м с одной кабиной четырехместный погрузчик воздушной рабочей платформой Автопогрузчик
1 480 253,40 ₽ - 1 524 112,76 ₽
Купить высококачественный гидравлический подъемник для стрелы сборщик вишни подъемная платформа 20 м продажи готов к отправке
53 727,72 ₽

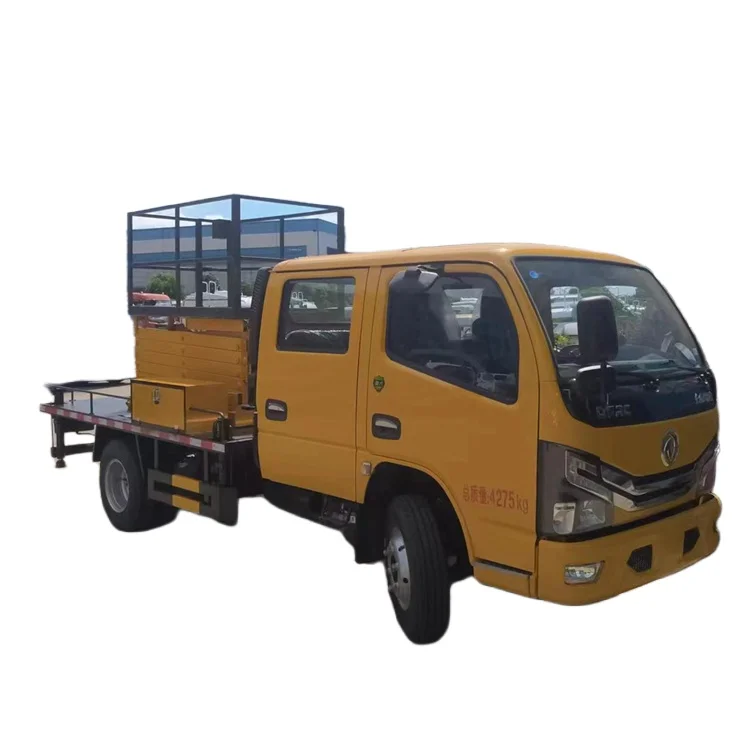

Грузовик с ножничной вилкой 10 м
526 312,32 ₽ - 603 066,20 ₽

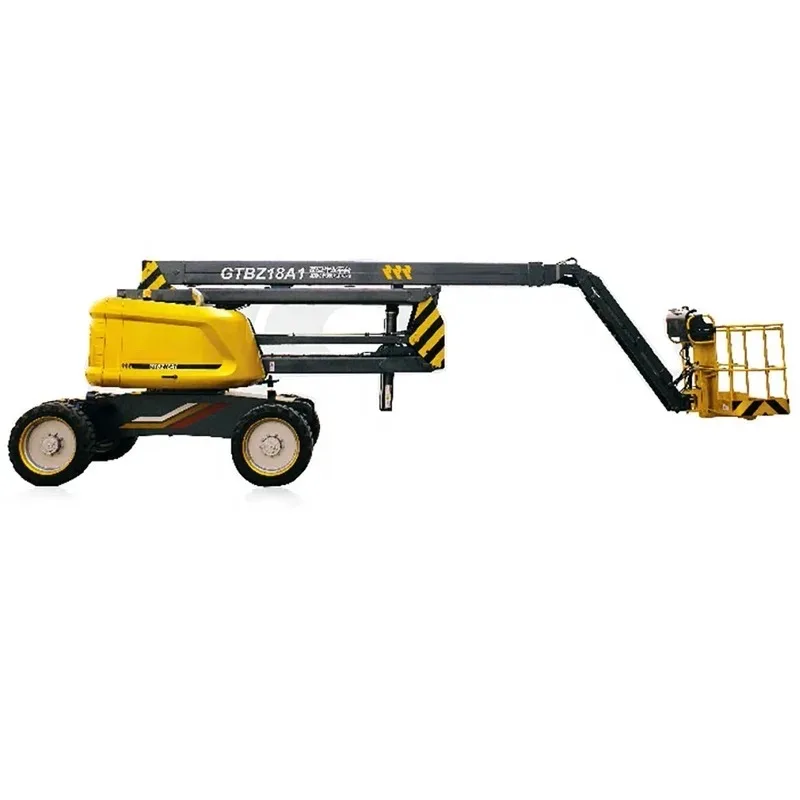

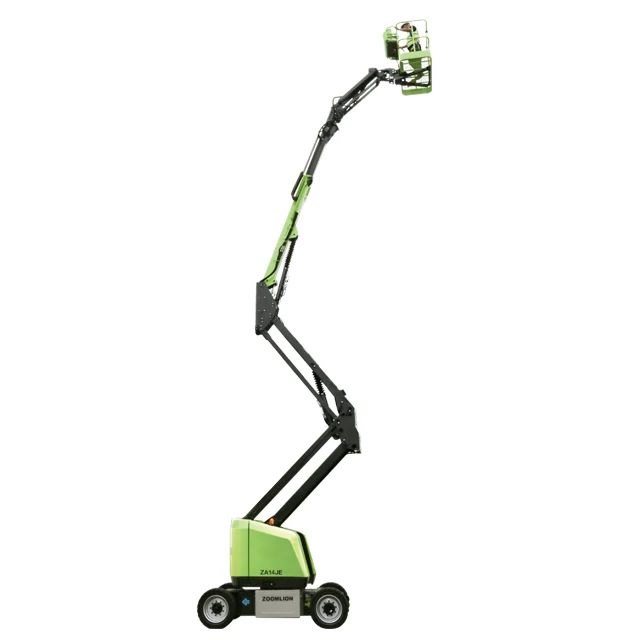

Лидер продаж дизельный Электрический шарнирный подъемник 16-35 м
