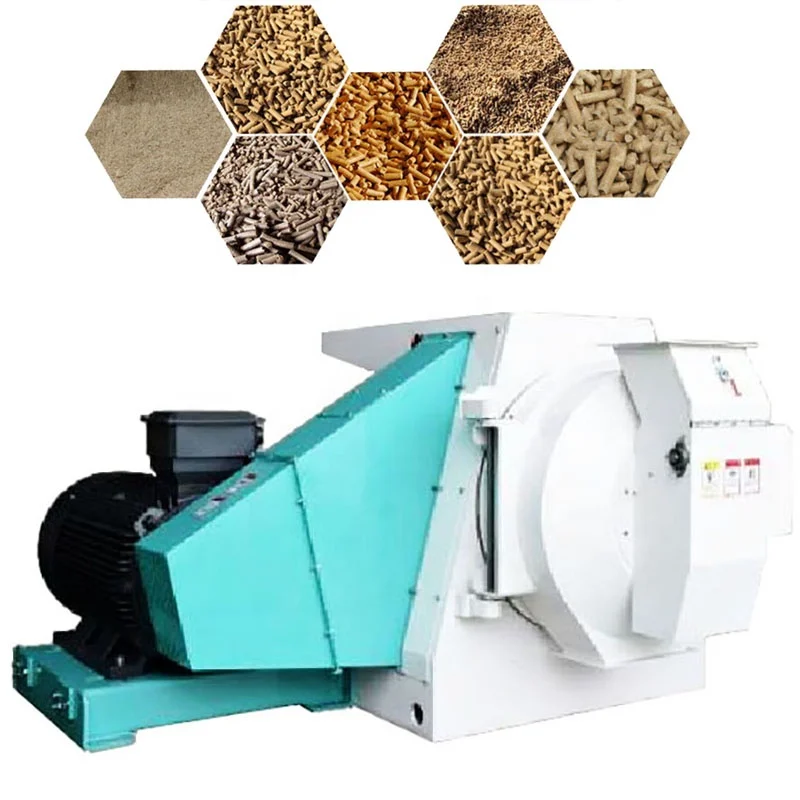

Мини-гранулятор для производства кормов крупного рогатого скота и птицы
500,00 $
Автоматическая плавающая и Тонущая линия по производству кормов для рыб креветок
- Категория: >>>
- Поставщик: Jinan Himax Machinery Co. LtdJinan Ltd
Сохранить в закладки 1601162033164:
Описание и отзывы
Характеристики
Hot sale products

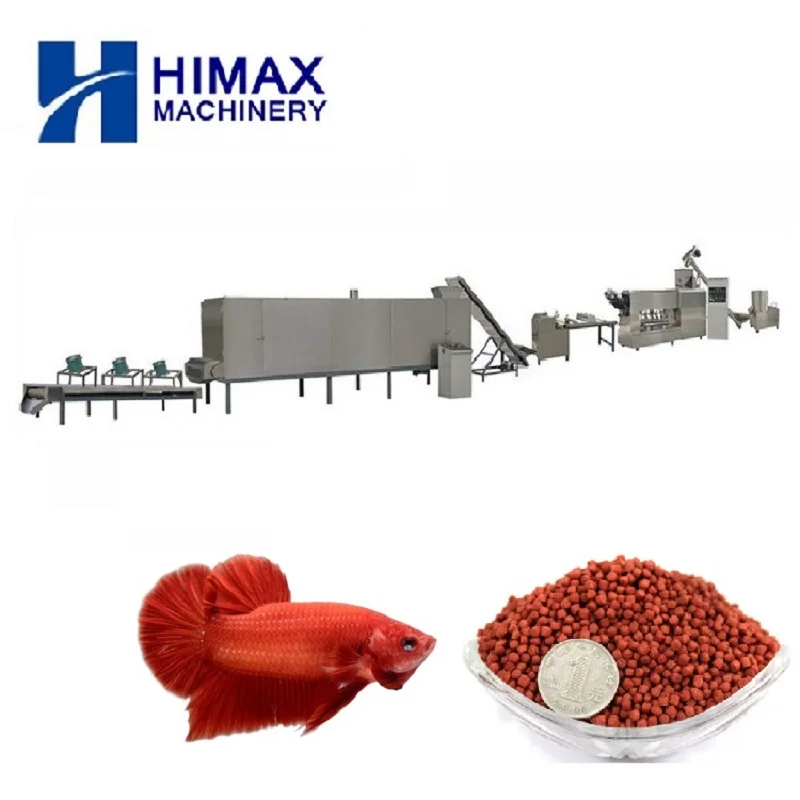

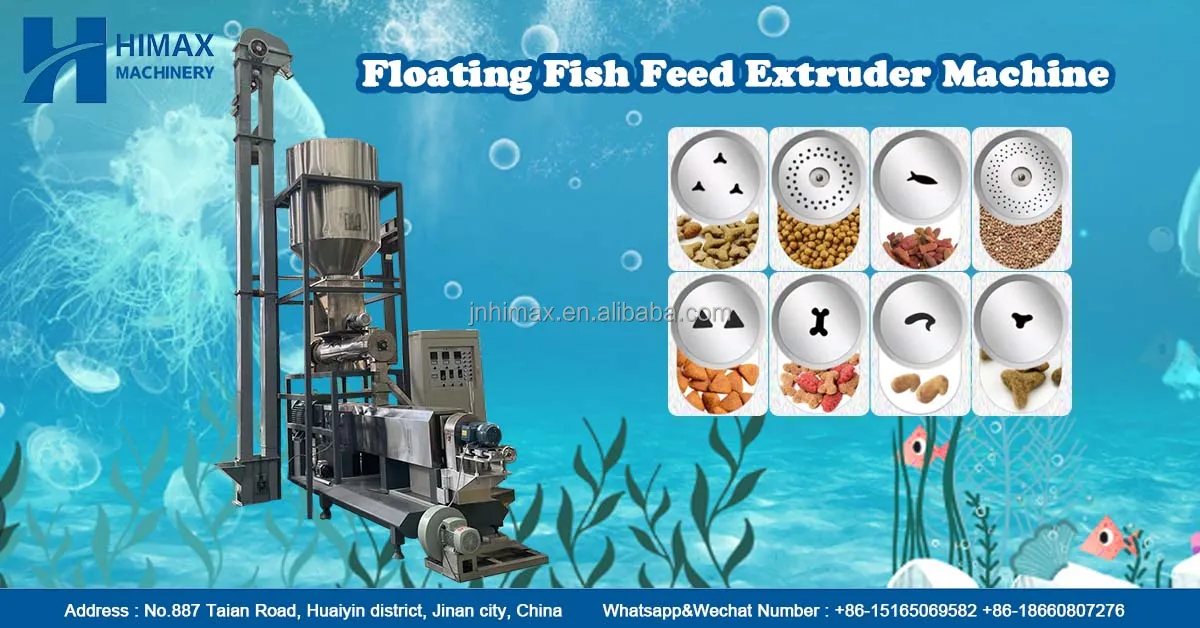

Automatic fish feed making machine floating fish feed extruder
Pet food and aquatic feed is close to the human beings food in the fine level, the health index and the nutritional ingredients, some of them request more highly than beings. Pet food and aquatic feed generally consists of meat, meat by products, cereal, grain, vitamins, and minerals. General grains, such as soybean meal, corn meal, cracked wheat, and barely, are often used to improve the consistency of the products. The meat is mixed with the other ingredients. Our product line can produce dog food, cat food, fish food, bird food, monkey food and so on.
Flow Chart
Mixer-->Twin-screw extruder-->Air conveyor-->Dryer-->Hoister-->Flavoring machine-->Hoister-->Cooling machine
Raw material
Wheat flour, Corn flour, Protein food, Meat products, Soya Bean and so on.
Flow Chart
Mixer-->Twin-screw extruder-->Air conveyor-->Dryer-->Hoister-->Flavoring machine-->Hoister-->Cooling machine
Raw material
Wheat flour, Corn flour, Protein food, Meat products, Soya Bean and so on.
Finished product
floating sinking fish feed
Application
Product Paramenters
Model | HM65 | HM70 | HM85 | HM90 |
Power | 40kw | 50kw | 100kw | 80kw |
Capacity | 120-150kg/h | 200-250kg/h | 400-500kg/h | 800-1000kg/h |
Size | 22000x1200x2200mm | 24000x1500x2200mm | 28000x3500x2300mm | 30000x3500x2300mm |

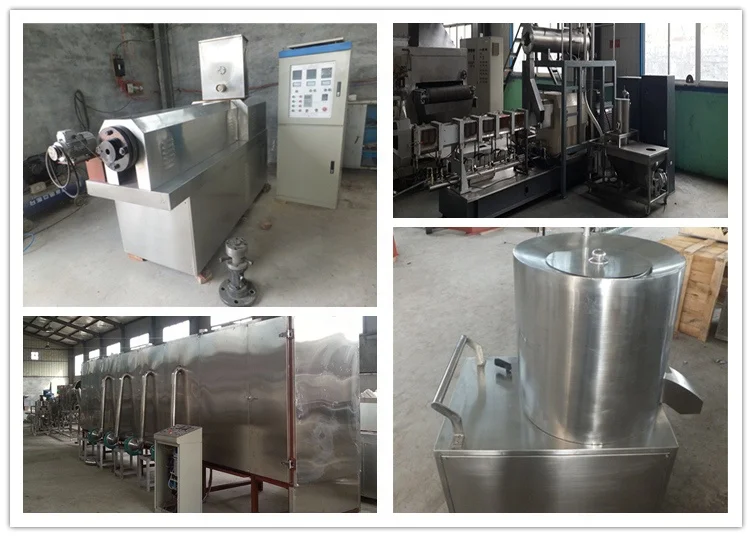

Production Description
mixer makes the raw material adding to water and liquid chemical additive fully mixed
Features:
1.This part that touches mixer to material adopts the stainless steel material.
2. The discharge hole adopts the new handle-opened design. It has the good seal so that the materials.
Features:
1.This part that touches mixer to material adopts the stainless steel material.
2. The discharge hole adopts the new handle-opened design. It has the good seal so that the materials.
The mixed materials can be conveyed in the stainless steel roller to the feeding machine (feeder) of extruder without any leaking,
dusting and pollution; Feed quantity and speed is even and stable.
dusting and pollution; Feed quantity and speed is even and stable.
The twin -screw extruder is made of the feeding system, extruding system, cutting system, heating system, conditioner and
controlling system.
1. The screws are made of the alloy steel;
2. The forced lubrication system ;
3. Auto-temperature control system;
4, Auto-speed control system
5. Self-cleaning.
6.With the bearing is NSK which made from japan.
controlling system.
1. The screws are made of the alloy steel;
2. The forced lubrication system ;
3. Auto-temperature control system;
4, Auto-speed control system
5. Self-cleaning.
6.With the bearing is NSK which made from japan.

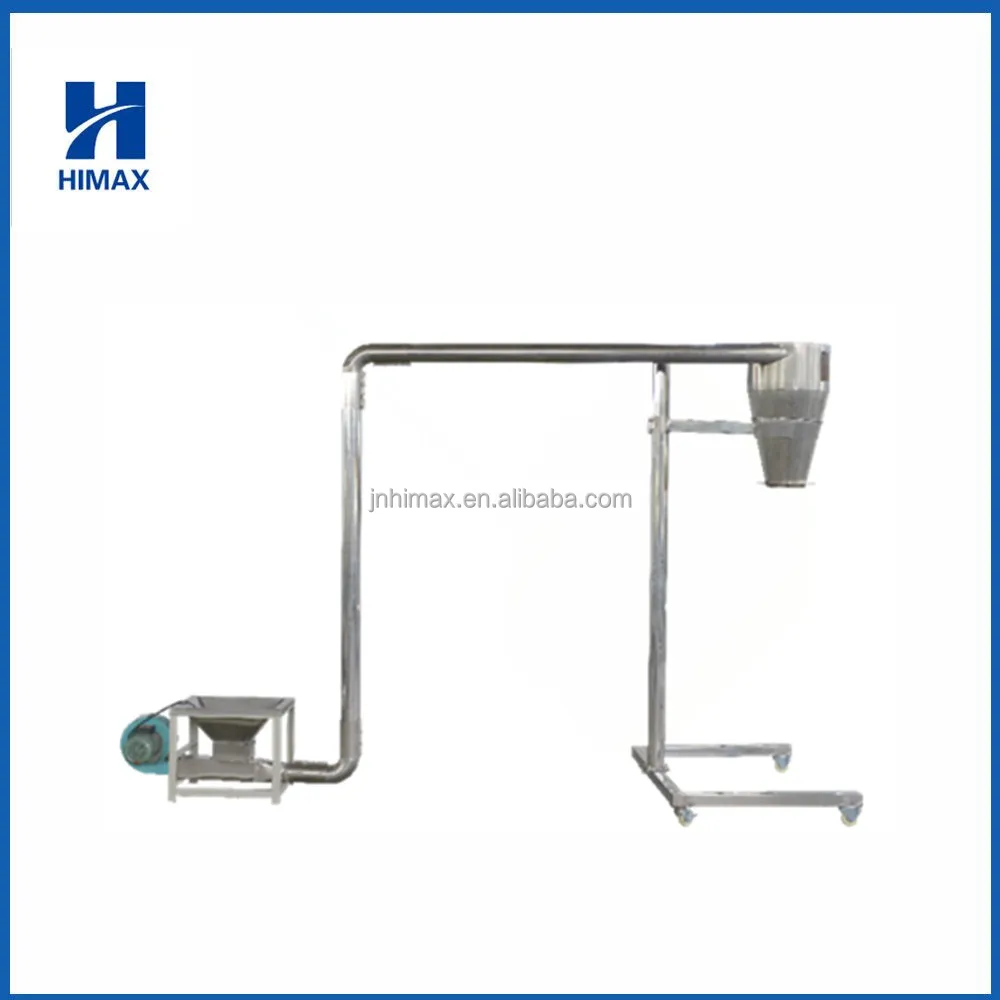

1. Air conveyor conveys the food relying on the wind-force from the blower.
2. Low energy-consumption, high efficiency.
3. It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.
2. Low energy-consumption, high efficiency.
3. It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.
The heating way is gas/furel oil heating.
The net belt running speed can be controlled to change the food drying time in the dryer.
The temperature also can be controlled.
Multi-layer dryer is with compact size than other type dryers.
The net belt running speed can be controlled to change the food drying time in the dryer.
The temperature also can be controlled.
Multi-layer dryer is with compact size than other type dryers.
Hoister conveys the food from the low to high, according to the craft; decide the hoister height and the level distance.
Hoister can be classified into big and small according to the hoister height and the level distance.
Hoister can be classified into big and small according to the hoister height and the level distance.
The stainless steel flavor feeder is used to spray powder flavor to the drum. We can control the spraying quantity via the
different speed which controlled by the soft start.
With the two drums, the food can be flavored well.
different speed which controlled by the soft start.
With the two drums, the food can be flavored well.
1. Air conveyor conveys the food relying on the wind-force from the blower.
2. Low energy-consumption, high efficiency.
3. It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.
2. Low energy-consumption, high efficiency.
3. It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.
Dimension(m): 2.5×0.8×2.8
Power: 2.7KW
Weight:350KG
Packing speed: 5-8 bags/min
Weight range:5-25kg/bag
Function:
Pack food. Seal the plastic bag.
Can pack from 5kg to 25kg per bag
Power: 2.7KW
Weight:350KG
Packing speed: 5-8 bags/min
Weight range:5-25kg/bag
Function:
Pack food. Seal the plastic bag.
Can pack from 5kg to 25kg per bag

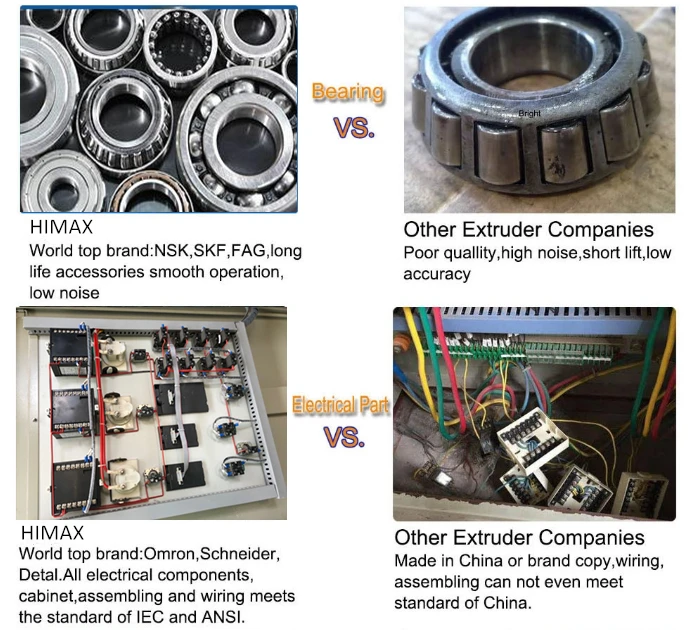

Our Advantages
Product packaging
About Us
Certifications
Похожие товары
500-1000 кг/ч лидер продаж машина для производства плоских деревянных гранул на биомассе мельница цена маленькие деревянные гранулы прессы продажи
400,00 $

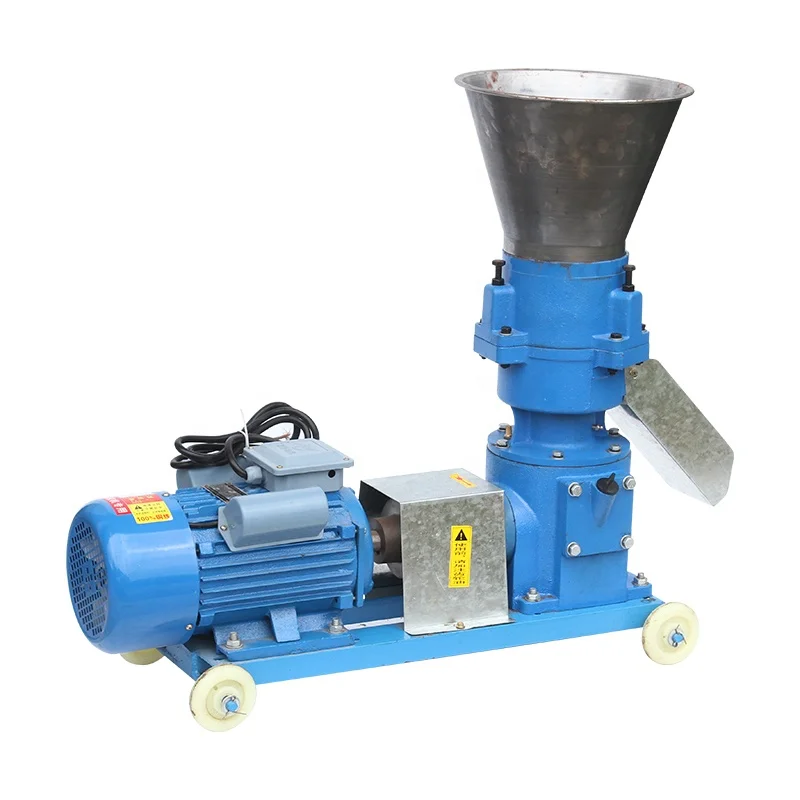

Сельскохозяйственный кормовой гранулятор для лошадей/крупного рогатого скота/овец/свиней
4 523,00-4 642,00 $

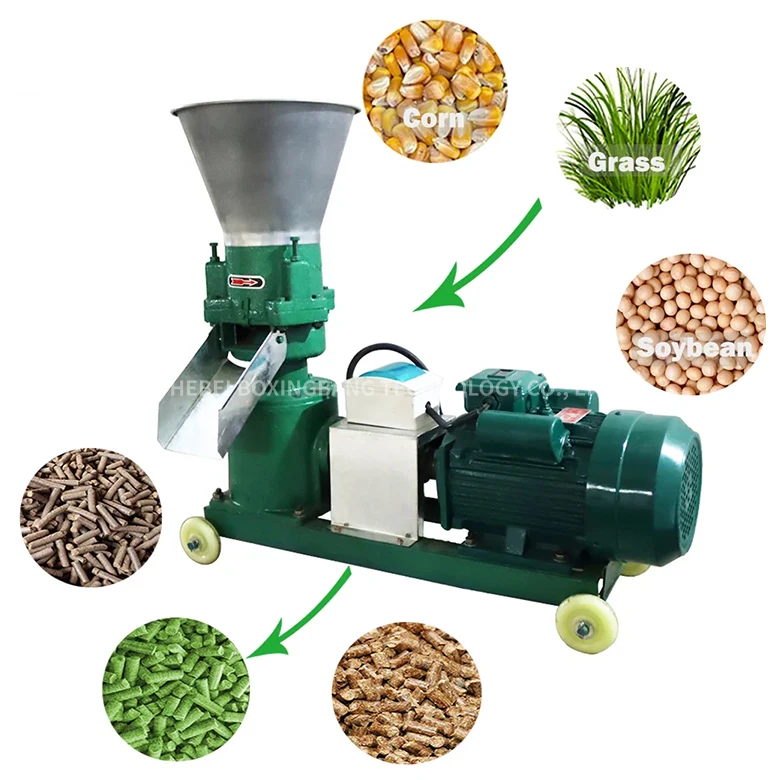

Оборудование для производства кормов животных
389,00-419,00 $

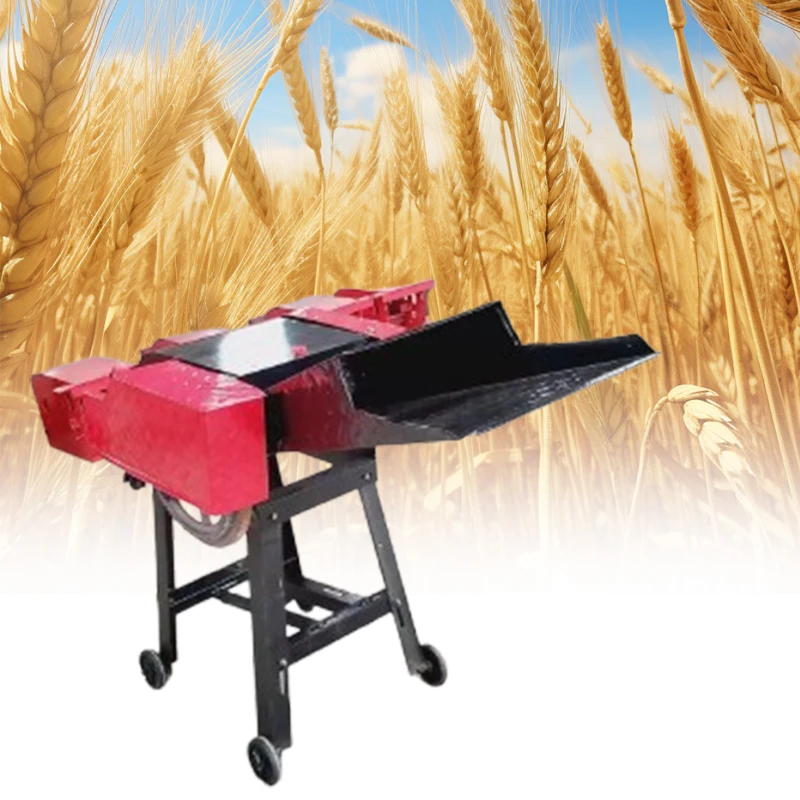

Машина для резки корма сена фермы

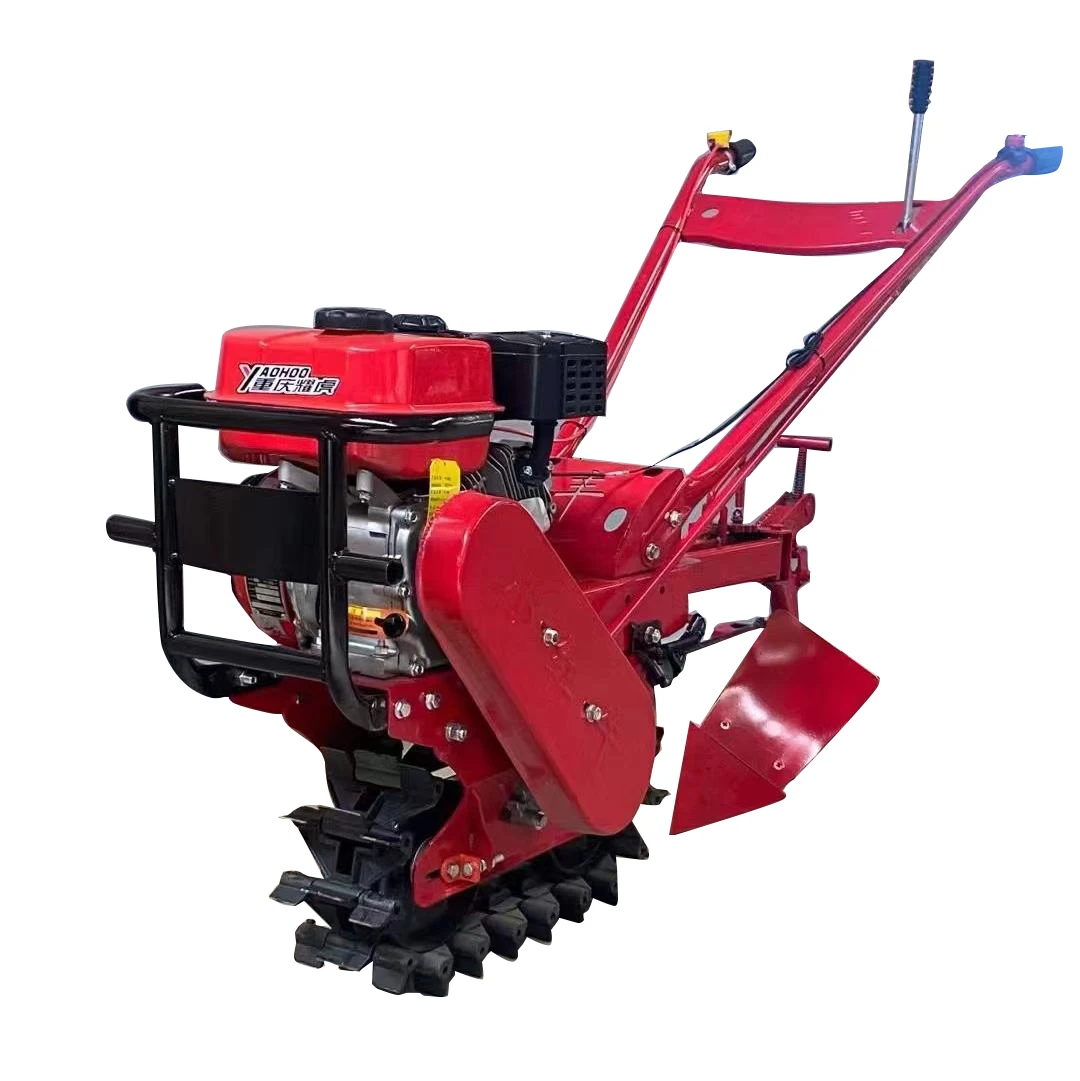

Ручной мини-культиватор для небольших фермерских хозяйств с бензиновым двигателем роторный культиватор
139,00-189,00 $
2023 новый стиль оборудование для дробления корма животных и свиней/комбинированный дробильный смеситель
298,00-350,00 $

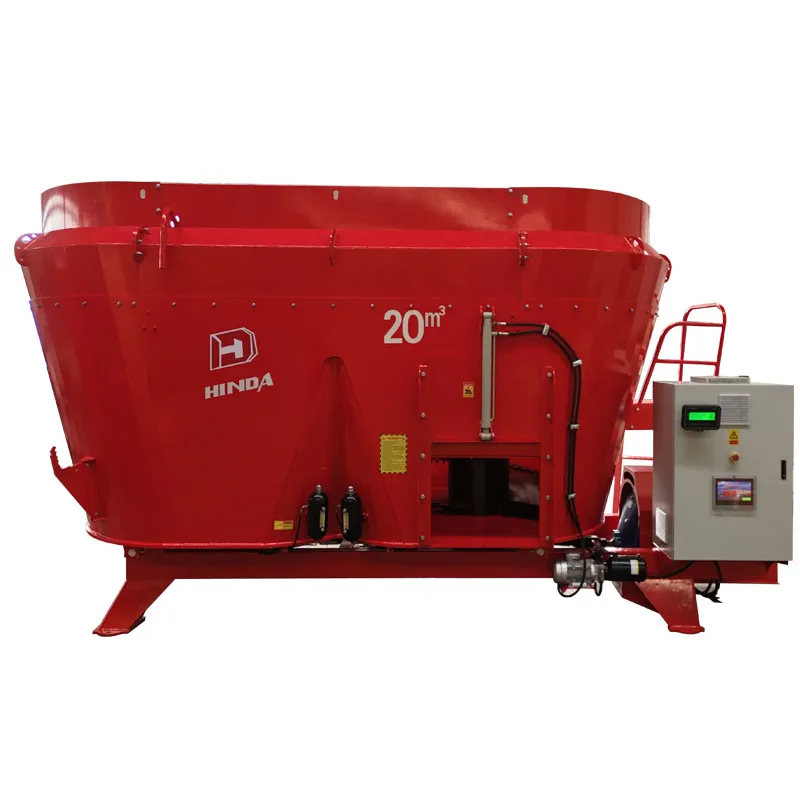

20 м3 Hinda стационарный смеситель для молочной фермы комбикормовой корма и крупного рогатого скота
