Высокоэффективный концентратор золота промышленная система концентрации совместимая с безопасностью горнодобывающая техника
2 100,00-2 200,00 $
Лидер продаж нигерийский циркон рутил олово Золотая машина для обработки медной руды четырехроликовый высоконапряженный электростатический сепаратор
- Категория: >>>
- Поставщик: Jiangxi Hengchang Mining Machinery Manufacturing Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601162305213:
Описание и отзывы
Характеристики

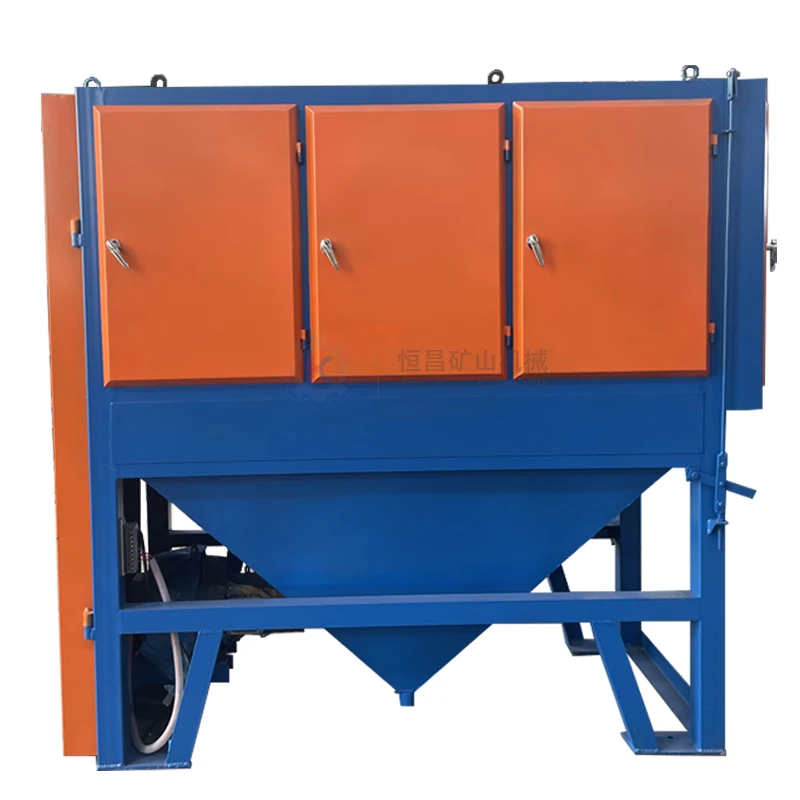

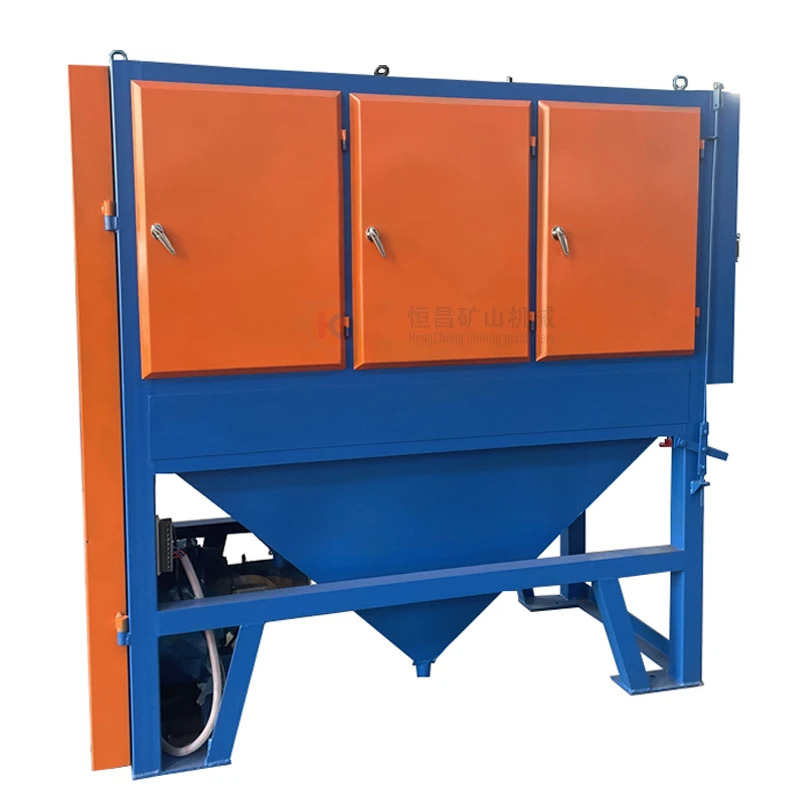

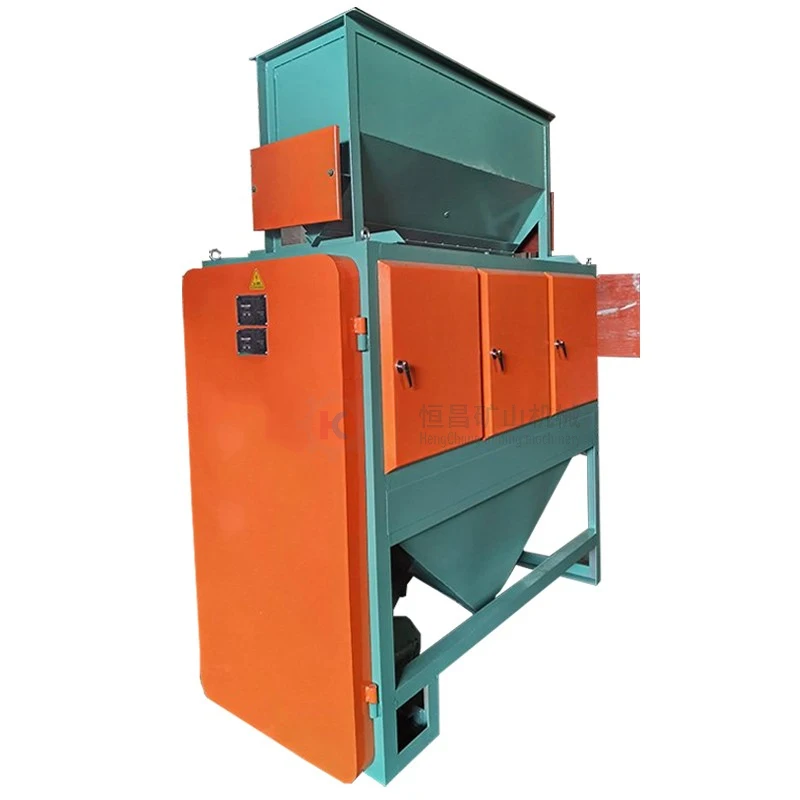

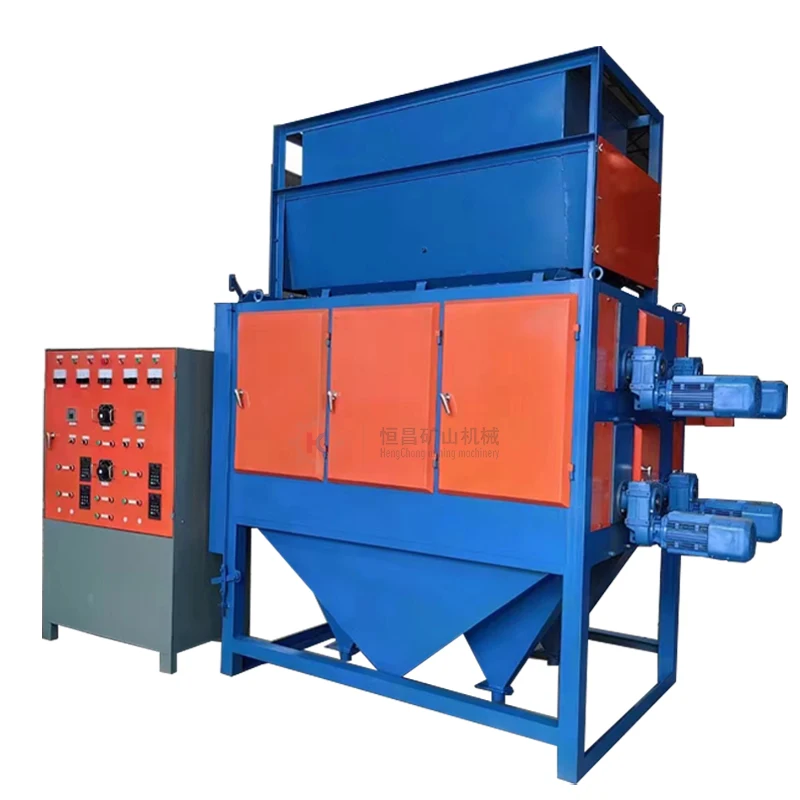

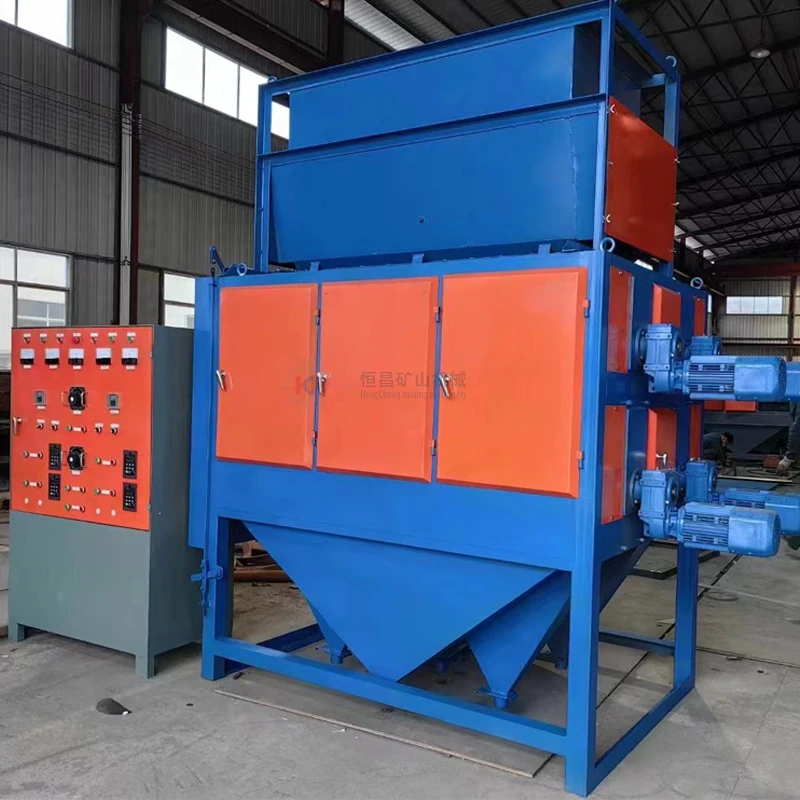

Hot Sale Nigeria Zircon Rutile Tin Iron Gold Copper Ore Processing Machine Four Roller High Tension Electrostatic Separator
Hengchang high tension electrostatic Separator machine is used for recycling of various minerals, waste metals and non-metal materials with conductivity difference such as selected white tungsten,tinstone, zirconite, andalusite, rutile, and gold placer etc .
Brief Introduction of Electrostatic Separator
φ120(φ220,φ165)×1500 double Roller Electrostatic Separator Equipment is one of the major equipment in Electrostatic Separation Process mineral separation. It is widely used in sorting titanium, zirconium, rutile, monazite, iron, tungsten, tantalum, niobium, tin and other precious minerals. It can separate material which's particle size is from 0.1 to 2 mm and surface temperature is less than 1% of itself. It often works well with the single-disc magnetic separator and permanent magnetic sorting machine in the process of sorting ilmenite, zircon ore and other minerals.
Electrostatic Separator is to electrify wire electrodes with very small diameter with high-voltage direct current to produce corona electric field in the space between corona electrode and grounding electrode. The entire space close to the grounding electrode carries negative charge (positive grounding) at the time and the mineral aggregates have the same chance to obtain electric s while passing through the corona electric field. However, due to different conductivity of minerals, they receive different electricity in the electric field and carry away different electric charges so that ore sands fall along different tracks in the electric field. In this way, good separation conditions are created for minerals with good, medium and no conductivity.
ARC Trigger Performs Separation under the electric intensity and gravity force based on the difference of minerals in their conductivity and the variation of electrostatic force applied on these minerals when the pass through the electric field. It is suitable to separation of conductive mineral and non-conductive mineral,thus to obtain high-grade conductive concentrates and non-conductive concentrates,e.g. rutile ore and zircon ore. It may be used in combination with single-disc separator,double-disc separator,permanent magnetic separator and electromagnetic separator.This machine is equipped with 0-45000 V high-voltage generator,so that it can also be used for separating the high-phosphorus ore or rutile ore that is difficult to separate.
Model | DXJφ220x1500 | DXJφ270x1500 | DXJφ320x1500 | DXJφ220x2000 | |||
Voltage | 60000 | 60000 | 60000 | 60000 | |||
Magnetic roller number | 2 roller. 3 rollers , 4 rollers ,6 rollers optional | ||||||
Feeding size | 20 mesh-280 mesh | ||||||
Capacity | 800-2000 kg/h | ||||||
Rotating motor | each roller with 1.1 kw motor | ||||||
Material heater | 2 rollers, 3 rollers high temperature 12 kw,low temperature 4 kw 4 rollers,6 rollers high temperature 22 kw,low temperature 8 kw | ||||||
Mineral divide drum heater | 1 kw | ||||||
direct current high tension generator | 60 kv/50 mA | ||||||
Power supply | Three phase four wire | ||||||
Electric control cabinet size | 1200x600x1250 mm | ||||||
Power consumption | 2 rollers 7.5 kw,3 rollers 9 kw, 4 rollers 16.5 kw,6 rollers 19 kw | ||||||
Approx weight | 2 rollers 1500 kg, 3 rollers 2500 kg, 4 rollers 2800 kg,6 rollers 3400 kg | ||||||
1.What is your machine used for ?
Our Electrostatic separator is widely used in sorting titanium, zirconium, rutile, monazite, iron, tungsten, tantalum, niobium, tin and other precious minerals.
2.Are you factory or trade company?
Yes,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about your Service ?
All of our machines have one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.What about the payment method?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Our Electrostatic separator is widely used in sorting titanium, zirconium, rutile, monazite, iron, tungsten, tantalum, niobium, tin and other precious minerals.
2.Are you factory or trade company?
Yes,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about your Service ?
All of our machines have one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.What about the payment method?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Warmly welcome to contact below seller to get good quotation and professional service.
Похожие товары

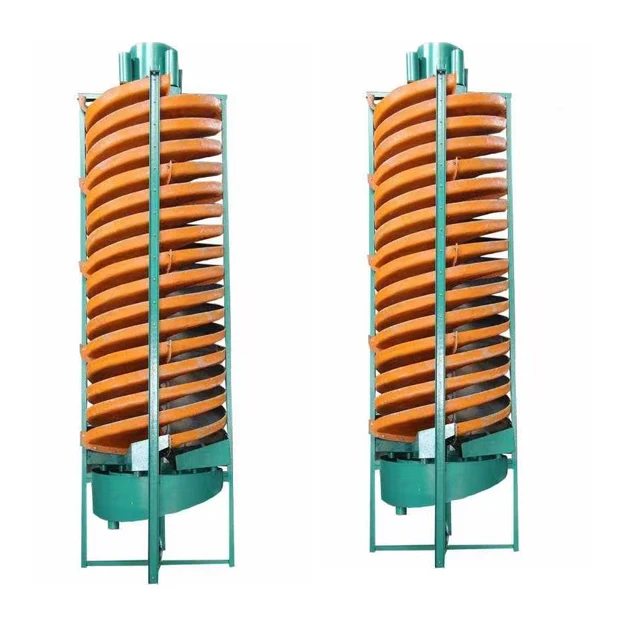

Концентрат лабораторный Спиральный сепаратор небольшой размер гравитационный спиральный желоб концентратор
365,00-390,00 $
Многоэлементная Флотационная ячейка 200t свинцово-цинковая руда флотационная машина завод по обработке медной руды
1 300,00 $

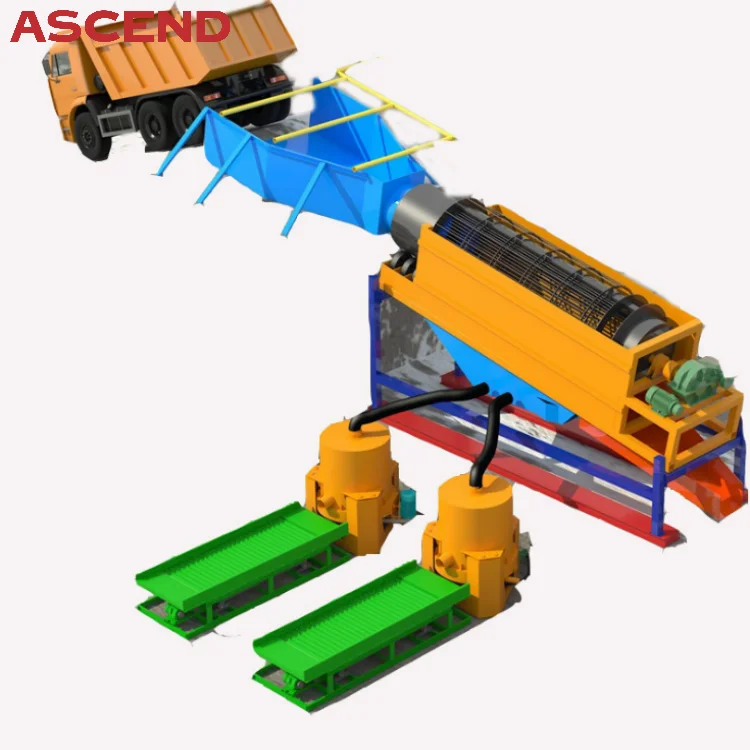

50-100 тонн в час Золотая гравитационная золотоперерабатывающая установка высокого качества для промывки Аллювиального золота
21 999,00-24 999,00 $
Высокопрочный дешевый Электромагнитный Электромагнит для охлаждения масла металла
6 700,00-6 850,00 $
Малый Золотой барабан для промывки растений
27 700,00-29 800,00 $

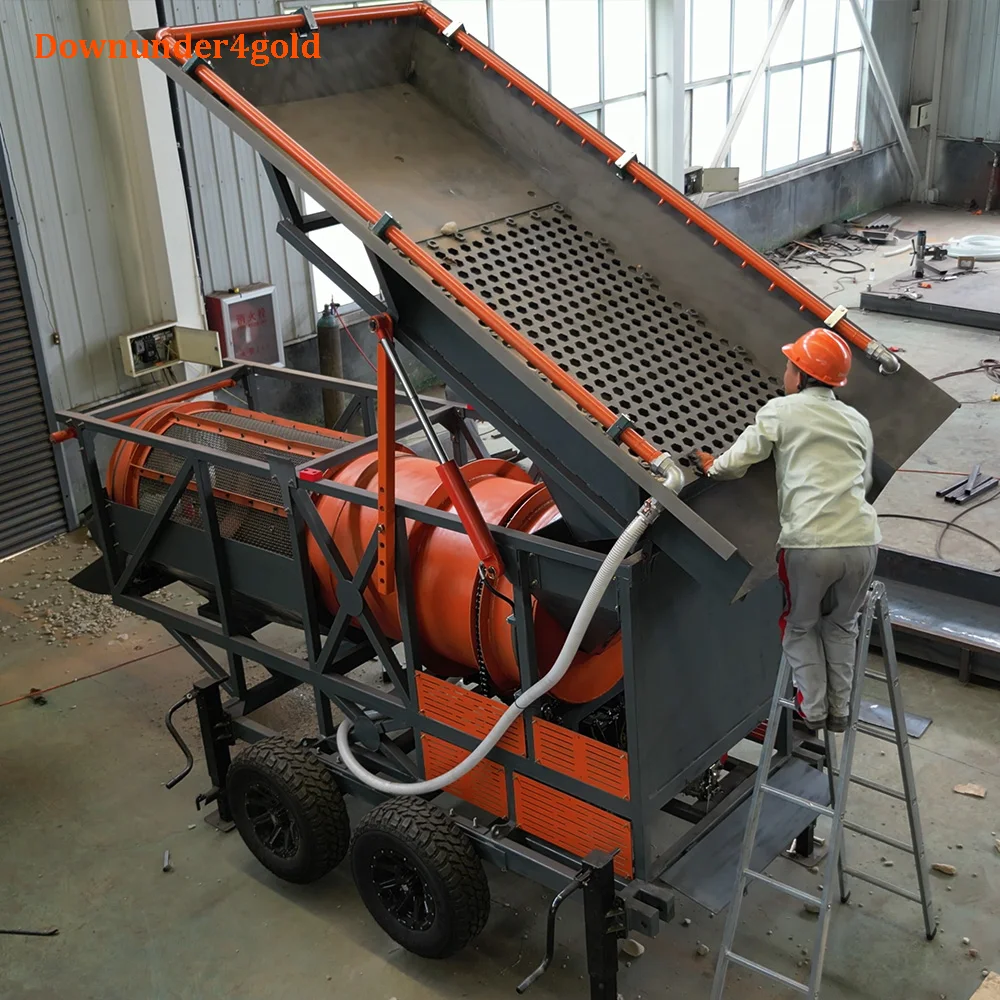

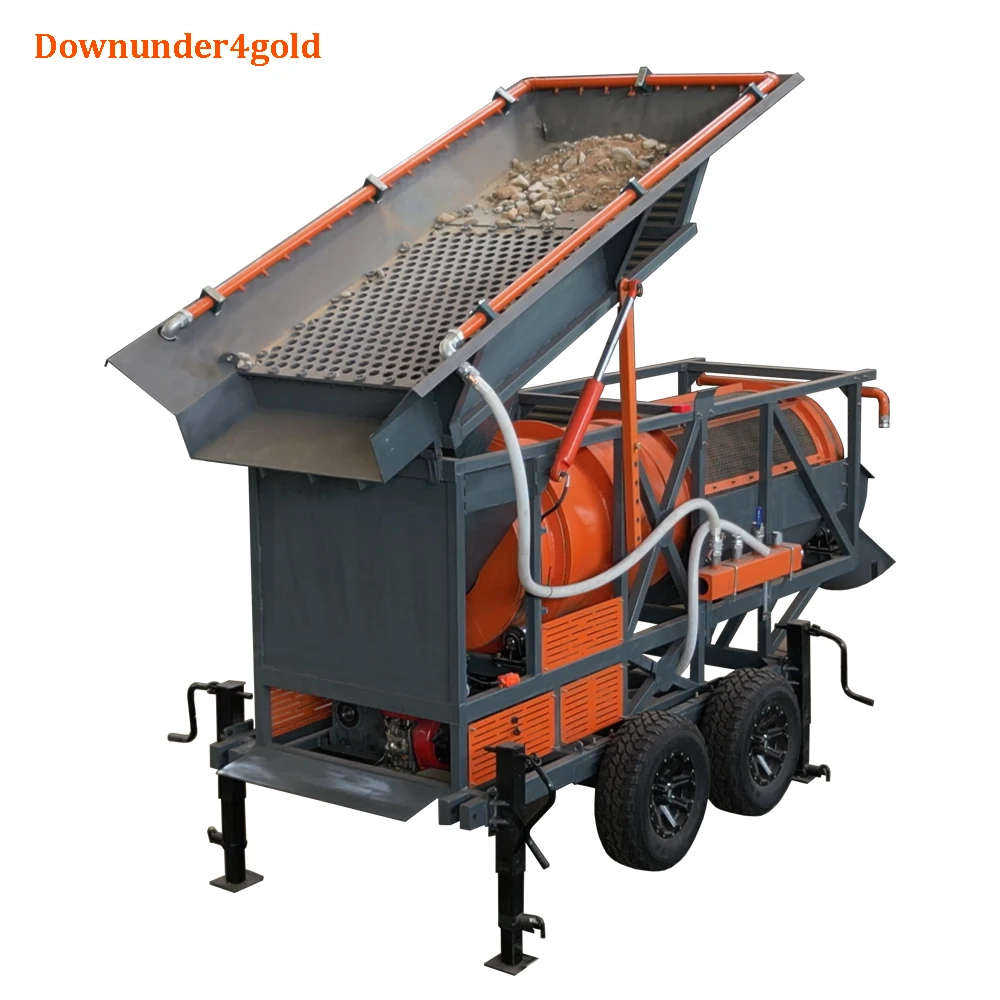

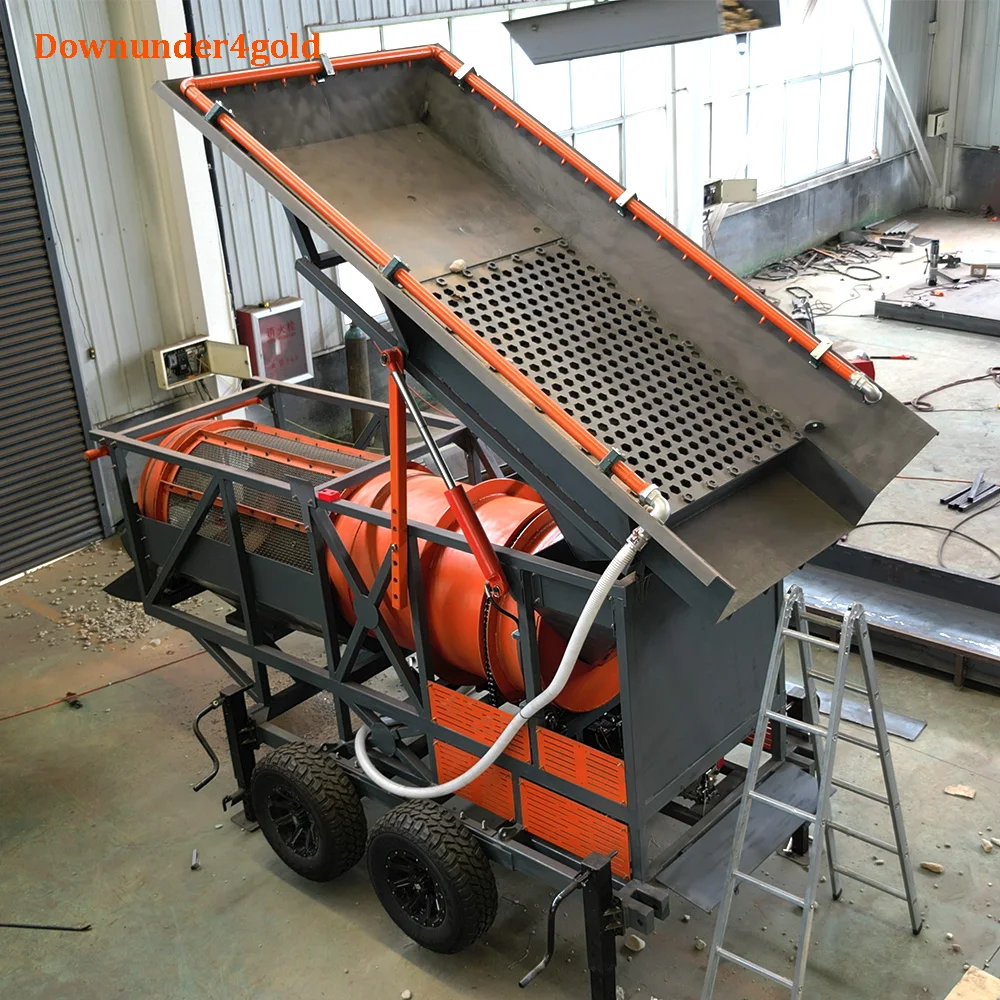

50 тонн в час мобильный золотой trommel
