2024 прочный экономичный гибкий 3D сварочный стол по индивидуальному заказу Сварочный инструменты различных спецификаций
- Категория: >>>
- Поставщик: Botou Tianjian Measuring Tool Co. Ltd.
Сохранить в закладки 1601162373857:
Описание и отзывы
Характеристики
Product Paramenters
No | Product name | Size(mm) | Item number |
1 | 3D Steel /Cast iron Welding table | 1000x1000x200 | TJ2810001 |
2 | 1200x1200x200 | TJ2810002 | |
3 | 1500x1000x200 | TJ2810003 | |
4 | 1500x1500x200 | TJ2810004 | |
5 | 2000x1000x200 | TJ2810005 | |
6 | 2400x1200x200 | TJ2810006 | |
7 | 3000x1500x200 | TJ2810007 | |
8 | 4000x2000x200 | TJ2810008 | |
9 | 1000×1000x150 | TJ2810009 | |
10 | 1200×1200x150 | TJ2810010 | |
11 | 1500×1500x150 | TJ2810011 |
For more solutions,please contact us.
Products Description
Welding Table:
1.The welding table is divided into two series according to the hole system: Φ28 and Φ16.
2.It is divided into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the structure.
3.The tooling platform is divided into steel piece platform and cast iron platform according to materials.
4.The grid is engraved with corresponding grid lines.
5.According to customer requirements, the measuring scales can be drawn on the four sides of the platform
6.The Nitride finish protects the welding table against rust and weld spatter to make sure that the welding tables surface is kept extremely clean and accurate for fixturing.

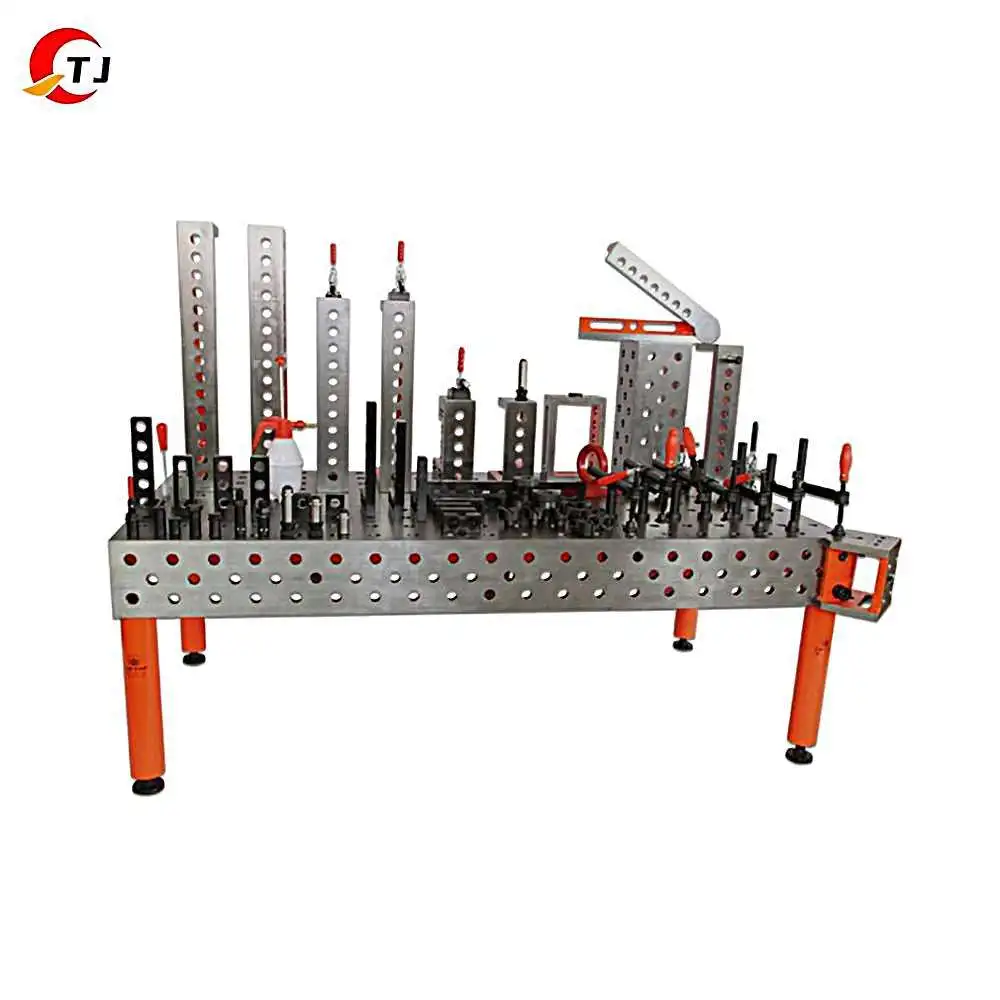

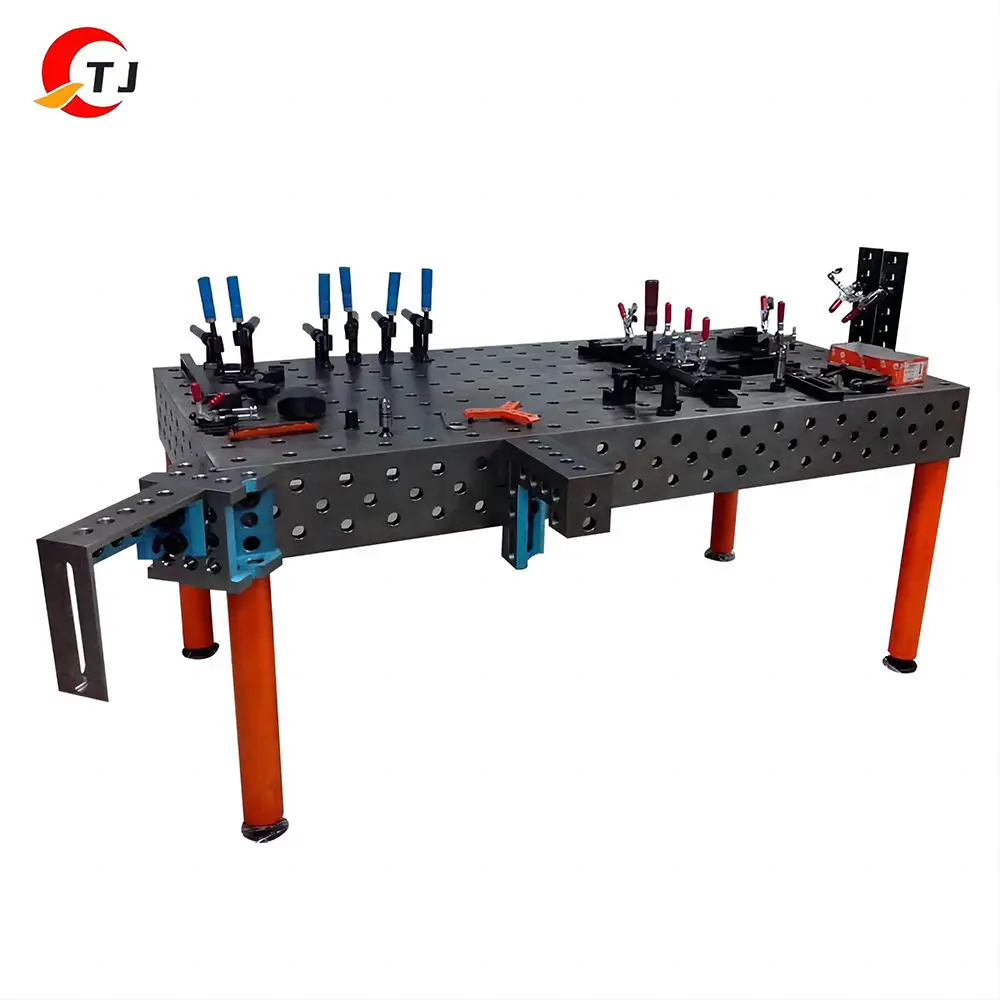

5-Sided 3D welding table
This welding workbench has five work surfaces, namely its front and four sides. The positioning piece can be installed on any of its five working surfaces. Additionally, the welding table can be expanded via any of its five work surfaces.
1- Sided 2D welding table
2D Welding Table is a typically flat and stationary welding table which used for the purpose of welding various metal components together in workshops, factories and other industrial environments
Casting Welding Table (Material: HT300)
Steel Welding Table (Material: Q355 )
-D28 system:
Hole diameter: 28mm (Drilled and milled hole)
Table thickness: 24-27mm
grid spacing: 100±0.05mm
2 ton weight loading capacity.
-D16 system:
Table thickness: 14-17mm
grid spacing: 50±0.05mm
2 ton weight loading capacity.
Optional components:
1. Tools for supporting: U-Shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge.
2. Spare parts for Locating: positioning square, positioning ruler, flat square, V-shaped positioning piece.3. Tools for clamping: fixed quick clamping piece (screw clamping), retractable clamping piece (screw clamping), 45 degree clamping piece (screw clamping), etc.
4. Tools for fixing: quick locking pin, countersunk locking pin, countersunk quick locking pin.
5. Accessories and auxiliary parts: height adjuster, lifting ring, tool cart, grounding device, adjusting gasket, hexagon wrench, nylon brush, oil stone, oil can.
5. Accessories and auxiliary parts: height adjuster, lifting ring, tool cart, grounding device, adjusting gasket, hexagon wrench, nylon brush, oil stone, oil can.
The difference between cast iron and steel welding table:
1. Impact Resistance: Steel welding tables offer better impact resistance compared to cast iron, making them less susceptible to cracking or chipping when subjected to heavy impact or stress.
1. Impact Resistance: Steel welding tables offer better impact resistance compared to cast iron, making them less susceptible to cracking or chipping when subjected to heavy impact or stress.
2. Smoother Surface: Compared to cast iron, steel has a smoother surface which is more resistant to spatter.

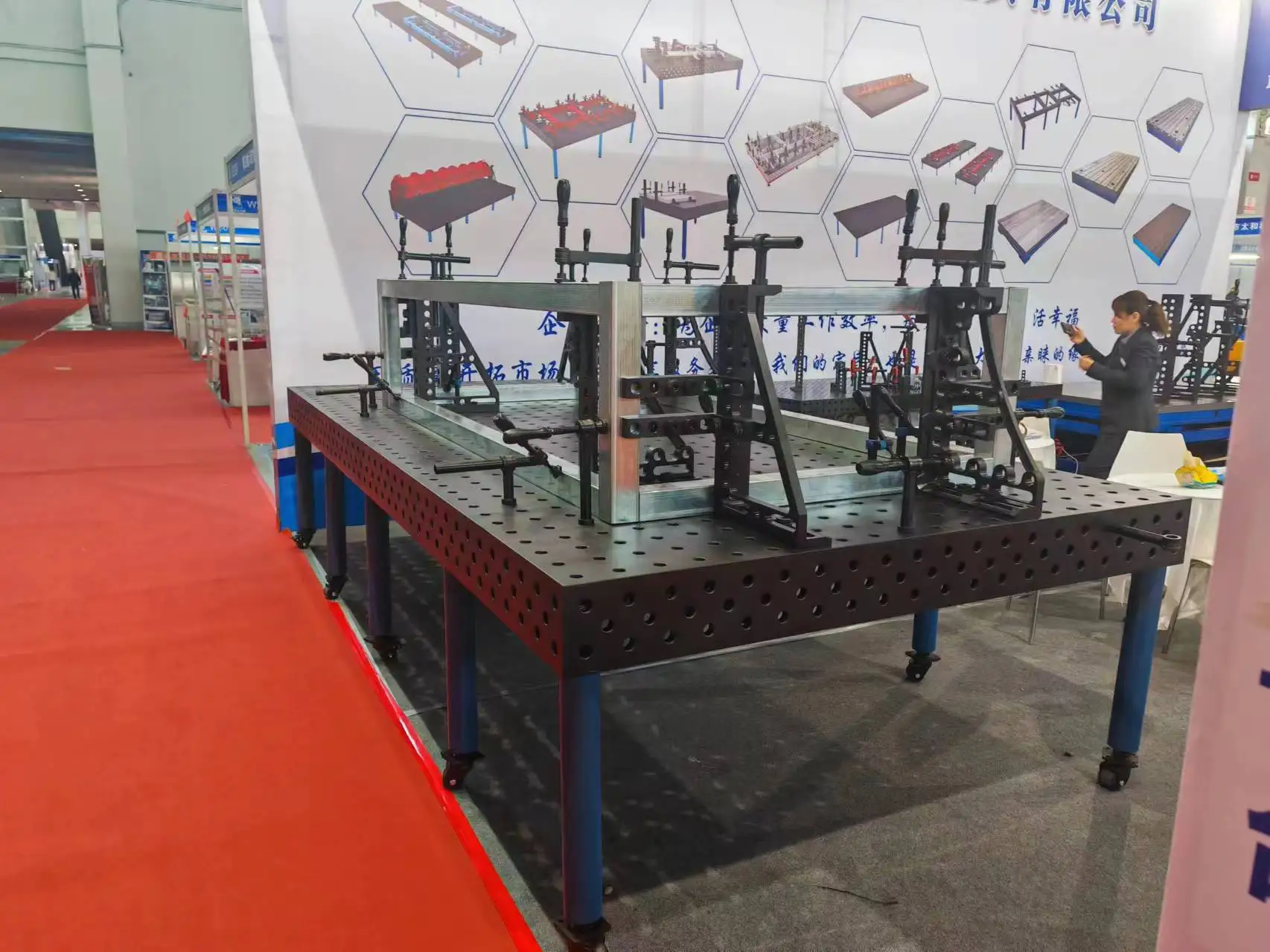

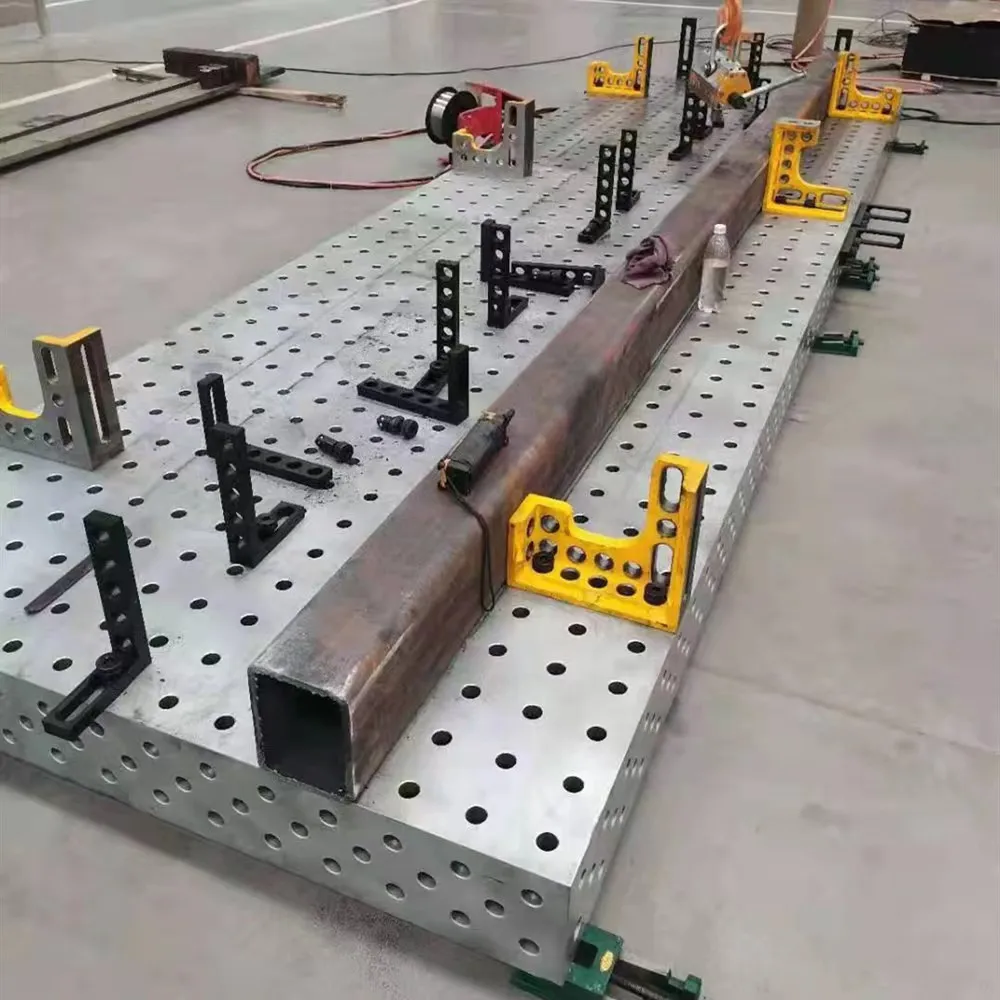

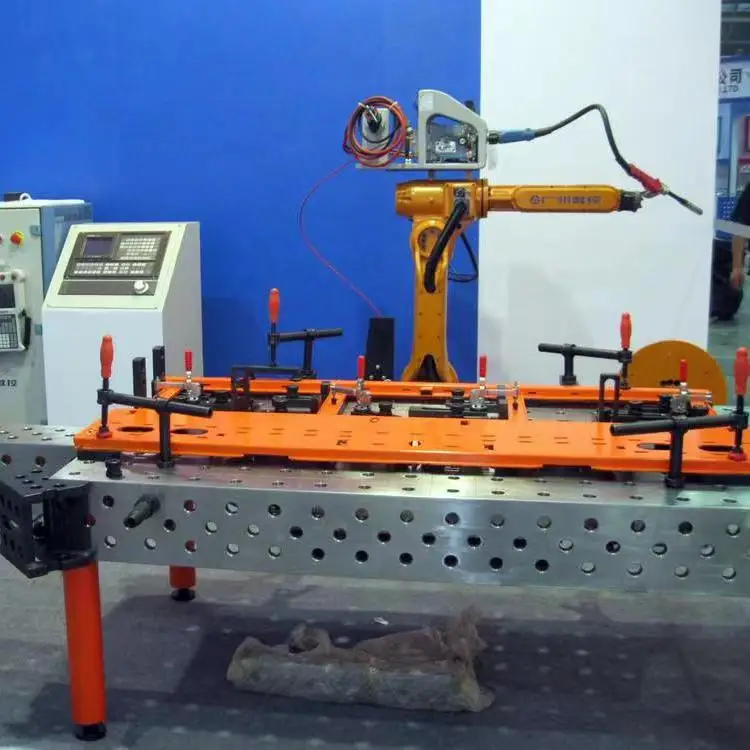

Customer project and product photos
Widely applied in the manufacturing and processing of machines, machining equipments, railway and tracks, automobiles, motorcycles, ships, pressurized containers, sheet metals, classis and cabinets, testing and measurement instruments and steel constructions.
Our Advantages
1.Flexible
The three-dimensional welding platform is strong and can withstand high loads. All five sides are processed with regular holes and engraved with network cables.
2.Repeatable
The accessories are assembled quickly and easily, and the work surface can be combined according to the shape and size of the workpiece and can be reused.
3.Precise
The accuracy meets most welding and assembly work, and the center tolerance of the positioning hole on the work platform is small.
4.Economical
Products with multiple parts can be quickly assembled and then welded, thereby improving the welding accuracy and efficiency of the workpiece.
Company Profile
About Botou Tianjian Measuring Tools Co., Ltd.
It is a company that produces and processes casting tools, measuring tools and other products. It has a complete and scientific quality management system. The integrity, strength and product quality of Botou Tianjian Measuring Tools Co., Ltd. have been recognized by the industry. Friends from all walks of life are welcome to visit, provide guidance and negotiate business.
Our company's main products include: cast iron platforms, marking platforms, 3D /2D welding tables, T-slot assembly platforms, boring and milling machine tool tables, three-coordinate platforms, test platforms, magnesium-aluminum lightweight flat rulers, cast iron flat flat rulers, Bridge-type flat ruler, square ruler, right-angle ruler, special angle ruler for machine tools, inspection square box, scribing square box, magnetic square box, magnetic V-shaped frame, deflection checker, gear runout checker, high-precision deflection checker, New deflection checker, machine tool inspection rod, machine tool adjustment pad, machine tool anti-vibration pad, step pad, contour pad, cast iron shaped iron, steel V-shaped frame, cast iron bent plate, chrome-plated jack, granite flat plate , flat ruler, square ruler, square box, parallel gauge, granite machine tool guide rail, T-slot workbench, three coordinate measuring machine components, granite adjustable pillar, profile block, profile frame, granite watch base, etc. Measuring tools, and various non-standard measuring tools can also be customized (the user needs to attach drawings).
Certifications
Packing and Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging sevices will be provided.
FAQ
Q1. Are you manufacturer or trade company ?
A:We are professional manufacturer in China , and have in this line almost 15 years .
Q2. Would it be possible for us to visit your factory ?
A:We are professional manufacturer in China , and have in this line almost 15 years .
Q2. Would it be possible for us to visit your factory ?
A:Sure, welcome you at any time !
Q3. How can we get the quotation ?
A:Please let us know the specifications of the platforms, such as the Material, Size, Hole spacing, ect
A:Please let us know the specifications of the platforms, such as the Material, Size, Hole spacing, ect
Q4. How can I start the order?
A:You could place the order directly on alibaba or we can send you the proforma invoice with our bank details. After we received the down payment, we will start the production.
A:You could place the order directly on alibaba or we can send you the proforma invoice with our bank details. After we received the down payment, we will start the production.
Q5. Lead time:
A:The order lead time is need 15-25 days after receiving deposit.
A:The order lead time is need 15-25 days after receiving deposit.
Q6. Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
Похожие товары

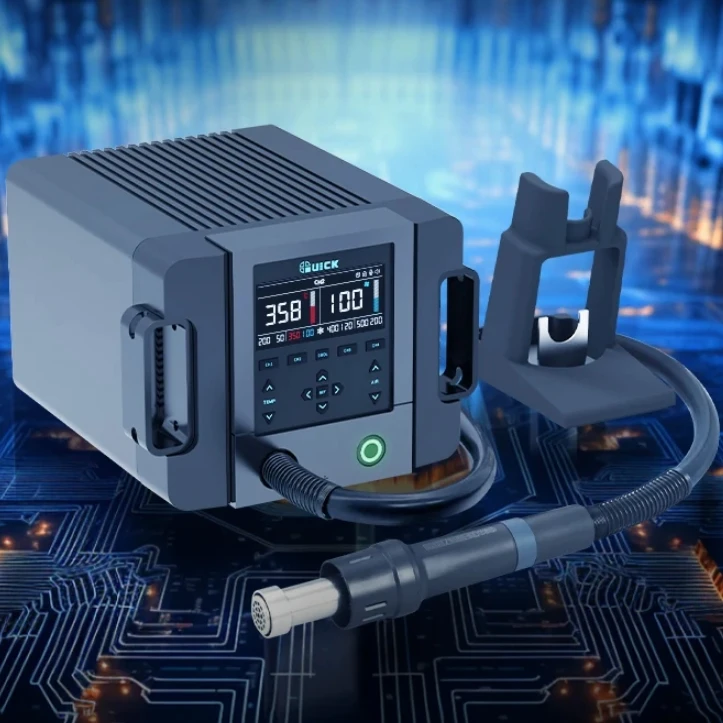

Быстрая 861 профессиональная смарт-станция для пайки горячим воздухом материнская плата микросхема печатная цифровой дисплей инструменты ремонта
30 153,31 ₽ - 31 688,39 ₽

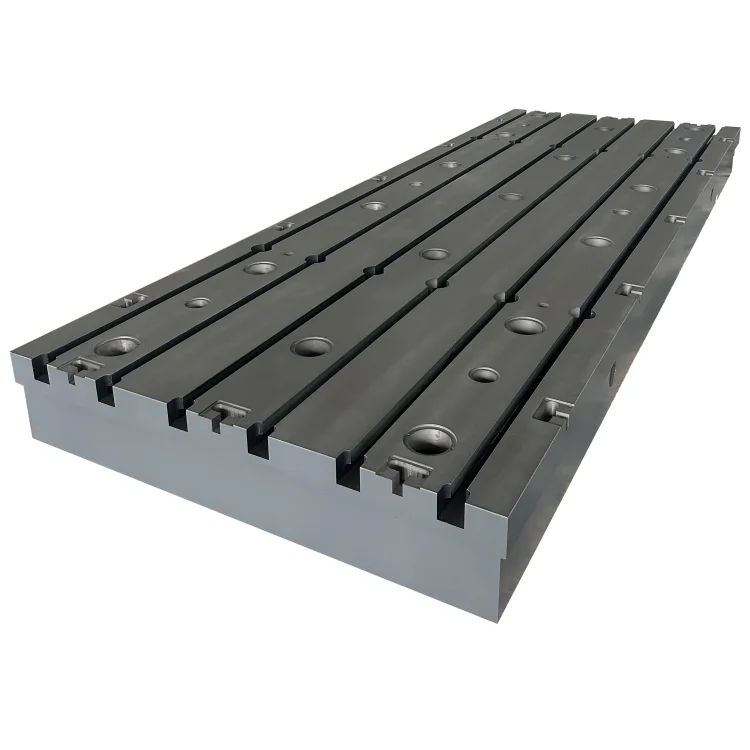

Высококачественные новые штифты с Т-образным пазом чугунная Рабочая платформа необходимые Калибровочные инструменты
142 542,92 ₽ - 165 130,50 ₽

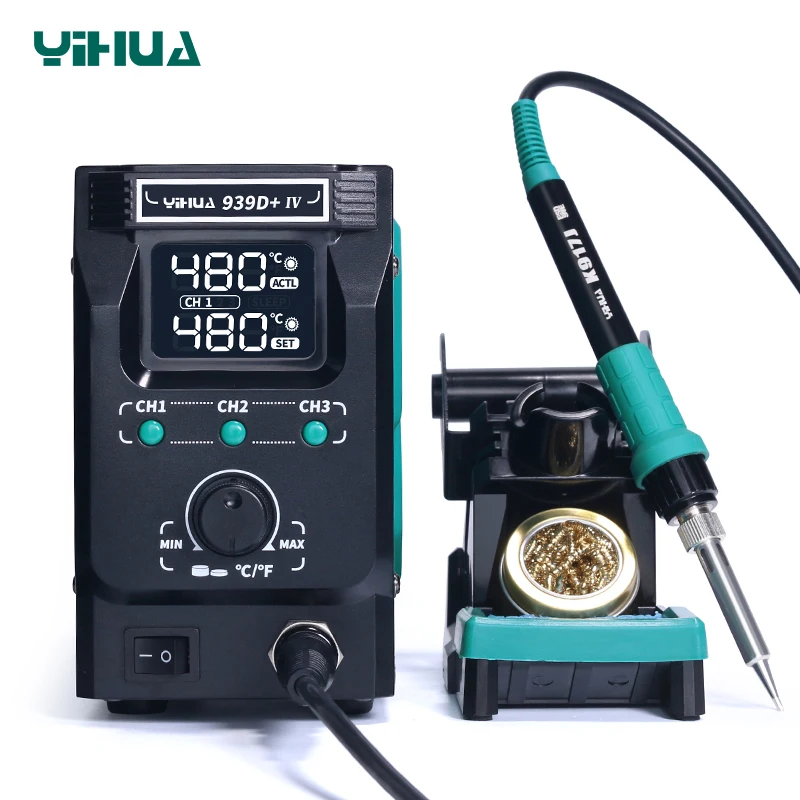

Паяльник YIHUA 939D + IV инструменты для ремонта ЖК-дисплей сварочный завод производитель цифровая паяльная станция
4 217,08 ₽

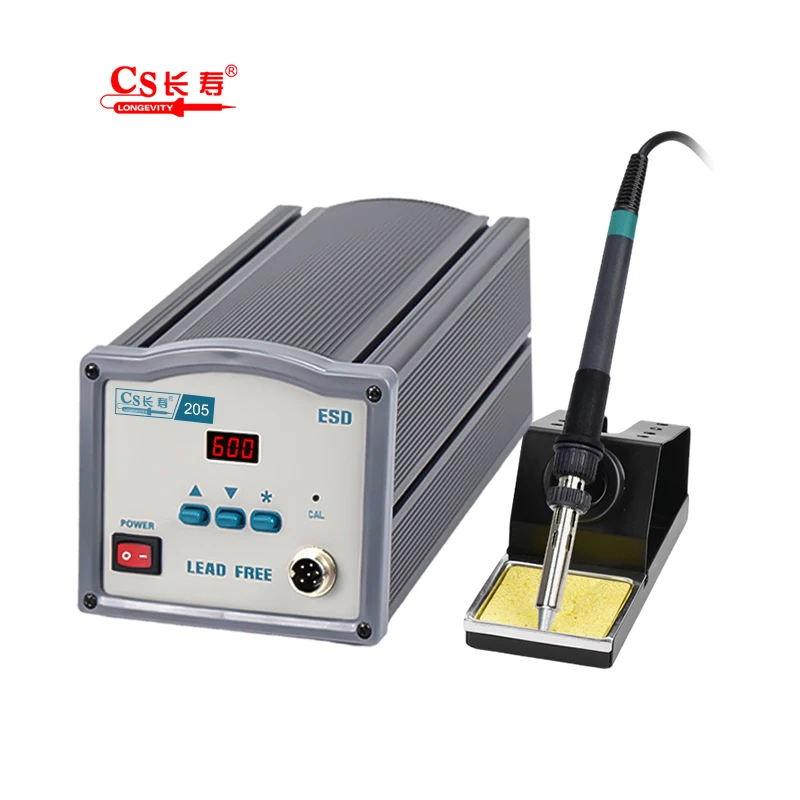

205 150 Вт цифровой ESD станция для пайки 220 В паяльная переделочная с регулируемой температурой дисплей
4 934,18 ₽ - 5 482,42 ₽

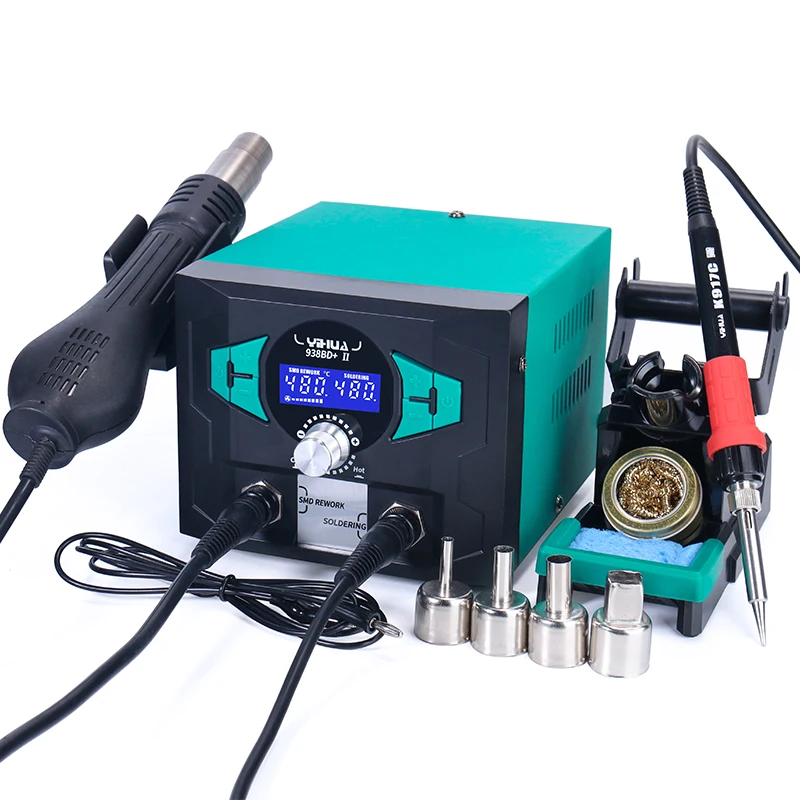

YIHUA 938BD + II 2 в 1 припоя горячим воздухом паяльная 110W быстро паяльник сварки паяльной станции станция
7 127,15 ₽

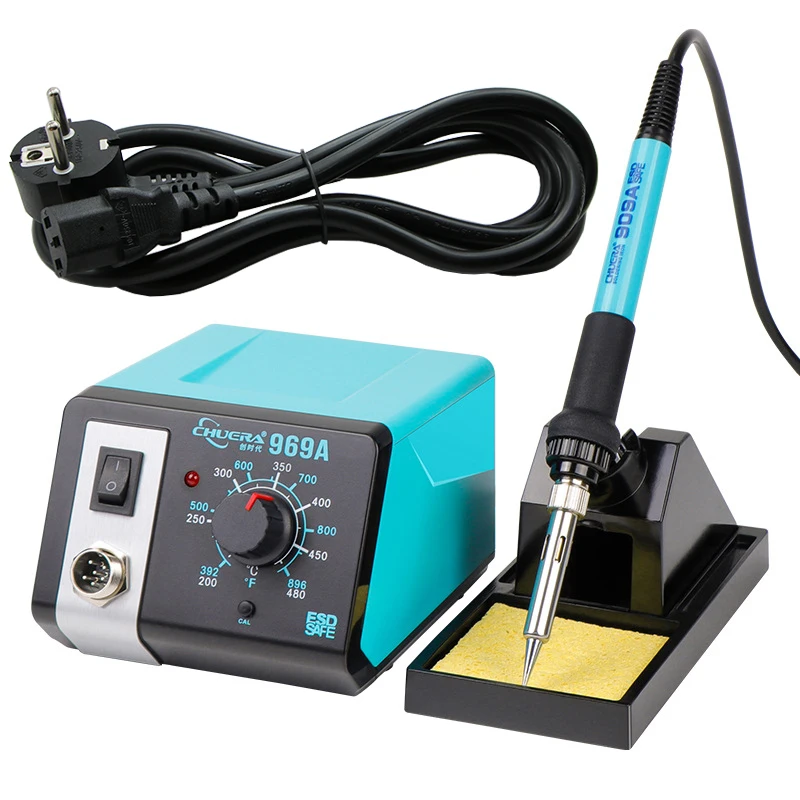

969A Высокоэффективная паяльная станция 75 Вт Сварка бессвинцовый цифровой дисплей Электрический паяльник
1 864,03 ₽ - 2 138,15 ₽

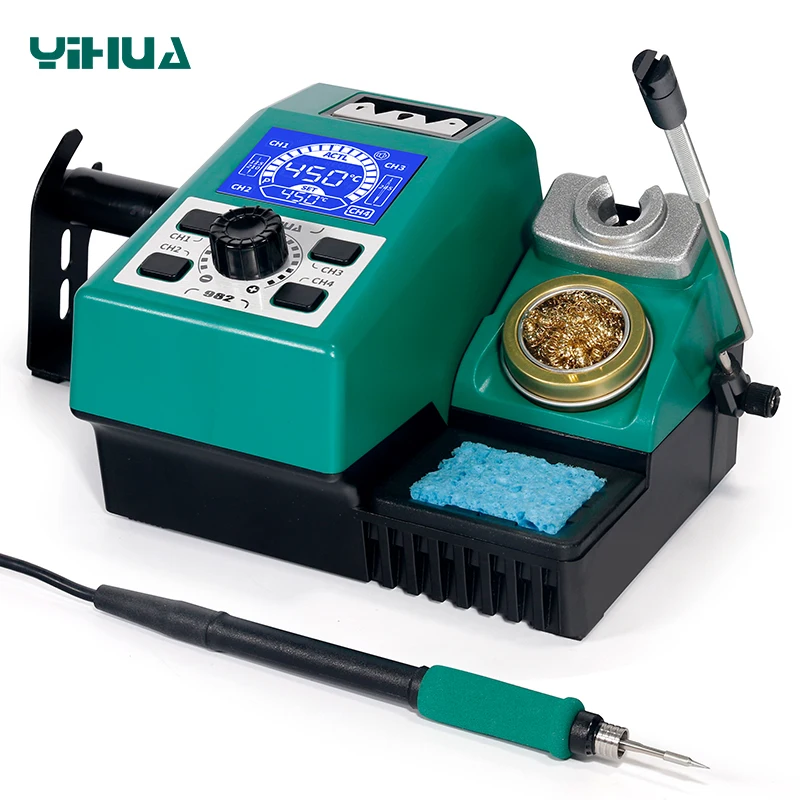

Паяльная станция YIHUA 982 для быстрого нагрева C210 T210 T12 паяльная железная ручка Электронная сварочная
