Полный комплект 200TPH Ангола гравитационная разделительная установка для алмазной промывки
918 396,80-2 869 990,00 ₽
Электростатический сепаратор с четырьмя роликами
- Категория: >>>
- Поставщик: Jiangxi Hengchang Mining Machinery Manufacturing Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601162654410:
Описание и отзывы
Характеристики

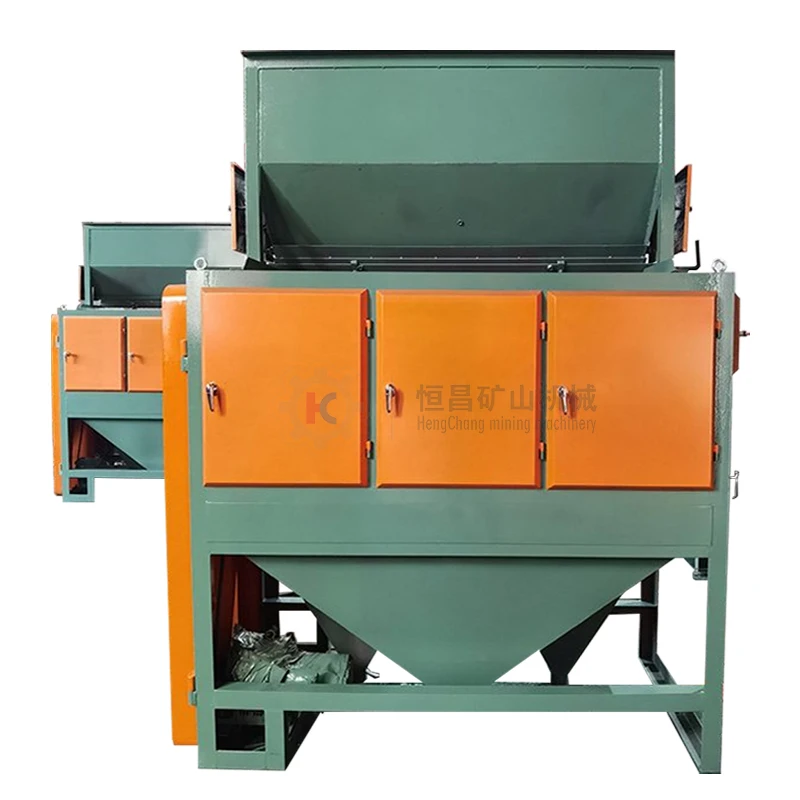

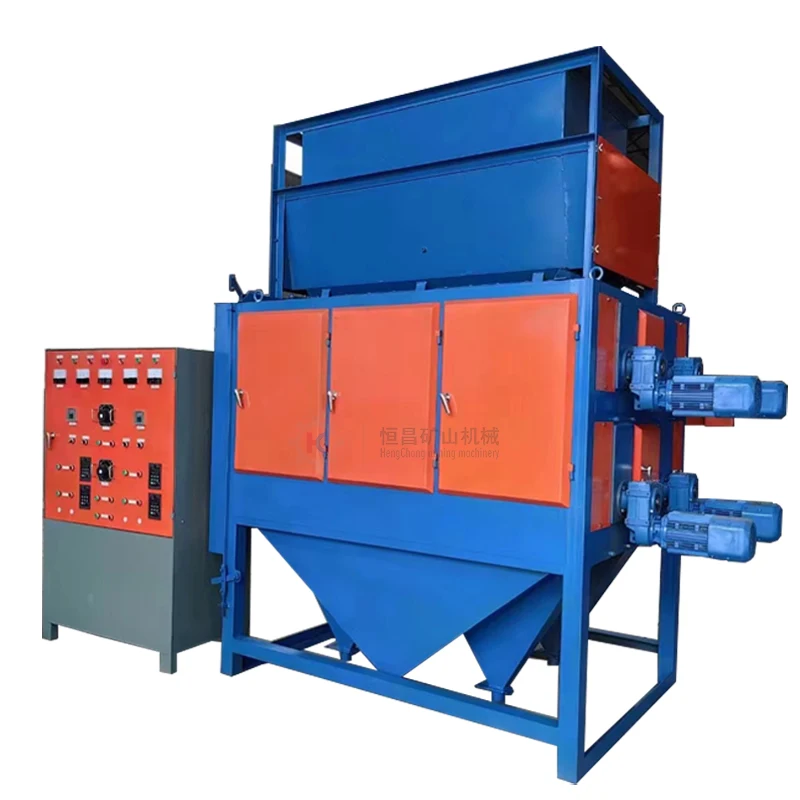

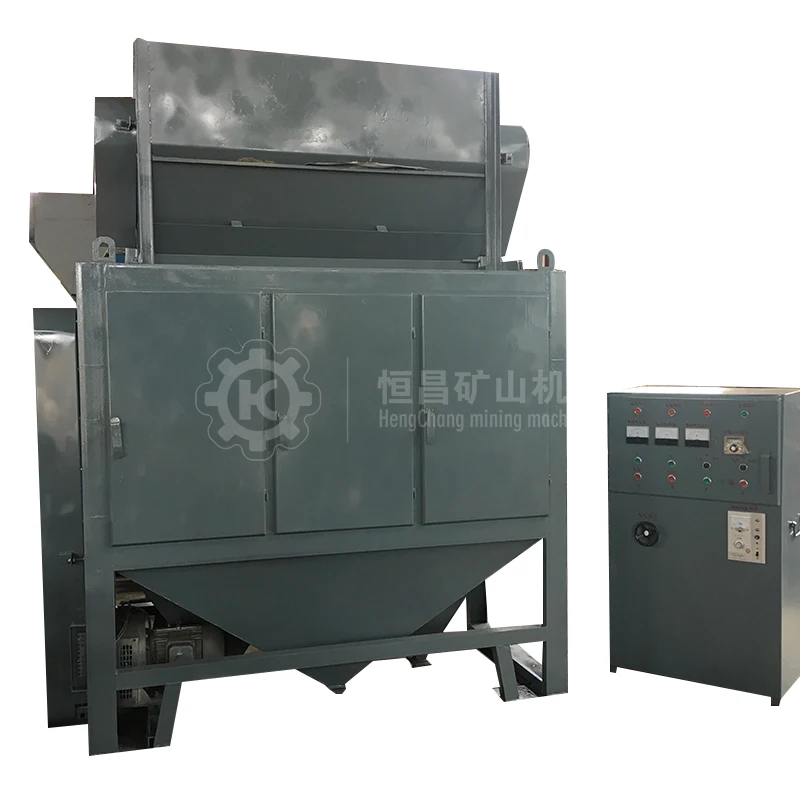

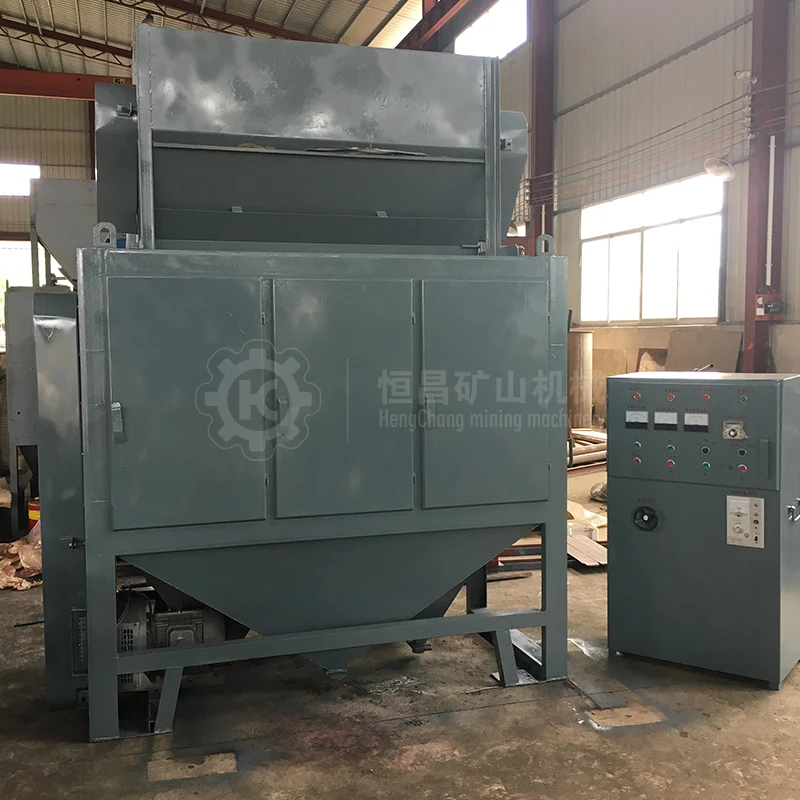

Zircon Ore Concentrating Machine High Tension Four Rollers Electrostatic Separator
Introduction of electrostatic separator:
Hengchang high tension electrostatic separator uses 50HZ, 380V AC. To keep the machine working safety and stability, the installation should meet the following requirements.φ120(φ220,φ165)×1500 double Roller Electrostatic Separator Equipment is one of the major equipment in Electrostatic Separation Process mineral separation. It is widely used in sorting titanium, zirconium, rutile, monazite, iron, tungsten, tantalum, niobium, tin and other precious minerals. It can separate material which's particle size is from 0.1 to 2 mm and surface temperature is less than 1% of itself. It often works well with the single-disc magnetic separator and permanent magnetic sorting machine in the process of sorting ilmenite, zircon ore and other minerals.
Electrical Separation is to electrify wire electrodes with very small diameter with high-voltage direct current to produce corona electric field in the space between corona electrode and grounding electrode. The entire space close to the grounding electrode carries negative charge (positive grounding) at the time and the mineral aggregates have the same chance to obtain electric s while passing through the corona electric field. However, due to different conductivity of minerals, they receive different electricity in the electric field and carry away different electric charges so that ore sands fall along different tracks in the electric field. In this way, good separation conditions are created for minerals with good, medium and no conductivity.
Application:
Electrostatic separator with permanent magnetic separator in the process flow of separating titanium-zirconium minerals,better effect can be achieved.The struture of the machine is made up of feeding device(including hoisting machine and heating chamber),ground roller,arc-shaped corona electrode,deflecting electrode,ore-transmitting board,high-voltage current,and electric control cabinet.The machine has reasonable structure,advanced technique,convenient electric operation,perfect protection,and high automation;moreover,it is safe,reliable,attractive and novel.Because of its good effect,the product also export to many distant market area such as Australia,Indonesia,South Africa,Vietnam and other foreign market and obtain good reputation.
Model | DXJφ220x1500 | DXJφ270x1500 | DXJφ320x1500 | DXJφ220x2000 | |||
Voltage | 60000 | 60000 | 60000 | 60000 | |||
Magnetic roller number | 2 roller. 3 rollers , 4 rollers ,6 rollers optional | ||||||
Feeding size | 20 mesh-280 mesh | ||||||
Capacity | 800-2000 kg/h | ||||||
Rotating motor | each roller with 1.1 kw motor | ||||||
Material heater | 2 rollers, 3 rollers high temperature 12 kw,low temperature 4 kw 4 rollers,6 rollers high temperature 22 kw,low temperature 8 kw | ||||||
Mineral divide drum heater | 1 kw | ||||||
direct current high tension generator | 60 kv/50 mA | ||||||
Power supply | Three phase four wire | ||||||
Electric control cabinet size | 1200x600x1250 mm | ||||||
Power consumption | 2 rollers 7.5 kw,3 rollers 9 kw, 4 rollers 16.5 kw,6 rollers 19 kw | ||||||
Approx weight | 2 rollers 1500 kg, 3 rollers 2500 kg, 4 rollers 2800 kg,6 rollers 3400 kg | ||||||
Introduction of High Voltage ARC Plate Electrostatic Separator Machine:
ARC Electric Separation under the electric intensity and gravity force based on the difference of minerals in their conductivity and the variation of electrostatic force applied on these minerals when the pass through the electric field.
It is suitable to separation of conductive mineral and non-conductive mineral,thus to obtain high-grade conductive concentrates and non-conductive concentrates,e.g. rutile ore and zircon ore. It may be used in combination with single-disc separator,double-disc separator,permanent magnetic separator and electromagnetic separator.This machine is equipped with 0-45000 V high-voltage generator,so that it can also be used for separating the high-phosphorus ore or rutile ore that is difficult to separate.
Working Principle of Electric Separator:
1.Arc plate Electric Separator has a two-row structure with four floors per row. Grounding arc slides (stainless steel) are installed on each floor. On the top, there is a high-voltage electrostatic plate (aluminum) in the shape of an arc (which is adjustable). Separation of materials is achieved by combining a high-voltage corona electric field and a high-voltage electrostatic field in a composite electric field based on the differences in conductivity of materials. Electrostatic attraction is strengthened to a conductor, while repulsion is strengthened to a non-conductor. 2.As soon as the metal and non-metallic mixture is selected, crushed, and ground, it is lowered from the feed funnel to the cylinder, where it is rotated to bring it into the corona electric field between the high-voltage electrode and the grounding electrode of the cylinder. Under the action of centrifugal force and self-gravity brought by the rotating cylinder, the particles with good conductivity break away from the cylinder electrode and fall into the receiving groove of the conductor particles once they are in contact with the grounding electrode.
3.The charge carried by non-metallic or non-conductive particles with weak conductivity is difficult to transfer when they contact the cylinder. Various charges are attracted by each other, adsorb to the cylinder surface, fall into the non-conductive particle receiving groove when the cylinder rotates, and are then brushed by the round roller brush.
Product Advantages：
1. With a reasonable structure, advanced technology;
2. Convenient operation, complete protection;
3. High degree of automation, safety, and reliable, with better separating effect;
4. Separation of high accuracy, can make the 120 mesh mineral to 2mm;
2. Convenient operation, complete protection;
3. High degree of automation, safety, and reliable, with better separating effect;
4. Separation of high accuracy, can make the 120 mesh mineral to 2mm;
5. High degree of automation, to achieve the feeding, heating, speed adjustment, and high-pressure discharge, with high security.
Model No | BXJ-2A4-30 (double sides four stages) | BXJ-2A5-60 (double sides five stages) |
Capacity | 1-2t/h | 1-2t/h |
Feeding size | 0.1-3mm | 0.1-3mm |
Feeding speed | 10-15cm/s | 10-15cm/s |
Arc-Plate size | 1600 | 1600 |
Power consumption | 125w | 125w |
Operation voltage | 0-60KV | 0-60KV |
High voltage current | 0-10MA | 0-10MA |
Machine weight | 1688kg | 2100kg |
Overall size | 2100*1600*2300mm | 2100*1600*2500mm |
FAQ
Q1: What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2: What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty period.
Q3: Is it factory?
Yes,we have our own factory.and welcome to visit our factory.
Q4. Whether it can be customized according to customer requirements?
Yes,we can design according to customer's requirement,we have many kinds of model.you can choose the suitable one.
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2: What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty period.
Q3: Is it factory?
Yes,we have our own factory.and welcome to visit our factory.
Q4. Whether it can be customized according to customer requirements?
Yes,we can design according to customer's requirement,we have many kinds of model.you can choose the suitable one.
