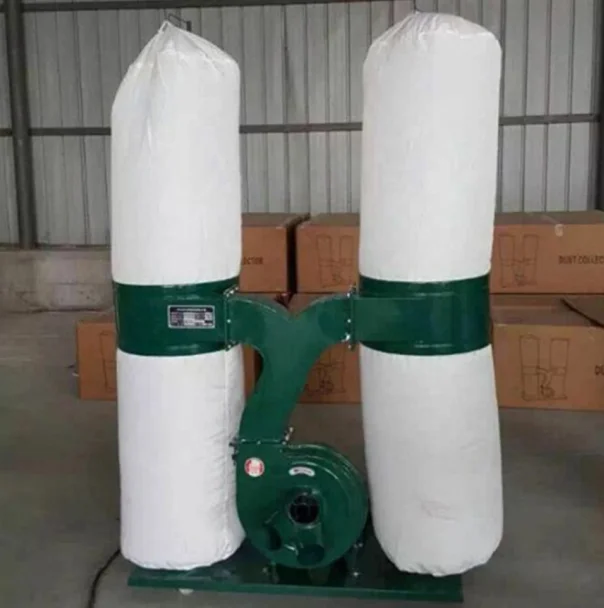

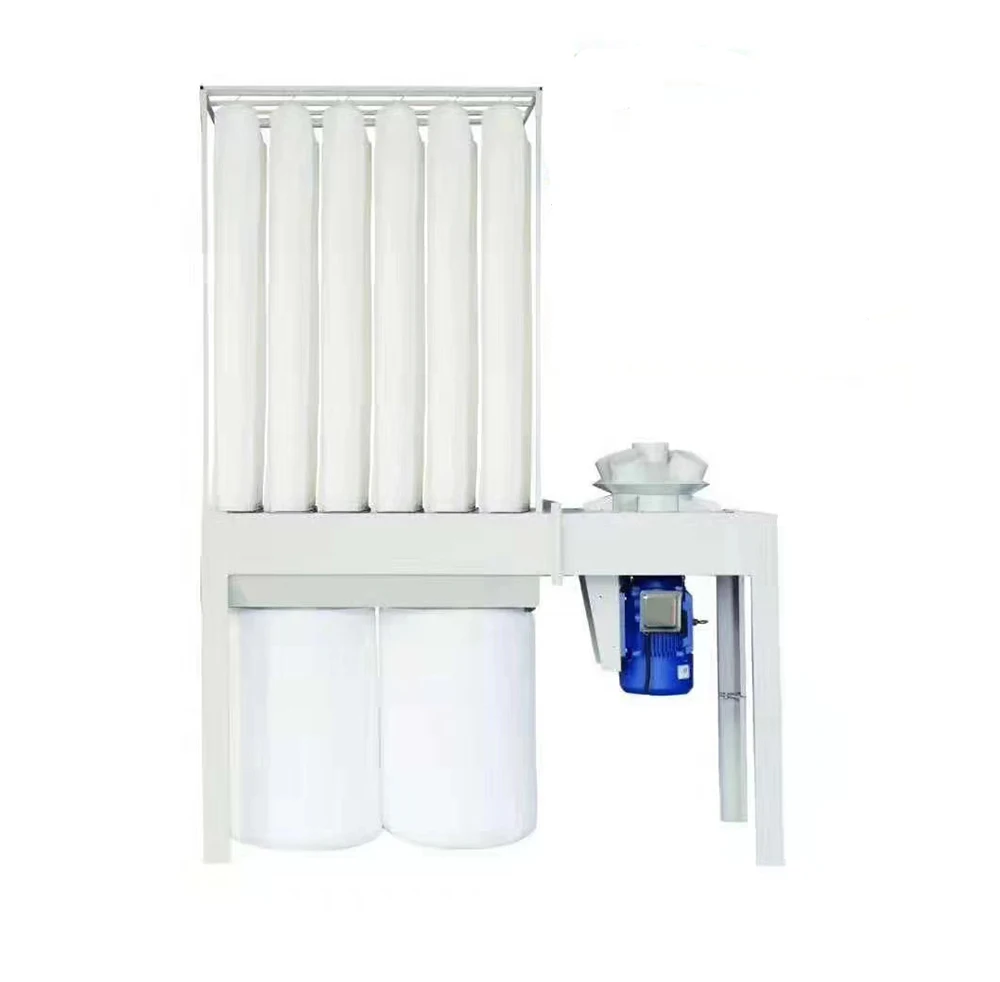

Промышленный паяльный фильтр-мешок 2 3 4 5 7 11 15 кВт воздушный сепаратор Циклон пылеуловитель оборудование для деревообрабатывающего станка
218 212,64 ₽ - 242 458,48 ₽
Изготовленный на заказ 11 кВт промышленный деревообрабатывающий пылеуловитель Китай изготовленный для удаления пыли медного рудника
- Категория: >>>
- Поставщик: Hebei Qiaolan Environmental Protection Technology Co. Ltd.
Сохранить в закладки 1601162757543:
Описание и отзывы
Характеристики
Model | Filter area (m²) | Filter wind speed (m/min) | Processing air volume (m³/h) | Number of filter bags (strips) | Spray pressure (MPa) | Resistance (Pa) | Cleaning form | Filter bag size (mm) |
QLPPC24 | 19 | 1.2 | 1360 | 24 | 0.3-0.5 | 1200-1500 | online | 130*2000 |
QLPPC36 | 29 | 1.2 | 2000 | 36 | 0.3-0.5 | 1200-1500 | online | 130*2000 |
QLPPC48 | 39 | 1.2 | 2800 | 48 | 0.3-0.5 | 1200-1500 | online | 130*2000 |
QLPPC60 | 48 | 1.2 | 3450 | 60 | 0.3-0.5 | 1200-1500 | online | 130*2000 |
QLPPC72 | 58 | 1.2 | 4200 | 72 | 0.3-0.5 | 1200-1500 | online | 130*2000 |
QLPPC84 | 68 | 1.2 | 4900 | 84 | 0.3-0.5 | 1200-1500 | online | 130*2000 |
QLPPC96 | 78 | 1.2 | 5600 | 96 | 0.3-0.5 | 1200-1500 | online | 130*2000 |
QLPPC120 | 97 | 1.2 | 7000 | 120 | 0.3-0.5 | 1200-1500 | online | 130*2000 |
QLPPC144 | 144 | 1.2 | 10300 | 144 | 0.3-0.5 | 1200-1500 | online | 130*2500 |
QLPPC180 | 180 | 1.2 | 13000 | 180 | 0.3-0.5 | 1200-1500 | online | 130*2500 |
QLPPC216 | 216 | 1.2 | 15500 | 216 | 0.3-0.5 | 1200-1500 | online | 130*2500 |
QLPPC64-4 | 256 | 1.2 | 18000 | 256 | 0.3-0.5 | 1400-1700 | offline | 130*2500 |
QLPPC64-5 | 320 | 1.2 | 23000 | 320 | 0.3-0.5 | 1400-1700 | offline | 130*2500 |
QLPPC64-6 | 384 | 1.2 | 27600 | 384 | 0.3-0.5 | 1400-1700 | offline | 130*2500 |
QLPPC64-7 | 448 | 1.2 | 32200 | 448 | 0.3-0.5 | 1400-1700 | offline | 130*2500 |
QLPPC64-8 | 512 | 1.2 | 36800 | 512 | 0.3-0.5 | 1400-1700 | offline | 130*2500 |
QLPPC96-6 | 576 | 1.2 | 41400 | 576 | 0.3-05 | 1400-1700 | offline | 130*2500 |
QLPPC96-7 | 672 | 1.2 | 48000 | 672 | 0.3-0.5 | 1400-1700 | offline | 130*2500 |
QLPPC96-8 | 768 | 1.2 | 55200 | 768 | 0.3-0.5 | 1400-1700 | offline | 130*2500 |
QLPPC96-9 | 864 | 1.2 | 62000 | 864 | 0.3-0.5 | 1400-1700 | offline | 130*2500 |

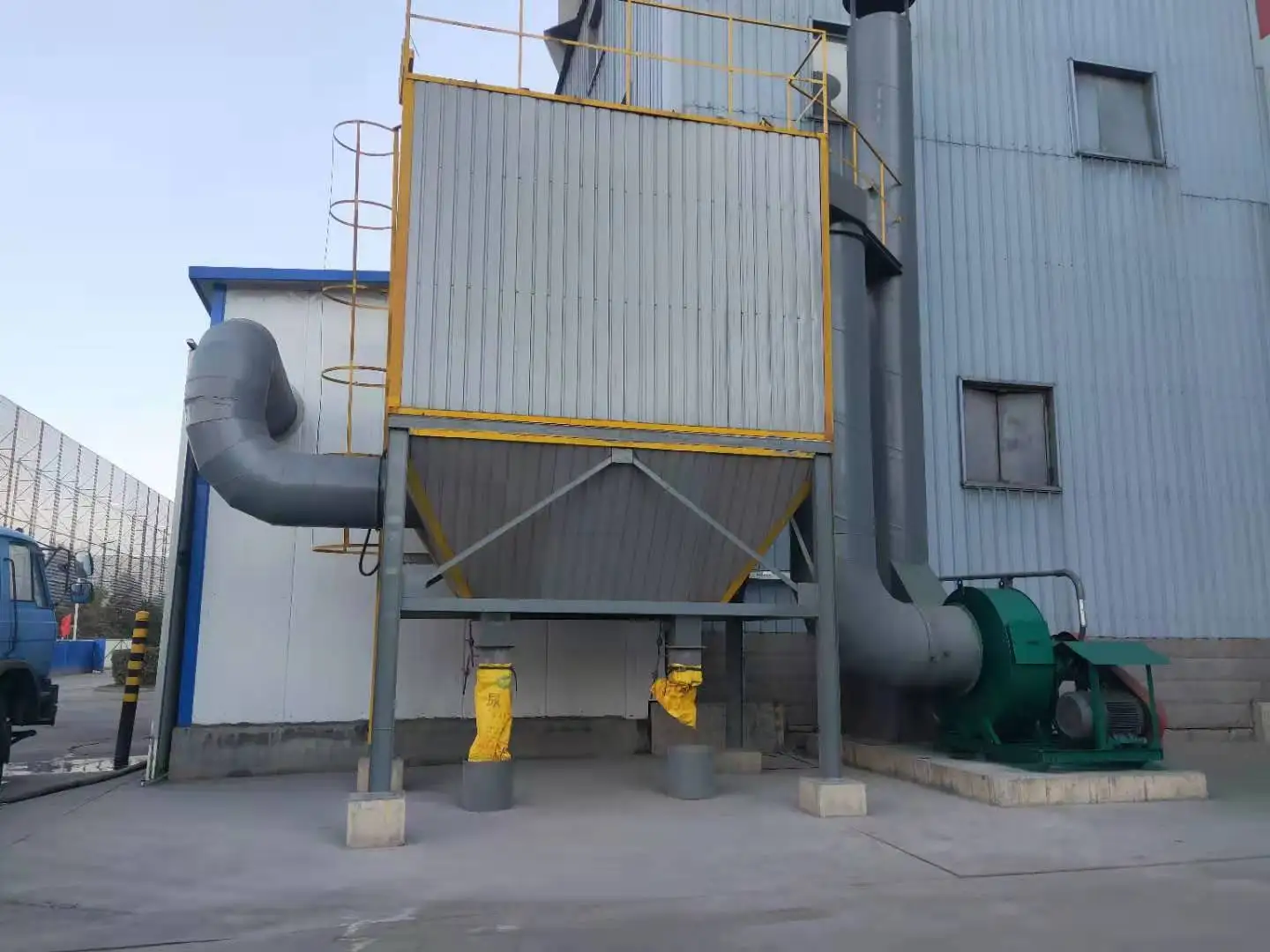

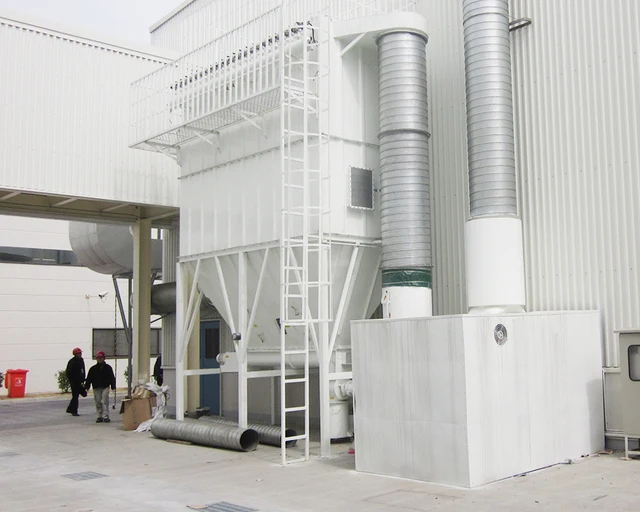

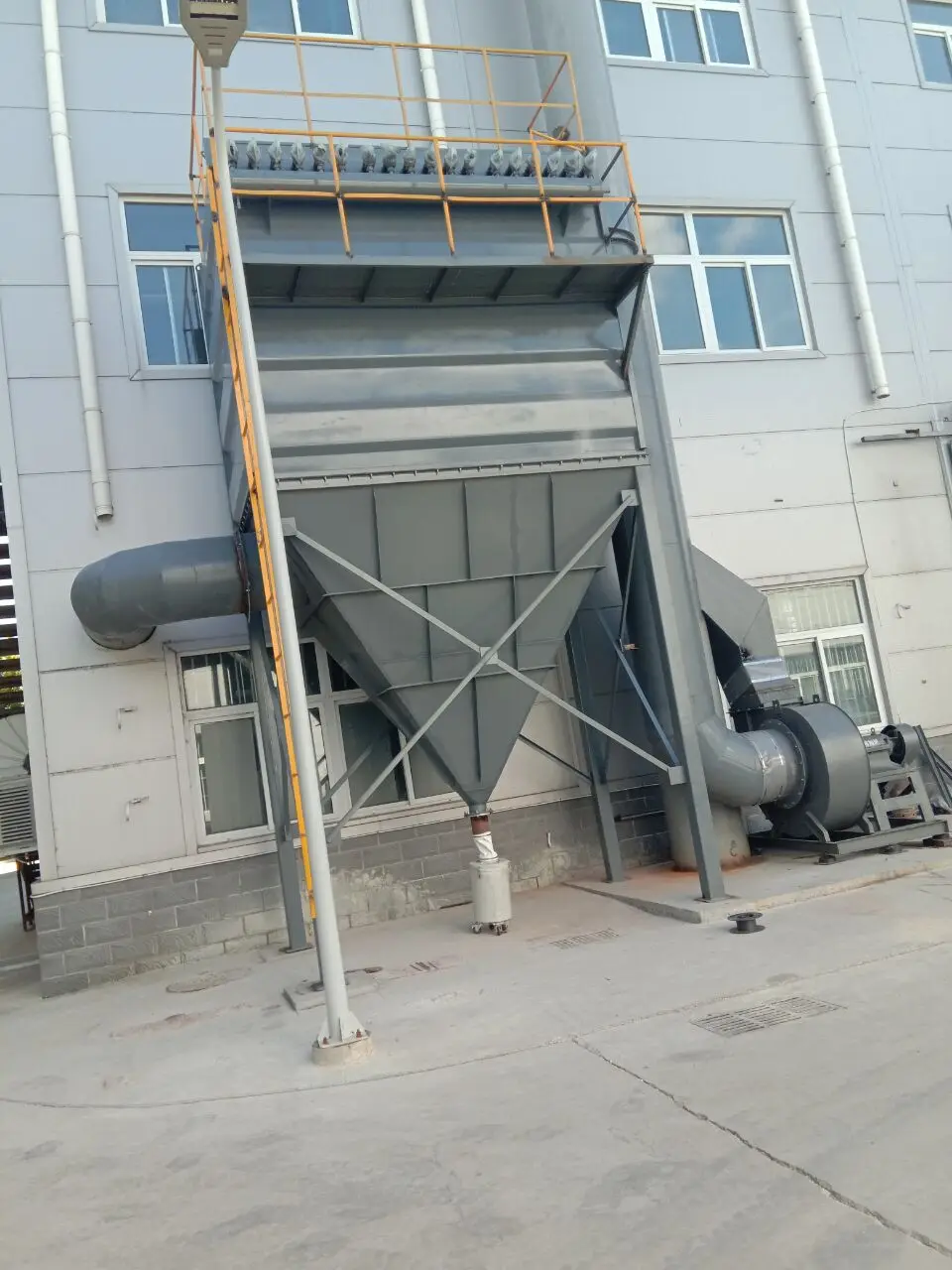

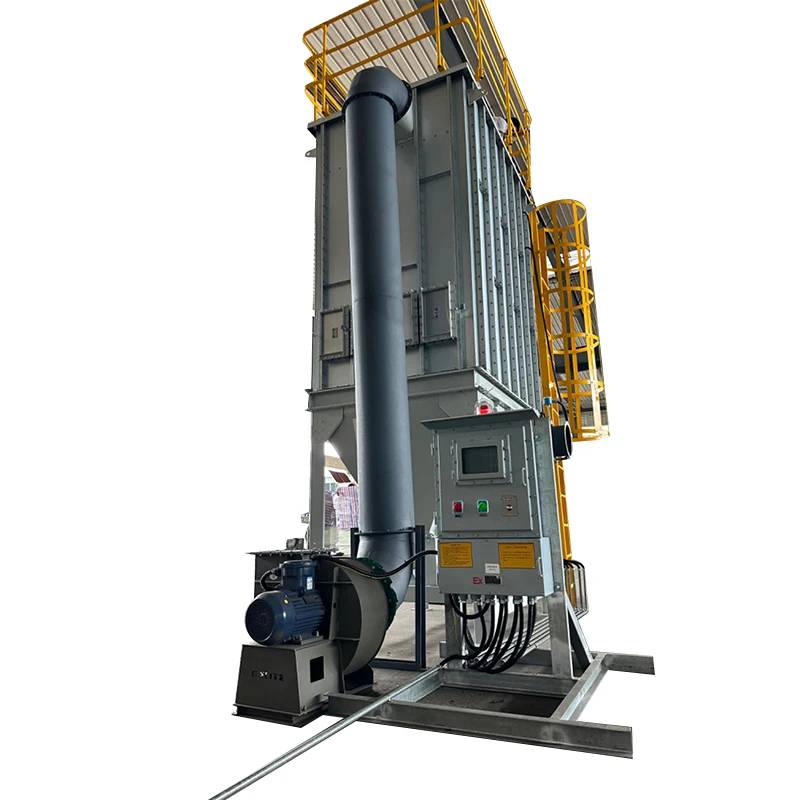

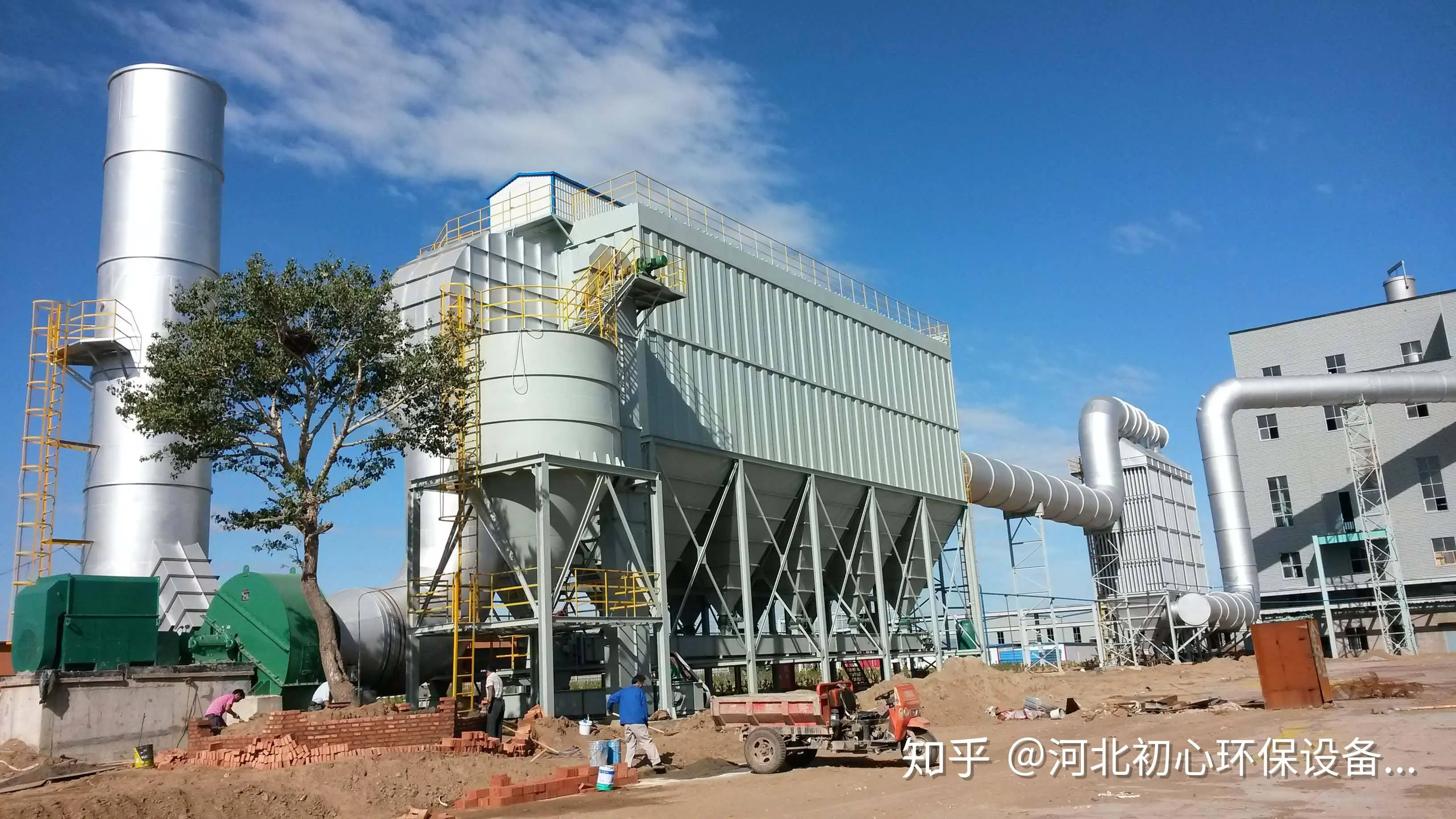

PPC type air box pulse bag dust collector.
The dust-laden gas enters from the air inlet of the dust collector's air box (the 32 series enters from the ash hopper) and is diverted to the ash hopper through the inclined partition. At the same time, the air flow speed slows down. Due to inertia, the coarse dust particles in the gas fall into the ash hopper, and the fine dust particles are bent upward into the filter chamber with the air flow. The dust adheres to the surface of the filter bag. The purified gas passes through the filter bag and enters the upper cleaning chamber. The gas is collected from each sub-cleaning chamber through the air outlet and is sucked out by the main fan of the dust collection system and discharged into the atmosphere.
Product name | PPC air box pulse dust collector |
Specification model | PPC64-5 |
Air volume | 25000-35000m³/h |
Bag specification | Diameter 133*2500 |
Number of bags | 320 strips |
Total filter area | 320 square meters |
Number of offline cylinders | 5 units |
Jiaolong ash conveying | Diameter 300*3500mm |
Fan power | 37KW |
Fan model | 4-72-8C |
A1:We are a professional manufacturer of industrial vacuum cleaners and dust collectors in China with a history of more than 30 years.
Q2:How about the quality of your machines?
A2：We have our own research and development team, experienced technicians and professional staff, and we pay attention to every detail in manufacturing to ensure the high quality of the machine.
A2：We have our own research and development team, experienced technicians and professional staff, and we pay attention to every detail in manufacturing to ensure the high quality of the machine.
Q3:Can you make customized products?
A3:Yes, we can produce according to your sample or detailed drawings.
A3:Yes, we can produce according to your sample or detailed drawings.
Q4:What are your terms of payment?
A4:Telegraphic transfer/Western Union/cash, 70% deposit, 30% balance paid before delivery, sight letter of credit is acceptable.
A4:Telegraphic transfer/Western Union/cash, 70% deposit, 30% balance paid before delivery, sight letter of credit is acceptable.
Q5 :Where is your factory located? How can I visit there?
A5:Our factory is located in Botou City, Hebei Province, China, near to the Beijing.There are two ways to get to our company.
A5:Our factory is located in Botou City, Hebei Province, China, near to the Beijing.There are two ways to get to our company.
1,Fly to Beijing airport, take the high-speed train from Beijing south to Cangzhou West (1 hour), then we can pick you up.
2, Fly to Shanghai Airport, take the high-speed train from Shanghai Hongqiao to Cangzhou West (4.5 hours), then we can pick you up.
Q6: Where is the nearest port to you?
A6: Our nearest port is Tianjin Port, other ports can also deliver goods.
A6: Our nearest port is Tianjin Port, other ports can also deliver goods.
Q7 :How can I contact you?
A7: Please look at my business card and feel free to talk to me. Or send an email and I will reply you within 24 hours with the best solution and price to you.
A7: Please look at my business card and feel free to talk to me. Or send an email and I will reply you within 24 hours with the best solution and price to you.
