Product Overview
Pompe A Sable Bomba De Arena Portable Sand Dredging Machine River Sand Dredging Pump Sand Pump Large Sand Output Sand Dredge Pump
Submersible Sand Machine Pump is the powerful suction flood-proof centrifugal pump which is submerged and operated in the harshest conditions to handle highly corrosive and abrasive slurry. Slurry pumping is one of the most challenging applications.OCEAN Pump brand robust Submersible Sand Machine Pump is made of the high quality wear resistant components to withstand abrasion and shock, it is engineered with all high chrome wet ends, pressurized sealing technology and run dry capability for the most demanding applications.
The optimized high chrome steel impeller can ensure the best performance and operations in the best efficiency range. DMZ series Submersible Sand Machine Pump has the characteristics of high efficiency, high performance, excellent reliability, lower operating and maintenance cost and longer service life, it can handle concentration of solids up to 60 percent. DMZ series Submersible Sand Machine Pumps are suitable for complex heavy-duty applications to extract and handle slurry, sludge and sediments, etc.
FEATURES AT A GLANCE
1.All water contact parts are all constructed with abrasion resistant materials – chromium alloy; so pumps have better stability & longer service life.
2.Unique mechanical seal device can prevent the electric motor from high pressure water and impurities; thus high suction efficiency can be ensured.

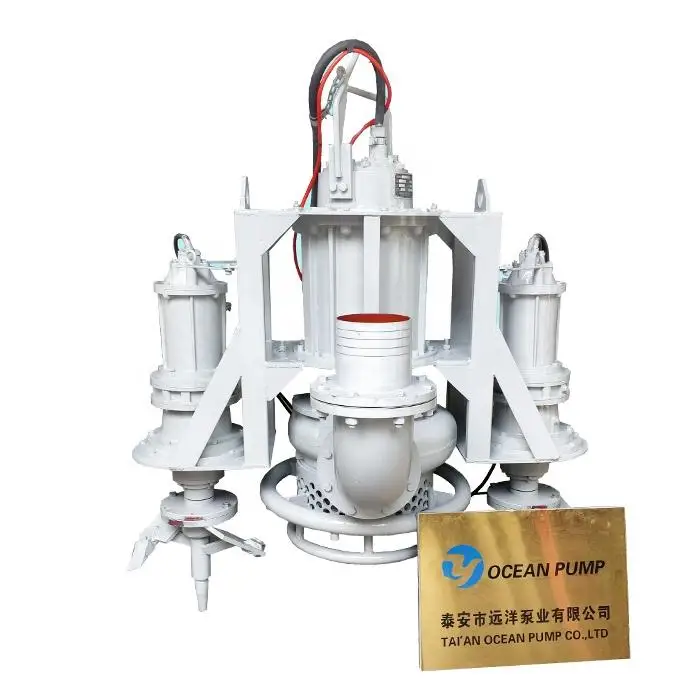

3.Except the main impeller, two or three of extra agitators can be equipped to the main pump body to help break and mix the sludge, greatly improve the work efficiency
4.Easy installation, operation and cost saving, no need additional vacuum pump or pump house.
2.Unique mechanical seal device can prevent the electric motor from high pressure water and impurities; thus high suction efficiency can be ensured.
3.Except the main impeller, two or three of extra agitators can be equipped to the main pump body to help break and mix the sludge, greatly improve the work efficiency
4.Easy installation, operation and cost saving, no need additional vacuum pump or pump house.

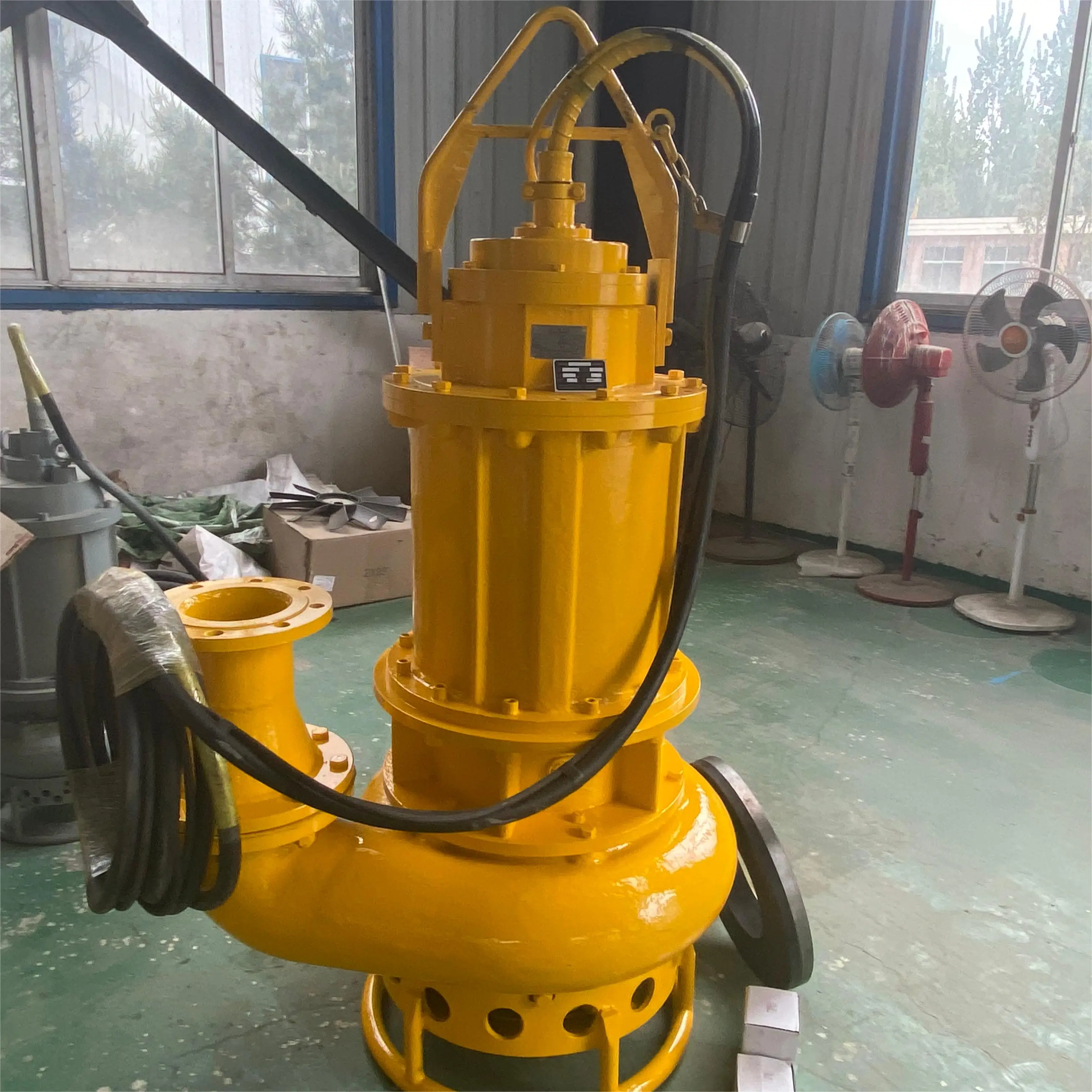

Front Picture

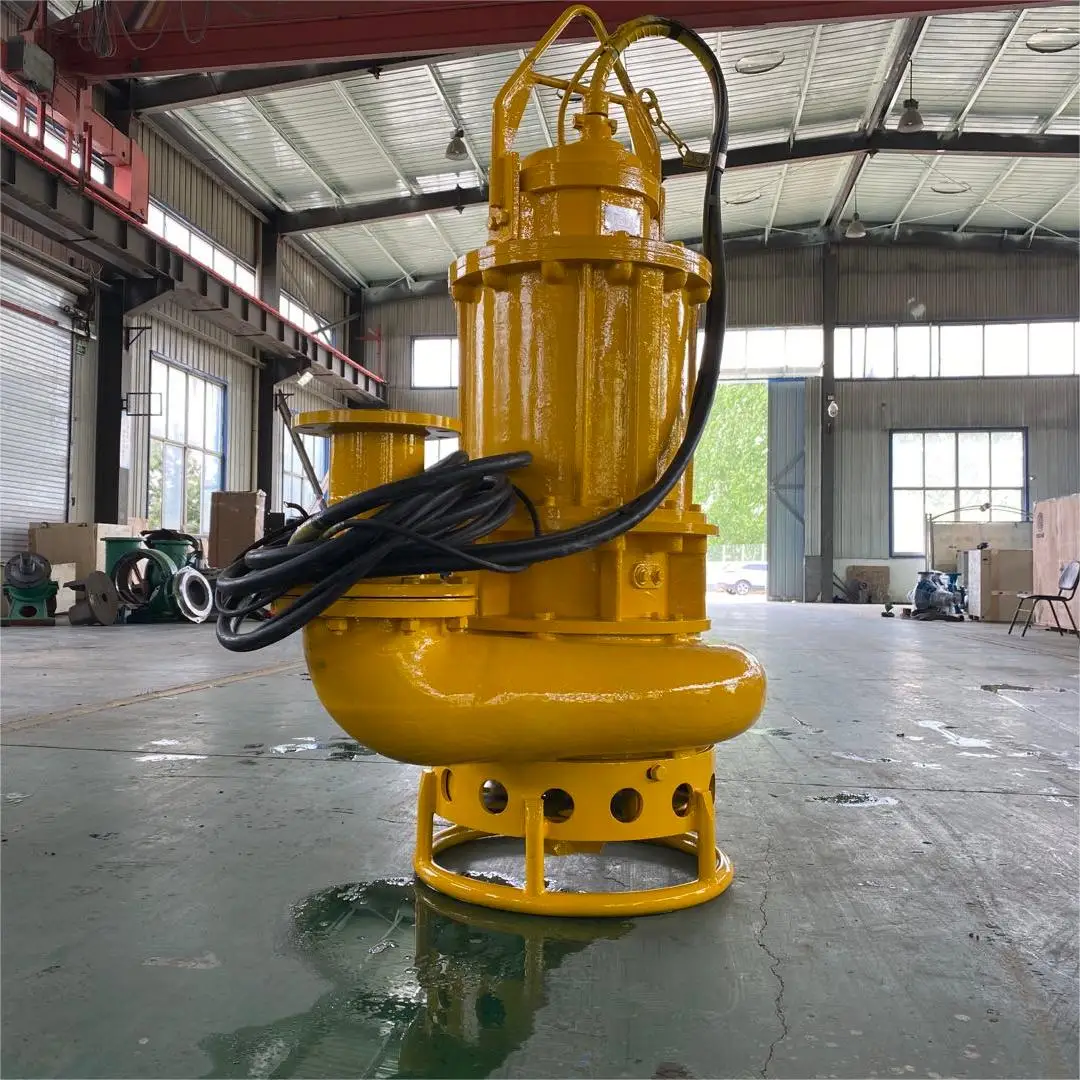

Side Picture

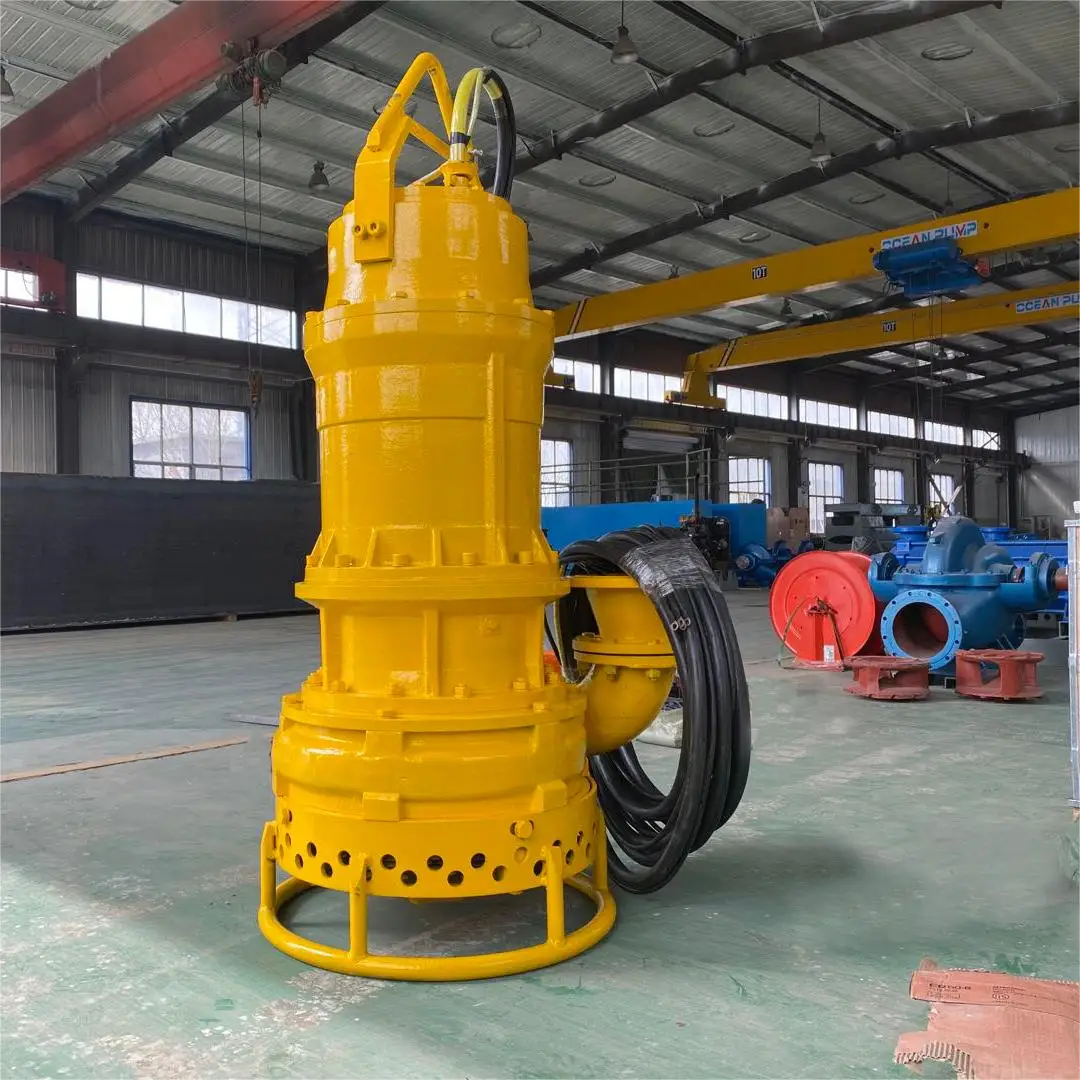

Side Picture
PRODUCT SPECIFICATIONS
NO. | Pump Type | DISCH. DIA | CAP | Head | Power | Rotation speed | Eff. | Biggest particles discontinuous pass through |
(mm) | (m³/h) | (m) | (kw) | (r/min) | (%) | (mm) | ||
1 | ZJQA50-21-11 | 100 | 35 | 22 | 11 | 1460 | 48 | 21 |
50 | 21 | |||||||
60 | 20 | |||||||
2 | ZJQA50-26-11 | 80 | 35 | 29 | 11 | 1460 | 48 | 13 |
50 | 26 | |||||||
60 | 24 | |||||||
3 | ZJQA100-18-11 | 100 | 70 | 20 | 11 | 1460 | 55 | 21 |
100 | 18 | |||||||
120 | 15 | |||||||
4 | ZJQA25-40-15 | 80 | 18 | 41 | 15 | 1460 | 35 | 13 |
25 | 40 | |||||||
30 | 39 | |||||||
5 | ZJQA50-35-15 | 100 | 35 | 38 | 15 | 1460 | 47 | 13 |
50 | 35 | |||||||
60 | 32 | |||||||
6 | ZJQA60-30-15 | 100 | 42 | 33 | 15 | 1460 | 50 | 13 |
60 | 30 | |||||||
72 | 27 | |||||||
7 | ZJQA75-25-15 | 100 | 52 | 28 | 15 | 1460 | 51 | 13 |
75 | 25 | |||||||
90 | 22 | |||||||
8 | ZJQA150-15-15 | 150 | 105 | 17 | 15 | 1460 | 56 | 21 |
150 | 15 | |||||||
180 | 13 | |||||||
9 | ZJQA75-35-22 | 100 | 52 | 38 | 22 | 980 | 48 | 13 |
75 | 35 | |||||||
90 | 32 |
Successful case
Submersible Dredge Pump is designed and engineered for complex heavy-duty pumping applications to handle high mixture densities such as sand, slurry, sludge, waste water and gravels, etc.
The 6 inch Submersible Dredge Pump which is specially designed by OCEAN Pump is correspond with foreign diving pumping pump parameters. The 6 inch Submersible Dredge Pump has four pump types such as ZJQ150-15-15, ZJQ150-22-22, ZJQ150-30- 30 and ZJQ300-20-37, etc. The applicable range of 6 inch submersible pump flow is roughly 100-300 cubic meters, and the head is 15-30 meters.
The 6 inch Submersible Dredge Pump which is specially designed by OCEAN Pump is correspond with foreign diving pumping pump parameters. The 6 inch Submersible Dredge Pump has four pump types such as ZJQ150-15-15, ZJQ150-22-22, ZJQ150-30- 30 and ZJQ300-20-37, etc. The applicable range of 6 inch submersible pump flow is roughly 100-300 cubic meters, and the head is 15-30 meters.
SIMILAR PRODUCTS
Packing & Delivery
Our Company
OCEAN Pump had been specialized in designing, manufacturing, and supplying sand pumps, slurry pumps, gravel pumps, and dredger equipment for more than 20 years. With an innovative hydraulic and structural design, our main sand pumping over-flow parts are made of the wear-resistant high chrome alloy, the sand pump will have a long working life, reliable operation, and small vibration, low noise, and easy maintenance.
We had provided effective sand pumping equipment and dredging equipment to over 60 countries. Our products are widely used for river sand pumping, mining pumping, pond dredging, reservoir dredging, tailing transportation and land reclamation, etc. Our customers are from Southeast Asia like Malaysia and Singapore, Central Asia like Kazakhstan, South America like Brazil, Africa like Nigeria, Cameroon, and Côte d’Ivoire.
We had provided effective sand pumping equipment and dredging equipment to over 60 countries. Our products are widely used for river sand pumping, mining pumping, pond dredging, reservoir dredging, tailing transportation and land reclamation, etc. Our customers are from Southeast Asia like Malaysia and Singapore, Central Asia like Kazakhstan, South America like Brazil, Africa like Nigeria, Cameroon, and Côte d’Ivoire.
