Устройство для очистки масла аппарат фильтрации мобильный вакуумный двухступенчатый трансформатор очиститель

Устройство для очистки масла аппарат фильтрации мобильный вакуумный двухступенчатый трансформатор очиститель

Категория: >>>
Поставщик: Chongqing Acore Filtration Co. Ltd.Chongqing Ltd.

Цена:948 868,00 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

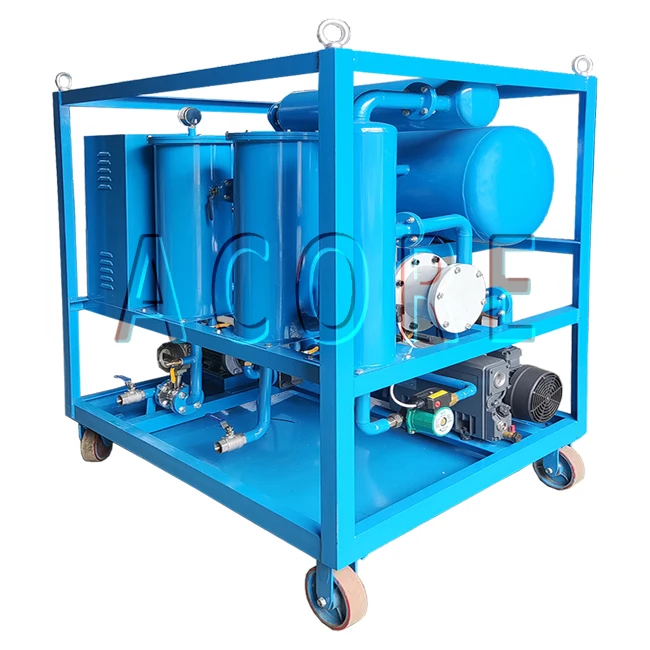

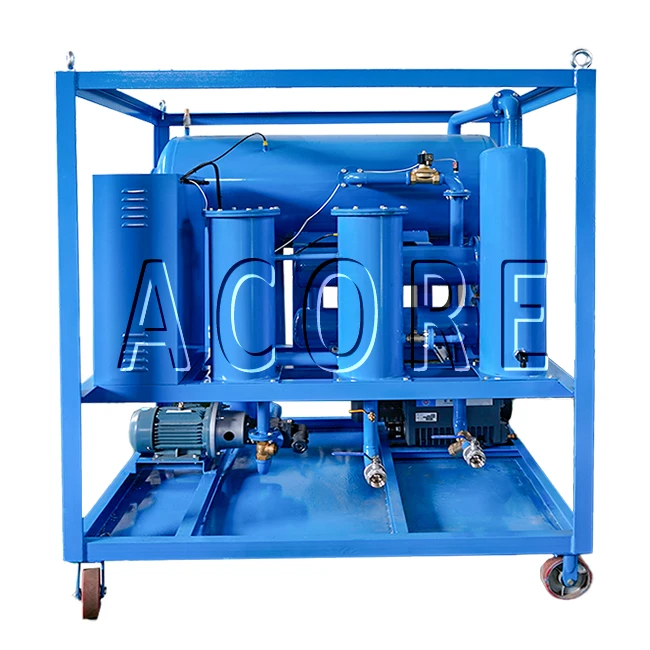

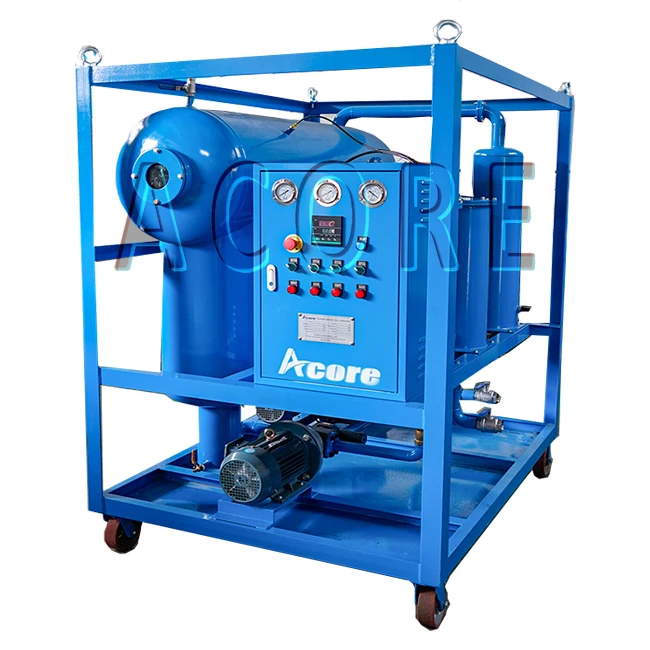

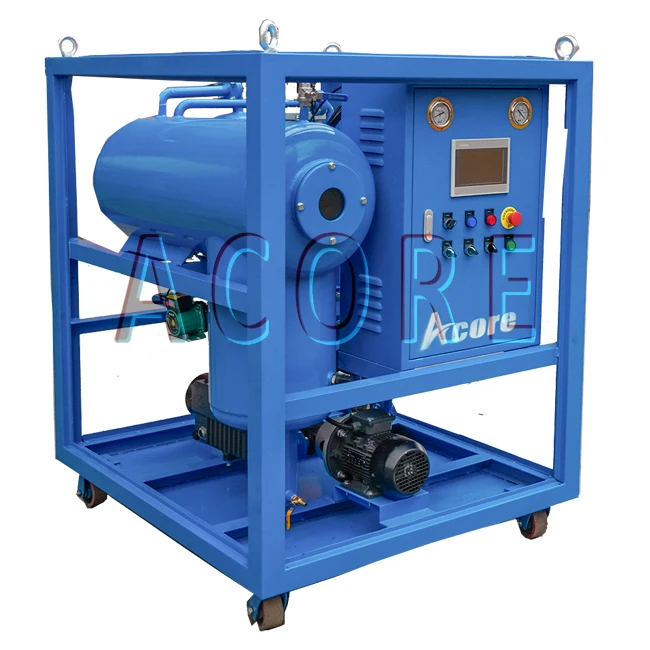

Double Stages High Vacuum Transformer Oil Purifier

Application

DVTP Double Stages High Vacuum Transformer Oil Purification System has a high pumping rate of two-stage vacuum system, a unique degassing, dehydrating function, using the most advanced three-dimensional double-flash technology, fast and efficient removal of oil in liquid water, while double precision multistage comb filter can efficiently remove oil in the water, gas, particulate impurities, acidic substances and oil oxidation products, thus improving the dielectric strength of the transformer oil, to reduceNthe acid value of the oil and dielectric loss, to ensure the safe operation of oil-filled electrical equipment.

DVTP Double Stages High Vacuum Transformer Oil Purification System is mainly composed of inlet valves, strainers, heater, solenoid valves, vacuum tank, low vacuum degassing member, high vacuum degassing member, low condenser vacuum, high vacuum condenser, vacuum pump, roots pump, filling the vacuum solenoid valves, rotary vane vacuum pumps, circulating cooling water pumps, water tanks, floating ball valve, exhaust pump, check valve, a fine filter, two fine filter, oil electric control valve system components.

Features

1. Upgrading of new and used electrical insulating liquids, transformer oils.
2. Double stages vacuum pump, horizontal double vacuum dehydration, degasification chambers and blower capable of pulling vacuum down to 0.05 mbar.
3. High efficiency three stage micro filter elements with capable of removing 99.5% particles as small as 1 micron.
4. Maximum moisture content 1000 ppm to be processed, and can achieve overall water content of ≤3 PPM By vacuum dehydration to remove free, emulsified and dissolved water.
5. Achieving soluble air and gas content of ≤0.05%
6. Achieve ≥70kV per IEC60156 dielectric strength.
7. Low watt-density less than 1.5W/cm2 circulation heater with digital temperature controller.
8. Different pressure gauge of filters, pressure protector, vacuum gauge and digital temperature gauge
9. Online oil purification processing, vacuum drying and vacuum oil-filling for electric equipment.

Product Paramenters

Model	DVTP30	DVTP50	DVTP70	DVTP100	DVTP150	DVTP200	DVTP250	DVTP300
Capacity(L/h)	1800	3000	4200	6000	9000	12000	15000	18000
Vacuum level	-0.08～-0.099 Mpa
Working pressure	≤ 0.4 Mpa
Temperature range	20-80℃
Breakdown voltage	≥ 70KV
Water content	≤ 3ppm
Gas content	≤ 0.05%
Filtering rate	1 micron
Power supply	208V/220V/380V/400V/415V/440V/460V/480V/575V(±10%), 50/60Hz, 3Phase
Working noise	65 dB
Heating power (kw)	30	36	60	72	135	150	185	215
Total power (kw)	35	42	66	80	100	135	148	165
Inlet/outlet(mm)	32	32	44	44	50	55	60	65
Weight (kg)	600	650	800	900	1500	1700	1900	2000
Dimension (LWH)	1600	1600	1700	1850	1900	2000	2100	2200
		1500	1550	1650	1750	1800	1850	1900	2000
		1600	1600	1700	1800	1850	1850	1900	2000
