booster cable wire with highly conductive, 100% copper stranding to maximize current transfer. TPE insulation provides a durable barrier to protect against weathering, chemicals, and abrasion. Tangle-free cables are color-coded for easy polarity identification.
To jump dead battery of cars, lorries, bus, boats, ATVs and more
Prepare one for your car to avoid being stranded waiting for tow truck

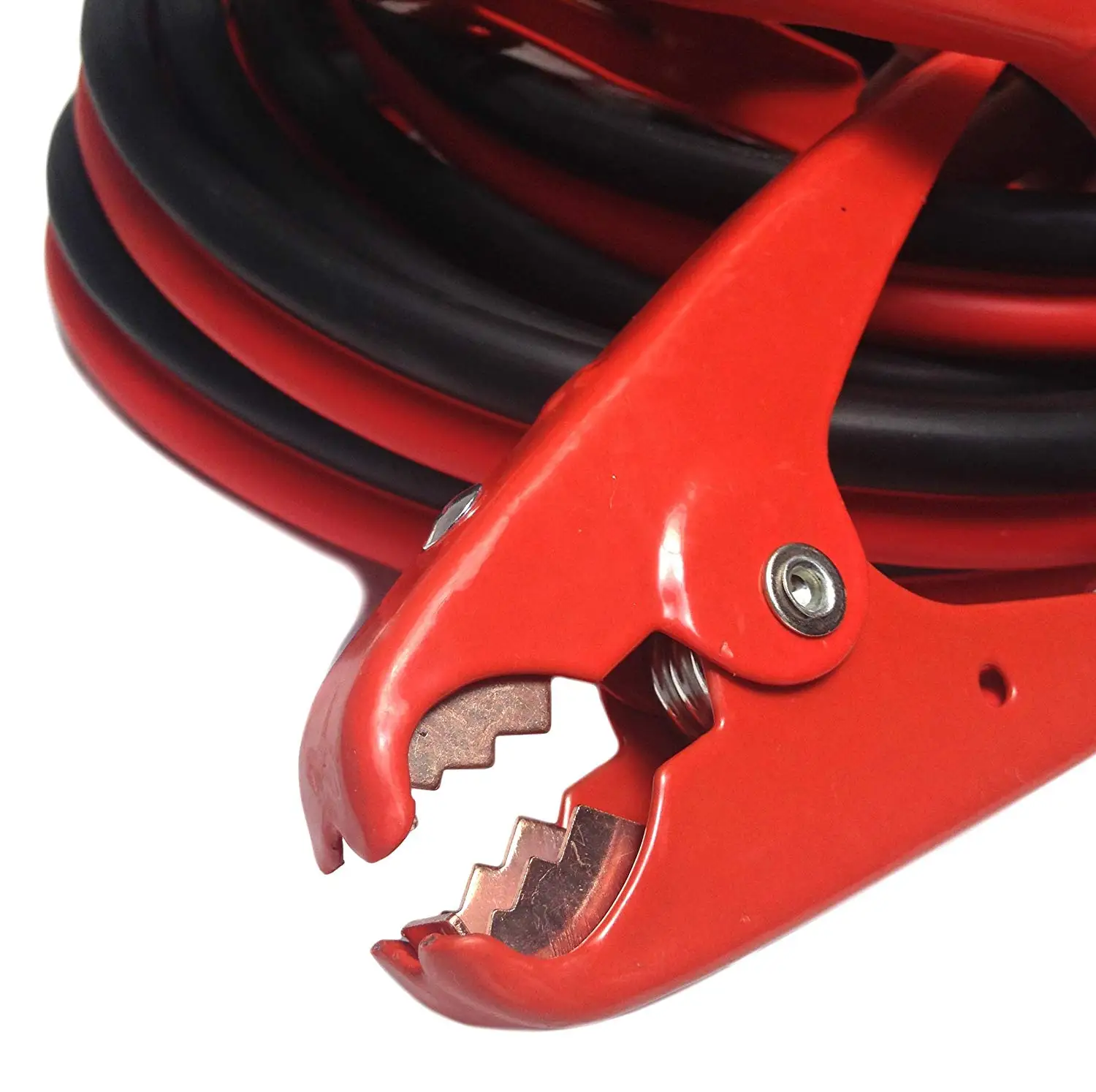

The heavy gauge copper serrated teeth will ensure they grip and stay on the terminals
The soft pliable cable makes the leads very easy to handle and will lay flat and run in a straight line
First, connect the Red cable clamp to BAD battery
Connect other Red cable clamp to GOOD battery
Connect Black cable clamp to GOOD battery
Connect other Black cable clamp to BAD battery
Start GOOD car, let it charge for few minutes
Then start BAD car
Remove the cables in REVERSE order of connections
Conductor Size (mm2) | Construction Of Conductor (No./mm) | Conductor Diameter (mm) | Insulation Diameter (mm) | Jacket Diameter (mm) | ||||
0.5 | 28/0.15 | 0.92 | 2.30+-0.10 | 4.03+-0.15 | ||||
0.75 | 24/0.20 | 1.13 | 2.40+-0.10 | 4.50+-0.15 | ||||
1 | 32/0.20 | 1.4 | 2.70+-0.10 | 4.70+-0.15 | ||||
1.5 | 49/0.20 | 1.62 | 3.00+-0.10 | 5.10+-0.15 | ||||
2 | 64/0.20 | 1.85 | 3.20+-0.10 | 5.30+-0.15 | ||||
2.5 | 49/0.25 | 2.06 | 3.50+-0.10 | 5.60+-0.15 | ||||
3 | 98/0.20 | 2.45 | 4.00+-0.15 | 6.30+-0.20 | ||||
4 | 133/0.20 | 2.85 | 4.60+-0.15 | 7.30+-0.20 | ||||
5 | 161/0.20 | 3.16 | 4.80+-0.15 | 7.40+-0.20 | ||||
6 | 190/0.20 | 3.47 | 5.10+-0.15 | 7.70+-0.20 | ||||
10 | 323/0.20 | 4.51 | 6.70+-0.20 | 9.60+-0.20 | ||||
16 | 513/0.20 | 5.7 | 8.00+-0.20 | 10.09+-0.25 | ||||
25 | 798/0.20 | 7.2 | 9.80+-0.25 | 12.09+-0.25 | ||||
35 | 1121/0.20 | 8.41 | 11.40+-0.25 | 14.50+-0.25 | ||||
50 | 1586/0.20 | 10.03 | 13.50+-0.25 | 17.00+-0.35 | ||||
70 | 1387/0.254 | 11.9 | 17.00+-0.30 | 21.00+-0.35 | ||||
95 | 1887/0.254 | 13.9 | 19.30+-0.30 | 24.00+-0.35 | ||||
120 | 2368/0.254 | 15.1 | 22.00+-0.30 | 27.00+-0.35 | ||||
Contact me for more details! Size can be counted by AWG. |
Red clip positive pole, black clip negative pole, first connect the faulty car and positive pole, then connect the rescue vehicle and the negative pole
1.Park the rescue car and accident car nose to nose and then pull the handbrake.If on the driving road. please pull over and open the double jump lamp park the rescue car as close as possible to the tail of the accident car In other cases, it will be similar: ensure the safety first and then try to suit the length of the booster cable.
2. The rescue car must be under motor running state, and the engine displacement of rescue car should be close to that of accident car. If the engine displacement of rescue cars more than 50% (including 50%) bigger than that of accident car, please conduct the rescue accompanied by professionals, or use our company' s another booster cable with protector function.
3. Correct connection: connect one red clip of booster cable on the battery anode of rescue car, another red clip on the battery anode of accident car; and then one other clip of booster cable on the battery cathode of rescue car, another clip on the accident cars engine rack. (All car batteries are liquid lead acid batteries, the electrolyte will overflow the surface of battery after a long time, and the soaked electrolyte is inflammable, the spark caused in the process of booster cable working may make a fire. So we don't
recommend to connect the battery cathode of rescue car directly to the battery cathode of accident car.)
4.Confirm all the above are done as required , start the engine of accident car immediately. After the engine is started successfully please ,please remove the remove the booster cable in the reverse order .The rescue is finished.
Cable | Length | Packing | Cable size | Qty/Ctn | G.W. |
8GA | 12FT | Zipper bag | 56*28*27cm | 10pcs | 18kg |
Color box | 55.5*27*25cm | 8pcs | 12kg | ||
Zipper bag | 60*30*16.5cm | 6pcs | 14kg | ||
Color box | 55.5*27*25cm | 6pcs | 14.5kg | ||
6GA | 12FT | Zipper bag | 60*30*16.5cm | 6pcs | 14kg |
Color box | 55.5*27*25cm | 6pcs | 15kg | ||
16FT | Zipper bag | 60*30*16.5cm | 6pcs | 17.5kg | |
Color box | 55.5*27*25cm | 6pcs | 18kg | ||
12FT | Zipper bag | 60*30*16.5cm | 6pcs | 17kg | |
Color box | 55.5*27*25cm | 6pcs | 17.5kg | ||
16FT | Zipper bag | 60*30*16.5cm | 6pcs | 20kg | |
Color box | 55.5*27*25cm | 6pcs | 21.5kg |
