Бетонная Лазерная Выравнивающая машина, поставка от производителя, полный гидравлический привод 4 колеса
2 697 445,00 ₽ - 3 236 934,00 ₽
Китай HWAON Бетонная Стяжка вибратор полный гидравлический 4 колеса машина для лазерной резки бетона
- Категория: >>>
- Поставщик: Shandong Huaang Engineering Equipment Co. Ltd.
Сохранить в закладки 1601164035979:
Описание и отзывы
Характеристики
VR
Scope of application
With the development of laser technology and electronic technology and the requirements of modern industrial floors, the international engineering field has been using laser pavers in the construction of concrete floors since the 1980s, realizing the precise leveling automation of concrete floors.
Indoor floor
Underground garage, ordinary industrial plant, workshop, automatic three-dimensional warehouse;
Clean workshops for electronic appliances, food materials, medicine, etc;
Large warehouse supermarket, logistics center, exhibition center, etc.
Outdoor terrace
Wharf, container yard and freight yard yard;
Airport runway, apron and parking lot;
Square, residential ground, municipal pavement, etc.
Indoor floor
Underground garage, ordinary industrial plant, workshop, automatic three-dimensional warehouse;
Clean workshops for electronic appliances, food materials, medicine, etc;
Large warehouse supermarket, logistics center, exhibition center, etc.
Outdoor terrace
Wharf, container yard and freight yard yard;
Airport runway, apron and parking lot;
Square, residential ground, municipal pavement, etc.
Type parameter |
Model | Honda 690 engine |
Power | 17.6KW/24HP |
Oil volume | 1.4L |
Tank volume | 45L |
Fuel consumption | 2-3L/h |
Laser emission system | Swiss Leica transmitter/Japanese Topcon transmitter/optional (American Tianbao transmitter) |
Laser receiving system | Swiss Leica receiver/German Komec receiver |
Laser controlsystem | Danfoss Laser Control System |
Control effect oflaser system | Plane, slope or double slope (3D) |
Laser system control mode | Automatic control of laser micro-system to realize automatic leveling |
Suspension mode | Fixed |
Vibration plate width | 2525mm |
Leveling thickness | 680 tires 50-300 mm |
Exciting force | 2000N |
Vibration motor speed | 3600rpm |
Travel drive | Low-speed high-torque reducer+hydraulic drive motor |
Hydraulic system | Danvers, USA |
Intelligent travel control system | One-button cruise control |
Walking mode | Automatic travel of electric control servo system |
Walking speed | 0-55m/min |
Working speed | 4m - 20m/min (adjustable speed) |
Paving method | Hydraulic auger paving |
Travel tire | Solid anti-skid and stab-resistant narrow tire |
Fuselage size | 3500×2850×1700mm |
Fuselage weight | 1000kg |
For more parameters please contact customer service.
Model | Diesel dual-cylinder engine |
Power | 25KW/34 HP |
Oil volume | 3.6L |
Tank volume | 37L |
Fuel consumption | 2-3L/h |
Laser emission system | Shuangpo transmitter/Japanese Topcon transmitter/Swiss Leica transmitter/optional (American Tianbao transmitter) |
Laser receiving system | Swiss Leica receiver/German Komec receiver |
Laser control system | Danfoss Laser Control System |
Control effect of laser system | Plane, slope or double slope (3D) |
Laser system control mode | Automatic control of laser micro-system to realize automatic leveling |
Suspension mode | Fixed |
Vibration plate width | 2525mm |
Leveling thickness | 680 tires 50-300 mm |
Exciting force | 2000N |
Vibration motor speed | 3600rpm |
Travel drive | Low-speed high-torque reducer+hydraulic drive motor |
Hydraulic system | Danvers, USA |
Intelligent travel control system | One-button cruise control |
Walking mode | Automatic travel of electric control servo system |
Walking speed | 0-55m/min |
Working speed | 4m - 20m/min (adjustable speed) |
Paving method | Hydraulic auger paving |
Travel tire | Solid anti-skid and stab-resistant narrow tire |
Fuselage size | 3250×2850×1320mm |
Fuselage weight | 900kg |
For more parameters please contact customer service.
Model | Hua Ang custom engine |
Power | 22KW/30 HP |
Oil volume | 1.8L |
Gasoline capacity | 37L |
Fuel consumption | 3-4L/h |
Laser emission system | Shuangpo transmitter/Japanese Topcon transmitter/Swiss Leica transmitter/optional (American Tianbao transmitter) |
Laser receiving system | German Komec receiver |
Laser control system | Danfoss Laser Control System |
Control effect of laser system | Plane, slope or double slope (3D) |
Laser system control mode | Automatic control of laser micro-system to realize automatic leveling |
Suspension mode | Fixed |
Vibration plate width | 2525mm/2955mm |
Leveling thickness | 680 tires 50-300 mm |
Exciting force | 2000N |
Vibration motor speed | 3600rpm |
Travel drive | Low-speed high-torque reducer+hydraulic drive motor |
Intelligent travel control system | One-button cruise control |
Walking speed | 0-55m/min |
Working speed | 4m - 20m/min (adjustable speed) |
Paving method | Hydraulic auger paving |
Travel tire | Solid anti-skid and stab-resistant narrow tire |
Fuselage size | 3250x2850x1320mm |
Fuselage weight | 900kg |
For more parameters please contact customer service.
Model | Briggs Stratton engine imported from the United States |
Power | 25.73KW/35HP |
Oil volume | 2.3L |
Tank volume | 45L |
Fuel consumption | 4-7L/h |
Laser emission system | Double slope transmitter/Swiss Leica transmitter/optional (American Tianbao transmitter) |
Laser receiving system | Swiss Leica receiver/German Komec receiver/optional (American Tianbao receiver) |
Laser control system | Danfoss Laser Control System |
Control effect of laser system | Plane, slope or double slope (3D) |
Laser system control mode | Automatic control of laser micro-system to realize automatic leveling |
Suspension mode | Fixed |
Vibration plate width | 2955mm |
Leveling thickness | 680 tires 50-300 mm |
Hydraulic excitation force | 3000N |
Vibration motor speed | 4000rpm |
Travel drive | Planetary reducer |
Intelligent travel control system | One-button cruise control |
Walking speed | 0-60m/min |
Working speed | 3m-30m/min (adjustable speed) |
Paving method | Hydraulic auger paving |
Travel tire | Solid anti-skid and stab-resistant narrow tire |
Fuselage size | 3500x3300x1700mm |
Fuselage weight | 1100kg |
For more parameters please contact customer service.
Похожие товары
Строительные работы опалубка производственное оборудование для бетонной машины
172 636 480,00 ₽
Домашняя машина, коммерческое бетонное модульное настенное оборудование для постоянного строительства
4 887 770,34 ₽
Горячая Распродажа, сборное бетонное оборудование для строительства дома
5 049 617,04 ₽
flexible combination prefabricated concrete block house equipment for building factory
4 887 770,34 ₽
Надежная конструкция бетонный блок оборудования для жилищного строительства
4 887 770,34 ₽
Бетонное Строительное оборудование для общественных зданий
4 887 770,34 ₽

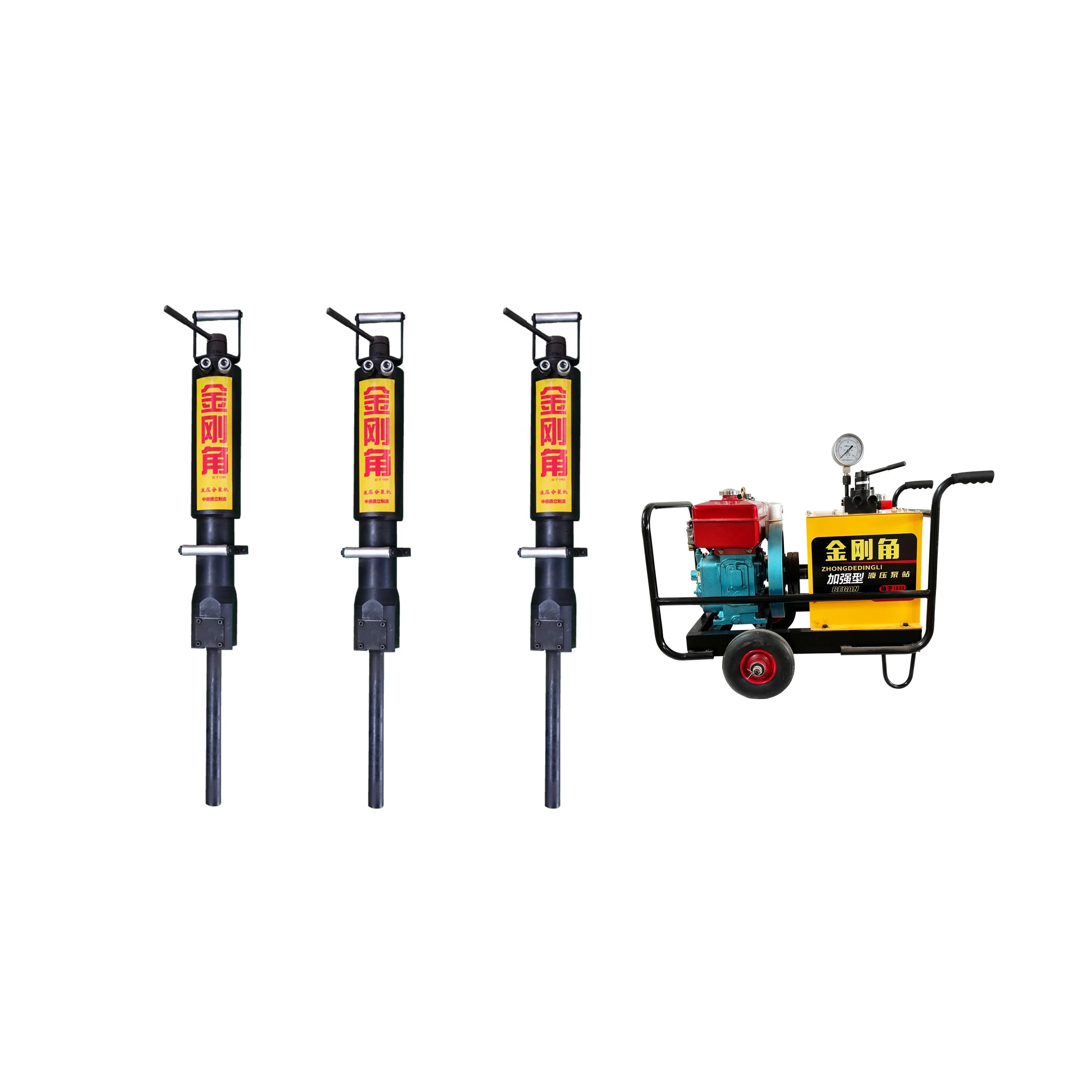

Гидравлическое оборудование для удаления камня и бетона, высокопроизводительный сплиттер для горных пород
