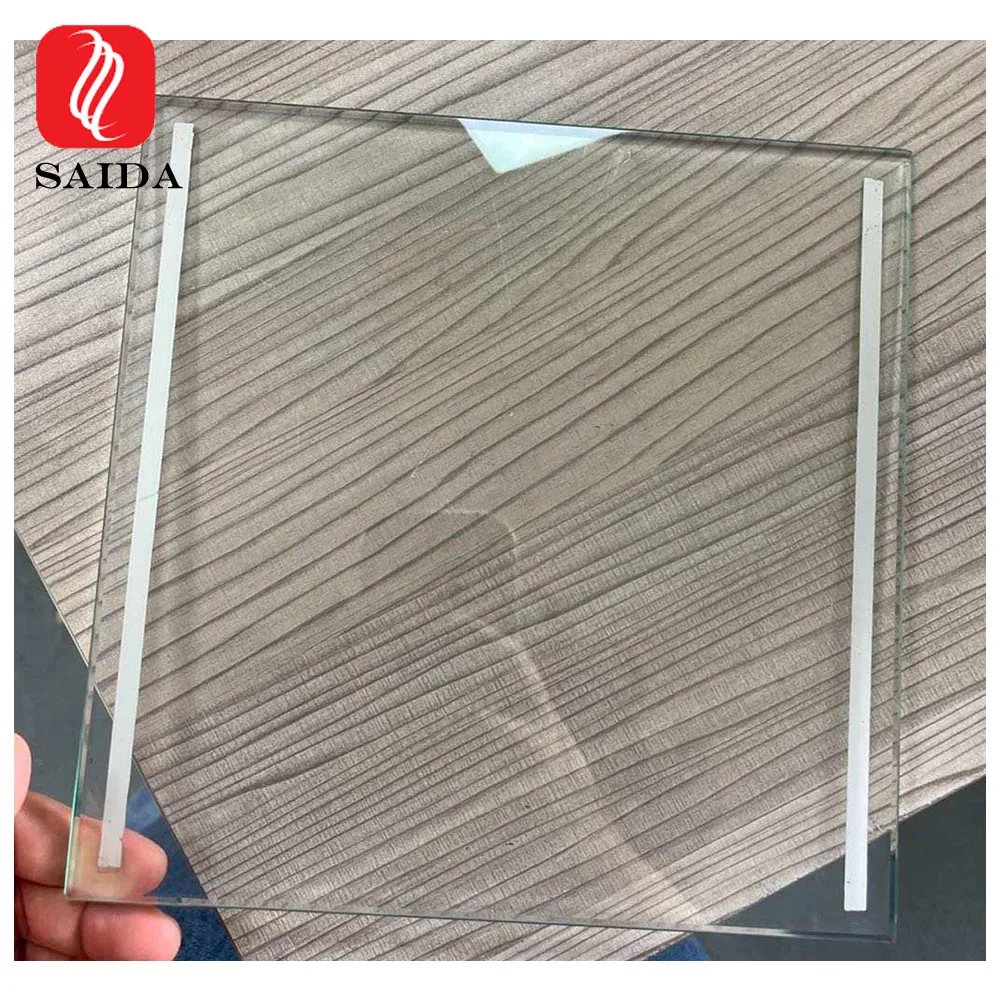

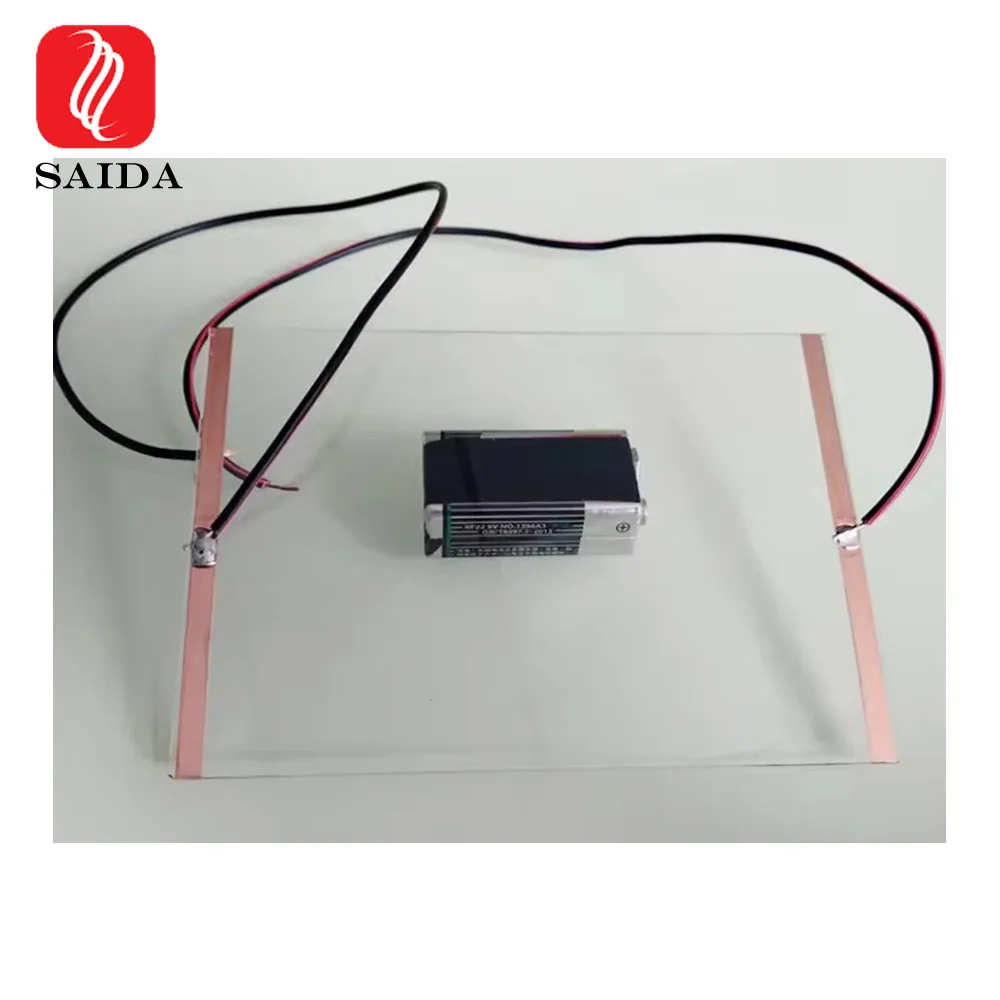

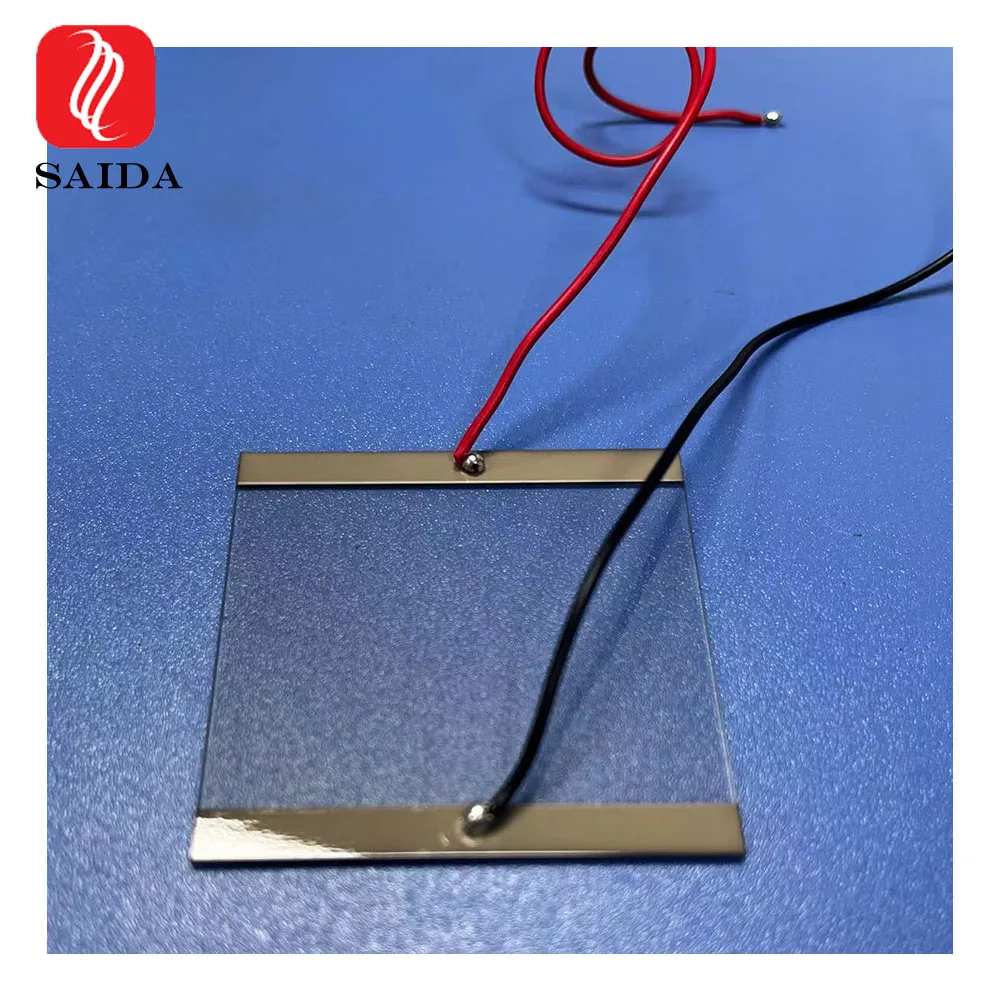

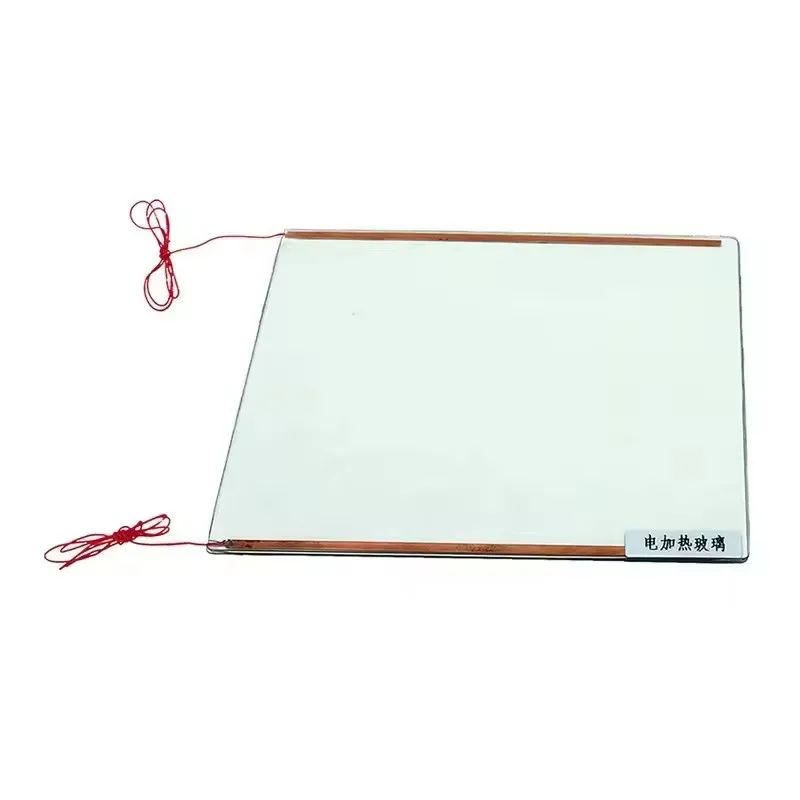

Электропроводящее стекло с электрическим нагревом покрытое ИО шиной для объектива камеры
- Категория: >>>
- Поставщик: Dongguan Saida Glass Co. Ltd.
Сохранить в закладки 1601164036088:
Описание и отзывы
Характеристики
Product Description
ITO Coated Conductive Glass
ITO conductive glass is made of silicon dioxide (SiO2) and indium tin oxide (commonly known as ITO) film plated by magnetron sputtering method on the basis of soda-lime or borosilicate glass.
ITO is a metal compound with good transparent and conductive properties.
It is widely used in affirmative display devices, solar cells, and special functional window coatings. Laboratory equipment and other optoelectronic devices.
FTO conductive glass
FTO conductive glass is fluorine-doped SnO2 transparent conductive glass (SnO2: F), referred to as FTO.
Product Name: | ITO coated glass substrate, ITO conductive glass slide |
Standard Size (Length × width): | 1" x 3" (25.4x76.2 mm), 1" x 1" (25.4x25.4 mm), 10 x 10 mm, 50 x 50 mm, 100 x 100 mm, 300 x 300 mm (Or specific size can be customized) |
Standard Thickness: | 0.5mm, 0.7mm, 1.1mm, 2.0mm or 3.0mm (other thickness can be customized.) |
Resistance : | 4~5 ohm/sq, 6~8 ohm/sq,10~15 ohm/sq,20~30 ohm/sq, 30~40 ohm/sq, 60~80 ohm/sq, 80~100 ohm/sq, 300~500 ohm/sq, or others |
Transmittance: | ≥87% （at 550nm wave length) |
ITO thin Film thickness: | 185nm ( 6~8 ohm/sq); 135nm ( 10~15 ohm/sq) |
Glass substrate | soda-lime glass |
Application: | Mobile phone screens, PDAs, calculators, electronic watches, electromagnetic shielding, photocatalysis, solar cells, biological experiments, major university laboratories and other new scientific and technological fields; |
2. Handle with care, not collide with other fixtures and machines;
3. If you store for a long time, you must pay attention to moisture, the humidity should be below 65%, so as not to affect the resistance and transmittance of the glass.
4. The glass should be placed vertically, and the stacking between the glasses should not exceed two layers.
.
We provide ITO patterning as your designs.
Seamed edge or CND defined edge.
Drilling holes is available.
Recommend by Seller

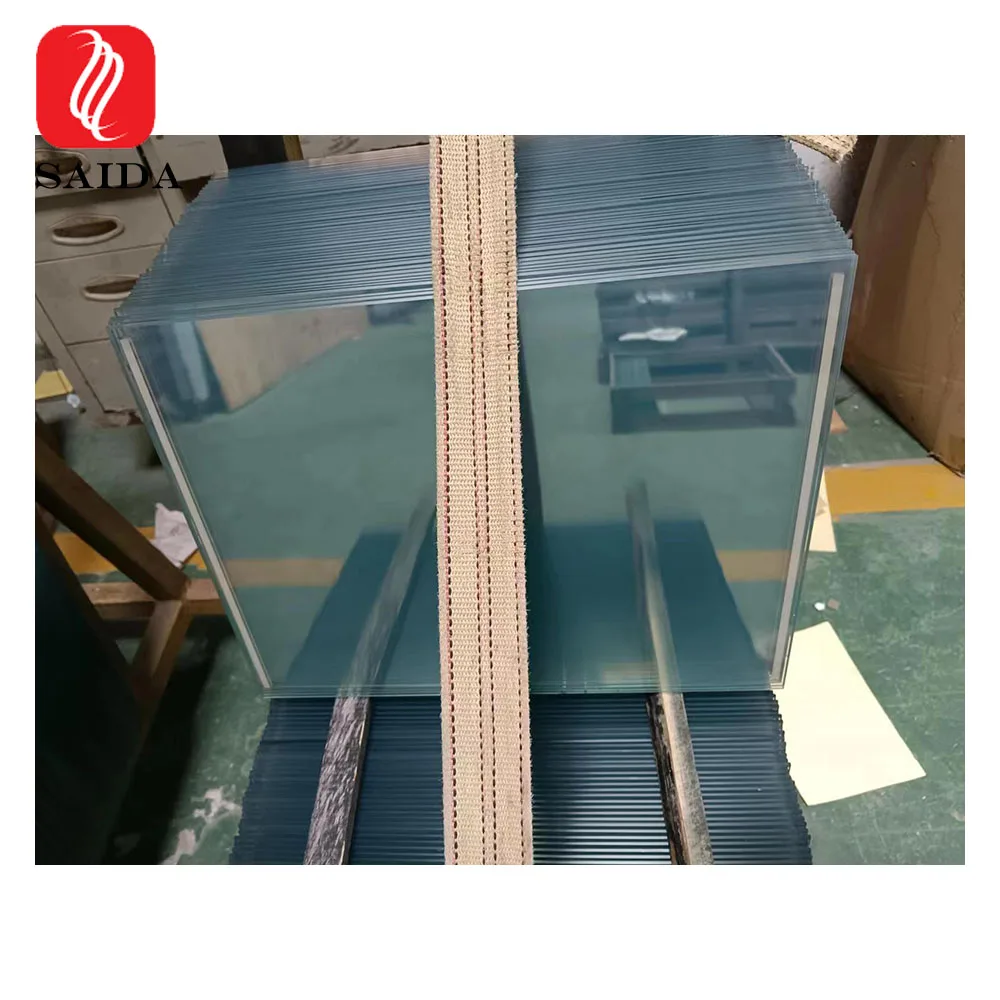

Packing
Shipping
Company Introduction
Saida Glass founded in 2011, covered more than 8000 ㎡, over 100 employees. We fully takes your ‘’ design-to-market’’ needs and offers excellent glass deep processing services from sheet glass to customized shape with different surface treatment. A robust quality management system (QMS) and quick-response sales engineer to enable your products reach a higher level through the market. As a well-known glass supplier, we are working with many famous enterprises such as ELO, CAT, Holitech, Tefal and other companies. Wide product range to cooperate with:
● Display cover glass
● Screen protective glass
● Tempered glass for household appliance
● Smart touch light switch
● LED Lighting glass panel
● Display cover glass
● Screen protective glass
● Tempered glass for household appliance
● Smart touch light switch
● LED Lighting glass panel
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Domestic Market(20.00%),North America(20.00%),Northern Europe(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),South America(5.00%),South Asia(5.00%),Mid East(5.00%),Central America(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cover Glass,Cover Lens,glass panel,customized glass,custom glass
4. why should you buy from us not from other suppliers?
Real Manufacturer
China 1st Factory with Fast Delivery, Warm Service, Professional Staff,
High Quality products
Wide Product Range covers almost all glass of Thickness 0.26-15mm, Size<120"
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2016,sell to Domestic Market(20.00%),North America(20.00%),Northern Europe(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),South America(5.00%),South Asia(5.00%),Mid East(5.00%),Central America(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cover Glass,Cover Lens,glass panel,customized glass,custom glass
4. why should you buy from us not from other suppliers?
Real Manufacturer
China 1st Factory with Fast Delivery, Warm Service, Professional Staff,
High Quality products
Wide Product Range covers almost all glass of Thickness 0.26-15mm, Size<120"
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Похожие товары

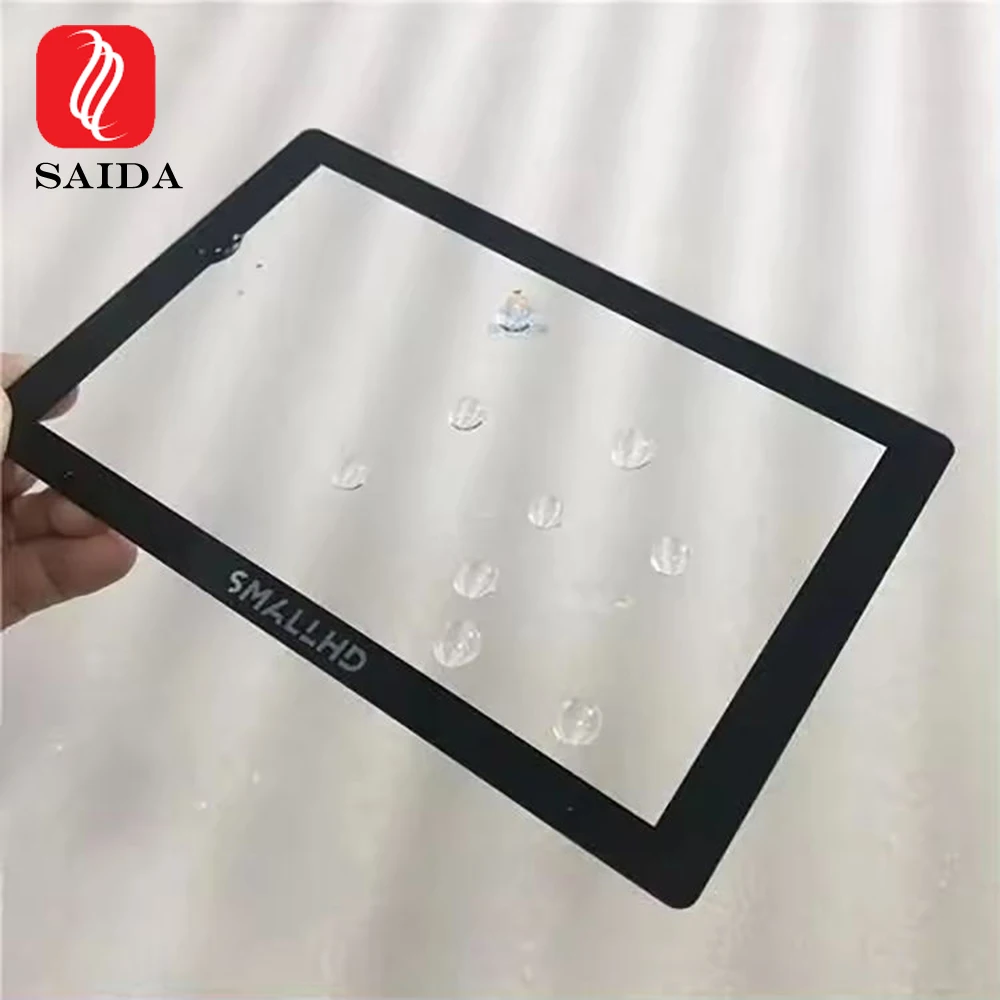

Настраиваемый умный прозрачный сенсорный дисплей стекло шелкография закаленная крышка стеклянная панель
209,41 ₽ - 275,53 ₽
Антибликовое солнечное стекло для солнечной панели с покрытием ar lowiron
330,64 ₽ - 661,27 ₽
Проводящее стекло с покрытием ИО 1 мм 50x50 сопротивлением 7-10/10-15 Ом/кв. упаковано защитной пленкой
27,56 ₽ - 220,43 ₽

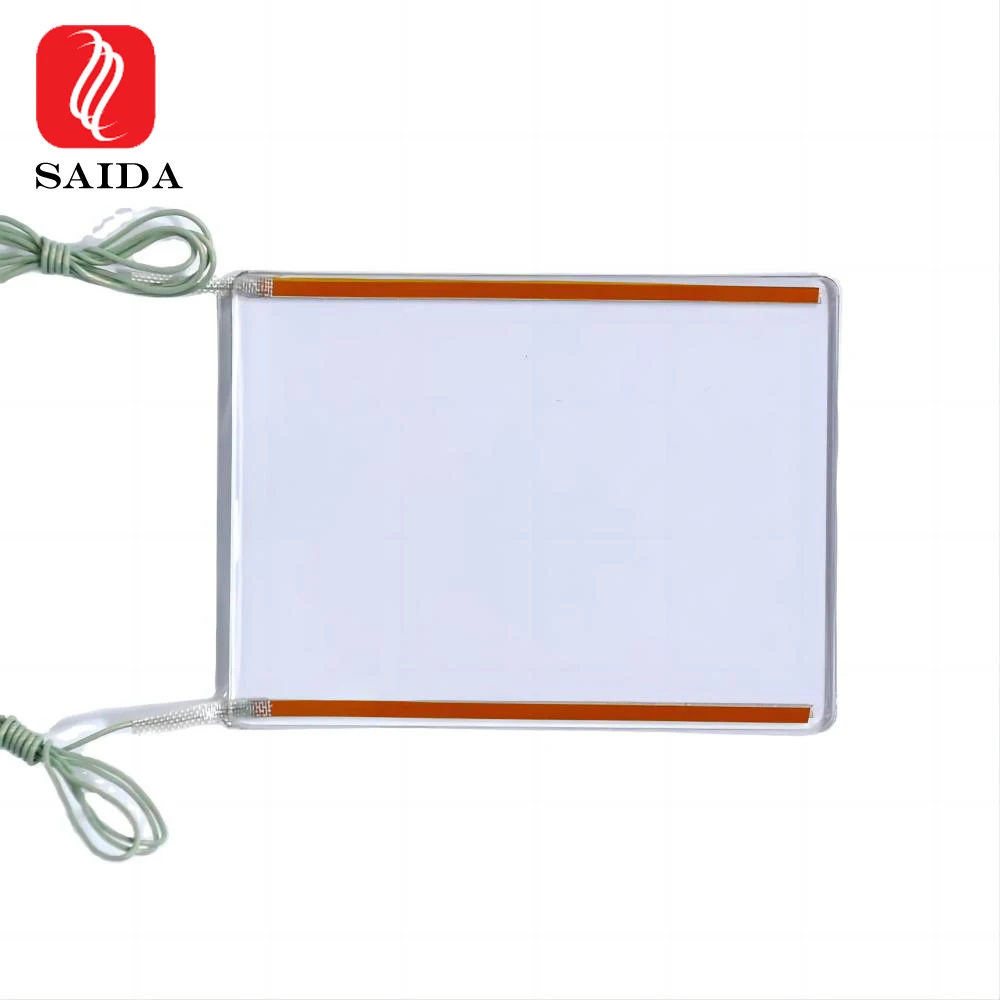

Новые продукты электрическое нагревательное стекло ITO/FTO 7-10 10-15 Ом с покрытием проводящее шинной панелью Для Оконной стеклянной панели
27,56 ₽ - 220,43 ₽

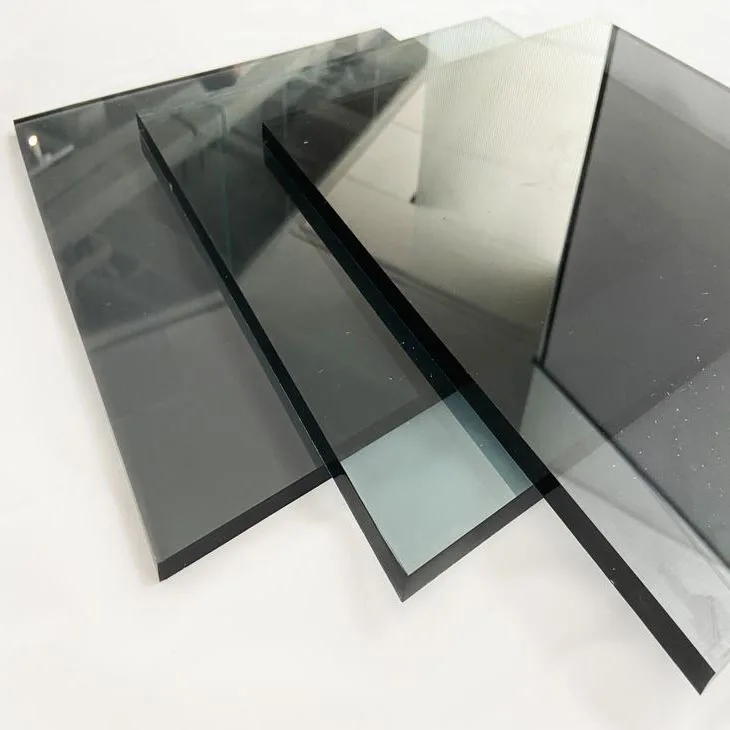

6 мм 10 ослепительное цветное переливающееся отражающее дихроичное стекло для навесной стены
329,54 ₽ - 439,75 ₽

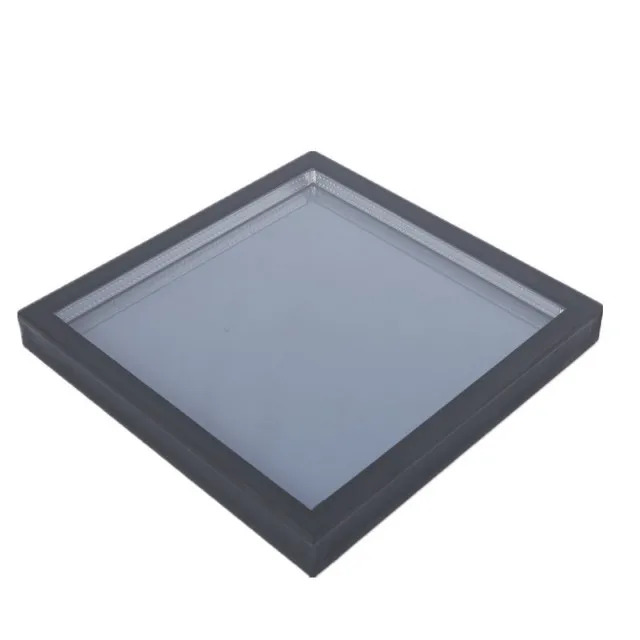

Китай завод G-кристалл изогнутые изолированные стены стекло для окон Low-e Glass
