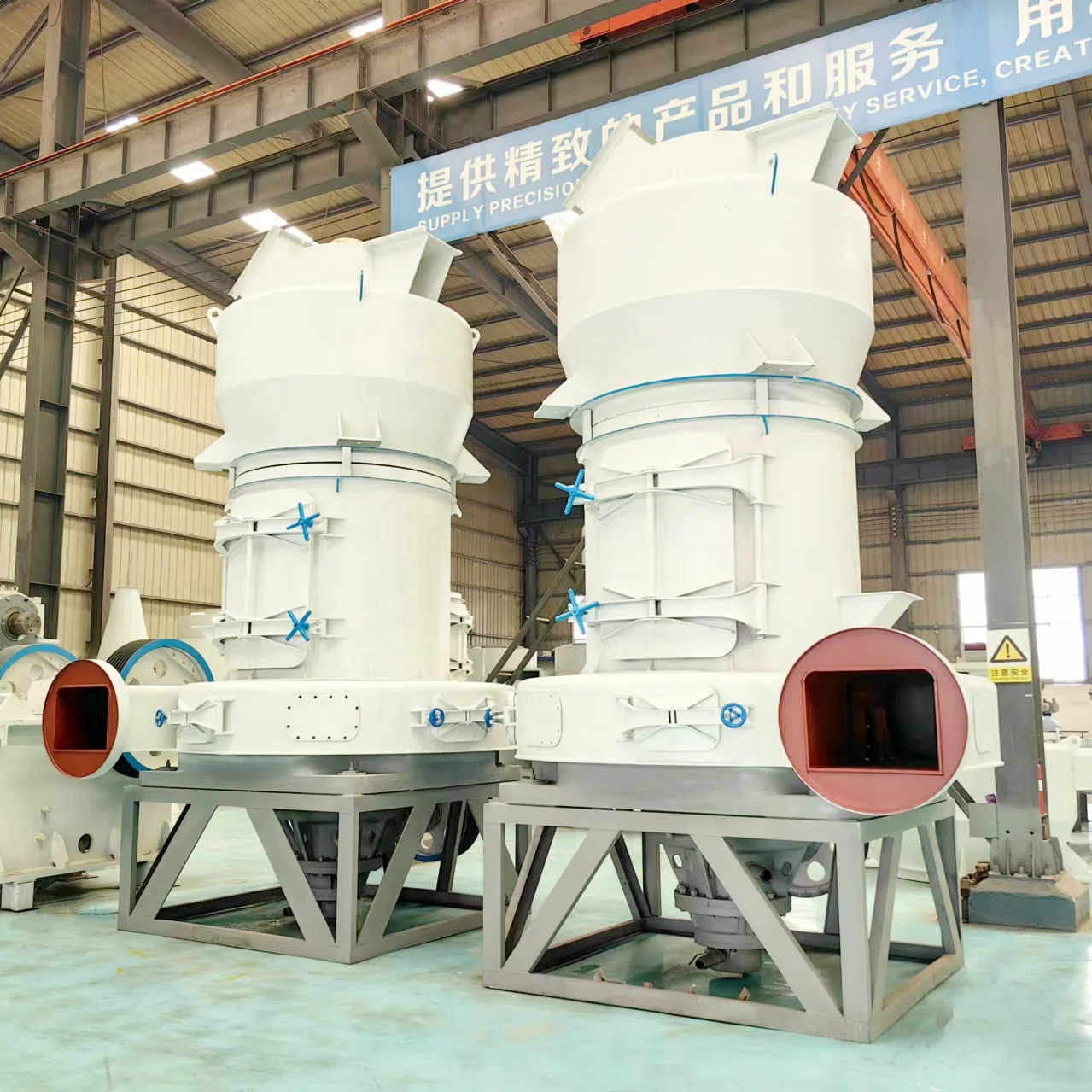

Эффективный гранитный кальцитовый карбонатный каменный порошковый шлифовальный станок 4r raymond mill цена
14 500,00-14 800,00 $

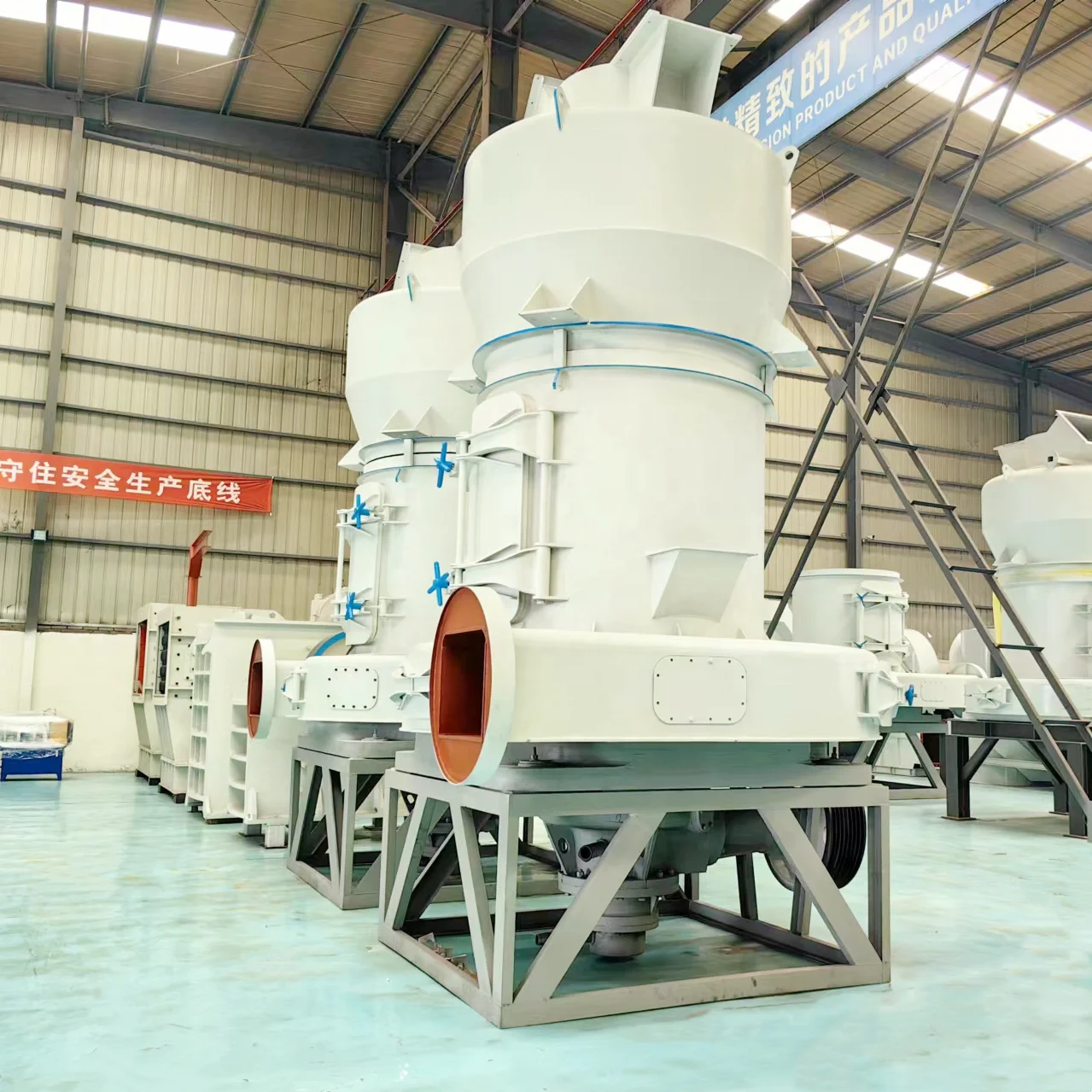

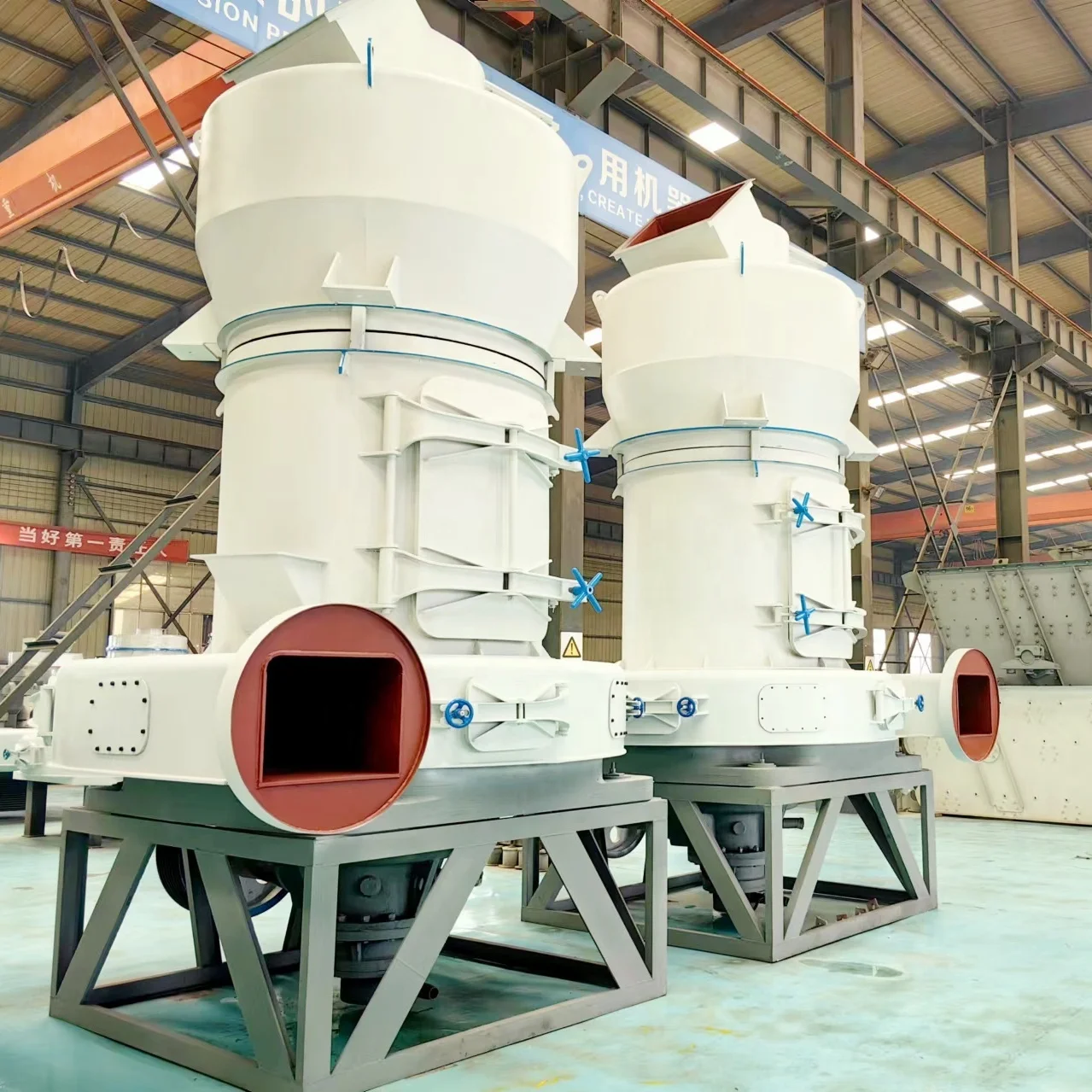

YGM130 полевого шпата гипсовая керамическая шлифовальная мельница карбонат кальция Raymond ультратонкая Порошковая Мельница
- Категория: >>>
- Поставщик: Henan Ruida Machinery Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601164094739:
Описание и отзывы
Характеристики
High Efficiency Superfine Gypsum Powder Making Machine Hgm Lime Stone Powder Raymond Grinding Mill Pulverizer Production Line
My WhatsApp&Wechat:0086-1553 7188 625
1.Optimized Device:Adopts the heavy type design, which fully considers the grinding efficiency and service life, and has achieved many key breakthrough. 2.Reduce Resistance:Adopting high pressure blower adjusting the airflow; the curved wind duct design and non-resistance wind inlet snail shell design, reducing the resistance of airflow.
3.Negative Pressure:According to the actual needs of users, it can be an open circuit system that allows the system to run the mill at full negative pressure to ensure longterm continuous.
4.New Reducer:It adopts the new reducer drive, which is reliable and stable in operation and convenient to use and maintain.
5.Grinding and drying two-in-one
Materials
Limestone,calcite,calcium carbonate,dolomite,barite,basalt,granite,pebbles,talc, gypsum, diabase, quartzite,
bentonite,glass,activated carbon etc.
bentonite,glass,activated carbon etc.
Application Field
Calcium carbonate crushing, gypsum powder processing, power plant desulfurization, non-metallic ore pulverizing, coal powder
preparation,etc
preparation,etc
Work Principle
Firstly, raw material should be crushed by the jaw crusher to the size specified, then the crushed stuff is elevated into the
hopper by the bucket elevator, through the vibrating feeder, evenly and continuously into the grinding chamber for
power-processing. After this, the powder is carried by the air flow from the blower into the separator for screening. The fine powder is blown into the cyclone collector and are poured out through the output-powder valve as the final product and the coarse powder after the screening will be recycled back into the grinding chamber for regrinding. The airflow system is closely sealed up and circulated under condition of negative and positive pressure.
hopper by the bucket elevator, through the vibrating feeder, evenly and continuously into the grinding chamber for
power-processing. After this, the powder is carried by the air flow from the blower into the separator for screening. The fine powder is blown into the cyclone collector and are poured out through the output-powder valve as the final product and the coarse powder after the screening will be recycled back into the grinding chamber for regrinding. The airflow system is closely sealed up and circulated under condition of negative and positive pressure.
Technical Parameters
Model | Quantity of Rollers(pcs.) | Ring Diameter(mm) | Max.Feeding Size(mm) | Final Size(mesh) | Capacity(t/h) | Main Frame Power(kw) | External Dimension(mm) |
YGM65 | 3 | 720x150 | 15 | 80-600 | 0.4-1.8 | 15 | 4100x3300x4500 |
YGM75 | 3 | 865x150 | 15 | 80-600 | 1-3 | 18.5 | 4300x3500x5100 |
YGM85 | 3 | 915x150 | 20 | 80-600 | 1.2-4 | 22 | 5300x4100x5200 |
YGM88 | 3 | 975x160 | 20 | 80-600 | 1.5-4.5 | 30 | 6500x4100x5200 |
YGM95 | 4 | 1050x170 | 25 | 80-600 | 2.1-6.5 | 37 | 7900x5900x9100 |
YGM130 | 5 | 1380x210 | 30 | 80-600 | 2.5-11 | 75 | 9200x8000x9700 |
YGM138 | 5 | 1510x230 | 30 | 80-600 | 2.9-17.5 | 90 | 9700x8500x10200 |
YGM160 | 5 | 1750x270 | 30 | 80-600 | 5-25 | 132 | 9230x10116x10510 |
YGM178 | 5 | 1970x300 | 35 | 80-600 | 6.5-32 | 185 | 9368x11500x11000 |
Spare Parts of Grinding Mill
Lower Plate of Scraper Frame
Roller Hanger
Scraper
Spring
Roller
Roller Assembly
Roller shaft
Ring
Classifier
Product Description
YGM series European strength grinding mill (upgraded Raymond mill) is a high capacity, energy-saving, environmentally friendly, and strong type high-end equipment that have many advantages with the longterm research and development production practice of the suspension rollers Raymond Mill in the company, which combines the experience of more than 3,000 powder customers at home and abroad, and gathers the best performance parameter configuration. Widely used in mining, building materials, electric power, road and bridge, coal, metallurgy, chemical, ceramics, refractory materials, etc. The grinding mill is suitable for processing all kinds of non-flammable and explosive materials with Mohs hardness below 9.3 and humidity below 6%. The fineness of the finished
product is 80-800mesh. Special devices can also be added to grind out 30~80 mesh coarse powder.
product is 80-800mesh. Special devices can also be added to grind out 30~80 mesh coarse powder.

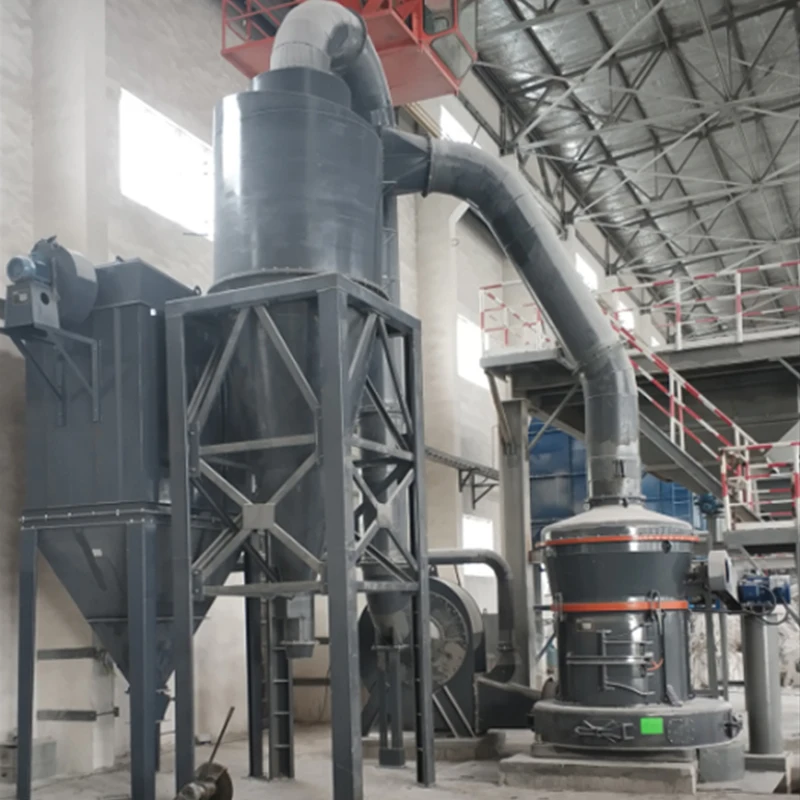

Customer Site
Raw Material: Limestone
Capacity: 6t/h
Output Size: 200mesh
Model of Mill: 5R4119
Country: Indonesia
Customer Site
Raw Material: Activated Carbon
Capacity: 10t/h
Output Size: 150mesh
Model of Mill: 5R4528
Country: Hunan
Output Size: 150mesh
Model of Mill: 5R4528
Country: Hunan
Henan Ruida Machinery Equipment Co., Ltd. was founded in 2006. it is a technology innovation enterprise that mainly produces crushing,grinding and drying equipment and integrates R&D,production and sales. The company is located in the hinterland of China, Zhengzhou City, which is the national transportation hub and the geographical position is superior. Our products are widely used in mining, metallurgy, chemical industry, building materials, refractory and other industries. What users need is exactly what we strive to create; Customer satisfaction is what we always pursue. The company has always believed that products are the core competitiveness of enterprises, quality is the eternal lifeline of enterprises, and service is the second vitality of enterprises.
Maybe you are interested in MORE+
Maybe you are interested in MORE+
1. Are you manufacture or trading company?
We are factory, established in 2006.
2.why should you buy from us not from other suppliers?
>>> factory sell directly
>>> 20+ years experience, professional
>>> Sales market all over the world
>>> good pre-sales and after sales serive
3. How long is the warranty? Does your company supply the spare parts?
12 months.Spare parts for you at lowest cost.
4.what can you buy from us?
Raymond Mill,High Pressure Grinding Mill,Micro Powder Mill,Ball Mill,Jaw Crusher,Hammer Crusher and the related production line.
5.If I need the complete grinding plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice.
We are factory, established in 2006.
2.why should you buy from us not from other suppliers?
>>> factory sell directly
>>> 20+ years experience, professional
>>> Sales market all over the world
>>> good pre-sales and after sales serive
3. How long is the warranty? Does your company supply the spare parts?
12 months.Spare parts for you at lowest cost.
4.what can you buy from us?
Raymond Mill,High Pressure Grinding Mill,Micro Powder Mill,Ball Mill,Jaw Crusher,Hammer Crusher and the related production line.
5.If I need the complete grinding plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice.
Похожие товары

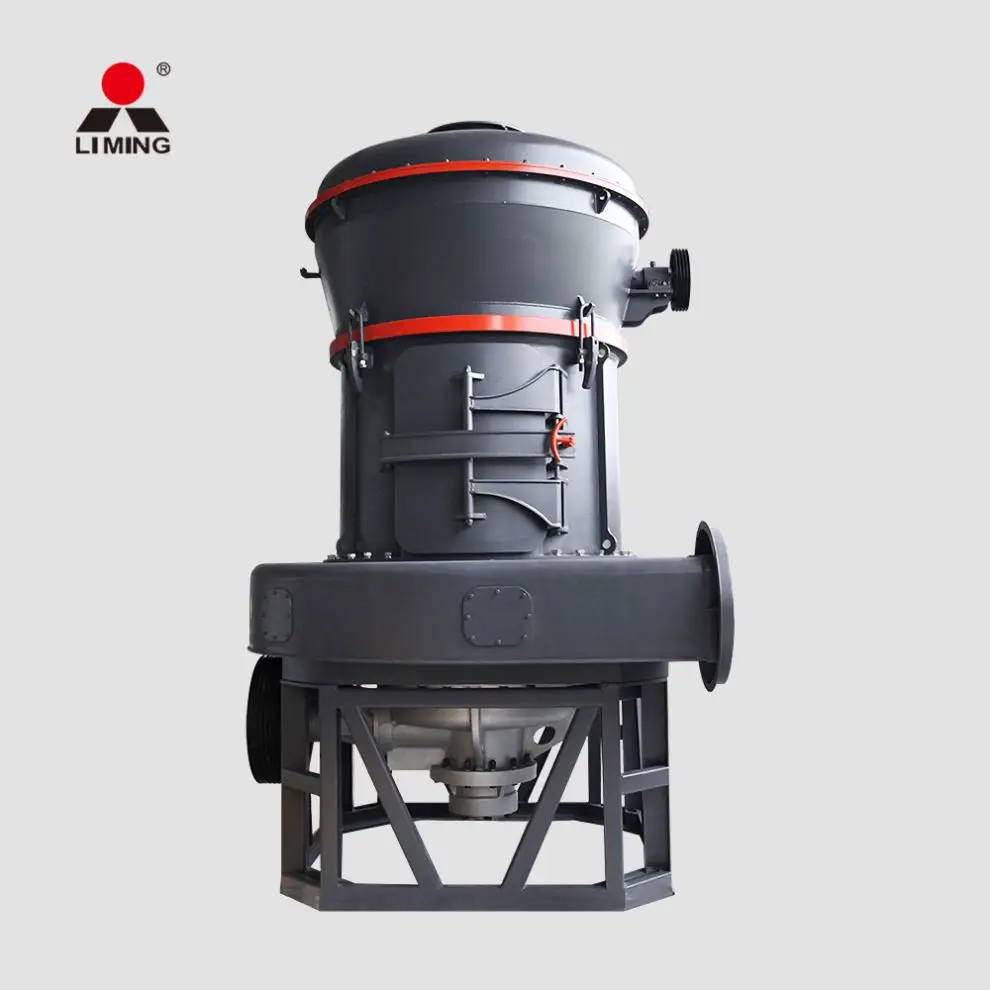

Мельница для магнезии боксита известняка
30 000,00-50 000,00 $

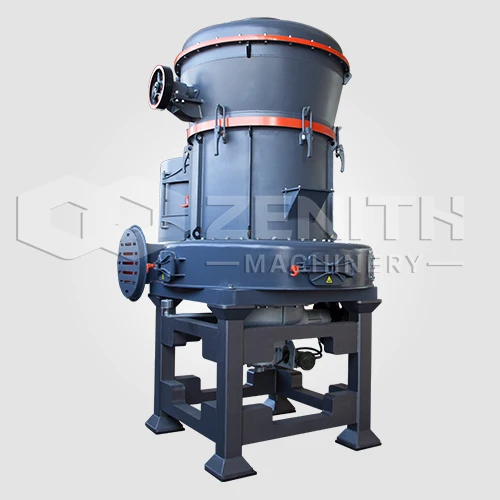

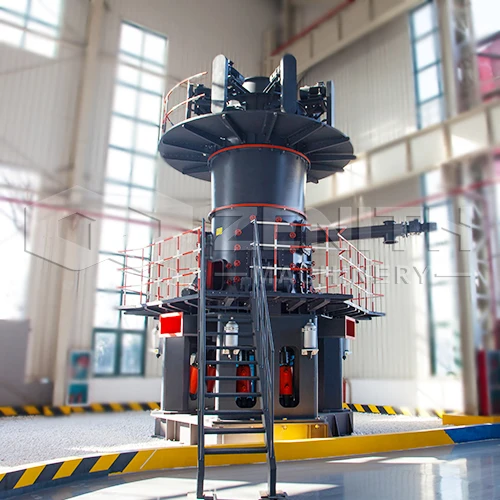

Новый список песчаный процесс измельчения золота железной руды с использованием Золотой медной минералов вертикальная мельница
29 000,00 $

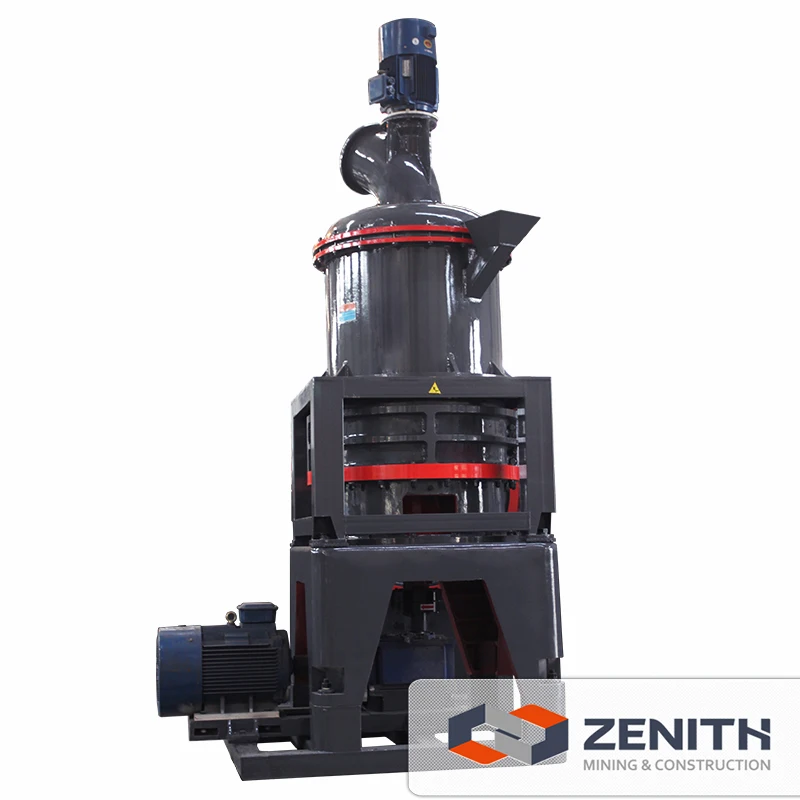

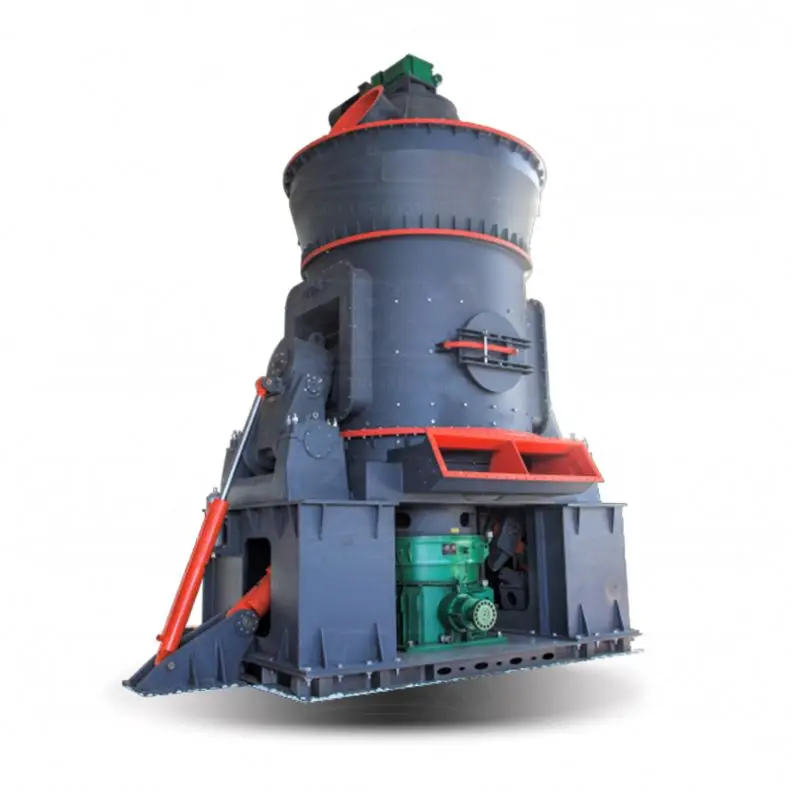

Барит/перлит/полевой шпат/каолин/кальцит/мрамор/Gcc машина для производства порошка Китай ультратонкая шлифовальная мельница
29 000,00-29 900,00 $

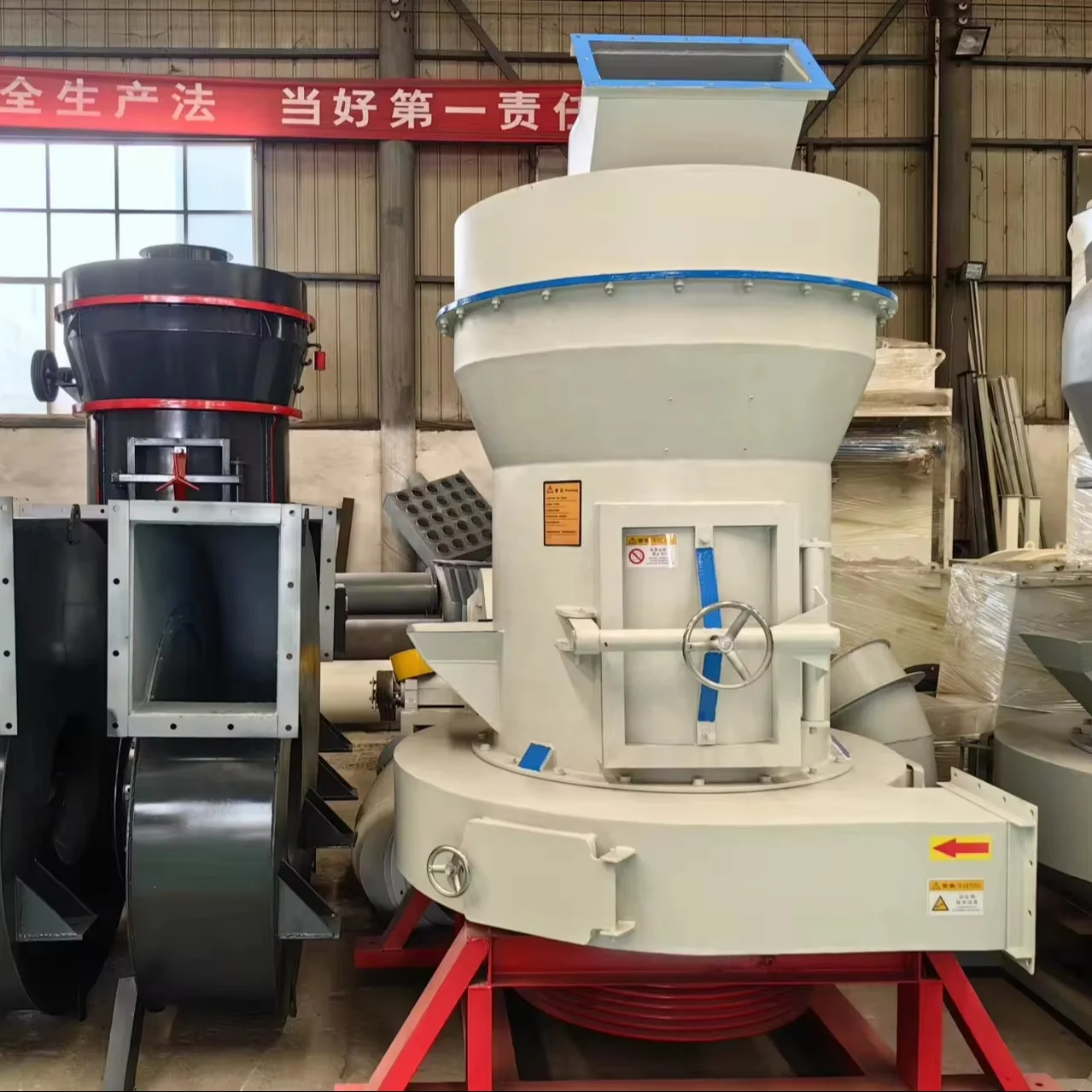

Неметаллическая горнодобывающая промышленность пирофиллитовая мельница 9518 Raymond
14 500,00-14 800,00 $

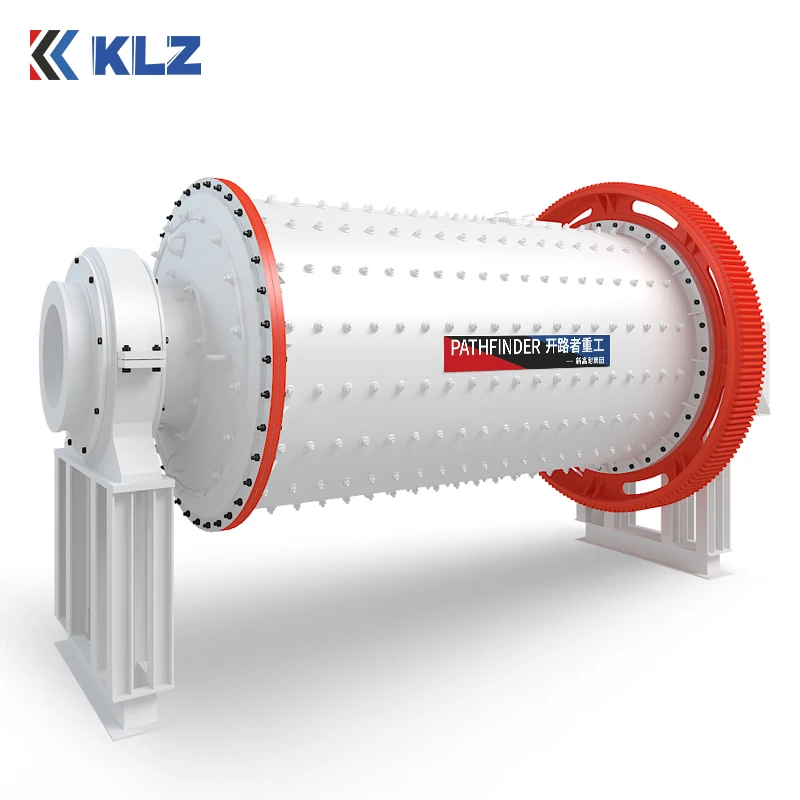

Китай хорошее качество шлифовальный станок стержень шаровая мельница цена
12 400,00-18 600,00 $

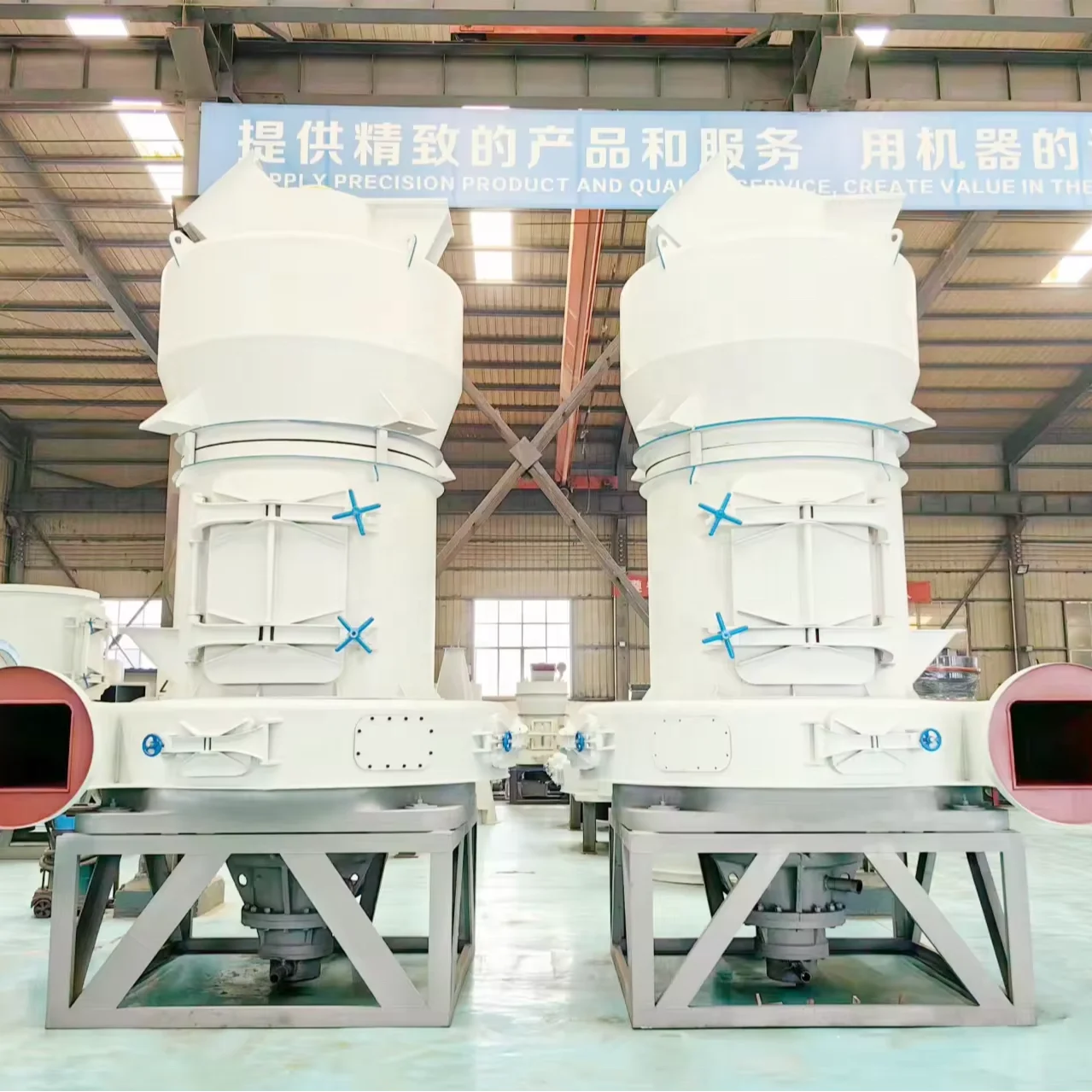

Известняковый гипсовый каолин графитовый кальцит карбонат кальция порошковое оборудование для производства гипсовых порошков
14 500,00-14 800,00 $

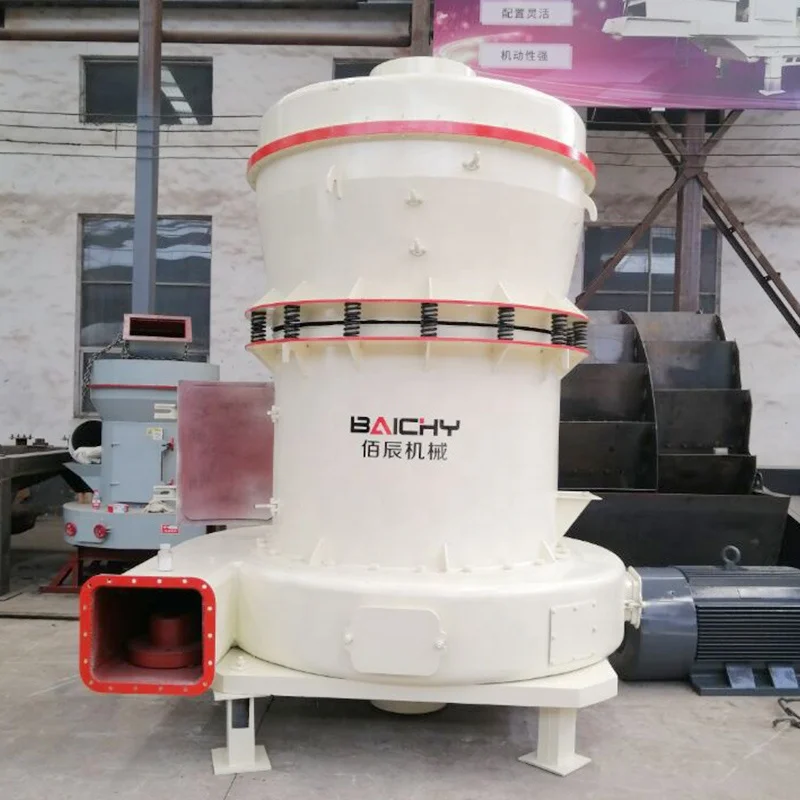

Мельница Raymond для карбоната кальция шлифовальная машина емкостью 1-10 т/ч мельница Baichy гипсового баритового полевого шпата
