Комплект реболлинга для установки LV 02

Описание и отзывы

Характеристики

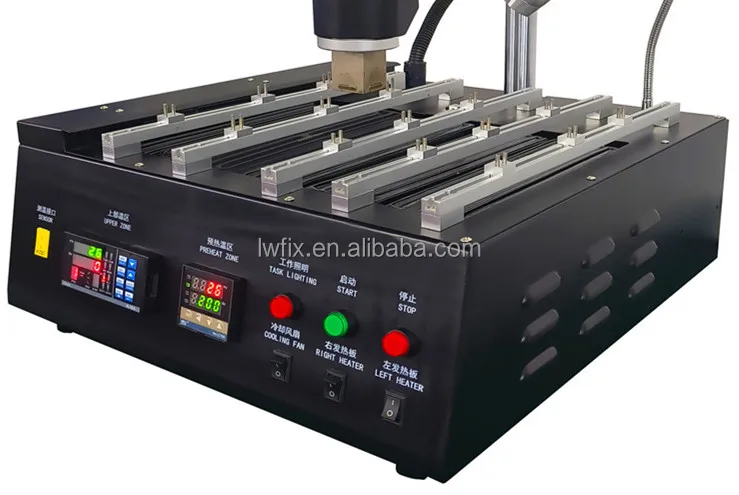

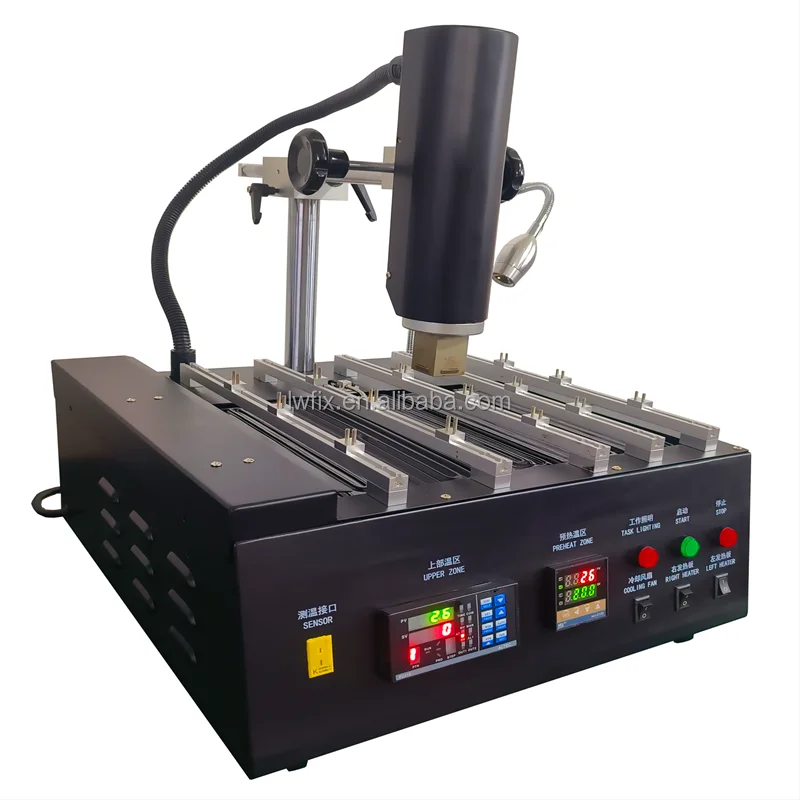

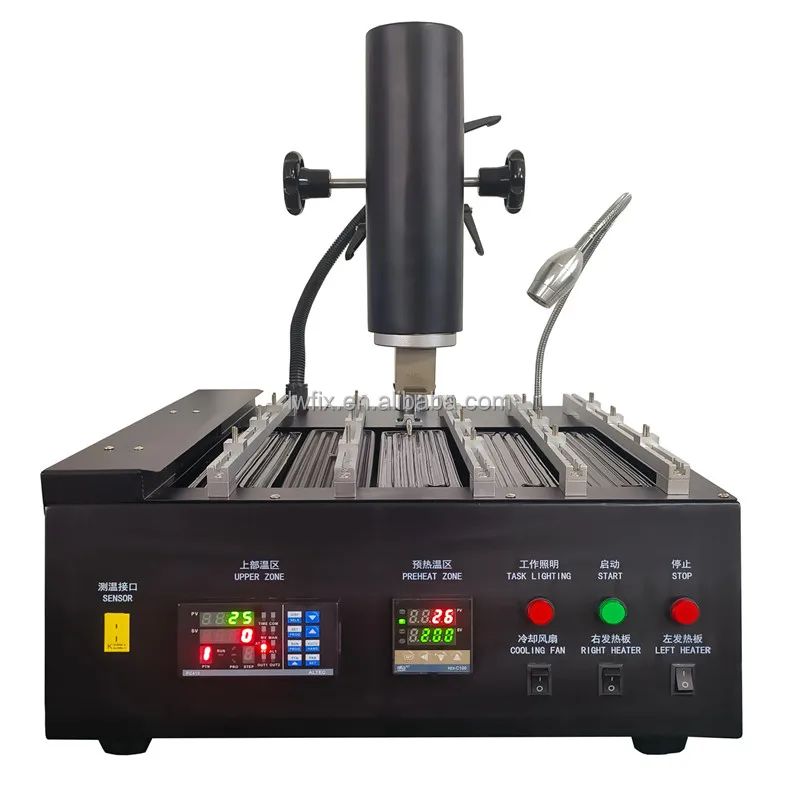

IC replacement machine reballing kit smd bga rework station LV-02

Highlights of this LV-02 BGA Soldering Machine

1. USB interface.

2. 2 temperature zones

3. With more heating panel,more uniform heating

4. Hot sale model, praised by many customers.

5. Low cost.

6. Technical support is always available

7. Original Factory, look for worldwide distributors

Where this Hot Sale Low Cost LV-02 Micro Soldering Machine can be used for ?

1. For repairing Mobile phones

2. For repairing Notebooks/ Laptops/computers

3. For repairing game consoles, especially for XBOX360/PS3/WII

4. For repairing any other mainboards with size from 22x22mm to 420x390mm

5. For preheating chips or mainboards before soldering to improve rework efficiency.

2.LV-02 specification.

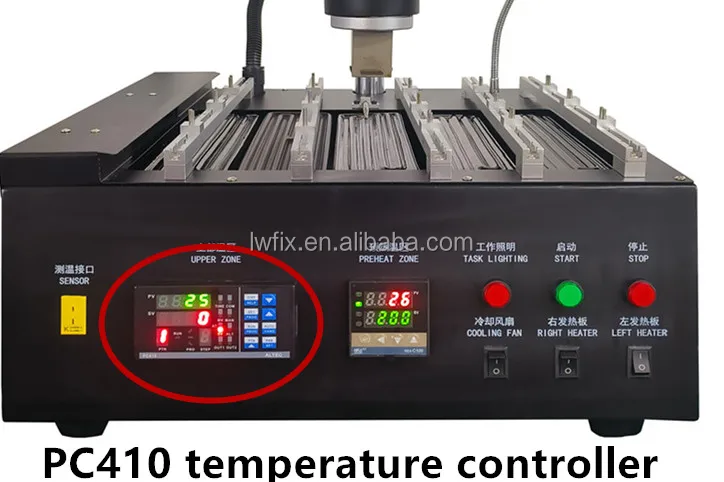

2.1 Independent two-temperature zone temperature control system

2.2 The upper temperature zone is heated by hot air, and the lower temperature zone is heated by IR infrared, which can be controlled independently.

2.3 The upper temperature zone and IR temperature zone are heated at the same time, and the principle of rapid cooling of cross-flow fan ensures that PCB will not be deformed during disassembly or welding;

2.4 The machine is simple and fast to operate, can directly place the PCB motherboard on the support bar, by moving the heating head before and after and rotating to any position on the board surface;

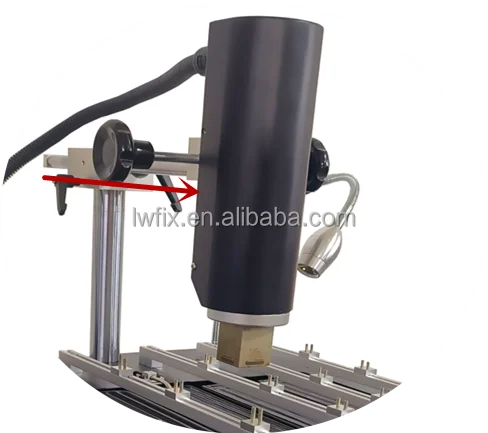

2.5 The upper temperature zone can be moved in any direction of manual rotation;

2.6 Using high-precision thermocouples to achieve precise temperature detection;

2.7 Equipped with a variety of different sizes of alloy hot air nozzle, 360° rotation, easy to replace, can be tailored according to actual requirements;

2.8 For large heat capacity PCB and other high temperature requirements, lead-free welding can be easily handled.

3.LV-02 parameter:

 Picture display

1.We provide you with a friendly English user manual for free.

2.24 hours technical support by email or call.

3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

4.Free training to make sure you master the operating of this machine.

5.Videos of operating the machine are available.
