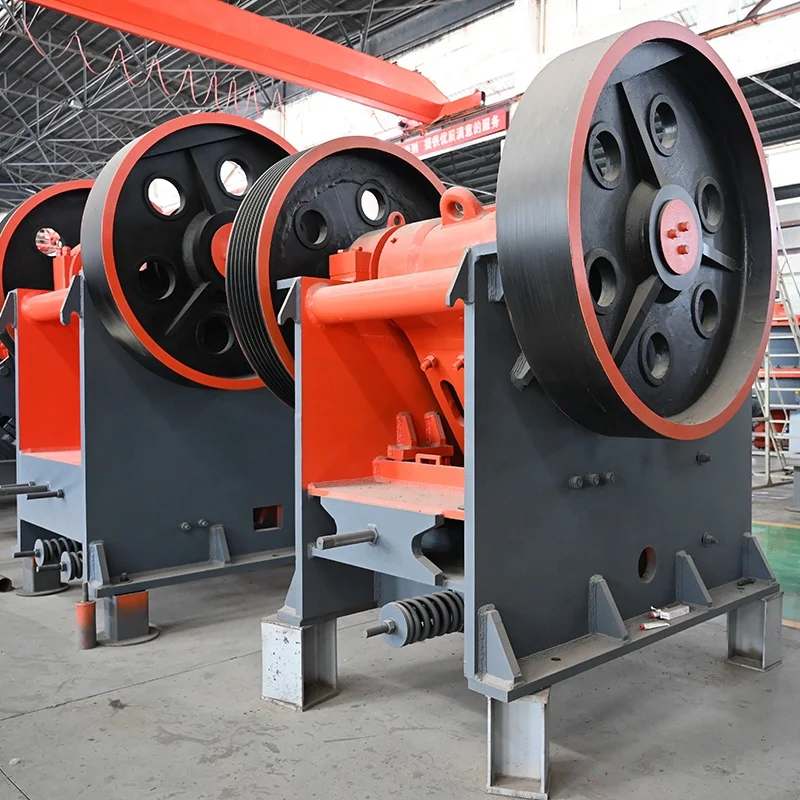

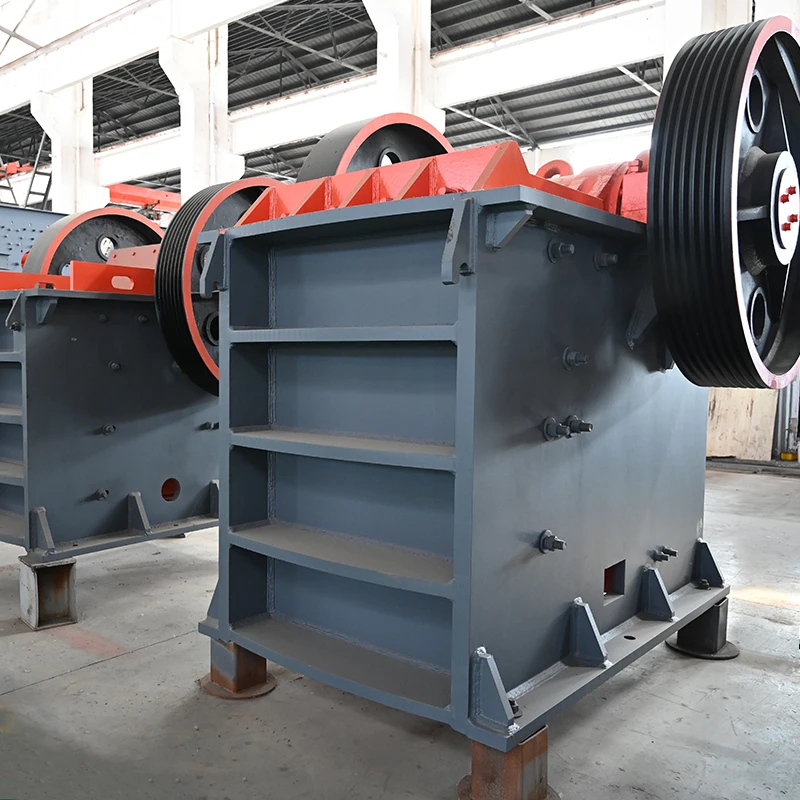

Высококачественная Дешевая Портативная портативная дизельная щековая дробилка для добычи камня 250x400

Сохранить в закладки 1601164514323:


Цена:78 063,73-91 724,89 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики









High quality cheap PE 250X400 portable mobile diesel jaw crusher machine for mining stone processing




Working Principle:
Jaw crusher compresses and crushes large pieces of material through the reciprocating motion of movable jaw plates between fixed jaw plates. The material is subjected to compression and shear forces between the two jaw plates, gradually crushed into smaller particles, and discharged through the discharge port below. This device is widely used in mining and construction fields due to its simple structure, easy operation, and high efficiency.

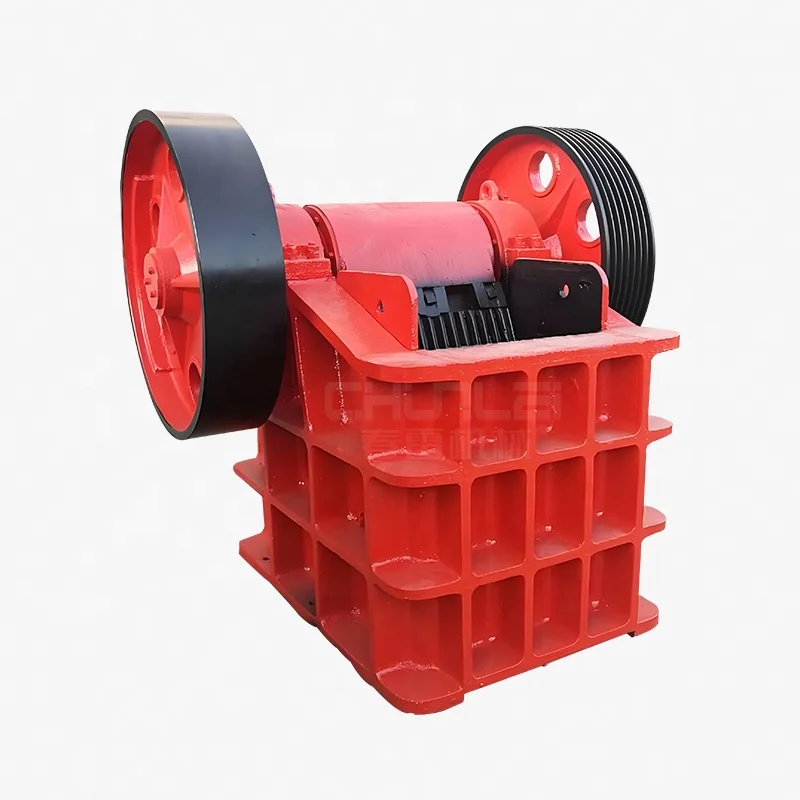

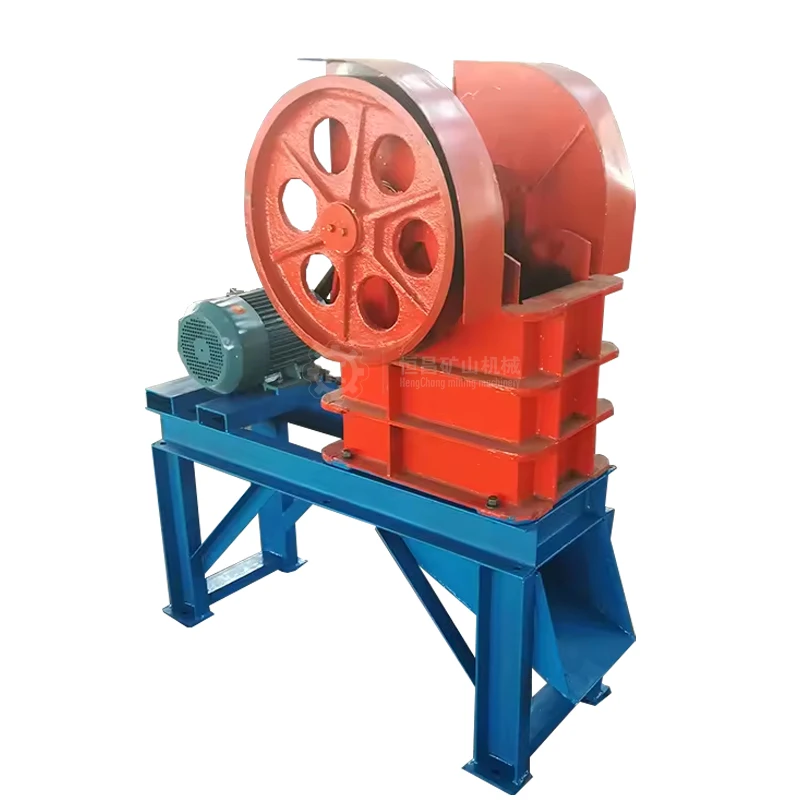

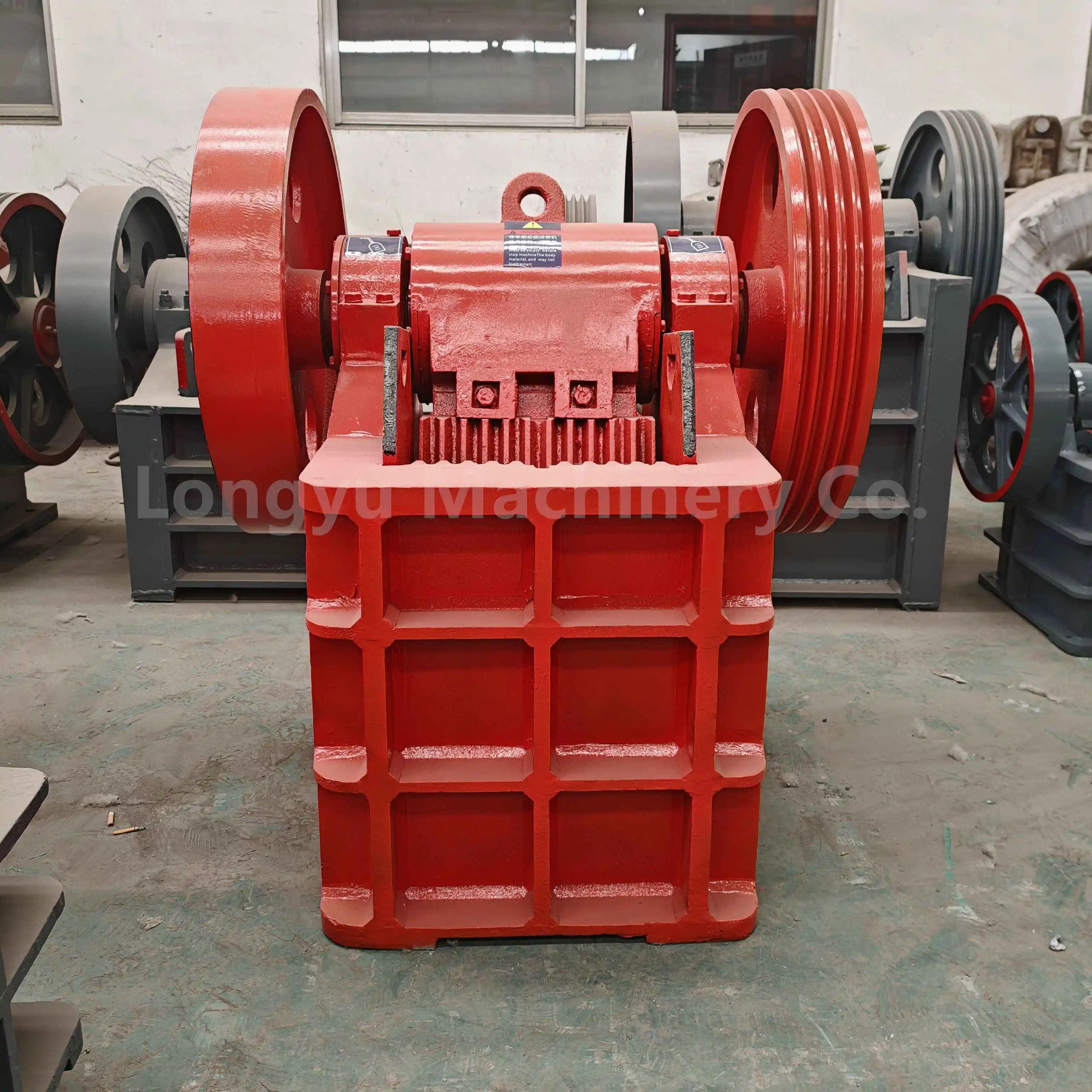

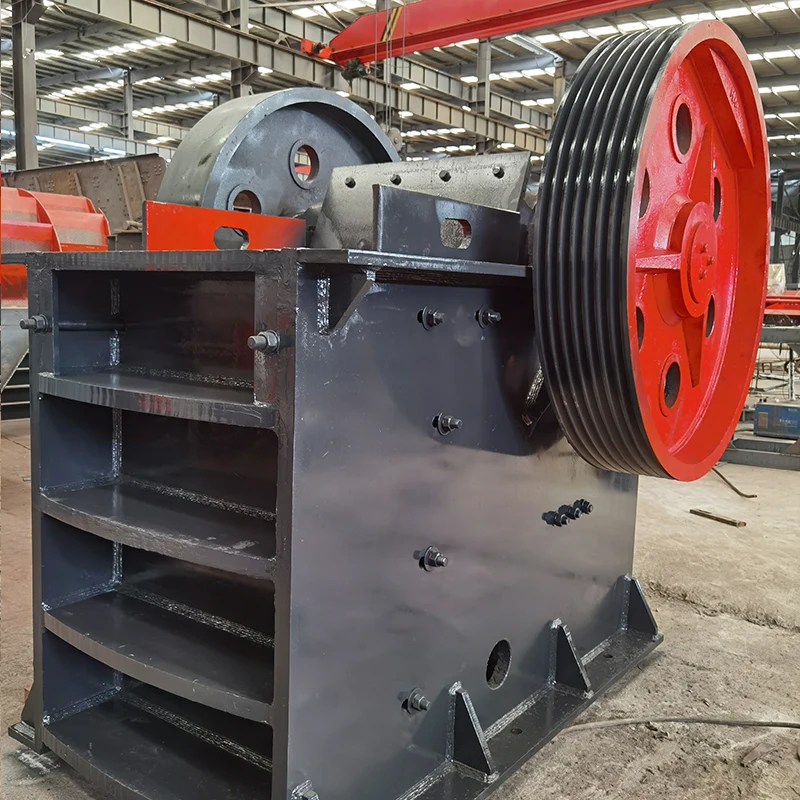

Small Mobile Diesel Engine Jaw Crusher:
Stone Jaw Crusher is a type of rock crusher at the quarry. It can be customized as a portable or mobile. Portable jaw crusher is very popular, especially when the power is insufficient or the machine needs to be frequently moved.






1. Safe and reliable lubrication system, convenient part replacement, and small maintenance workload.
2. Deep broken cavity, no dead areas, increase feeding capacity and output.
3. Broken ratio is large, and the product is uniform.
4. The adjustment range of the cushion kit is small, which increases the flexibility of the equipment.
5. The structure is simple and reliable, and the operating cost is low.
6. The discharge size of the jaw crusher can be adjusted to meet the requirements of different users.
7. Low noise and less dust.






Jaw Crusher Application:
Diesel mobile jaw crusher is widely used for mineral processing plant or construction waste recycling plant gold ore, iron ore,copper ore, coal gangue coarse crushing.such as stone, granite, closed rocks, coke, coal, manganese ore, iron ore, electric sand,electricity, electricity Run aluminum, oxide, melting calcium, limestone, quartz rock, alloy, etc.






Model
Feed port size (mm)
Maximum feed size (mm)
Discharge port adjustment range (mm)
processing capacity(t/h)
Eccentric shaft speed(r/min)
Motor power
(kw)
Size(mm)
PE 150×250
150×250
125
10-40
1-3
268
4P 5.5
760×700×860
PE 200×300
200×300
180
15-50
2-6
260
4P 7.5
915×780×990
PE 200×350
200×350
180
18-60
3-10
276
4P 11
1000×914×1112
PE 250×400
250×400
210
20-70
5-21
300
6P 15
1100×1032×1285
PE 400×600
400×600
340
40-100
16-64
270
6P 30
1623×1736×1615
PE 500×750
500×750
425
50-100
40-110
268
6P 55
1920×1850×1920
PE 600×750
600×750
500
150-200
80-240
268
6P 55
2020×1850×1920
PE 600×900
600×900
500
65-160
50-160
254
6P 55
2530×1900×2340
PE 750×1060
750×1060
630
80-180
110-320
245
8P 110
2680×2380×2785
PE 900×1200
900×1200
750
100-200
220-380
208
8P 110
3470×2876×3330
PE 1200×1500
1200×1500
1020
150-350
400-1000
180
8P 160-245
4850×3220×3680
PE 1500×1800
1500×1800
1200
220-350
500-1200
180
8P 280-380
5160×3660×4248
PEX 150×750
150×750
120
18-48
8-25
320
4P 15
1170×1575×1030
PEX 250×750
250×750
210
25-60
13-35
320
6P 22
1550×1730×1470
PEX 250×1000
250×1000
210
25-60
16-52
330
6P 30
1580×2006×1390
PEX 250×1200
250×1200
210
25-60
20-61
330
6P 37
1780×2214×1430
PEX 300×1300
300×1300
250
20-90
16-105
300
6P 55
2210×2320×1723




















1: Are you a factory or a trading company?
We are a factory.

2: Where have you exported your products before?
Our products have been sold to South Asia, Africa, South America, the Middle East and so on.

3: How will you help customers install equipment?
Our senior engineers will guide the installation and commissioning as well as the initial production

4: What about the supply of consumable parts?
We offer our customers wearing parts at the best price. If you are unable to resolve the issue, we will send our technicians to your location and you will therefore be responsible for all costs involved.

5: How about payment terms?
Telegraphic transfer, letter of credit paypal available

6: How about after-sales service?
12 months warranty for various products.
