Инвертор постоянного тока 24 В в переменный 110 В/120 3000 Вт чистый синусоидальный инвертор для домашнего монитора 3 ква 2400 Wi Fi
- Категория: >>>
- Поставщик: Shenzhen Sgpower Tech Co. Ltd
Сохранить в закладки 1601164597458:
Описание и отзывы
Характеристики
Good reviews
Products Description
Single Phase 3KW 24Vdc Solar Inverter 110/120Vac MPPT Solar Inverter for Off Grid Solar System to charge Solar battery
Note
1. The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and
application scenarios, otherwise, it will easily lead to insufficient battery capacity or excessive waste of power generation. For
details, please refer to the manual recommendation or consult online customer service.
2. This inverter can work with a 24V Lead-acid battery only, please don't use a Lithium battery.
1. The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and
application scenarios, otherwise, it will easily lead to insufficient battery capacity or excessive waste of power generation. For
details, please refer to the manual recommendation or consult online customer service.
2. This inverter can work with a 24V Lead-acid battery only, please don't use a Lithium battery.
Features
* Pure sine wave inverter
* Built-in PWM solar charge controller
* Configurable input voltage range for home applicances and personal computers via LCD setting
* Configurable battery charging current based on applications via LCD setting
* Configurable AC/Solar charger priority via LCD setting
* Compatible to mains voltage or generator power
* Auto restart while AC is recovering
* Overload/over temperature/ short circuit protection
* Smart charging system optimizes battery performance
* Cold start function
* Built-in PWM solar charge controller
* Configurable input voltage range for home applicances and personal computers via LCD setting
* Configurable battery charging current based on applications via LCD setting
* Configurable AC/Solar charger priority via LCD setting
* Compatible to mains voltage or generator power
* Auto restart while AC is recovering
* Overload/over temperature/ short circuit protection
* Smart charging system optimizes battery performance
* Cold start function
Installation Instructions
Product Paramenters
Line Mode Specifications | ||
Input Voltage Waveform: | Sinusoidal (utility or generator) | |
Nominal Input Voltage: | 230Vac | |
Low Loss Voltage: | 170Vac±7V (UPS);90Vac±7V (Appliances) | |
Low Loss Return Voltage: | 180Vac±7V (UPS);100Vac±7V (Appliances) | |
High Loss Voltage: | 280Vac±7V | |
High Loss Return Voltage: | 270Vac±7V | |
Max AC Input Voltage: | 300Vac | |
Nominal Input Frequency: | 50Hz / 60Hz (Auto detection) | |
Low Loss Frequency: | 40±1Hz | |
Low Loss Return Frequency: | 42±1Hz | |
High Loss Frequency: | 65±1Hz | |
High Loss Return Frequency: | 63±1Hz | |
Output Short Circuit Protection: | Circuit Breaker | |
Efficiency (Line Mode): | >95% ( Rated R load, battery fully charged ) | |
Transfer Time:10ms typical (UPS); | 20ms typical (Appliances) | |
Inverter Mode Specifications | ||
INVERTER MODE： | PS-3KVA-24V-50A | |
Rated Output Power: | 3KVA/2400W | |
Output Voltage Waveform: | Pure Sine Wave | |
Output Voltage Regulation: | 230Vac±5% | |
Output Frequency: | 50Hz | |
Peak Efficiency: | 93% | |
Overload Protection:5s@≥150% load; | 10s@105%~150% load | |
Surge Capacity: | 2* rated power for 5 seconds | |
Nominal DC Input Voltage: | 24Vac | |
Cold Start Voltage: | 23.0Vdc | |
High DC Recovery Voltage: | 32Vdc | |
High DC Cut-off Voltage: | 33Vdc | |
No Load Power Consumption: | <25W | |
PWM Solar Charging Mode | ||
Charging Current: | 50Amp | |
System DC Voltage: | 24Vdc | |
Operating Voltage Range: | 30~32Vdc | |
Max. PV Array Open Circuit Voltage: | 80Vdc | |
DC Voltage Accuracy: | +/-0.3% | |

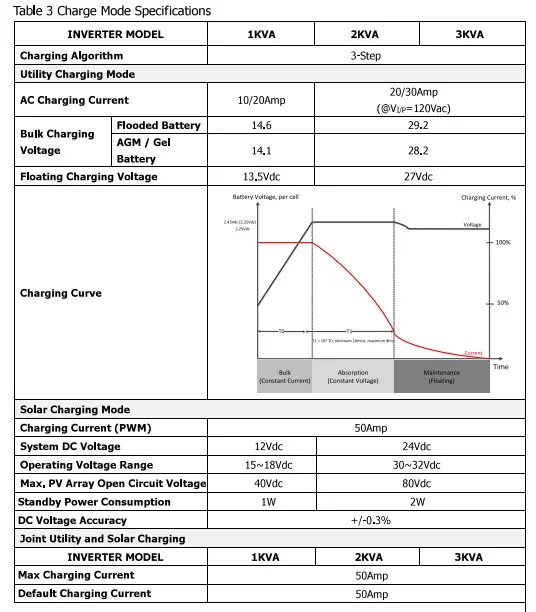

Charge Mode Specifications | ||
Charging Algorithm: | 3-Step | |
AC Charging Current (Max): | 25Amp (@VI/P=230Vac) | |
Flooded Battery : | 29.2V | |
AGM / Gel Battery: | 28.2V | |
Floating Charging Voltage: | 27Vdc | |

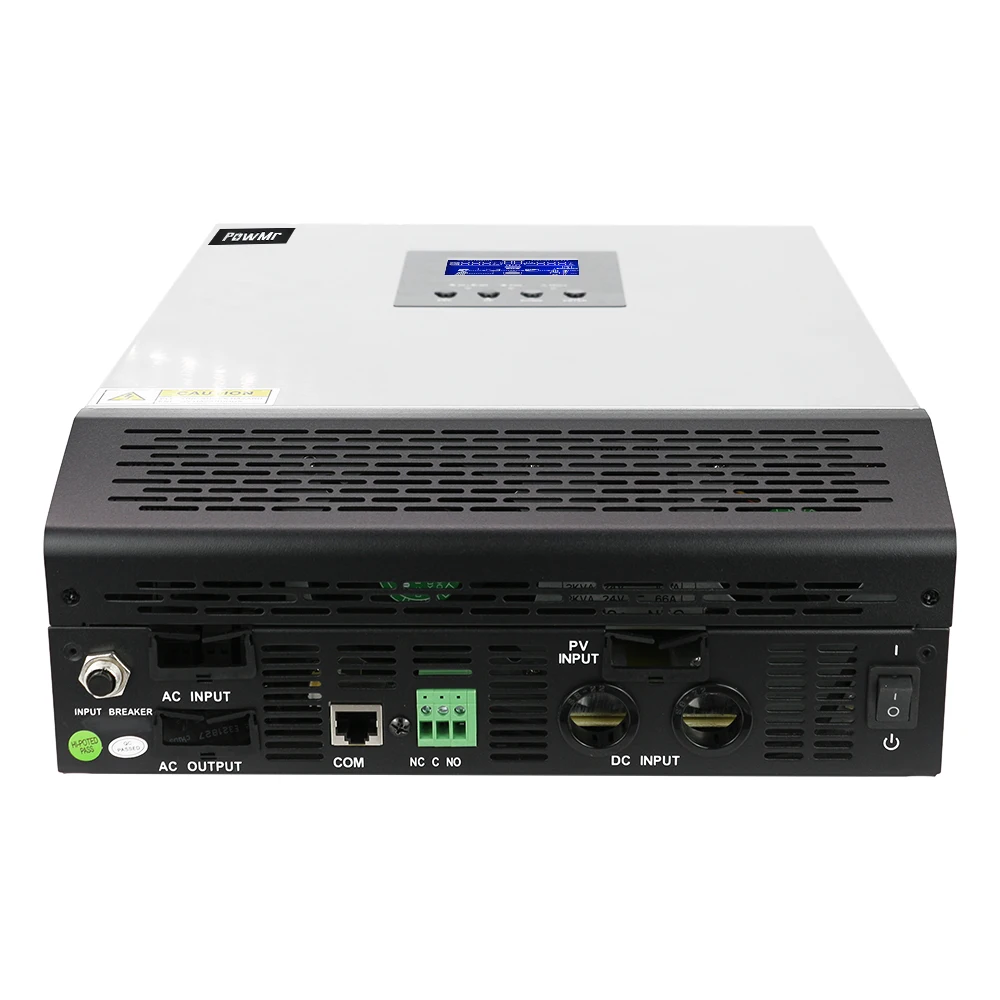

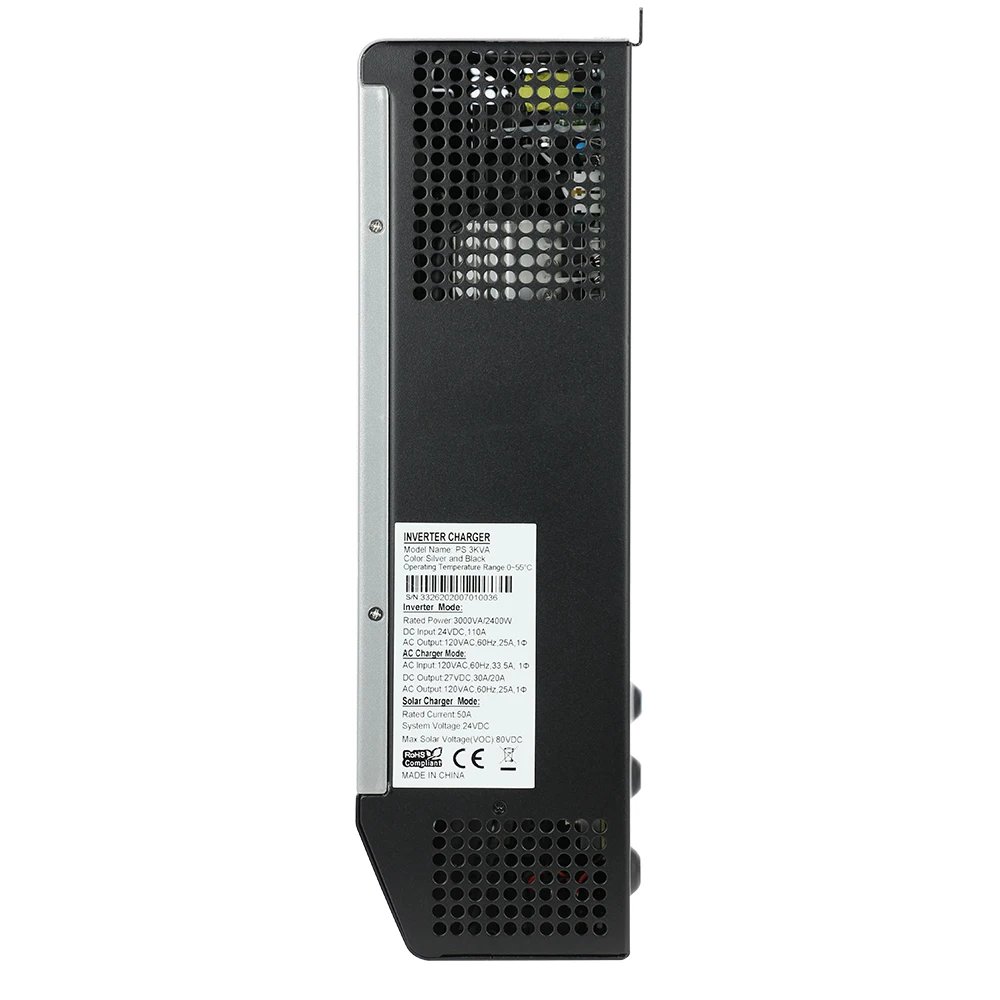

Details Images

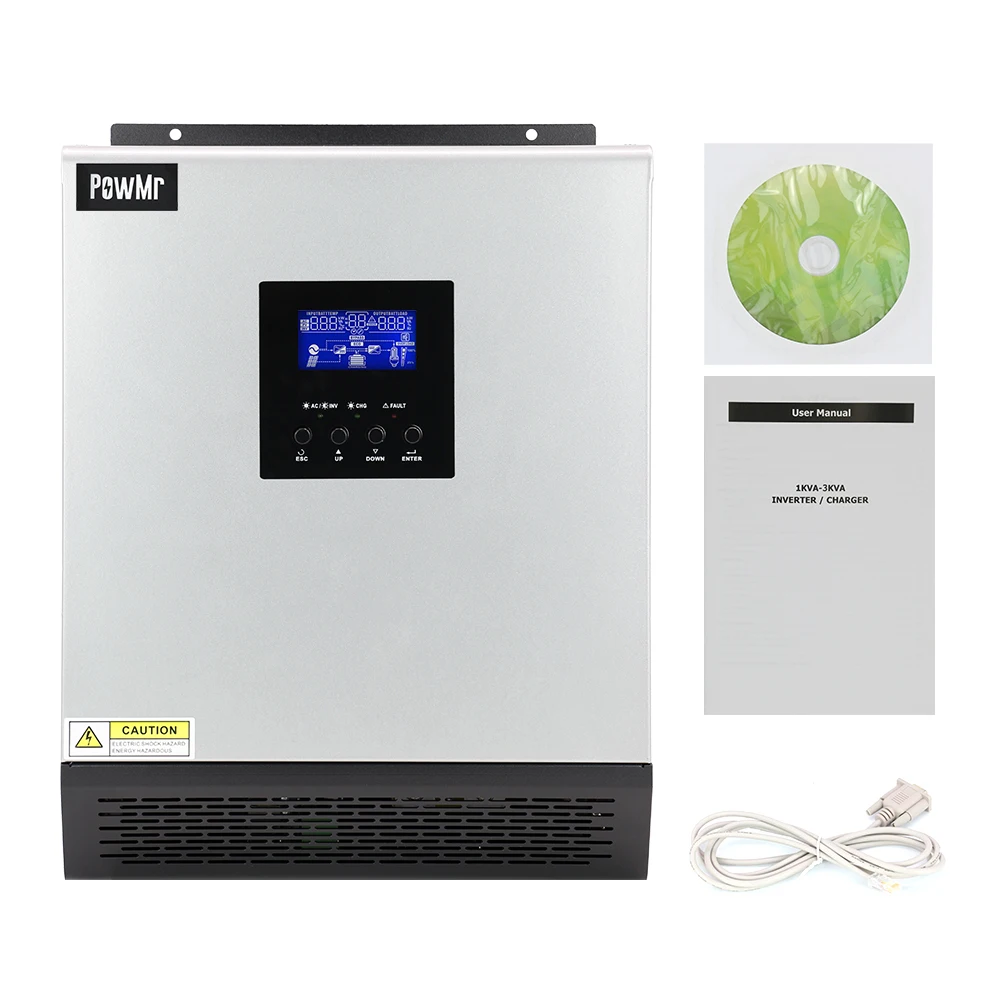

Product packaging
Q1: How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3. We want to know month capacity.
A3: 20000-30000PCS per Month.
Q4: How is your technical support?
A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings
