DC12V WS2815 индивидуально адресуемые RGBIC 30/60/144 светодиодов/м программируемые пиксели светодиодные полосы

Note:
Every 0.5meter with solder joints, Please Note!

IP30: Non- waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube
The Length as you Choose

Main Feature:
One pixel damaged will not affect the other LEDs'working
Dual signal wires version, signal can jump to transfer
LED light source: WS2815 LEDs
Same protocol as WS2813S with Dual-signal wires,so can be controlled by the same WS2811/WS2812 controllers
Input voltage:DC12V;
Power:
30leds/m----9watt/meter
60leds/m----18watt/meter
144leds/m----34watt/meter
LED resource:WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED:Each LED is separately controlled
IC Type:Improved Version WS2815 IC(built inside the 5050 smd rgb led)
of IC:(1 IC drives 1 led chip);
Pixels:30/60/144/meter;
Pitch:16.6mm(1000/64);
Grey scale:256;
Bits/color:8-bits/color;

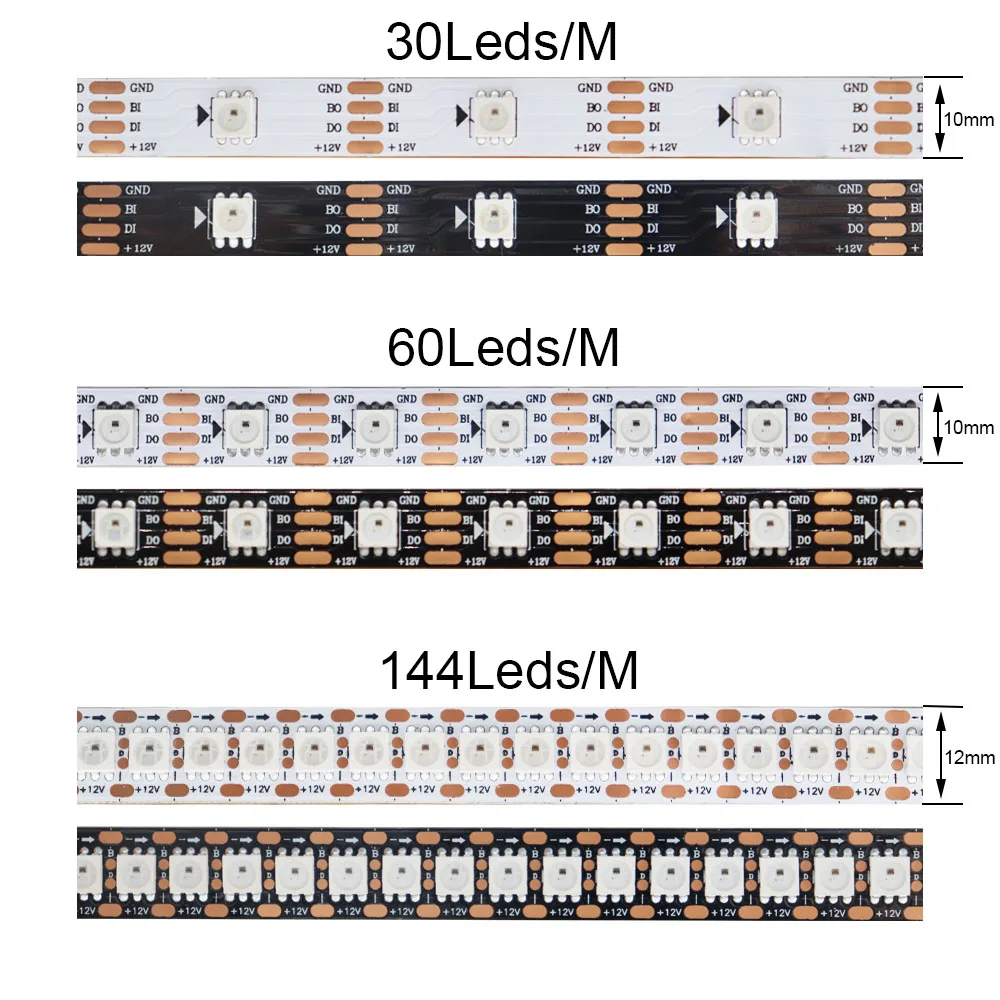

FPC Width:
30leds/m----10mm
60leds/m----10mm
144leds/m----12mm

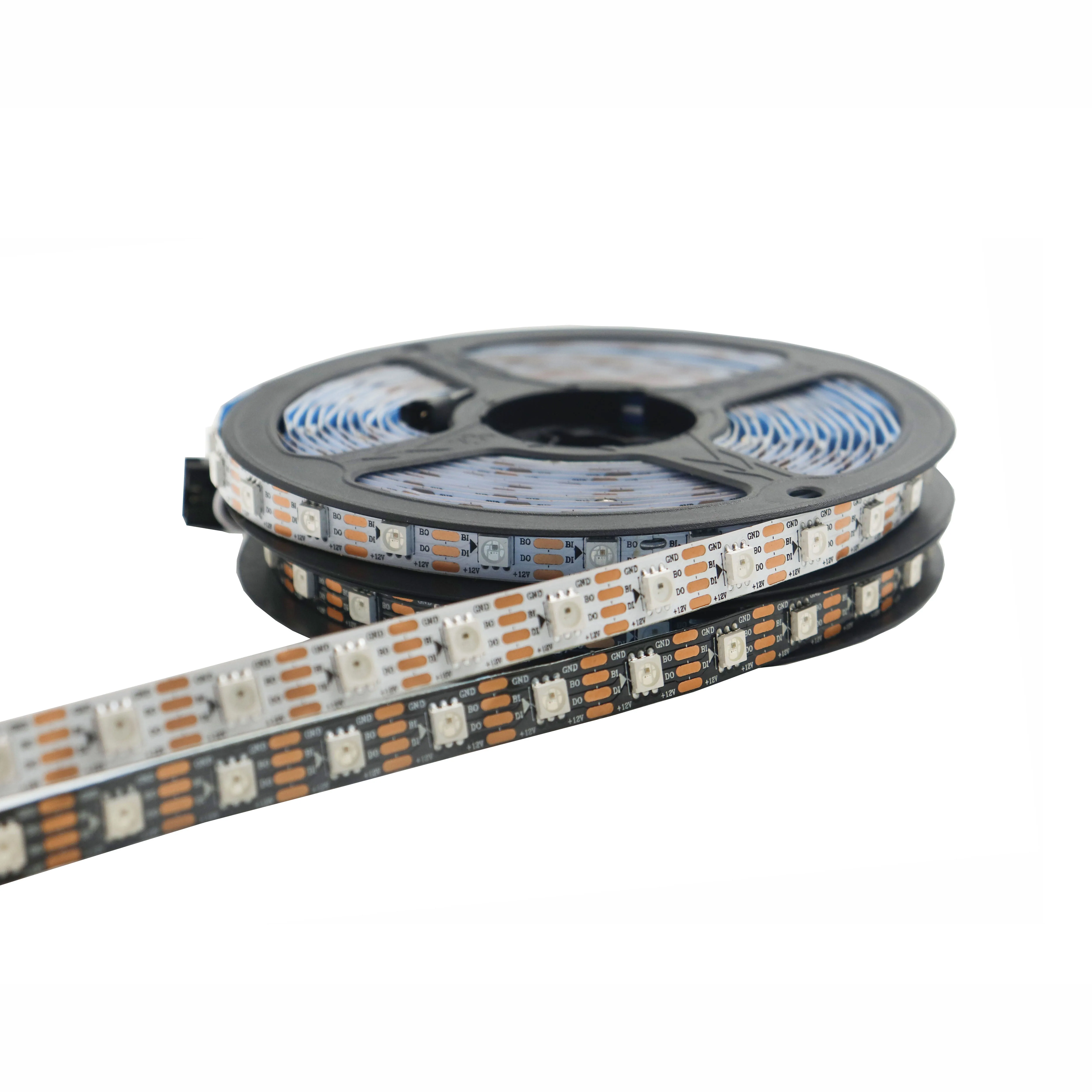

FPC color:White/Black PCB

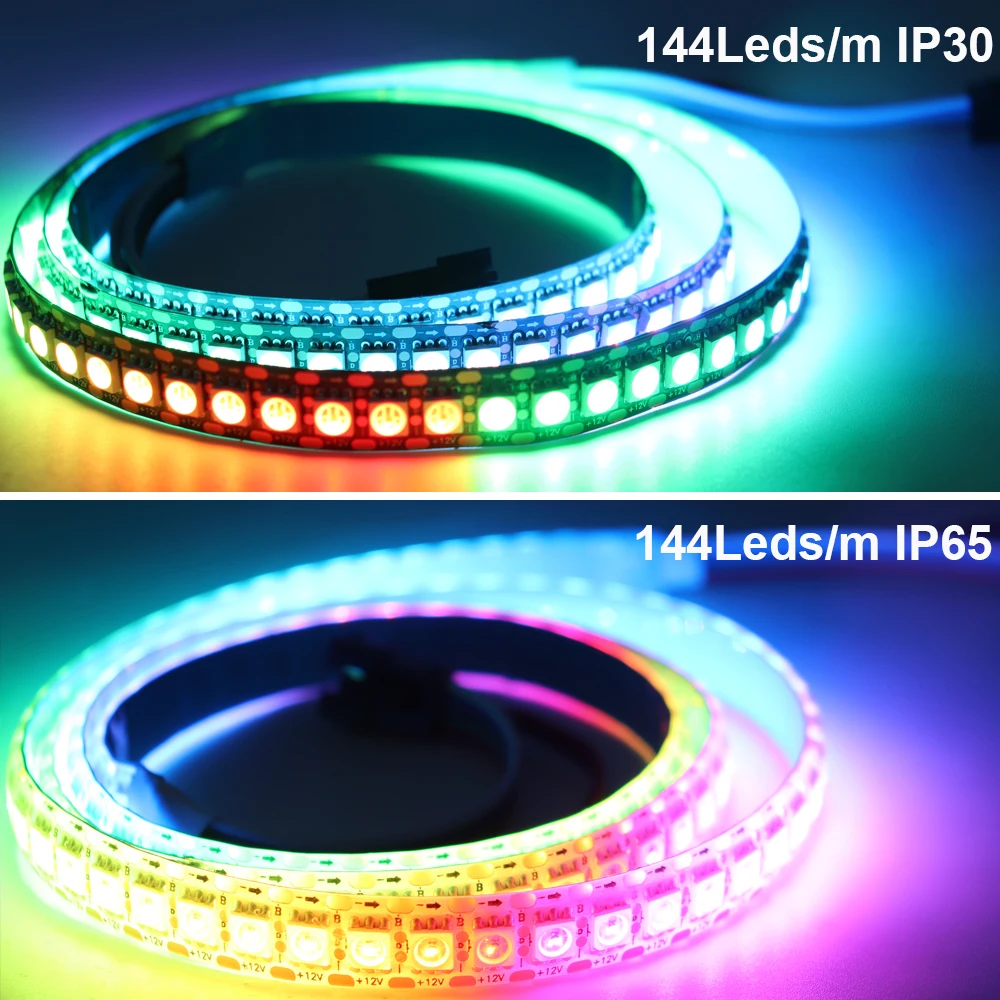

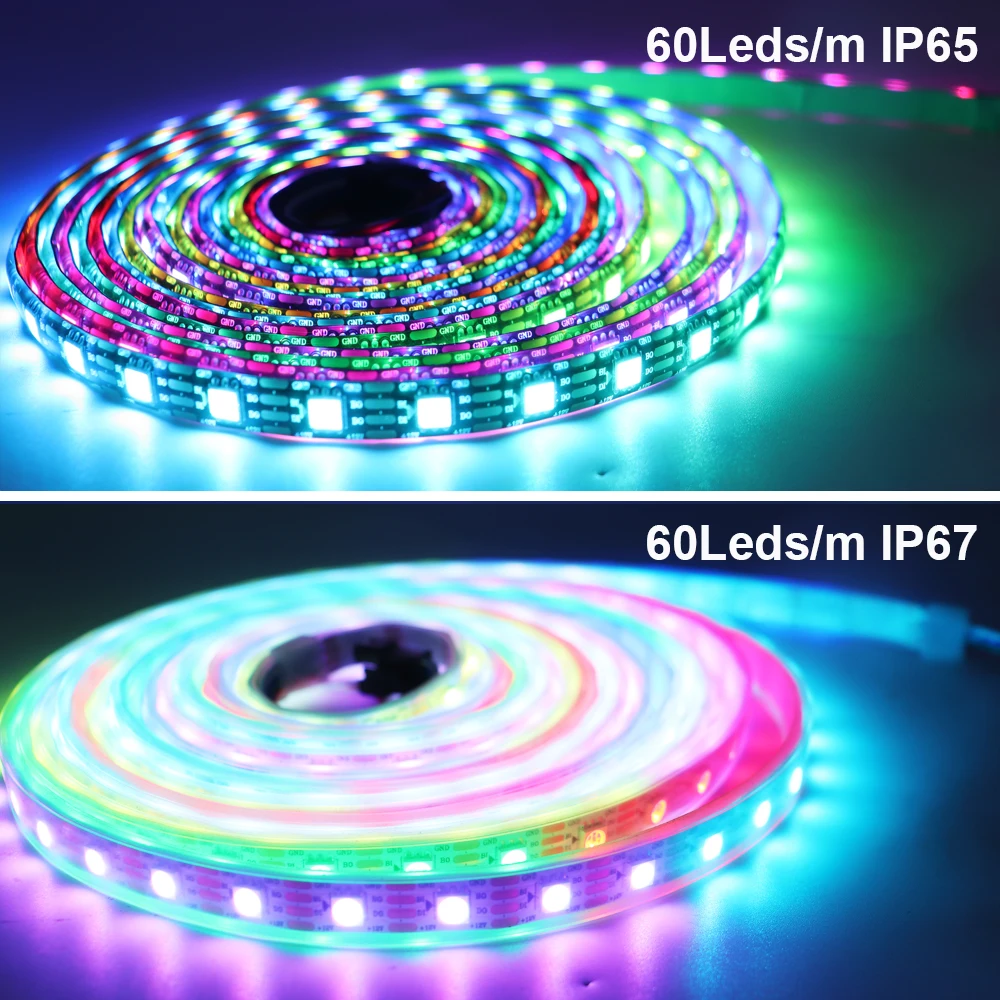

Protection rate:IP30/ IP65 /IP67
Colors:Full color RGB, dream color changing;
Cuttable:every LED is cuttable;
Package:in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)
Working temperature:-40 ~ 70 °C
Storage temperature:-50 ~ 80 °C
Source life:50,000 hours
Connector:4PIN Connector terminal pair
(Red: 12V power , green: Date line, Blue: standby date line,Black: GND)

Main Feature:

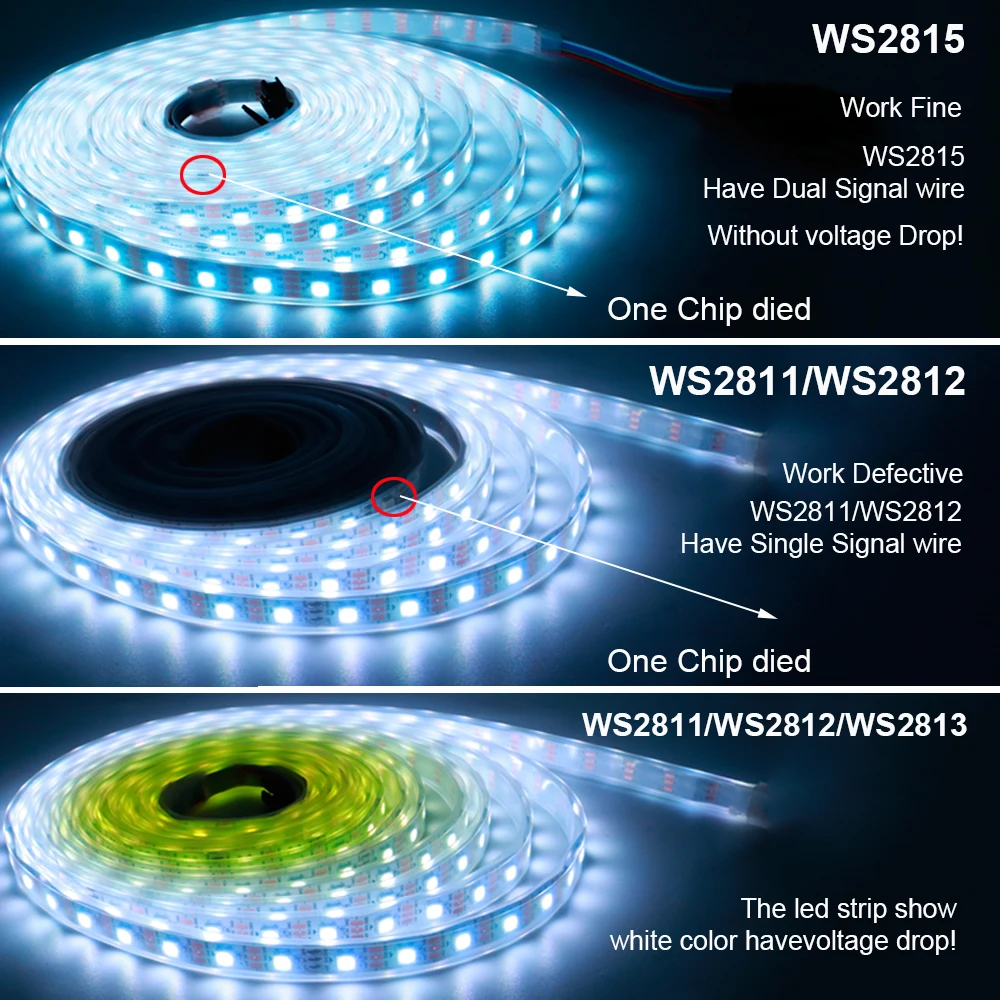

(1)One pixel damaged will not affect the other LEDs working.
(2)The power protection,if +12V and GND reverse polarity,the LED will not be burned.
(3) Dual signal wires version, signal can jump to transfer.
(4)The original electronic devices integrated,it does not cause virtual welding in the installation process.

1, all the electronic components are integrated in a 5050 lamp beads, it does not require any other peripheral auxiliary electronic components to form a complete external control pixels. While reducing the product at the time of installation inverted Weld, caused by poor.
2, serial cascade interface, dual-line signal transmission, to achieve the functions of HTTP, which under a single pixel without causing damage to its lower pixel normal lighting, silk ho does not affect the overall results.
3, intelligent reverse polarity protection, product installation access 5V power supply in case of reverse, will not cause damage to the lamp beads.
4, built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
6, the transmission distance between any two points in less than 5 meters without any additional signal amplification circuit.
7, when a refresh rate of 30 frames / sec, the number of cascades of not less than 1024 points.
8, the data transmission speed of up to 800Kbps. Light color consistency, cost-effective.

LED WS2815 Symphony Light Strip Function Description:
Happy control a single lamp, water, windows, rear meteor, chasing, pattern change animation, video, text, and so on. Use of the lamp, in which a pixel bad, does not affect the normal operation of other lights so as not to affect the overall results. Any color can show, random combinations into any pattern, in particular made light of the screen to use. No separate address to write to the lamp can be achieved HTTP, installation easier. Meanwhile lamp beads which also integrates a capacitive resistance, so that electronic components do not need to be on board the auxiliary light bar, thus increasing the stability of the product.

LED WS2815 Strip Use For :
The product rich colors and bright light, high visibility, more visually appealing. Is widely used in the corridor wall, indoor decoration, product model decorative lighting, decorative lighting consoles, speakers decorative lighting, entertainment, wine cooler bar backlight, smallpox backlight, LED light boxes, LED luminous signs, aquarium supplies, car decoration etc., it is to replace the traditional neon signs, fluorescent lamps and a new generation of lighting.
