Zwayn литий ионный аккумулятор 100AH 200AH 48V SPW 48200 литиевая батарея для хранения энергии солнечная
- Категория: >>>
- Поставщик: Dongguan ZWAYN New Energy Co. LtdDongguan Ltd
Сохранить в закладки 1601164610064:
Описание и отзывы
Характеристики
Products Description

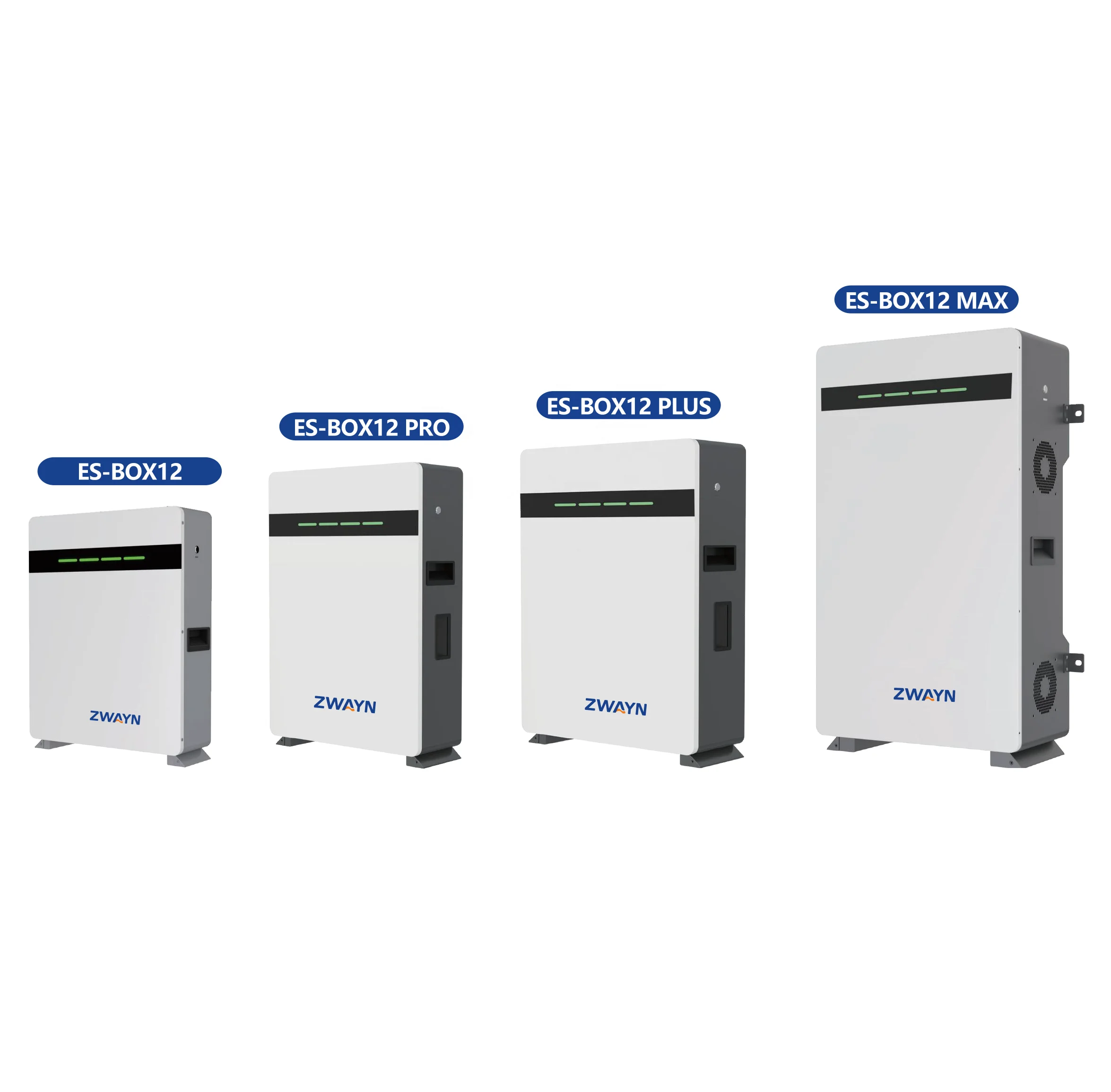

Model | ES-BOX12 | ES-BOX12 PRO | ES-BOX12 PLUS | ES-BOX12 MAX | |||
Product Specificaton | 51.2V 100Ah | 51.2V 150Ah | 51.2V 200Ah | 51.2V 280Ah | |||
Dimension (mm) | 480*600*150 | 480*650*180 | 480*650*225 | 490*840*242 | |||
Weight (KG) | 47 KG | 80 KG | 93 KG | 130 KG | |||
Nominal Energy @25℃ | 5 KWH | 7.5 KWH | 10 KWH | 130 KWH | |||
Inverter | DEYE, Luxpower, Megarevo, SMA, Growatt, Solax, Solis,Sungrow, Sofar, Voltronic, Goodwe, Must off-grid or hybrid inverter etc. | DEYE, Luxpower, Megarevo, SMA, Growatt, Solax, Solis,Sungrow, Sofar, Voltronic, Goodwe, Must off-grid or hybrid inverter etc. | |||||
Battery Cell Type | Square / Cube / Prismatic / Prismary / Pouch 3.2V 100Ah 102Ah li-ion LiFePO4 Lithium iron phosphate battery | Square / Cube / Prismatic / Prismary / Pouch 3.2V 100Ah 102Ah li-ion LiFePO4 Lithium iron phosphate battery | |||||
Configuration (*S*P) | 16S1P | 16S1P | |||||
DC Resistance | ≤10mΩ | ≤10mΩ | |||||
Full Charged Voltage | 58.4V | 58.4V | |||||
Discharge Cut-off Voltage | 40V | 40V | |||||
Operate Temperature Range | Charge: 0˚C~55˚C; Discharge: -20˚C~60˚C; Storage: -20˚C~45˚C | Charge: 0˚C~55˚C; Discharge: -20˚C~60˚C; Storage: -20˚C~45˚C | |||||
Humidity (non-condensing) | Max. 95% | Max. 95% | |||||
Display | LED | LED | |||||
Communication Interface | RS485/ RS232 / CAN | RS485/ RS232 / CAN | |||||
Waterproof | IP65 | IP65 | |||||
Cycle life | About 6000 times -8000 times | About 6000 times -8000 times | |||||
Service Life | 10-15 years | 10-15 years | |||||
Warranty | 5 years | 5 years | |||||
Company Profile
Dongguan Zwayn New Energy Co.,Ltd Is A Professional Energy Storage Battery Manufacturer
Zwayn is focusing on the production of Li-ion battery energy, designing and marketing of battery, solar generator, energy storage system, telecom backup battery, UPS, solar street light battery and customized battery pack services.
Our factory is already with ISO 9001-2015, ISO14001, BSCI etc. With more than 10 national and international patents, our products have already been with IEC, UL, CE, FCC, ROHS, UN38.3, MSDS, PSE, SAA, SASO, KC, 1.2 meter dropping test, shipping report etc.
Zwayn's long-term value creation model of developing, building, operating scale solar storage battery projects, unlocks and storage the power of the sun. We consistently contribute to the economic and social development of the communities where Zwayn operates. We demonstrate through our actions, conduct, and keen focus on climate & environment. Our steadfast and proven track record for bringing new solar power to emerging markets, growing cities, and communities urgently needed to access affordable and clean solar energy storage.
Support OEM & ODM
Professional R & D team: Structural Design / Electrical Design / Fluid Simulation Design / Professional Matching of BMS and PCS / Verification Test;
We have mechanical engineer, BMS developing engineer, Electrical engineer and application engineers, pre-sales and after-sales technical service engineer that can travel abroad for technical support. Our engineer team ensure we can provide the one-step energy storage solution from design to mass production.
Good Quality -- ISO9001:2019 Standard
37 production processes and 7 steps quality check to promise stable quality for you. Zwayn has very strictly quality control system includind incoming materials control, in-process quality control and outgoing quality control.
We do 100% full quality check and aging test to ensure product quality.
Our Advantages
Certifications
Exhibition
Customer Case Presentation
Cooperation Partner
Production & Payment & Delivery Process
11 years Professional battery transportation service
To solve the problems such as high transportation cost, unstable shipping schedule, or unable to transport battery products, we have professional and long cooperated battery transportation forwarders to solve international transportation problems for you.
L/C payment is supported
We have sufficient capital flow and fully support large customers to use L/C for payment to relieve financial pressure for customers.
FAQ
1.What is special about lithium batteries?
A: With high energy density, it has reached 460-600Wh/kg, which is about 6-7 times that of lead-acid batteries. Long service life, life span can reach more than 6 years. Light weight, the weight is about 1/5-6 of the lead-acid product under the same volume.
2. What is a lithium battery used for?
A: Lithium battery is used for power and energy storage. Like emergency power backup or UPS. Dependable electric and recreational vehicle power, golf cart, reliable and light-weight marine, solar power storage, solar house, small processing factory, surveillance or alarm systems in remote locations.
3.Are your batteries safe?
A: Our batteries are safe. All Zwayn batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS). The BMS protects the cells against excessively high or low voltages, high currents, short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken every precaution to mitigate these risks in all of our batteries.
4.How do I choose the correct lithium deep cycle battery for my application?
A: In most standard 12, 24, or 48 volt systems, the best choice of lithium battery is LiFePO4 (Lithium Iron Phosphate/ Pouch/Primary battery cell). The voltage of this type of battery is very similar to an AGM and will work great with readily available system components for your RV, boat, off-grid power system, solar house(TV, refrigerator, washing machine, air conditioner, water heater, microwave oven, induction cooker, dishwasher, printer, computer),Telecommunication Tower, hybrid & off-grid solar energy system applications.
5.Can it be series or parallel for use?
A: Yes sir, it can support max. 15 in parallel connection for use, Max 150kwh storage box.
6.Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is
compatible?
compatible?
A:Yes sir, our battery pack can compatible with most brand of inverter on the market, such as Deye, MUST, SMA, Growatt, Solax, Solis, Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. Contact us and let me tell you more.
Похожие товары

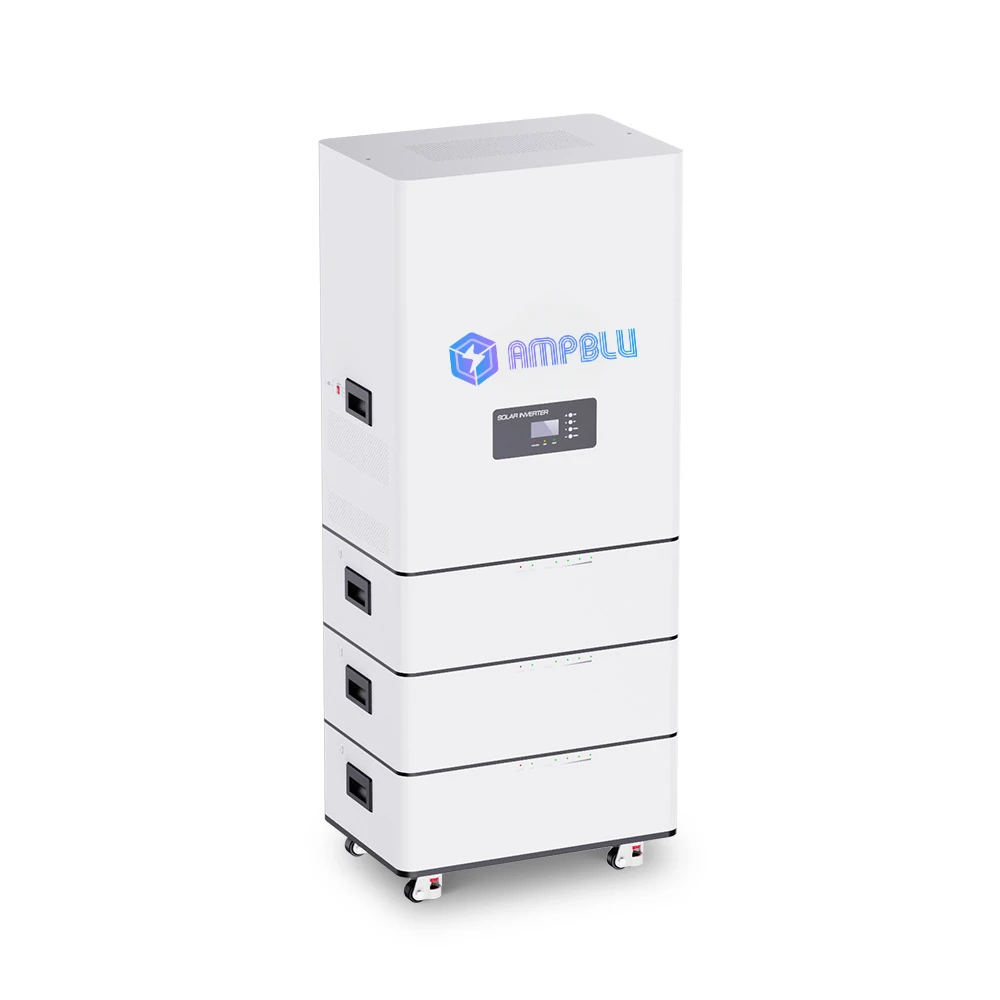

Литий-ионная солнечная батарея с переключателем хранения энергии для гибридной системы солнечной
361 888,80-395 826,48 ₽

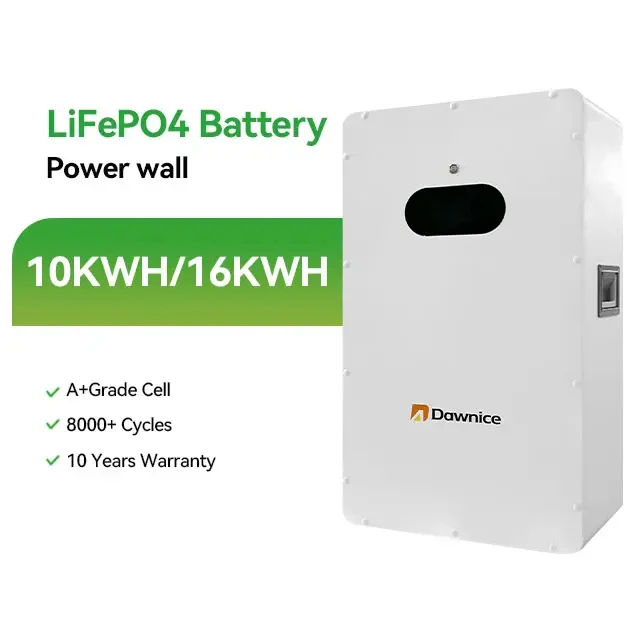

Штабелируемый аккумулятор 51 2 В 48V200ah 5kwh 10kwh 100ah для хранения энергии солнечной батареи LiFePO4 с смарт-BMS литиевая железная батарея
