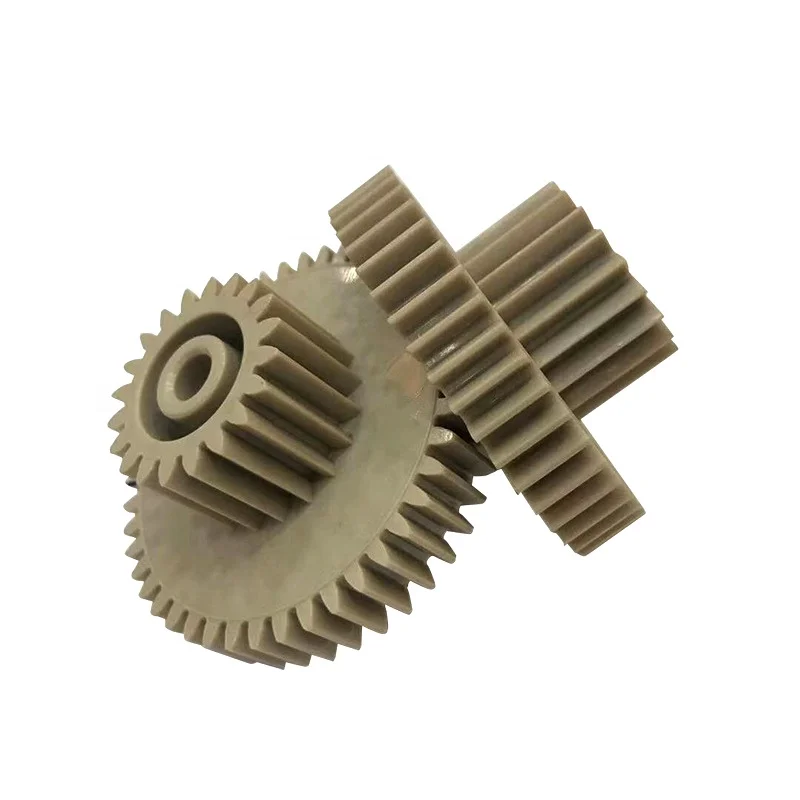

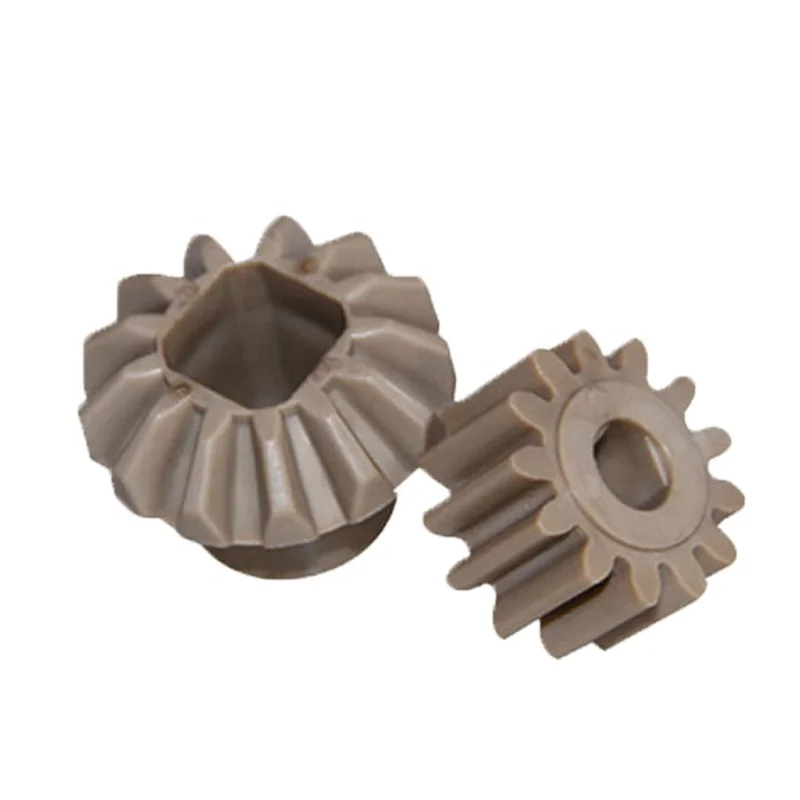

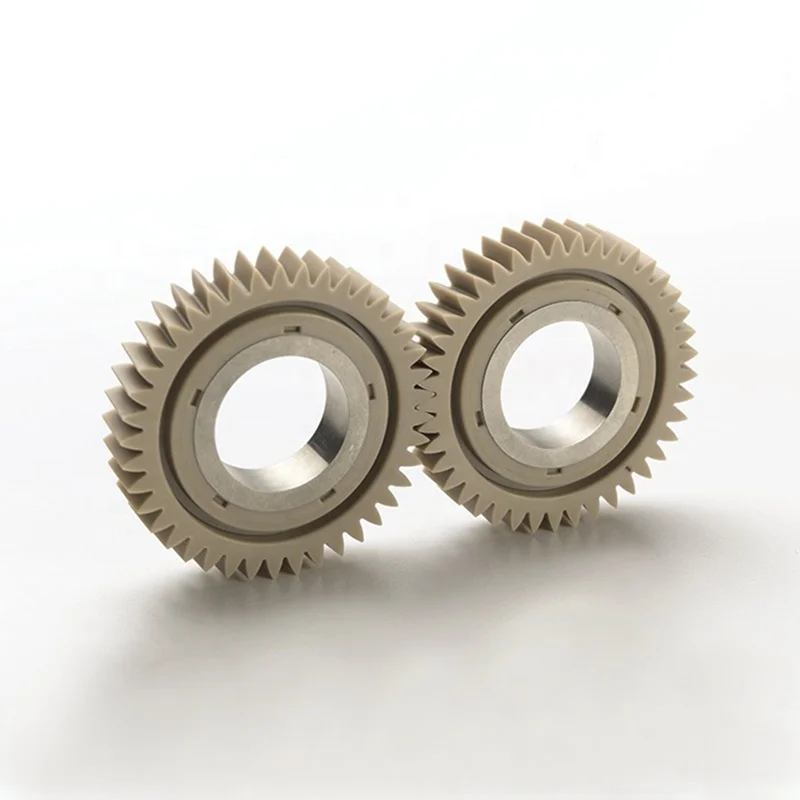

OEM Manufacturer Custom Engineering parts auto components PEEK PPS GF GF30 Injection Molding Pinion plastic Gears as 3D Drawing
PEEK Injection Molding Applications
With high-performance features, PEEK is one of the most popular plastic injection molding materials today because of its excellent all-around properties, which may allow it to replace traditional materials like metals and ceramics in many applications.Presently, its most common applications are in the aerospace, automotive, electrical, electronic, and medical device industries.
PEEK injection molding, compared with other plastic injection moldings, needs to provide higher injection pressure, injection speed, and stable heating. In addition, you must pay attention to the mold design, so it’s best to find a professional special plastic injection factory to produce what you want. It would be better if all of these were effectively controlled from the
beginning of the mold design, which can avoid unnecessary risks in production.
beginning of the mold design, which can avoid unnecessary risks in production.
Our experts have compiled much information about PEEK to help you decide whether it is suitable material for your project.
Product Description
PEEK（Polyetheretherketone）is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion and self-lubricating properties.
1. Excellent dimensional stability
2. Low coefficient of linear thermal expansion
3. Good mechanical properties at elevated temperatures
4. Good resistant to hot water and steam
5. Bearing grade PEEK has excellent wear characteristics
6. UL 94 V-0 flammability rating (0.059" thickness)
7. Very low smoke and toxic gas emissions when exposed to flame
7. Very low smoke and toxic gas emissions when exposed to flame
8. Outstanding mechanical properties even at high temperatures
9.Optimized balance of stiffness, tensile strength and impact
strength.
9.Optimized balance of stiffness, tensile strength and impact
strength.
10.Continuous operating temperature up to + 260°C and briefly even up to +300°C.
GuangZhou Engineering Plastics Industries (Group) Company, has studied and applied this material in many industries for many years. Due to very good processing properties, it can be filled with carbon fiber, Fiberglass and MoS2 etc. In order to improve lubrication performance and mechanical strength further.
1.PEEK-1000
This general purpose grade is unreinforced and offers the highest elongation and toughness of all PEEK grades. The newly available black PEEK 1000 is ideal for instrument components where aesthetics are important, as well as for seal components where ductility and inertness are important.
This general purpose grade is unreinforced and offers the highest elongation and toughness of all PEEK grades. The newly available black PEEK 1000 is ideal for instrument components where aesthetics are important, as well as for seal components where ductility and inertness are important.
2.PEEK-HPV
Carbon fiber reinforced with graphite and PTFE lubricants,our newest grade of PEEK offers the lowest coefficient of friction and the best machinability for all PEEK grades. Anexcellent combination of low friction,low wear,high LPV,low mating part wear and easy machining,make it ideal for aggressive service bearings.
Carbon fiber reinforced with graphite and PTFE lubricants,our newest grade of PEEK offers the lowest coefficient of friction and the best machinability for all PEEK grades. Anexcellent combination of low friction,low wear,high LPV,low mating part wear and easy machining,make it ideal for aggressive service bearings.
3.PEEK-GF30
The addition of glass fibers significantly reduces the expansion rate and increases the flexural modulus of PEEK. This grade is ideal for structural applications that require improved strength, stiffness or stability,especially at temperatures above 300°F (150°C).
The addition of glass fibers significantly reduces the expansion rate and increases the flexural modulus of PEEK. This grade is ideal for structural applications that require improved strength, stiffness or stability,especially at temperatures above 300°F (150°C).
4. PEEK-CA30
The addition of carbon fibers enhances the compressive strength and stffness of PEEK, and dramatically lowers its expansion rate. It offers designers optimum wear resistance and load carrying capability in a PEEK-based product. This grade provides more thermal conductivity than unreinforced PEEK - increasing heat dissipation from bearing surfaces improving bearing life and capability.
The addition of carbon fibers enhances the compressive strength and stffness of PEEK, and dramatically lowers its expansion rate. It offers designers optimum wear resistance and load carrying capability in a PEEK-based product. This grade provides more thermal conductivity than unreinforced PEEK - increasing heat dissipation from bearing surfaces improving bearing life and capability.
NO. | Item no. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 |
1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 |
2 | Water absorption(23℃ in air) | % | 0.20 | 0.14 | 0.14 |
3 | Tensile strength | MPa | 110 | 130 | 90 |
4 | Tensile strain at break | % | 20 | 5 | 5 |
5 | Compressive stress (at 2% nominal strain) | MPa | 57 | 97 | 81 |
6 | Charov impact strength(unnotched) | KJ/m2 | No break | 35 | 35 |
7 | Charov impact strength(notched) | KJ/m2 | 3.5 | 4 | 4 |
8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6300 |
9 | Ball indentation hardness | N/mm2 | 230 | 325 | 270 |
10 | Rockwell hardness | -- | M105 | M102 | M99 |
Color：Natural、Black、Khaki and so on.
PEEK Sheet Size： 500X1000X(Thickness:1-500mm）、620X1000X(Thickness:1-500mm) PEEK Rod Size： Φ6-Φ200X3000mm
PEEK Tube Size： (OD)30-600X (ID)20-500X length(500-3000mm)
GET INTOUCH FOR FURTHER INFORMATION AND
ADVICE ON PEEK PRODUCTS AND SERVICES
Our Factory
Certification
Companies strictly enforce the ISO9001(2008)international quality certification system, the product quality conforms to the eu RoHS standard.
Application Area
1. Seals, Gears, Fittings.
2. Electrical components.
3. Medical instrument parts.
4. Aerospace parts, Valve Seats.
5. Semiconductor machinery components.
6. Food processing machinery components.
7. Bearings and bushings (bearing grade PEEK).
8. Pump and valve components, Wafer Carriers, Piston Rings.
2. Electrical components.
3. Medical instrument parts.
4. Aerospace parts, Valve Seats.
5. Semiconductor machinery components.
6. Food processing machinery components.
7. Bearings and bushings (bearing grade PEEK).
8. Pump and valve components, Wafer Carriers, Piston Rings.
Our Exhibition
Cooperative Case
Cooperate with many well-known companies
FAQ
Q1. How Fast Can I Get My Parts?
A1. We can fulfill orders quickly, but lead times depend on a few factors, such as the manufacturing process, order quantity, and part complexity. CNC machined parts can take as little as five days, 3D printed parts can take as little as three days, while moldings
made via rapid tooling can take as little as 7 days.
made via rapid tooling can take as little as 7 days.
Q2. What Is The Accuracy Of The Products Processed By The Drawings?
A2. Different equipment has different accuracy, generally between 0.05-0.1 mm.
Q3. What Craftsmanship Do You Have For Frocessing Accessories?
A3.According to different products, different processes are used, such as machining, extrusion, injection molding, etc.
Q4. What Areyour Processing Equipment?
A4. CNC machining center, CNC lathe, milling machine, engraving machine, injection molding machine,extruder, molding machine.
Q5. Can You Help Assembling The Product After It Is Made?
A5. It's okay .
Q6. What Certifications Or Qualifications Does Your Company Have?
A6. Our company’s certificates are:CE, ISO, ROHS, product patent certificates, etc.
Our manufacture parts to a high standard, no matter the project or the customer.
Q7. Can Injection Products Be Surface Treated? What Are The Surface Treatments?
A7. It is ok. Surface treatment: spray paint, silk screen,electroplating, etc.
Q8.I Want To Protect My IP. Are My Designs Secure?
A8.We values privacy and security with the utmost seriousness and will happily sign a non-disclosure agreement (NDA) at your request,giving you peace of mind about your intellectual property.Похожие товары
Индивидуальная обработка и производство крупных литьевых форм для литья под давлением

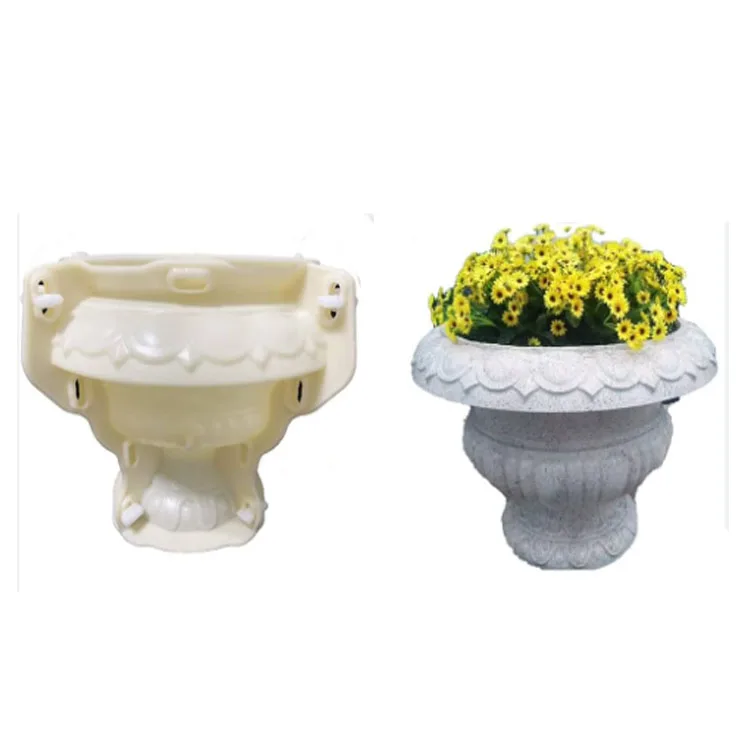

Большой восьмиугольный цветочный горшок под заказ форма для литья давлением шестиугольный бетонный пластиковые цементные формы садоводства
