10000 шт. в наличии высокоскоростные твердосплавные торцевые фрезы с покрытием DlC
1,05-1,26 $
Прямая Продажа с завода фреза для резки карбида
- Категория: >>>
- Поставщик: Shenzhen Phipps Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601164999931:
Описание и отзывы
Характеристики
Product Paramenters

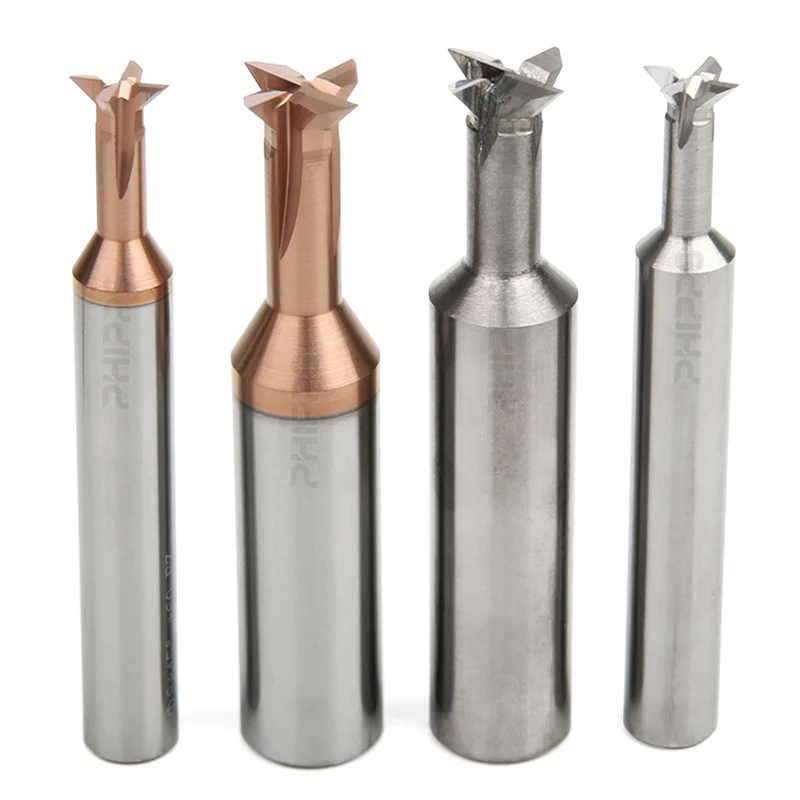

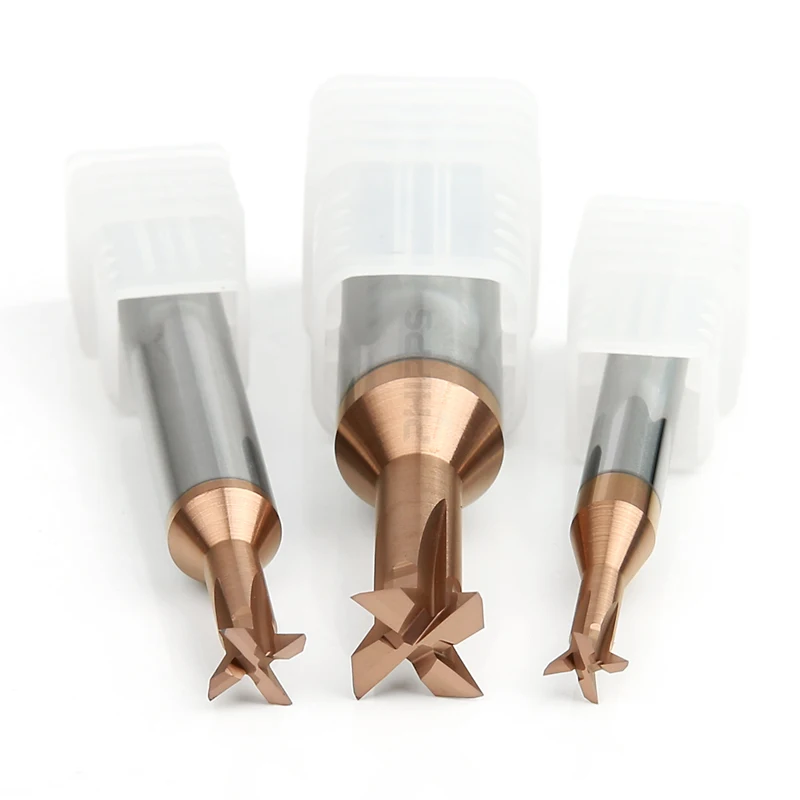

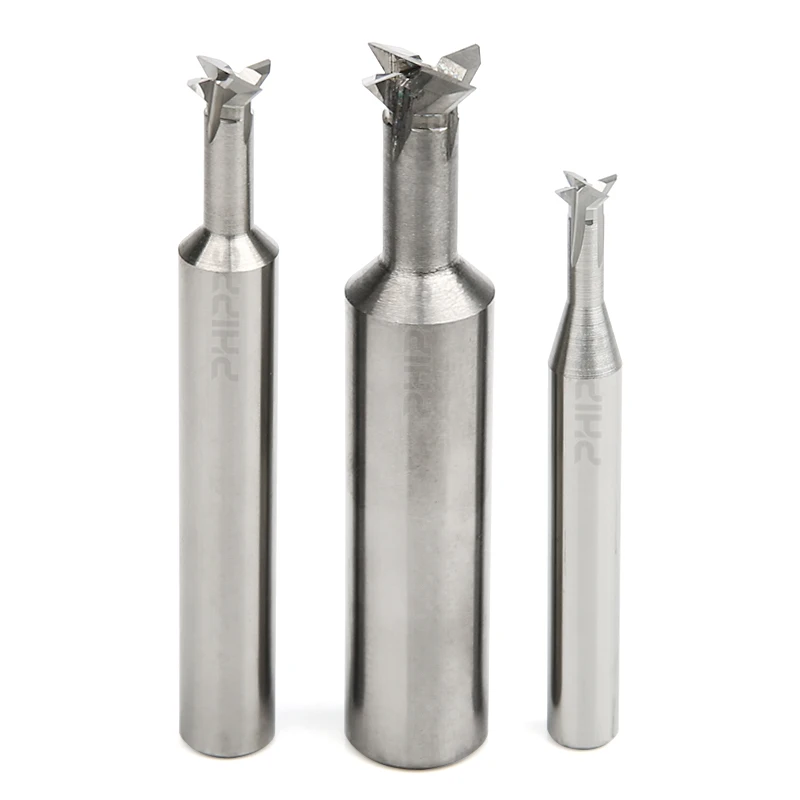

PHIPPS HRC55 4F carbide dovetail milling cutter 4 flute dovetail groove end mill cutter high speed end mills for aluminum
Product Name | high speed 4 flute dovetail groove end mills for aluminum | |
Material | Tungsten carbide | |
Flutes | 4 Flutes | |
Coating | TiSiN, uncoated or customized | |
Precision | High precision | |
Hardness | HRC55 | |
Machine Type | CNC Milling Machine, engraving, precision engraving machine | |
Suitable for | Steel, Cast iron, Alloy steel, Copper, Aluminium etc | |
Specification | D8*45*d2*D10*60L*4T | |
Style | HRC55 Dovetail milling cutter | |
All the specs can be customized | ||
1. Super Raw Material
All cutting materials are from international famous brands, high hardness, long tool life.
HRC | Grade | Helix Angle | Co Content (%) | Grain Size （UM） | Bending Strength (N/mm2) | Application |
HRC45 | YG10X | 35° | 10% | 0.8 | 2800 | General steel |
HRC55 | ZK30UF | 35° | 10% | 0.6 | 3000 | General steel, Cast iron |
HRC60 | ZK40SF | 35°/45° | 12% | 0.4-0.5 | ≥3800 | High hard material, Mould steel, Cast iron, etc |
HRC65 | GU25UF | 45° | 12% | 0.4 | 4000 | Titanium alloy, high temperature alloy matertial, etc |
2. Super Coating
Good coating can improve tools life and production effiency, and we provide professional suggestions according to your cutting requirements.
Coating | Hardness(HV) | Thickness (UM) | Firction Coefficient | Oxidation Temp.(°C) | Color |
AlTiN | 3500 | 2.5-3 | 0.3 | 850°C | Black |
TiAlN | 2800 | 2.5-3 | 0.3 | 900°C | Violet |
TiSiN | 3600 | 3 | 0.45 | 1100°C | Copper |
AlTiSiN | 4000 | 4 | 0.4 | 1200°C | Blue |
TiN | 2500 | 2.5-3 | 0.5 | 600°C | Gold |
Products Description
Cutting Diameter | Angle | Avoidance diameter | Avoidance length | Cutting length | Shank diameter | Overall length | Flutes |
2 | 45° | 1 | 3 | 0.5 | 4 | 50 | 4 |
3 | 45° | 1.5 | 5 | 0.7 | 3 | 50 | 4 |
4 | 45° | 2 | 6 | 1 | 4 | 50 | 4 |
5 | 45° | 2.5 | 8 | 1.2 | 5 | 50 | 4 |
6 | 45° | 3 | 8 | 1.5 | 6 | 50 | 4 |
7 | 45° | 3.5 | 10 | 1.7 | 7 | 60 | 4 |
8 | 45° | 4 | 10 | 2 | 8 | 60 | 4 |
9 | 45° | 4.5 | 15 | 2.2 | 9 | 60 | 4 |
10 | 45° | 5 | 15 | 2.5 | 10 | 60 | 4 |
11 | 45° | 5.5 | 15 | 2.7 | 11 | 60 | 4 |
12 | 45° | 6 | 15 | 3 | 12 | 60 | 4 |
14 | 45° | 7 | 20 | 3.5 | 14 | 65 | 4 |
16 | 45° | 8 | 20 | 4 | 16 | 65 | 4 |
20 | 45° | 10 | 25 | 5 | 20 | 65 | 4 |
2 | 60° | 1 | 3 | 0.9 | 4 | 50 | 4 |
3 | 60° | 1.5 | 5 | 1.4 | 3 | 50 | 4 |
4 | 60° | 2 | 6 | 1.7 | 4 | 50 | 4 |
5 | 60° | 2.5 | 8 | 2.1 | 5 | 50 | 4 |
6 | 60° | 3 | 8 | 2.6 | 6 | 50 | 4 |
7 | 60° | 3.5 | 10 | 3 | 7 | 60 | 4 |
8 | 60° | 4 | 10 | 3.4 | 8 | 60 | 4 |
9 | 60° | 4.5 | 15 | 3.8 | 9 | 60 | 4 |
10 | 60° | 5 | 15 | 4.3 | 10 | 60 | 4 |
11 | 60° | 5.5 | 15 | 4.7 | 11 | 60 | 4 |
12 | 60° | 6 | 15 | 5.2 | 12 | 60 | 4 |
14 | 60° | 7 | 20 | 6.1 | 14 | 65 | 4 |
16 | 60° | 8 | 20 | 6.9 | 16 | 65 | 4 |
20 | 60° | 10 | 25 | 8.6 | 20 | 65 | 4 |
2 | 75° | 1 | 3 | 2 | 4 | 50 | 4 |
3 | 75° | 1.5 | 5 | 2.7 | 3 | 50 | 4 |
4 | 75° | 2 | 6 | 3.7 | 4 | 50 | 4 |
5 | 75° | 2.5 | 8 | 4.6 | 5 | 50 | 4 |
6 | 75° | 3 | 8 | 5.5 | 6 | 50 | 4 |
7 | 75° | 3.5 | 10 | 6.5 | 7 | 60 | 4 |
8 | 75° | 4 | 10 | 7.4 | 8 | 60 | 4 |
9 | 75° | 4.5 | 15 | 8.3 | 9 | 60 | 4 |
10 | 75° | 5 | 15 | 9.3 | 10 | 60 | 4 |
11 | 75° | 5.5 | 15 | 10.2 | 11 | 60 | 4 |
12 | 75° | 6 | 15 | 11.1 | 12 | 60 | 4 |
14 | 75° | 7 | 20 | 13 | 14 | 65 | 4 |
16 | 75° | 8 | 20 | 14.9 | 16 | 65 | 4 |
20 | 75° | 10 | 25 | 18.6 | 20 | 65 | 4 |
Remarks: All the specs. can be customized.
Title goes here.
Shenzhen Phipps Technology Co.,Ltd. is a professional manufacturer of carbide engraving tools, focusing on high precision tungsten steel inserts, milling cutters, drill bits, engraving tools and various non-standard tools. For R&D, production, sales and technical services, the company has introduced 20 world-class CNC grinders, high-end testing equipment and manufacturing from Germany, Australia and Japan. THe tool produced have the advantages of high precision, long life and high efficiency.
Package & Shipment
FAQ
1) Are you manufacturer? Do you have factory?
We are professional manufacturer, have more than 12 years experience in this field.
2) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
3) Is free shipping possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.
4) How long is your delivery time?
Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock, it is according to quantity.
5) How can I pay?
we accept paypal as the sample. if large amount need pay by western union or TT.
6) Whats your MOQ?
We welcome your sample order to test our quality, we believe that you will find that we are the right supplier you are looking for. So no MOQ.
