Products Description
Product Name | Hydraulic Disc Brake AY04(L) |
Model NO | AY04 |
Use | Ebike , BMX ,MTB , folding bike ,fat bike , Escooter |
Brake system | Open system, Double piston |
Braking type | Hydraulic disc brake + hall sensor inductive braking |
Component parts | brake line , caliper ,handle lever |
Optional component parts | Rotor& bracket adaptor,with screws |

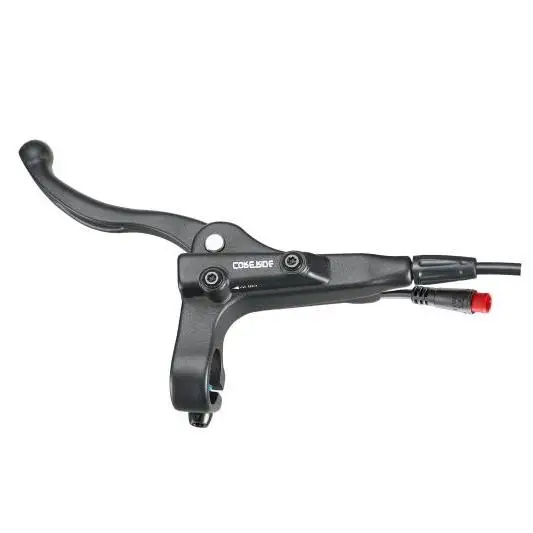

Handle lever | Forged Aluminum Body ; 2.5 finger |

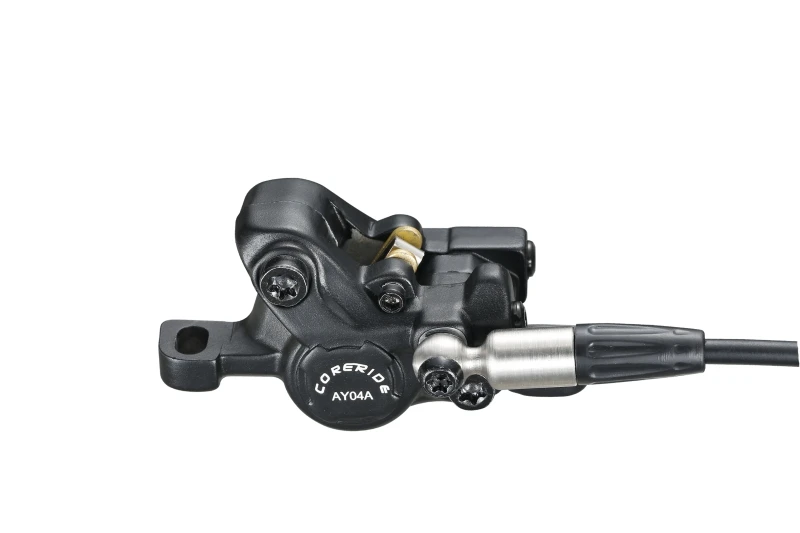

Caliper | Forged Aluminum Body ; Two Sides Braking Force |
Brake pad | High Performance metal cermet composite material |
Installation | Right pillar to install for caliper |

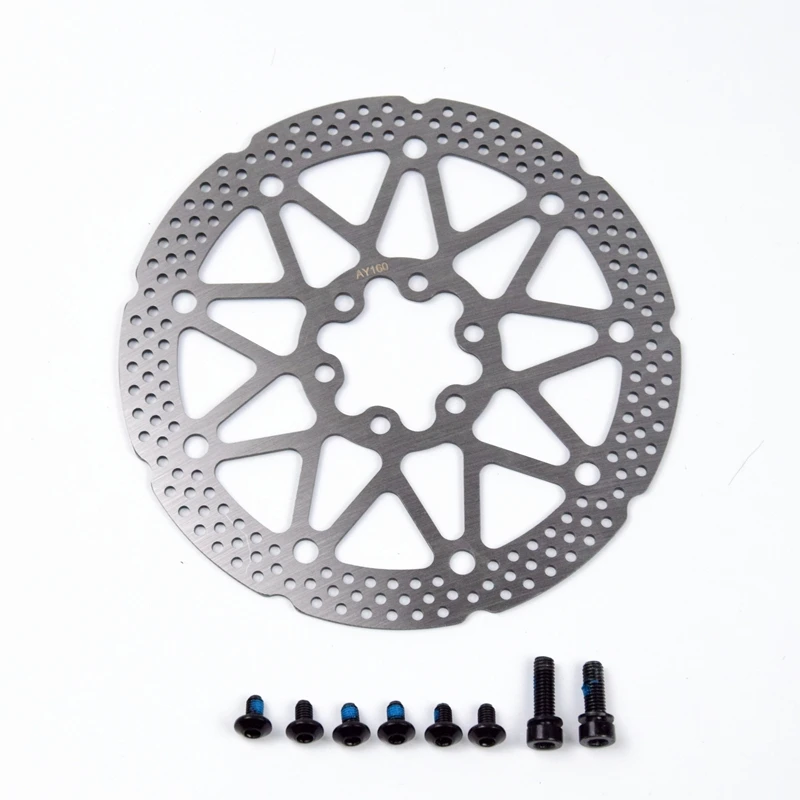

Rotor Diameter | 140/160/180/203mm |
Oil tube: | can do customized integrated and split |
Oil tube’s connection | Free angle oil tube joint set can be applied to different frame |
lever's brake line length | oil tube line : customized electric power cut off brake line : customized |
Fluid | Non-corrosive Mineral Oil |
Color | Black/Grey/Red/Blue/Green/Gold |
Dimension | Caliper : 9x4x4 cm Handle lever : 17x 4.5x 8cm Tube line : TBD |
Net weight | Caliper : 0.2200 kg/pcs Lever:0.1350kg/pcs Tube line :TBD |
Package | Ploy bag+gift box |
Brand Name | CORERIDE |
Logo | accept customization |
Features:
Forged aluminium body. Forged handle lever(2.5 fingers)
Right pillar to install
Open system. Double piston
Bilateral hydraulic brake tightening disc rotor
High performance cermet brake pads. Easy to dismount
Free angle oil tube joint set can be applied to different frame
Non-corrosive mineral oil. It has good thermal expansion performance
Hydraulic brake fluid tube can do customized: integrated and split
Right pillar to install
Weight: Front wheel 360g
Rear wheel 380g (excluding disc, adapter and mounting screw)
Standard disc brake rotor selection: F ¢140, 160, 180, 203 ; R ¢140, 160, 180, 203
Surface treatment: Anodic black anodic red color, multi-color for option
components: one side brake (L or R) one caliper , one lever with oil pipe line , electric power cut off brake line,one disc rotor
custominzed: length for oil pipe line , length for power cut off brake line , selection size for disc rotor , caplier's oil pipe tube integrated and split , selection size for bracket adptor, 5 colors ,
caplier: with brake pads , bracket adptor , screws
lever: with oil pipe line ,power cut off brake line , screws
rotor: with screws .
Suit for : Ebike , Escooter, MTB , BMX ,Folding bike
Forged aluminium body. Forged handle lever(2.5 fingers)
Right pillar to install
Open system. Double piston
Bilateral hydraulic brake tightening disc rotor
High performance cermet brake pads. Easy to dismount
Free angle oil tube joint set can be applied to different frame
Non-corrosive mineral oil. It has good thermal expansion performance
Hydraulic brake fluid tube can do customized: integrated and split
Right pillar to install
Weight: Front wheel 360g
Rear wheel 380g (excluding disc, adapter and mounting screw)
Standard disc brake rotor selection: F ¢140, 160, 180, 203 ; R ¢140, 160, 180, 203
Surface treatment: Anodic black anodic red color, multi-color for option
components: one side brake (L or R) one caliper , one lever with oil pipe line , electric power cut off brake line,one disc rotor
custominzed: length for oil pipe line , length for power cut off brake line , selection size for disc rotor , caplier's oil pipe tube integrated and split , selection size for bracket adptor, 5 colors ,
caplier: with brake pads , bracket adptor , screws
lever: with oil pipe line ,power cut off brake line , screws
rotor: with screws .
Suit for : Ebike , Escooter, MTB , BMX ,Folding bike
AY04 , Hydraulic disc brake w/wo disc rotor
Suit for : Ebike , BMX ,MTB , folding bike ,fat bike , Escooter
5 Colors for selection : Black,Grey,Red,Blue,Green,Orange
one wheel brake included(Front or Rear):
with disc rotor : one caplier & one lever with oil pipe line , electric power cut off brake line & one disc rotor
without disc rotor : one caplier & one lever with oil pipe line , electric power cut off brake line
one set brake included(Front and Rear):
with disc rotor : two caplier & two levers with oil pipe lines, electric power cut off brake lines & two discs rotors
without disc rotor : two capliers & two levers with oil pipe lines , electric power cut off brake lines
Optional component parts :
Rotor& bracket adaptor
Suit for : Ebike , BMX ,MTB , folding bike ,fat bike , Escooter
5 Colors for selection : Black,Grey,Red,Blue,Green,Orange
one wheel brake included(Front or Rear):
with disc rotor : one caplier & one lever with oil pipe line , electric power cut off brake line & one disc rotor
without disc rotor : one caplier & one lever with oil pipe line , electric power cut off brake line
one set brake included(Front and Rear):
with disc rotor : two caplier & two levers with oil pipe lines, electric power cut off brake lines & two discs rotors
without disc rotor : two capliers & two levers with oil pipe lines , electric power cut off brake lines
Optional component parts :
Rotor& bracket adaptor
this version for one wheel brake included(Front or Rear), with disc rotor : one caplier & one lever with oil pipe line s, electric power cut off brake lines& one rotor
CORERIDE is Shenzhen AIQI private brand , AY04 Hydraulic disc brake , it's shenzhen AIQI opened private mold and already got appearance strcture patent protetion , patent certification as below , welcom OEM&ODM order with us .
