Product Description


High efficient 25 tons towing equipment trucks wrecker body for sales

We produce this 25 tons integrated wrecker tow truck body for our client to fit his own chassis, the tow truck wrecker body we provided includes: two of three-stage toolbox, three-stage lifting crane/boom, three-stage towing arm, two main 10-tons winches on the boom ( 15tons winch is optional), five set of forks and two set of fork holder, hydraulic system, Multi-way valves, and all necessary accessories, etc.

Boom: The boom is a 2-stage telescopic crane and it's made of high-strength steel;
Towing arm: The towing arm is 3-stage telescopic type, and it comes with a T arm. The towing arm mechanism it self can be customized to suit a variety of applications.
Winch: Two 10-ton or 15-ton planetary winches are fixed on the head of the boom. Each winch comes with 45 meters cable.
The Rear Outriggers: Outriggers serve the purpose of helping to cover a greater area, while increasing lift capacity that is achievable by the tow truck. these metal "legs" are telescopic and used to help with stabilization during heavy duty recovery jobs.
Light Bar:The inclusion of a light bar on a heavy duty wrecker helps create additional visibility for jobs. It install three kinds of lights: red, yellow, white.

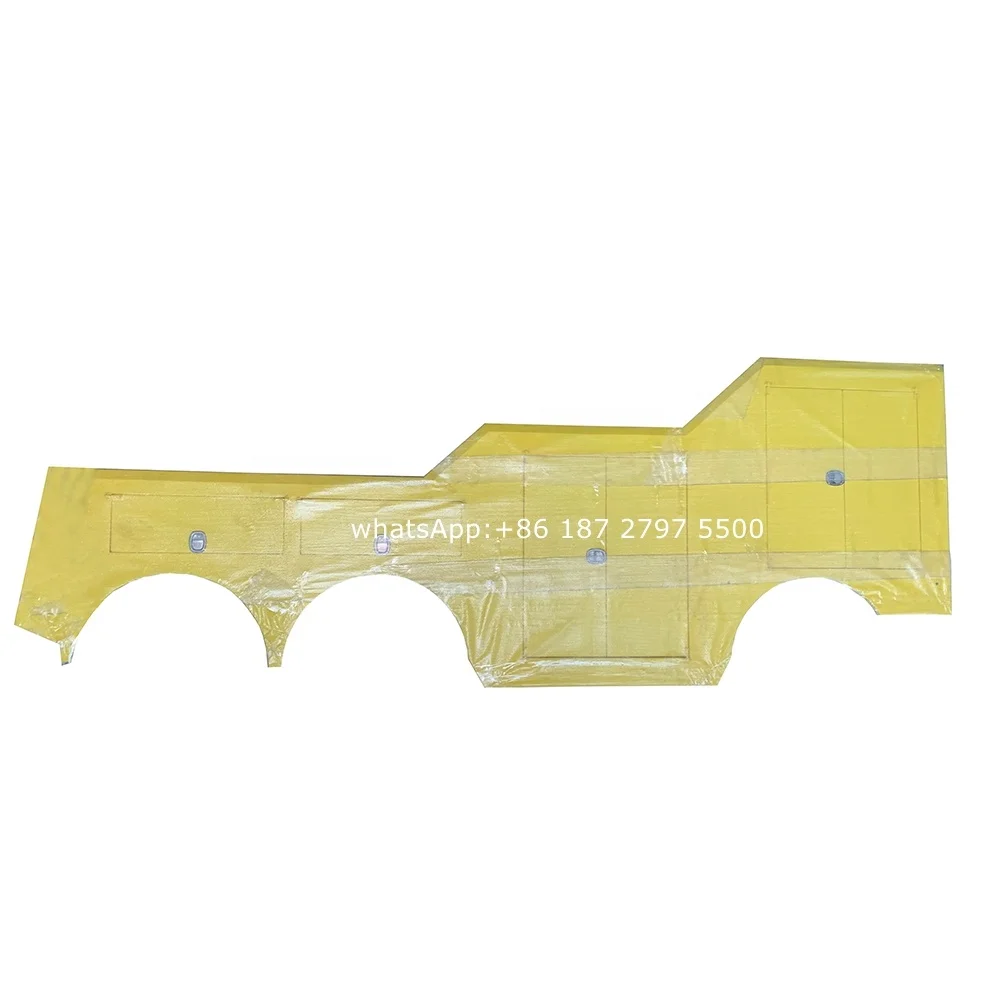

Toolbox:The toolbox is made of carbon steel or aluminum alloy. You can choose a side door or a roller shutter door, it's equipped with stainless steel hinges and position lights and tail lights.

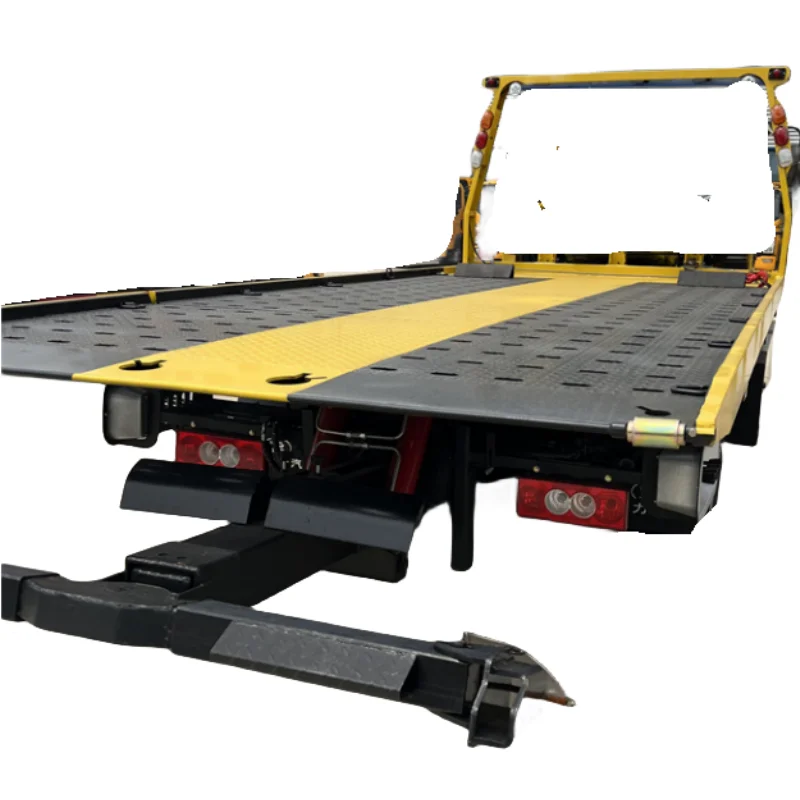

Wheel-Lift:The metal wheel-lift fits under the wheels on either the front or rear of the accident car. Then the accident car can be lifted off the ground and can be towed.
Forks and Receivers: These smaller towing accessories are crucial to ensuring job go smoothly. the type of fork and receiver needed is largely dependent on your wrecker, and the nature of the job you are pursuing. Customized forks and receivers can be created to perfectly fit your needs.

If you're interested in building your own heavy duty custom wrecker, get in touch with us: + 86 187 2797 5500



Product Photo

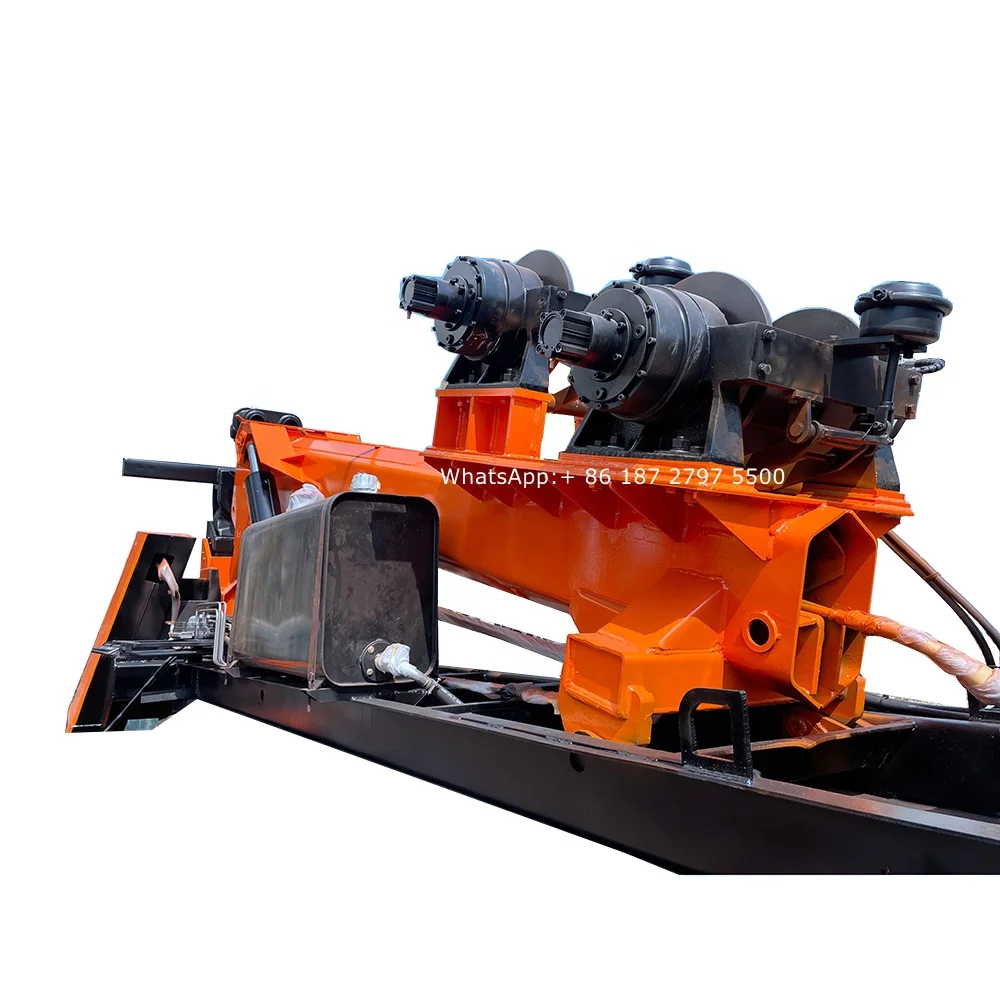

Two 10 tons winches or 15 tons winches are fixed on the boom.

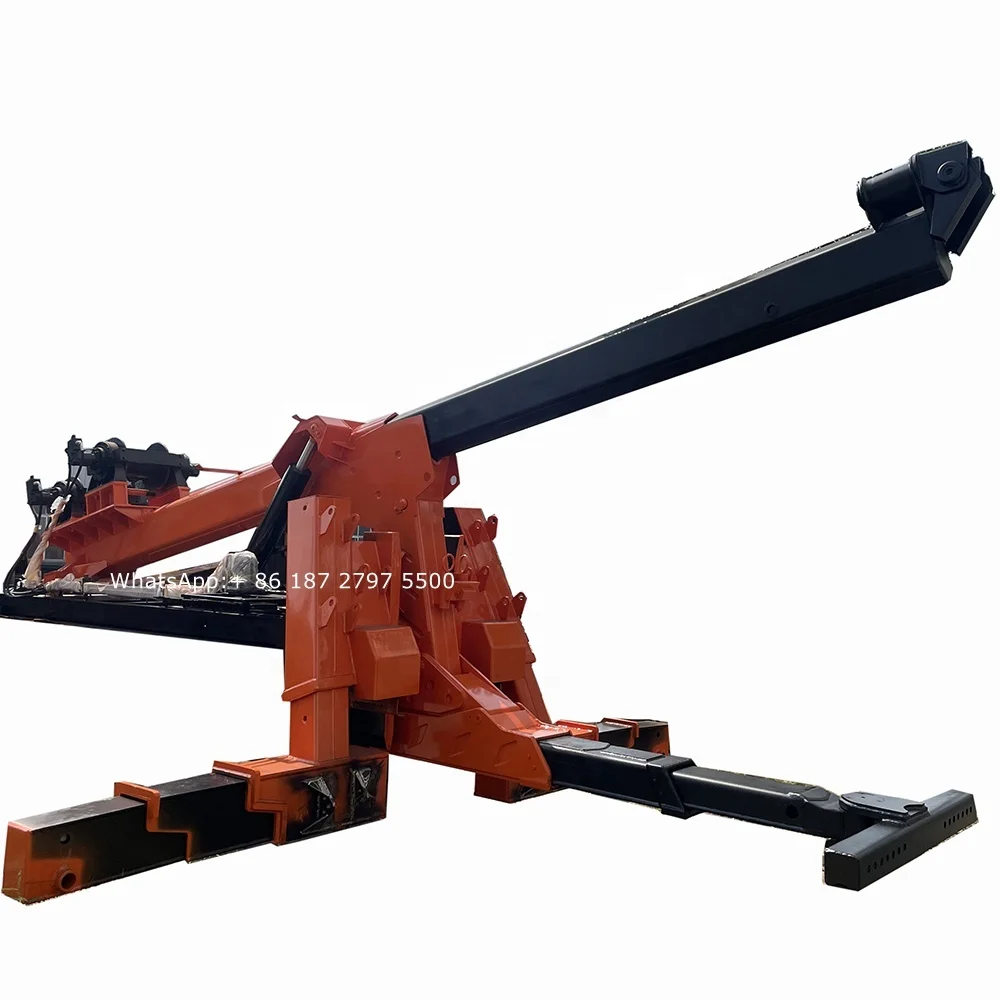

the boom of tow truck can be extend to 9 meters.

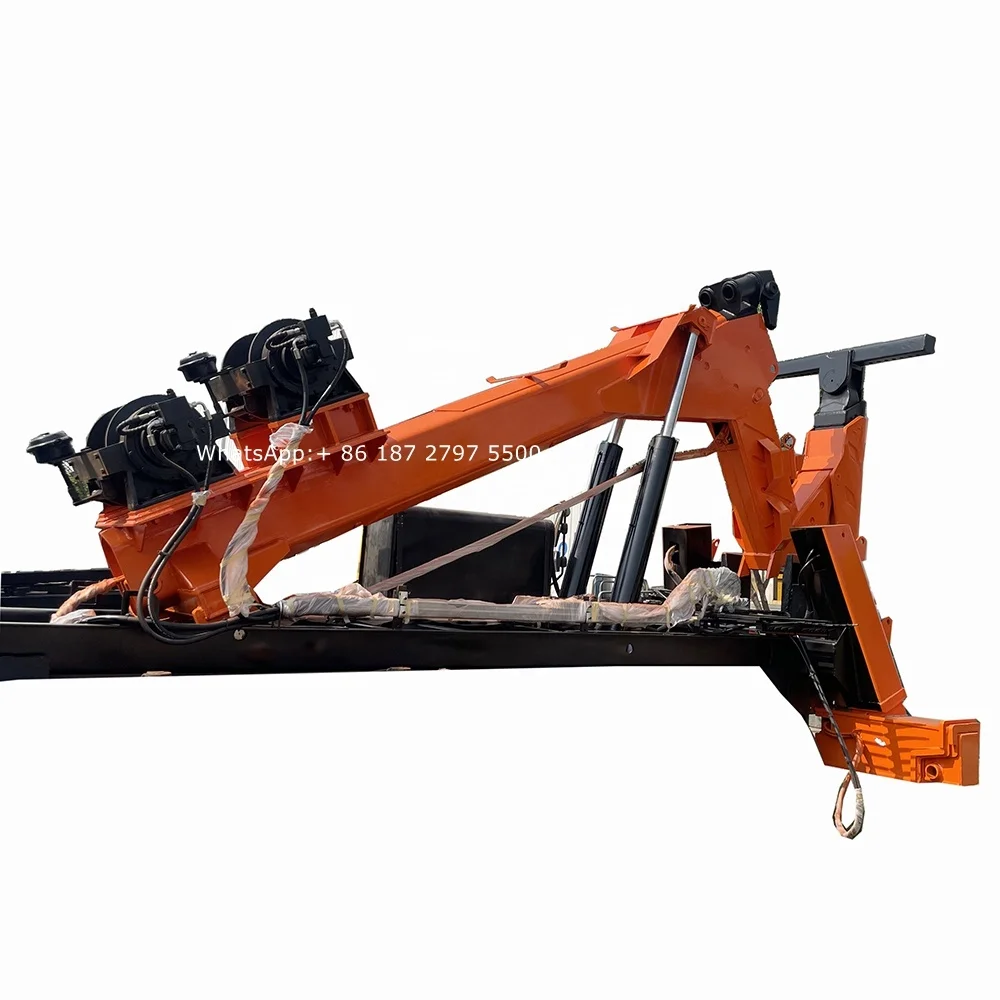

The boom of the tow truck body is 2-stage and it can bear 25 tons capacity.

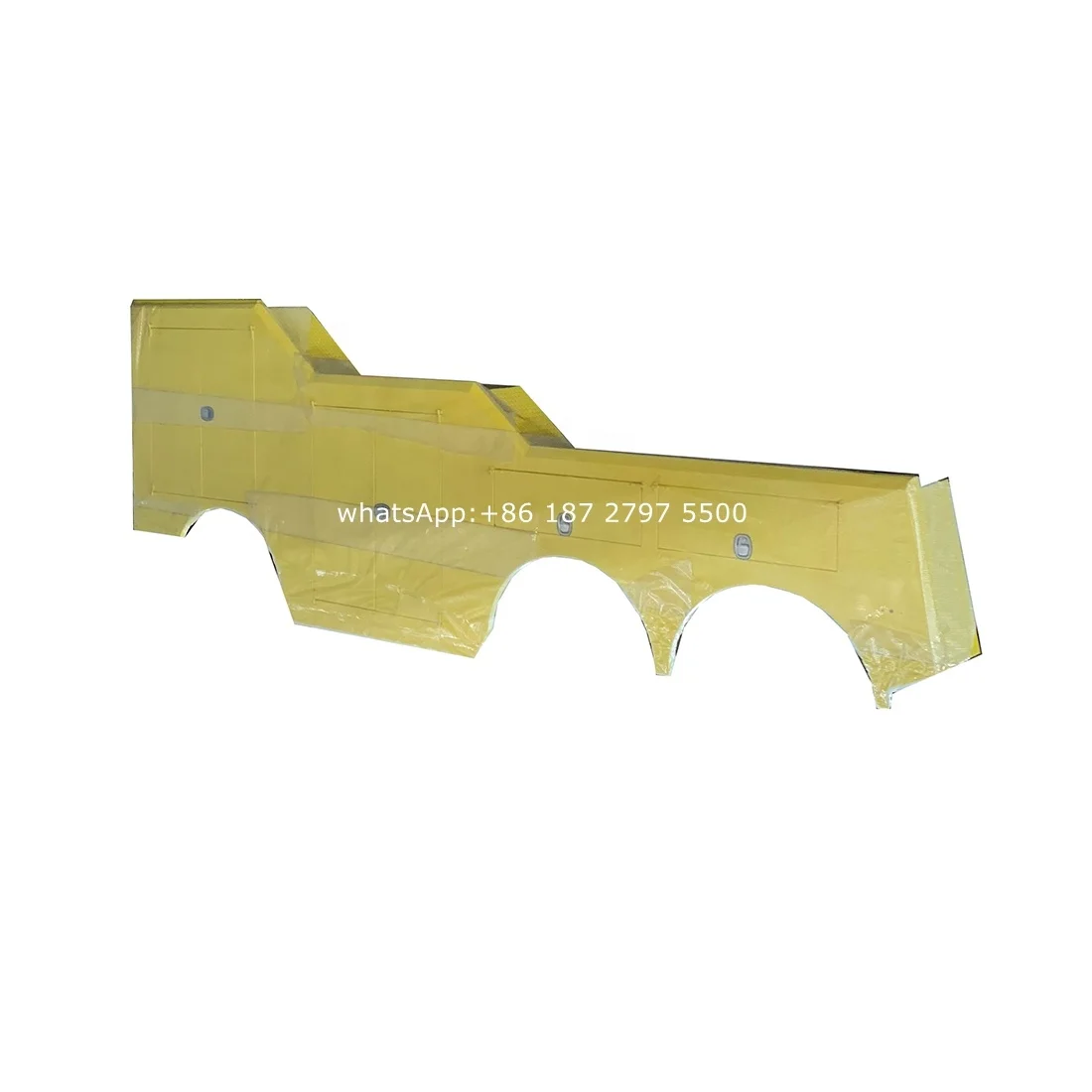

the toolbox is 3-stages.




Aluminum alloy material of toolbox is optional.


Specification


Product name
25tons integrated  tow truck
Max. lifting capacity of boom
25tons
Max. lifting height
9 meters
Max. Lifting angle
-62 degree
Max. height of the hook
3.6 meters
Max. towing capacity
60 tons
Max. capacity and lenght of towing arm
28000 kgs, 1746 mm
Winch
two 10 tons planetary winches,
Cable
Dia 20mm x 55 meters
Toolbox
carbon steel is standard, aluminum alloy is optioanl
Outriggers
both front and rear telescopic outriggers
Light bar
carbon steel
Wheel-lift
Two set
Forks and receivers
5 set of forks and 1 set receivers
Hydraulic system
Hydraulic valve, hydraulic pipe, hydraulic oil tank
Remote control
Chest mounted remote control


Details Images






Customer Photos




Company Profile


Churan Special Automobile Co., Ltd, is a manufacturer producing all kinds of special trucks.
It’s located in Suizhou city, Hubei Province, experienced engineers with design capabilities, workers with advanced welding technology, excellent management team, quality inspection team, and after-sales team. It has many years of experience in OEM machining. The main production models include heavy-duty tow trucks, flatbed wrecker trucks, fire trucks, refrigerated trucks, compactor garbage truck, sewage suction trucks, cleaning suction trucks, dumper trucks, and other specialized vehicles. Welcome to visit our factory and looking forward to your cooperation.
