Глобальная автоматическая система парковки автомобилей с системой распознавания номерных знаков и программным обеспечением управления парковочным оборудованием
19 736,72 ₽ - 27 412,10 ₽
Распознавание номерного знака автомобиля с автоматической системой парковки цена камера LPR датчик управление парковкой
- Категория: >>>
- Поставщик: Shenzhen Fumoter Industrial Co. Ltd.
Сохранить в закладки 1601165640910:
Описание и отзывы
Характеристики

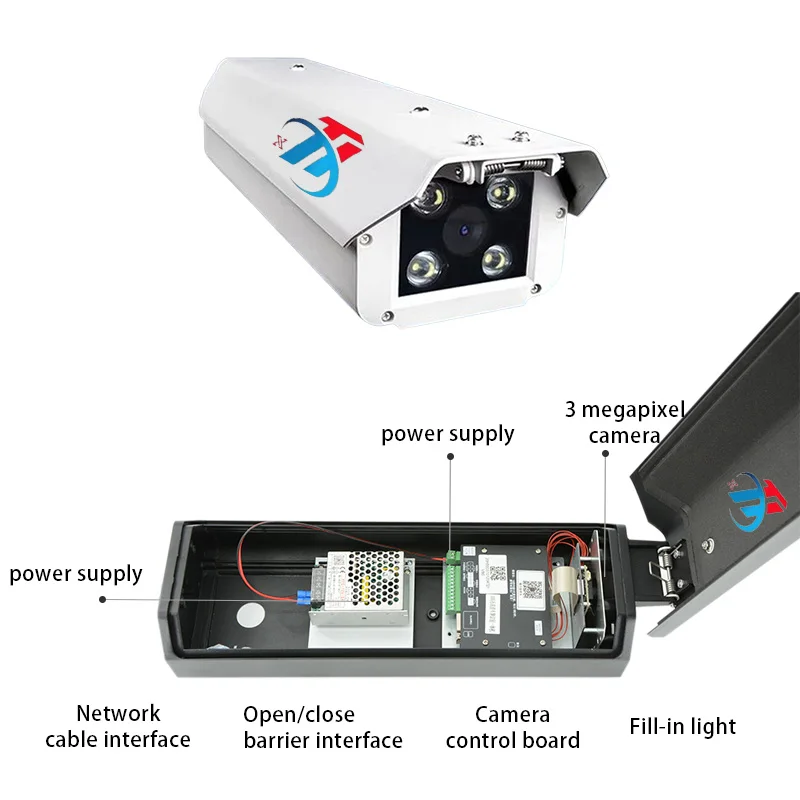

Camera solution: 1/3 CMOS,3MP
Camera Lens: 2.8~12mm, support to work with another varifocal lens
Camera recognition distance: 3 ~10m
ANPR system recognition rate: > 98%
License plate recognition ability: > 128 Countries
Interface: TCP/IP, RS485
Power supply:12V 2A With the professional ANPR Management Software
Elegant & Four Lines Display, with LED display, easy for installation
Products Description
Camera function | ||||||||
3 million starlight camera, license plate anti-counterfeiting, no wiring, model/car logo and body color recognition | ||||||||

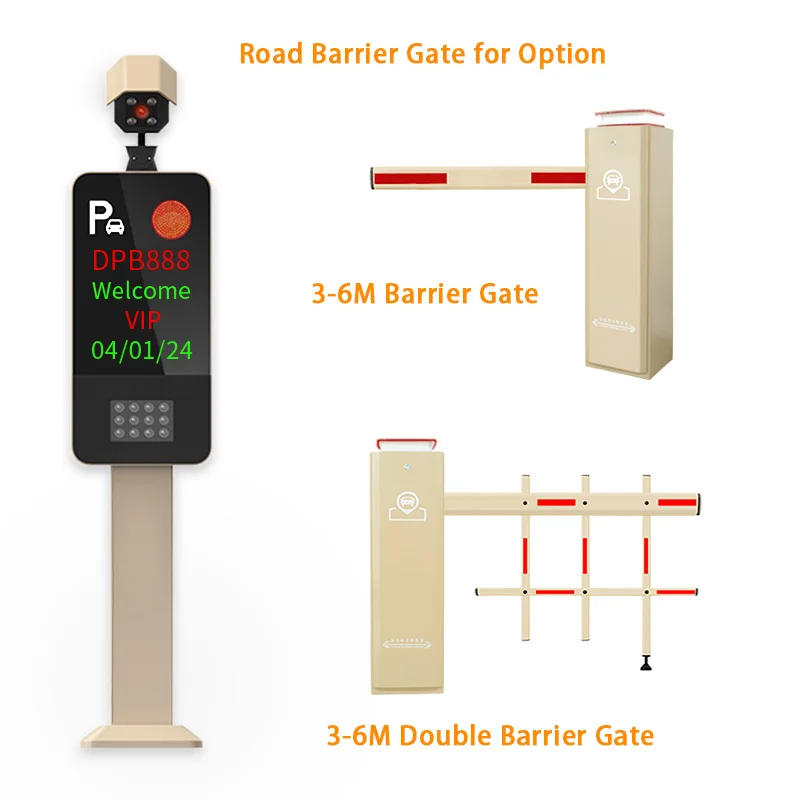

Built-in control system, rich interface types, can directly control the opening/closing of the barrier gate | ||||||||
Supports the import and comparison of black and white lists, can directly link the gate opening, and supports offline operation | ||||||||
Built-in license plate recognition algorithm with high accuracy and supports multiple modes such as coil trigger combined with video trigger. | ||||||||
Built-in voice broadcast system (for example license plate number\\parking time and charge amount usage date, etc.) | ||||||||
Original intelligent ISP algorithm allows seamless switching between day and night | ||||||||
Excellent imaging: 2K/25FPS ultra-clear image quality, 50% higher than 2 million resolution | ||||||||
Appearance size | 1550mm high*355mm wide*150mm thick |
Box body | Made of 1.8mm cold-rolled steel plate, with electrostatic spraying on the surface |
Protection level | IP65 |
Working temperature: | 40°C ~ +80°C |
Relative humidity: | 5%~90%, no condensation |
Resolution: | 1920 (RGB) X1080 [FHD] |

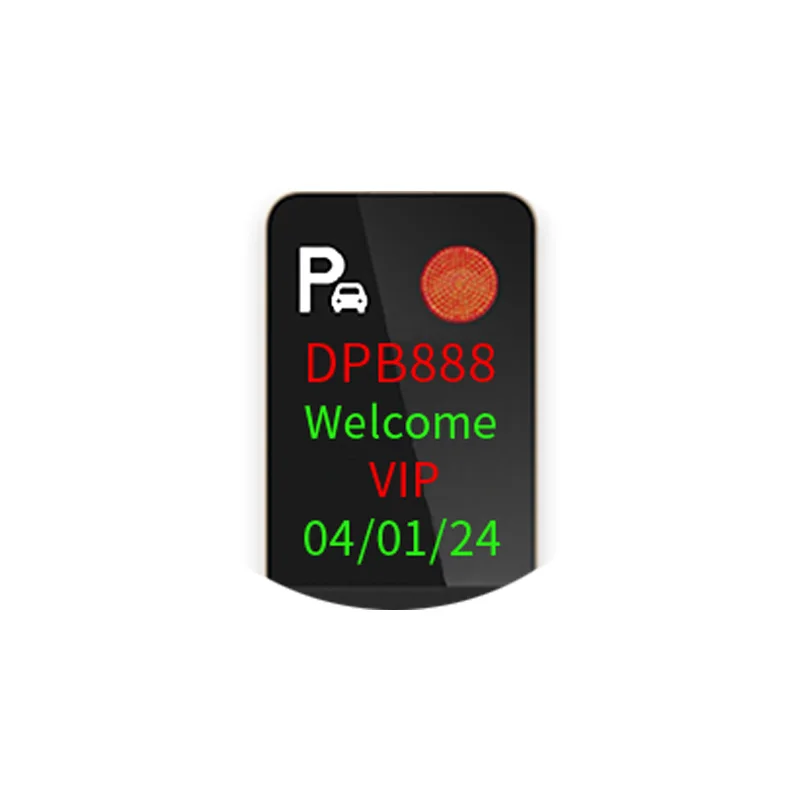

Display: | Four Chinese characters, four rows and four colors display, license plate number, parking time, charge amount, etc. Different contents are set according to different scenarios: move down, move up, move horizontally, fixed display; fixed display, no display; digital display: 16 Bit |
Global Automatic Number Plate Recognition Camera is an application of computer video image recognition technology in vehicle license plate recognition. License plate recognition technology is widely used in highway vehicle management. In the electronic toll collection (ETC) system, it is also the main means of identifying vehicle identity combined with DSRC technology.
ANPR Software Solution: it mainly captures pictures, which are sent to the software for recognition. There are two ways to trigger the camera to capture pictures. One is that the camera itself has a head-detection function, and the other is that the car is triggered by the ground sense coil and vehicle detector when the vehicle passes to capture the picture.
ANPR Camera with management software requires the ability to extract and recognize the vehicle license plate in motion from a complex background. Through license plate extraction, image preprocessing, feature extraction, license plate character recognition, and other technologies, the vehicle license plate number, color, and other information can be recognized. The current technology for the recognition rate of letters and numbers can reach 99.7%.
The global license plate recognition technology is combined with the electronic toll collection system (ETC) to recognize
vehicles. When vehicles pass through the crossing, they do not need to stop, it can realize the automatic identification of
vehicle identity and automatic charging. In parking lot management, to improve the efficiency of entrance and exit vehicles, license plate recognition is aimed at vehicles that do not need to charge parking fees (such as monthly trucks, internal free vehicles), and build unmanned fast lanes, free of cards, and no need to stop the vehicle experience, working on changing the management mode of entering and exiting the parking lot.
vehicles. When vehicles pass through the crossing, they do not need to stop, it can realize the automatic identification of
vehicle identity and automatic charging. In parking lot management, to improve the efficiency of entrance and exit vehicles, license plate recognition is aimed at vehicles that do not need to charge parking fees (such as monthly trucks, internal free vehicles), and build unmanned fast lanes, free of cards, and no need to stop the vehicle experience, working on changing the management mode of entering and exiting the parking lot.
Key Feature of Hardware
ANPR Recognition Speed <30km/h
Adapt to Vehicle Speed ≤30km/h
ANPR Recognition Rate > 98%
Camera resolution up to 1920*1080P@25fps
Camera Recognition Distance up to 3 ~ 10meters
High brightness & intelligent supplement light < 30 lux
Elegant & Four Lines Display, with LED display, easy for installation
Display Module: Red+ Green
Ground Coil & Vehicle Detector for Option
ANPR Recognition Speed <30km/h
Adapt to Vehicle Speed ≤30km/h
ANPR Recognition Rate > 98%
Camera resolution up to 1920*1080P@25fps
Camera Recognition Distance up to 3 ~ 10meters
High brightness & intelligent supplement light < 30 lux
Elegant & Four Lines Display, with LED display, easy for installation
Display Module: Red+ Green
Ground Coil & Vehicle Detector for Option

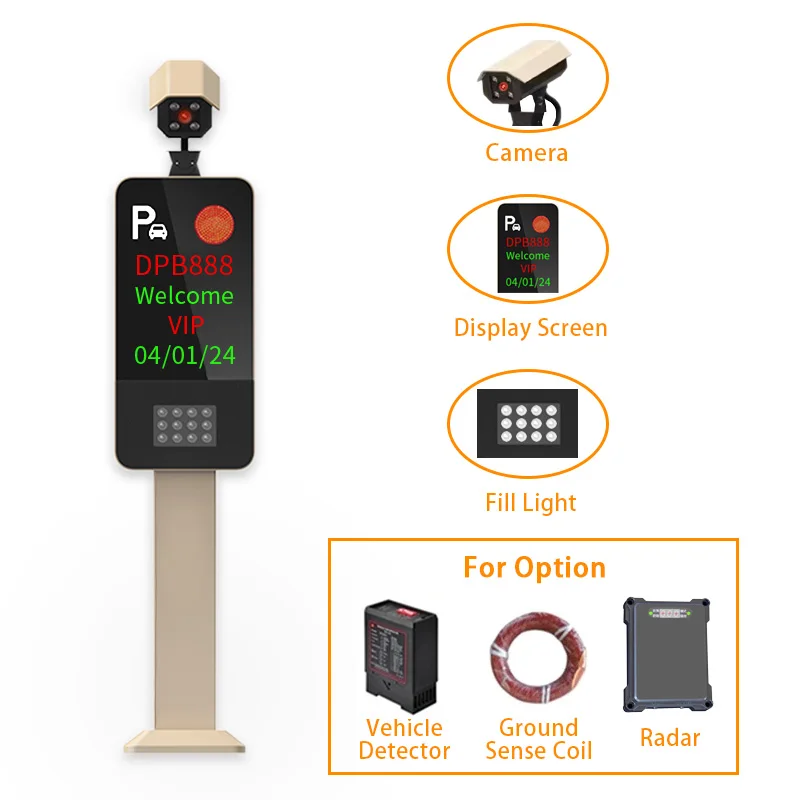

Main Function of Hardware Components
ANPR Software Solution: it mainly captures pictures, which are sent to the software for recognition. There are two ways to trigger the camera to capture pictures. One is that the camera itself has a head-detection function, and the other is that the car is triggered by the ground sense coil and vehicle detector when the vehicle passes to capture the picture.
Column: the column and the appearance of the product are formed by a cold-rolled iron sheet that is strong and waterproof.
Fill light: With an automatic light sense < 30Lux, the light will be automatically opened according to the surrounding environment of the project site, and will remain bright until the supplementary light detects that the surrounding environment becomes brighter, and the light sense will automatically close when it is greater than 30Lux.
The main function of the ANPR System

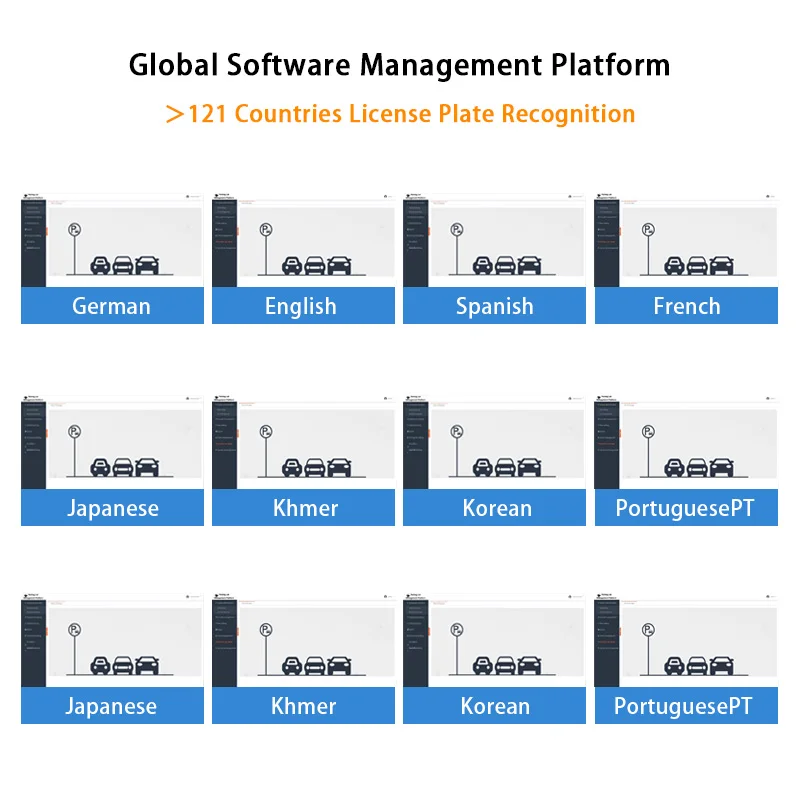

The Global ANPR Camera supports the recognition of the license plates of more than 128 countries and outputs the results
ANPR software manages the whole parking lot from the entrance and exits to charging, like controlling vehicle barriers, gates, traffic lights, message signs, etc.
Set the charging rules of the parking lot, limited free time parking, and parking fee charge rule via cash coin, or credit card,
and then the system will charge them automatically as per the setting rule, such as the first three hours being free which reverts to paid parking for longer stays automatically.
and then the system will charge them automatically as per the setting rule, such as the first three hours being free which reverts to paid parking for longer stays automatically.
Provide real-time reports on the vehicle license plates, journey times, stay times, flow rates, and entry/exit balance, and
vehicle alerts can be sent by email or text message.
vehicle alerts can be sent by email or text message.
ANPR Camera Guidance System supports vehicle license plate registration and inquiry, records live and historical car park data usage, and forms a traffic report for easy parking lot management.
Networking ALPR management system can across a site or multiple sites to manage different parking lots.
The best solution for a set of parking software is to manage the parking lot with one-in and one-out. It can also be used for two in and two out. If beyond this range, it may affect the efficiency of management or cause a situation of stagnation, which also depends on the actual use of computers and the amount of vehicles.
Global Automatic Number Plate Recognition System supports the data output to other systems, like parking system, access control ,weigh bridge system, etc. can offer SDK for second development, easy to integrate to another management platform. Our ANPR software is compatible with SQL, Oracle, Excel, and CSV files.
Support Global License Plate Recognition Ability in over 128 Countries
ANPR algorithm supports recognizing the countries’ vehicle license plates below:
China, Hong Kong, Thailand, Taiwan, South Korea, Japan, Singapore, Malaysia, Vietnam, Saudi Arabia, Armenia,
Georgia, Indonesia, Macau, Kazakhstan, Kyrgyzstan, Mongolia, Philippines, Tajikistan, Qatar, Sri Lanka, UAE, Turkey, Myanmar, Lebanon, Syria, Iraq, Laos, Azerbaijan, Cambodia, Cyprus, East Timor, India, Israel, Jordan, Palestine, Sri Lanka, Uzbekistan, Spain, Portugal, Latvia, Belarus, Bulgaria, Denmark, EU standards, France, Poland, Russia, Albania, Austria, Belgium, Bosnia and Herzegovina, Croatia, Czech Republic, Estonia, Finland, Greece, Hungary, Iceland, Ireland, Italy, Lithuania, Luxembourg, Netherlands, Norway, Romania, Slovakia, Slovenia, Sweden, Switzerland, United Kingdom , Kosovo, Mexico, United States, Canada, Costa Rica, Cuba, El Salvador, Guatemala, Honduras, Puerto Rico, Brazil, Argentina, Bolivia, Chile, Colombia, Ecuador, Paraguay, Peru, Uruguay, Venezuela, Kenya, Mauritius, Sierra Leone, Tunisia, Uganda , Algeria, Botswana, Cameroon, Cape Verde, Ghana, Namibia, South Africa, Australia, New Caledonia.
Georgia, Indonesia, Macau, Kazakhstan, Kyrgyzstan, Mongolia, Philippines, Tajikistan, Qatar, Sri Lanka, UAE, Turkey, Myanmar, Lebanon, Syria, Iraq, Laos, Azerbaijan, Cambodia, Cyprus, East Timor, India, Israel, Jordan, Palestine, Sri Lanka, Uzbekistan, Spain, Portugal, Latvia, Belarus, Bulgaria, Denmark, EU standards, France, Poland, Russia, Albania, Austria, Belgium, Bosnia and Herzegovina, Croatia, Czech Republic, Estonia, Finland, Greece, Hungary, Iceland, Ireland, Italy, Lithuania, Luxembourg, Netherlands, Norway, Romania, Slovakia, Slovenia, Sweden, Switzerland, United Kingdom , Kosovo, Mexico, United States, Canada, Costa Rica, Cuba, El Salvador, Guatemala, Honduras, Puerto Rico, Brazil, Argentina, Bolivia, Chile, Colombia, Ecuador, Paraguay, Peru, Uruguay, Venezuela, Kenya, Mauritius, Sierra Leone, Tunisia, Uganda , Algeria, Botswana, Cameroon, Cape Verde, Ghana, Namibia, South Africa, Australia, New Caledonia.
Company Profile
Shenzhen Fumoter Industrial Co., Ltd. was established in 2020. It is a professional manufacturer dedicated to the research, development and production of parking lot equipment. As one of the largest companies in the security system industry in Shenzhen, its main products include barrier gates, pedestrian passages, and facial recognition systems. The source manufacturer of security system products such as identification and license plate recognition systems. For more than ten years, our team has been committed to providing high-quality products and services. We have international trade experience since 2013. Our products sell well in Southeast Asia and the Middle East,Eastern Europe and more than 128 countries in the world. If you have a project related to security systems, please feel free to contact us. We are happy to establish a long-term cooperative relationship with you.
Certifications
Our Business Partner
Product Packaging
We Support Various Payment Methods
FAQ
1. Are you a manufacturer or a trading company?
We are one of the top 5 companies in the security industry and have been in business for over 13 years. With our own factory and product R&D team, we are an enterprise integrating industry and trade.
2.Is the barrier gate easy to install?
Yes.it is very simple, first,we have a user manual for you,then we have an engineer support you online, until you finish the pro. etc..
3.How about the guarantee and after-sale service?
We have a 12-month quality guarantee, and we have well-trained and patient sales and after-sales service staff who speak fluent English.
4.How long is the delivery time?
For standard items,10-50 sets:3 working days,50-100 sets:5 working days, and 200-500 sets:7-10 working days. For special items, or need a custom design package or logo, need 3-5 working days longer
5.Can you provide OEM service?
Yes we can，As we have our own R&D team, we can develop the software and manufacture the hardware per your request.
6.What is your MOQ?
Any quantity is acceptable for your
If you have questions about our products, please send the inquiry to me,I will reply to you ASAP. thank
Contact Us
Похожие товары
Легкая установка 79 Гц автомобильный детектор радар Датчик для барьерных ворот смарт-парковочный датчик замены петли
8 771,88 ₽ - 12 061,33 ₽

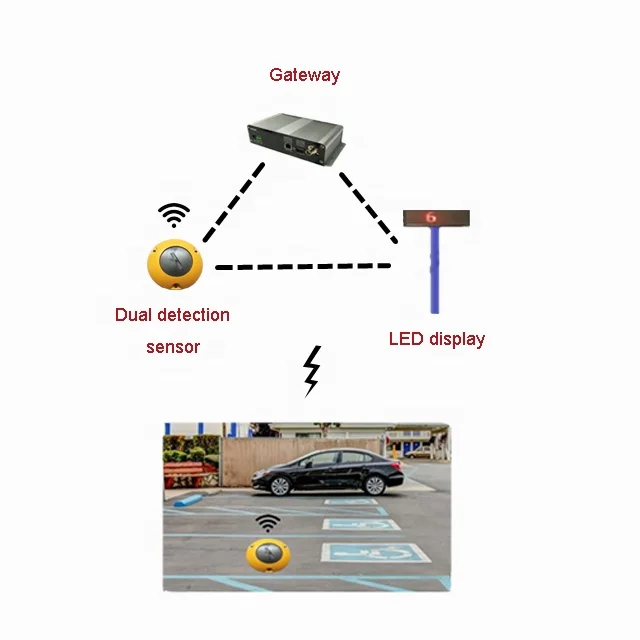

Датчик парковки LoRa Rosim с датчиком распознавания места на открытом воздухе и светодиодным дисплеем для указания в мотеле
10 855,20 ₽

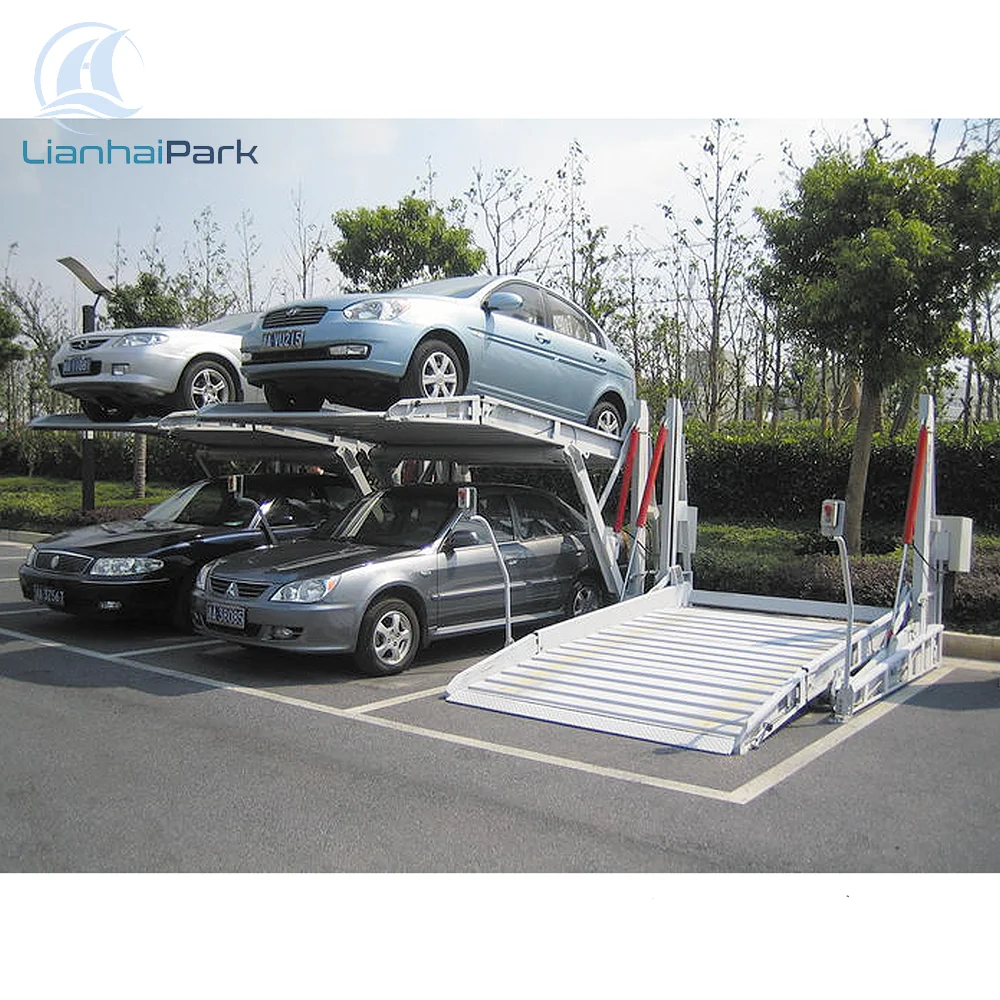

Lianhai PJS-ST2000 низкий потолок автомобильный парковочный подъемный механизм CE

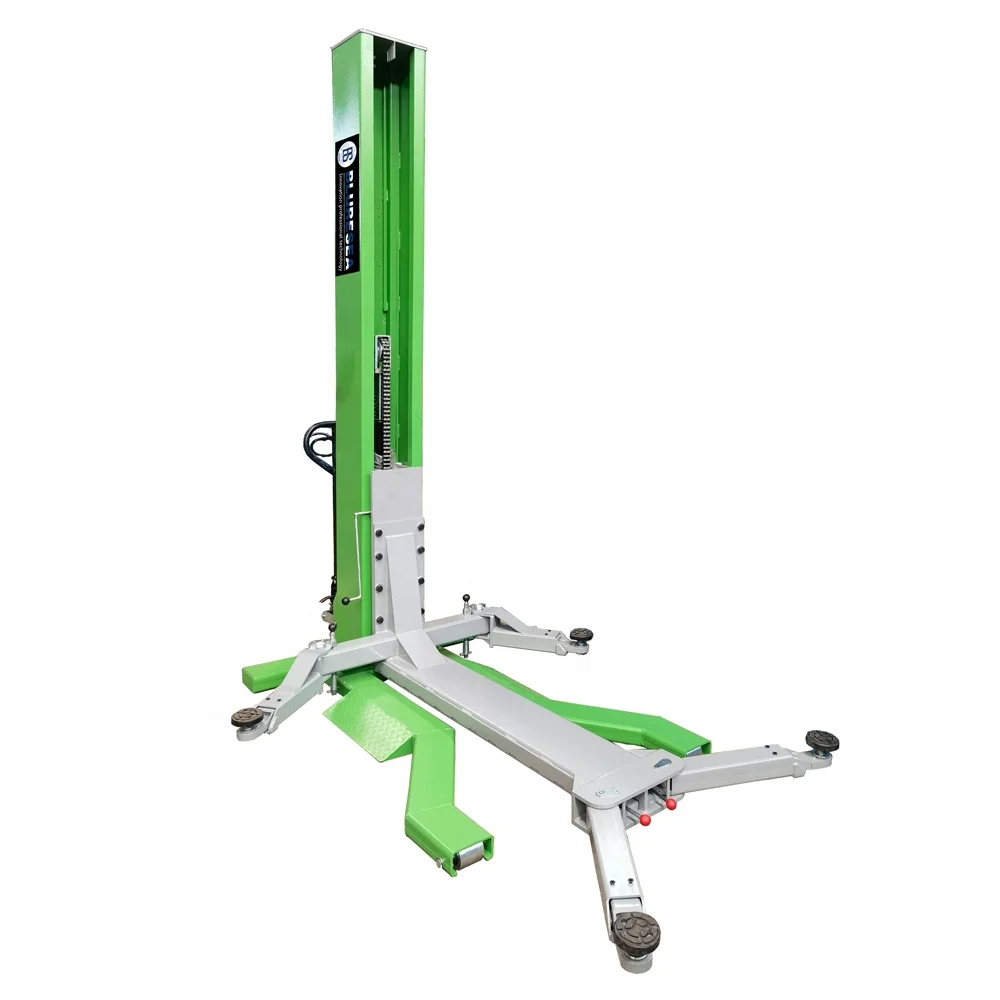

Одна колонна с ручным выпуском гидравлический автомобильный домкрат подъемник
164 472,60 ₽ - 191 884,70 ₽

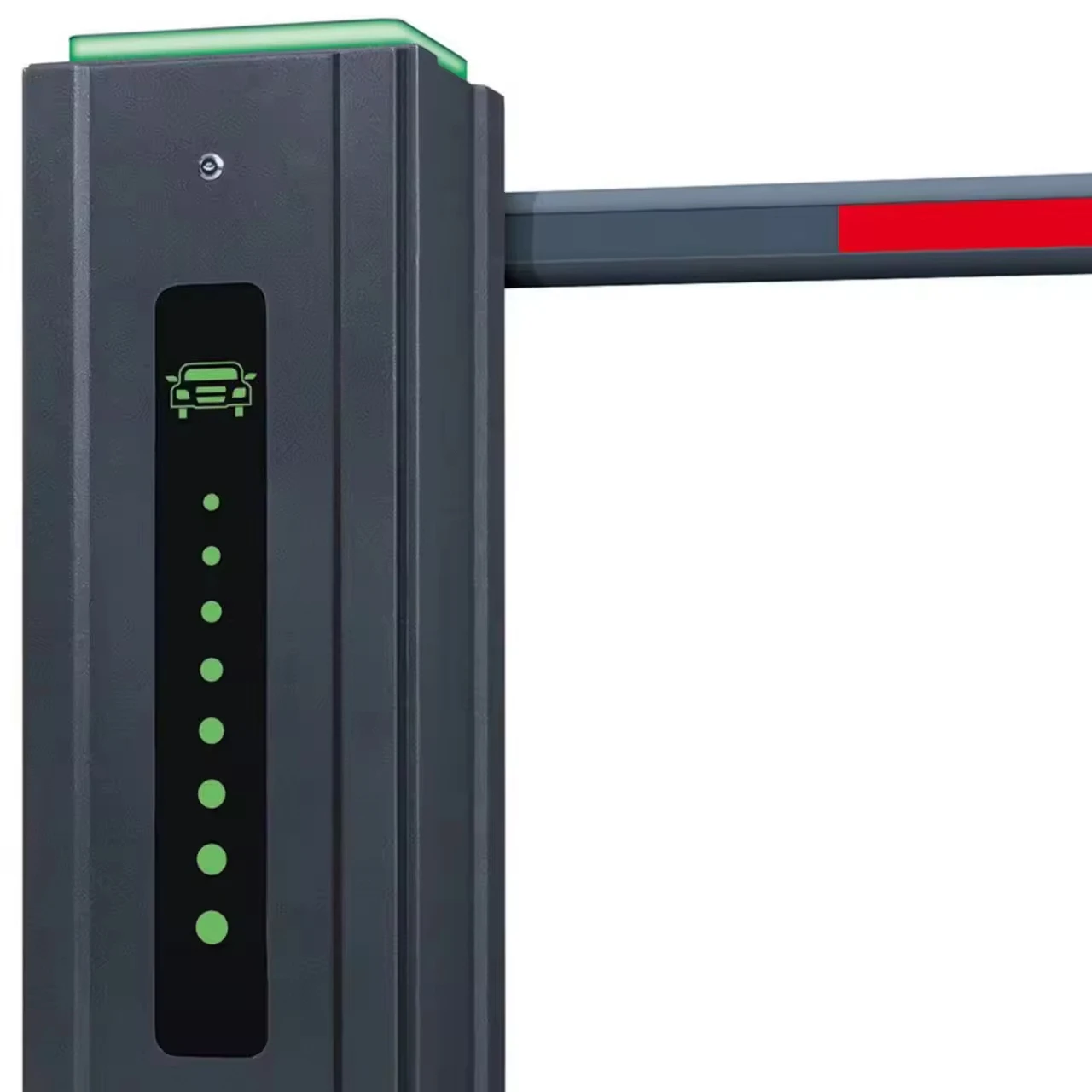

Бесщеточные барьерные ворота 5-го поколения интеллектуальные автоматические подъемные входные выходные опознавательные для транспортных средств
28 727,89 ₽

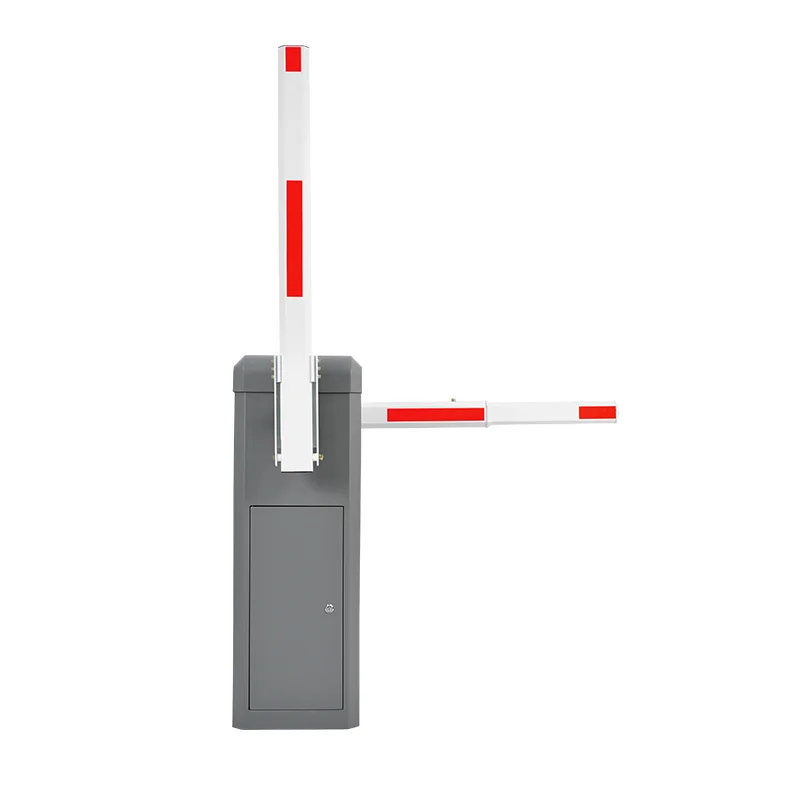

WB6002 (DC бесщеточный) автоматический автомобильный стоп (прямой столб с 4-метровым удлинителем) парковочный выдвижной рычаг
22 806,87 ₽ - 26 863,86 ₽

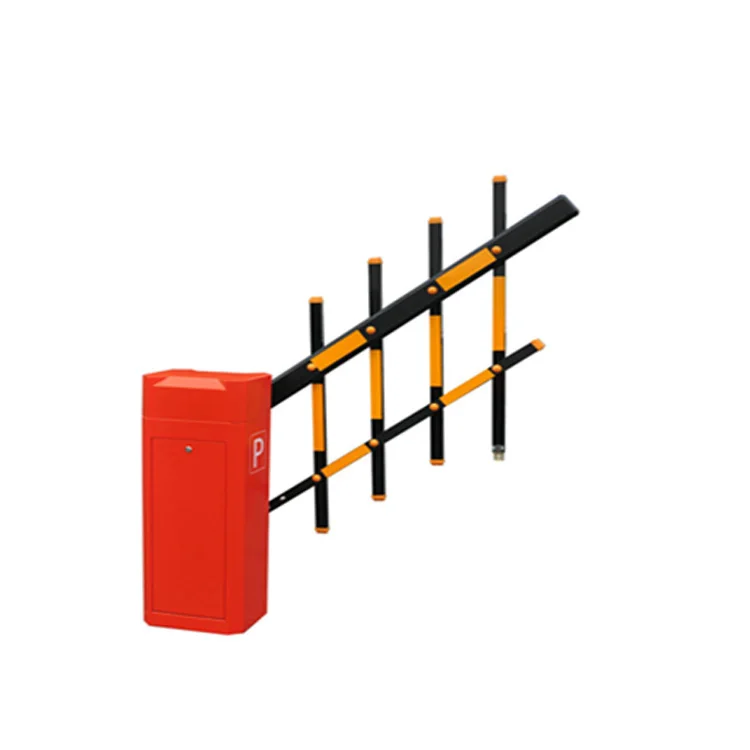

Стрела-барьер оборудование для ворот с сенсором барьера гибкие ворота стрела-барьер контроллер
