Мобильная щековая дробилка гранитная базальтовая руда каменная железная Золотая Руда
132 253,56 ₽

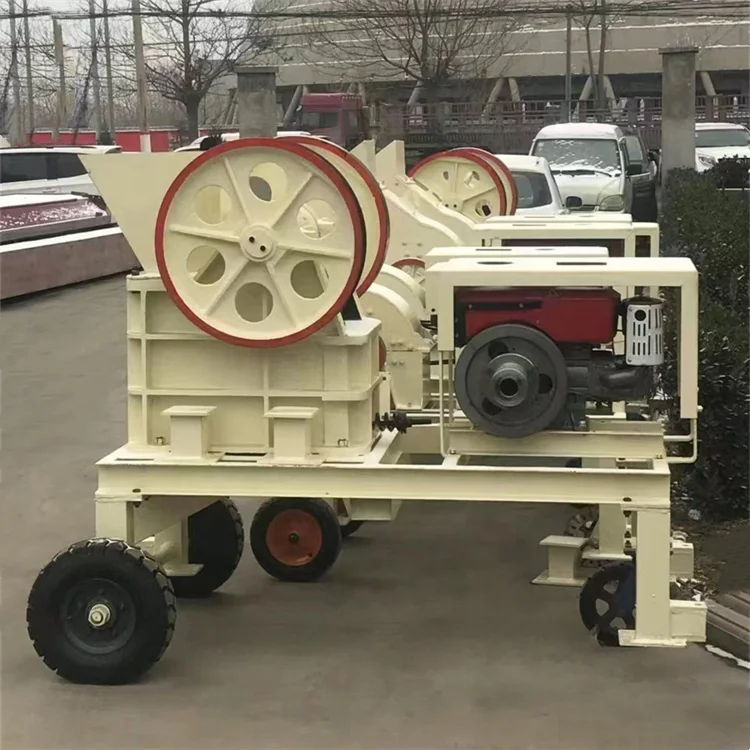

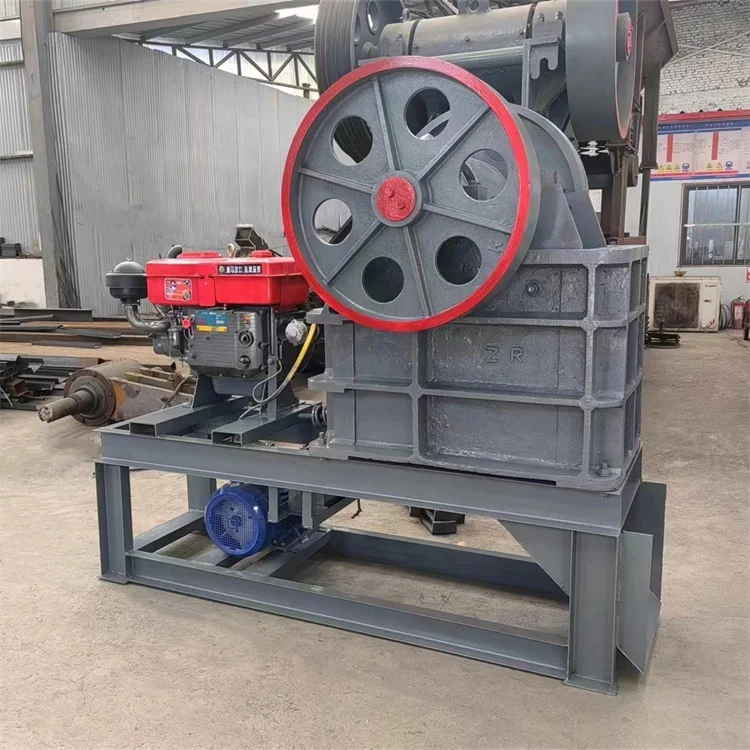

Оптовая цена небольшая мини мобильная щековая дробилка с дизельным двигателем PE250 * 400 каменная лабораторная дизельная
- Категория: >>>
- Поставщик: Henan Ruida Machinery Equipment Co. Ltd.
Сохранить в закладки 1601166011161:
Описание и отзывы
Характеристики
Hot Sale Stone Crusher Small Mini Mobile Limestone Aggregate Basalt Quartz
PE150x250 Diesel Portable Jaw Crusher Machine Price
My Whatsapp or WeChat:0086-15537188625
1.Movable Jaw:The movable jaw assembly is composed of high-quality steel casting (weld assembly); large flywheel (pulley) adopts in block casting process.
2.Integral Cast Steel:Integral cast steel structure is adopted for bearing seat. The integral bearing seat can't only enhances the radial strength but also reduces cost.
3.Tooth-type Plate:The adoption of tooth-type jaw plate increases the capacity and lengthens the maintenance period of spare parts.
4.Integrated Motor:Integrated motor frame, which reduces installation space and length of "V" belt.
2.Integral Cast Steel:Integral cast steel structure is adopted for bearing seat. The integral bearing seat can't only enhances the radial strength but also reduces cost.
3.Tooth-type Plate:The adoption of tooth-type jaw plate increases the capacity and lengthens the maintenance period of spare parts.
4.Integrated Motor:Integrated motor frame, which reduces installation space and length of "V" belt.
Work Principle
The motor drives the belt wheel,and makes movable jaw up and down by eccentric shaft,when the movable jaw down,the angle between the fixed jaw and movable jaw gets smaller,and the materials can be crushed to reach the crushing target.when the movable jaw rises,the angle between the fixed jaw and movable jaw becomes larger,the movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring,and then the crushed materials are discharged from the lower outlet of the crushing cavity.
Applicable Materials :more than 200+
Application: It is used for primary crushing (coarse crushing) and medium crushing of materials.
Feed size: 100 mm-1200 mm for relatively larger stones.
Output size: 10 mm-360 mm, the discharge port has a wide adjustment range.
Technical Parameters
Model | Feed Opening(mm) | Max.Feeding Size(mm) | Output Size(mm) | Capacity(t/h) | Power(kw) | Weight(t) | Dimension(mm) |
PE250x400 | 250x400 | 200 | 20-50 | 5-20 | 15 | 3 | 1430x1310x1340 |
PE400x600 | 400x600 | 350 | 40-100 | 15-60 | 30-37 | 7 | 1700x1732x1653 |
PE500x750 | 500x750 | 425 | 50-100 | 40-110 | 45-55 | 12 | 1950x1878x1855 |
PE600x900 | 600x900 | 480 | 65-160 | 90-180 | 55-75 | 19 | 2200x2008x2302 |
PE750x1060 | 750x1060 | 630 | 80-140 | 110-320 | 90-110 | 29 | 2624x2302x3110 |
PE900x1200 | 900x1200 | 750 | 95-180 | 220-450 | 132 | 58 | 3550x2823x3196 |
PE1200x1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 220 | 100.9 | 4930x3148x3703 |
PEX150x250 | 150x250 | 125 | 10-40 | 1-3 | 5.5 | 1.5 | 896x745x935 |
PEX150x750 | 150x750 | 125 | 18-48 | 5-16 | 15 | 3.8 | 1200x1500x1200 |
PEX250x750 | 250x750 | 210 | 25-60 | 15-30 | 22-30 | 5 | 1667x1545x1020 |
PE250x1000 | 250x1000 | 210 | 25-60 | 15-50 | 30-37 | 7 | 1695x1921x1440 |
PEX250x1200 | 250x1200 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 2192x1900x1950 |
Spare Parts of Jaw Crusher
Customer Site
Country: Indonesia
Raw Material: River Stone
Capacity: 150t/h
Output Size:1-30mm
Customer Site
Country: Philippines
Raw Material: Granite
Capacity: 200t/h
Output Size:1-5mm,5-10mm,10-20mm
Henan Ruida Machinery Equipment Co., Ltd. was founded in 2006. it is a technology innovation enterprise that mainly produces crushing,grinding and drying equipment and integrates R&D,production and sales. The company is located in the hinterland of China, Zhengzhou City, which is the national transportation hub and the geographical position is superior. Our products are widely used in mining, metallurgy, chemical industry, building materials, refractory and other industries. What users need is exactly what we strive to create; Customer satisfaction is what we always pursue. The company has always believed that products are the core competitiveness of enterprises, quality is the eternal lifeline of enterprises, and service is the second vitality of enterprises.
Maybe you are interested in MORE+
Maybe you are interested in MORE+
1. Are you manufacture or trading company?
We are factory, established in 2006.
2.why should you buy from us not from other suppliers?
>>> factory sell directly
>>> 20+ years experience, professional
>>> Sales market all over the world
>>> good pre-sales and after sales serive
3. How long is the warranty? Does your company supply the spare parts?
12 months.Spare parts for you at lowest cost.
4.what can you buy from us?
Raymond Mill,High Pressure Grinding Mill,Ultrafine Mill,Ball Mill,Jaw Crusher,Hammer Crusher
5.If I need the complete grinding plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice.
We are factory, established in 2006.
2.why should you buy from us not from other suppliers?
>>> factory sell directly
>>> 20+ years experience, professional
>>> Sales market all over the world
>>> good pre-sales and after sales serive
3. How long is the warranty? Does your company supply the spare parts?
12 months.Spare parts for you at lowest cost.
4.what can you buy from us?
Raymond Mill,High Pressure Grinding Mill,Ultrafine Mill,Ball Mill,Jaw Crusher,Hammer Crusher
5.If I need the complete grinding plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice.
