Огнестойкое стекло прозрачное керамика для
243,57 ₽ - 881,70 ₽
Конструкция здания противопожарное стекло 60 90 120 минут нано кремниевое Композитное огнеупорное огнестойкое для дверного
- Категория: >>>
- Поставщик: Shandong New Line Import and Export Co. Ltd.
Сохранить в закладки 1601166064395:
Описание и отзывы
Характеристики
Products Description
New Line high borosilicate glass (also known as hard glass) is made of the conductive property of glass at high temperature, through heating inside the glass to achieve glass melting, processed by advanced production technology, because of the linear thermal expansion coefficient of (3.3 × 0.1)×10-6/K and(4.0 × 0.1)×10-6/K also known as "borosilicate glass 3.3"and "borosilicate glass 4.0", It is a special glass material with low expansion rate, high temperature resistance, high strength, high hardness, high transmittance and high chemical stability.
Because of its excellent performance, it is widely used in solar energy, chemical industry, pharmaceutical packaging, electric light source, process jewelry and other industries, Its good performance has been widely recognized by all circles of the world,especially in the field of solar energy is more widely used, Germany, the United States and other developed countries have been more widely promoted.

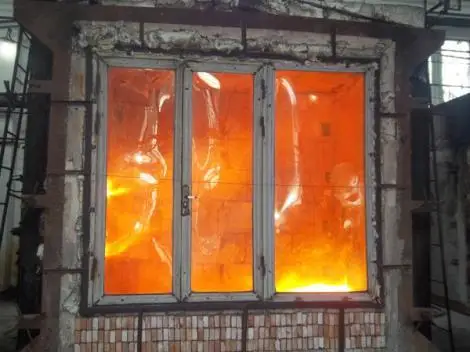

Fire test
Fire test
Product Features
New Line Borosilicate glass has a very low coefficient of thermal expansion, about one third of that of ordinary glass. This will reduce
the stress caused by temperature gradient Therefore, it has stronger fracture resistance. Because its shape deviation is verysmall, this makes it an essential material for telescopes and mirrors. It can also be used to dispose of high-level nuclear
waste.
New Line borosilicate glass begins to soften at approximately 821 ℃(1510 ℉), Borosilicate glass is less dense than ordinary glass. In addition, borosilicate glasses have low dispersion (about 65 abbe crowns) and a relatively low refractive index (1.51-1.54 across the entire visible range).
resistance and other characteristics.
Details Images
According to the fire-resistant grade, the fire-resistant glass can be sorted as Grade 1, Grade 2, Grade 3, Grade 4, where each is resistant to fire respectively no less than the following time:90 min, 60min, 45min, 30min.
Intensity: (design value: N/sqmm)
Intensity: (design value: N/sqmm)
Type | Float Glass | Tempered Glass | High Intensity Single Layer Cesium-potassium Fire Rated Glass | ||
Thickness (mm) | 6-12 | 6-12 | 6-12 | ||
Glass Intensity Design Value | Surface Intensity | 28.0 | 84.0 | 126 | |
Edge Intensity | 19.5 | 58.8 | 88.2 | ||
Comparison | Visible Light(%) | Heat Transfer Coefficient | Shading Coefficient | ||
Transmittance | Reflectivity | W/m2 C | SC | ||
6mm normal glass | 89.1 | 8.0 | 5.73 | 0.95 | |
6mm Cesium-potassium fire rated glass | 50.0 | 12.0 | 3.99 | 0.64 | |
6mm+12A+6mm hollow glass | 79.8 | 14.4 | 2.76 | 0.82 | |
6mm Cesium-potassium fire rated glass +12A+6mm glass | 49.9 | 15.2 | 1.85 | 0.46 | |
8mm Cesium-potassium fire rated glass +12A+8mm glass | 49.5 | 15.0 | 1.85 | 0.45 | |
10mm Cesium-potassium fire rated glass +12A+10mm glass | 49.0 | 14.8 | 1.84 | 0.44 | |
Processing range
Max size: 3600×2000 mm
Min size: 100×100 mm
Processing standard: GB15763.1-2009
Max size: 3600×2000 mm
Min size: 100×100 mm
Processing standard: GB15763.1-2009
Custom Service
Custom Edging
Custom Color
Custom Size
Applications
Based on the above characteristics, fireproof glass can generally be used:
Luxury hotel, Theaters, Exhibition hall, Airports, Gymnasium, Hospital, Library, Commercial building, and other public building etc
Luxury hotel, Theaters, Exhibition hall, Airports, Gymnasium, Hospital, Library, Commercial building, and other public building etc
Why Choose Us
1. We are a professional manufacturing vendor with over 25 years of experience in glass.
2. We have a professional and proactive business team, with excellent understanding of glass in Europe and the US.
3. We are design-oriented and strong in interpreting customer’s ideas into marketable products. Any idea about the glass, let’s work together to make it into possible.
4. We prioritize all potential customers as our VIP customers, handling all business process with excellent service and standing behind any possible issue with excellent solutions.
2. We have a professional and proactive business team, with excellent understanding of glass in Europe and the US.
3. We are design-oriented and strong in interpreting customer’s ideas into marketable products. Any idea about the glass, let’s work together to make it into possible.
4. We prioritize all potential customers as our VIP customers, handling all business process with excellent service and standing behind any possible issue with excellent solutions.
Company Profile
Shandong New Line Import and Export Co., Ltd. is located in Liaocheng City, Shandong Province, is a professional glass manufacturer, and glass & aluminum solution provider in China. Now we can supply a comprehensive range of products including tempered glass, laminated glass, insulated glass, float glass, mirror glass, aluminum windows & doors and curtain wall etc. to satisfy the advanced design and engineering technical requirements of modern building envelops.
OUR FACTORY
New Line factory covers an area of 80,000 m² with 110,000 m² floor space of building and have an annual processing capacity of 1,500,000 m². The main equipment was imported from world-famous processed equipment manufacturers, such as Tamglass, Lisec, Bystronic, Intermac and Bottero etc. We already got Europe CE, USA SGCC, IGCC, UK BSI, France Cekal and Australia CSI certificates for our glass and aluminum products.
Our Certificates
Shandong New Line Import and Export Co., Ltd has been meet ISO, CCC, USA and Europe safety glass etc. certificates, we produce strictly comply with standards and customer's requirements.
Our Exhibitions
Shandong New Line Import and Export Co., Ltd participate in international exhibition of building materials every year, our high quality and creative products are popular on exhibitions.
Packaging and Delivery
Paper interred between the glass, packed by strong seaworthy wooden crates or according to your requirements.
FAQ
Q1: Can you accept OEM or ODM?
A1:Yes. We can produce products according to customer's requirements and accept customized design.Besides, if you have any ideas, we are here to make it out.
Q2: How about sample and charge?
A2: Sample is free, but freight cost should be paid by clients.
Q3: What about the payment?
A3: L/C, T/T, Western Union, PayPal.
Q4: How can we get detailed price?
A4: Please office us detailed information of the production,specific packaging requirements and purchasing quantity.
Q5: Can we get any discount from your company?
A5:We offer extra discount for large purchasing quantity, or important clients or iconic projects.
Q6: What's the lead time for regular order?
A6:Honest, it depends on the order quantity, usually 15-30 days.
Q2: How about sample and charge?
A2: Sample is free, but freight cost should be paid by clients.
Q3: What about the payment?
A3: L/C, T/T, Western Union, PayPal.
Q4: How can we get detailed price?
A4: Please office us detailed information of the production,specific packaging requirements and purchasing quantity.
Q5: Can we get any discount from your company?
A5:We offer extra discount for large purchasing quantity, or important clients or iconic projects.
Q6: What's the lead time for regular order?
A6:Honest, it depends on the order quantity, usually 15-30 days.
Excellent Service
Excellent Quality
Contact me to open
your one-stop service
experience
