Цифровой серводвигатель с крутящим моментом 25 кг 180 градусов стальной редуктор бесщеточный двигатель сервопривод для радиоуправляемого двигателя/воздушного самолета летающего/вертолета
- Категория: >>>
- Поставщик: Shenzhen Feite Model Co. Ltd.
Сохранить в закладки 1601166315293:
Описание и отзывы
Характеристики
Product Description
Hight Torque 25Kg Digital Servo Motor 180 Degree Steel Gear Brushless Motor Servo For Rc Engine/Air Plane Toys Flying/Helicopter
Features:
- Control model is PWM
- Control system type: Digital comparator
- Operating angle: 180°
- Pulse width range: 500~2500μsec
- Electronic protection: locked rotor for 3 seconds (after the steering gear is locked, the output torque will exceed the overload torque and continue to protect the torque after 3 seconds, the overload torque and protection time can be modified)
- Control model is PWM
- Control system type: Digital comparator
- Operating angle: 180°
- Pulse width range: 500~2500μsec
- Electronic protection: locked rotor for 3 seconds (after the steering gear is locked, the output torque will exceed the overload torque and continue to protect the torque after 3 seconds, the overload torque and protection time can be modified)
Brand: FEETECH
Model: FT825BL
Storage Temperature Range: -30ºC~80ºC
Operating Temperature Range: -20ºC~60ºC
Size: A:54.45mm B:20mm C: 38.95mm
Weight: 84± 1g

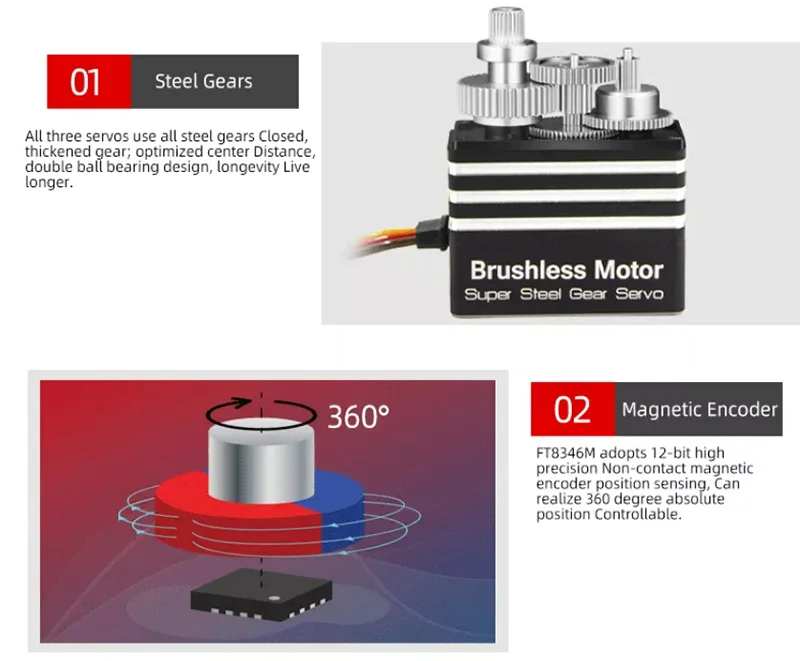

Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio: 1/188
Case: Alumi num
Connector wire: 30CM

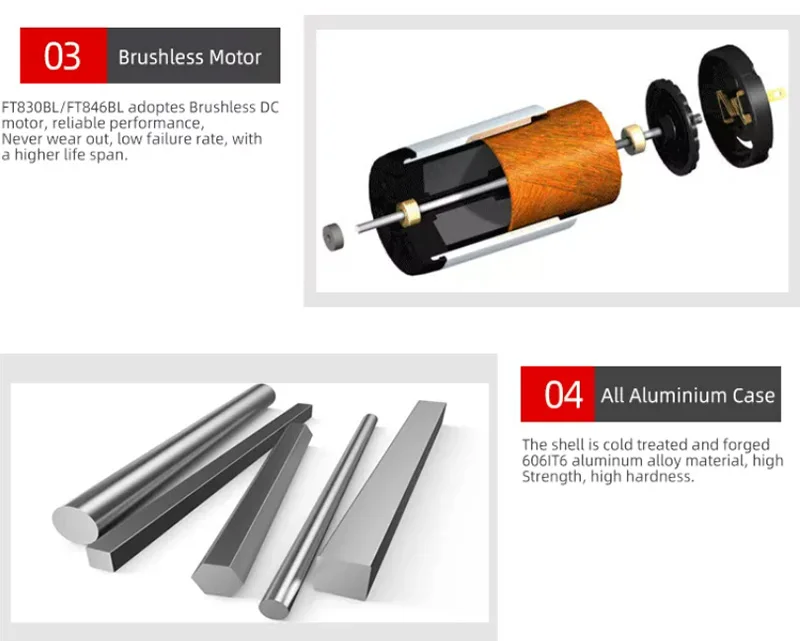

Motor: Brushless Motor
Operating Voltage Range: 6V-7.4V
Idle current (atstopped): 6MA@7.4V
No load speed: 0.119sec/60°@7.4V
Runnig current(at no load) : 250mA@7.4V
Peak stall torque: 25kg.cm@7.4V
Rated torque: 8.3kg.cm@7.4V
Stall current: 4.2A@7.4V
Command si gnal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwi se (1500→2000 μ sec)
Model: FT825BL
Storage Temperature Range: -30ºC~80ºC
Operating Temperature Range: -20ºC~60ºC
Size: A:54.45mm B:20mm C: 38.95mm
Weight: 84± 1g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio: 1/188
Case: Alumi num
Connector wire: 30CM
Motor: Brushless Motor
Operating Voltage Range: 6V-7.4V
Idle current (atstopped): 6MA@7.4V
No load speed: 0.119sec/60°@7.4V
Runnig current(at no load) : 250mA@7.4V
Peak stall torque: 25kg.cm@7.4V
Rated torque: 8.3kg.cm@7.4V
Stall current: 4.2A@7.4V
Command si gnal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwi se (1500→2000 μ sec)
Specification
Brand Name | Feetech |
Model Number | FT825BL |
Size | 54.45mm*20mm*38.95mm |
Weight | 85g |
Gear type | Steel |
Horn gear spline | 25T/5.9mm |
Case | Aluminum |
Motor | Brushless Motor |
Operating Voltage Range | 6V-7.4V |
Command signal | Pulse width modification |
Amplifier type | Digital comparator |

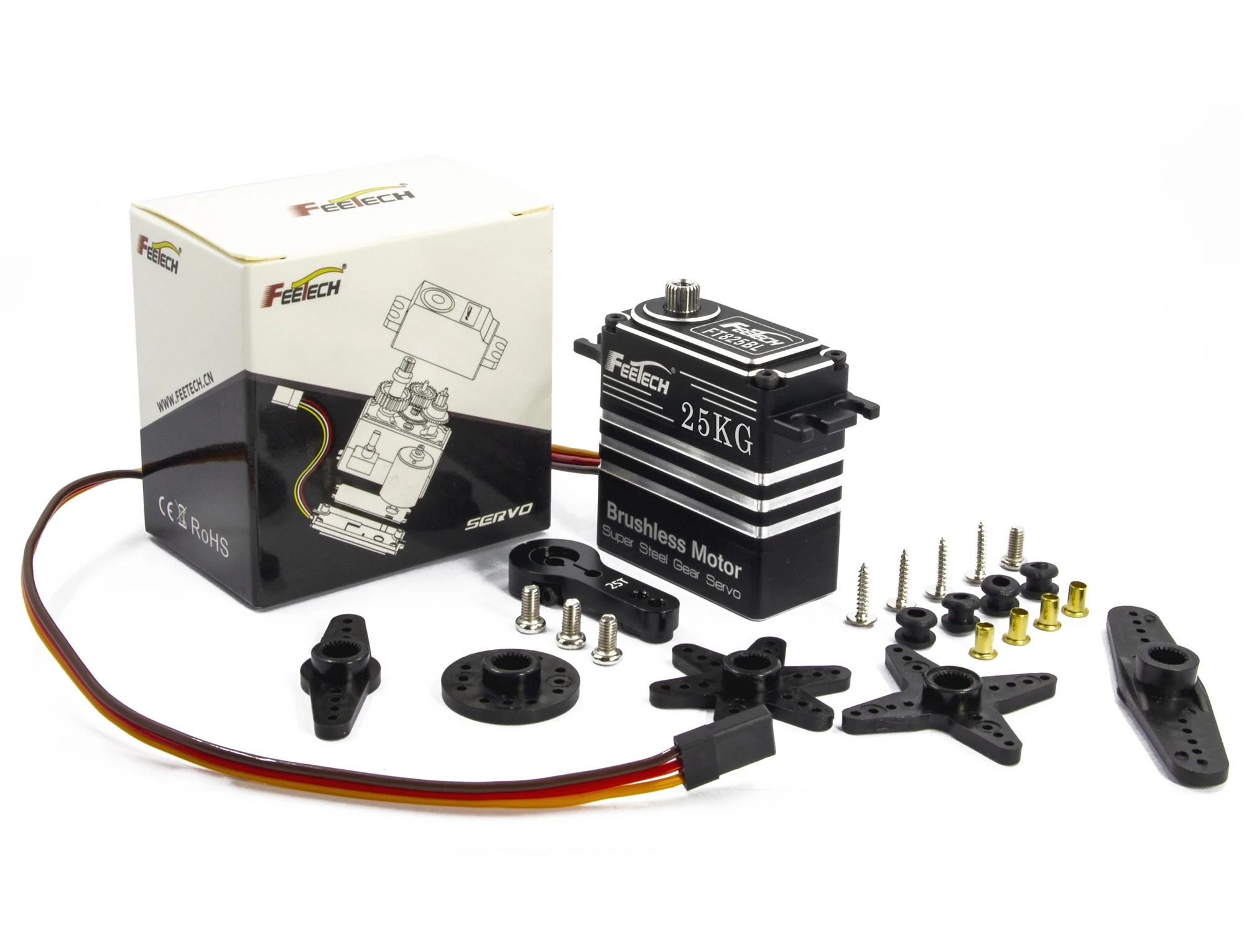

Packing & Delivery
Very nice giftbox,a bag of servo arm and screws Accessories attached.
Company Profile
Shenzhen Feetech RC Model Co., Ltd. founded in 2011,
The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology,are professional servo solution
expert, can provide electronic design, structure design and production of one-stop customized service,our creative team is devoted to design & develop a most ideal servo for all project.
The products have been involved in RC models, logistics warehousing,smart home, medical, education, robotics and other industries.And has passed ISO 9001:2015 quality management system certification and CE, RoHS, REACH,Certification.
The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology,are professional servo solution
expert, can provide electronic design, structure design and production of one-stop customized service,our creative team is devoted to design & develop a most ideal servo for all project.
The products have been involved in RC models, logistics warehousing,smart home, medical, education, robotics and other industries.And has passed ISO 9001:2015 quality management system certification and CE, RoHS, REACH,Certification.
Our Services & Strength
Specialized in ODM and OEM and Custom Made we can provide electronic design, structure design and production of one-stop customized serive, Please feel free to share with me your idea.
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
Payment
We adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
Payment
We adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
FAQ
Q:How about your quality?
A:Our quality will be good,and the goods have been checked and tested one by one before shipping.
Q:How long for the delivery once we place order?
A:The lead time is declded the item you ordered and the quantity.
For normal order,the lead time is about in 5-7 days,
If big quantity or OEM,the lead time will be some days more.
Q:The price you are offering is with shipping costs included?
A:The price does not include the shipping cost.We offer several
shipping solutions,make sure customers choose the most economical one.
Q:Do you have After-Sales Service?
A:Of course,We have special department to do it,and if you have any technology
problem,our eingeer will give your answer.
A:Our quality will be good,and the goods have been checked and tested one by one before shipping.
Q:How long for the delivery once we place order?
A:The lead time is declded the item you ordered and the quantity.
For normal order,the lead time is about in 5-7 days,
If big quantity or OEM,the lead time will be some days more.
Q:The price you are offering is with shipping costs included?
A:The price does not include the shipping cost.We offer several
shipping solutions,make sure customers choose the most economical one.
Q:Do you have After-Sales Service?
A:Of course,We have special department to do it,and if you have any technology
problem,our eingeer will give your answer.
Похожие товары

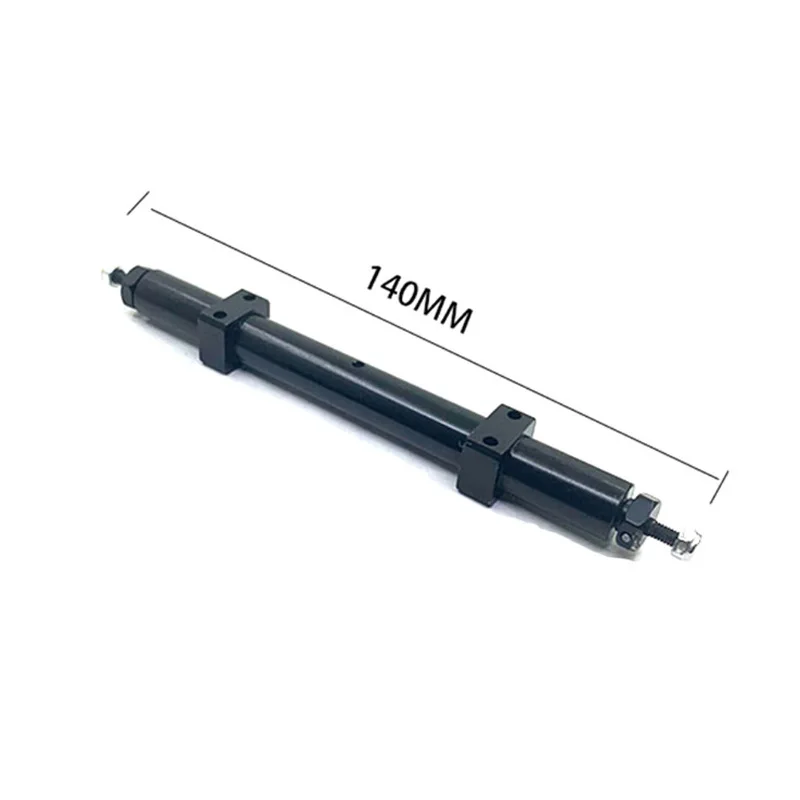

Задняя ось прицепа с дистанционным управлением, металлическая задняя ось прицепа, аксессуары для модификации для серии Tamiya 1/14 (140 мм)
485,55 ₽ - 755,29 ₽
Orange TT моторное колесо 65*27 мм прозрачные резиновые шины колеса для шоссейных гоночных автомобилей колесо для DIY Smart автомобильные аксессуары
48,56 ₽ - 80,93 ₽

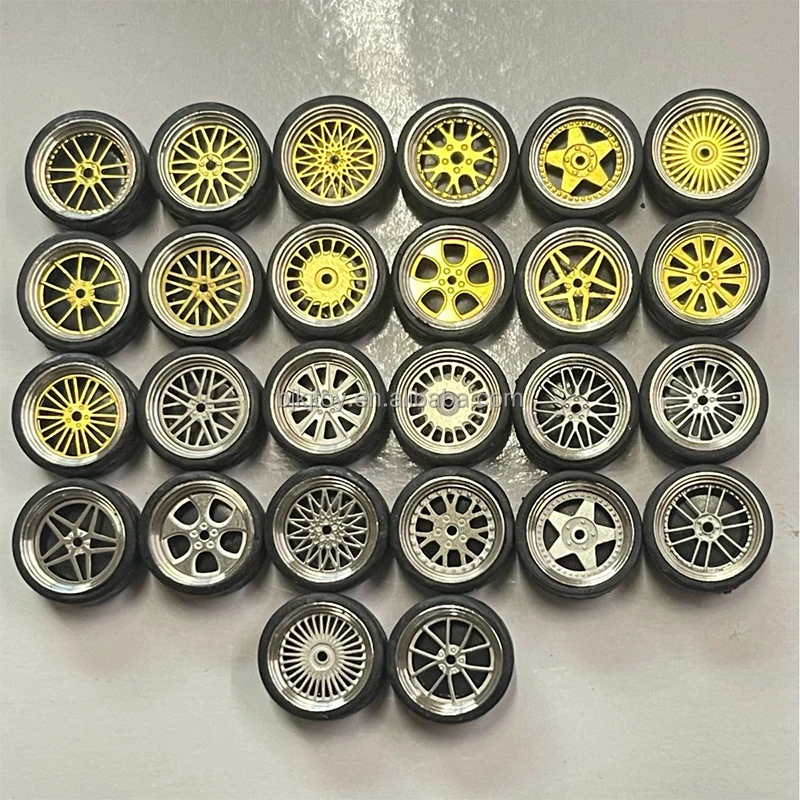

Модель автомобиля из сплава 11 мм, 1/64 Модифицированная резиновая шина из сплава, совместимая с хобби
361,46 ₽ - 446,70 ₽

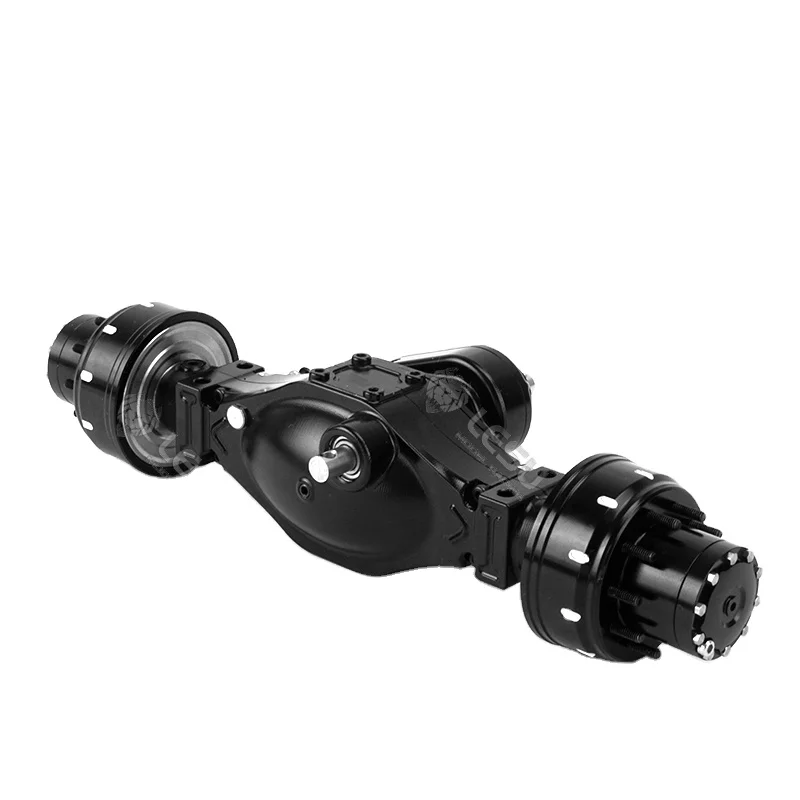

Металлический дифференциальный задний колесный редукционный мост для 1/14 Радиоуправляемый грузовик Tamiyaya трактор с дистанционным управлением гидравлический самосвал Th16479

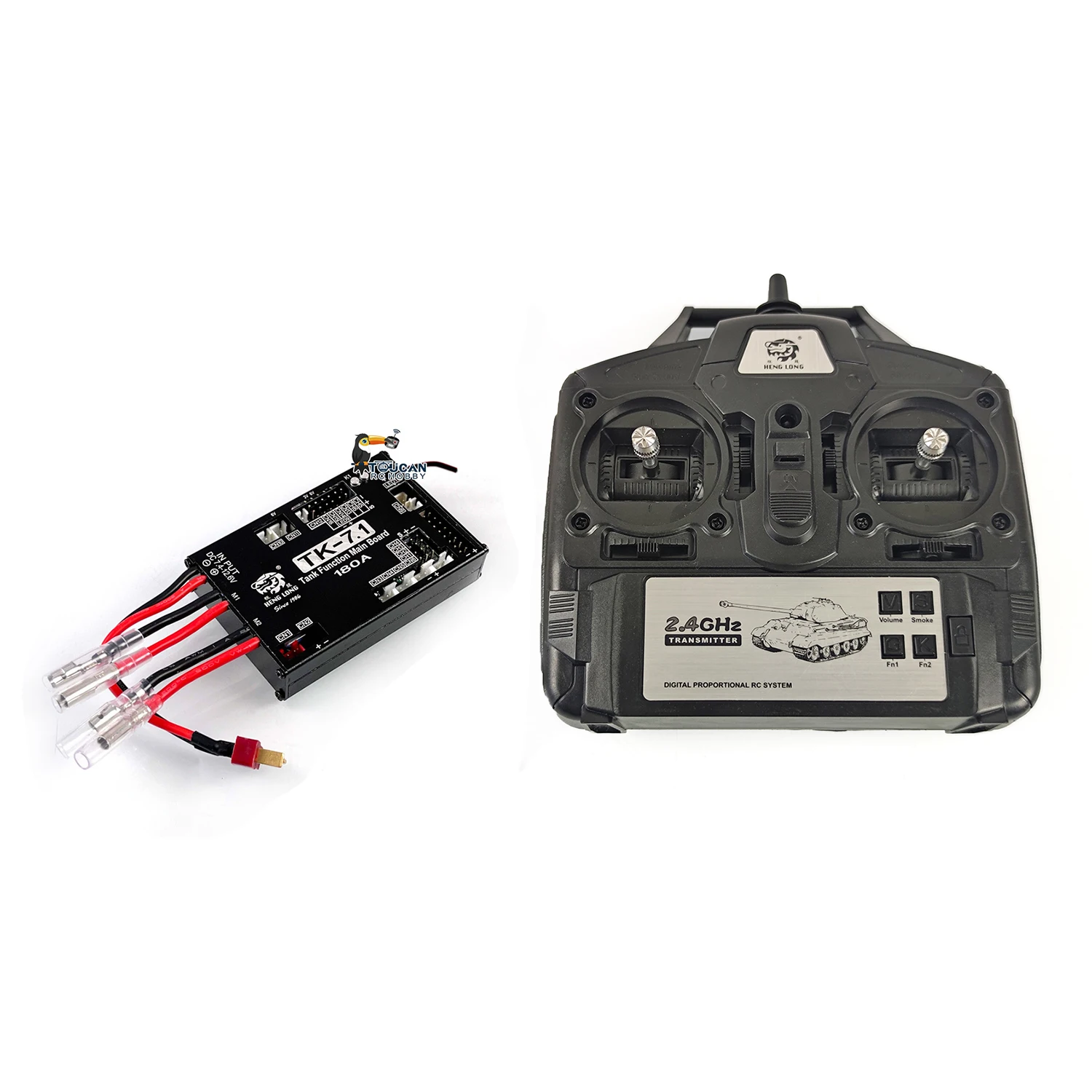

Heng длинный 1/16 RC бак 2,4 ГГц 7,1 поколения передатчик основная плата связывания провода Сделай Сам THZH1246-ali6
OEM/ODM обновленная версия, высокий крутящий момент 35 кг 0,13 сек, прочная стальная шестерня HV Coreless, цифровой стандартный сервопривод для rc nitro автомобилей 1/10 Jet
1 532,15 ₽ - 1 596,89 ₽

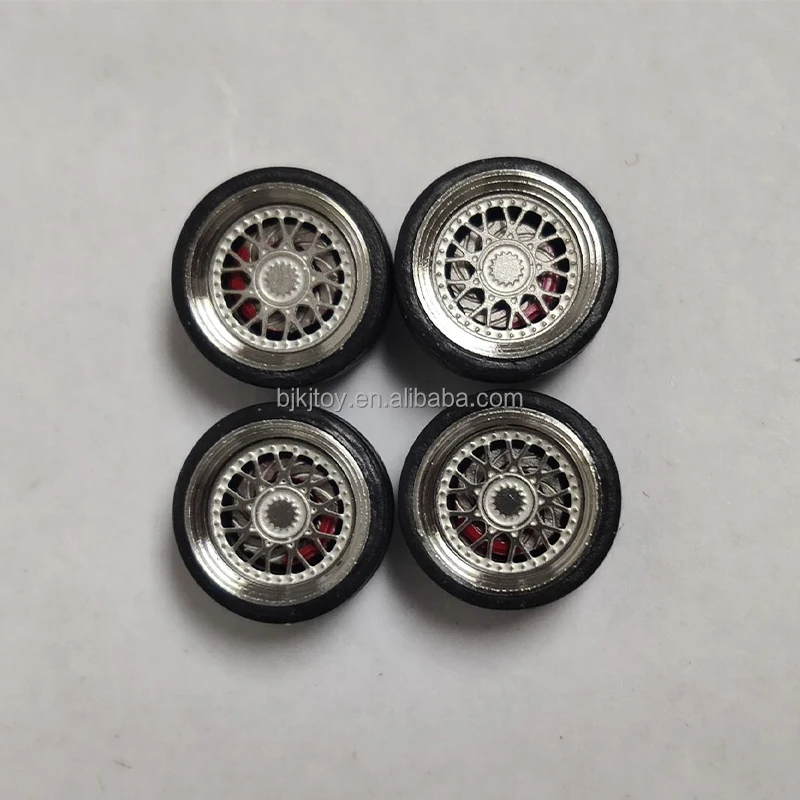

Оптовая продажа, 11 мм, 5,2 мм, 1/64 модифицированное колесо с дисковым тормозом, металлическая резиновая шина, модель автомобиля, шины rc, детали автомобиля для горячего колеса
