Оборудование для подземных работ HuanSheng ZWY 80 гусеничный скребок экскаватор погрузчик угольной шахты
- Категория: >>>
- Поставщик: Henan Huansheng Mechanical Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601166330708:
Описание и отзывы
Характеристики
Products Description

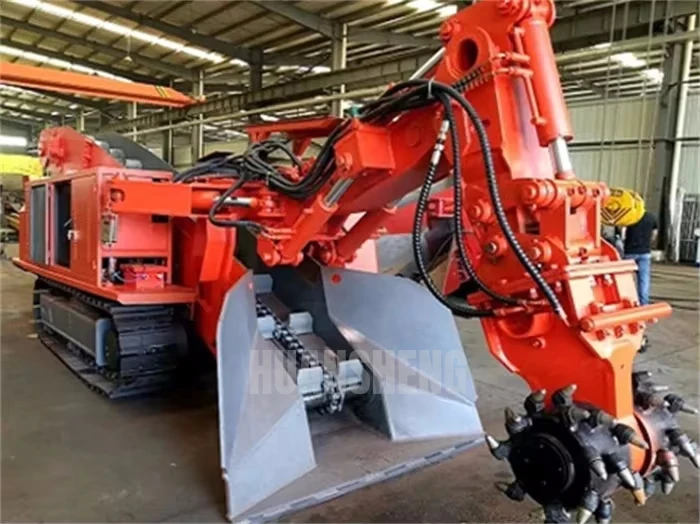

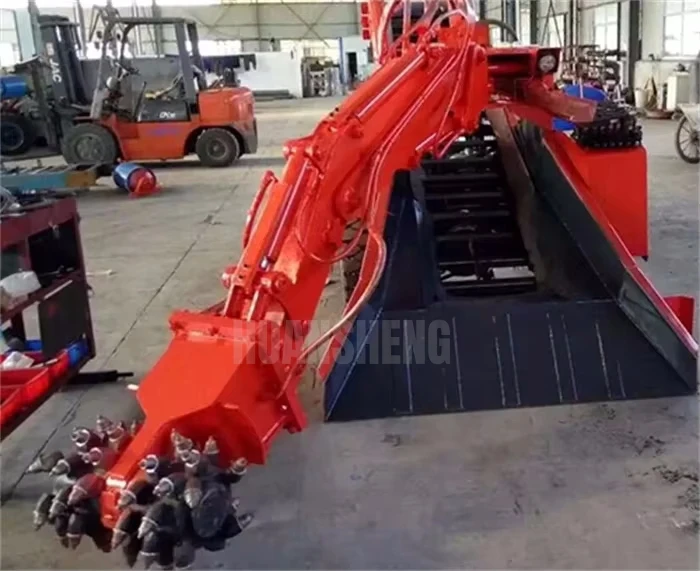

Crawler scraper type coal mine backhoe loader is a kind of jib armed, lengthwise direction tunneling machine with the functions of cutting, loading and traveling, suitable for the coal or half coal tunnel.Tunnel milling machine can be loaded on excavators, loaders and road header, and the internal hydraulic motor drives the knife drum to rotate.The teeth on the knife drum collide with the construction surface and cut through the soil and rock like a claw. It replaces the general equipment such as "bucket, crushing hammer and hydraulic shear" and provides a new economic construction method for tunnel excavation.
Benefits of Having a Crawler scraper type coal mine backhoe loader:
1)Bucket, crushing hammer and hydraulic milling head,can change each other. provides a new economic construction method for tunnel excavation.
2) Easy to operate and maintain without technical training.
3) Reduce labor,save your time and money.
4) Wide applying.It can be widely used in tunnels,ditches,municipal pipeline excavation etc.It is specially suitable for narrow tunnels.
We can make different models, various colors of the Tunnel digging machine according to the needs of customers, in addition, we can also specialize in the production of new products according to customer demand.We have permanent stock, spare parts and technical solutions for our clients.
1)Bucket, crushing hammer and hydraulic milling head,can change each other. provides a new economic construction method for tunnel excavation.
2) Easy to operate and maintain without technical training.
3) Reduce labor,save your time and money.
4) Wide applying.It can be widely used in tunnels,ditches,municipal pipeline excavation etc.It is specially suitable for narrow tunnels.
We can make different models, various colors of the Tunnel digging machine according to the needs of customers, in addition, we can also specialize in the production of new products according to customer demand.We have permanent stock, spare parts and technical solutions for our clients.

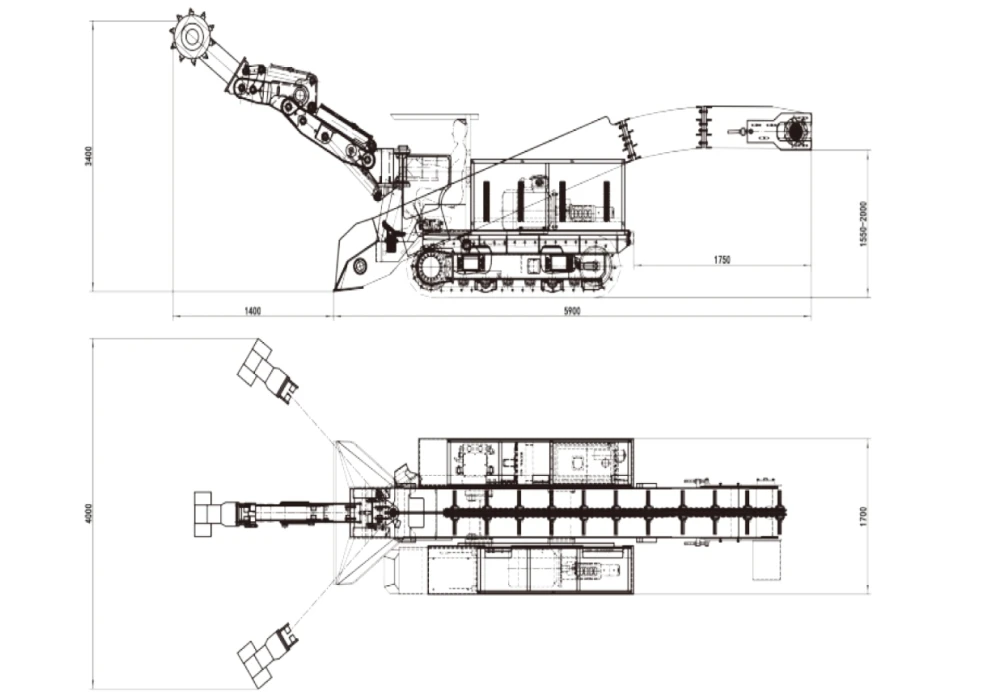

Item | Parameters | Item | Parameters |
Loading Ability | 80m³/h | Walking speed | 2km/h |
Machine quality | 9000kg | Gap from the ground | 250mm |
Min turning radius | 6m | Track inside width | 1100mm |
Dig Width | 4000mm | Rated working pressure | 20MPa |
Dig height | 3400mm | Max turning angle | +73° |
Dig Depth | 700mm | Total motor power | 45kw |
Digging distance | 1400mm | Adapt to slope | ≤20° |
Unload Height | 1550-2000mm | Adapt to minimum surface | 3.5*2.2m |
Unload distance | 1750mm | Mode oftransport | Scraper |
Climbing ability | ≤20° | The way of walking | Caterpillar track |
Scratching speed | 0.36m/s | Overall Size | 5900x1700x2150(L)(W)(H) |
Specifications | 130mm | Operation Mode | Pilot Valve |
Product Details
According to the real requirements,We can customize explosion-proof,diesel engine,and solid tire.
CONVEYOR SYSTEM
Flame retardant rubber conveyor belt. The special design is to ensure the successful conveying of the small rock.
Higher transmission efficiency than single chain.
The scraper convey can be used for transporting larger rock.
WALKING SYSTEM
Solid tire
Applied to the ordinary ground of mine or tunnel
Applied to the ordinary ground of mine or tunnel
Crawler type
The crawler type is used for complicated road, such as the uneven surface, the gully.
The crawler type is used for complicated road, such as the uneven surface, the gully.
VARIOUS TOOLS

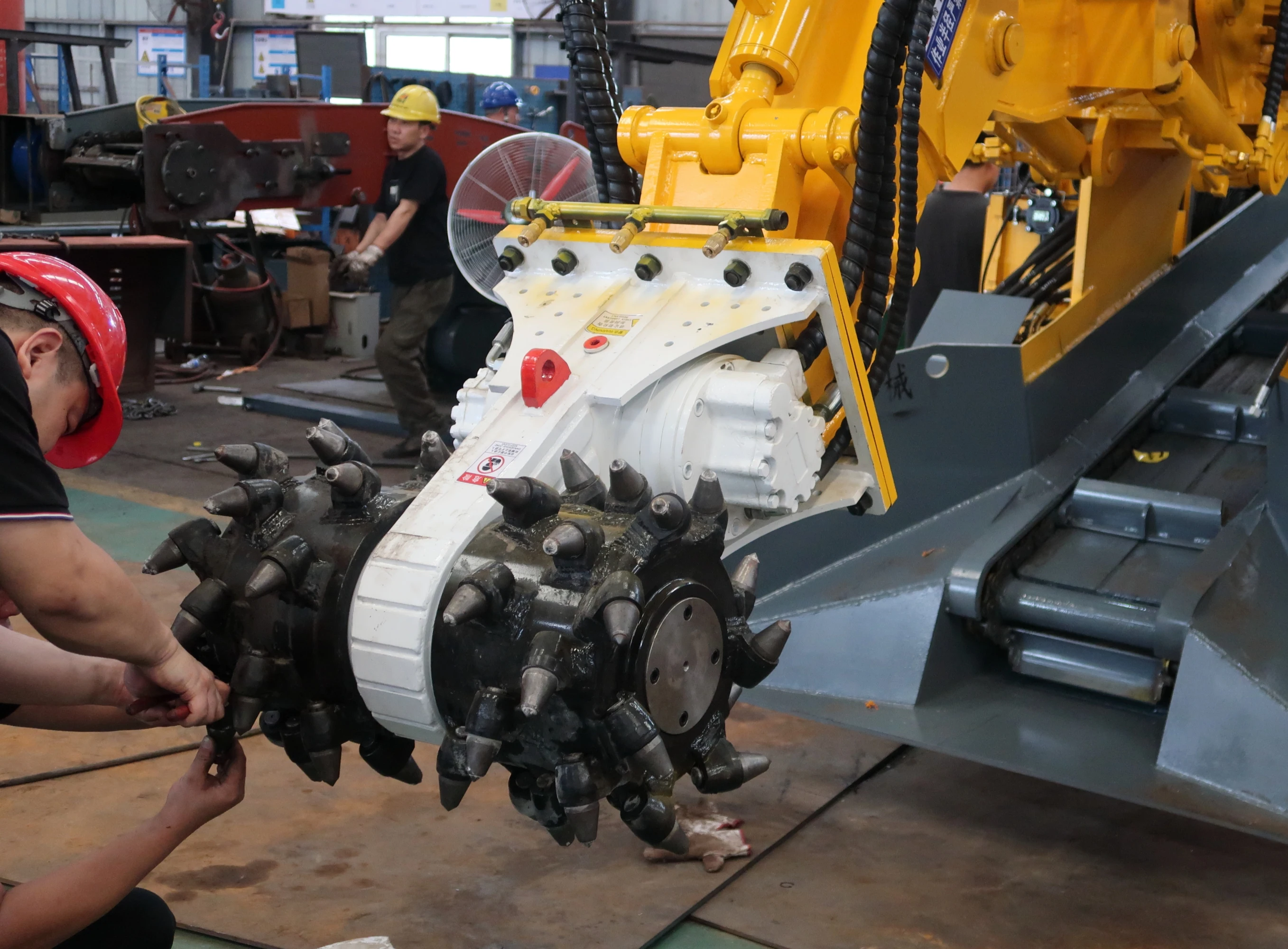

Drum cutter.Construction safety, high efficiency. According to operating environment, replace the different milling dig cutter, milling ditch dug round rock saws disk, etc.
It is a combination of tooth base and tooth tip, which are connected by a pin shaft. Because the bucket tooth wear failure part is the tip of the tooth, as long as the tip of the tooth can be replaced.
The hydraulic breaking hammer adopts the impact energy enhanced structural design, the same diameter of the piston and the bit rod, so that the hammer and the main engine matching effect is the best.

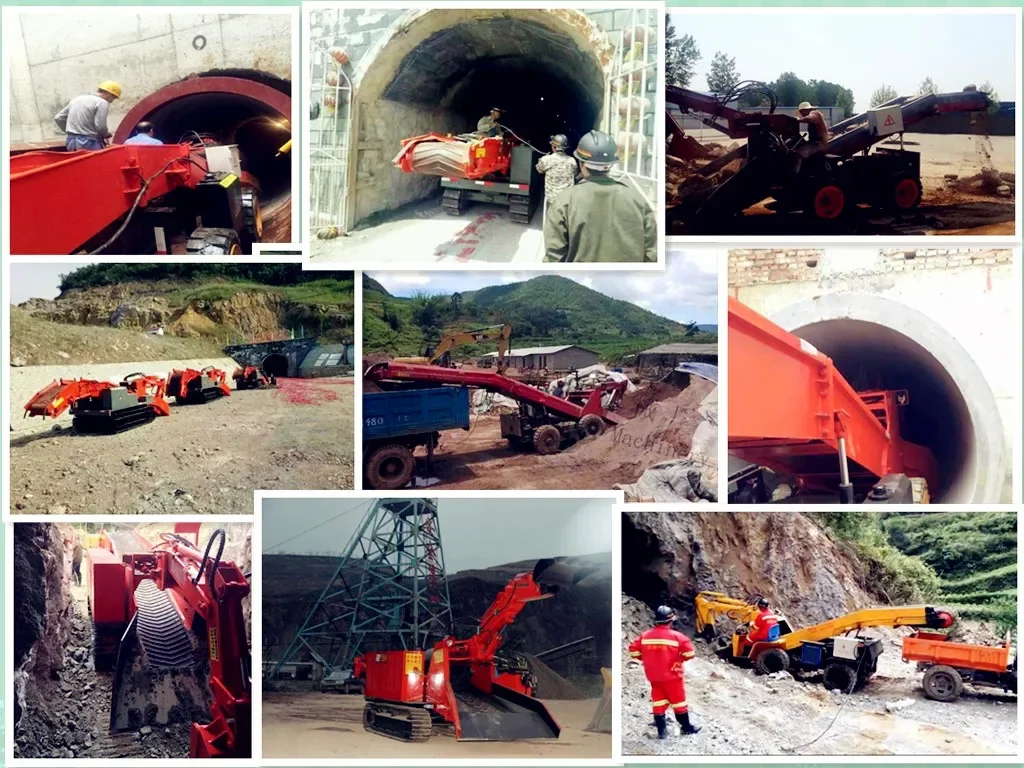

Application scenario
This Tunnel Digging Machine is specially designed for coal mining use, anti-explosion, have approved MA certificate. The equipment is equipped with a bucket and a hammer on the working arm frame, which has the performance of crawler loader. The hammer is moved by a sliding path. When the bucket is working, the hammer can be slipped and contracted, and the exchange time between the bucket and the hammer can be saved. In addition it can be equipped with a milling head, it is a machine with cutting, hammering and lifting bulk materials functions together. Have the advantages of compact structure, high efficiency, low energy consumption and economical.
Packaging & Shipping
All the coal mine backhoe loader will be delivered in container, without packing.
The delivery time is 7-25 working days after your payment.
The delivery time is 7-25 working days after your payment.
Company Information
--CUSTOMER VISIT--
--OUR TEAM--
Henan HuanSheng Mechanical Equipment Co.,Ltd. is a specialized manufacturer and trade of Tunnel Digging Machine and mini dumper, integrating development and production. We are holding this line for more than 29 years, with well-equipped testing facilities and strong technical force. Our products are exported to many countries all over the world. With a wide range, good quality,reasonable prices and stylish designs, our products are extensively used in construction, mining and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Contact Us
Похожие товары

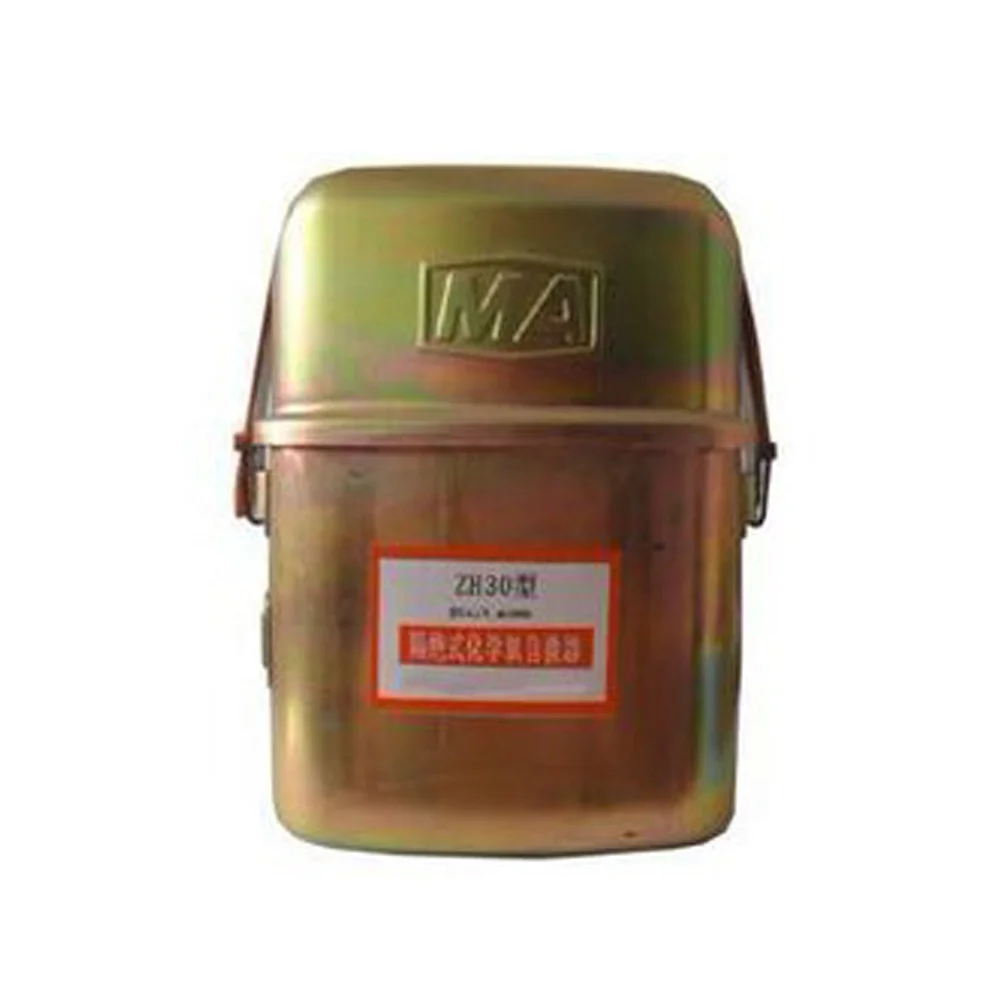

ZH 30 угольная шахта автономный химический кислородный самоспасательный аппарат

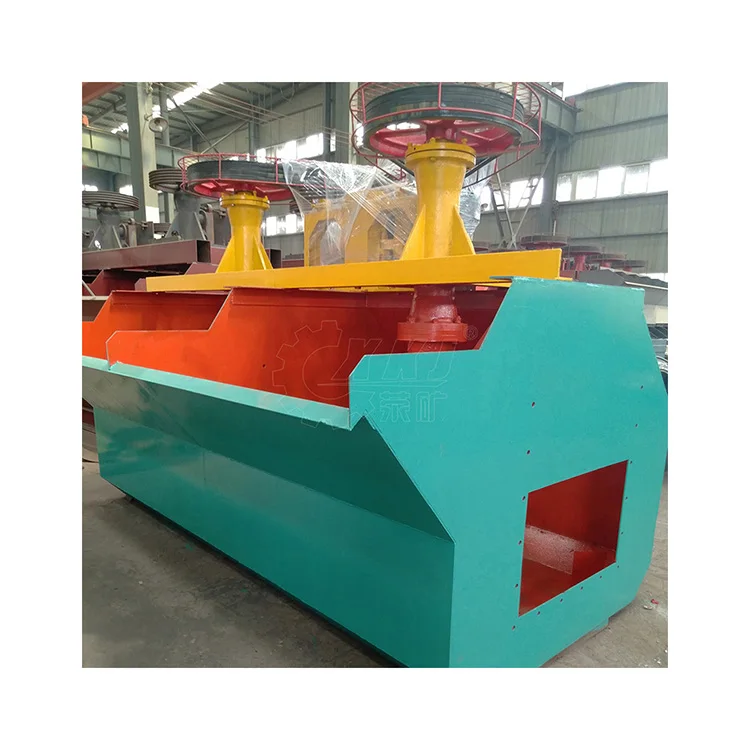

Henan Xingyang горнодобывающая техника флотационная машина статор ротора свинцово-цинково-медное флотационное оборудование производственная линия
