Машина для изготовления бумажных пакетов с автоматической подачей листов серии TB R верхней усиленной бумажной карточкой и складкой

Сохранить в закладки 1601166408432:


Цена:27 001 058,00 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

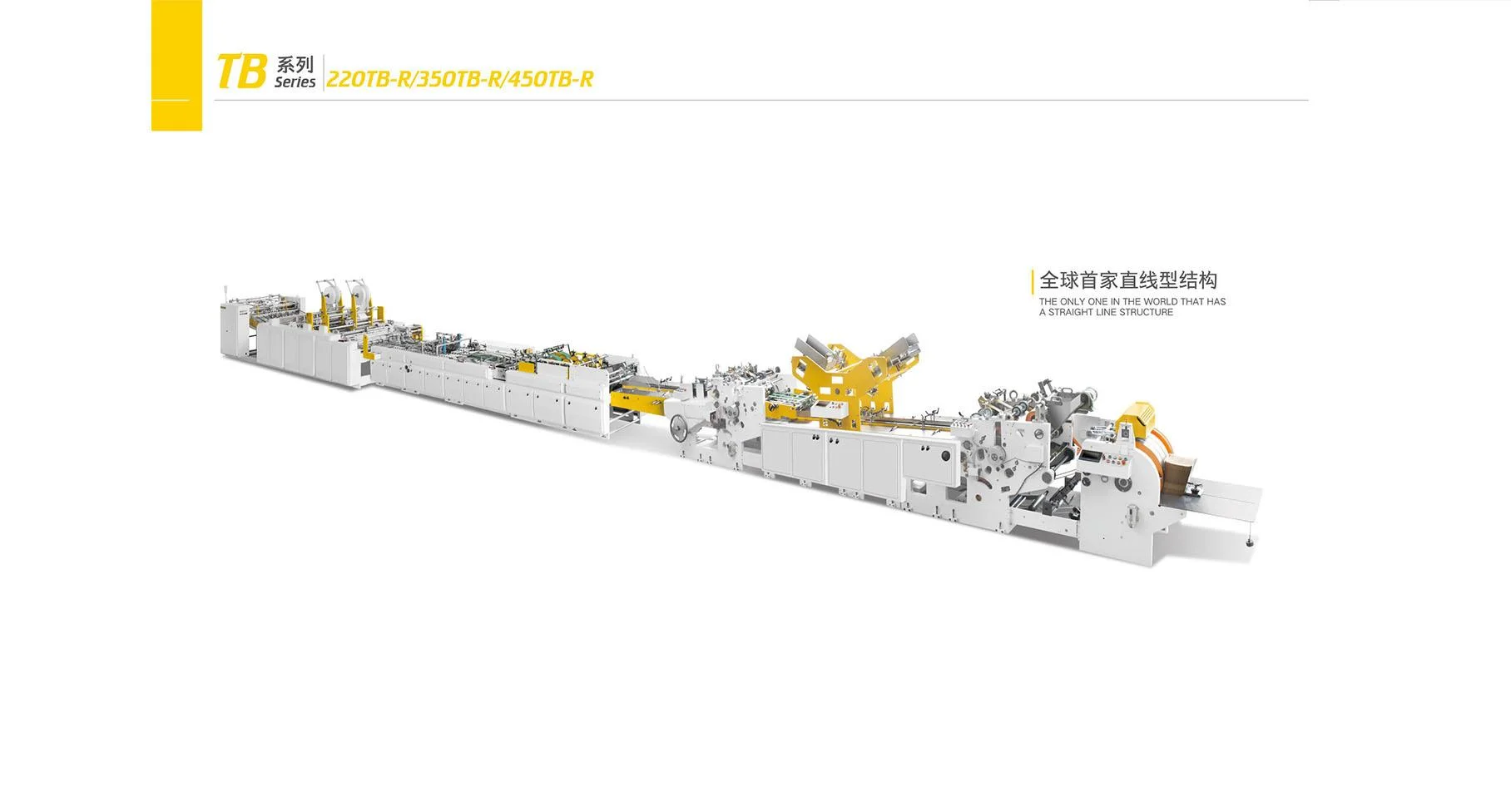

T-R Series Automatic Sheet Fed Paper Bag Making Machine Function With Top Reinforced Paper Card Pasting And Top Folding And Hole Punching
Automatic single paper bag machine is suitable for the production of various shopping bags gift bags.It is the ideal equipment for making paper bags of various sizes. The automatic bag making machine is simple, efficient, stable, accurate and saves labor cost. This is a complete paper bag production machine, all processes are in one production line.


Different options
The KL-220TB-R bag width can be 110-240mm passwords, and the side can be 60-130mm.
The KL-350TB-R bag width can be 180-350mm password,and the side can be 70-170mm.
The KL-450TB-R bag width can be 200-450mm passwords, and the side can be 80-180mm.

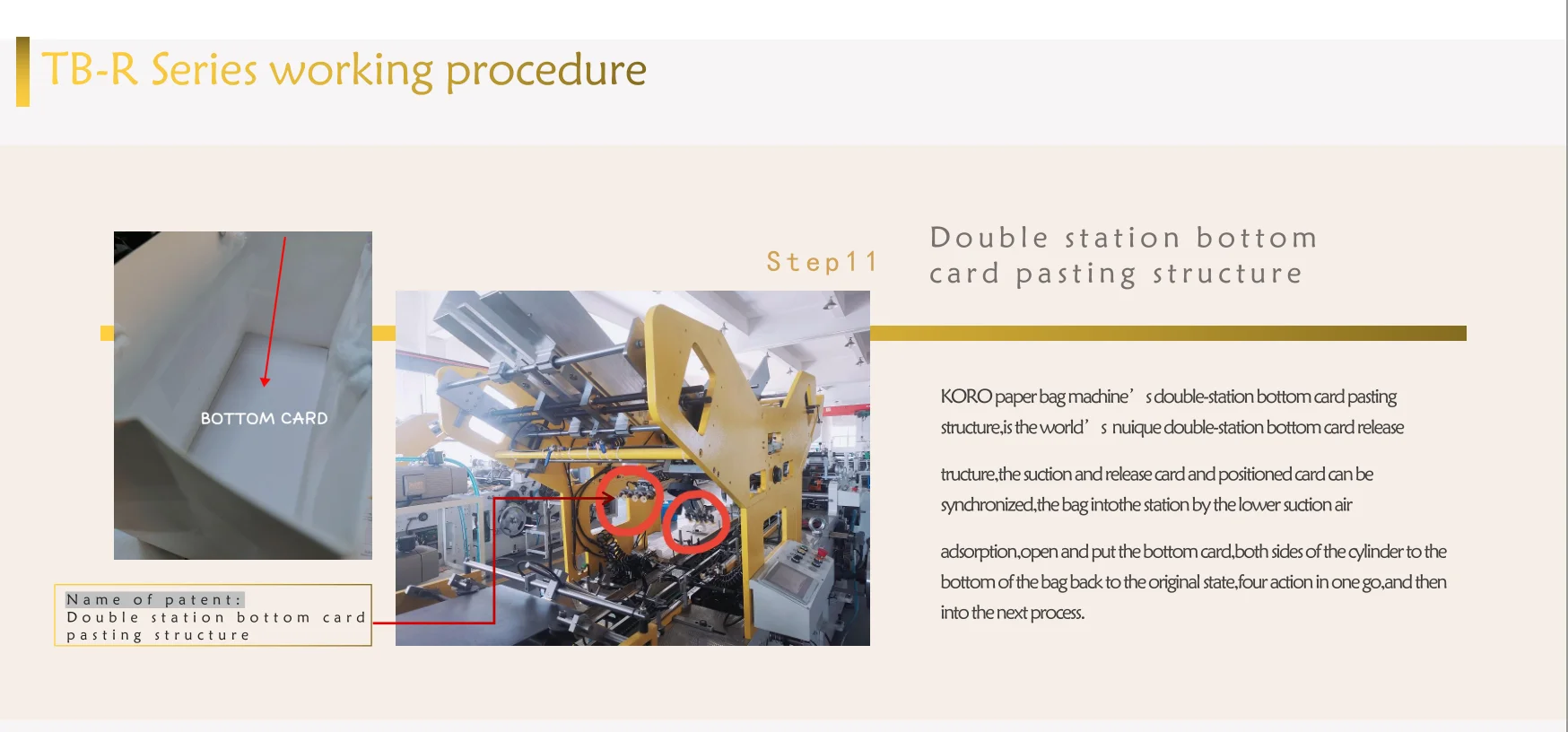

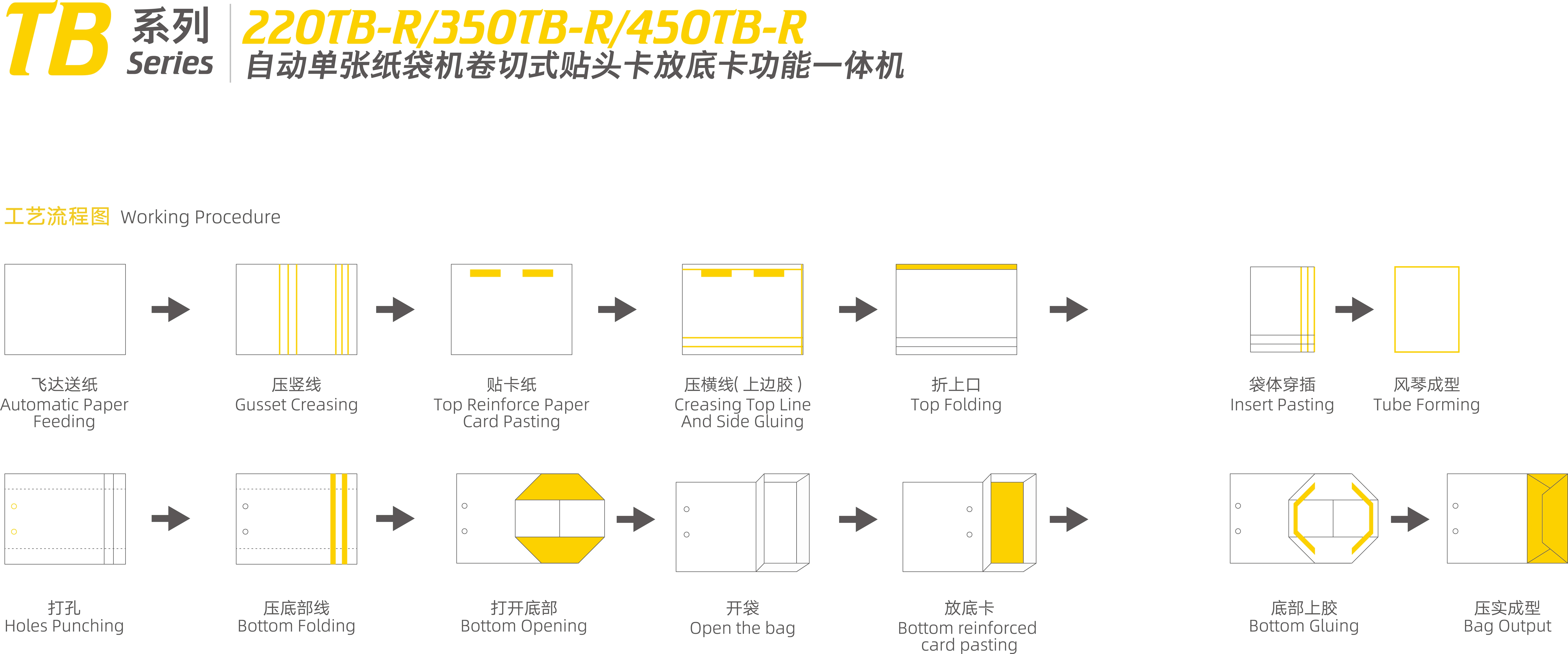

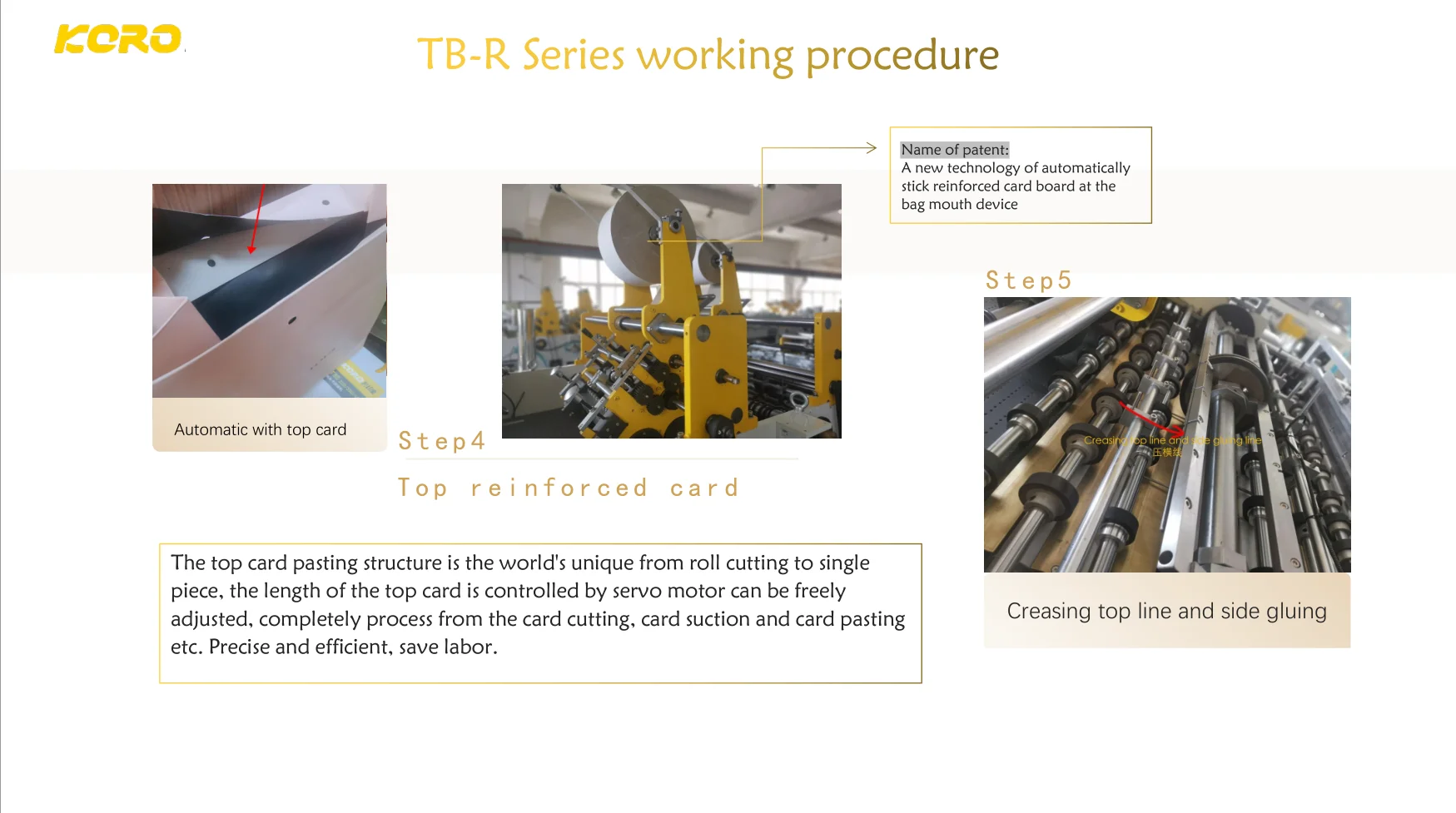

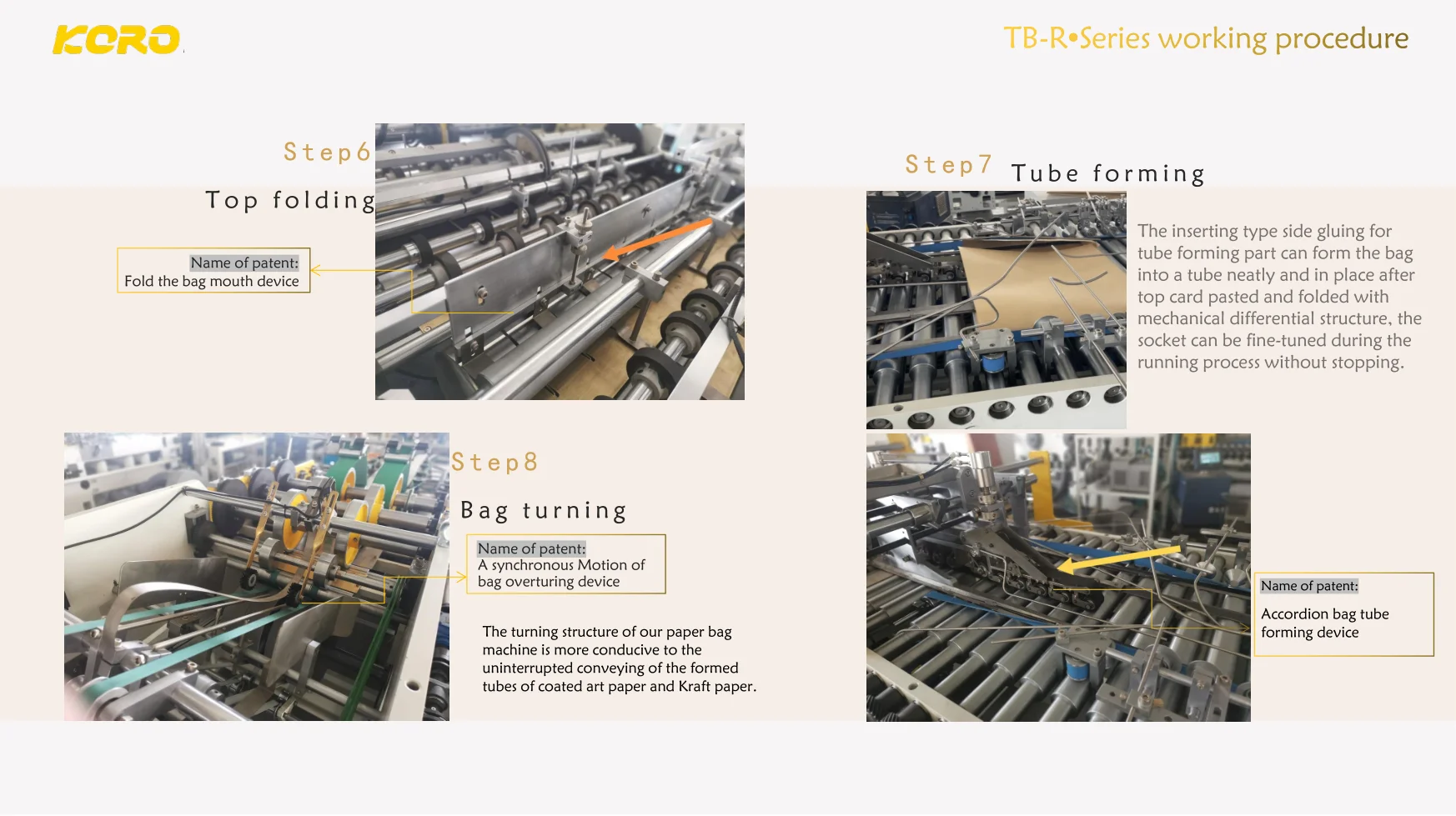

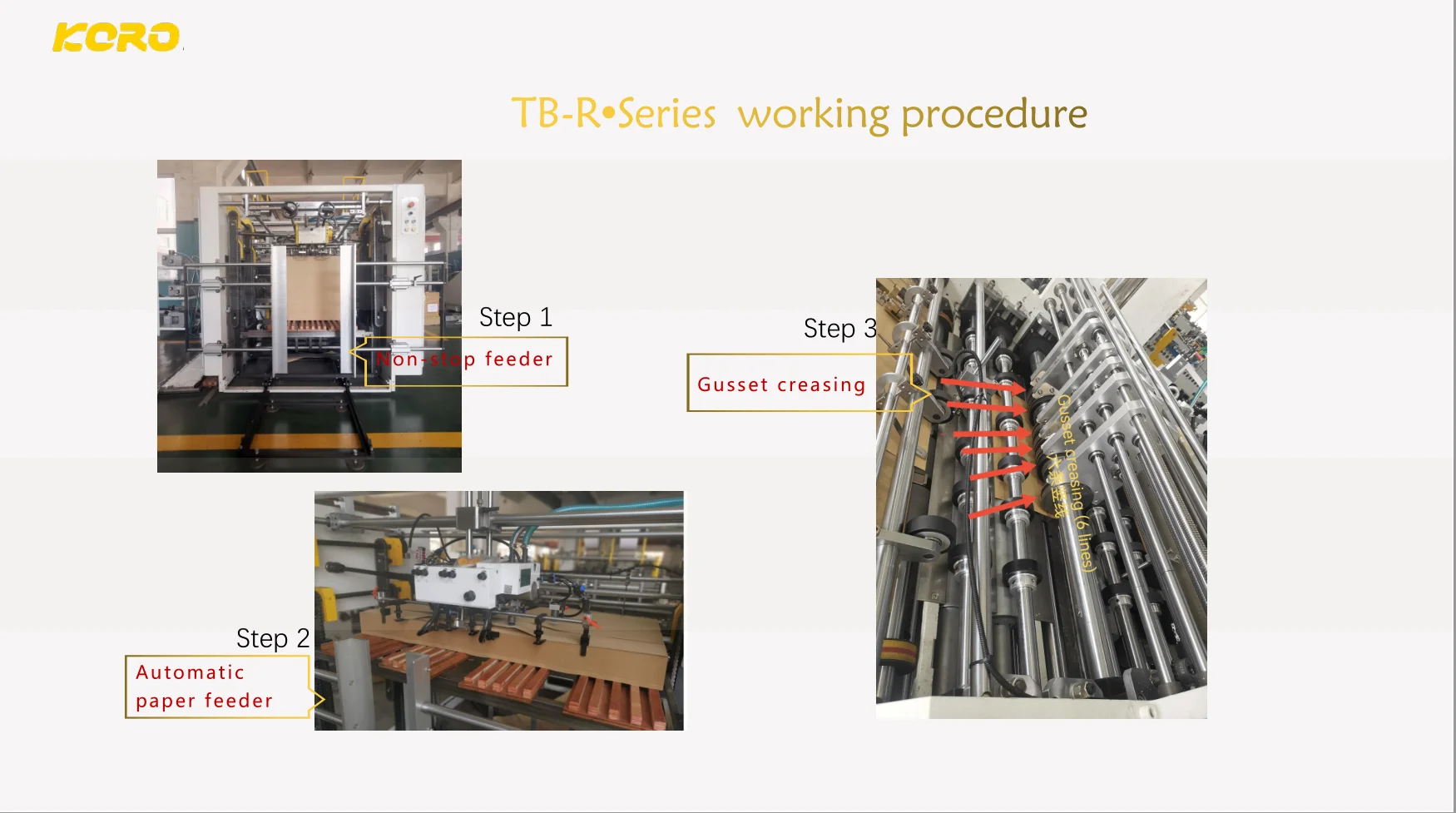

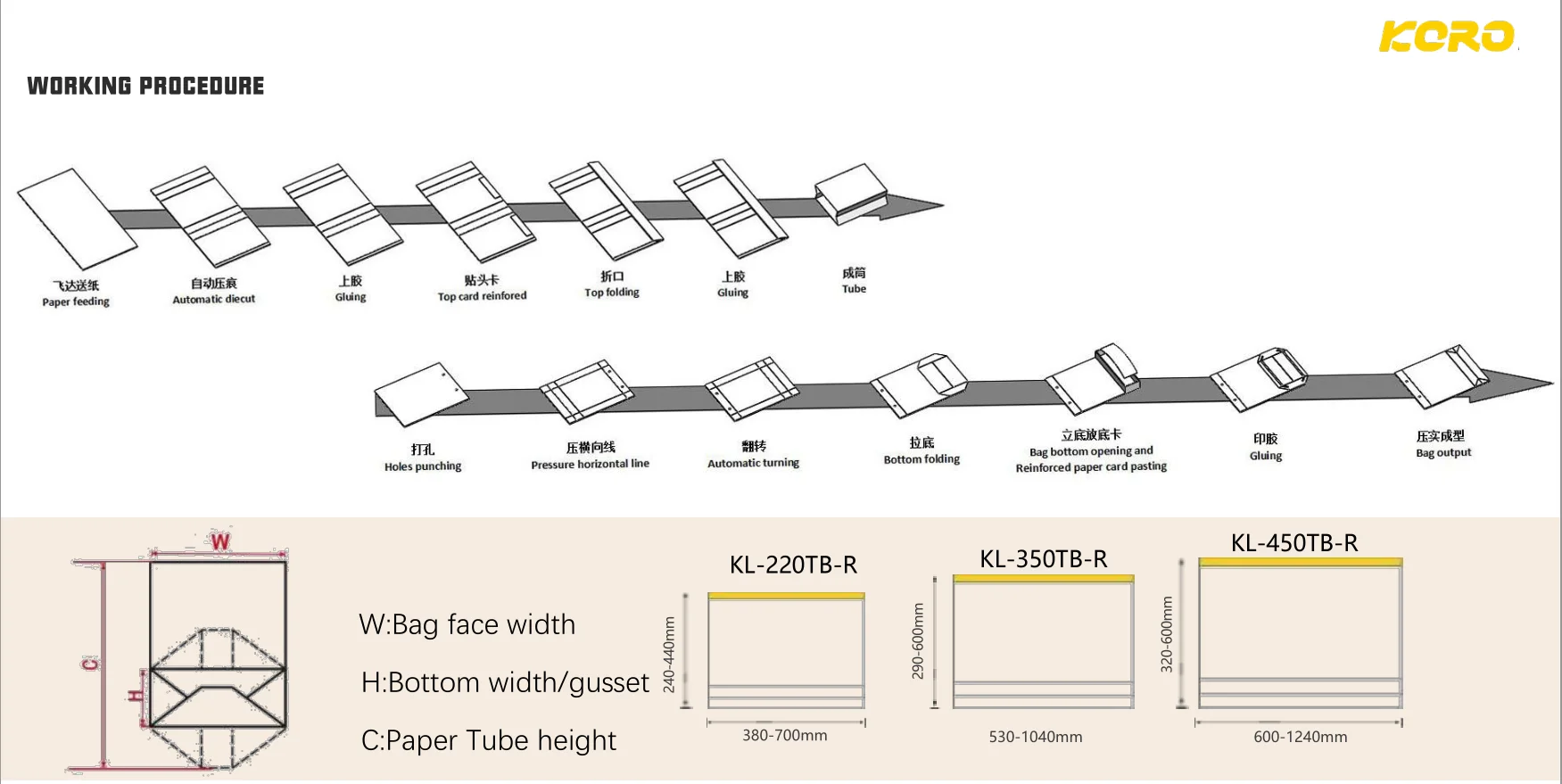

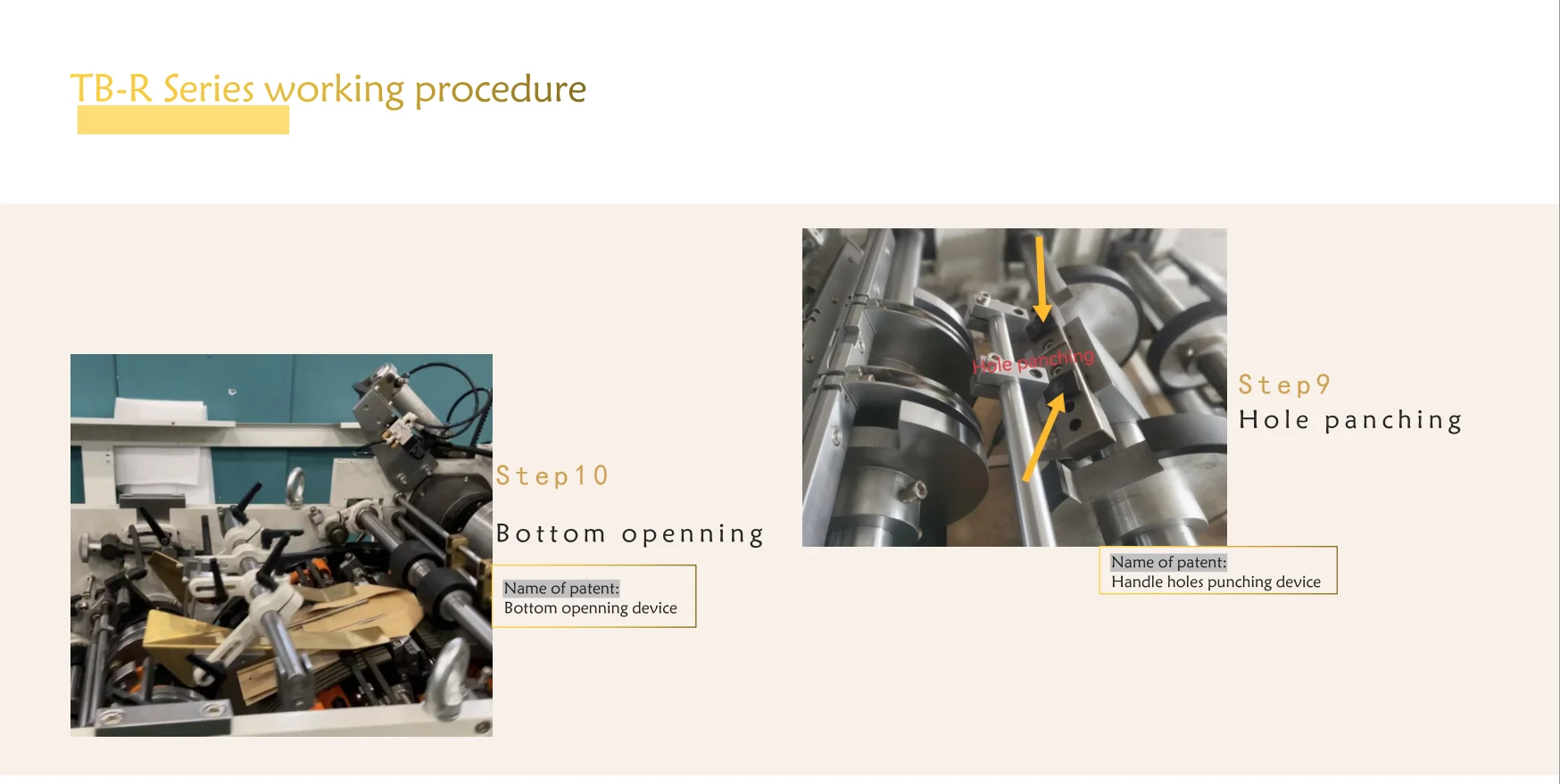

Working Procedure
The automatic all-in-one machine can realize the stacking of paper without stopping, the collection of sticker card, punching, placing the bottom card, from the sheet paper to the bag a series of automatio


The applicable materials
KL-220-TB-R: kraft paper: 120-200g/㎡, coated paper +pp film: 150-230g/㎡, white cardboard +pp film: 150-250g/㎡.
KL-350-TB-R: kraft paper: 120-200g/㎡, coated paper +pp film: 150-250g/㎡, white cardboard +pp film: 150-300g/㎡.
KL-450-TB-R: kraft paper: 120-200g/㎡, coated paper +pp film: 150-250g/㎡, white cardboard +pp film: 150-350g/㎡
Note: It is recommended that more than 200 grams of paper need to die cut










Product features and details:
1. Man-machine touch screen interface, real-time display of working status.
2. Precision servo motor drive, stable and efficient operation.
3. Thumb button with bottom cutting device.
4, no need to stop the pre-pile, more simple, more time saving.
5.Accurate color tracking system, automatic alarm when the color is wrong.
6. Adjustable molding mold structure (side seal above the molding mold).
7. Gluing is controlled by servo motor.

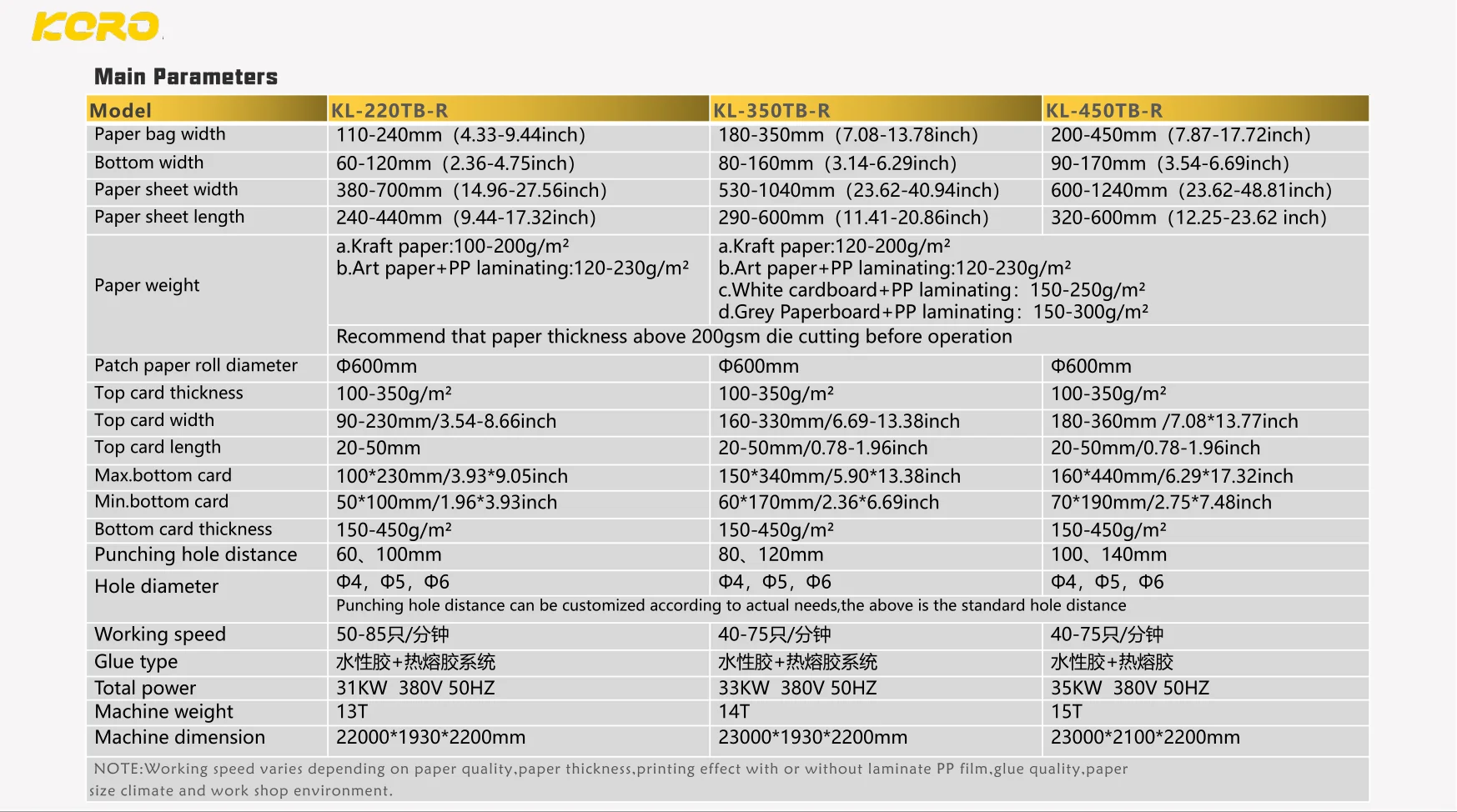

Main Parameters
Our machines can be upgraded optionally with automatic four heated blades, glue sprayer, 5kw servo motor, bag number counting and stack conveying for easy packing.




WENZHOU KORO MACHINNERY CO.,LTD
We are a manufacturer of post-press equipment integrating R&D,production,sales and service.At present ,we have more than50national patent technologies,including 11 invention patents,and have passed the international SGS EU CE certification and ISO quality management system certification.
We are mainly engaged in various series of sheet fed paper bag making machines and special roll fed paper bag making machines,with unique and advanced professional technology to meet the needs of the majority of medium and high-end hand-bag manufacturers as well as the market.


Our certificate
KORO has passed the international SGS EU CE certification and ISO quality managment system certification
