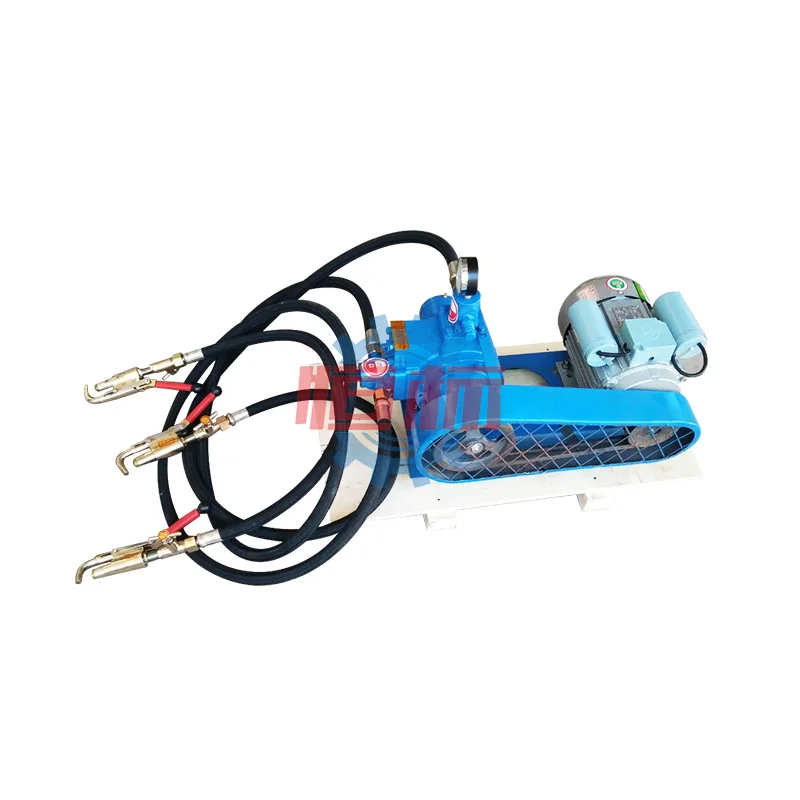

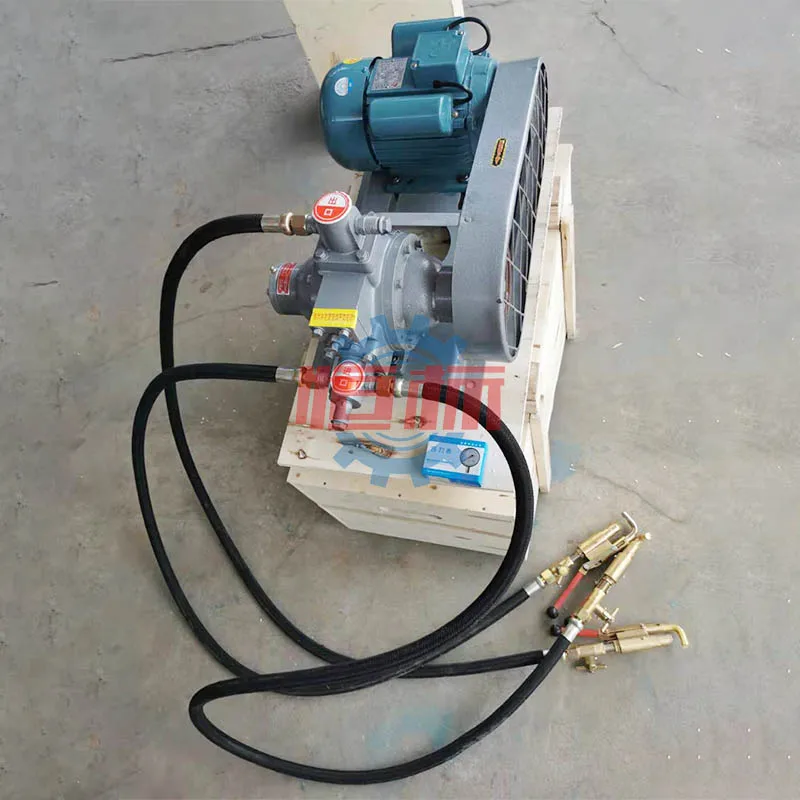

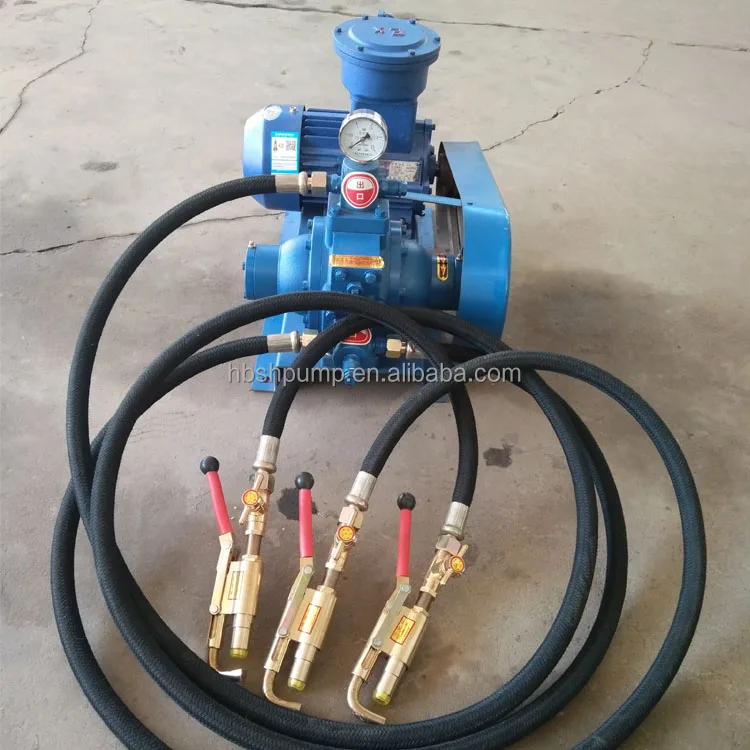

Насос для перекачки жидкости высокого давления СПГ бензоколонки насос наполнения баллонов жидкого нефтяного газа
- Категория: >>>
- Поставщик: Hebei Shenghui Pump Co. Ltd.
Сохранить в закладки 1601166415227:
Описание и отзывы
Характеристики
Product Description
YQB series LPG pump is mainly used for transportation of liquefied petroleum gas, propylene, ammonia, but also for irrigation and transport all kinds of similar nature or volatile liquids and petroleum products. The pump is a positive displacement vane pump,advanced structure, the surface of a composite curve consisting of a stator, mechanical seals at both ends, with respective end surfaces are fixed using the "O"-ring, with the rotational movement of the member are made of metal should be relatively non-metallic with the use of safe and reliable, a machine function.
Specification
item | value |
Warranty | 1 year |
Customized support | OEM, ODM |
Brand Name | HENGBIAO |
Model Number | YQB |
Place of Origin | China |
Hebei | |
Application | Automotive Industry, Biofuel Industry |
Power Source | Electric |
Pressure | High pressure |
Structure | Vane pump |
Outlet Size | 1 inch |
Voltage | 220V/380V/440V/As customer request |
Power | 15-400 kw/As customer request |
motor | As customer request |
Usage | Gas LPG filling |
Material | Cast Iron |
Fuel | Electric Pump Impeller |
Certification | ISO9001 |
Standard or Nonstandard | International Standard |
Power | 50/60Hz |
Pressure differential | 0.5Mpa |
Liquid | LPG, DME, liquid ammonia and other volatile liquids |
Feature | horizontal, booster |
MOQ | 1 Set |

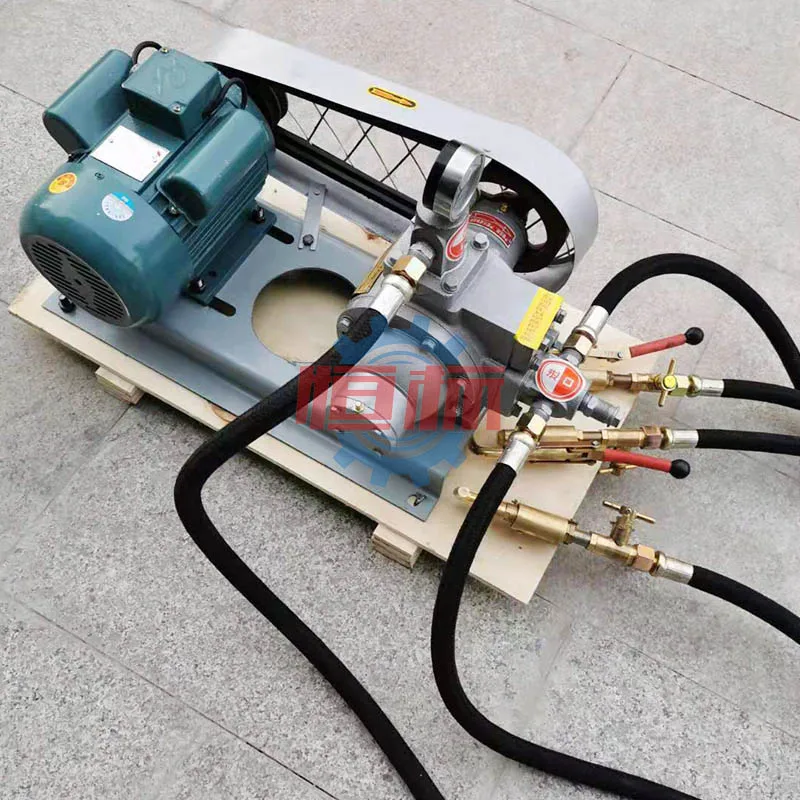

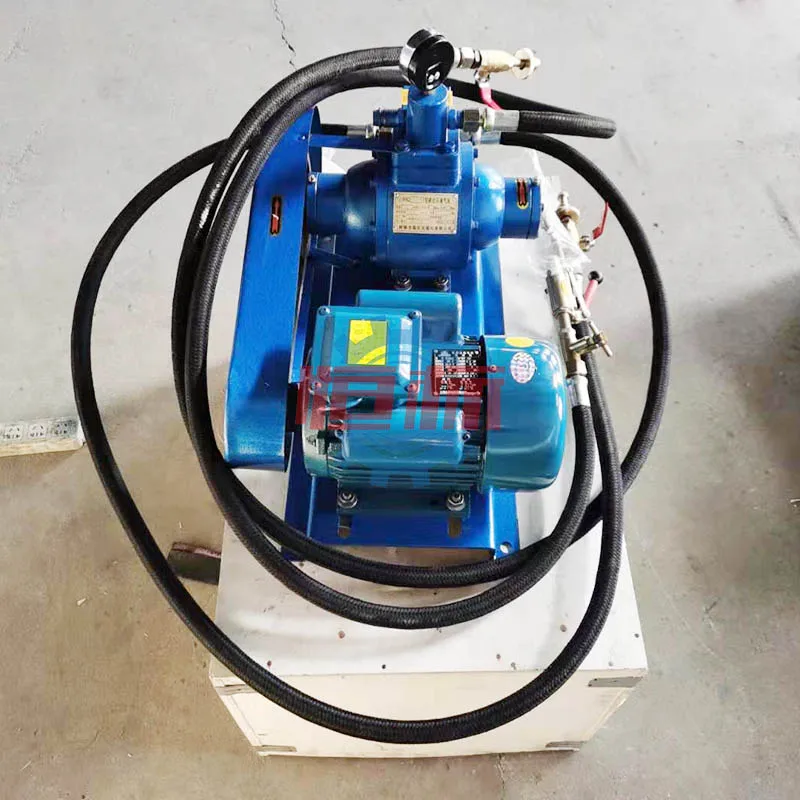

Details Images
Working principle
Liquefaction type of positive displacement pump, liquid ammonia pump vane pump, working on blade centrifugal slide, flow associated with the rotation speed of shaft, the stator surface using the original domestic made from composite curve, stator and rotor, baffle, leaf of ten sealed cavity, because the stator surface is composite curve, as the rotor turns into the oral cavity volume increases gradually, and formed the negative pressure suction, thus the oil suction, after the rotor rotation Angle, volume section decreases, thus the oil hydraulic, between oil absorption cavity and cavity pressure oil has an oil separates oil absorption and pressure oil cavity.The blade is closely attached to the inner surface of stator by centrifugal force and two-baffle structure, which makes the pump work normally under rated condition.
Product Paramenters
Model | Speed n | Flow Q | Pressure difference ΔP | Working pressure P | Power N | Inlet size | Outlet size | Temperature ℃ |
YQB2-5 | 600r.P.m | 2 m3/h | 1.8MPa 0.5MPa | 2.0MPa | 1.5KW | 1 | 1 | -40 ~40 |
YQB5-5 | 780r.P.m | 5 m3/h | 2.0MPa | 2.2KW | 1 | 1 | -40 ~40 | |
YQB10-5 | 600r.P.m | 10m3/h | 0.5MPa | 1.8MPa | 5.5KW | 2 | 2 | -40 ~40 |
YQB15-5 | 780r.P.m | 15m3/h | 1.8MPa | 5.5KW | 2 | 2 | -40 ~40 | |
YQB25-5 | 600r.P.m | 25m3/h | 0.5MPa | 1.8MPa | 11KW | 3 | 3 | -40 ~40 |
YQB35-5 | 780r.P.m | 35m3/h | 1.8MPa | 11KW | 3 | 3 | -40 ~40 | |
YQB50-5 | 780r.P.m | 50 m3/h | 0.5MPa | 1.8MPa | 15KW | 4 | 4 | -40 ~40 |
YQB80-5 | 780r.P.m | 80 m3/h | 0.5MPa | 1.8MPa | 18KW | 4 | 4 | -40 ~40 |
Packaging&Shipping
FAQ
1. Who are we?
We are based in Hebei, China, start from 2010,sell to Mid East(20.00%),Southeast Asia(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
We are based in Hebei, China, start from 2010,sell to Mid East(20.00%),Southeast Asia(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Lobe Pump/Gear Pump/Screw Pump/Centrifugal Pump/High Viscosity Liquid Rotor Pump
4. Why should you buy from us not from other suppliers?
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Hindi,Italian
3.What can you buy from us?
Lobe Pump/Gear Pump/Screw Pump/Centrifugal Pump/High Viscosity Liquid Rotor Pump
4. Why should you buy from us not from other suppliers?
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Hindi,Italian
Похожие товары
Экшн-насос 4006 полиэтилен (ПЭ) сильфонный экшн-Сифон барабанный насос 7 GPM
342,76 ₽
DB150-D1 Одноконтурный Гидравлический Электрический насос 700 бар электрический высокого давления 1 5 кВт
24 797,55 ₽ - 26 450,72 ₽

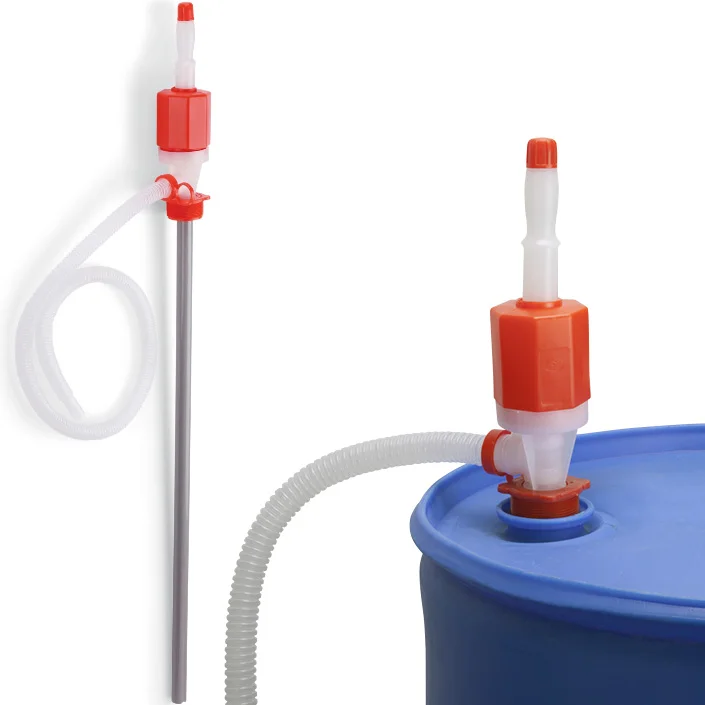

Ручной химический сифонный барабанный насос для жидкостей на водной основе моющих средств воска мыла антифриза несколько мягких кислот
342,76 ₽

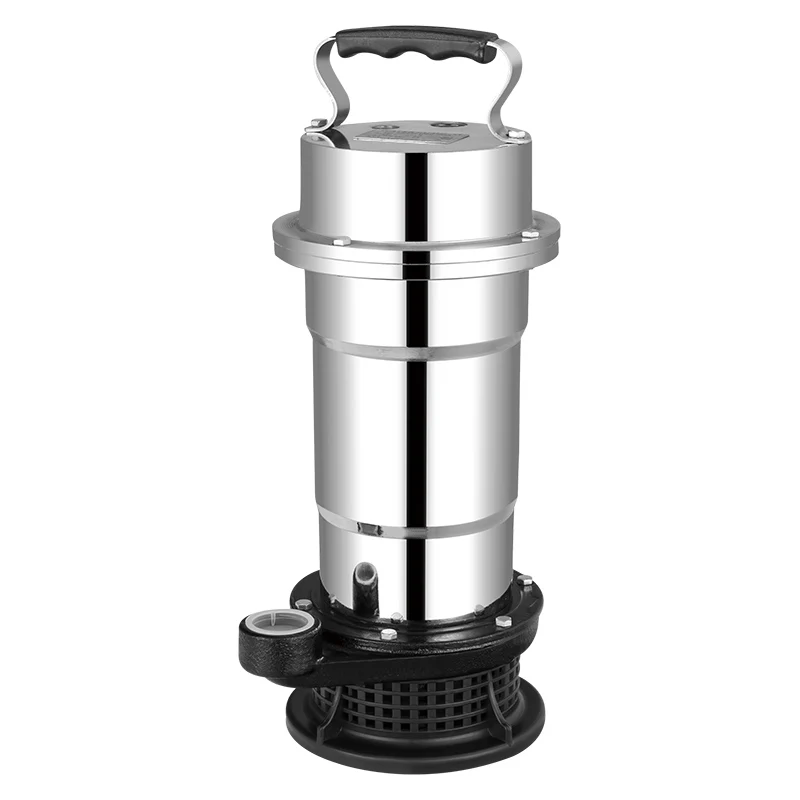

Насос из нержавеющей стали-эффективный устойчивый к коррозии тихий для дома и промышленности.
4 496,63 ₽ - 5 058,70 ₽

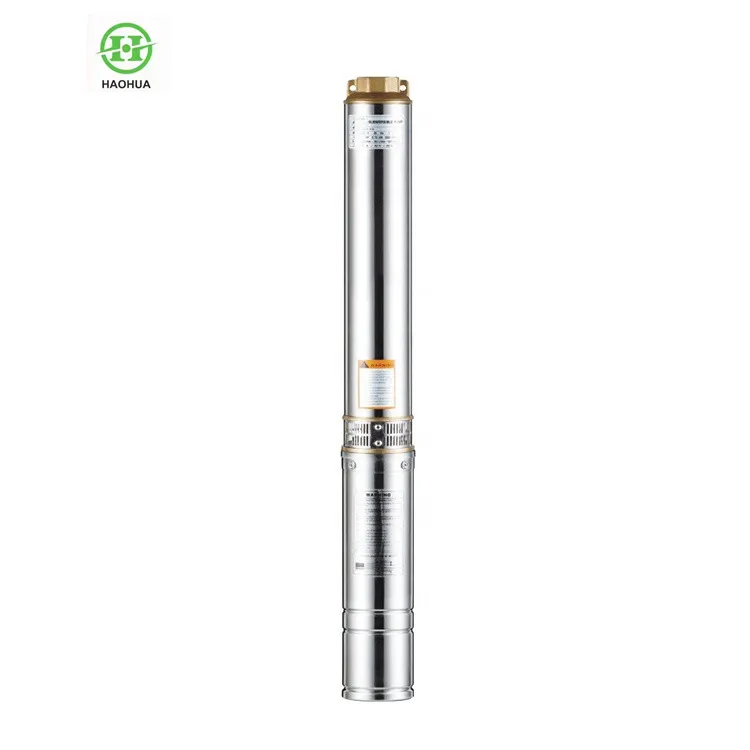

Высококачественные погружные насосы высокого давления 4SD AC 220V 5HP 1 дюймов
5 400,36 ₽

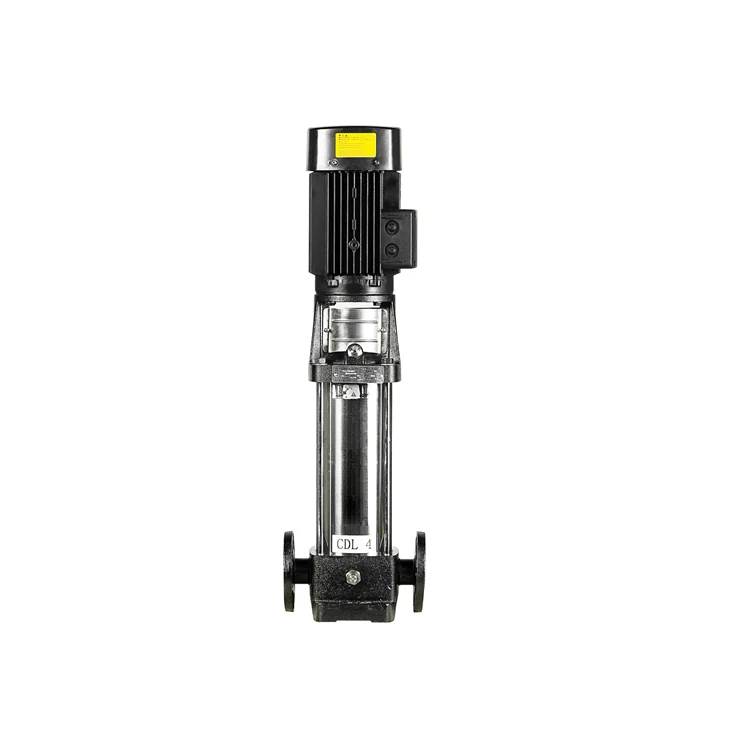

380 Вольт водяной насос вертикальный многоступенчатый центробежный для опреснения морской воды насосы

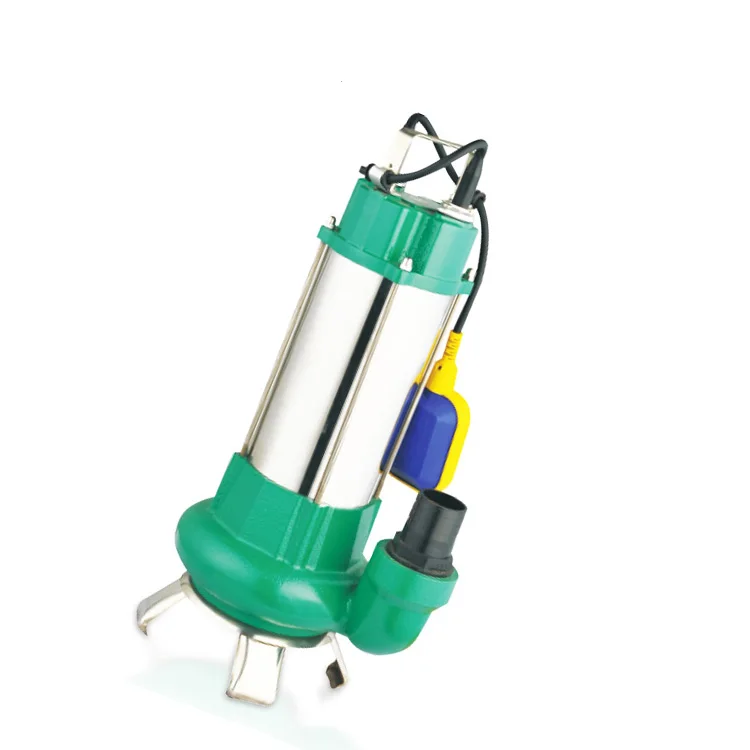

220 В водяной насос канализационный погружные отстойные насосы
