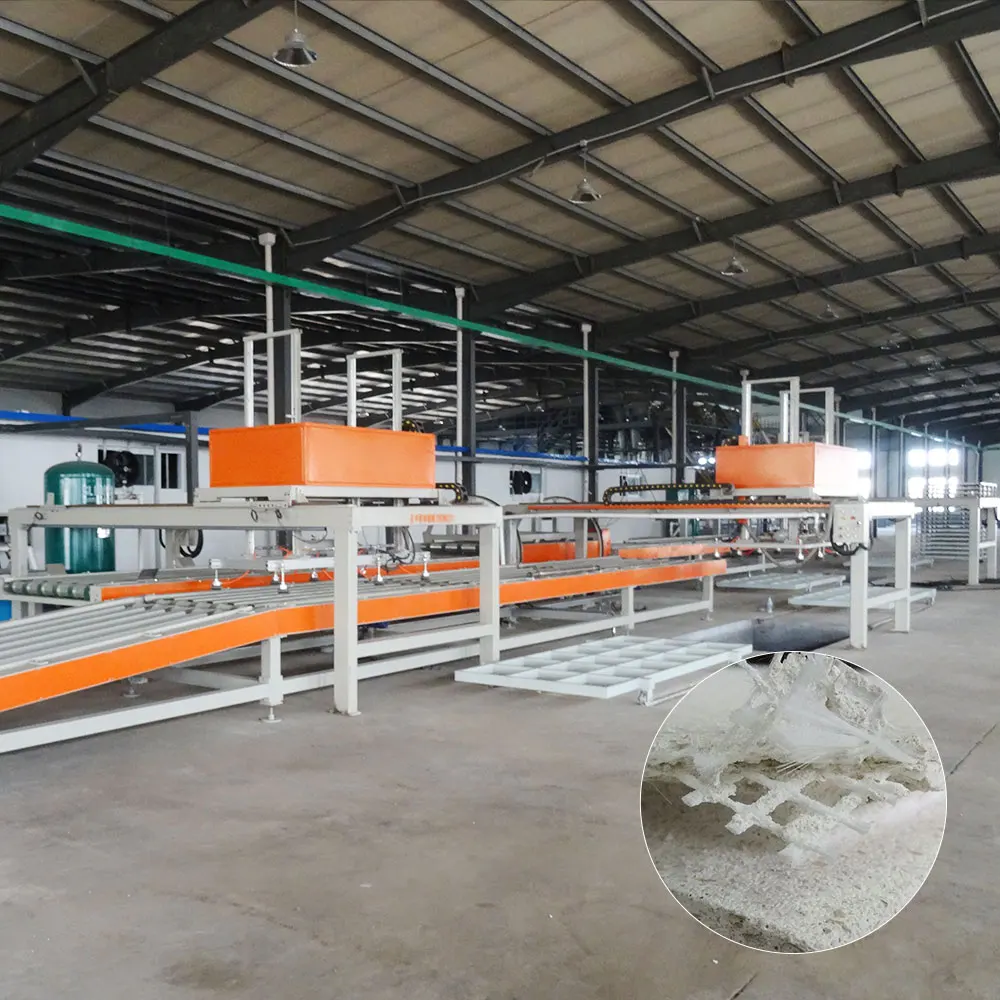

Автоматическая машина для производства Цементных плит MgO 12 мм, оборудование для плит, производственная линия оксида магния
100 000,00 $
Заводская поставка Pu сэндвич панели делая машину плесень Таиланд
- Категория: >>>
- Поставщик: Wuxi Hai Roll Fone Science And Technology Co. Ltd.
Сохранить в закладки 1601166757181:
Описание и отзывы
Характеристики
No. | Item | Qty. |
1 | Decoiling system(10T) | 1 |
2 | Filming and cutting system | 1 |
3 | Roll forming system with platform | 1 |
4 | Preheating and DBL heating system | 1 |
5 | 5-component PU/PIR pentane foaming system | 1 |
6 | PIR glue throwing device | 1 |
7 | Foaming system accessories | 1 |
8 | DBL(24m) | 1 |
9 | Bandsaw | 1 |
10 | Stacker | 1 |
11 | Electric control system | 1 |
12 | Side and bottom dies(50mm) | 1 |
Decoiler-------Film covering (flat plate cutting)-------- Roll forming-------Preheating material-------PU Foaming------Laminating in double belt conveyor (heat preservation)-------Band cutting(dust absorption)------conveyor rollers------Stacking------Packing
This PU sandwich panel line is one continuous and automatically line which integrate mechanism , electrical controlling , hydraulic system and polyurethane chemical reaction technology. The line adopts advanced international roll forming technology, HCFC polyurethane foaming technology, digital servo technology, frequency conversion vector technology and hydraulic controlling technology,automatic stacking technology. The whole line only needs 7-8 operators. The features of this line are following:
A,High automatization. The whole line adopts one full computer integration controlling system of digital servo technology, frequency conversion vector technology and hydraulic controlling technology, which realizes whole connection, collecting control and collecting management. Adopt cutting style of cut to length without machine stop, so that realize full automatically.
B.High efficiency. The production speed is 3~7m/min(adjustable steplessly according to product forming requirement ) The annual product capacity of this line can reach up to 800000 M2 (counting on the base of 250work days per year and 10 work hours per day) .
C.Easy operation. Adopt collecting controlling system, using man-machine conversation. After preparing for the raw material and finishing other production requirements, input required parameters, then machine can make product automatically.
D.Low production cost .Developing the machine’s automatization, the whole line only needs 7-8 operators to operate the machine fully, which saves much labor cost and productioN management cost for enterprises.
E.Economizing investment. The technical performances of this line reach the international advanced level. It can replace the international product completely while its price is much lower than international product, so that economize your investment.
A,High automatization. The whole line adopts one full computer integration controlling system of digital servo technology, frequency conversion vector technology and hydraulic controlling technology, which realizes whole connection, collecting control and collecting management. Adopt cutting style of cut to length without machine stop, so that realize full automatically.
B.High efficiency. The production speed is 3~7m/min(adjustable steplessly according to product forming requirement ) The annual product capacity of this line can reach up to 800000 M2 (counting on the base of 250work days per year and 10 work hours per day) .
C.Easy operation. Adopt collecting controlling system, using man-machine conversation. After preparing for the raw material and finishing other production requirements, input required parameters, then machine can make product automatically.
D.Low production cost .Developing the machine’s automatization, the whole line only needs 7-8 operators to operate the machine fully, which saves much labor cost and productioN management cost for enterprises.
E.Economizing investment. The technical performances of this line reach the international advanced level. It can replace the international product completely while its price is much lower than international product, so that economize your investment.
Main Technical Parameters :Sandwich Panel Spec.
Length Min. cutting length | 2 m |
Max. stacking | length 12m |
Trapezoidal roofing panel width | 1000mm(according to profile requirement) |
Wall panel width | 1000mm(according to profile requirement) |
Panel thickness | 50/75/100/150/200 mm( trapezoidal panel does not contain trapezoidal part) Steel Sheet Specifications |
Outer face color sheet thickness | 0.5-0.8mm(Sheets should be flat without bumps, distortion and side bending.) |
Inner face color sheet thickness: | 0.4-0.6mm(Sheets should be flat without bumps, distortion and side bending.) |
Sheet yield strength: | 235MPa(Max.300MPa) |
Max. coil width | 1200mm |
Max. coil weight | 6T |
Inner Diameter of coil | Φ508 or Φ610 mm |
Foaming: | 141b |
PU forming density | 36~45 kg/m3 |
Whole Line Specifications Working speed | 7m/min (adjustable) |
Total length about 100m Working height | 1200mm (height of panel coming out) |
Foaming working pressure: | 150-200bar |
Effective length of double belt conveyor | 21m |
Control mode | imported PLC system |
Total power | about 200kW(excluding electric heating power) |
Power required | 380V/3phase/50Hz Control voltage 24V / 220v Air pressure 0.7Mpa (prepared by buyer) |
FAQ
1.Can one machine only produce one size?
Not exactly, it depends on the machine.
2. Do you have after-sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5.Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory?
We are a Manufacturer.
7. Why your price is higher than others?
As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem.
8. Do you have overseas engineers?
Yes, we not only provide overseas engineers but also provide technical training.
9. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
Not exactly, it depends on the machine.
2. Do you have after-sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5.Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory?
We are a Manufacturer.
7. Why your price is higher than others?
As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem.
8. Do you have overseas engineers?
Yes, we not only provide overseas engineers but also provide technical training.
9. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
Похожие товары
Машины для производства стальных гвоздей высокой мощности по самой низкой
2 600,00 $

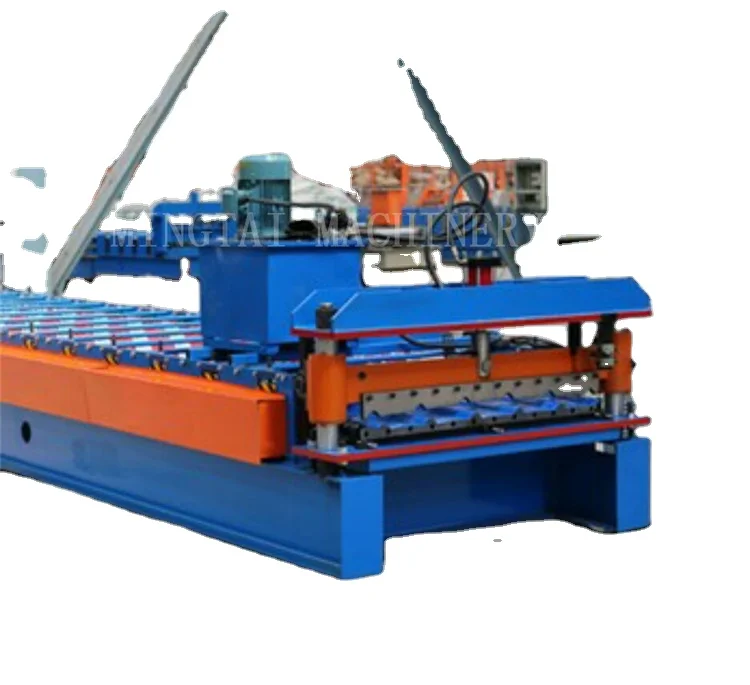

Машина для формовки листового металла глазурованного
11 000,00 $
Съемные Бали сборные дома стальные конструкции угловой столб делая
11 000,00 $
Высокое качество Автоматическая технологическая линия, по производству гипсоблока в гипсо картон делая машину

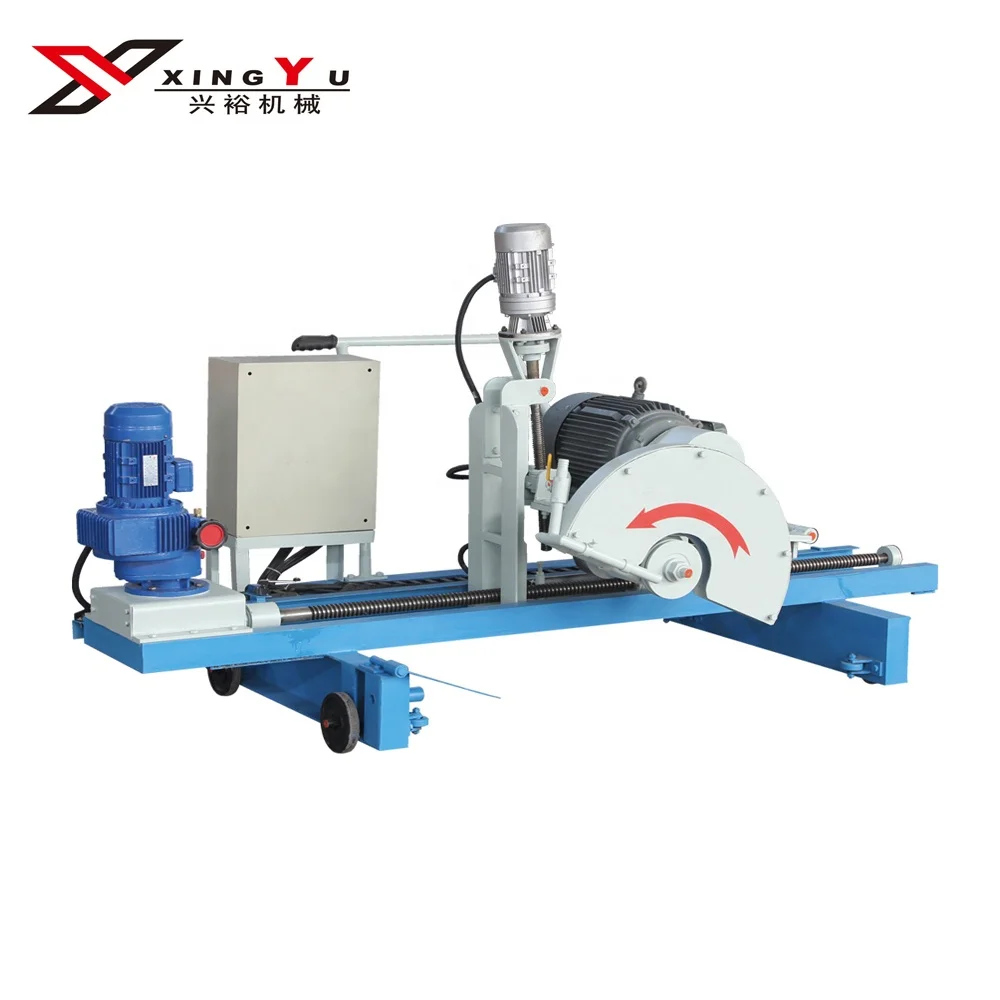

XQH380-1200 полый сердечник машина для резки плит сборного
16 000,00 $ - 18 000,00 $

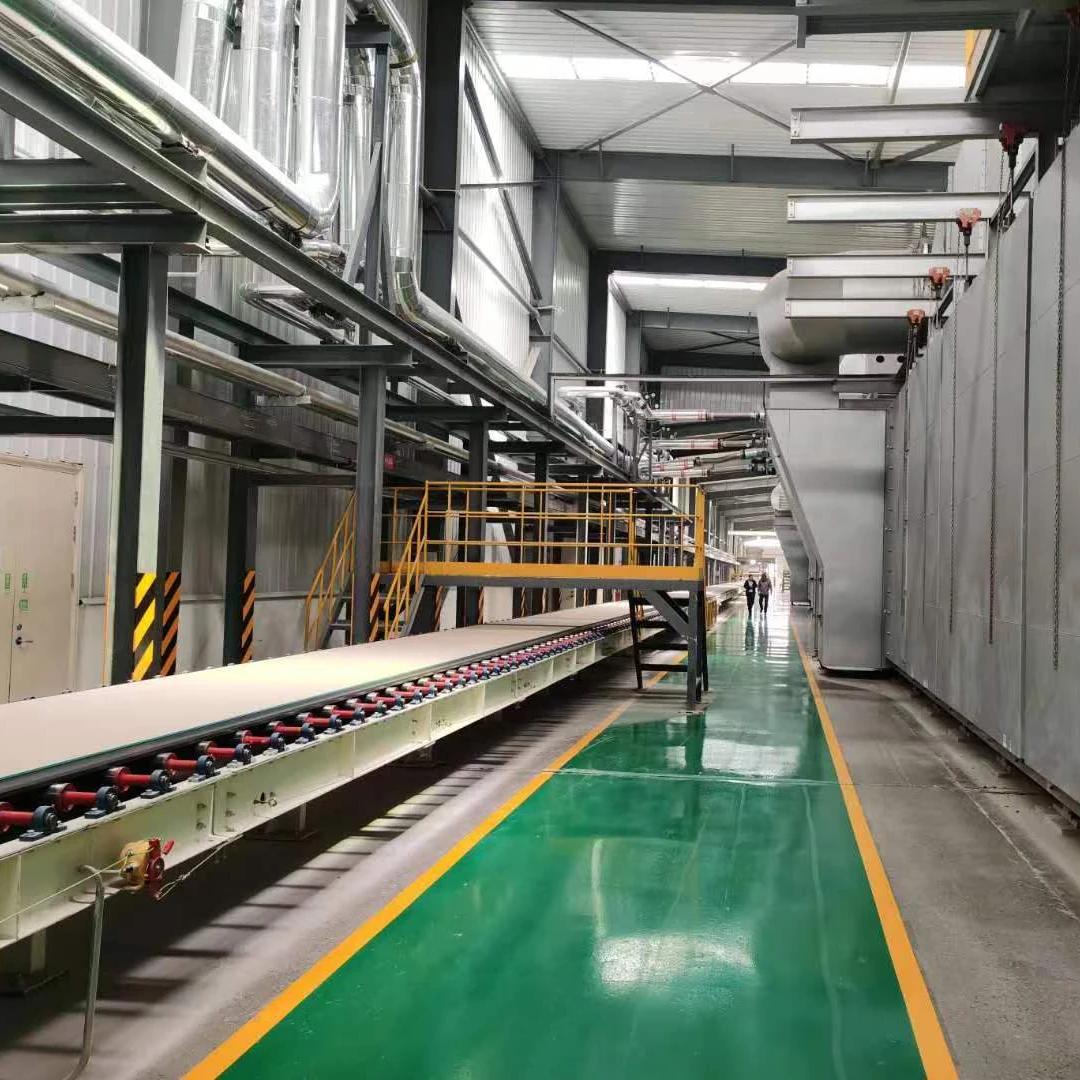

Водостойкая гипсокартонная потолочная линия по производству
