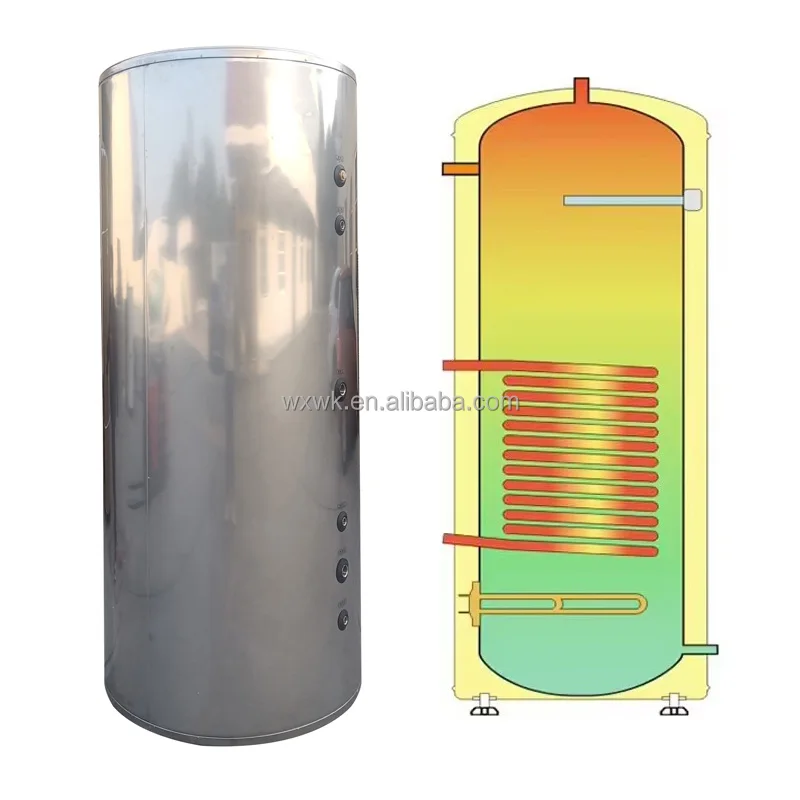

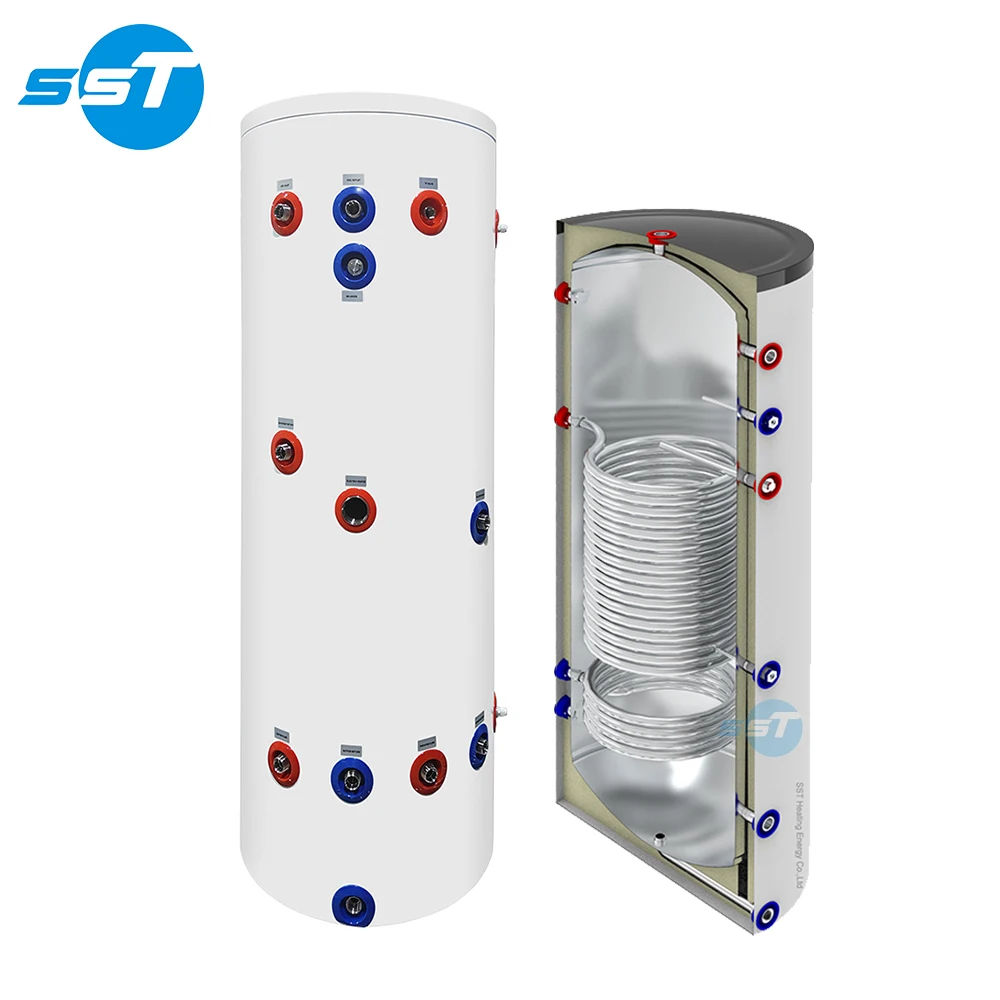

Горячая продажа горячий буферный бак из нержавеющей стали для хранения горячей воды 200L 250L 300L
22 185,50 ₽ - 29 728,57 ₽
ErP A SCOP5 26 32 кВт оптовая продажа R290 Сплит DC инвертор источник воздуха насос водонагреватель горячая вода пол подогрев HVAC
- Категория: >>>
- Поставщик: Guangdong SumAir Energy Technology Co. Ltd.
Сохранить в закладки 1601166900984:
Описание и отзывы
Характеристики

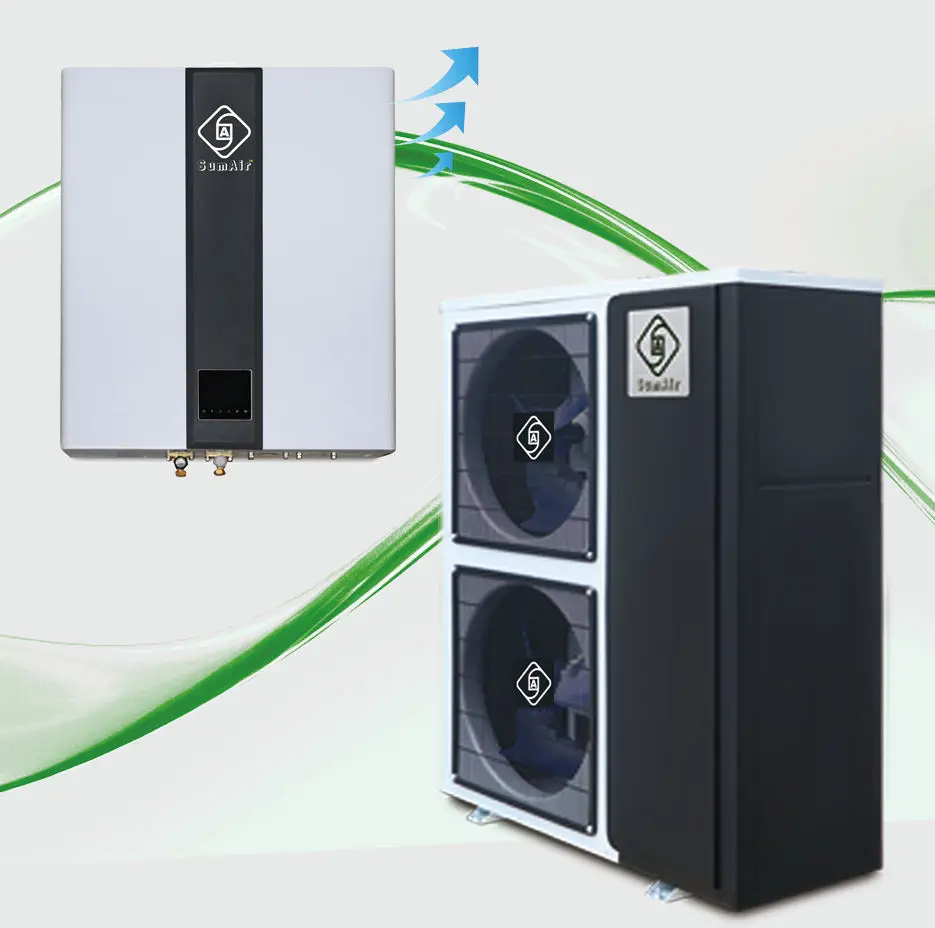

ErP A+++ SCOP5 26 32kw Wholesale R290 Split DC Inverter Air Source Heater Pump Water Heating Boiler Hot Water Floor Heated HVAC
Product Features
8kw Ultra SCOP Smart-Grid CE A+++ House Heating WIFI R32 R290 SPLIT EVI DC Inverter Air Source Heat Pump Hot Water Heater Boiler
1. Top SCOP, Panasonic/Highly Inverter Rotary compressor and ECO R32/R290 refrigerant for max heat capacity for less refrigeration, large volume of latent heat from the air via evaporator in coldest season.
2. Frequency conversion technology, based on the principle of proportional relationship between the motor speed and the input frequency of the working power supply: n = 60 f(1-s)/p and changing the motor speed by changing the working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful controll system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve the control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
3. SUMAIR Operate System, ultra intelligent, especially superior heat dissipation circuit board design, longer service, over 3-time of other brand’s, simple click and fully play the characteristics of DC inverter frequency conversion system to achieve overlocking performance.
4. Multi-speed mute fan motor, ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
5. Danfoss EEV, HUALU 4-way valves, LG AC contactor & other World famous brand components ensure heat pump water heater achieve domestic hot water heating for daily use.
6. High-tech shock-absorption all copper construction piping, high-accurate completely automatic silver welding, easy maintenance.
7. High-density protective jacket for minimum heat lost, aviation class insulation foam with outstanding sound absorption.
8. Classic European outlook forming, fashion taste, never out of time.
9. Portable compact design, saving room for installation & operation.
2. Frequency conversion technology, based on the principle of proportional relationship between the motor speed and the input frequency of the working power supply: n = 60 f(1-s)/p and changing the motor speed by changing the working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful controll system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve the control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
3. SUMAIR Operate System, ultra intelligent, especially superior heat dissipation circuit board design, longer service, over 3-time of other brand’s, simple click and fully play the characteristics of DC inverter frequency conversion system to achieve overlocking performance.
4. Multi-speed mute fan motor, ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
5. Danfoss EEV, HUALU 4-way valves, LG AC contactor & other World famous brand components ensure heat pump water heater achieve domestic hot water heating for daily use.
6. High-tech shock-absorption all copper construction piping, high-accurate completely automatic silver welding, easy maintenance.
7. High-density protective jacket for minimum heat lost, aviation class insulation foam with outstanding sound absorption.
8. Classic European outlook forming, fashion taste, never out of time.
9. Portable compact design, saving room for installation & operation.
Parameter
Split DC Inverter Heat Pump (House Heating or Domestic Hot Water, -35℃) | ||||||||||||
Item No. | #ADC-20(HS) | #ADC-22(HS) | #ADC-26(HS) | #ADC-32(HS) | ||||||||
HP | 6HP | 7HP | 8HP | 10HP | ||||||||
Power Supply | 380-415V/50-60Hz/3ph | |||||||||||
Heating Condition： Ambient Temp. +7℃/+6℃(WB/DB), Water Temp. +30℃/+35℃(In/Out). | ||||||||||||
Heating Capacity Rang | kW | 4.81-16.05 | 6.24-18.85 | 6.43-21.57 | 7.96-26.98 | |||||||
Power Input Range | kW | 0.78-3.7 | 0.96-4.08 | 1.04-4.85 | 1.27-5.96 | |||||||
Hot Water Condition: Ambient Temp. +20℃/+15℃ (DB/WB), Water Temp. +15℃/+55℃ (In/Out). | ||||||||||||
Heating Capacity Rang | kW | 5.35-19.25 | 6.74-22.66 | 6.97-25.95 | 8.75-32.45 | |||||||
Power Input Range | kW | 1.06-3.98 | 1.33-4.67 | 1.44-5.45 | 1.75-7.76 | |||||||
SCOP | at 35℃ water outlet | 5.24 | 5.46 | 5.39 | 5.12 | |||||||
at 55℃ water outlet | 3.76 | 3.98 | 3.97 | 3.93 | ||||||||
ErP Level | at 35℃ water outlet | A+++ | A+++ | A+++ | A+++ | |||||||
at 55℃ water outlet | A++ | A++ | A++ | A++ | ||||||||
Heating operation range | Ambient | °C | -35~25 | |||||||||
Heating side | °C | 18~60 | ||||||||||
Domestic hot water operation range | Ambient | °C | -30 ~ 43 | |||||||||
Water side | °C | 25~60 | ||||||||||
Rated water flow rate | m³/h | 2.58 | 2.93 | 2.95 | 3.5 | |||||||
Rated pressure drop | kPa | 45 | 45 | 47 | 47 | |||||||
Max. working pressure | Refrigerant | Bar | 44 | 44 | 44 | 44 | ||||||
Water | Bar | 7 | 7 | 7 | 7 | |||||||
WIFI | YES, APP | |||||||||||
Controller | SumAir Operate System, Micro processor, digital wire controller, LCD Touch Screen. | |||||||||||
External cabinet | Galvanized steel, powder coating | |||||||||||
Compressor | Type | Panasonic/Highly Dual Rotary | ||||||||||
Refrigerant | R32/R290 | |||||||||||
Water heat exchanger | SUS 316 Brazed plate heat exchanger | |||||||||||
Water pipe | Inlet&Outlet | DN | 25 | 25 | 32 | 32 | ||||||
Noise in 1Mtr | Indoor Unit | dB(A) | ≤31 | ≤31 | ≤32 | ≤33 | ||||||
Outdoor Unit | dB(A) | ≤54 | ≤58 | ≤59 | ≤61 | |||||||
Unit size (W*D*H) | Indoor Unit | mm | 600*450*300 | 600*450*300 | 600*450*300 | 602*308*880 | ||||||
Outdoor Unit | mm | 1076*478*1334 | 1076*478*1334 | 1160*500*1600 | 1160*500*1600 | |||||||
Packing size (W*D*H) | Indoor Unit | mm | 650*500*370 | 650*500*370 | 650*500*370 | 702*408*1000 | ||||||
Outdoor Unit | mm | 1076*578*1484 | 1076*578*1484 | 1260*600*1750 | 1260*600*1750 | |||||||
N.W. | Indoor/Outdoor Unit | kg | 55/90 | 55/100 | 55/120 | 70/175 | ||||||
G.W. | Indoor/Outdoor Unit | kg | 60/100 | 60/110 | 60/130 | 78/190 | ||||||
20'/40'/40HQLoading | set | 23/48/52 | 23/48/52 | 19/41/41 | 12/27/27 | |||||||
The data is tested based on EN14511 & EN14825. | ||||||||||||

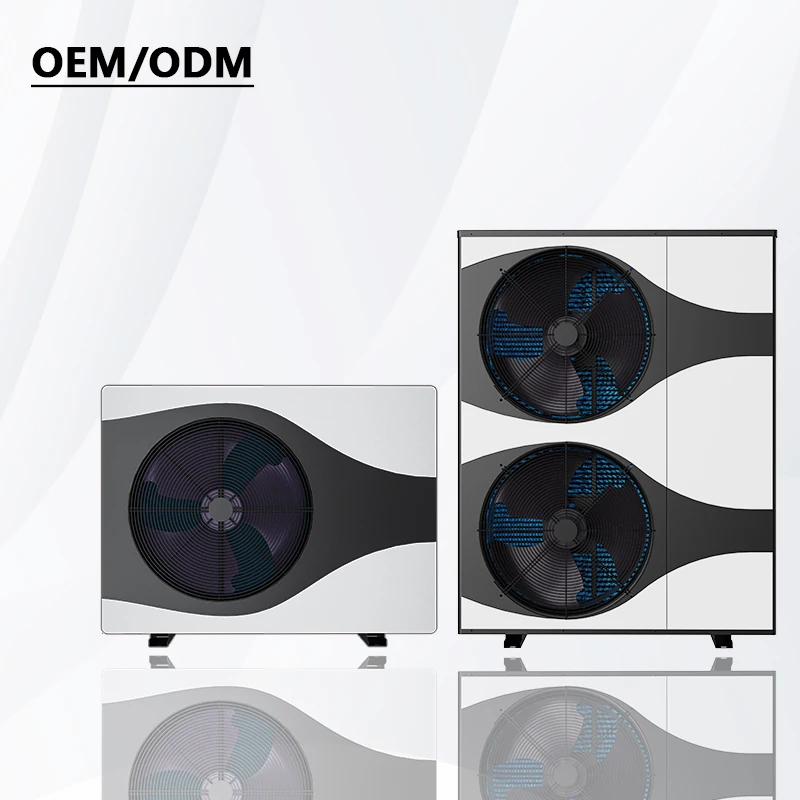

Outdoor Unit

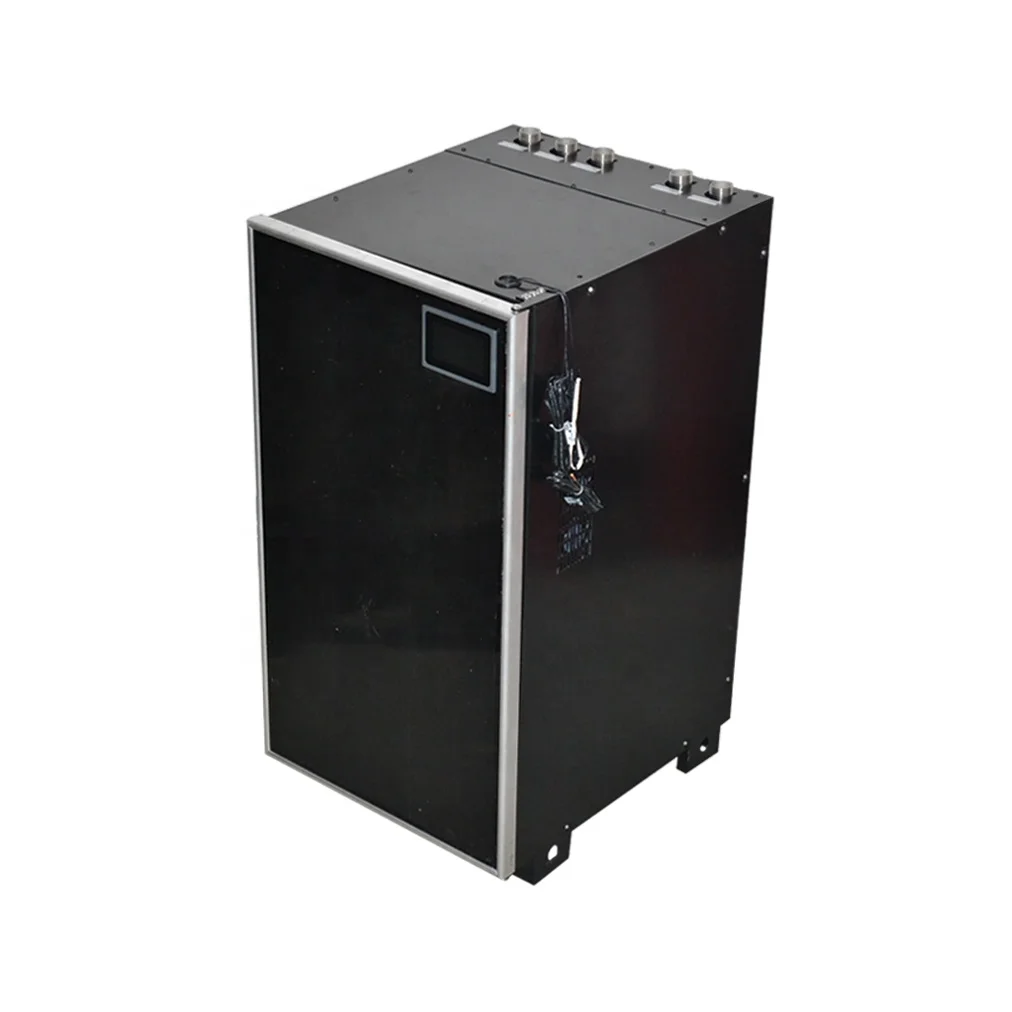

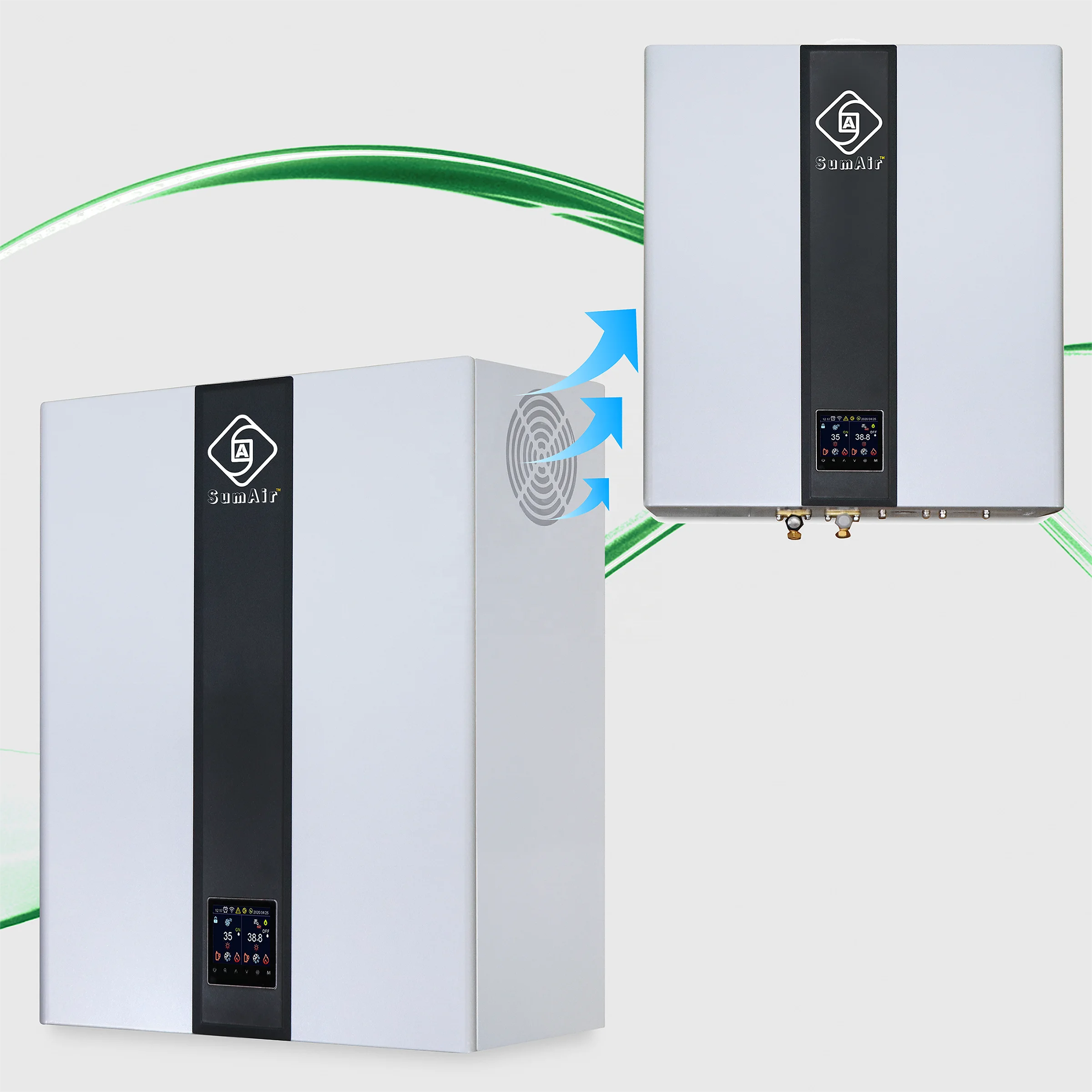

Indoor Unit
Performance
Certificates
SG-Ready Certificate of 10-12kw Top COP SmartGrid CE ErP A+++ Floor Heating WIFI R32 R290 EVI DC Inverter Air to water Heat Pump Hot Water Heater Geyser
SG Ready Control logic
SG Ready=smart-grid is available. When Smart Grid Function is set to "Use", the logic is as follows:
There are 4 state of the samrt grid of our system control, if you want to know more details, please feel free to contact me!!!
LVD & EMC CE Certificates of A+++ Wholesale 75Dg Wifi 22-28kw SCOP5 Hydrid Floor Heating DHW R32 R290 EVI DC Inverter Air Source Water Heater Pump Boiler -25
ERP Test Report & Energy Label ofA+++ Wholesale 75Dg Wifi 22-28kw SCOP5 Hydrid Floor Heating DHW R32 R290 EVI DC Inverter Air Source Water Heater Pump Boiler -25
For more detail on Test Report, please send us an inquiry on A+++ Wholesale 75Dg Wifi 22-28kw SCOP5 Hydrid Floor Heating DHW R32 R290 EVI DC Inverter Air Source Water Heater Pump Boiler -25
Detailed image

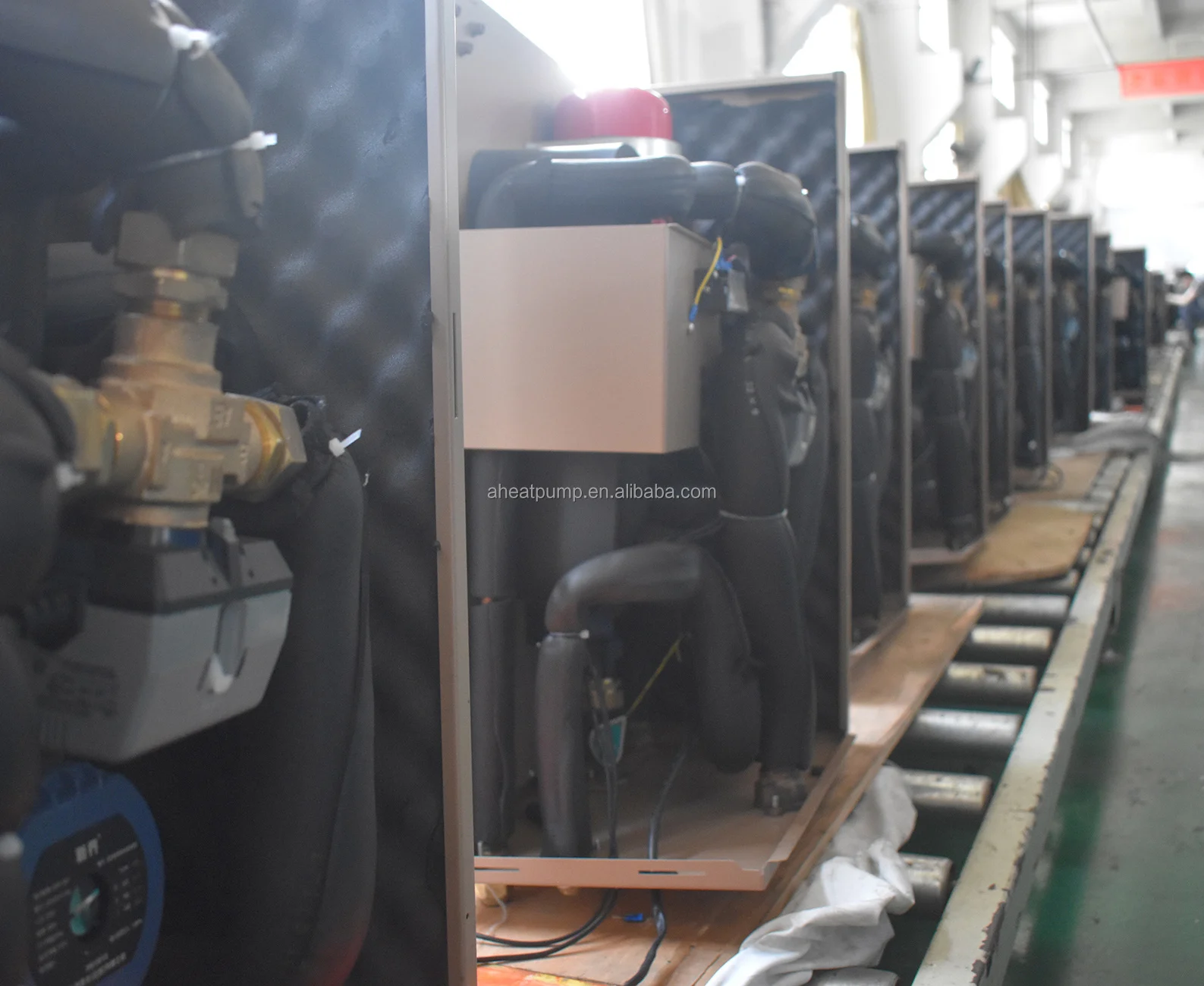

Inner view
A+++ Wholesale 75Dg Wifi 22-28kw SCOP5 Hydrid Floor Heating DHW R32 R290 EVI DC Inverter Air Source Water Heater Pump Boiler -25

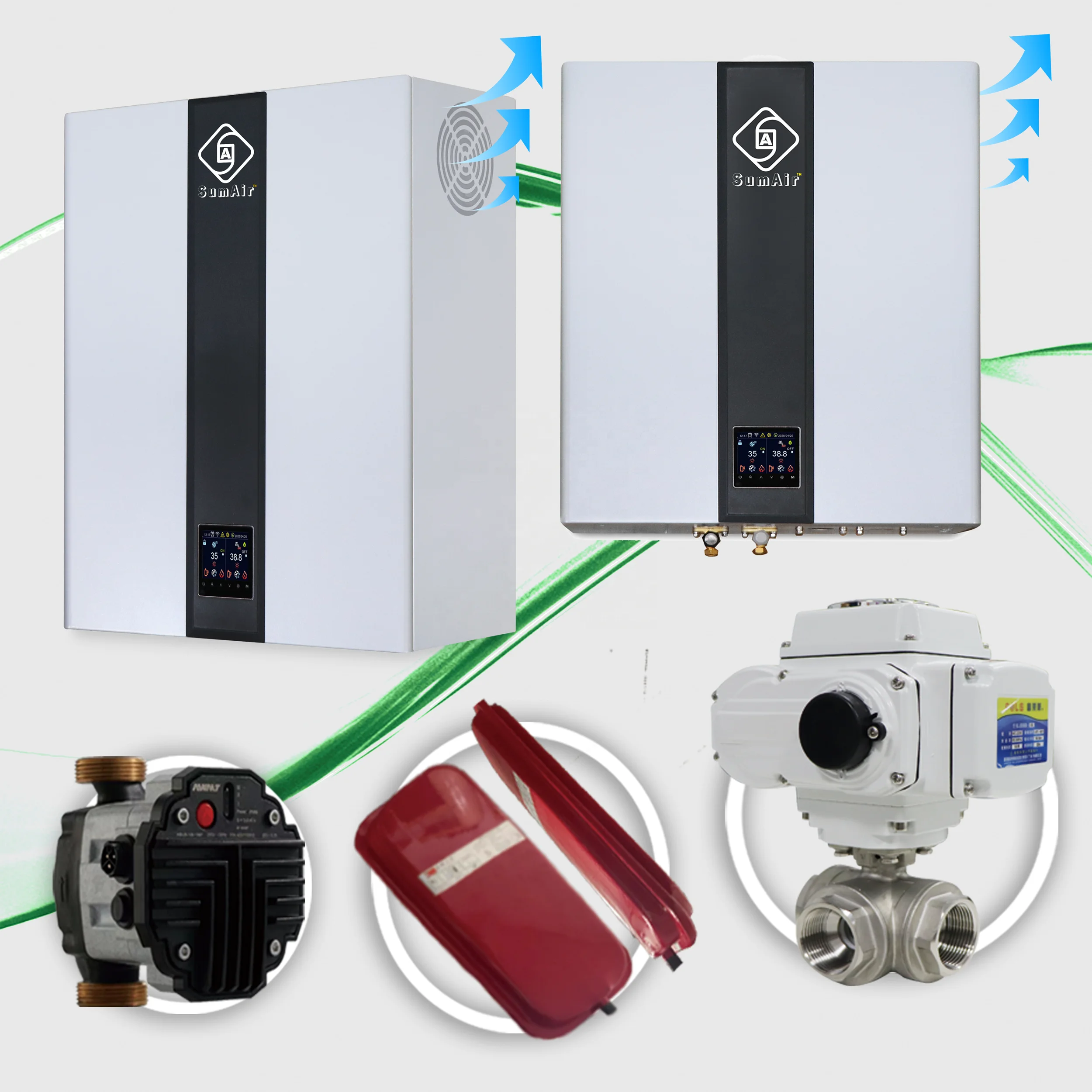

Products in Line
Packages & Shipment of A+++ Wholesale 75Dg Wifi 22-28kw SCOP5 Hydrid Floor Heating DHW R32 R290 EVI DC Inverter Air Source Water Heater Pump Boiler -25

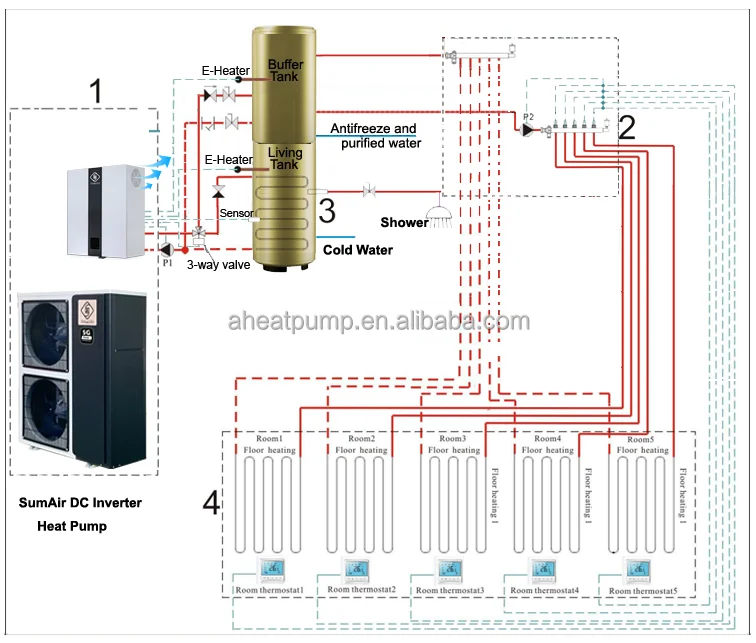

Application
Похожие товары

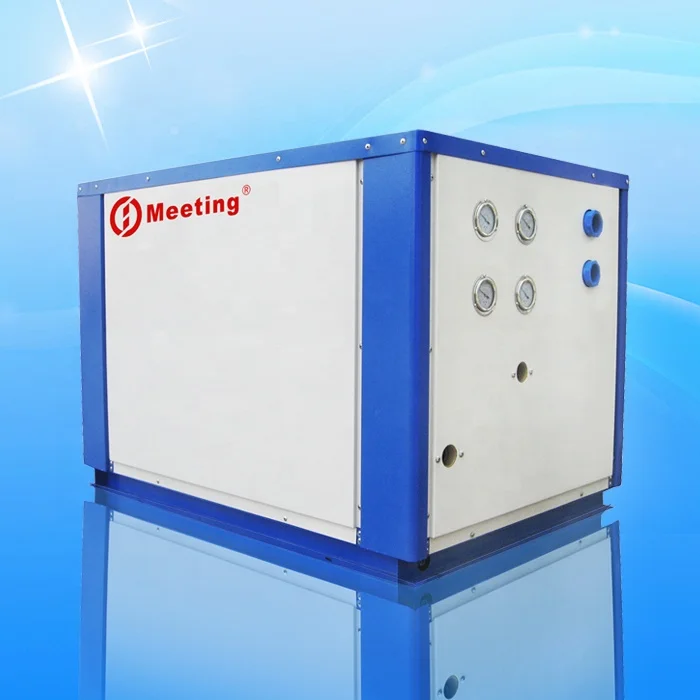

KP-250 R32 DC инвертор геотермальный тепловой насос с заземлителем 24 кВт водно-водные энергетические системы
Наземный Инвертор постоянного тока
134 222,28 ₽ - 187 467,48 ₽
Mikee RS485 тепловой насос
113 146,05 ₽ - 200 778,78 ₽
Тепловой насос с высокотемпературным водяным источником 400 В
510 266,50 ₽
Гостиничная Больничная школьная система горячего водоснабжения 30 кВт 38 тепловой насос с наземным источником
288 411,50 ₽ - 299 504,25 ₽
1000 л полный резервуар для воды из нержавеющей стали непрямой с одной катушкой горячей DWH

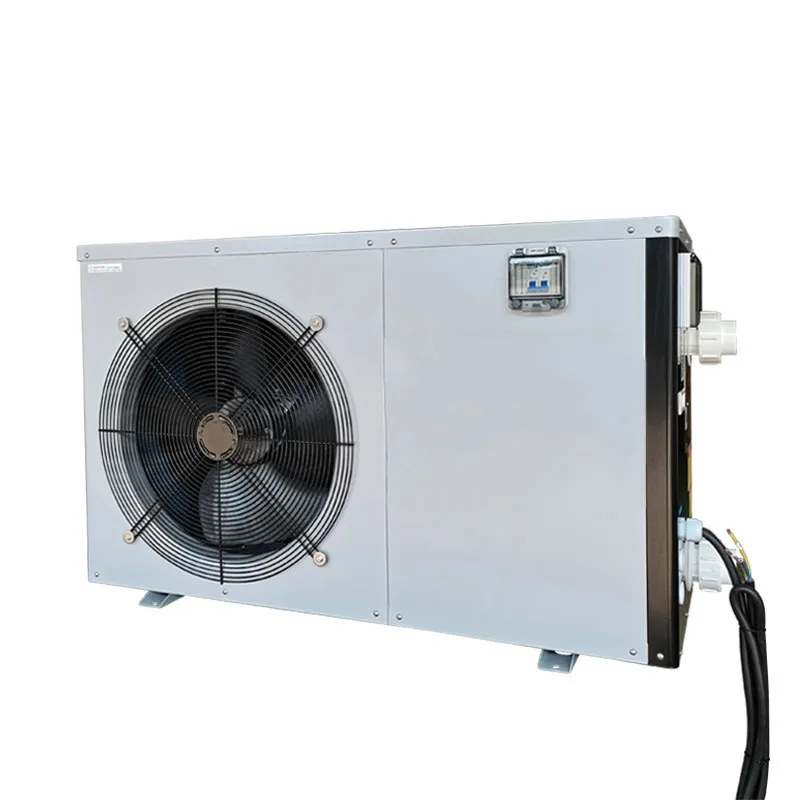

Тепловой насос для бассейна 18 кВт электрический нагреватель из нержавеющей стали с водяным пропаном Китай Warmepumpe Brauchwasser
