Измельчитель металлолома машина для переработки порошка завод по извлечению драгоценного металла из руды
18 000,00 $
Оборудование для сортировки титановой руды Hengchang 138 слот отходов металла центробежный концентратор
- Категория: >>>
- Поставщик: Jiangxi Hengchang Mining Machinery Manufacturing Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601167141538:
Описание и отзывы
Характеристики

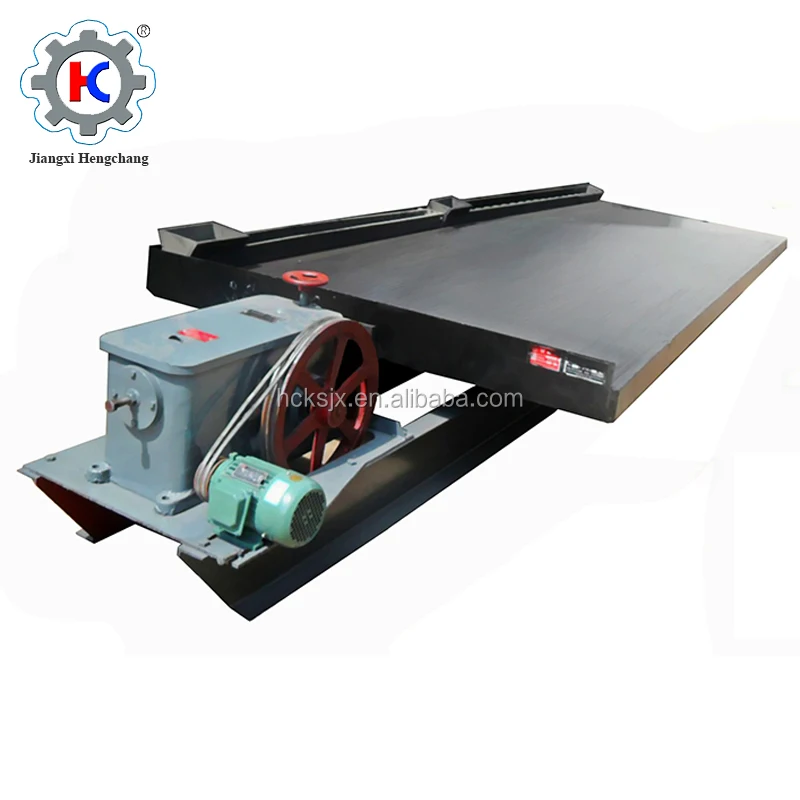

Mineral Processing Jig Separation Machine Gold Shaking Table for Sale
Gold shaking table is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
Mineral Processing Jig Separation Machine Gold Shaking Table for Sale introduction:
Gold Processing Plant is widely used for sorting minerals. Its main function is sorting the rough and concentrate mixture after minerals gravity separating. (Such as rough concentrate sorted by jig and shaking table). Process particle size is ranging from 2 mm to 0.074 mm. The separating effect is especially for minerals with a variety of sulfide minerals. It has the following advantages compared with the gold table: it is easy to observe changes of slurry on shaking table; easy to operate; it has many different specifications for choosing.
Gold Processing Plant is widely used for sorting minerals. Its main function is sorting the rough and concentrate mixture after minerals gravity separating. (Such as rough concentrate sorted by jig and shaking table). Process particle size is ranging from 2 mm to 0.074 mm. The separating effect is especially for minerals with a variety of sulfide minerals. It has the following advantages compared with the gold table: it is easy to observe changes of slurry on shaking table; easy to operate; it has many different specifications for choosing.
Mineral Processing Jig Separation Machine Gold Shaking Table for Sale Working Principle:
The working principle of Mineral Separation Equipment is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
This machine is composed of three parts, i.e. head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.

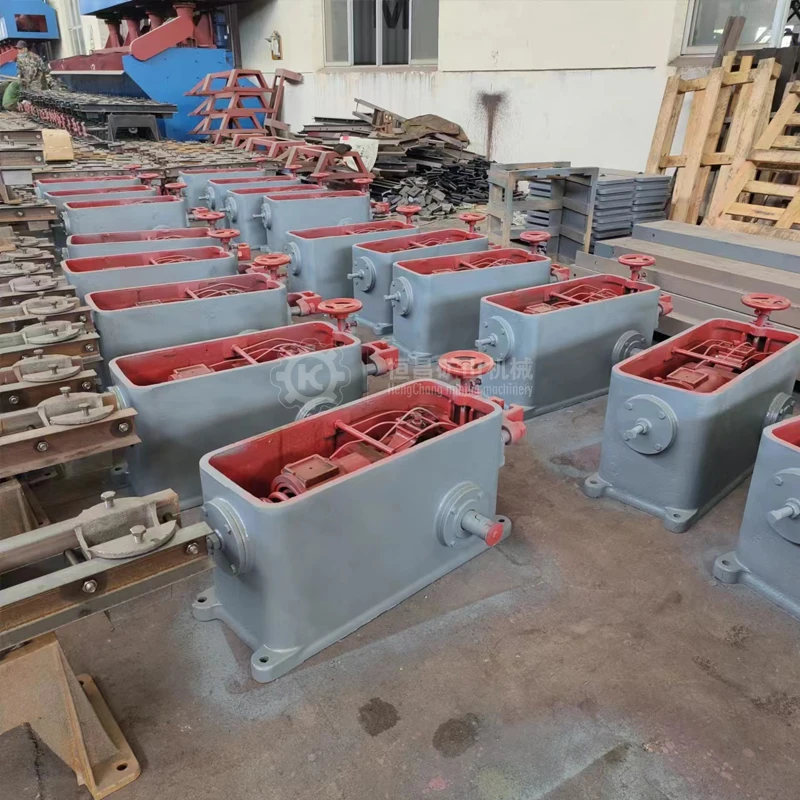

1. Head of shaking table: This is eccentric connecting-rod type mechanism. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod pushes down the toggle plate compression spring, the pull rod drives the table surface to move in the direction of table head. When the connecting rod pushes it upward, it, through the spring tension, drives the table surface to move in the opposite direction. When they are linked, the rotating motion of eccentric shaft is changed into horizontal alternating differential motion of table surface.
2. Shaking table for gold table surface: It is mainly composed of vibrating roof, steel skeleton, glass fiber reinforced plastics and wear-proof surface, feed water tank, feed chute, and draw bar. The table surface adopts steel skeleton FRP composite structure. That is, glass fiber reinforced plastics are pasted on steel skeleton to form a solid glass fiber reinforced plastic surface. Its above uses abrasion-proof materials to make surface and riffle (notch groove).
3. Bearing and Adjusting Gradient Mechanism: Shaker table for gold The bearing and adjusting gradient mechanism is mainly composed of shaking support plate, adjusting seat board, saddle seat, and adjusting screw rod. The shaking support plate enables the table surface to make arc forward and backward alternating movement on vertical plane. The shaking support plate and shaking box are fixed on the adjusting seat board with gripping channel steel. When hand wheel regulating screw rod is used to get the adjusting seat board to rotate on the saddle seat, the Transverse gradient of table surface can be adjusted.
This machine is composed of three parts, i.e. head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
1. Head of shaking table: This is eccentric connecting-rod type mechanism. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod pushes down the toggle plate compression spring, the pull rod drives the table surface to move in the direction of table head. When the connecting rod pushes it upward, it, through the spring tension, drives the table surface to move in the opposite direction. When they are linked, the rotating motion of eccentric shaft is changed into horizontal alternating differential motion of table surface.
2. Shaking table for gold table surface: It is mainly composed of vibrating roof, steel skeleton, glass fiber reinforced plastics and wear-proof surface, feed water tank, feed chute, and draw bar. The table surface adopts steel skeleton FRP composite structure. That is, glass fiber reinforced plastics are pasted on steel skeleton to form a solid glass fiber reinforced plastic surface. Its above uses abrasion-proof materials to make surface and riffle (notch groove).
3. Bearing and Adjusting Gradient Mechanism: Shaker table for gold The bearing and adjusting gradient mechanism is mainly composed of shaking support plate, adjusting seat board, saddle seat, and adjusting screw rod. The shaking support plate enables the table surface to make arc forward and backward alternating movement on vertical plane. The shaking support plate and shaking box are fixed on the adjusting seat board with gripping channel steel. When hand wheel regulating screw rod is used to get the adjusting seat board to rotate on the saddle seat, the Transverse gradient of table surface can be adjusted.
Table
Steel Support
Table Head
Table Support
Model | 6S4450x1855x1546 | LY3000x1620x1360 | LY2100*1050*850 | LY1100*500*430 |
Storke (mm) | 8-22 | 6-30 | 12-38 | 9-17 |
Times of Stroke r(t/min) | 210-350 | 210-320 | 250-460 | 280-460 |
Cross Slope (°) | 1-4 | 0-10 | 0-8 | 0-10 |
Feed Size (mm) | 2-0.074 | 2-0.074 | 2-0.074 | 2-0.074 |
Feed Density (%) | 15-30 | 10-30 | 10-30 | 10-30 |
Water Consumption (t/h) | 0.5-6 | 0.3-1.5 | 0.2-1.0 | 0.1-0.5 |
Capacity (t/h) | 0.6-2.5 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 |
Power (kw) | 1.1 | 1.1 | 1.1 | 0.55 |
Weight (kg) | 800 | 500 | 350 | 150 |

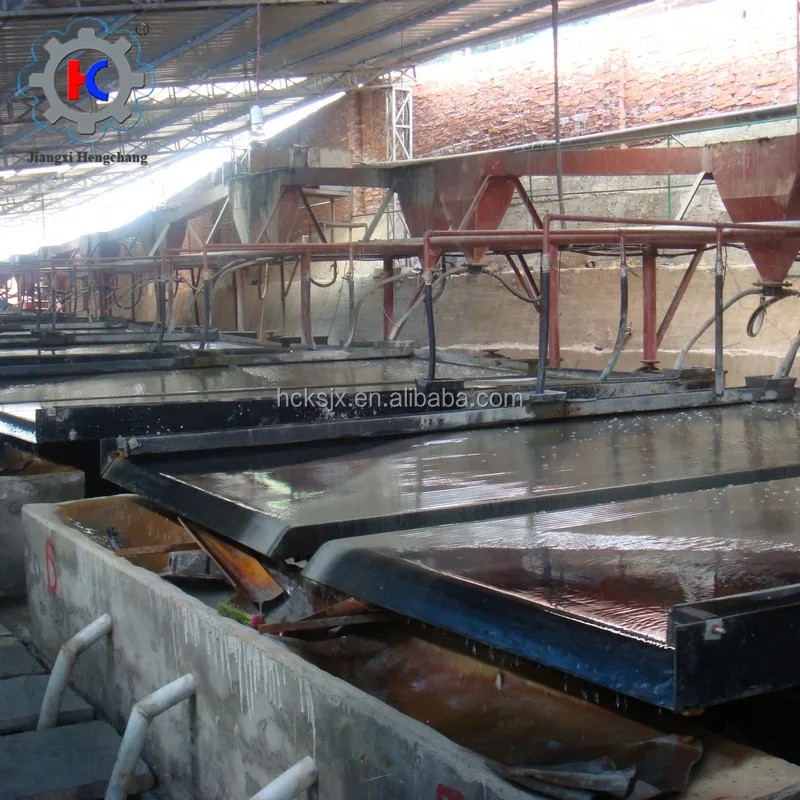

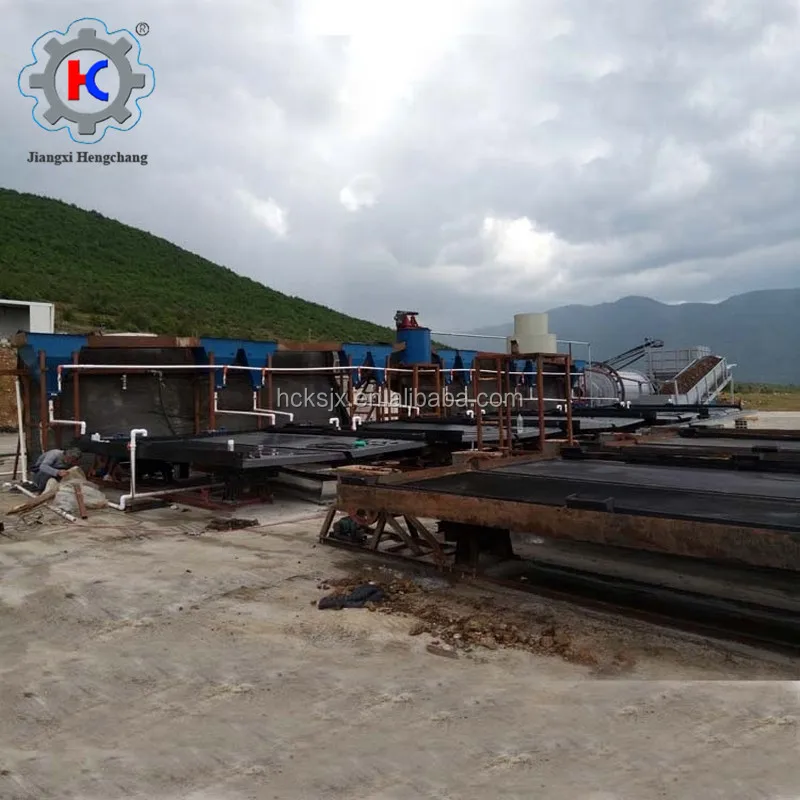

Gold Processing Plant In India
used in gold separator processing plant
Gold Processing Plant In Australia
used in alluvial gold concentration
Gold Processing Plant in Morocco
used in zinc and chrome separation
Gold Processing Plant In Malaysia
used in copper separation and concentrator
Gold Processing Plant in Vietnam
used in river gold recovery
Gold Processing Plant in Indonesia
Used in rock gold concentration
Gold Processing Plant In Nigeria
used in tungsten ore separation
Gold Processing Plant In Tanzania
used in diamond and gold separator
FAQ
Q1: What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2: What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty period.
Q3: Is it factory?
Yes,we have our own factory.and welcome to visit our factory.
Q4. Whether it can be customized according to customer requirements?
Yes,we can design according to customer's requirement,we have many kinds of model.you can choose the suitable one.
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2: What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty period.
Q3: Is it factory?
Yes,we have our own factory.and welcome to visit our factory.
Q4. Whether it can be customized according to customer requirements?
Yes,we can design according to customer's requirement,we have many kinds of model.you can choose the suitable one.
