Max 1000w 1500w 2000w cnc fiber laser cutting machine
GH-FT series sheet & tube fiber cutting machine realizes the cutting of two different materials shapes on the same machine tool. Can cut plates and tubes, meet the different processing needs of customers, greatly save input costs and site area, and improve productivity. It adopts a rack and pinion drive system, and a professional cutting CNC system, and it is easy to operate and simple to maintain. Besides that the strict assembly process ensures the stable operation of the CNC laser cutting machine with high precision. Optical fiber laser cutting machine with imported top-grade accessories, which provides users with powerful cutting ability and efficiency. Therefore it is the best choice for the economical plate and pipe processing.
Machine model | GH-FT3015 丨 GH-FT4015 丨 GH-FT4020 丨 GH-FT4025 |
Working area | 1500x3000mm 丨 1500x4000mm 丨 2000x4000mm 丨 2500x4000mm |
Tube Diameter Range | 15-220mm/15-350mm |
Max. length of tube | 6000mm/12000mm |
Max Movement Speed | 120m/min |
Accelerated speed | 1.2G |
Positioning accuracy | ±0.03mm |
Repeatability | ±0.02mm |
Laser power | 1000W-6000W |
Cutting materials: | Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal |
Transmission: | HIWIN Guide Rails |
Other | Processing format and configuration can be customized |
GH-FT3015 sheet & tube fiber cutting machine realizes the cutting of two different materials shapes on the same machine tool. It adopts, a rack and pinion drive system, and a professional cutting CNC system, and it is easy to operate and simple to maintain. Besides that the strict assembly process ensures the stable operation of the CNC laser cutting machine with high precision. Optical fiber laser cutting machine with imported top-grade accessories, which provides users with powerful cutting ability and efficiency. Therefore it is the best choice for the economical plate and pipe processing.
Products Description
Fiber Laser Source
Raycus/MAX/IPG, multiple choice different brands, different laser power are available. The higher power, the thicker cutting thickness. Supply laser power from1kw to 12kw, and more higher 15kw, 20kw, 30kw.
Auto focus laser head
There is no need to manually adjust the focus, the software automatically adjusts the focus lens, and controls the height of the upper and lower, so as to realize the automatic perforation and cutting of plates with different thicknesses
High precision pneumatic chuck
Pneumatic claws with large and constant clamping force, heavy tube is clamped tightly without slip, cutting accuracy guaranteed
Cast Aluminum Beam
The beam adopts the cast aluminum beam, after artificial aging and solution hardening process, the beam has high stiffness, fine surface quality, and high integrity, etc.
Key Transmission Components
Key transmission components adopt most advanced imported configuration, guarantee our machinery has the best transmission performance. Please check the equipment specification datasheet for details configuration.
Server Drive
The domestic high-end servo drive system is adopted, which is stable and reliable, with superior performance and excellent anti-interference ability, which greatly improves the performance of the equipment, with more precise control, higher output parameters, and better reliability and stability.
Sample Display
Company Profile
Guohong Laser
Guohong Laser Group is a large-scale laser cutting machine manufacturer integrating R&D, production and sales. It provides high-quality laser cutting machines, metal cutting machines, laser pipe cutting machines, and three-chuck automatic pipe cutting machines to the world,handheld laser welding machine, laser marking machine.
integral casting bed design and development, non-standard model laser cutting machine, high-power laser cutting machine, Guohong Laser Group has casting capacity, 12 tons of electric furnace and cupola, and multiple CNC gantry Milling's large-scale processing capabilities, from design and production to after-sales service, including product design, product installation, product training, product maintenance, etc., to provide customers with leading technology, reliable quality products and complete technical solutions, and pursue maximum customer satisfaction It is our service tenet. Guohong Laser Group adheres to the business philosophy of "products of shaping people and extension of things. Quality of castings to continue the industry". Guohong Laser adheres to the high-end positioning of the industry and achieves the goal of "making China's laser application technology world-renowned" through continuous technological innovation struggle unremittingly.
integral casting bed design and development, non-standard model laser cutting machine, high-power laser cutting machine, Guohong Laser Group has casting capacity, 12 tons of electric furnace and cupola, and multiple CNC gantry Milling's large-scale processing capabilities, from design and production to after-sales service, including product design, product installation, product training, product maintenance, etc., to provide customers with leading technology, reliable quality products and complete technical solutions, and pursue maximum customer satisfaction It is our service tenet. Guohong Laser Group adheres to the business philosophy of "products of shaping people and extension of things. Quality of castings to continue the industry". Guohong Laser adheres to the high-end positioning of the industry and achieves the goal of "making China's laser application technology world-renowned" through continuous technological innovation struggle unremittingly.
Certificate
Certificate
We have CE, SGS certification, quality management certificate and multiple invention patent certificates, etc.
Exhibition Show
Quality Test
Packing and shipping
FAQ
Q1 :Our workers can't operate the machine, how to train the staff?
A1:We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days
Q2 : I don’t know which one is suitable for me ?
A2:Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
Q4 :Why the machine price not include fiber source?
A4:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q5 :I don’t know how to use after I receive Or I have problem during use,how to do?
A5:1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
A1:We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days
Q2 : I don’t know which one is suitable for me ?
A2:Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
Q4 :Why the machine price not include fiber source?
A4:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q5 :I don’t know how to use after I receive Or I have problem during use,how to do?
A5:1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Похожие товары
Xhorse Dolphin XP-007 XP 007 лазер/Димпл/плоский ключ ручной для резки XP007
55 352,83 ₽ - 66 445,58 ₽
Большой заводской сменный стол с открытой площадкой 3015 1-3 кВт машина для лазерной резки металла средней мощности
665 565,00 ₽ - 776 492,50 ₽
Высококачественная 3015 фабричная машина для лазерной резки пластин и труб металла
Небольшой размер лазерной резки металла 3kw 1.5kw raycus для нержавеющей стали
Высокая мощность raycus 12 кВт 20 волоконно-лазерная машина для резки листового металла из нержавеющей стали углеродистой
7 764 925,00 ₽ - 9 428 837,50 ₽
Полностью закрытый 3 кВт 6 8 высокомощный станок для лазерной резки металла лазерный двойной Рабочий стол от лазер BOAO
3 327 825,00 ₽ - 3 549 680,00 ₽

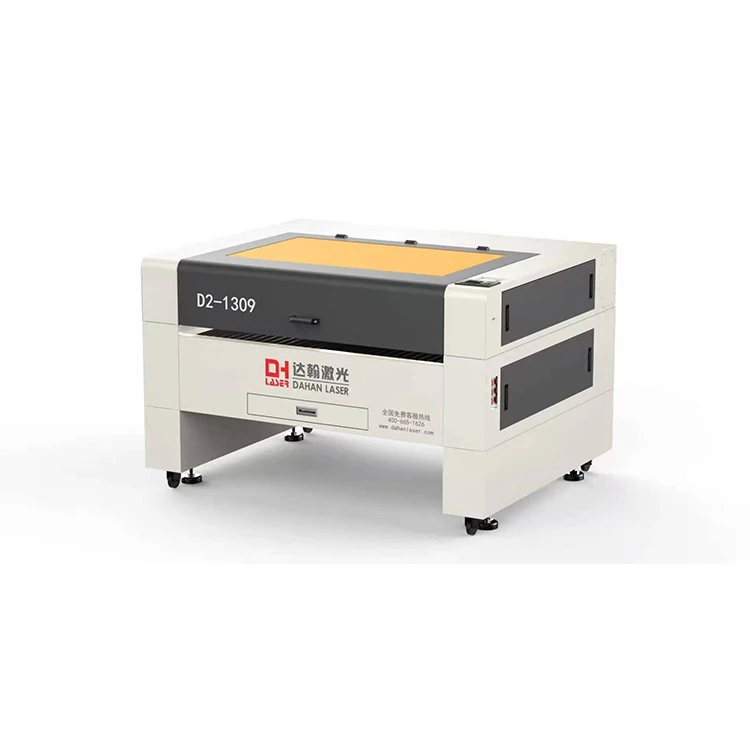

Лазерный резак для резки неметаллических материалов таких как Акриловая Плита KT фанера MDF
