2000*1000*200 мм 3D чугунная сталь сварочный стол измерительные весы аксессуары PLC основные компоненты новое состояние Ресторан

Описание и отзывы

Характеристики

• Divided by material: Steel Welding Table (1040) and Casting Welding Table (GG25~30).

• According to its hole diameter: D28 series and D16 series.

• Diagonal grid: D28 is 100*100mm; D16 is 50*50mm.

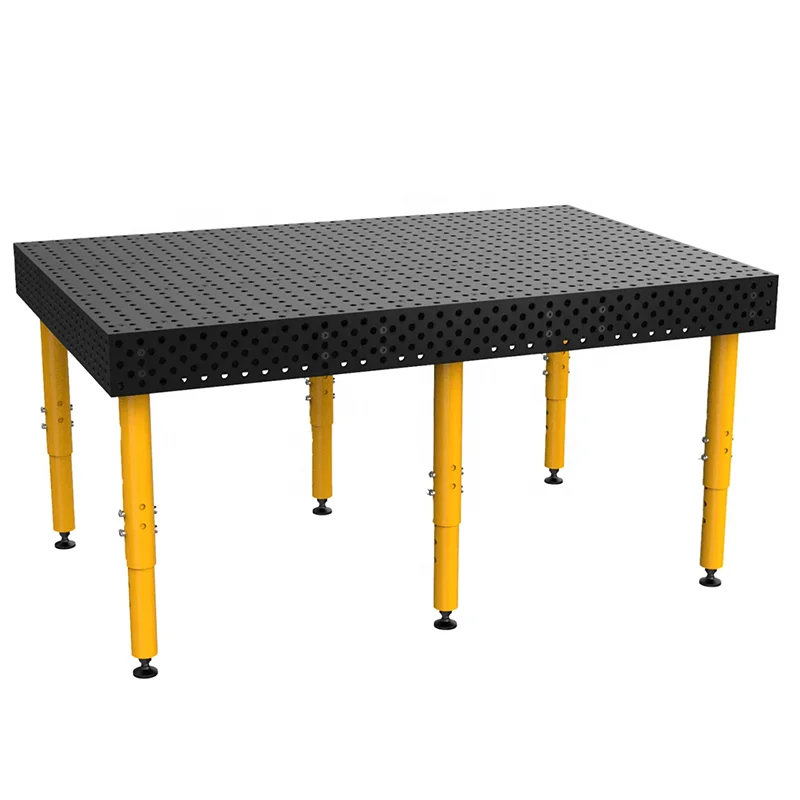

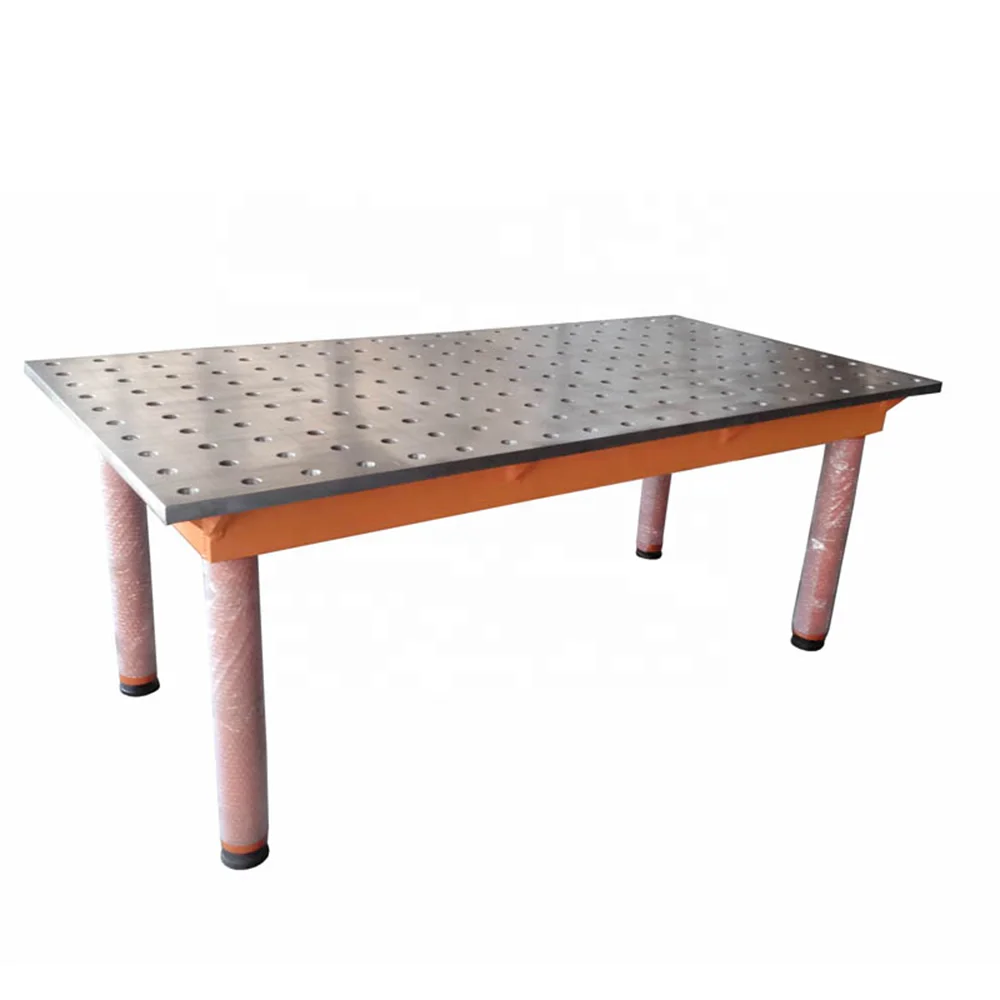

• Supporting: legs, steel frame and hydraulic lifting box,according to requirements.

• Components can be equipped after your selecting:

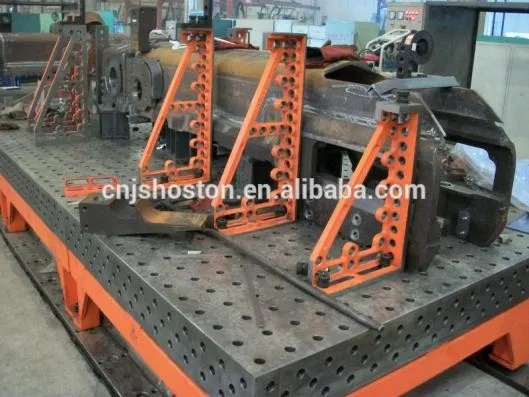

1. Tools for supporting: U-Shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge.

2. spare parts for Locating: positioning square, positioning flat, flat square, V-shaped positioning parts.

3.Tools for clamping: fixed quick clamping piece (screw clamping), retractable clamping piece (screw clamping), 45 degree clamping piece (screw clamping), etc.

4.Tools for fixing: quick locking pin, countersunk locking pin, countersunk quick locking pin.

5. Accessories and auxiliary parts: height adjuster, lifting ring, tool cart, grounding device, adjusting gasket, hexagon wrench, nylon brush, oil stone, oil can.

1. Economical

·Save much cost instead of reserving a lot of complicated and expensive traditional fixtures.

·Applies to various working conditions without the need of any modification.

·Easy and safe to operate.

2. Flexible

·Solid enough to bear extremely heavy loads.

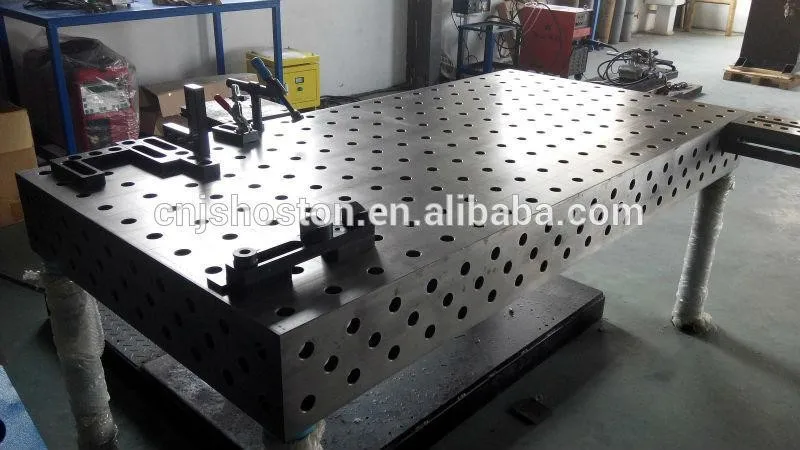

·Five surfaces, regular holes and grid lines(no inclined holes or T-shaped grooves)

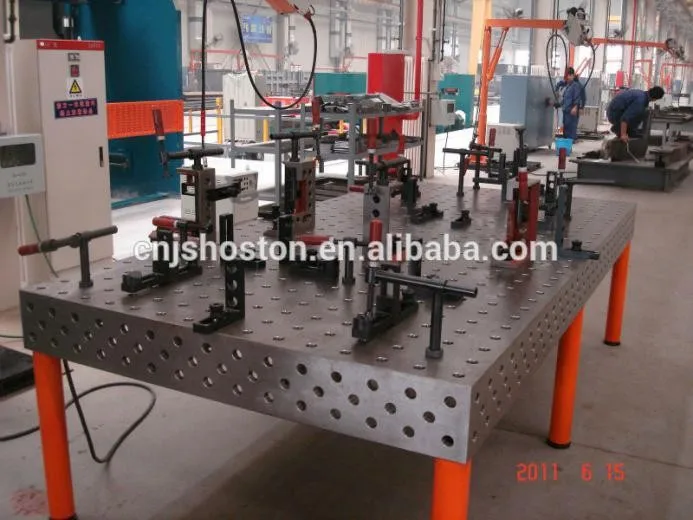

·Any workpiece can be fixed and clamped on the table with locating pins.

·3D welding tables can link together against any of its five surfaces.

3. Precise

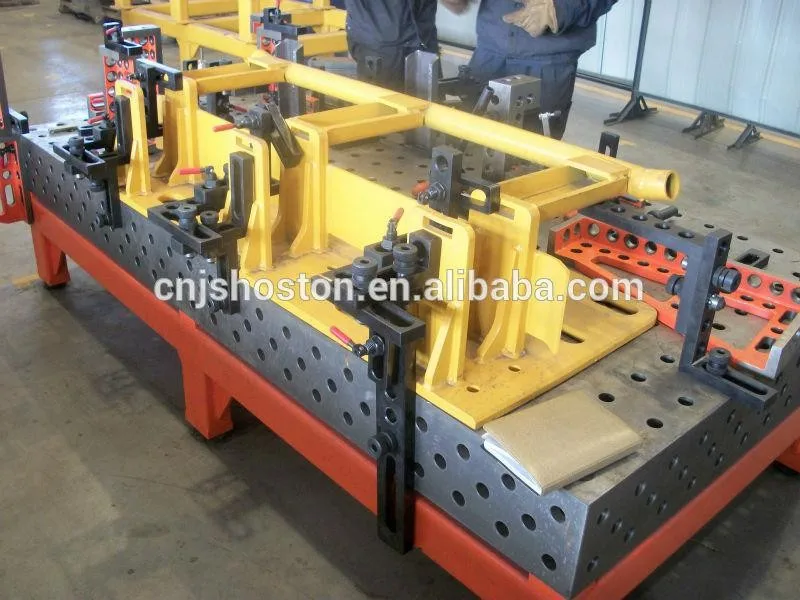

·Almost all workpiece can be fixed precisely at certain points or surfaces with locating piece, adapting piece, fastening piece and supporting piece, in the process of assembling or welding.

·Imprecise dimensions of workpiece can be adjusted during preliminary working process.

4. Repeatable

·It is easy to use existing parts in the workshop to imitate workshop to imitate workpiece assembly via CAD.

·Widely applied in the manufacturing and processing of machines, machining equipments, railway and tracks, automobiles, motorcycles, ships, pressurized containers, sheet metals, classis and cabinets, testing and measurement instruments and steel constructions.

3D Welding Table (D28 series)

3D Welding Table (D16 series)
