This Price Not including the solar cables, battery, and MPPT controller for off grid system!
PRODUCTS SHOW

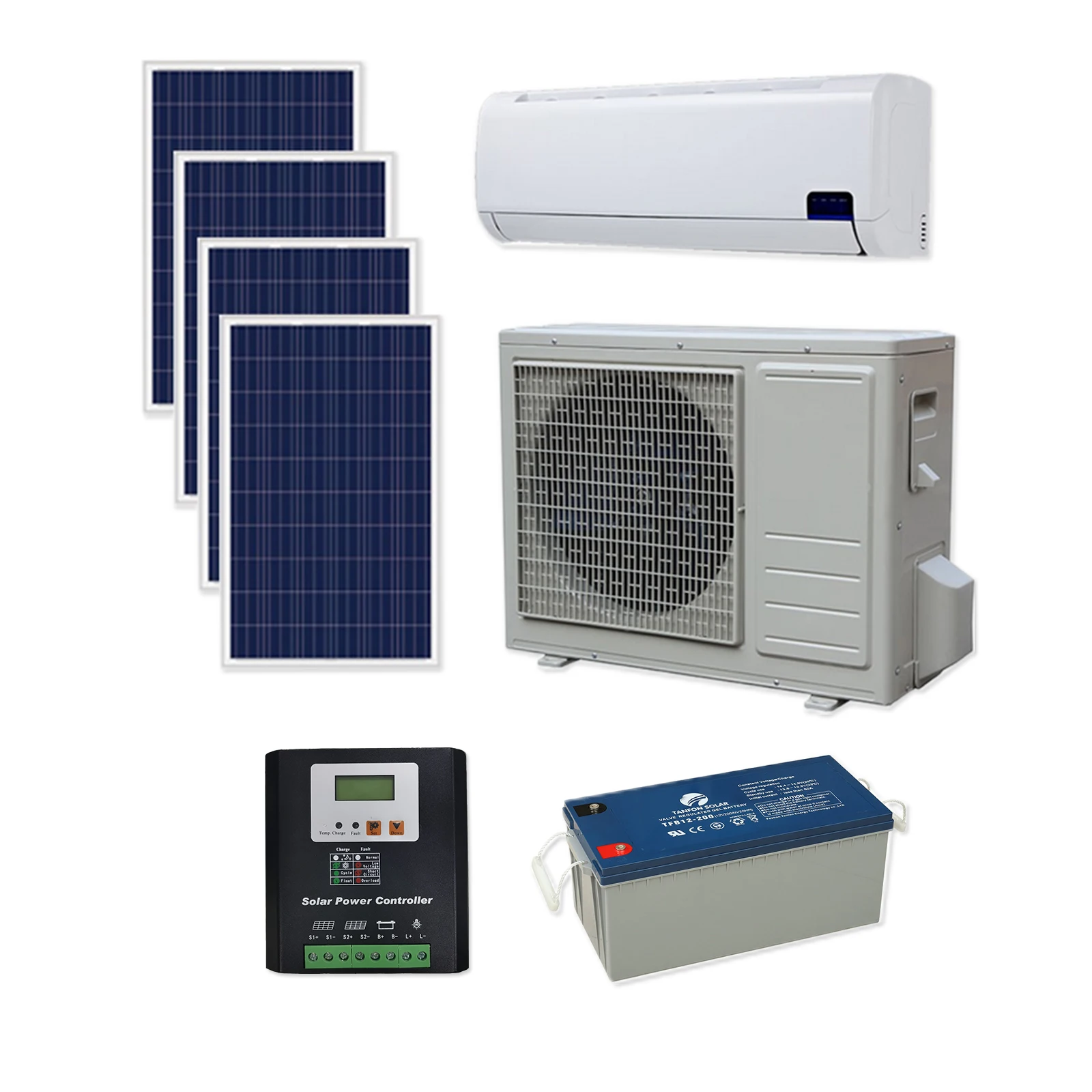

AC/DC Hybrid Solar Air Conditioner
An AC/DC solar air conditioner is a type of air conditioning system that is powered by both DC (direct current) and AC (alternating current) electricity. It uses solar panels to generate DC power from sunlight and has the ability to switch between DC and AC power sources as needed.
The solar panels produce DC power, which is transferred to the air conditioner unit through DC wiring. The DC power is used to operate the compressor, fan, and other electronic components. An inverter is then used to turn the DC power into AC power, allowing the unit to function as a traditional air conditioner. The system can switch between DC and AC power depending on the availability of solar power, ensuring that the air conditioner continues to operate regardless of the power source.
The AC/DC solar air conditioner system is ideal for off-grid locations as it can function without grid power and can deliver significant energy savings in areas with high electricity rates. It is also an eco-friendly solution because it generates renewable energy, reducing the carbon footprint.
GRID POWER
During the nighttime, the air conditioning unit draws electricity from the power grid and operates based on the same principles as a standard air conditioner, achieving a SEER rating of over 17.
GRID AND SOLAR
During periods of low sunshine, such as in the morning or on cloudy days, the A/C unit prioritizes solar power as its main energy source. If the solar power is insufficient, it will draw the remaining power needed from the grid.
100% SOLAR
Once the solar power meets the minimum operating requirement for the compressor, the A/C unit can initiate and function solely
using solar energy, even when the grid power is disconnected. This achieves 100% energy savings.
Products Description
Equipped With Panasonic Compressor | ||||||||||||
Model | Unit | UNP-35GW/ACDCB1-P | UNP-50GW/ACDCB1-P | |||||||||
Rated Capacity | Cooling | W | 3500 | 5000 | ||||||||
Heating | W | 3500 | 5000 | |||||||||
Rated Power Consumption | Cooling | W | 870 | 1358 | ||||||||
Heating | W | 940 | 1450 | |||||||||
Rated Running Current | Cooling | A | 3.97 | 6.01 | ||||||||
Heating | A | 4.26 | 6.34 | |||||||||
Max. Input Power | W | 1500 | 1900 | |||||||||
Max. Input Current | A | 7 | 9 | |||||||||
EER Cooling | W/W | 3.86 | 3.66 | |||||||||
COP Heating | W/W | 3.64 | 3.56 | |||||||||
Power supply source | V/Ph/Hz | 208-230V~/50-60Hz | 208-230V~/50-60Hz | |||||||||
VDC | 80-350 | 80-350 | ||||||||||
Refrigerant | R32 | R32 | ||||||||||
Refrigerant Charged | g | 820 | 960 | |||||||||
Max. Discharge Pressure | Mpa | 4.30 | 4.30 | |||||||||
Max. Suction Pressure | Mpa | 1.15 | 1.15 | |||||||||
Air Flow Volume | m3/h | 650 | 1050 | |||||||||
Noise level | dB（A) | 43 | 49 | |||||||||
Noise level | dB（A) | 51 | 57 | |||||||||
Indoor Unit Size | Net Dimension | mm | 900*290*195 | 1080*327*227 | ||||||||
Packing Dimension | mm | 971ˣ364ˣ281 | 1150ˣ405ˣ310 | |||||||||
Outdoor Unit Size | Net Dimension | mm | 780*255*540 | 820*300*600 | ||||||||
Packing Dimension | mm | 885ˣ355ˣ615 | 1045ˣ455ˣ700 | |||||||||
Indoor unit weight （Net/Gross Weight) | Kg | 10 /13 | 13/16 | |||||||||
Outdoor unit weight (Net/Gross Weight） | Kg | 29/32.5 | 37/41 | |||||||||
Dehumidification | L/h | 1.05L/h | 1.38L/h | |||||||||
Compressor | Brand | Panasonic | Panasonic | |||||||||
Capacity | W | 2765 | 3995 | |||||||||
Input | W | 980 | 1479 | |||||||||
Container Loading 20/40/40HC | sets | 104/228/261 | 81/166/193 | |||||||||
Equipped With GMCC Compressor | ||||||||||||||
Model | Unit | UNP-26GW/ACDCB1 | UNP-35GW/ACDCB1 | UNP-50GW/ACDCB1 | UNP-70GW/ACDCB1 | UNP-100GW/ACDCB1 | ||||||||
Power Supply | V | DC50-380V | DC50-380V | DC50-380V | DC50-380V | DC50-380V | ||||||||
PH-V-HZ | 1Ph,220~,50/60Hz | 1Ph,220~,50/60Hz | 1Ph,220~,50/60Hz | 1Ph,220~,50/60Hz | 1Ph,220~,50/60Hz | |||||||||
Cooling | Capacity | Btu/h | 9000 (500-11000) | 12000 (7000-14000) | 18000 (6200-19500) | 24000 (5100-26900) | 36000 (6500-37500) | |||||||
Power Input | W | 590 (100-1200) | 865 (110-1500) | 1320 (140-1800) | 1980 (240-3030) | 2850 (320-3510) | ||||||||
Current | A | 2.68 (0.45-5.45) | 3.93 (0.5-6.82) | 6 (0.6-8.18) | 9 (1.0-13.2) | 12.95 (1.45-15.95) | ||||||||
Heating | Capacity | Btu/h | 9500 (3800-11500) | 13000 (4000-15000) | 19000 (4700-20000) | 25000 (5500-30000) | 37500 (7000-39000) | |||||||
Power Input | W | 625 (120-1200) | 880 (130-1510) | 1465 (200-1900) | 2050 (260-3140) | 3000 (350-3650) | ||||||||
Current | A | 2.84 (0.5-5.45) | 4 (0.59-6.86) | 6.66 (0.9-8.63) | 9.32 (1.1-13.7) | 13.63 (1.59-16.59) | ||||||||
Moisture Removal | L/h | 1.0 | 1.3 | 1.7 | 2.5 | 3.6 | ||||||||
Max input | W | 1320 | 1500 | 2300 | 3200 | 3800 | ||||||||
Max current | A | 6 | 7.50 | 10.45 | 14.54 | 14.54 | ||||||||
Indoor air flow(H/M/L) | m3/h | 570/470/370 | 570/470/370 | 721/566/458 | 970/780/590 | 1150/900/700 | ||||||||
Indoor noise(H/M/L) | dB(A) | 41/36/28 | 41/36/28 | 43/37/32 | 45/39/34 | 46/40/35 | ||||||||
Indoor unit | Net Size(W*D*H) | mm | 734*194*285 | 775*194*285 | 921*213*302 | 1026*220*327 | 1080*220*327 | |||||||
Pack Size(W*D*H) | mm | 780*270*360 | 830*270*360 | 995*305*380 | 1105*310*405 | 1155*310*405 | ||||||||
Net/Gross | kg | 8.1/9.9 | 8.1/9.9 | 9.5/12.5 | 11.9/15.2 | 13.7/17.2 | ||||||||
Outdoor air flow | m3/h | 2100 | 2100 | 2100 | 2900 | 3800 | ||||||||
Outdoor noise | dB(A) | <50 | <50 | <52 | <56 | <64 | ||||||||
Outdoor unit | Net Size(W*D*H) | mm | 835*320*540 | 835*320*540 | 835*320*540 | 910*340*700 | 946*410*810 | |||||||
Pack Size(W*D*H) | mm | 900*400*600 | 900*400*600 | 900*400*600 | 1063*457*780 | 1090*500*860 | ||||||||
Net/Gross | kg | 28.9/33.4 | 29/33.5 | 31/36 | 49.5/56 | 65/73 | ||||||||
Operation temp. | ℃ | 16~30 | 16~30 | 16~30 | 16~30 | 16~30 | ||||||||
Ambient temp.(cooling/heating) | ℃ | 18-52/-15-34 | 18-52/-15-34 | 18-52/-15-34 | 18-52/-15-34 | 18-52/-15-34 | ||||||||
Application area | m2 | 12-18 | 16-23 | 24-35 | 32-47 | 47-63 | ||||||||
Solar panels recommendation | W | 700-1290 | 1030-1900 | 1580-2900 | 2370-4350 | 3400-6270 | ||||||||
CONFIGURATION TABLE | ||||
Model | Solar Panel | Quantity | ||
9000BTU | 400W | 2-3 Pieces | ||
12000BTU | 400W | 3-5 Pieces | ||
18000BTU | 400W | 4-6 Pieces | ||
24000BTU | 400W | 6-8 Pieces | ||
30000BTU | 500W | 5-7 Pieces | ||
36000BTU | 500W | 6-8 Pieces | ||
SYSTEM ADVANTAGES
* AC And DC Dual Power Supply
* High Energy Efficiency: Maximum Up to SEER 36;
* Convenient and Quick Installation, No Longer Require Solar Controller, Battery and Inverter
* Automatic Selection Between Solar Power and Grid Power Supply that Provides Uninterrupted Power Supply.
* Wide Voltage Design, Free Combination of Solar Panels, Not Limited by Installation Place.
* High-SEER Brushless Inverter DC Permanent Magnet
Compressors
* Wide Operating Temperature Range: -15°C To +58°C
* Anti-Corrosion Technology.
* Eco-Friendly R32 Refrigerant
* Solar Connector Terminal – Easy Connection and Maintenance Plug and Play
* Quiet Indoor Unit (As Low as 26db)
* High Energy Efficiency: Maximum Up to SEER 36;
* Convenient and Quick Installation, No Longer Require Solar Controller, Battery and Inverter
* Automatic Selection Between Solar Power and Grid Power Supply that Provides Uninterrupted Power Supply.
* Wide Voltage Design, Free Combination of Solar Panels, Not Limited by Installation Place.
* High-SEER Brushless Inverter DC Permanent Magnet
Compressors
* Wide Operating Temperature Range: -15°C To +58°C
* Anti-Corrosion Technology.
* Eco-Friendly R32 Refrigerant
* Solar Connector Terminal – Easy Connection and Maintenance Plug and Play
* Quiet Indoor Unit (As Low as 26db)
The unit's components include solar panels, DC wiring, and the air conditioning unit itself. It is important to size the solar panel array and battery bank correctly to meet the energy demands of the air conditioner unit and ensure optimal performance.
Indoor Unit
Outdoor Unit
- Full DC
- Outdoor unit: Rust and corrosion resistance.
-Compressor: Strong power, stable performance.-Motor: Pure copper coils increase efficiency.
-Copper tube: Inner grooved design improve the heat transfer rate.
-Double-muting technology: Keep the environment quiet and comfortable.
-Strainer: Effectively prevents dust from entering, easy to remove and wash.
Application
COMPANY PROFILE
Zhejiang uniepu new energy co., ltd, is a solar water heater factory that is commit.ted to the R&D, design, production and sales of solar water heaters and air source heat pumps, Haiyan Uniepu new material co.,Itd. is our trading company. Uniepu has been focusing on the hot water industry for more than 14 years, providing a full range of high-quality hot water system solutions for homes and commercials all over the world.
For the solar energy series, Uniepu newly invested in more than 2000m2 of factories in 2023, The production capacity has increased by 25%, so that Uniepu can provide professional services to more customers. Now, the total daily output reaches 350 units, Solar energy products include solar water heaters, solar collectors, solar air conditioner,PVT hybrid panels, and solar accessories.
Exhibition
Our show was a resounding success as the solar air conditioning units received a phenomenal response! We were thrilled to see attendees from across the globe express immense interest in harnessing solar energy to power their air conditioning needs.
SHIPPING METHODS
Recommend Products
FAQ
1. What is a BTU?
(British Thermal Unit) A unit in which we measure heat.
2. What does a 2-ton hybrid air conditioner mean?
This is also a unit in which we measure the hybrid air conditioner's ability to cool. There are 12,000 BTUs per ton so 2 tons X12,000 BTU = 24,000 BTU capacity.
(British Thermal Unit) A unit in which we measure heat.
2. What does a 2-ton hybrid air conditioner mean?
This is also a unit in which we measure the hybrid air conditioner's ability to cool. There are 12,000 BTUs per ton so 2 tons X12,000 BTU = 24,000 BTU capacity.
3.Air Conditioner Sizing by Home Size
1,400-1,600 square feet home size needs 24,000 BTUs
1,600-1,800 square feet home size needs 27,000 BTUs
1,800-2,000 square feet home size needs 30,000 BTUs
2,000-2,200 square feet home size needs 33,000 BTUs
4. What is the MOQ?
MOQ: 1 set
