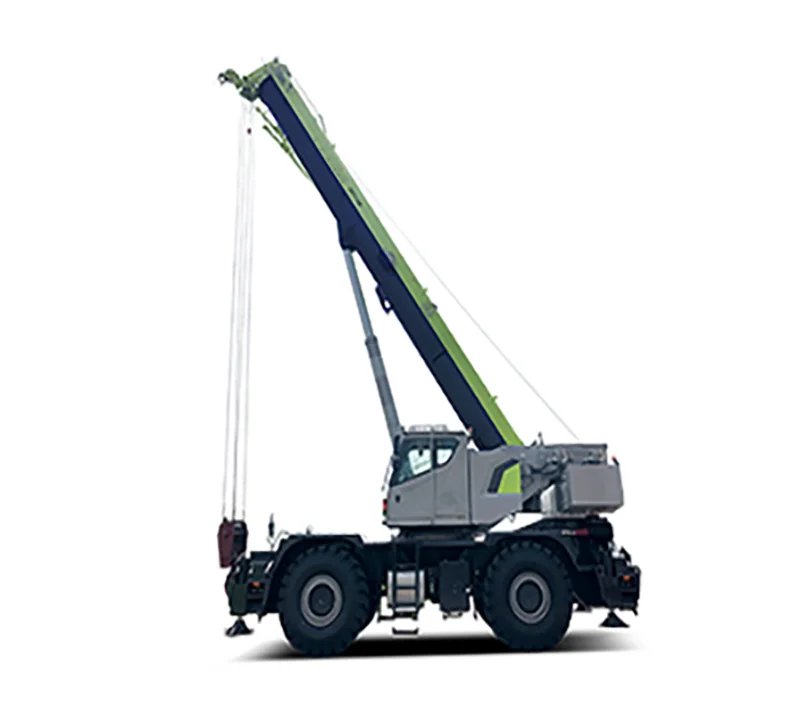

30 тонн ZOOMLION пересеченной местности кран ZRT300 по низкой цене для Jamaica
11 221 574,98 ₽ - 15 862 043,00 ₽
Сверхмощный двухбалочный 60 тонн 40 козловой кран сборный бетонный 30 для продажи
- Категория: >>>
- Поставщик: Henan Yuntian Crane Co. Ltd.
Сохранить в закладки 1601168407214:
Описание и отзывы
Характеристики
Product Description
Double beam gantry crane with trolley .
MG model Double beams gantry crane is a track traveling Medium-Heavy sized crane,it mainly consists of the skeleton structure, lifting trolley and cross traveling mechanism, long traveling mechanism, cabin,festoon cable and electrical control system. The trolley can move horizontally on a pair of rails on the main beam. The working class is A4 A5 A6 A7.
The Double beams gantry crane main beam can be box or trussed type in according to your working environment situation. pressure is less than 125Pa, or more;The double beam gantry crane is usually being used outdoor,driver’s Cabin is used for operating, with seats inside. Driver’s cabin floor adopts insulation pads and toughened glass for windows; extinguisher and fan are optional equipped. Other accessory equipment like air condition, buzzer,interphone and etc. can be configured according to client’s request.The length of cantilevers can be designed to meet the working demands.
The Double beams gantry crane main beam can be box or trussed type in according to your working environment situation. pressure is less than 125Pa, or more;The double beam gantry crane is usually being used outdoor,driver’s Cabin is used for operating, with seats inside. Driver’s cabin floor adopts insulation pads and toughened glass for windows; extinguisher and fan are optional equipped. Other accessory equipment like air condition, buzzer,interphone and etc. can be configured according to client’s request.The length of cantilevers can be designed to meet the working demands.
A type gantry crane.
A type gantry crane is a regular crane,It could be designed with cantilever or not.
U type gantry crane.
U type is designed for container lifting. It could be designed with cantilever or not.
Double girder gantry crane have A type, U type. U type is designed for container lifting. It could be designed with cantilever or not.
This product is a regular crane widely used in open-air warehouse and workshop, material yard, port,railway station,hydroelectric power station,logistics park and some other outdoor place, where it has a high frequency or more lifting times. It is prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.
This product is a regular crane widely used in open-air warehouse and workshop, material yard, port,railway station,hydroelectric power station,logistics park and some other outdoor place, where it has a high frequency or more lifting times. It is prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.
Application
MG Main features:
1. Double girder gantry Crane is a medium and heavy size crane which travels in track.
2. Its proper lifting weight is 5 to 75 tons and proper span is 18 to 35 meters.
3. Its proper working temperature is -20-+40 centigrade.
4. Remote control,cabin control
5. Power supply is by cable or slide wire.
6. The crane is a customized product,the working class can be A4, A5, A6, A7. The main beam, legs and travelling beams are made by steel plates, it is very strong and has small body, it is suitable for ocean transport.
7. Double box beam with steel legs moving through the ground beam as crane travelling system
8. Steel Material: Q235 or Q345
9. Shot-blasting Sa2.5 for main girder and supporting beam
10.Epoxy zinc rich high quality painting.
11.Electric brand: CHINT SIEMENS Schneider
12.Conductor power supply: Cable Reel or air busbar.
13.Frequency conversion, double speed, single speed, and hoist and crane movements are independent and can be run simultaneously different design to meet crane applications
2. Its proper lifting weight is 5 to 75 tons and proper span is 18 to 35 meters.
3. Its proper working temperature is -20-+40 centigrade.
4. Remote control,cabin control
5. Power supply is by cable or slide wire.
6. The crane is a customized product,the working class can be A4, A5, A6, A7. The main beam, legs and travelling beams are made by steel plates, it is very strong and has small body, it is suitable for ocean transport.
7. Double box beam with steel legs moving through the ground beam as crane travelling system
8. Steel Material: Q235 or Q345
9. Shot-blasting Sa2.5 for main girder and supporting beam
10.Epoxy zinc rich high quality painting.
11.Electric brand: CHINT SIEMENS Schneider
12.Conductor power supply: Cable Reel or air busbar.
13.Frequency conversion, double speed, single speed, and hoist and crane movements are independent and can be run simultaneously different design to meet crane applications
Details Images
Technical Parameters
Lifting weight(T) | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | |||||||
Span(m) | 18~35 | ||||||||||||
Max Lifting height(m) | Main Hook | 10 | |||||||||||
Auxiliary Hook | 12 | ||||||||||||
Working class | A4,A5,A6,A7 | ||||||||||||
Speed(m/min) | Main Hoisting | 10 | |||||||||||
Aux hoisting | 15 | ||||||||||||
Trolley Cross Traveling | 35 | ||||||||||||
Crane Long Traveling | 40 | ||||||||||||
Motor Type | Heavy duty slip ring motor | ||||||||||||
Motor (Kw) | Main Hoisting | 15,22,37,45,55 | |||||||||||
Trolley Cross Traveling | 15,22,37 | ||||||||||||
Crane Long Traveling | 2*6.3,2*8.5,2*11 | ||||||||||||
Control mode | Remote control,Cabin control | ||||||||||||
Recommended Rail model | 30kgs/m | 38kgs/m | 43kg/m | 50kg/m | |||||||||
Power source | 3Ph A.C 50Hz 380V | ||||||||||||
Packing & Delivery
Company Profile
Main Products
YunTian Group products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace,military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grabcrane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Похожие товары

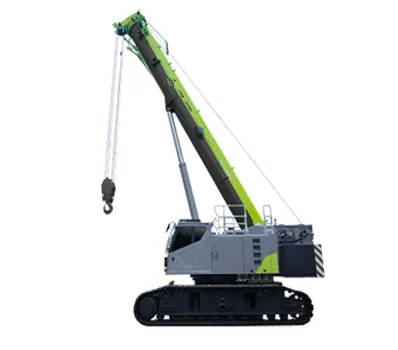

30 тонн телескопический кран на гусеничном ходу ZCT300V532 с высокой производительностью
13 198 313,71 ₽ - 14 133 627,28 ₽

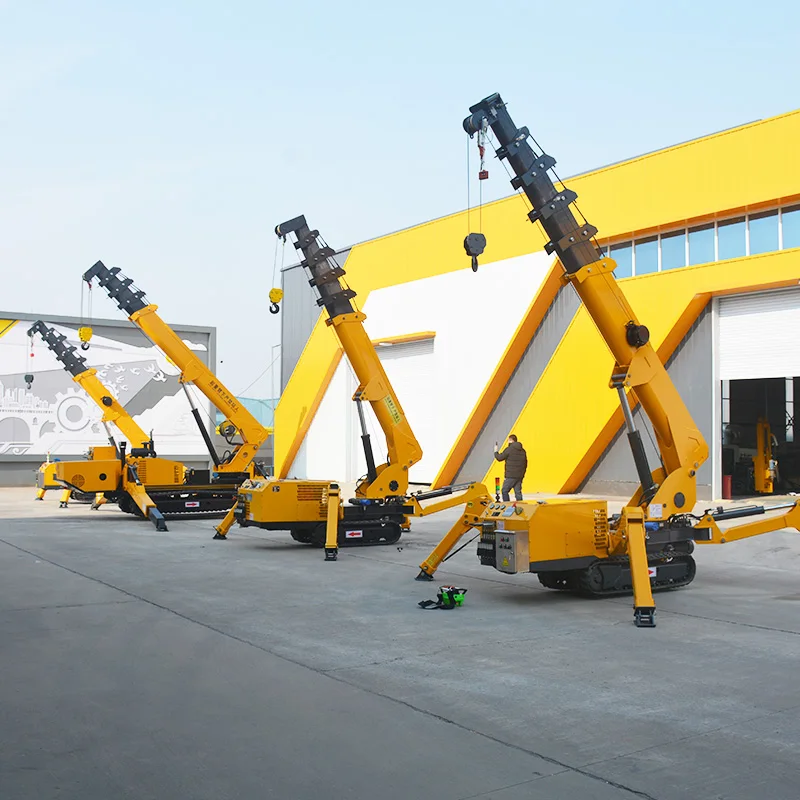

Гусеничный кран-паук
4 266 342,60 ₽ - 5 360 276,60 ₽

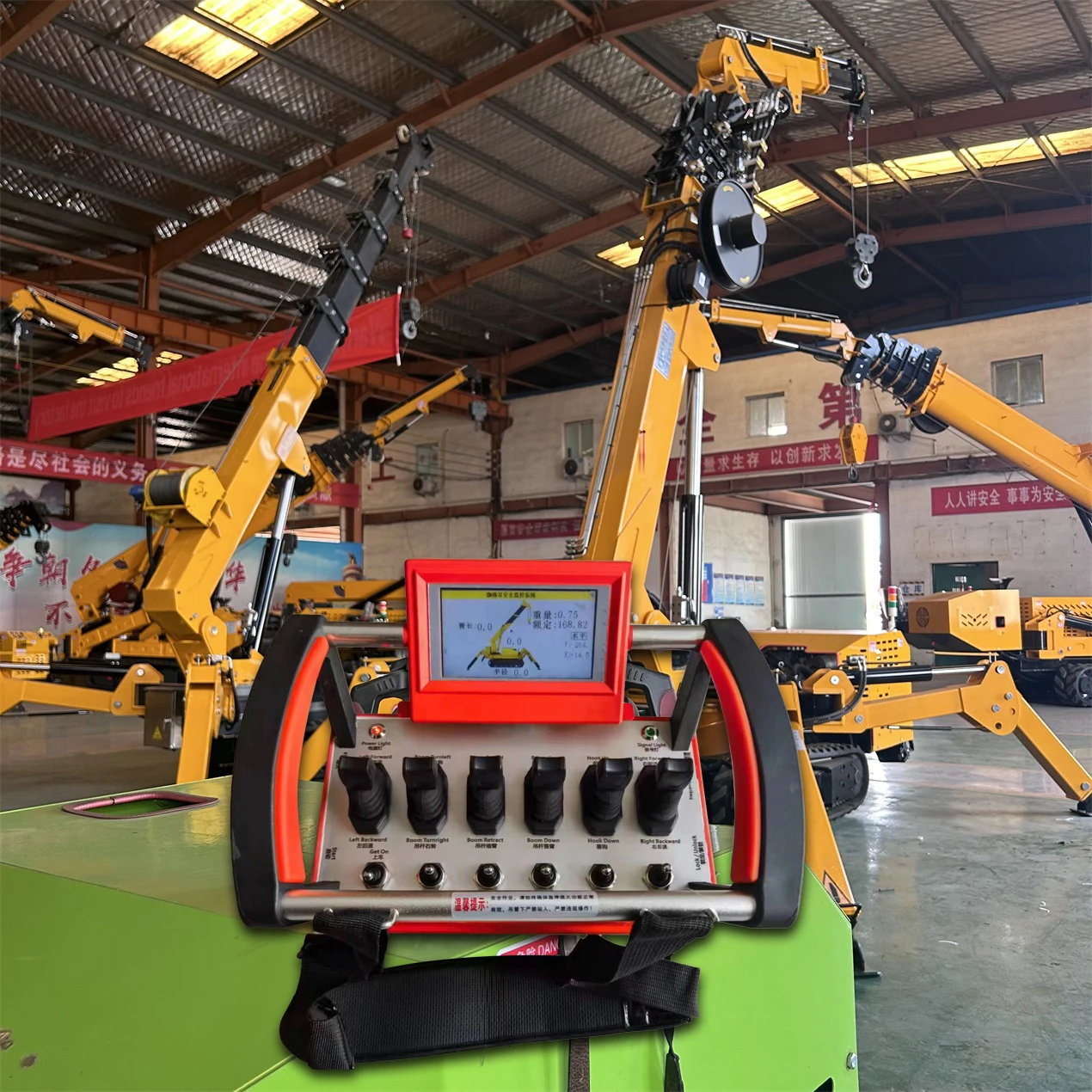

Кран-паук с вилочным погрузчиком/беспроводной подъемник стеклянный занавес настенный телескопический кран-паук гусеничный кран
1 082 994,66 ₽ - 1 367 417,50 ₽

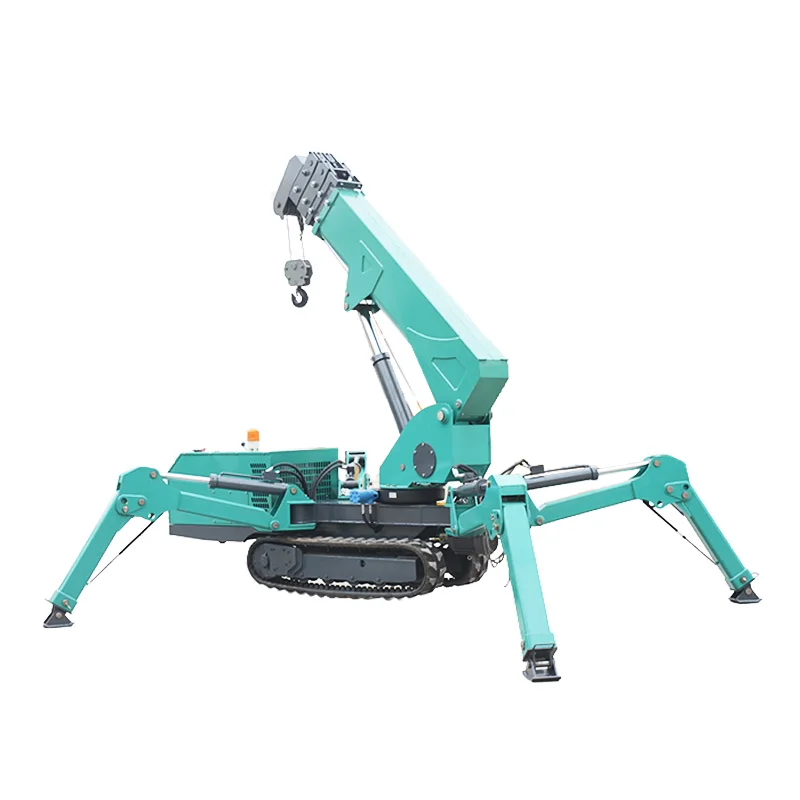

Мини-кран-паук 3 т мобильные гусеничные краны портативный 3-тонный подъемный 10 м индикатор момента нагрузки вакуумный стеклоподъемник опционально
536 027,66 ₽ - 568 845,68 ₽

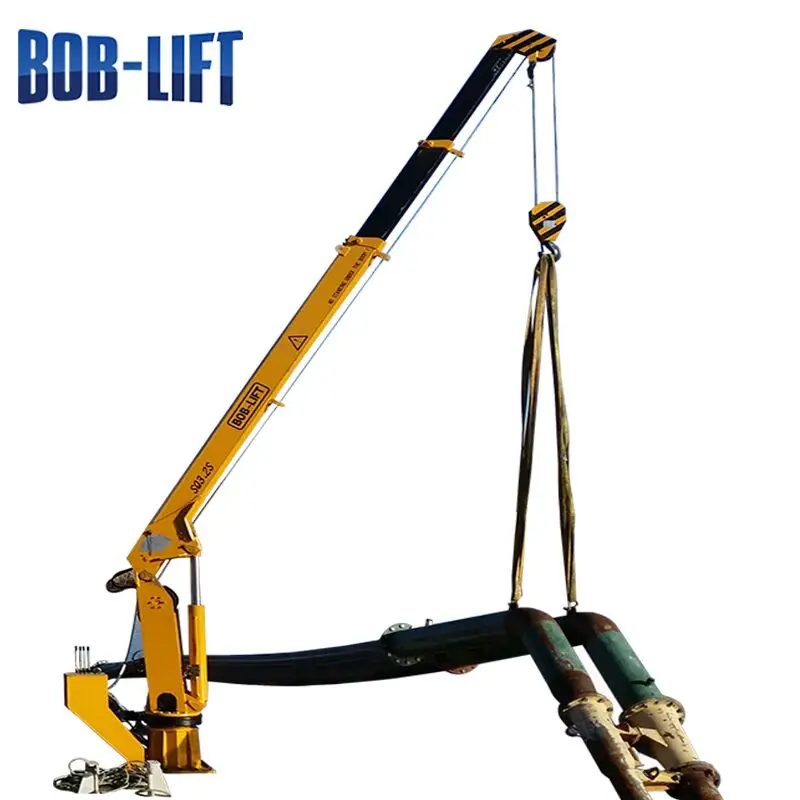

Мини 3,2 тонн лодка морской прямо кран для продажи

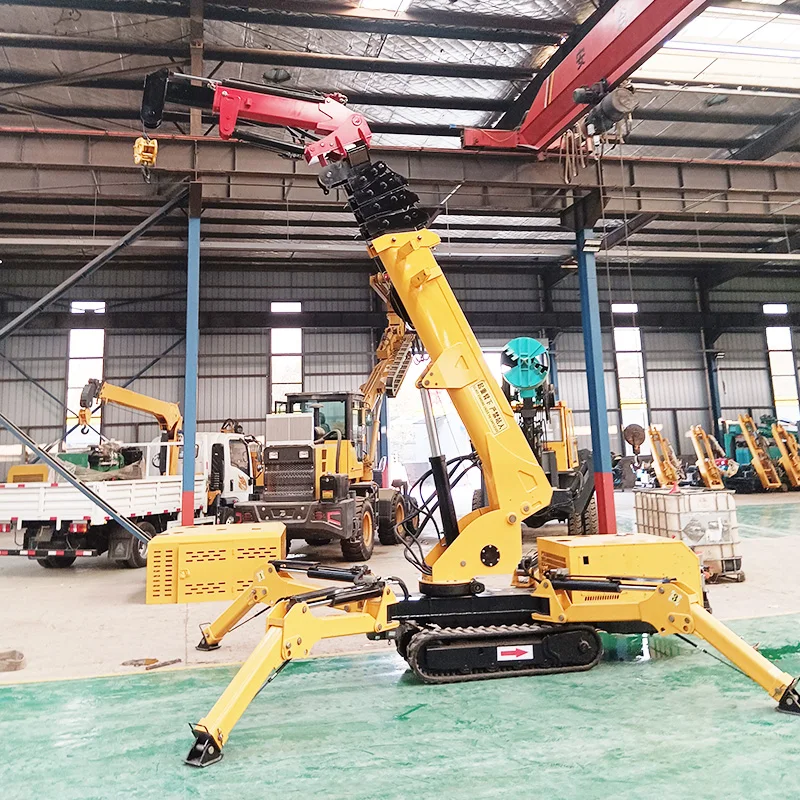

Мобильный кран-паук, 3 тонны, 5 тонн, 6 тонн, 8 тонн, 10 тонн, телескопическая стрела, 360 градусов, мини-гусеничный гидравлический кран, подъем 14 м с стрелой
1 088 464,33 ₽ - 1 695 597,70 ₽

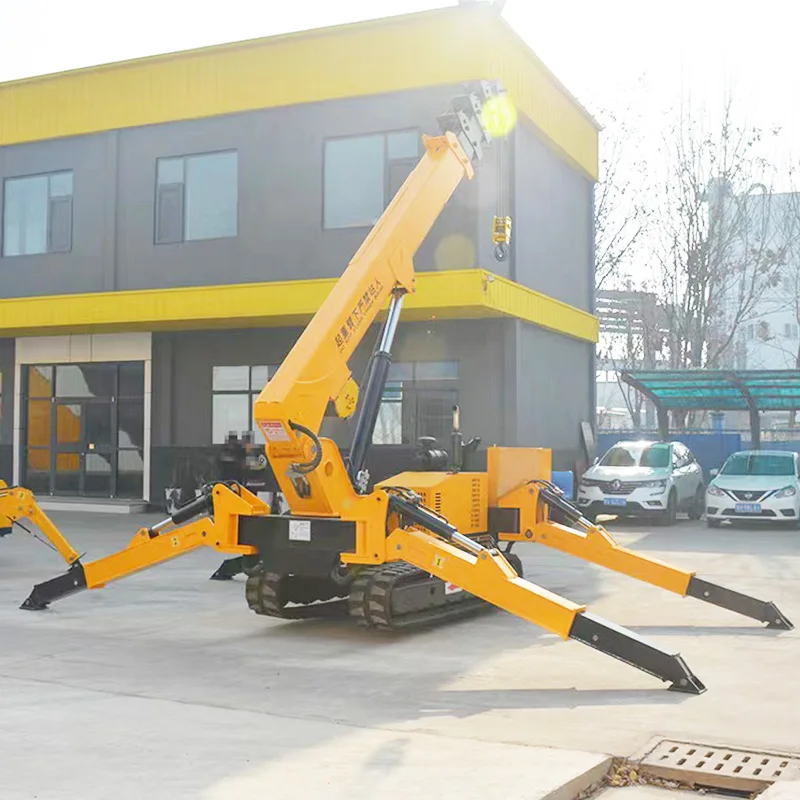

Высококачественный китайский кран-паук, гусеничный кран, кран-паук, мобильный Паутинный подвес, узкая конструкция местности
