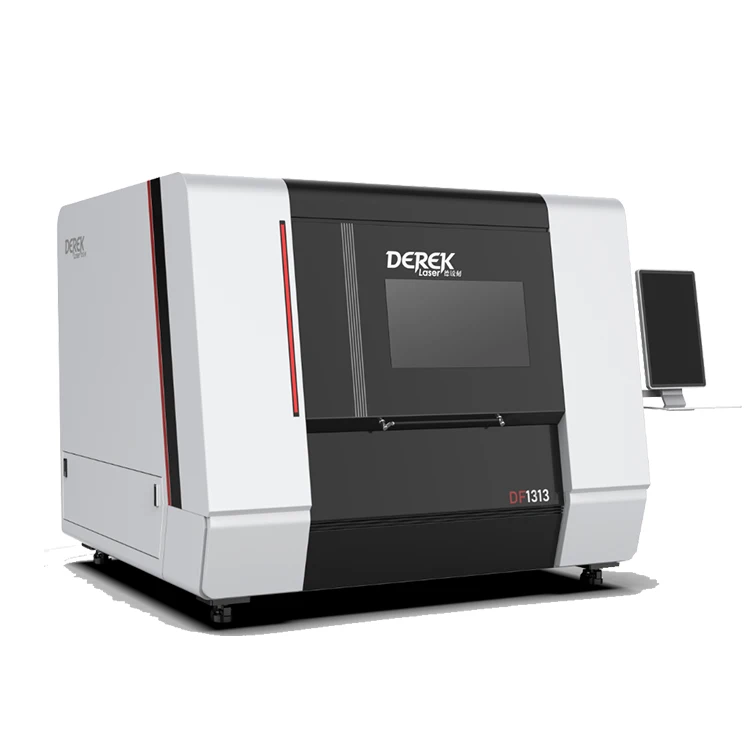

DF1313 1000 Вт 1500 лист и трубка Волоконно Лазерная резка для нержавеющей стали алюминий

Сохранить в закладки 1601168519939:


Цена:1 464 524,02-1 556 495,14 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики













Product name
Fiber laser cutting machine
Fiber Laser cutter
Specifications





1300x1300mm
220V 60Hz 1 phase

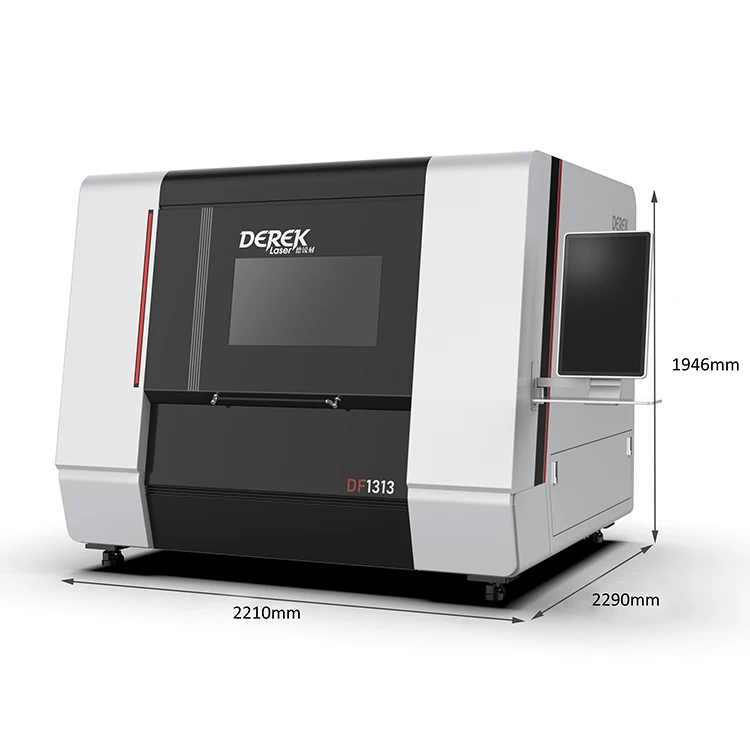

Model: DF1313
Work size 1300*1300mm
1. Raycus laser source 2000w
2. Cypcut 2000C control system
3. Raytools BMH110 auto focus cutting head
4. Japan Fuji servo motor
5. Y axis dual-drive HIWIN ball screw from Taiwan
6. XZ axis Taiwan Hiwin ball screw
7. Taiwan Hiwin guide rail
8. Japan SMC pneumatic parts
9. France SCHNEIDER electronic parts
10. S&A water chiller CWFL-2000
11. Exhaust fan

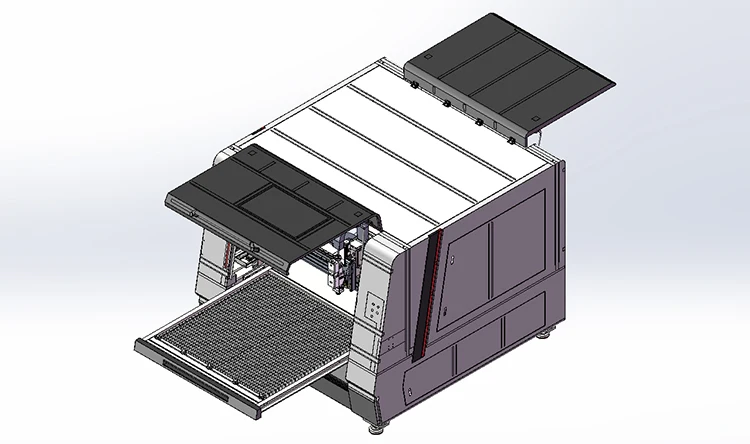

12. Slide out work table
13. Back door design to simple barn doors
Other options
30KVA Voltage stabilizer
Nozzle
Protective lens
Ceramic ring








Auto Focus Laser Cutting Head
Japanese Servo motors
Raycus Laser Source


IPAD designed PC
FSCUT 1500A control system
Cypcut Wireless DSP controller


Dual guide rail Design
Heavy duty bed
Taiwan Hiwin square guide rail


Aviation aluminum gantry
Compared with some other metal beams, the aluminum alloy bracket is lighter in weight because of the lower density of aluminum. It is used on large-format laser cutting machine to ensure the laser head’s running speed and high-speed running stability.


Auto focus laser head
1.The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
2.Bigger adjustment range
3.Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
4.Long service life
5.Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.


The Segmented Rectangular Tube Welded Bed
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
High strength, stability, and tensile strength, ensuring 20 years of use without distortion; laser cutting machine.
The thickness of the rectangular pipe wall is 6mm and weighs 1000 kg.


IPAD-Designing-Screen
The IPAD is designed with a vertical display that is fast in response, high in contrast, wide in the field of view, low in power consumption, and high in resolution, unlike traditional horizontal displays. In addition, it features high brightness levels and low reflectivity as well as a rugged solid glass panel.






Material
Thickness
1000w
1500w
2000w
3000w
4000w
6000w
Unit
mm
m/min
m/min
m/min
m/min
m/min
m/min
CS
(Q235A)
1
8.0-10
15-26
24-30
30-40
33-42
35-42
2
4.0-6.5
4.5-7.0
4.7-7.5
4.8-7.5
5.2-8.0
6.0-8.0
3
2.4-3.0
2.6-4.0
3.0-4.8
3.3-5.0
3.5-5.5
3.8-6.5
4
2.0-2.4
2.5-3.0
2.5-3.5
3.0-4.2
3.1-4.8
3.5-5.0
5
1.5-2.0
2.0-2.5
2.2-3.0
2.6-3.5
2.7-3.6
3.3-4.2
6
1.4-1.6
1.6-2.2
1.8-2.6
2.3-3.2
2.5-3.4
2.8-4.0
8
0.8-1.2
1.0-1.4
1.2-1.8
1.8-2.6
2.0-3.0
2.2-3.2
10
0.6-1.0
0.8-1.1
1.1-1.3
1.2-2.0
1.5-2.0
1.8-2.5
12
0.5-0.8
0.7-1.0
0.9-1.2
1.0-1.6
1.2-1.8
1.2-2.0
14
0.5-0.7
0.7-0.8
0.9-1.4
0.9-1.2
1.5-1.8
16
0.6-0.7
0.7-1.0
0.8-1.0
0.8-1.5
18
0.4-0.6
0.6-0.8
0.65-0.9
0.65-0.9
20
0.5-0.8
0.6-0.9
0.6-0.9
22
0.4-0.5
0.5-0.8
0.5-0.8
25
0.3-0.5
0.3-0.7
SS
-201
1
18-25
20-27
24-30
30-35
32-40
45-55
2
7.0-12
8.0-13
9.0-14
13-21
16-28
20-35
3
1.8-2.5
3.0-5.0
4.0-6.5
6.0-10
7.0-15
15-24
4
1.2-1.3
1.5-2.4
3.0-4.5
4.0-6.0
5.0-8.0
10-16.0
5
0.6-0.7
0.7-1.3
1.8-2.5
3.0-5.0
4.0-5.5
8.0-12
6
0.7-1.0
1.2-2.0
2.0-4.0
2.5-4.5
6.0-9.0
8
0.7-1.0
1.5-2.0
1.6-3.0
4.0-5.0
10
0.6-0.8
0.8-1.2
1.8-2.5
12
0.4-0.6
0.5-0.8
1.2-1.8
14
0.4-0.6
0.6-0.8
20
0.4-0.6
Aluminum
1
6.0-10
10-20
15-25
25-38
35-40
45-55
2
2.8-3.6
5.0-7.0
7.0-10
10-18
13-25
20-30
3
0.7-1.5
2.0-4.0
4.0-6.0
6.5-8.0
7.0-13
13-18
4
1.0-1.5
2.0-3.0
3.5-5.0
4.0-5.5
10-12.0
5
0.7-1.0
1.2-1.8
2.5-3.5
3.0-4.5
5.0-8.0
6
0.7-1.0
1.5-2.5
2.0-3.5
4.0-6.0
8
0.6-0.8
0.7-1.0
0.9-1.6
2.0-3.0
10
0.4-0.7
0.6-1.5
1.0-2.0
12
0.3-0.45
0.4-0.6
0.8-1.4
16
0.3-0.4
0.6-0.8
20
0.5-0.7
Brass
1
6.0-10
8.0-13
10-16.0
20-35
25-30
45-55
2
2.8-3.6
3.0-4.5
4.5-7.5
6.0-10
8.0-12
25-30
3
0.5-1.0
1.5-2.5
2.5-4.0
4.0-6.0
5.0-6.5
12-18.0
4
1.0-1.6
1.5-2.0
3.0-5.0
3.2-5.5
8.0-10
5
0.5-0.7
0.9-1.2
1.5-2.0
2.0-3.0
4.5-6.0
6
0.4-0.7
1.0-1.8
1.4-2.0
3.0-4.5
8
0.5-0.7
0.7-10
1.6-2.2
10
0.2-0.4
0.8-1.2
12
0.2-0.4






PRODUCT PACKAGING


















FAQ
1.who are we?
We are based in Shandong, China, start from 2014,sell to North America(15.00%),South America(15.00%),Western
Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Eastern
Asia(5.00%),Africa(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fiber Laser Cutting Machine, CO2 Laser Cutting Machine, Fiber Laser Marking Machine, Fiber Laser Welding Machine,
Fiber Laser Cleaning Machine

4. why should you buy from us not from other suppliers?
We have 10 years experience of product design. High quality products with internationals approvals. 24 hours service center European and African Customers'good comments

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
Accepted PaymentCurrency:USD,EUR,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
