Монокристаллическая солнечная панель, 485 Вт 490 Вт 495 Вт 500 Вт 505 Вт 510 Вт
18,74 ₽ - 30,86 ₽
Солнечная панель с двойным стеклом 700/705/710/715/720/725/для коммерческой системы
- Категория: >>>
- Поставщик: Anhui Minvic Import & Export Co. Ltd.
Сохранить в закладки 1601168526248:
Описание и отзывы
Характеристики
Product Description
Higher power generation
Module Imp binning radically reduces string
mismatch losses
mismatch losses
Excellent wind load 2400Pa & snow load 5400Pa under
certain installation method
certain installation method
Bifacial technology enables additional energy harvesting
from rear side
from rear side
Global, Tier 1 bankable brand, with independently
certified state-of-the-art automated manufacturing
N-type solar cell without LID caused by B-O
PID Resistance
Better Temperature Coefficient
SOLAR CELL
-High output-power: conversation efficiency is 18%-21%
-High shunt-resistance: adapt the several conditions.
-Bypass diode minimizes the power drop by shade
-Excellent low light effect
-Low breakage rate.
-High shunt-resistance: adapt the several conditions.
-Bypass diode minimizes the power drop by shade
-Excellent low light effect
-Low breakage rate.
GLASS
-High-transmittance and low reflection
-Inspection:GB15763.2-2005.IS09050
-High solar transmittance
-High mechanical strength
-High flatness
-High mechanical strength
-High flatness
JUNCTION BOX
-High current and voltage carrying capacity
-Simple,quick and safe effective field asse-mbly
-IP 68 it can be used in the outdoor iron en-vironment
-Expansion connector are available for future requirement
-Double permanent connection are adapted for all of the
connecting.
-Simple,quick and safe effective field asse-mbly
-IP 68 it can be used in the outdoor iron en-vironment
-Expansion connector are available for future requirement
-Double permanent connection are adapted for all of the
connecting.
FREME
-Aluminium extrusion profile with prompt deli- very
-Available in customized surface finish
-Excellent material for smooth and subtle edges
-Extrusion for construction and other industrial purposes
-Thickness variable according special request
-Available in customized surface finish
-Excellent material for smooth and subtle edges
-Extrusion for construction and other industrial purposes
-Thickness variable according special request
Recommend Products
Specification
ELECTRICAL DATA (STC) | ||||||||||||
Model Number | RSM132-8-700BHDG | RSM132-8-705BHDG | RSM132-8-710BHDG | RSM132-8-715BHDG | RSM132-8-720BHDG | RSM132-8-725BHDG | ||||||
Rated Power in Watts-Pmax(Wp) | 700 | 705 | 710 | 715 | 720 | 725 | ||||||
Open Circuit Voltage-Voc(V) | 49 .83 | 49 .92 | 50.01 | 50.09 | 50.18 | 50.26 | ||||||
Short Circuit Current-Isc(A) | 17 .82 | 17 .91 | 18.00 | 18.10 | 18.19 | 18.29 | ||||||
Maximum Power Voltage-Vmpp(V) | 41.78 | 41.86 | 41.93 | 42.00 | 42.08 | 42.14 | ||||||
Maximum Power Current-Impp(A) | 16.77 | 16.86 | 16.95 | 17.05 | 17.13 | 17.23 | ||||||
Module Efficiency (%) | 22.5 | 22.7 | 22.9 | 23.0 | 23.2 | 23.3 | ||||||
MECHANICAL DATA | ||||||||
Solar cells | n-type HJT | |||||||
Cell configuration Modul dimensions Weight | 132 cells (6 × 11+6 × 11) 2384 × 1303 × 33mm 37.5kg | |||||||
Superstrate | High Transmission , AR Coated Heat Strengthened Glass | |||||||
Substrate | Heat Strengthened Glass | |||||||
Frame | Anodized Aluminium Alloy, Silver Color | |||||||
J-Box | Potted , IP68 , 1500VDC , 3 Schottky bypass diodes | |||||||
Cables | 4.0mm² , Positive(+)350mm , Negative(-)230mm (Connector Included ) | |||||||
Connector | Risen Twinsel PV-SY02 , IP68 | |||||||
PACKAGING CONFIGURATION | ||||||||
40ft( HQ) | ||||||||
Number of modules per container | 594 | |||||||
Number of modules per pallet | 33 | |||||||
Number of pallets per container | 18 | |||||||
Packaging box dimensions (LxWxH) in mm | 1320× 1125×2520 | |||||||
Box gross weight[ kg] | 1289 | |||||||

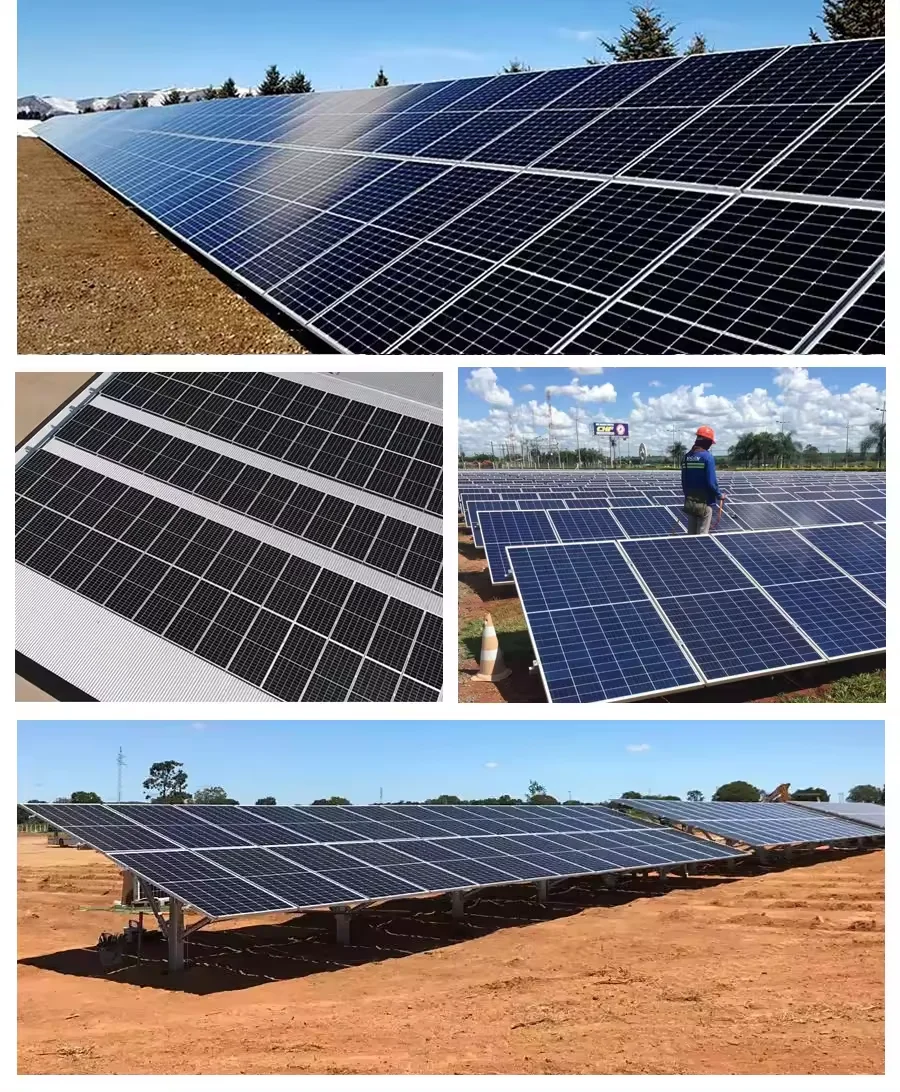

Project Case

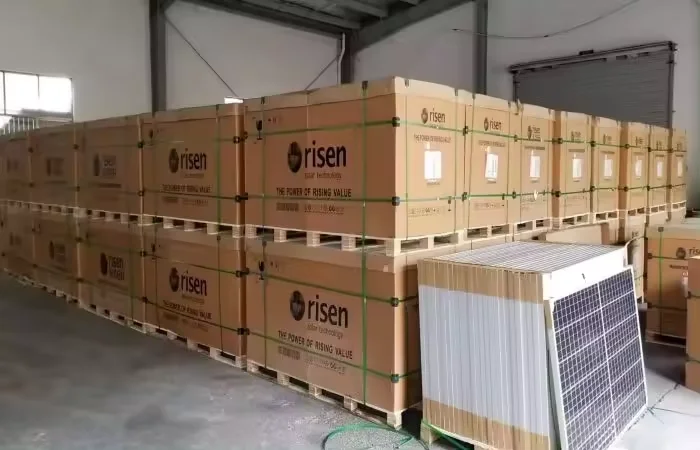

Packing & Delivery
Certificate
FAQ
1. Who are we?
We are based in Hefei, Anhui, China, established in 2018. We are proffesional Solar system and Products provider. For the past years, we have rich experience and lots of successful projects all around the world. We have whole supply chain on PV products andwe have our own factory so we can provide OEM service for customer.
2. How can we guarantee quality?
We have proffesional technical team who can help customer to do the product test and technical trainning.Also, before mass order,we can have a sample order first.
3. What you can get from us?
Solar panels including the top brands and our own brand.Solar inverters including On-grid/Off-grid inverters and Hybrid inverters.Solar energy storage system including the batteries, the BMS platform and the integrated system.
4. Why choose us?
We have more than 10 years experience in PV industry. Also we sell the solar products all around the world since 2018. A proffesional team makes us having lots of successful projects during the past several years. Proffesinal technical team can maintain our service on technical support and after-sale service. Whole supply chain can maintain the requirments from customers.
5. Some features
Deliver Terms: EXW, FOB, CIF and etc.Payment Terms: T/T, L/C, MoneyGram, Paypal, WesternUnion and Cash.
Export Ports: Ningbo, Shanghai, Shenzhen and Hongkong
We are based in Hefei, Anhui, China, established in 2018. We are proffesional Solar system and Products provider. For the past years, we have rich experience and lots of successful projects all around the world. We have whole supply chain on PV products andwe have our own factory so we can provide OEM service for customer.
2. How can we guarantee quality?
We have proffesional technical team who can help customer to do the product test and technical trainning.Also, before mass order,we can have a sample order first.
3. What you can get from us?
Solar panels including the top brands and our own brand.Solar inverters including On-grid/Off-grid inverters and Hybrid inverters.Solar energy storage system including the batteries, the BMS platform and the integrated system.
4. Why choose us?
We have more than 10 years experience in PV industry. Also we sell the solar products all around the world since 2018. A proffesional team makes us having lots of successful projects during the past several years. Proffesinal technical team can maintain our service on technical support and after-sale service. Whole supply chain can maintain the requirments from customers.
5. Some features
Deliver Terms: EXW, FOB, CIF and etc.Payment Terms: T/T, L/C, MoneyGram, Paypal, WesternUnion and Cash.
Export Ports: Ningbo, Shanghai, Shenzhen and Hongkong
